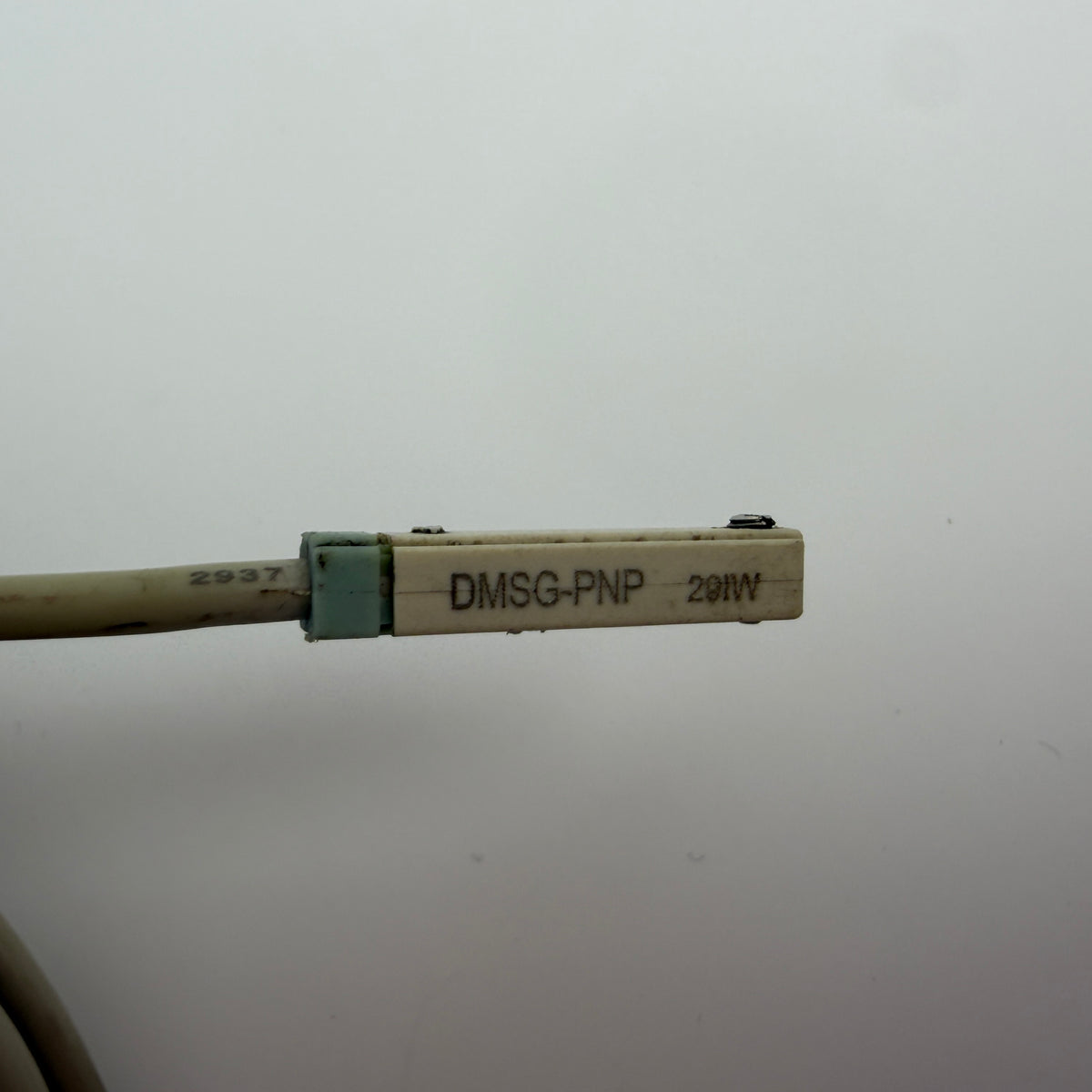

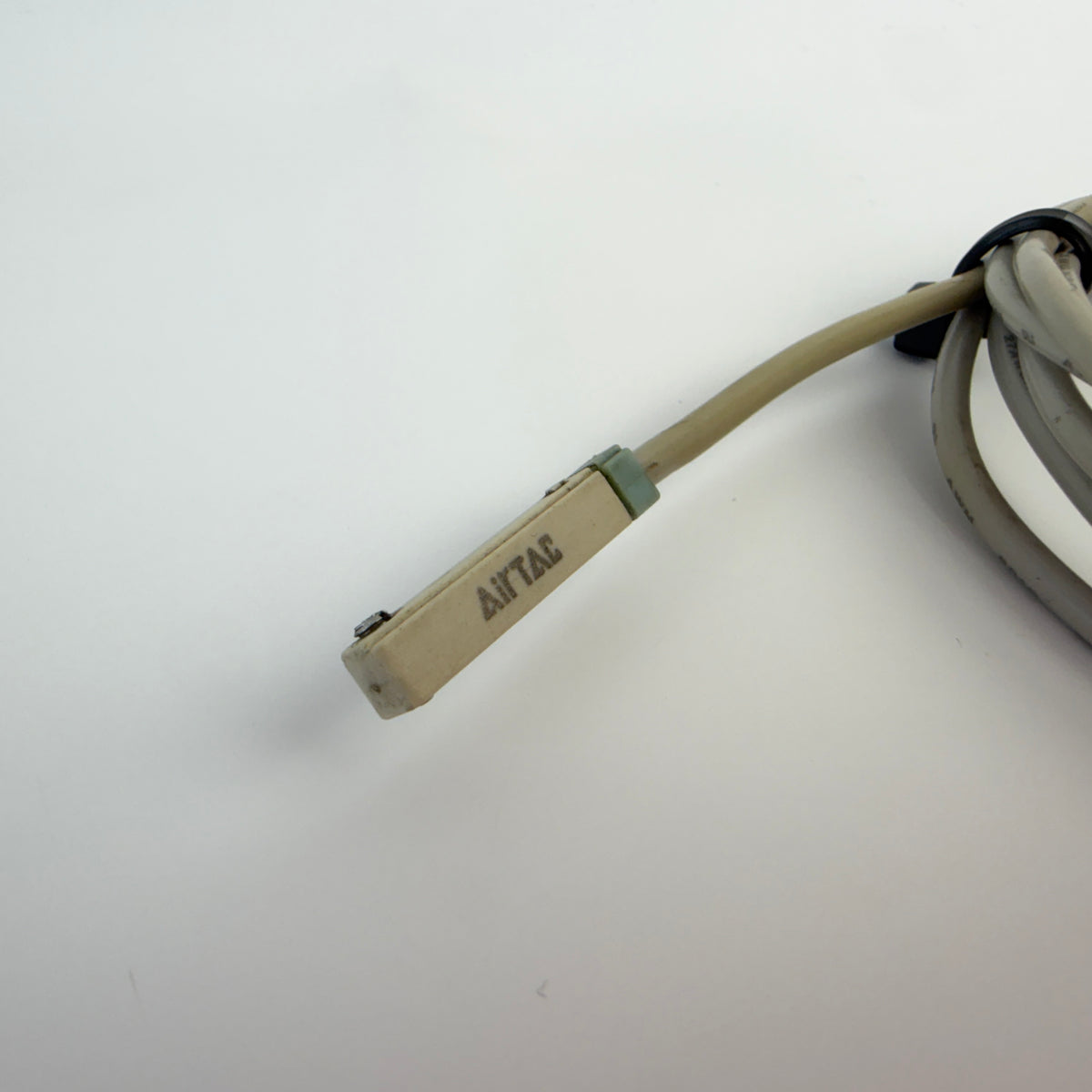

AirTAC DMSG-PNP solid-state magnetic sensor designed for pneumatic cylinder piston position detection.
This electronic magnetic sensor features a 3-wire PNP output and operates from 5–30 V DC. It is designed to detect the magnetic piston position in compatible pneumatic cylinders and is suitable for industrial automation and pneumatic control applications.
The sensor has an integrated status indicator and a maximum switching frequency of 1000 Hz.

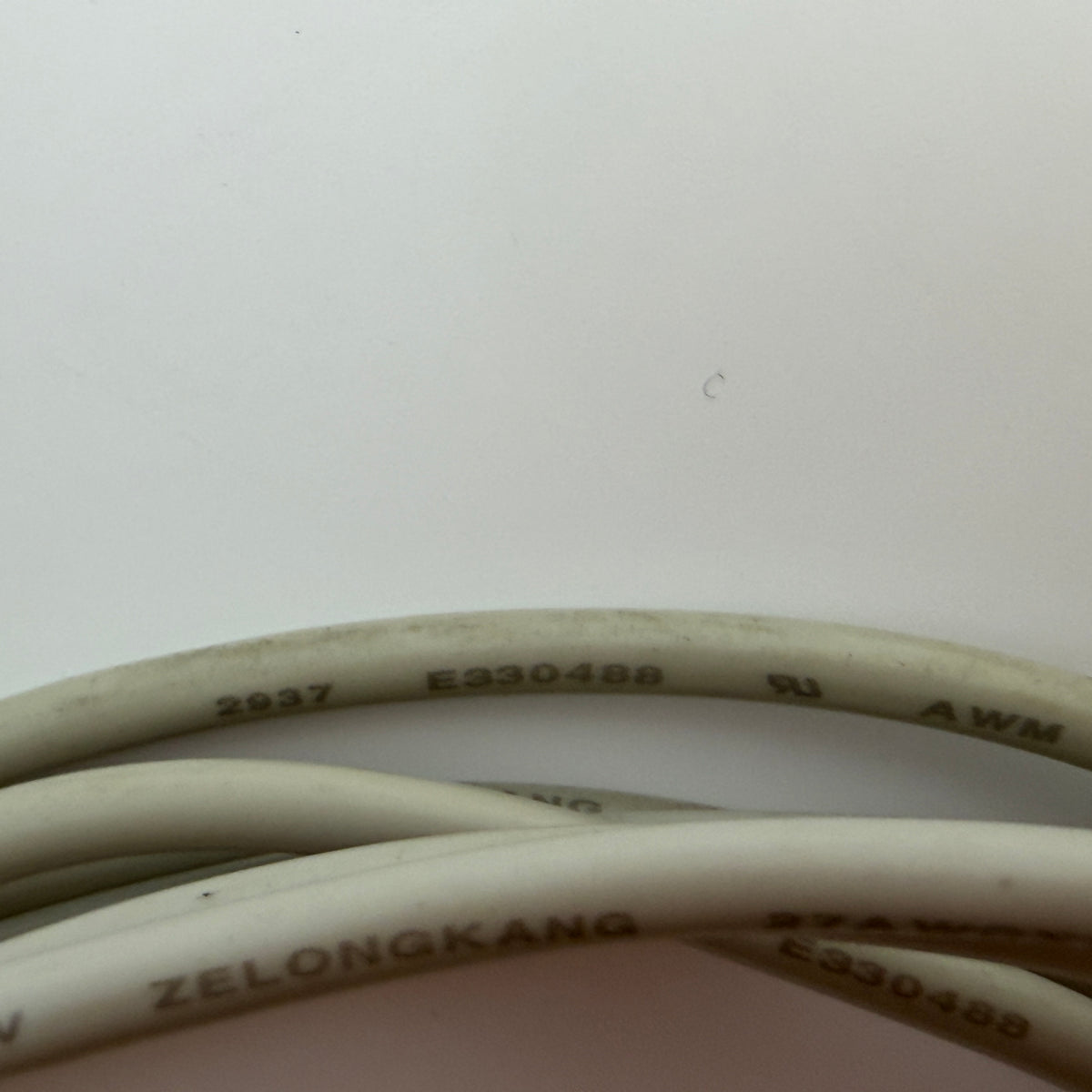

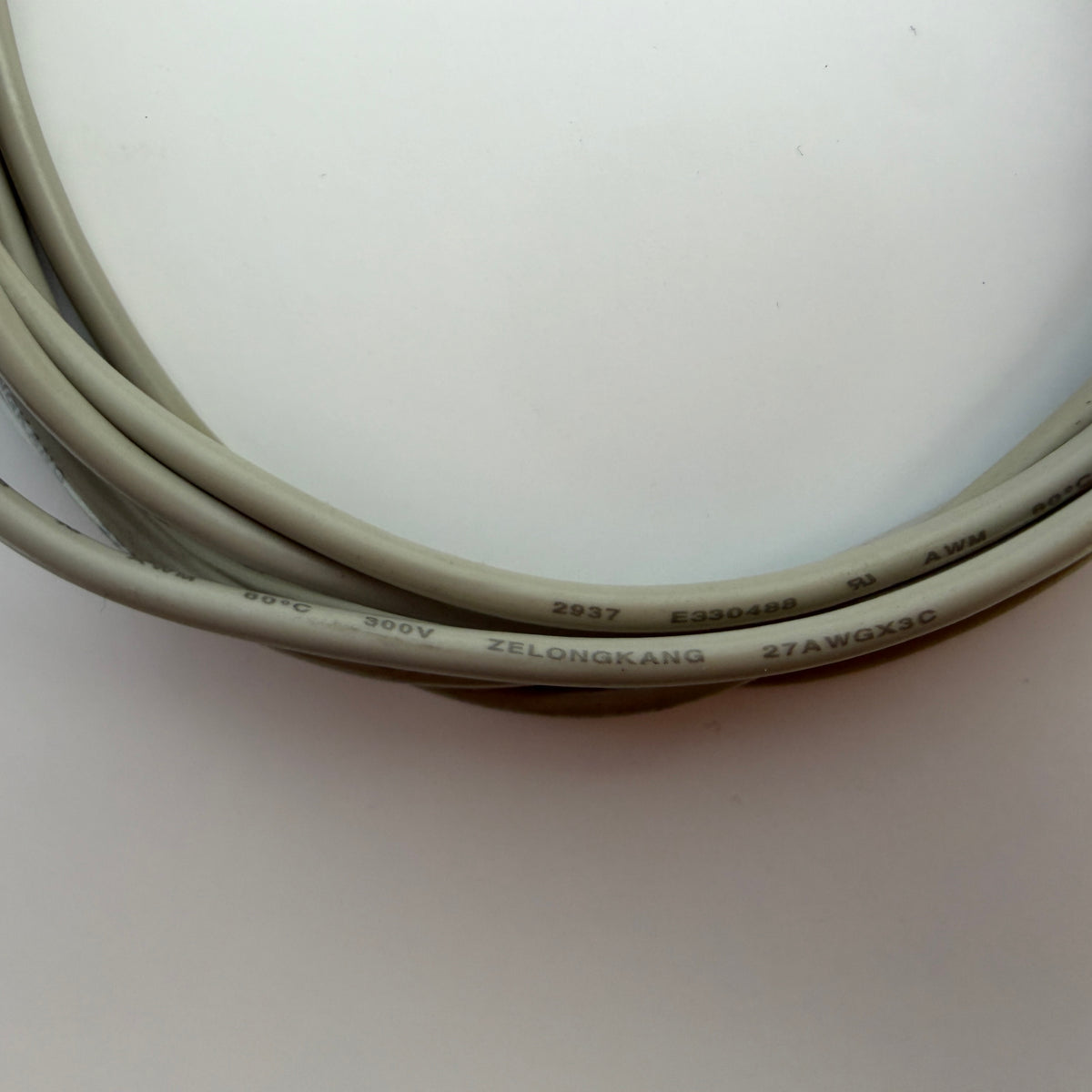

This particular used unit has an approximately 180 cm cable, as measured on the actual item.
Supplied exactly as pictured.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AirTAC |
| Model | DMSG-PNP |
| Series | DMS / DMSG |
| Product Type | Magnetic cylinder position sensor |
| Sensor Technology | Solid-state electronic |
| Application | Pneumatic cylinder piston position detection |
| Output | PNP |
| Wiring | 3-wire |
| Operating Voltage | 5–30 V DC |
| Max. Switching Current | 200 mA |
| Max. Switching Capacity | 6 W |
| Internal Current Consumption | Max. 5 mA |
| Internal Voltage Drop | Max. 0.7 V |
| Leakage Current | Max. 0.01 mA |
| Switching Frequency | 1000 Hz |
| Impact Resistance | 30 G |
| Protection Circuit | Reverse polarity / surge protection |
| Operating Temperature | -10°C to +70°C |
| General Type Protection | IP64 |
| Compliance | CE, RoHS |
| Actual Cable Length | Approx. 180 cm |
| Additional Marking | 291W |
Package Contents
1 × AirTAC DMSG-PNP magnetic sensor with approx. 180 cm cable, as pictured.
