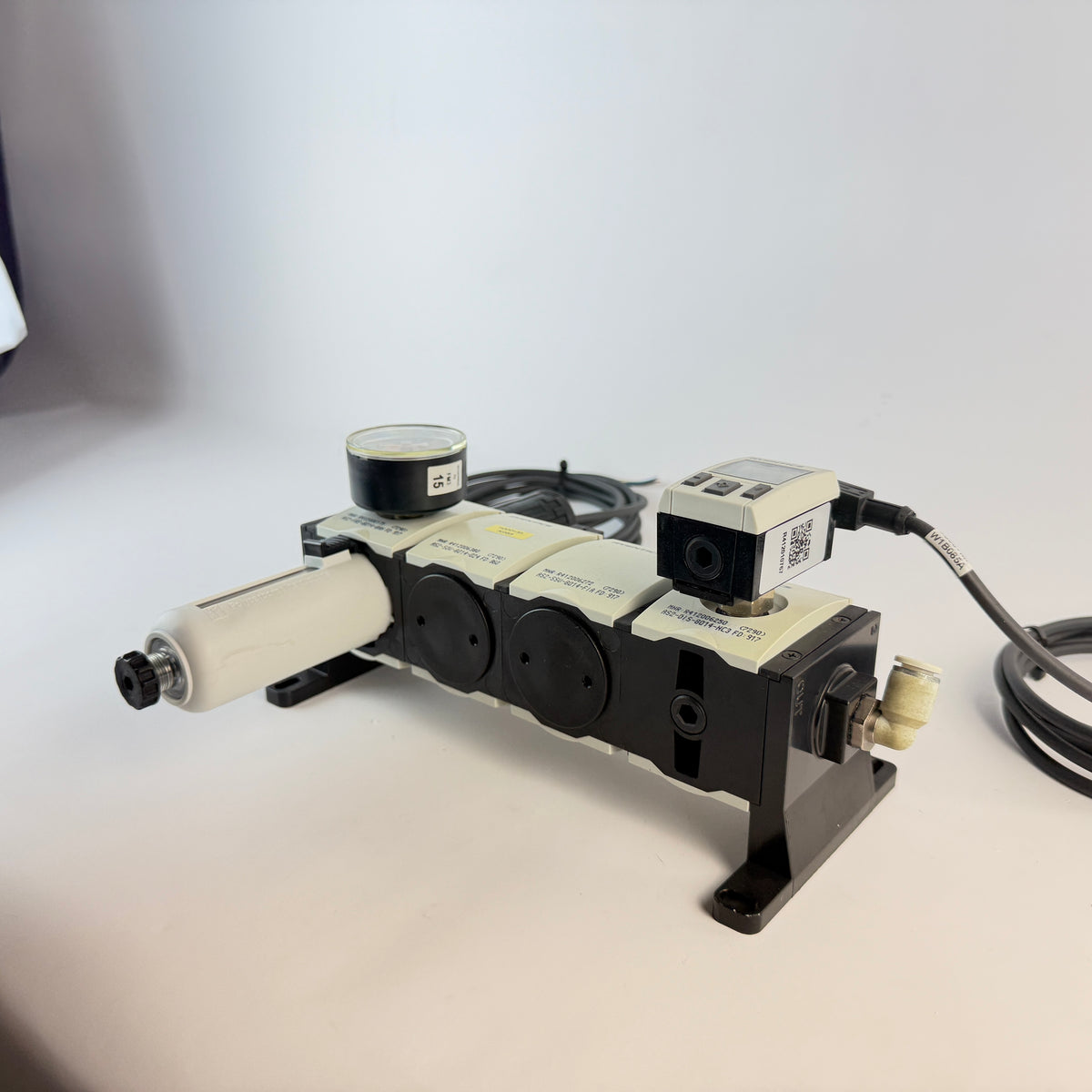

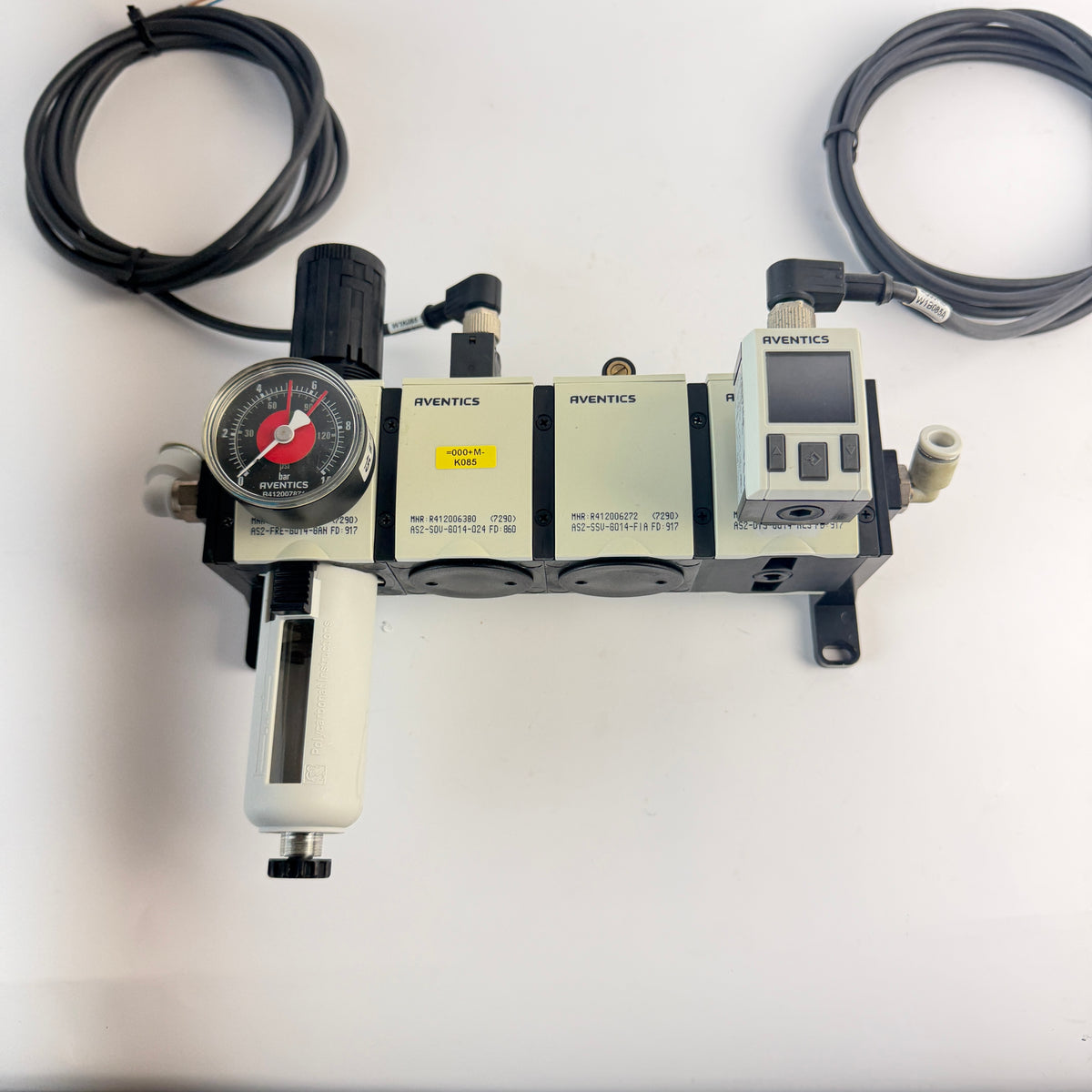

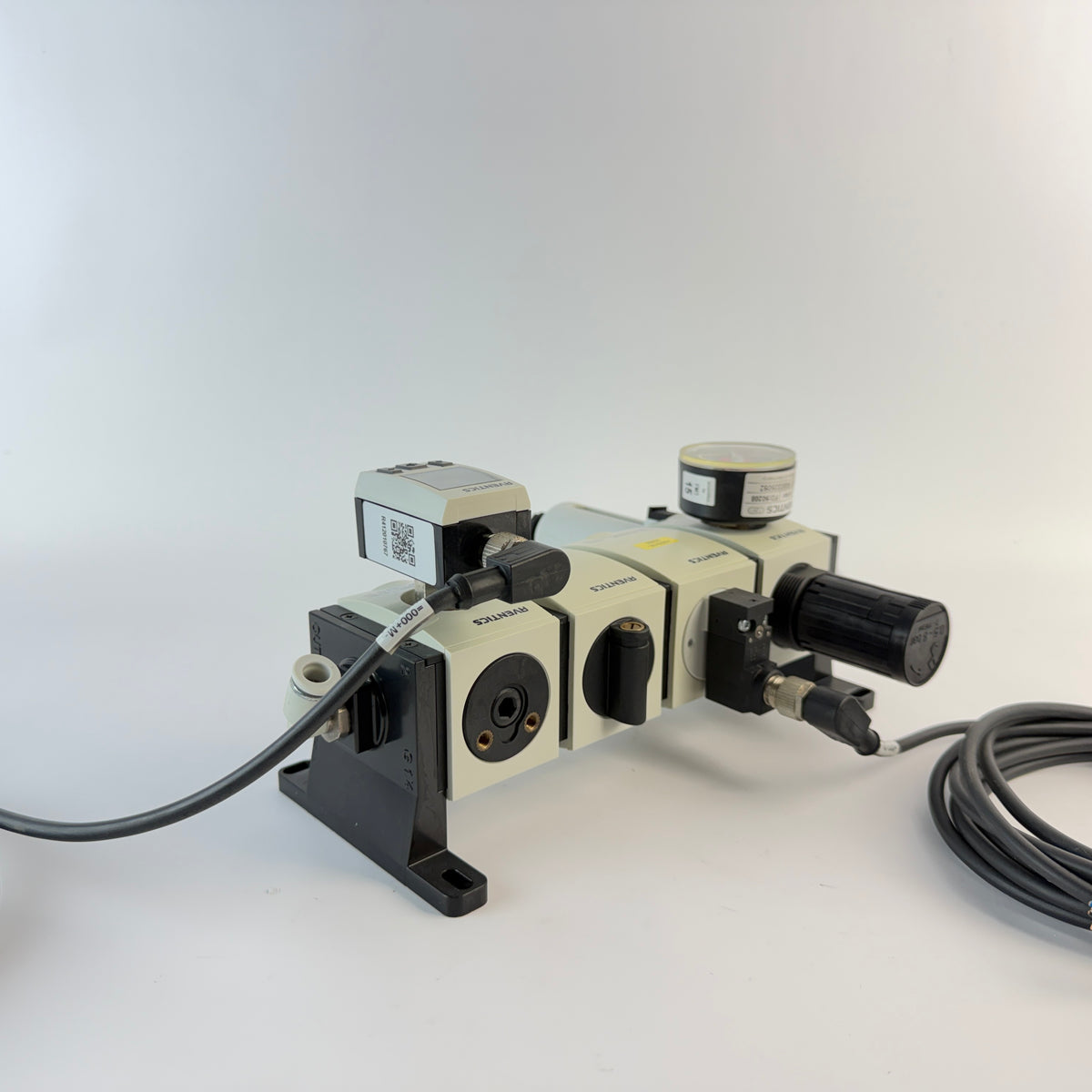

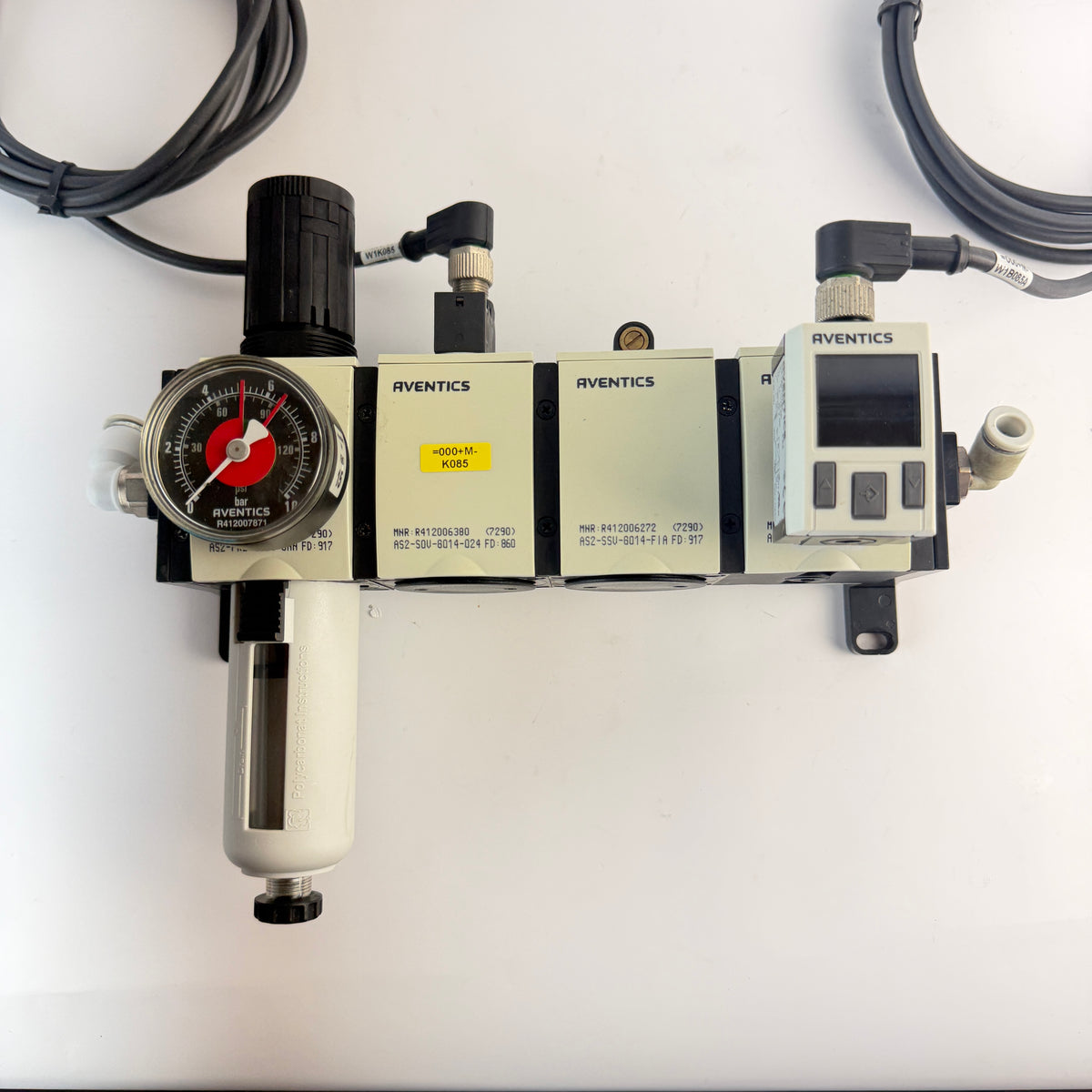

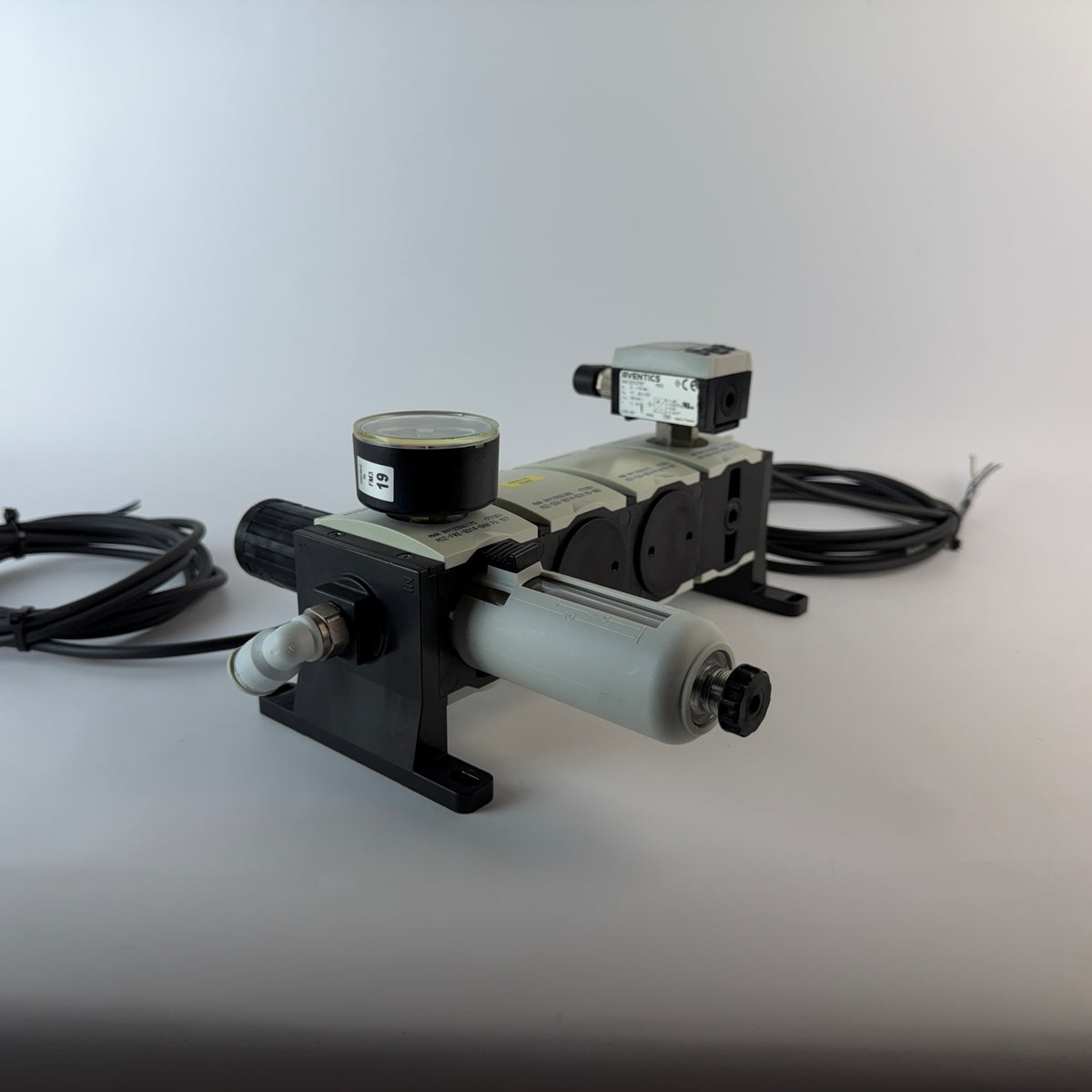

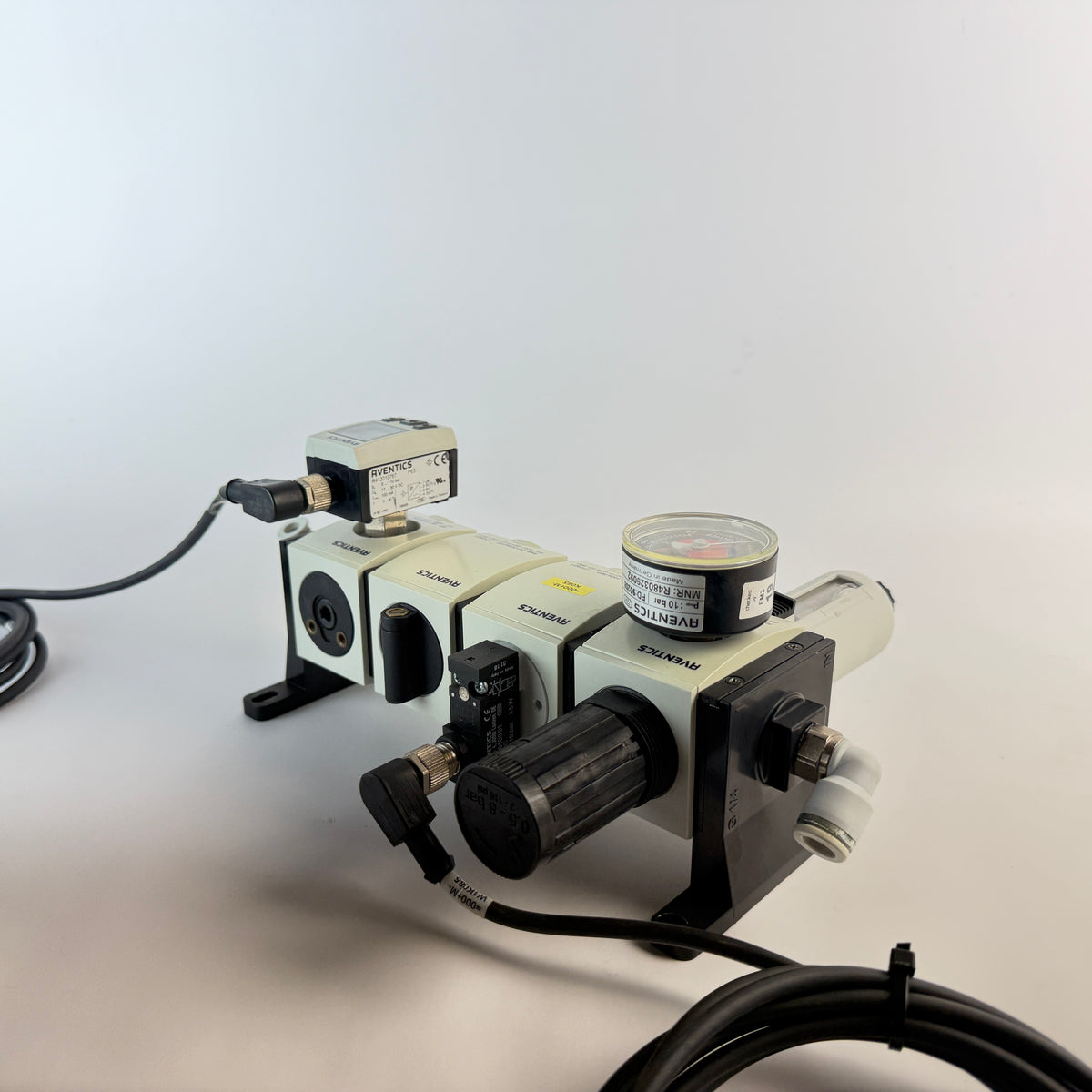

Complete AVENTICS AS2 modular compressed-air preparation and control assembly with filter pressure regulator, electrically operated shut-off valve, pneumatic filling/soft-start valve, air distributor and PE5 electronic pressure sensor.

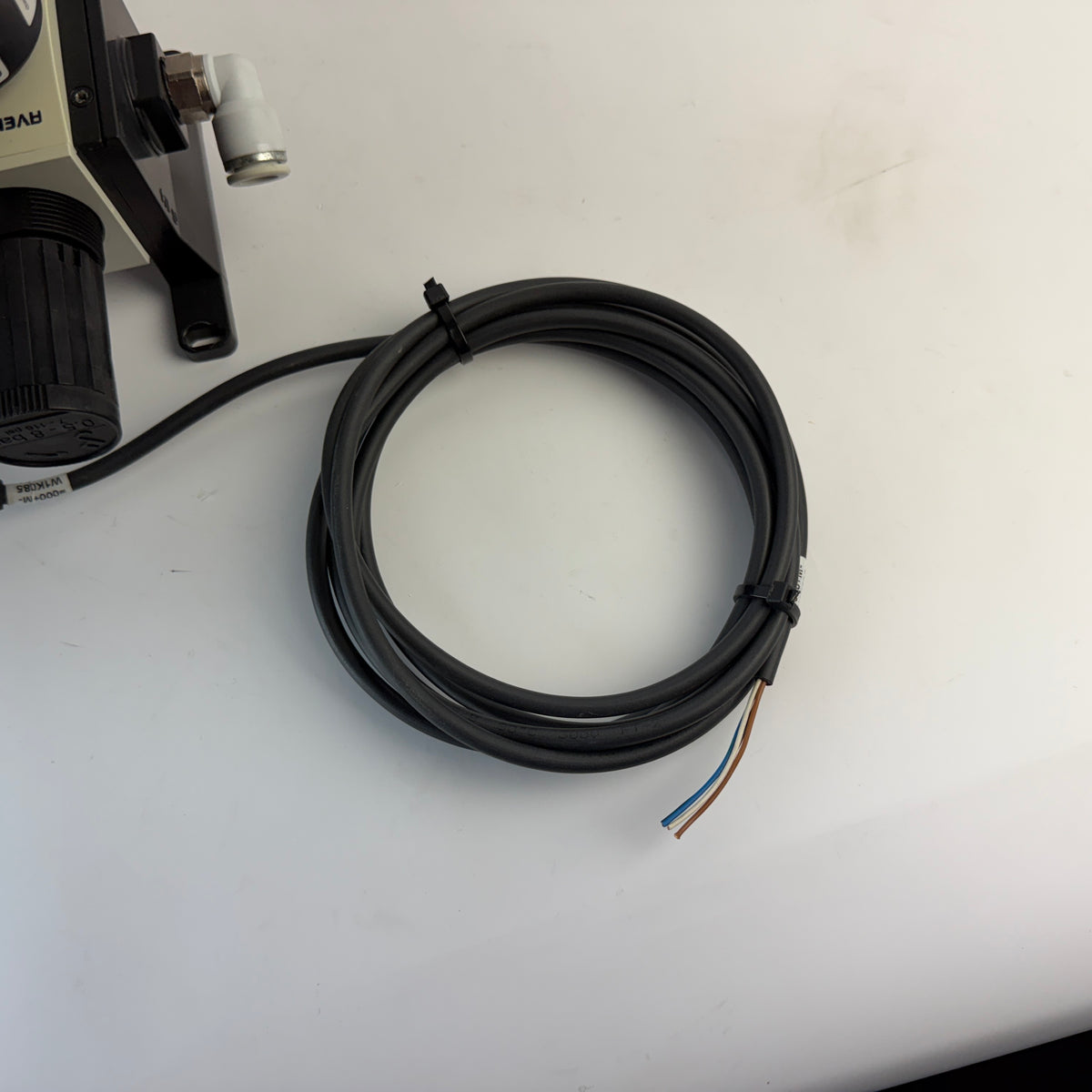

The assembly is supplied complete as pictured with pressure gauge, filter bowl, mounting brackets, electrical cables, pneumatic fittings and installed pilot/solenoid valve.

Main components:

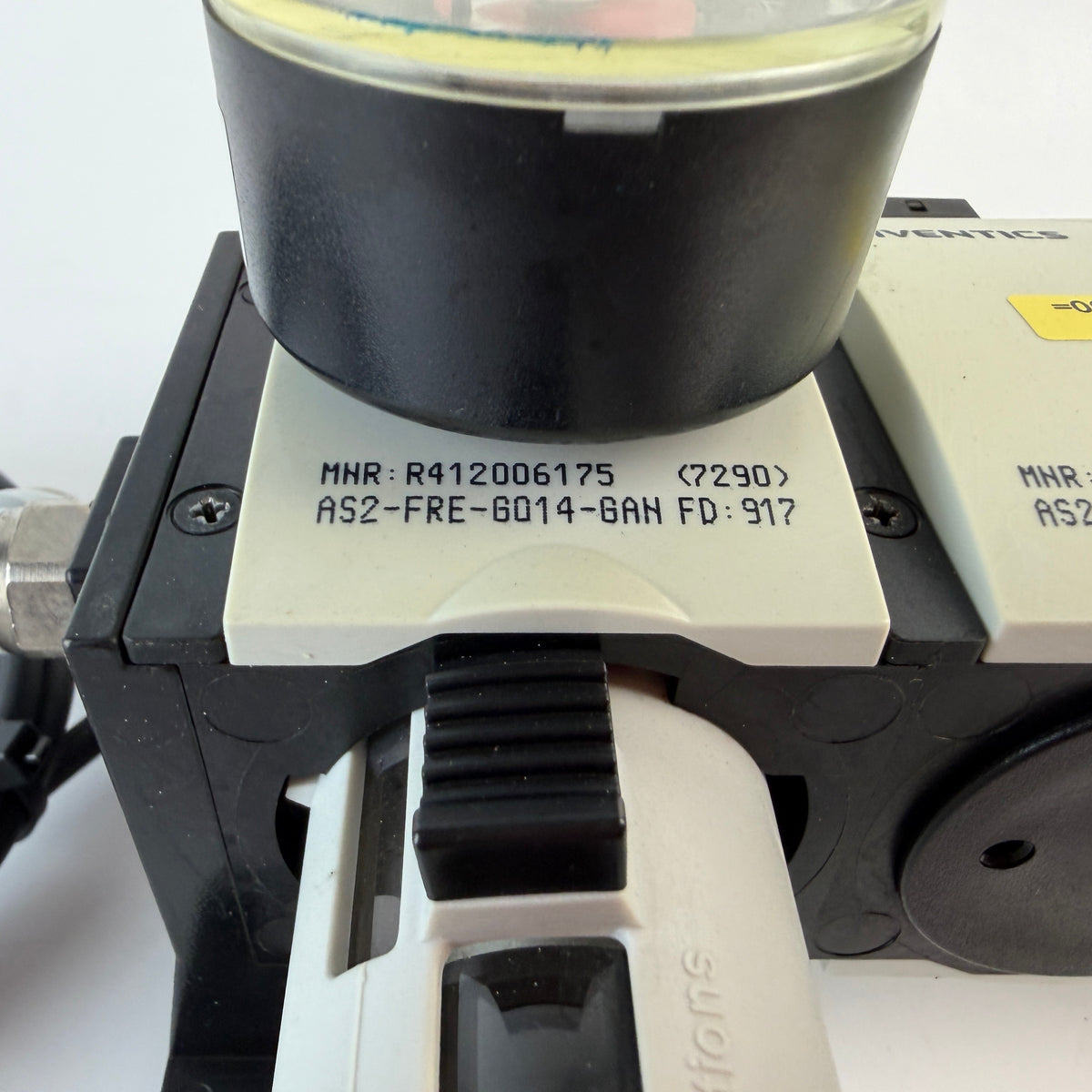

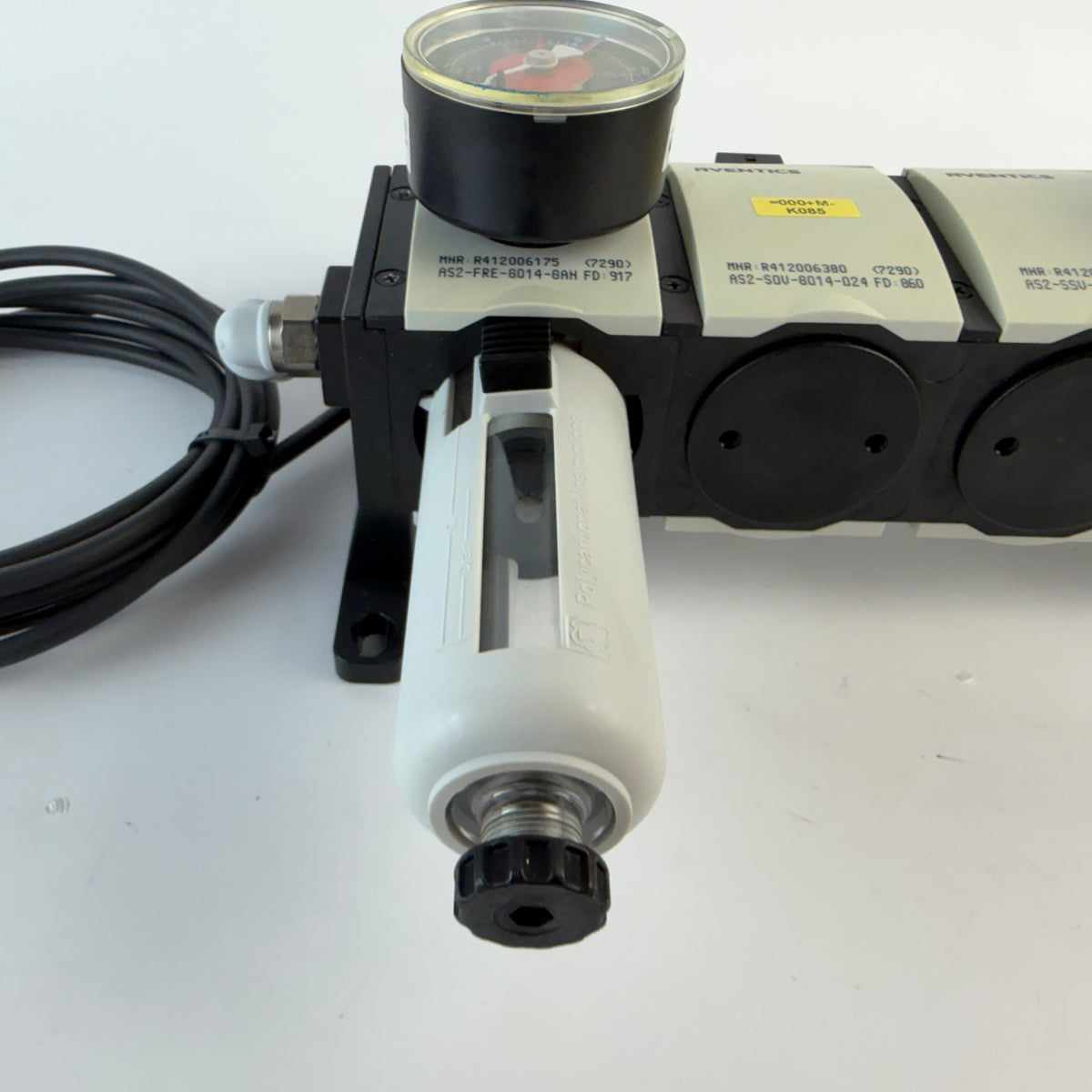

AVENTICS R412006175 – AS2-FRE-G014-GAH

• Series: AS2-FRE
• Type: Filter pressure regulator
• Pneumatic connection: G1/4
• Filter porosity: 5 µm
• Nominal flow: 2100 l/min
• Working pressure: 1.5–16 bar
• Diaphragm-type regulator
• Relieving exhaust
• Semi-automatic condensate drain, open without pressure
• Vertical mounting orientation
• Medium: Compressed air / neutral gases
• Ambient temperature: -10 to +50 °C

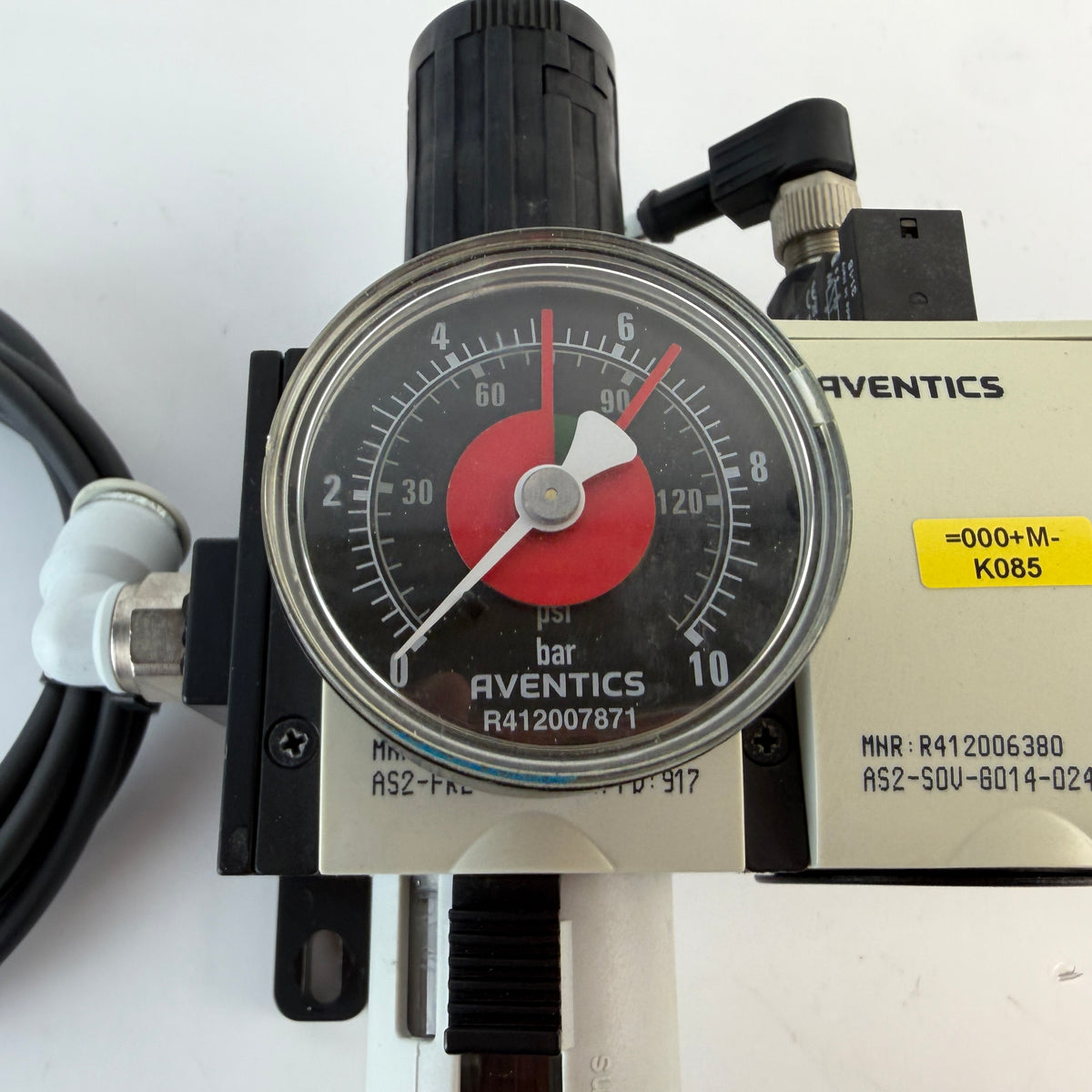

• Installed pressure gauge

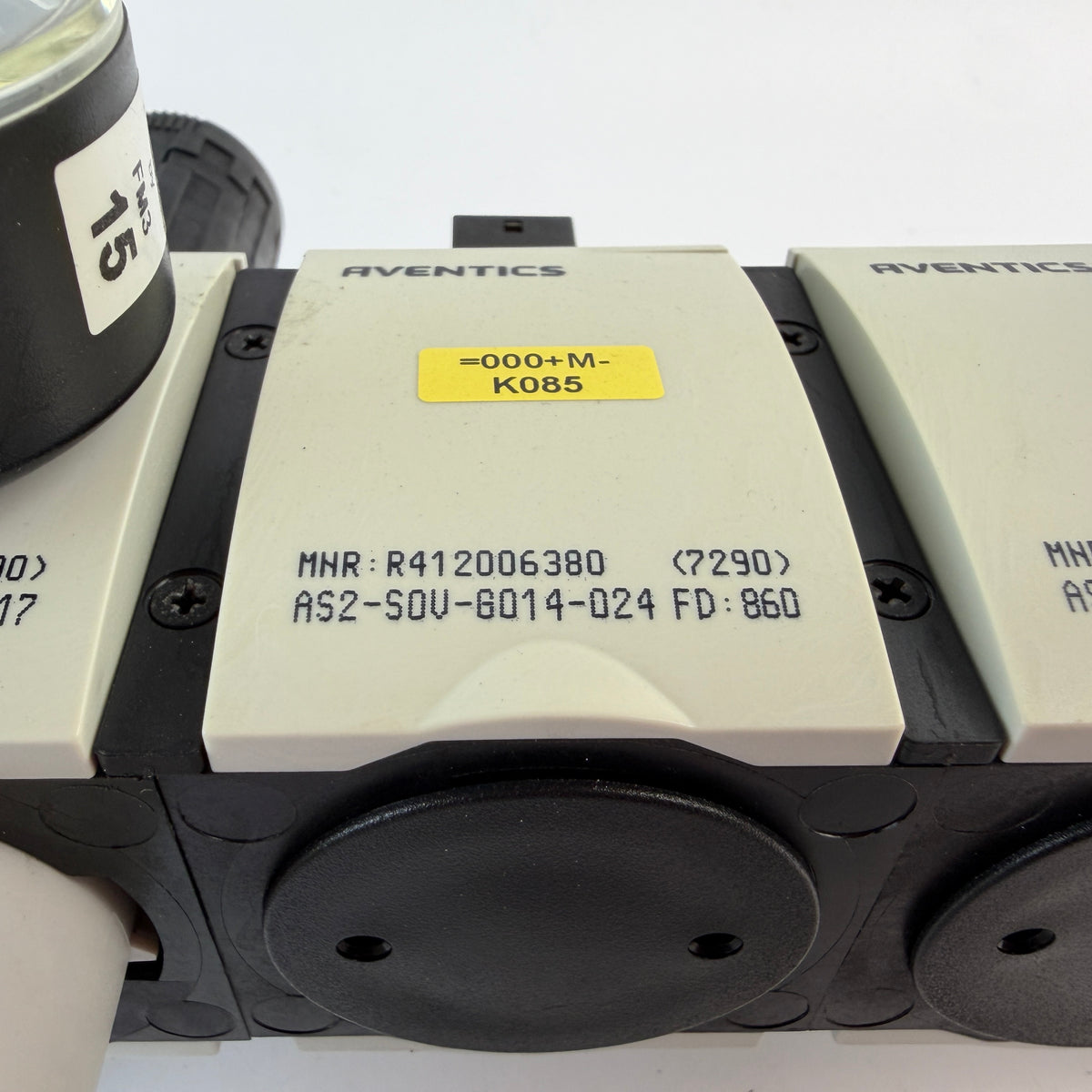

AVENTICS R412006380 – AS2-SOV-G014-024

• Series: AS2-SOV
• Type: Electrically operated shut-off valve
• 24 V DC version
• Pneumatic connection: G1/4
• Installed electrical connection and cable

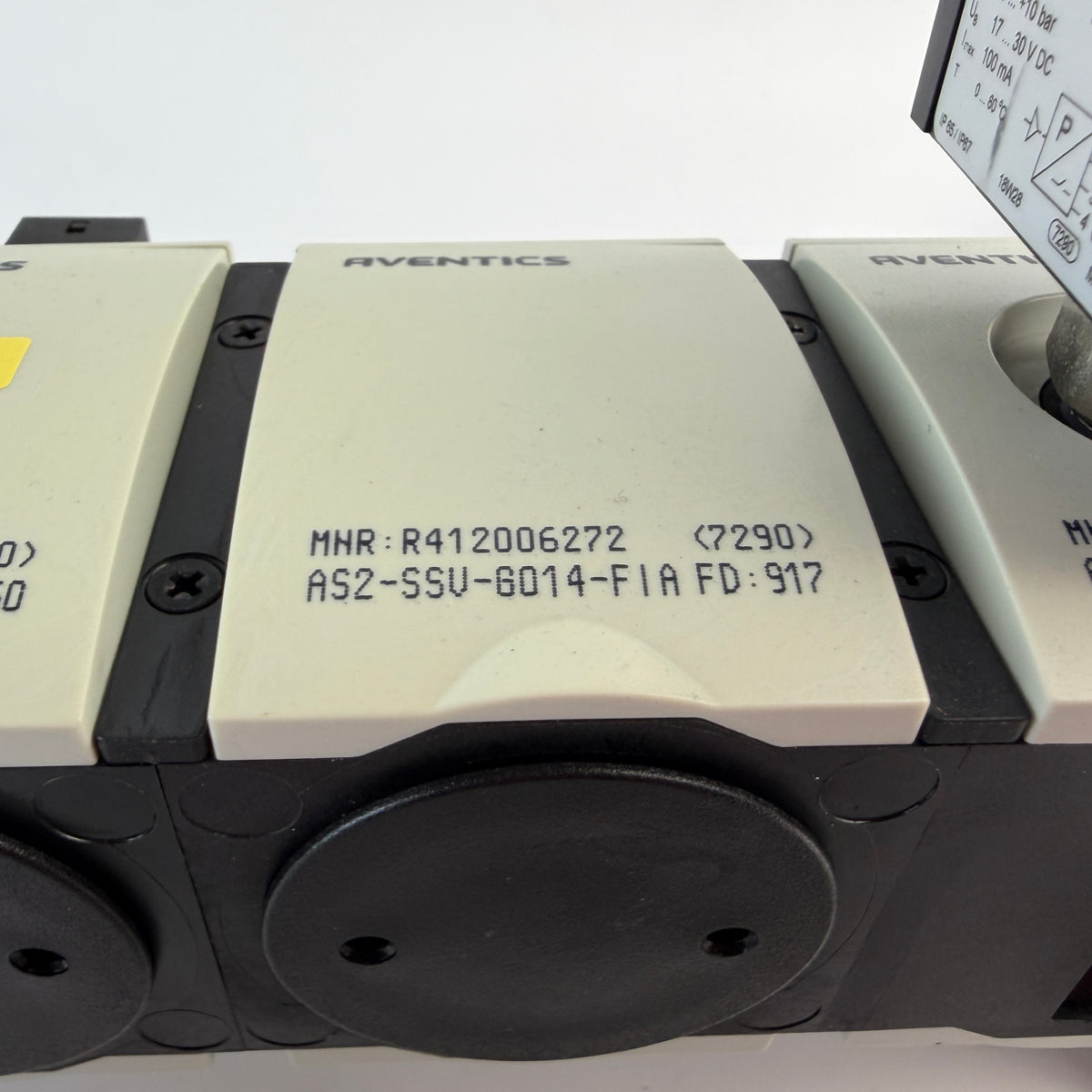

AVENTICS R412006272 – AS2-SSV-G014-FIA

• Series: AS2-SSV
• Type: Pneumatically operated filling / soft-start valve
• Pneumatic connection: G1/4
• Working pressure: 2.5–16 bar
• Nominal flow: 2000 l/min
• Poppet valve with soft sealing
• Medium: Compressed air / neutral gases
• Ambient temperature: -10 to +50 °C

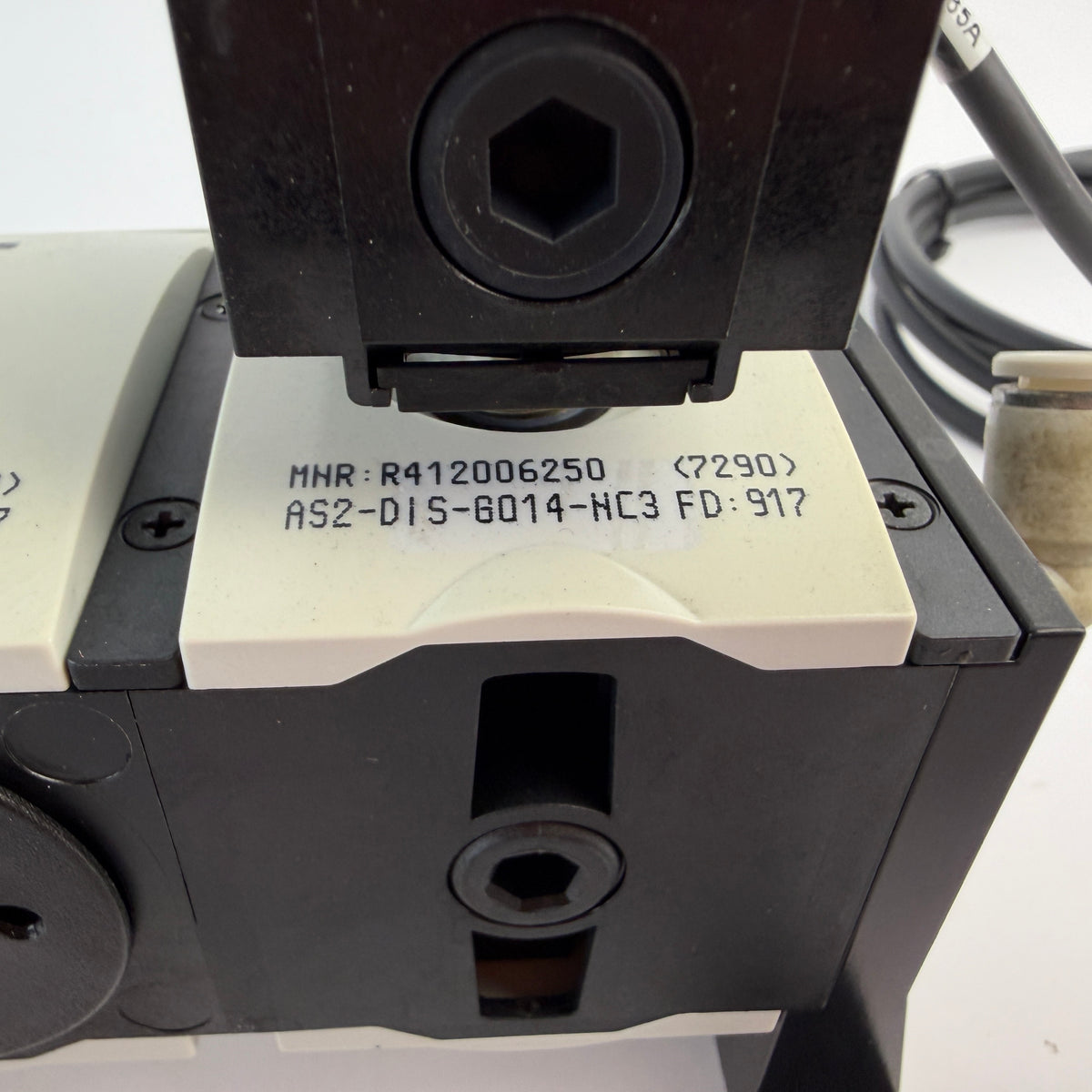

AVENTICS R412006250 – AS2-DIS-G014-NC3

• Series: AS2-DIS
• Type: 3-way distributor
• Pneumatic connection: G1/4
• Working pressure: 0–16 bar
• Nominal flow 1 → 2: 2700 l/min
• Nominal flow 1 → 3: 2000 l/min
• Nominal flow 1 → 4: 900 l/min
• Nominal flow 1 → 5: 2000 l/min
• Medium: Compressed air / neutral gases

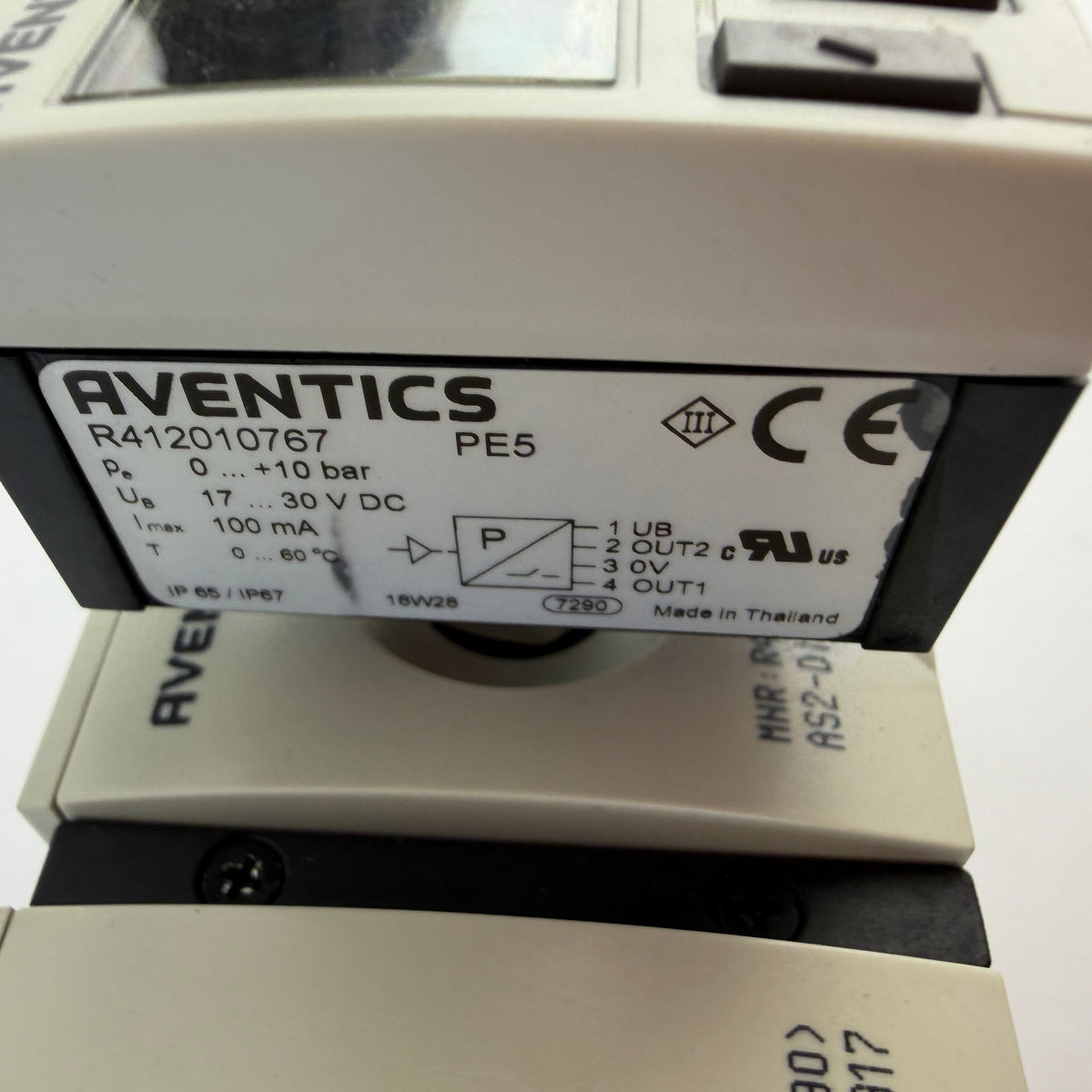

AVENTICS R412010767 – PE5

• Electronic relative-pressure sensor
• Measuring range: 0–10 bar
• Supply voltage: 17–30 V DC
• LCD digital display
• Pneumatic connection: G1/4
• Electrical connection: M12x1, 4-pin
• Analog output: 0–10 V DC / 4–20 mA
• Adjustable switching logic and switching points
• Protection: IP65 / IP67 with connections assembled
• Country of Origin: Thailand

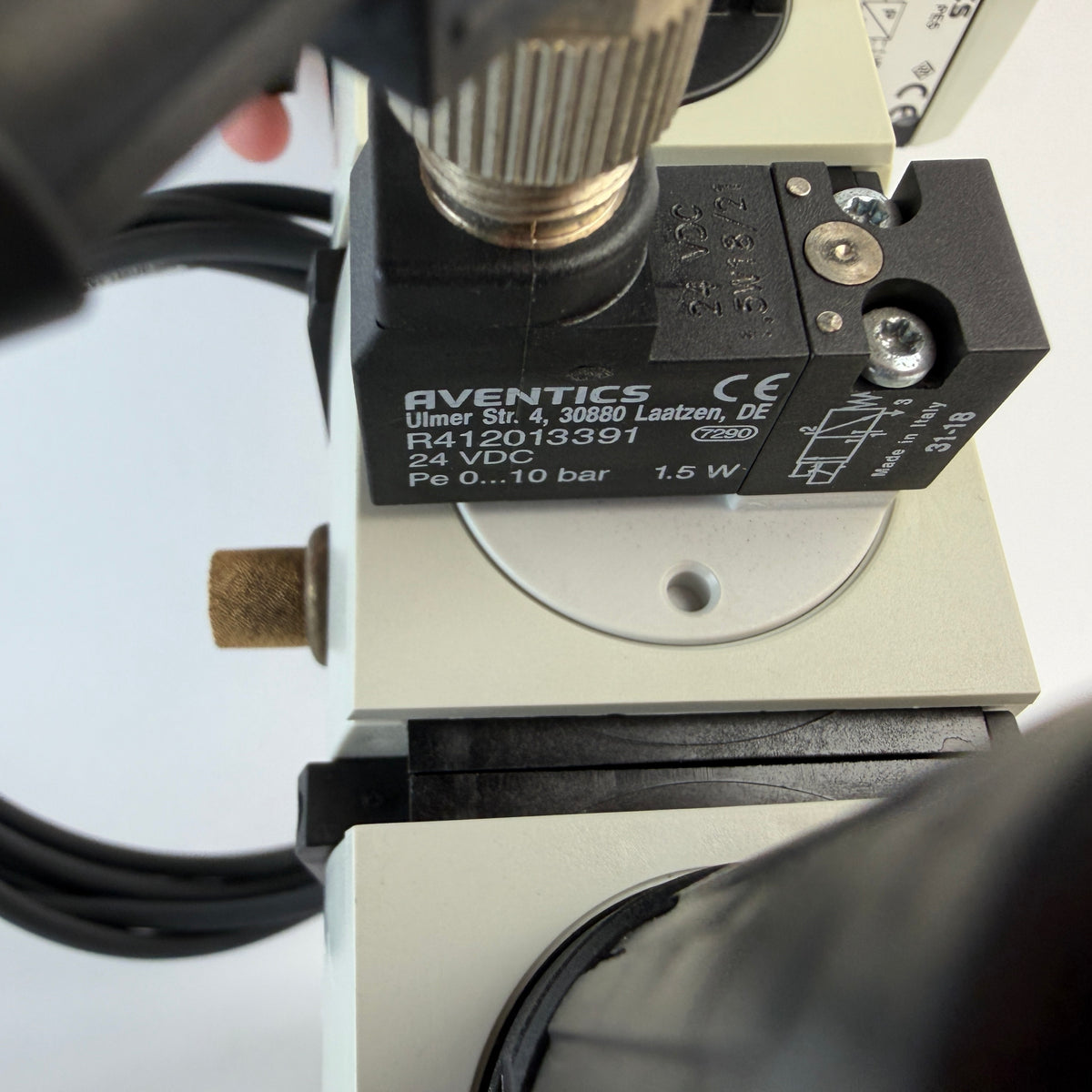

The assembly also incorporates an AVENTICS R412013391 pilot/solenoid valve marked 24 V DC, 1.5 W and Made in Italy.

Exact part numbers of the installed fittings, cables and other accessory hardware have not been confirmed.

Condition: Used, fully functional.
