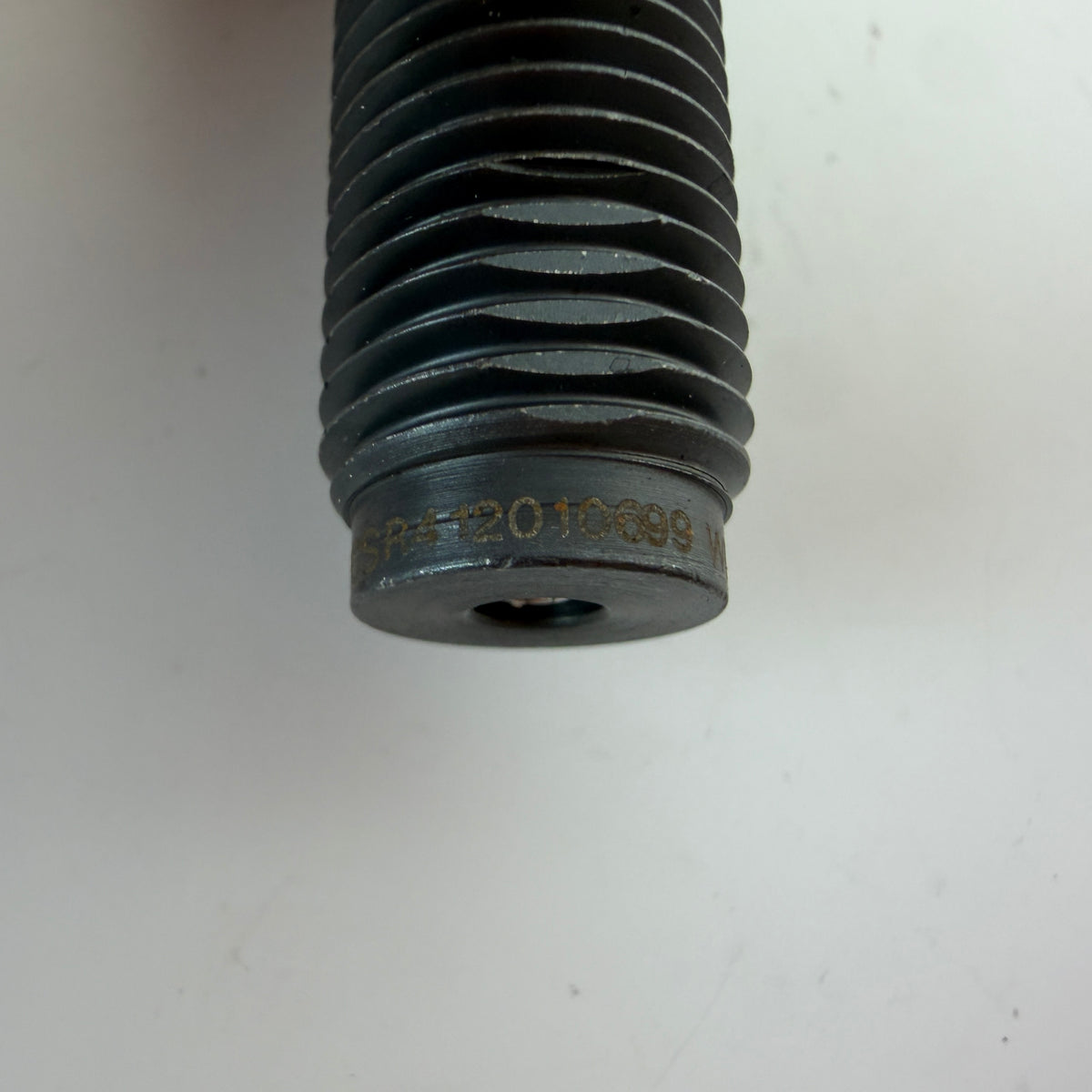

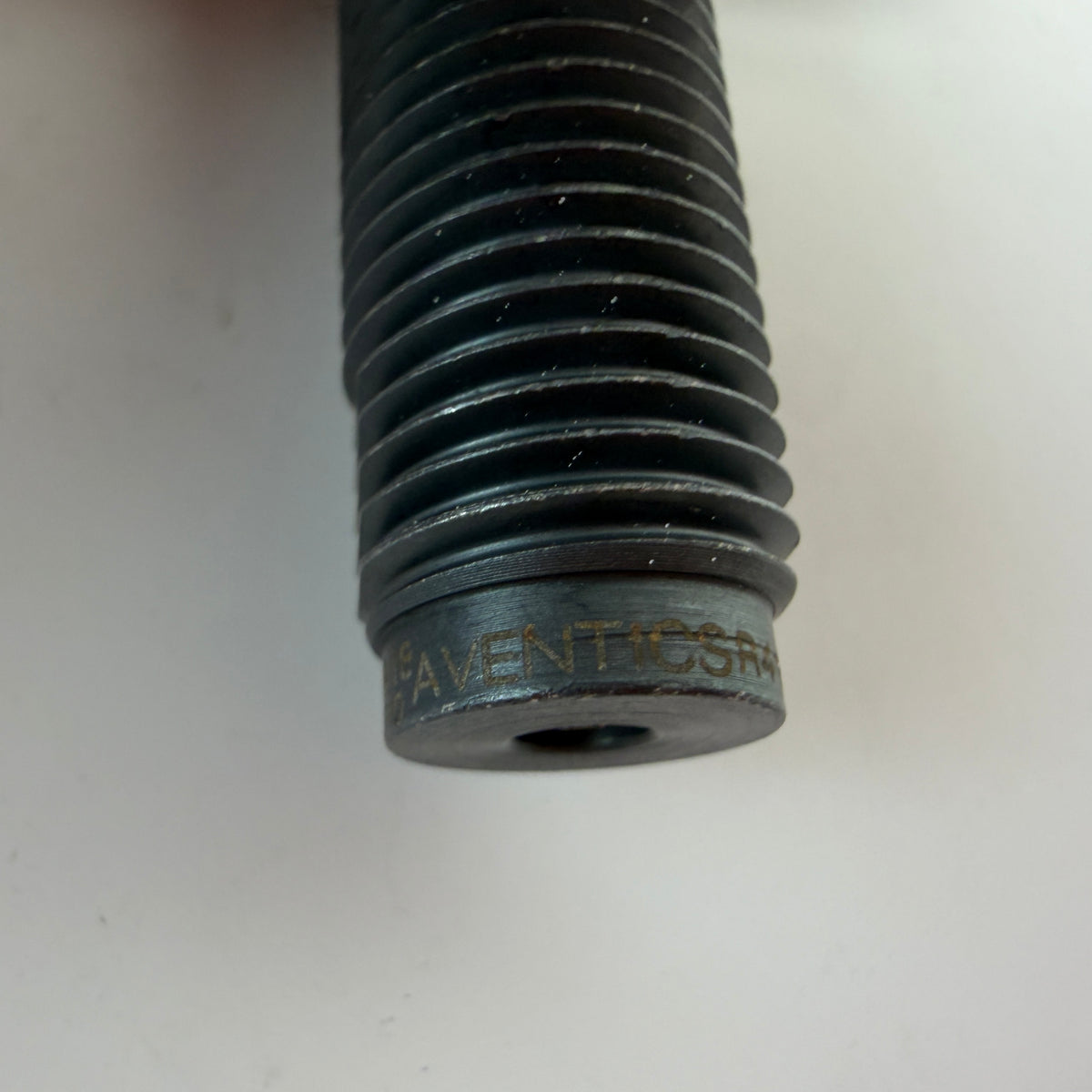

AVENTICS R412010699 industrial shock absorber from the Series SA2-RT, designed for controlled deceleration and energy absorption in industrial motion applications.

This self-compensating shock absorber is the medium cushioning version for AVENTICS RTC-25, RTC-32 and RTC-40 series rodless cylinders. It features an M14 x 1.5 mounting thread, 14 mm stroke and lock-nut mounting.

Technical specifications:

• Manufacturer: AVENTICS
• Series: SA2-RT
• Part Number: R412010699
• Type: Industrial Shock Absorber
• Cushioning: Self-compensating
• Cushioning Hardness: M – Medium
• Stroke: 14 mm
• Mounting Thread: M14 x 1.5
• Mounting: Lock nut
• Compatible Series: RTC-25, RTC-32, RTC-40
• Maximum Energy Absorption per Stroke: 30 Nm
• Maximum Energy Absorption per Hour: 50,000 Nm
• Effective Mass Range: 9.9–76 kg
• Impact Speed Range: 0.9–2.5 m/s
• Return Spring Force: 13–23 N
• Ambient Temperature Range: -10°C to +60°C
• Medium: Oil
• Shock Absorber Length: 69 mm
• Wrench Size: 17 mm
• Cylinder Tube Material: Steel
• Piston Rod Material: Stainless Steel

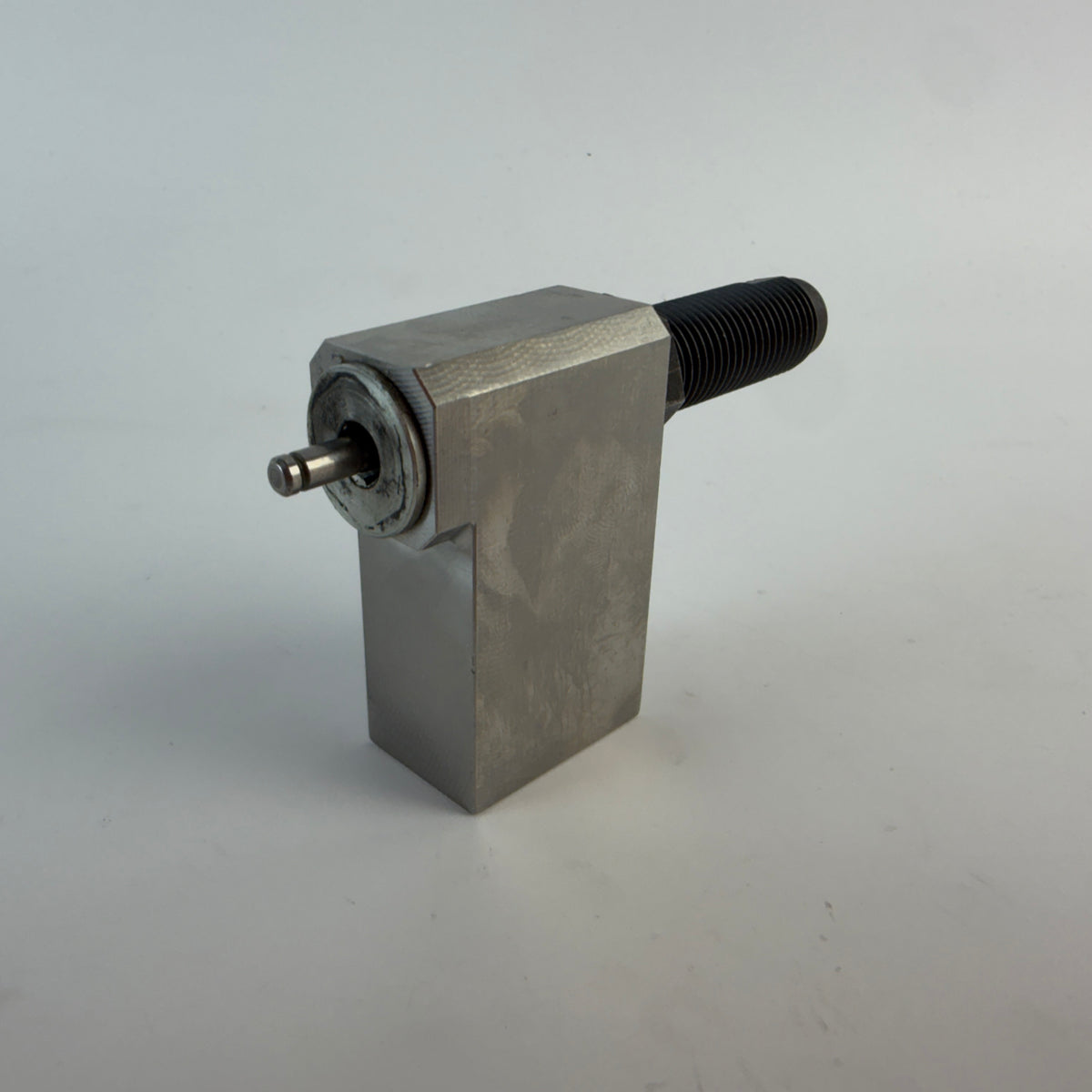

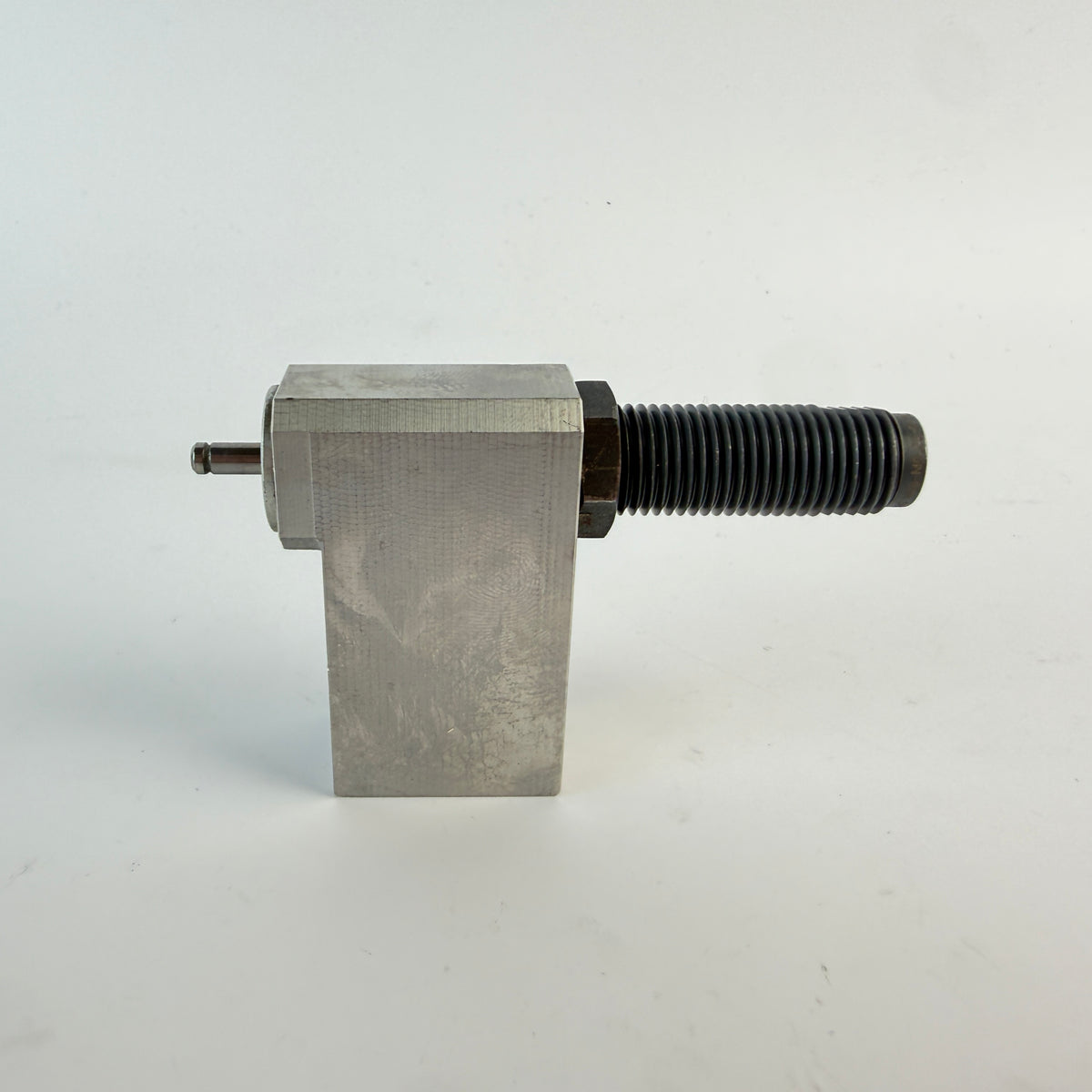

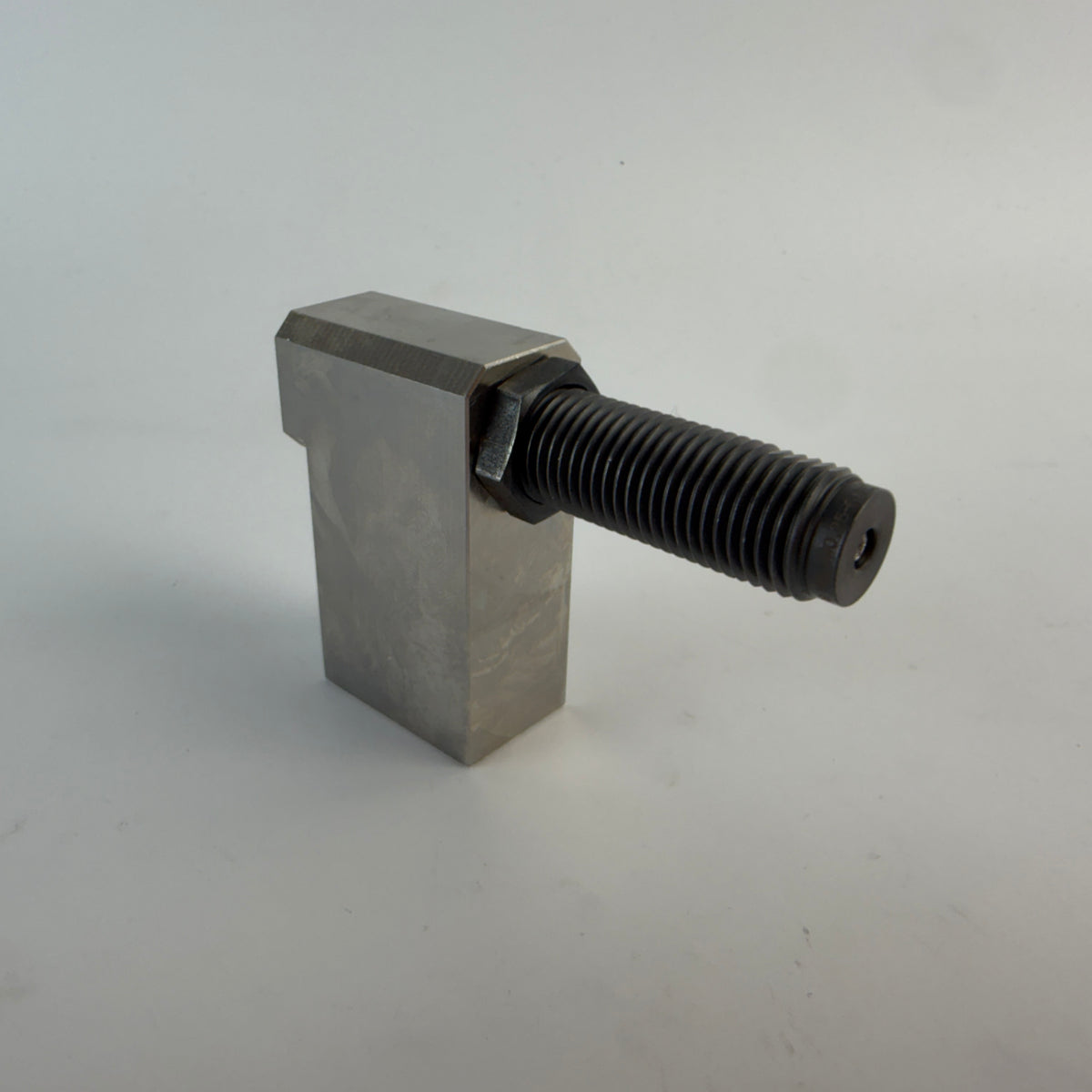

The shock absorber is supplied installed in the metal mounting block shown in the photos. The exact manufacturer and part number of the mounting block are not confirmed.

Used, fully functional.
