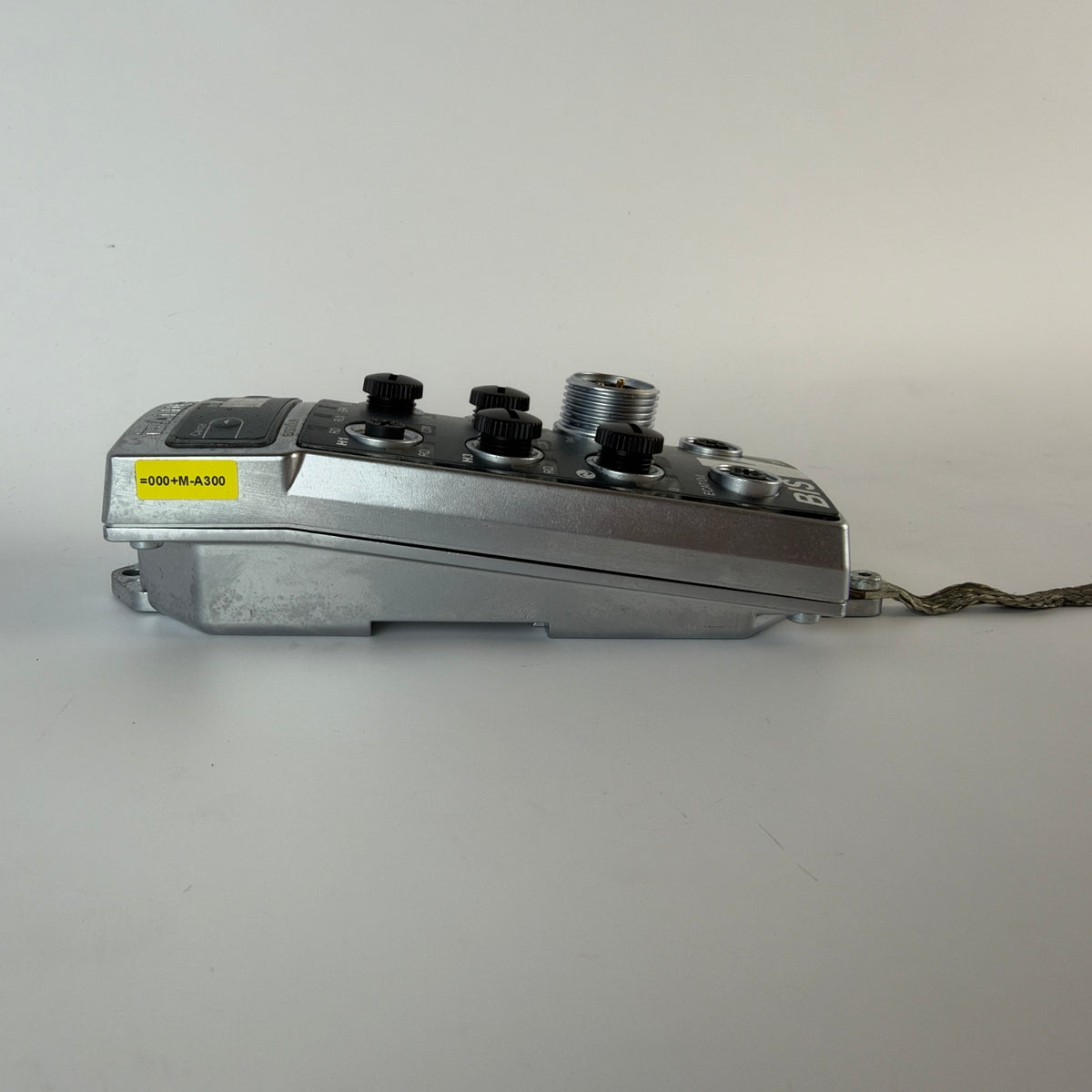

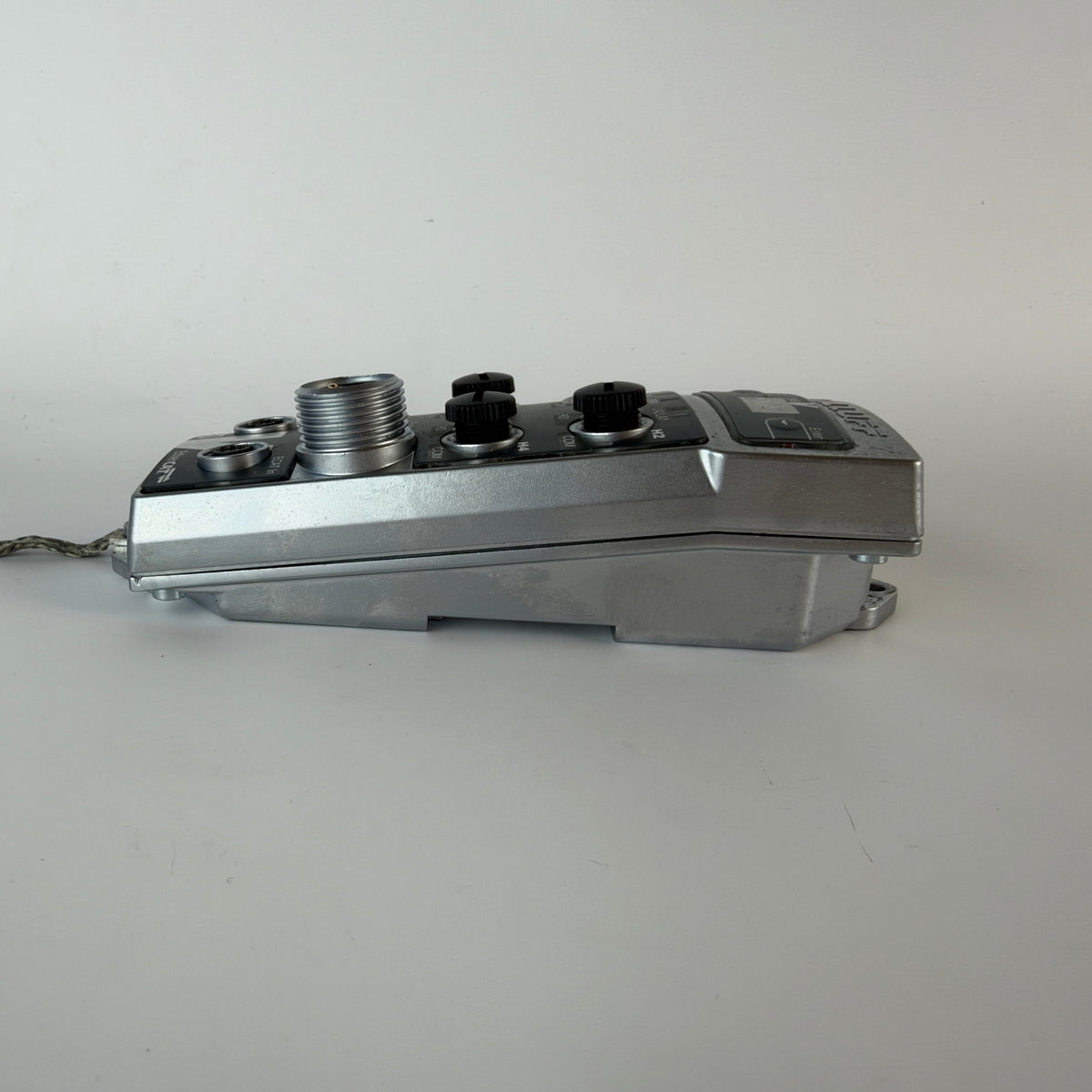

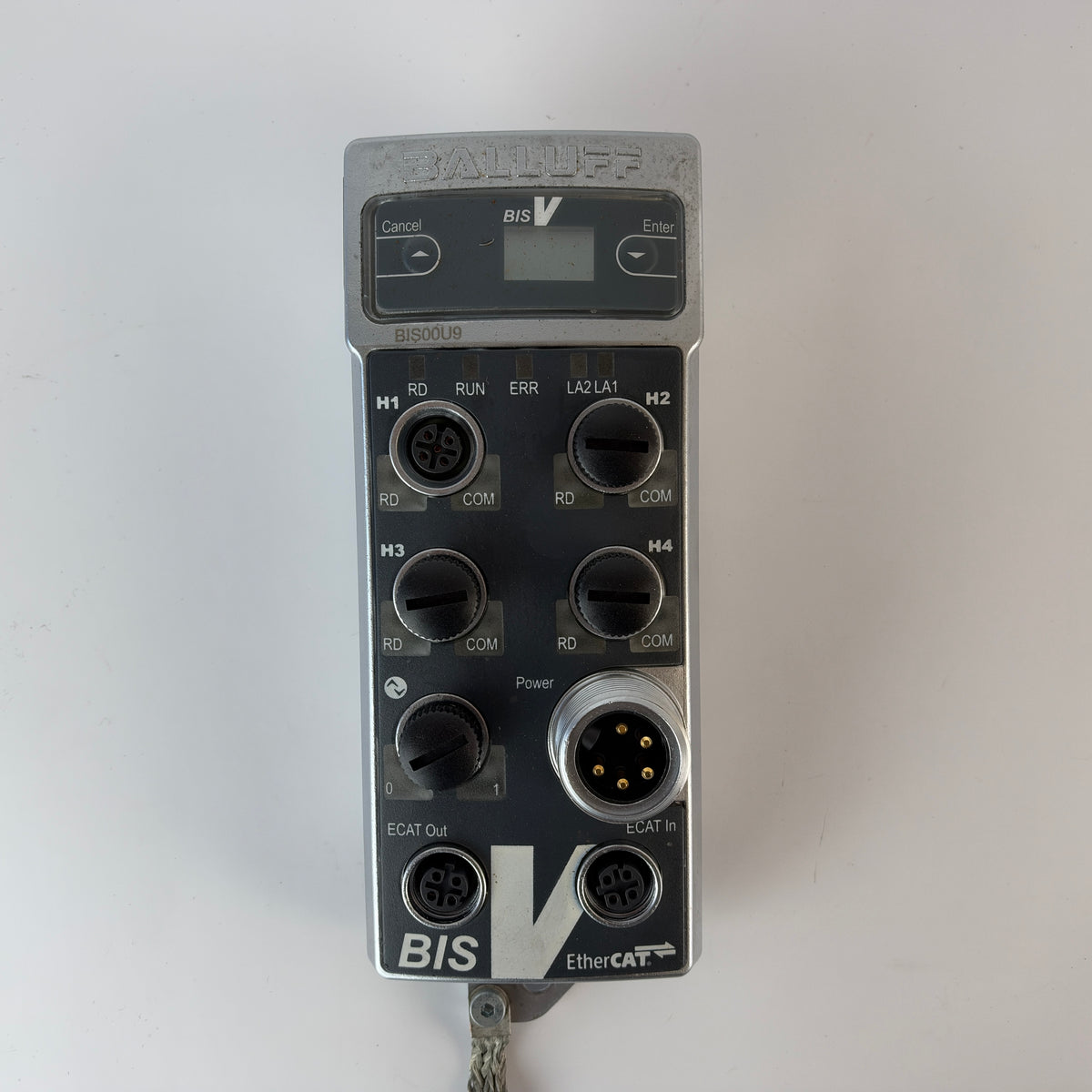

Balluff BIS00U9 / BIS V-6110-063-C002 multi-frequency RFID processor unit with EtherCAT interface, designed for industrial identification and automation systems.
The BIS V processor acts as the interface between compatible Balluff RFID read/write heads or antennas and a higher-level industrial controller such as a PLC or PC. It supports multiple RFID technologies and provides four connection points for compatible read/write heads or antennas.
Key specifications:
- Manufacturer: Balluff
- Order code: BIS00U9
- Model: BIS V-6110-063-C002
- Product group: Multi-Frequency RFID Processor
- Network interface: EtherCAT
- Supported RFID technologies: LF 125 kHz (BIS VL), HF 13.56 MHz (BIS VM), UHF 860–930 MHz (BIS VU)
- Number of connectable read/write heads / antennas: 4
- Operating voltage: 24 VDC
- Maximum current consumption: 2 A at 24 VDC

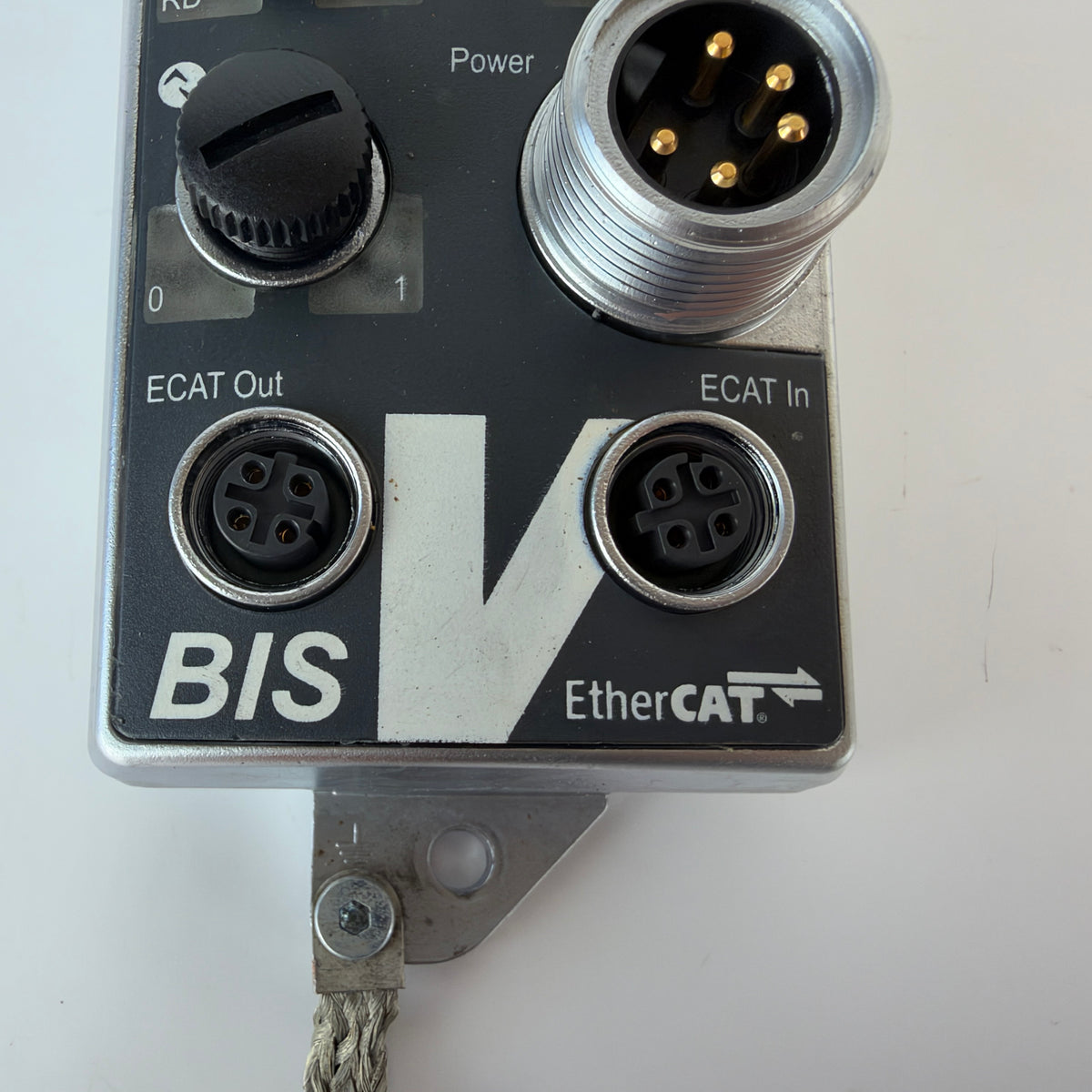

- EtherCAT In / Out connections

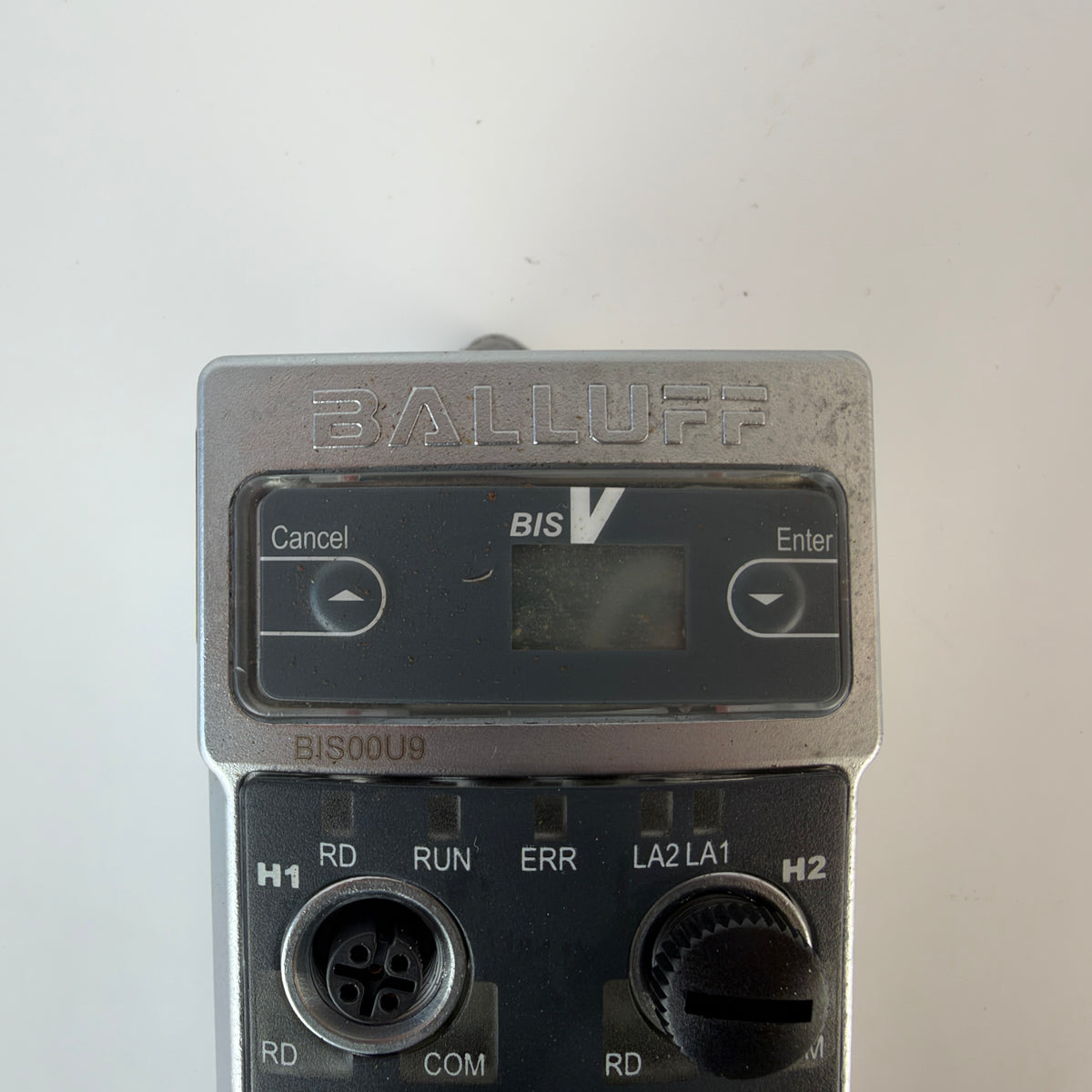

- Read/write head connections: H1, H2, H3, H4
- Power connection: 7/8", 5-pin

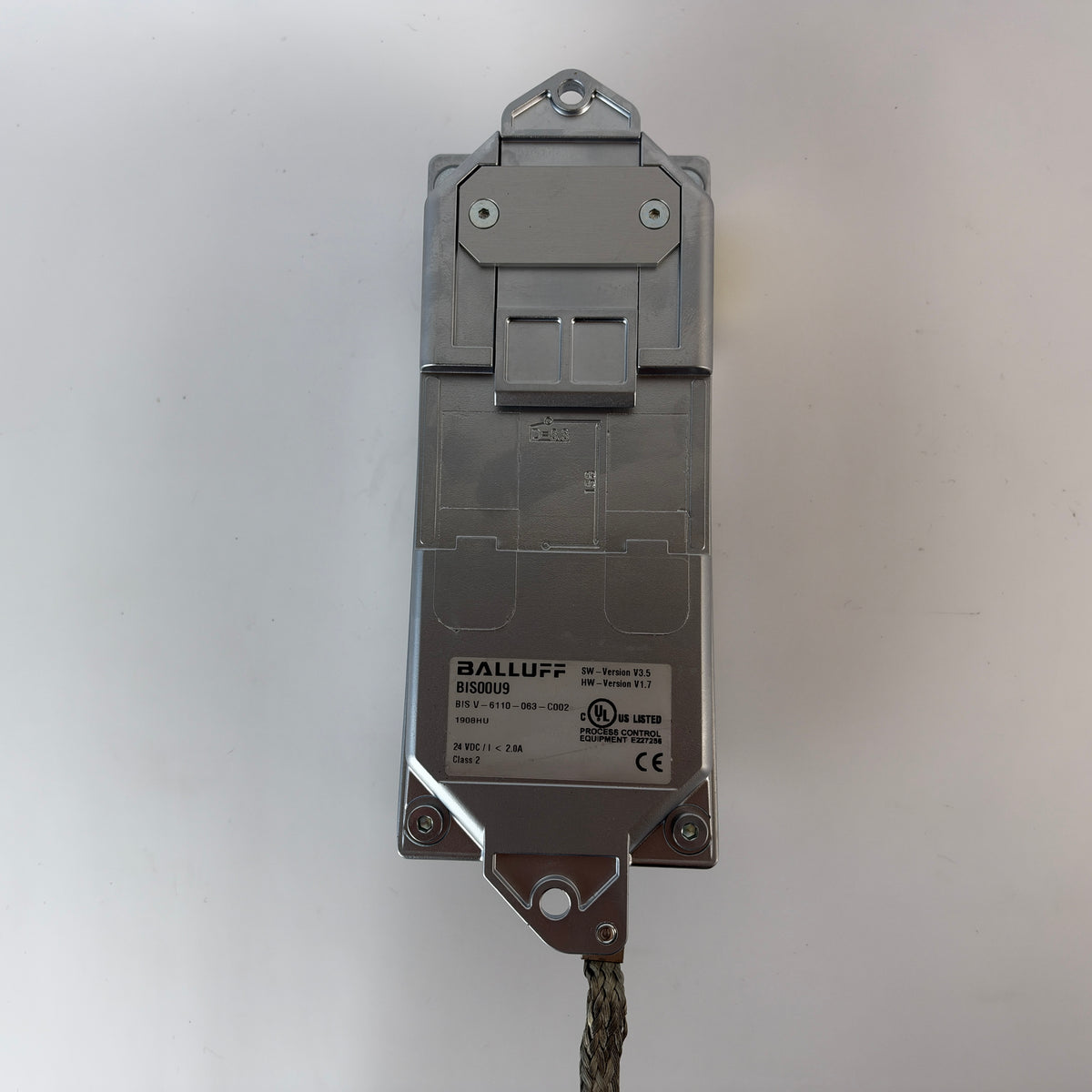

- Housing material: die-cast zinc
- Protection rating: IP65 with connectors
- Operating temperature: 0 to 60 °C

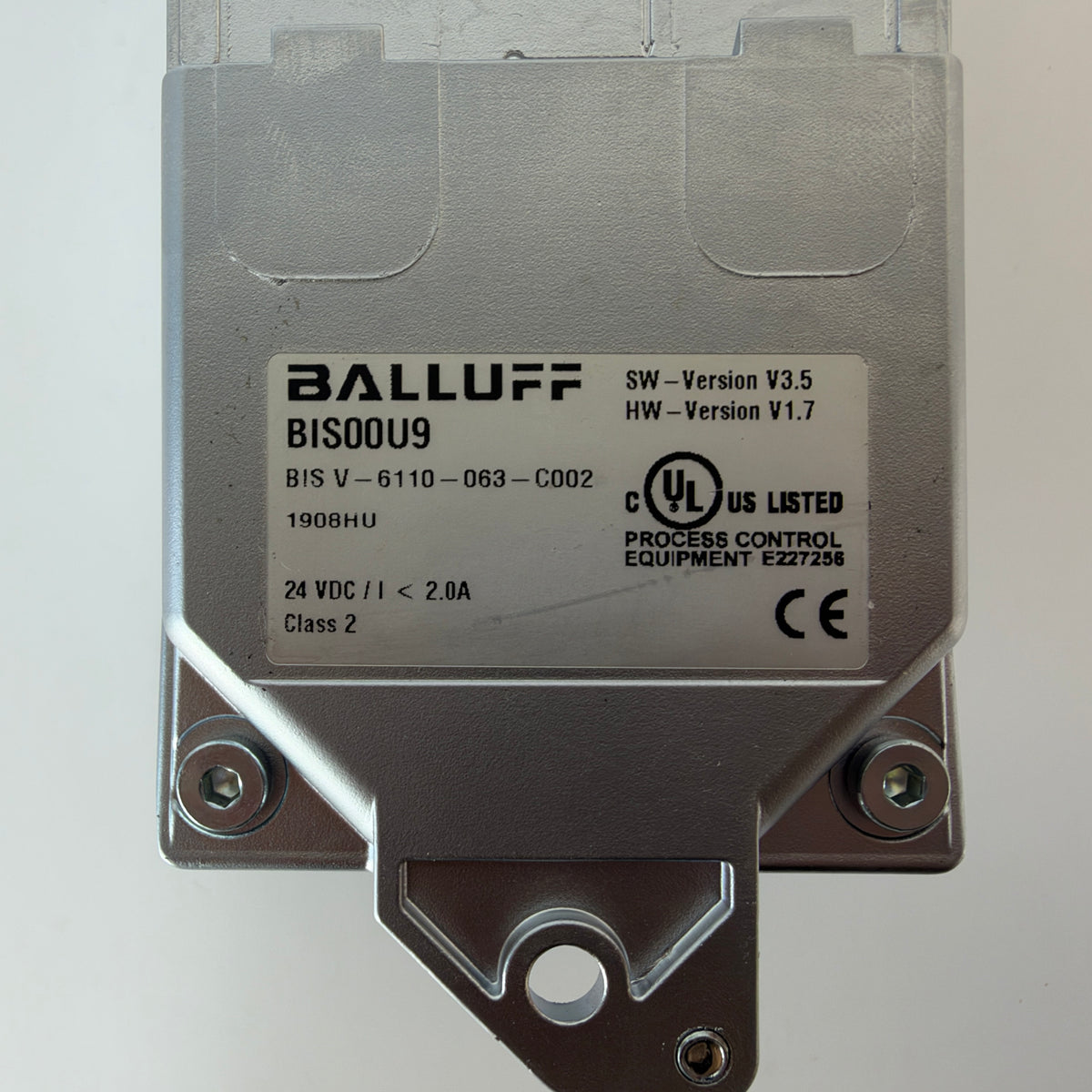

- SW Version on this unit: V3.5
- HW Version on this unit: V1.7
- CE and cULus marked
Used, fully functional.
Suitable for industrial RFID identification, traceability, production control and automated material handling systems using compatible Balluff BIS V components.
