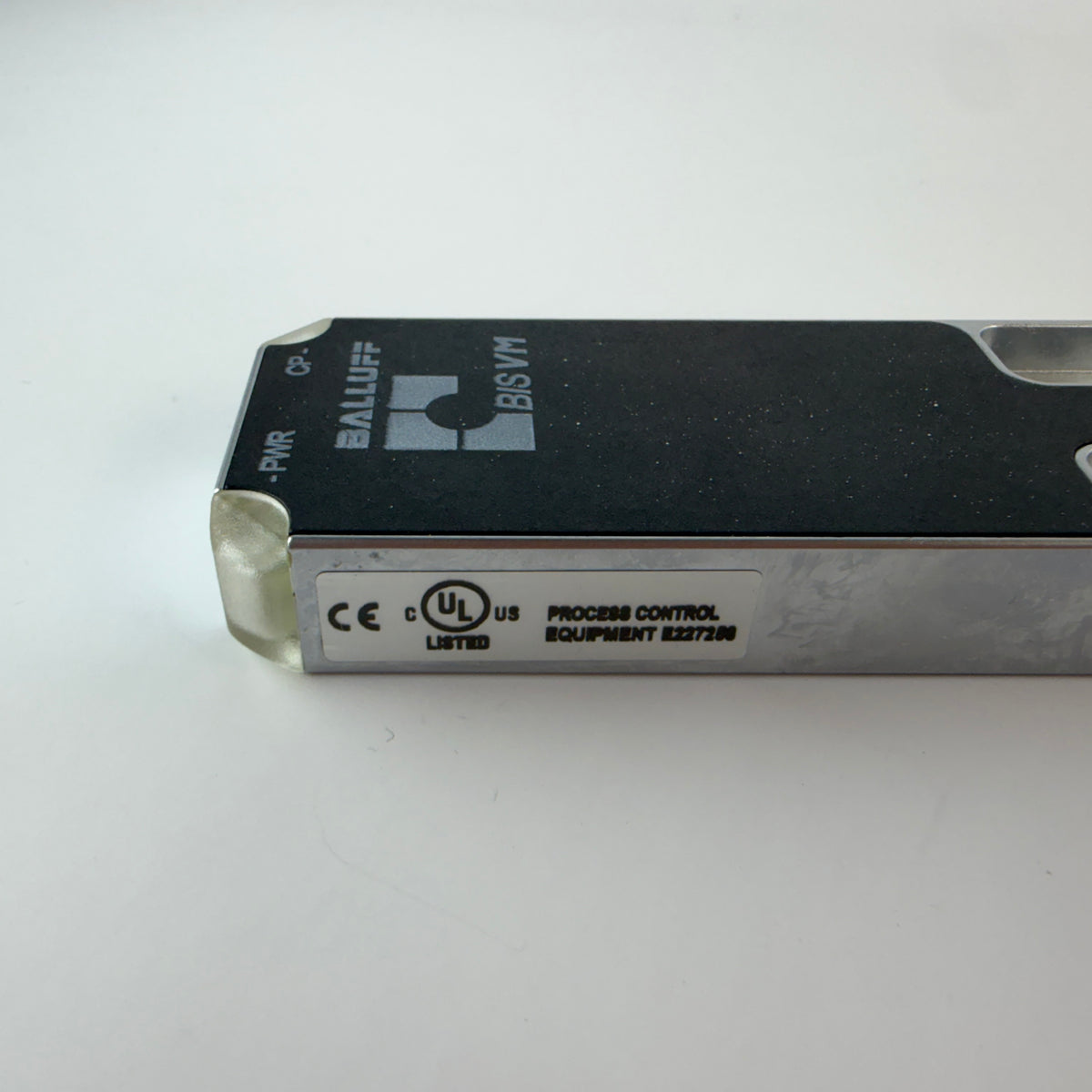

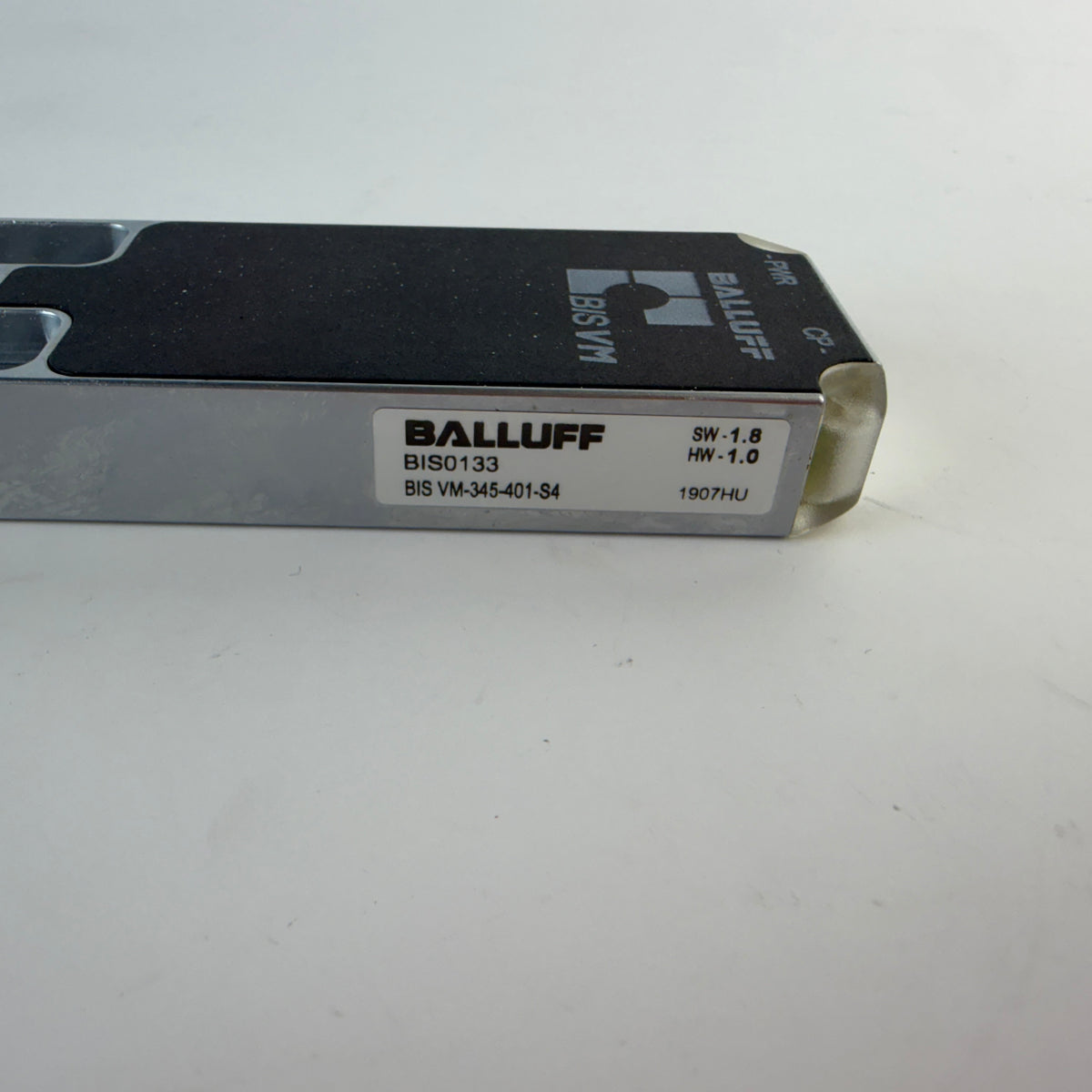

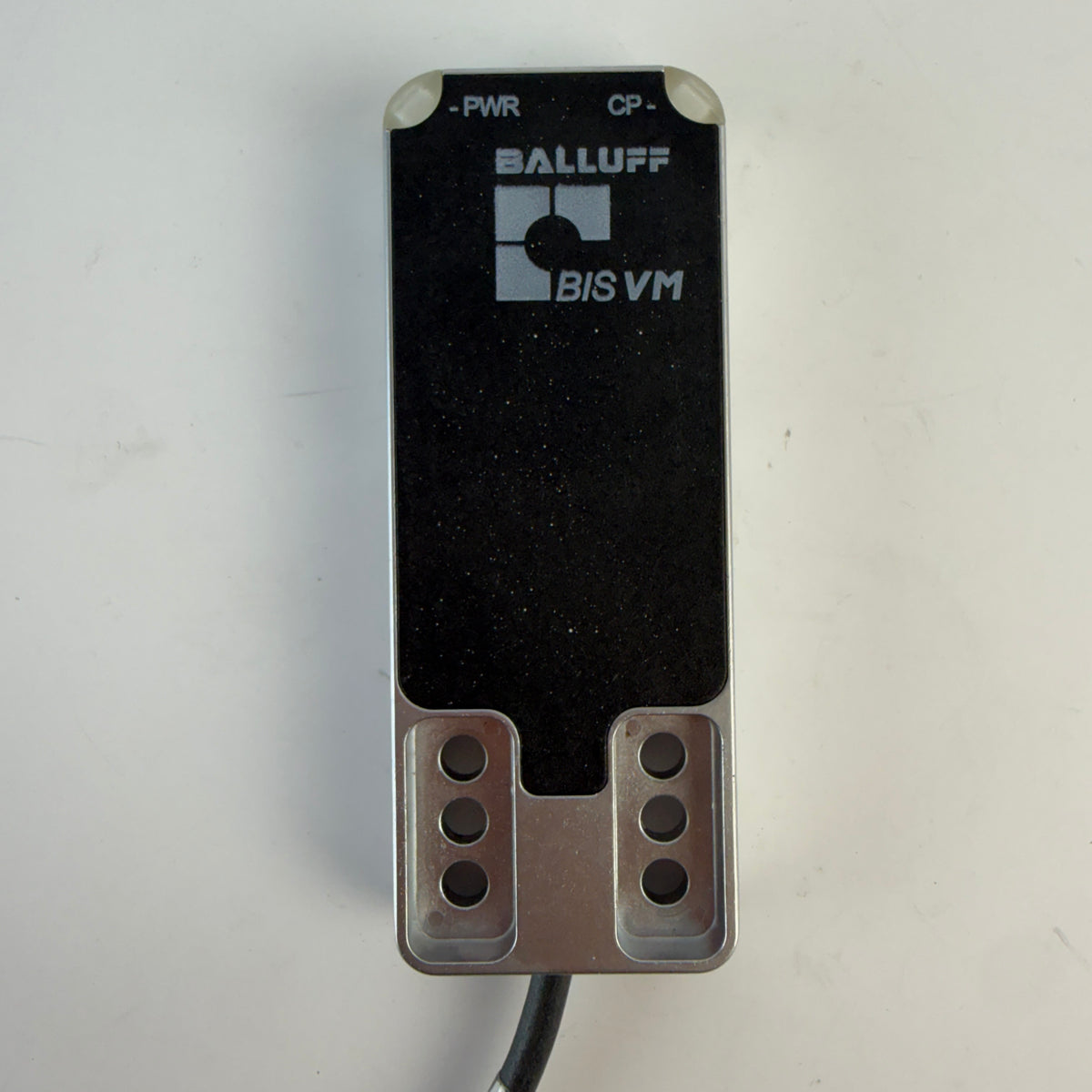

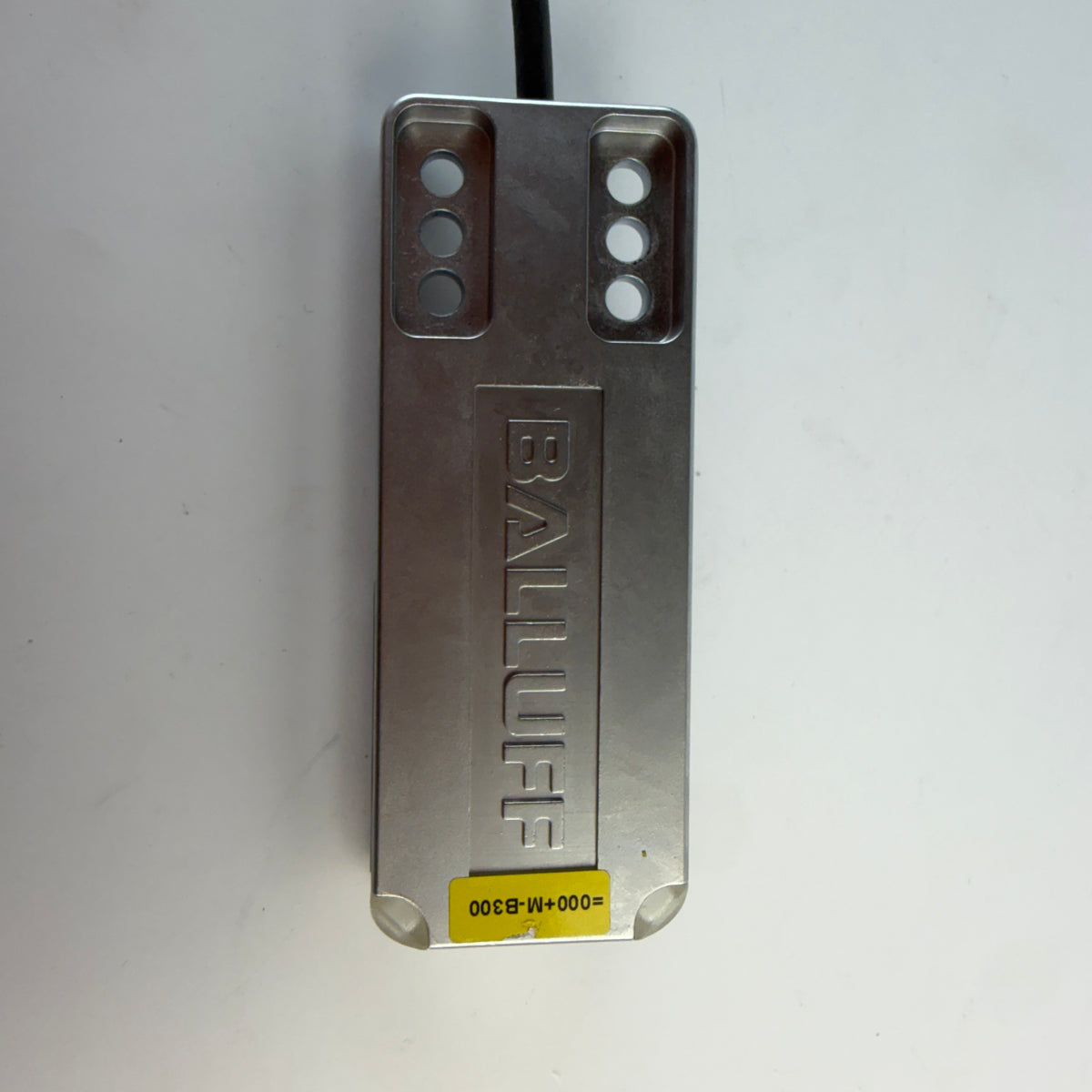

Balluff BIS0133, model BIS VM-345-401-S4, industrial HF RFID read/write head designed for identification and data communication applications in automated machinery and production systems.
The unit operates at 13.56 MHz and is designed for connection to a Balluff BIS V evaluation unit. It supports DIN ISO 15693 data carriers, including ISO 15693 High Memory types.

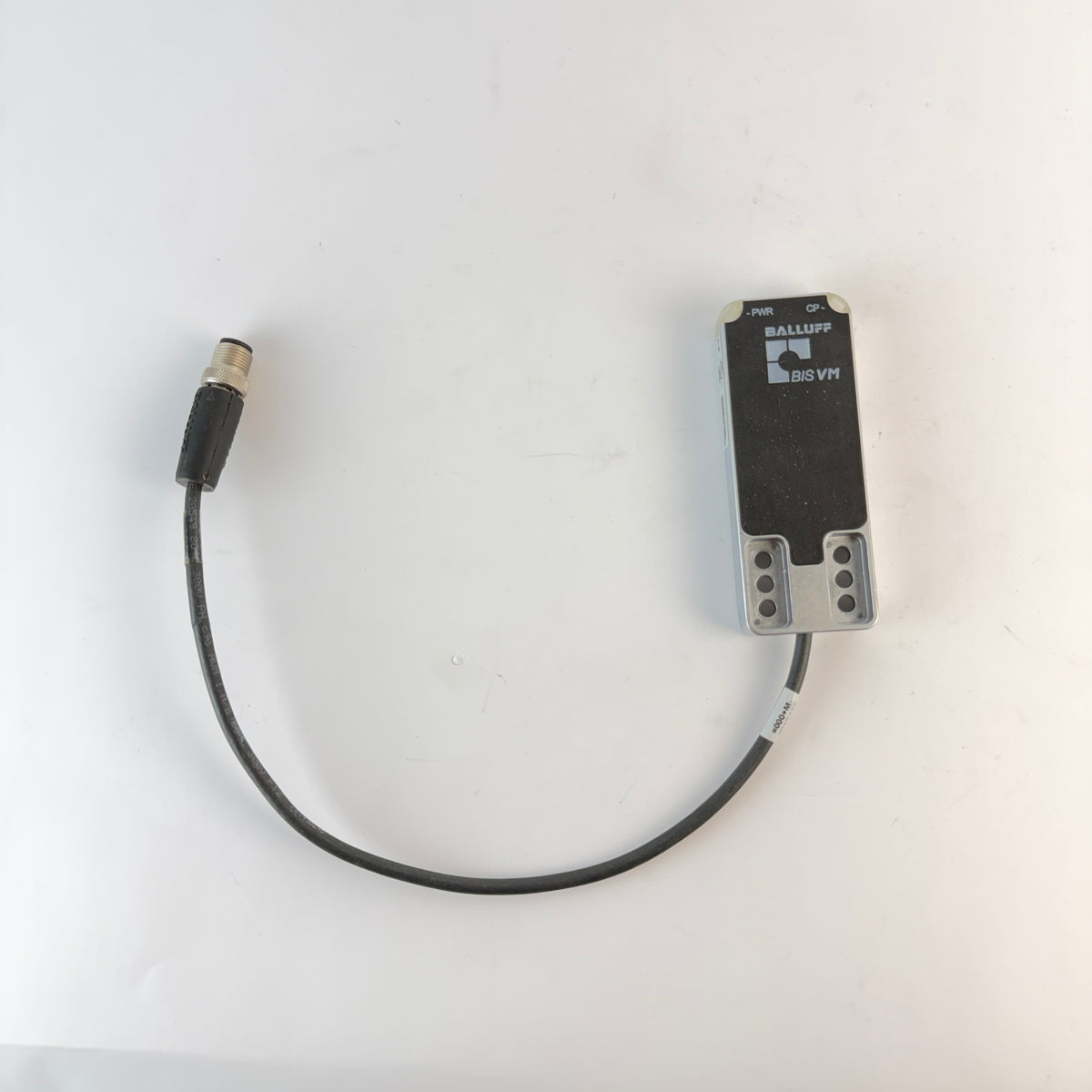

The robust rectangular housing is made from nickel-plated die-cast zinc and provides IP67 protection for industrial environments. The unit features an integrated cable terminating in a 4-pin male connector.
Technical Specifications:
- Manufacturer: Balluff
- Order Code / MPN: BIS0133
- Model: BIS VM-345-401-S4
- Product Type: HF RFID Read/Write Head
- RFID Frequency: 13.56 MHz
- Supported Data Carriers: DIN ISO 15693 and DIN ISO 15693 High Memory
- Antenna Type: Round
- Connection: Male, 4-pin
- Designed for: Balluff BIS V evaluation units
- Dimensions: 40 × 15 × 105 mm
- Housing Material: Nickel-plated die-cast zinc
- Protection Rating: IP67
- Ambient Temperature: 0°C to +70°C
- Status Indicators: PWR and CP
- Approvals / Conformity: CE, cULus and additional market-specific approvals
Used, fully functional.
Supplied exactly as pictured with integrated cable and connector.
Packed and dispatched within 1 working day of cleared payment. Worldwide delivery via DHL Express, typically 2–7 working days.
Import duties, taxes and customs fees are the buyer's responsibility. Tracking is provided on dispatch.
