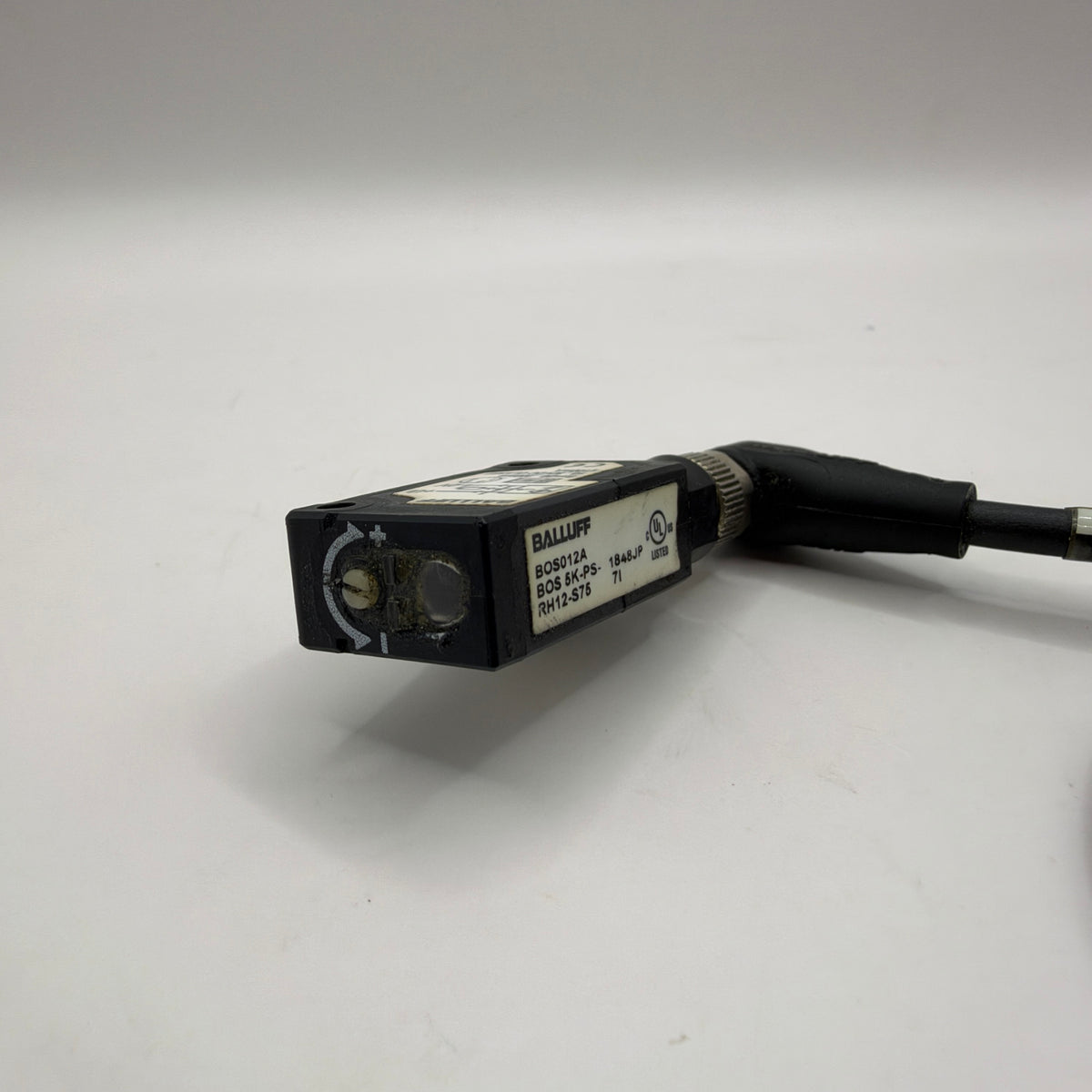

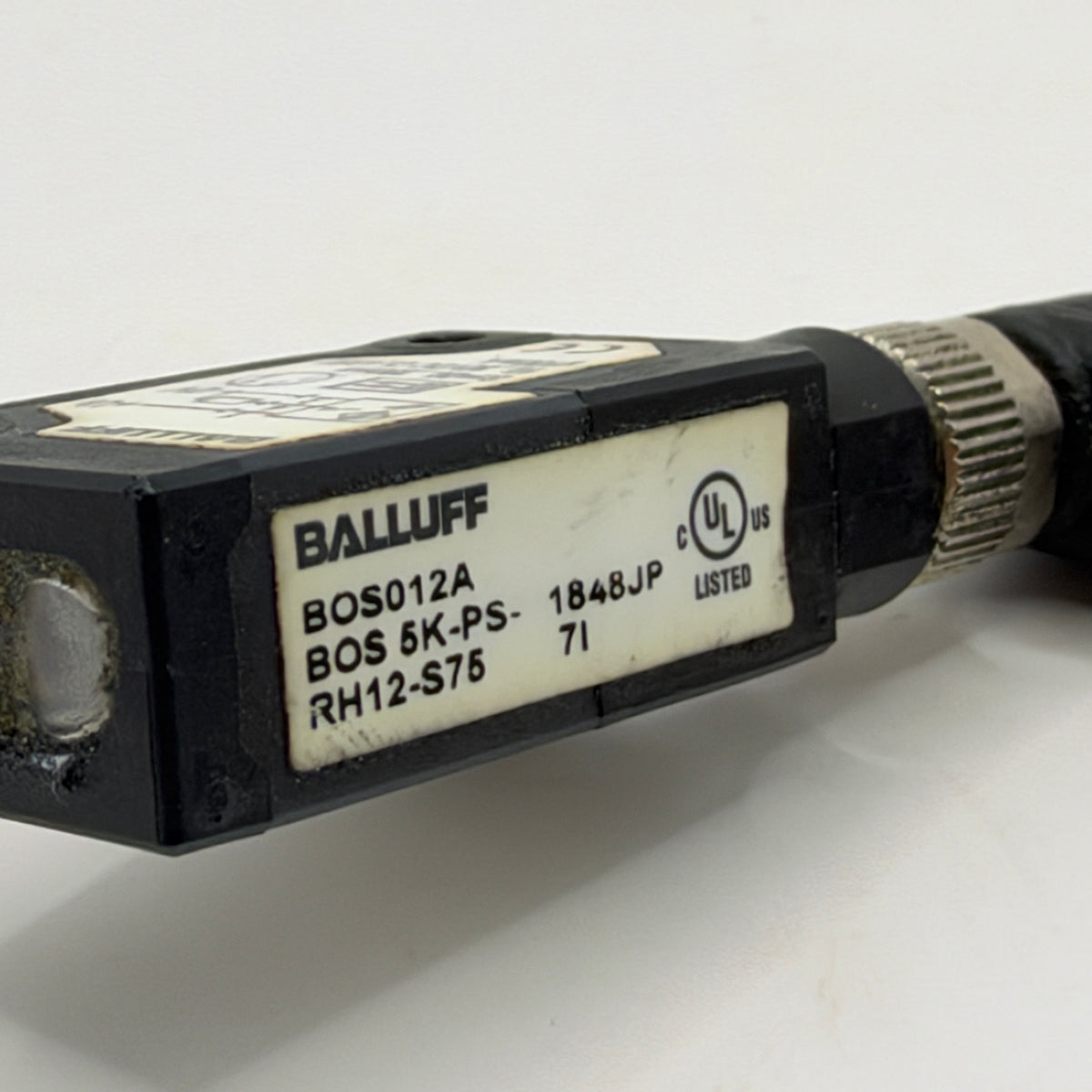

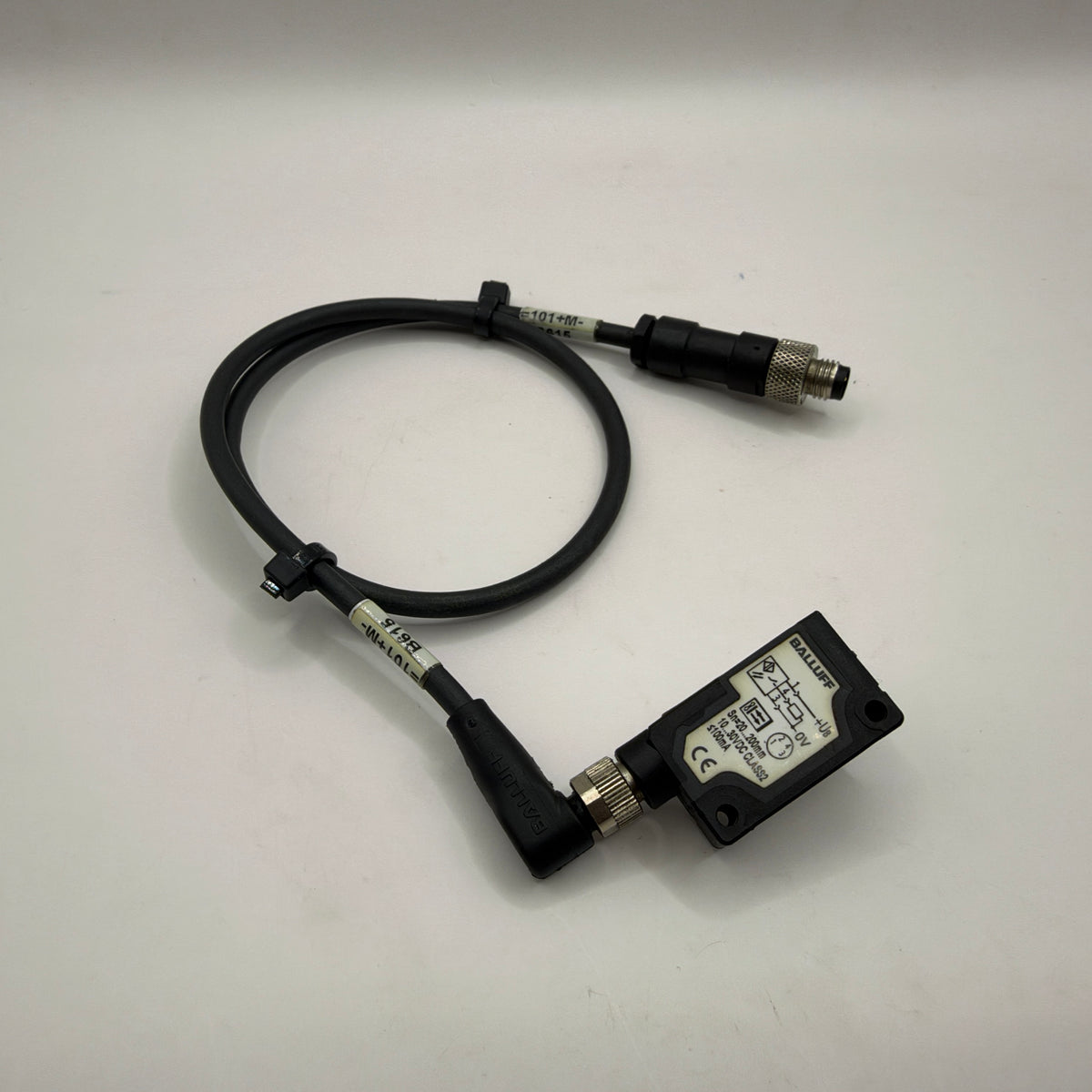

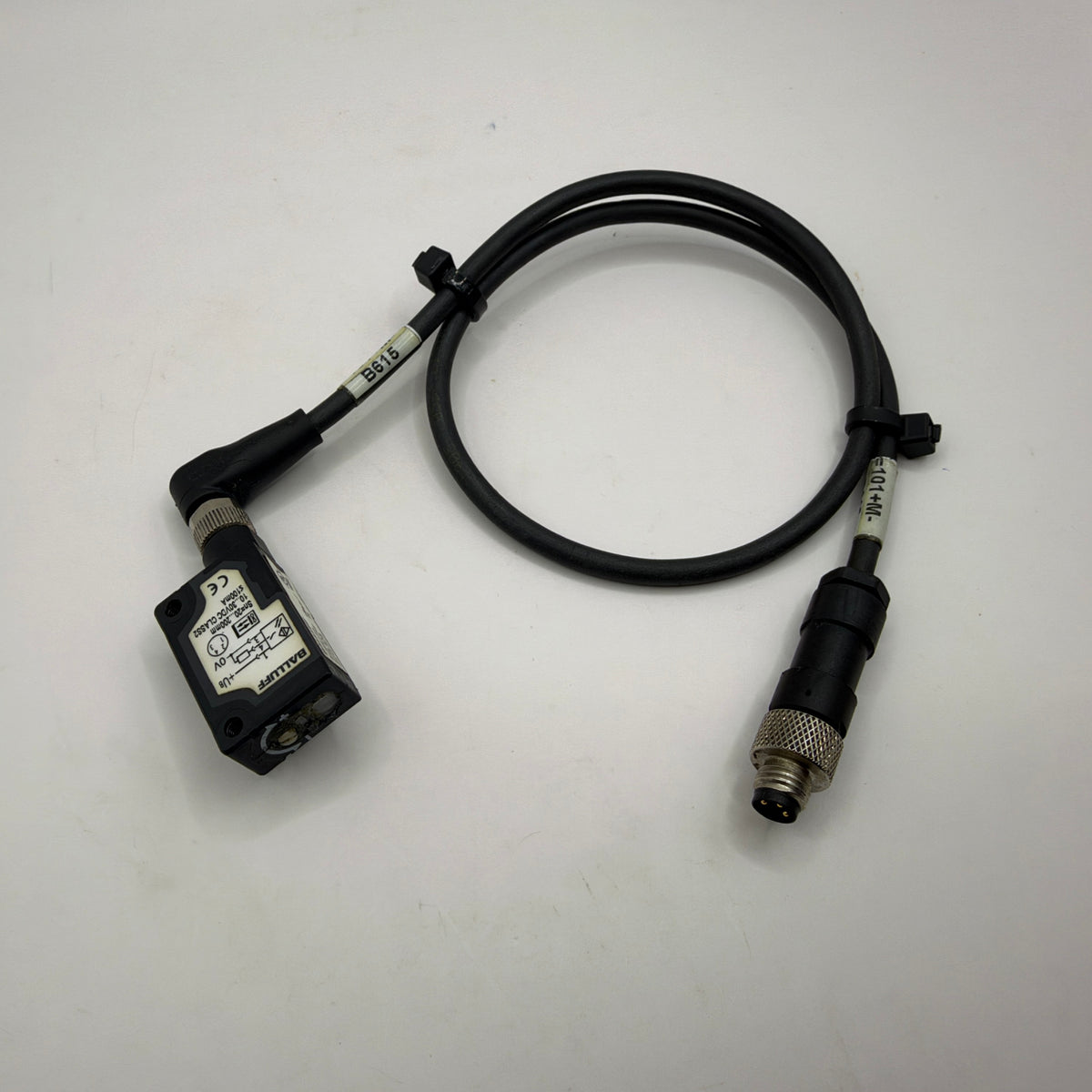

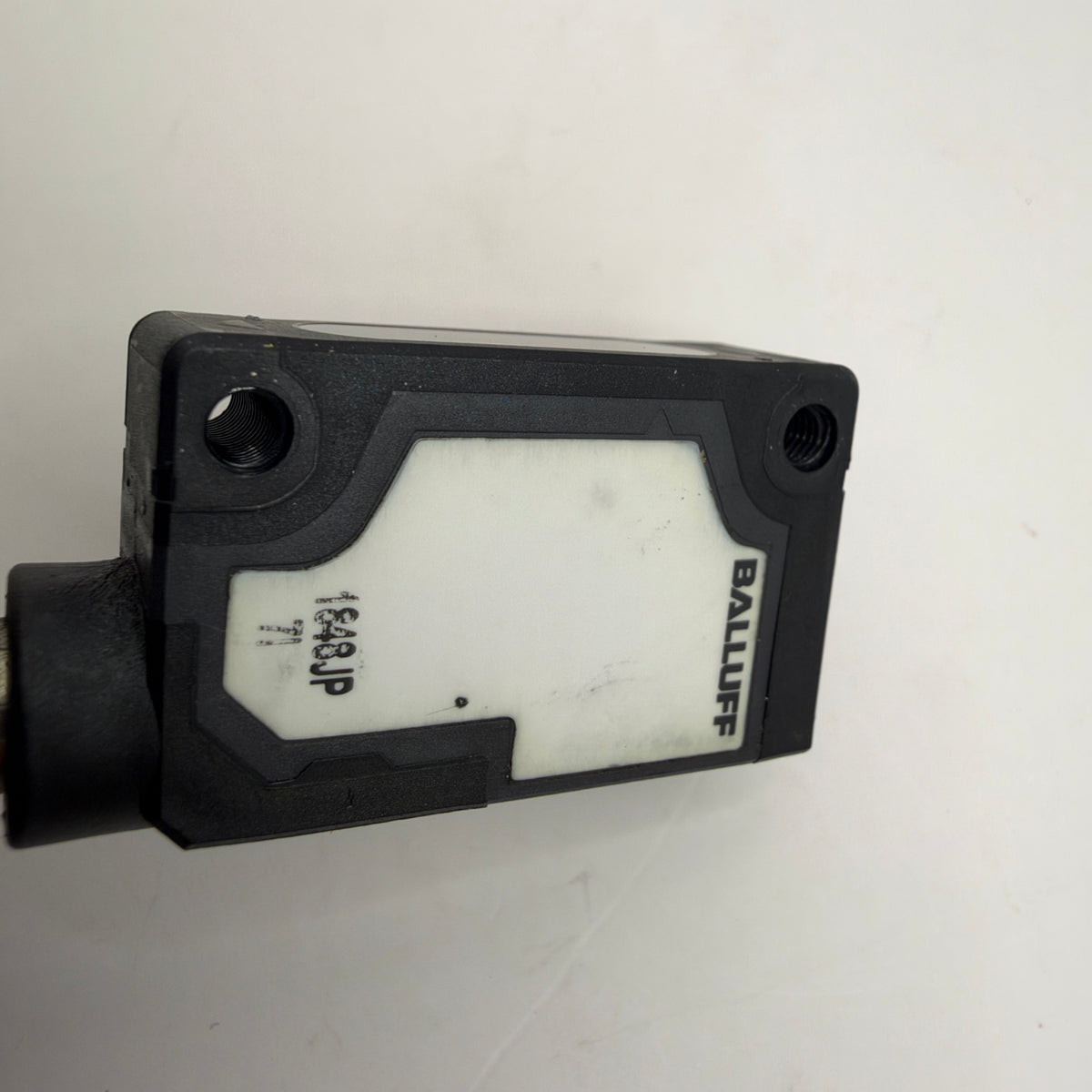

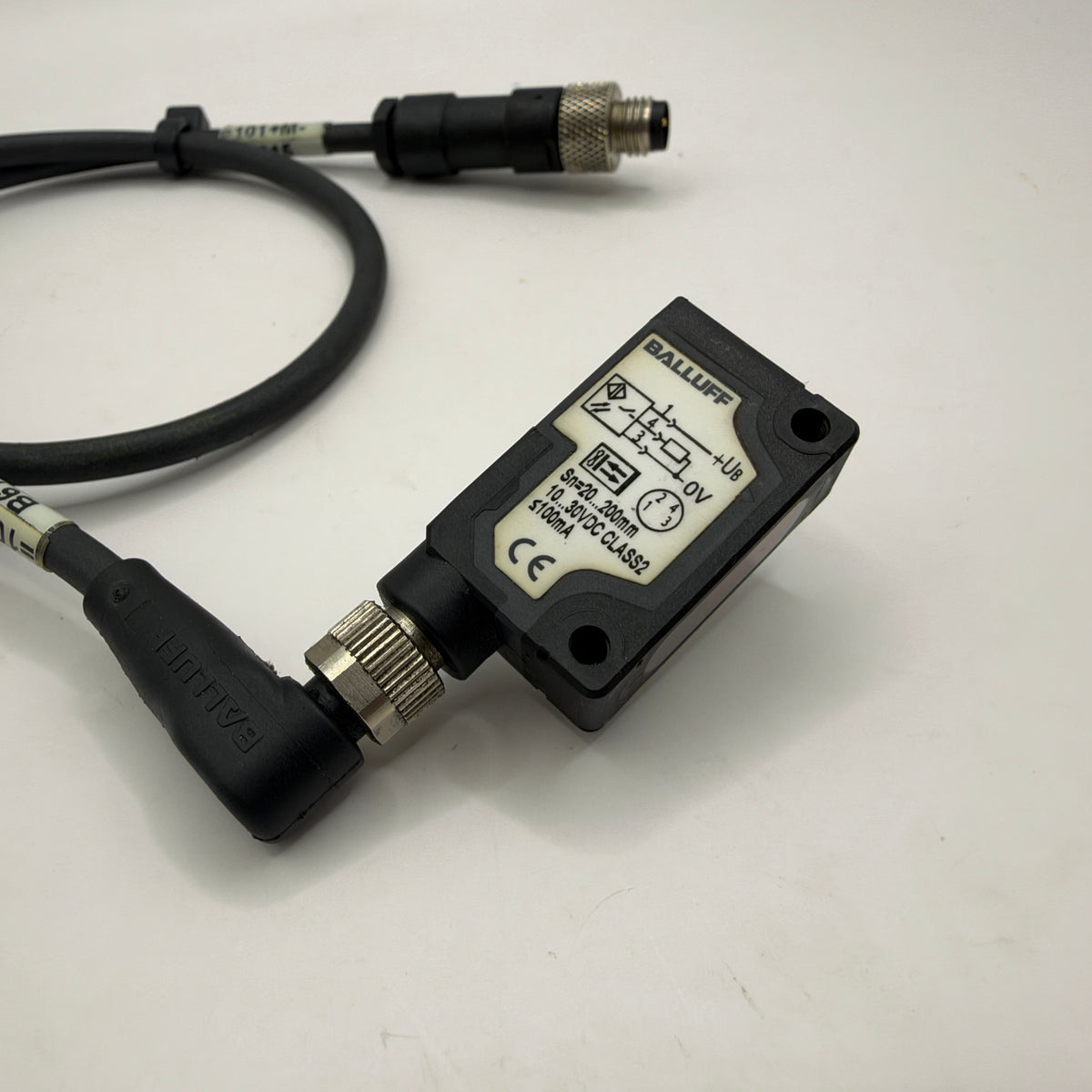

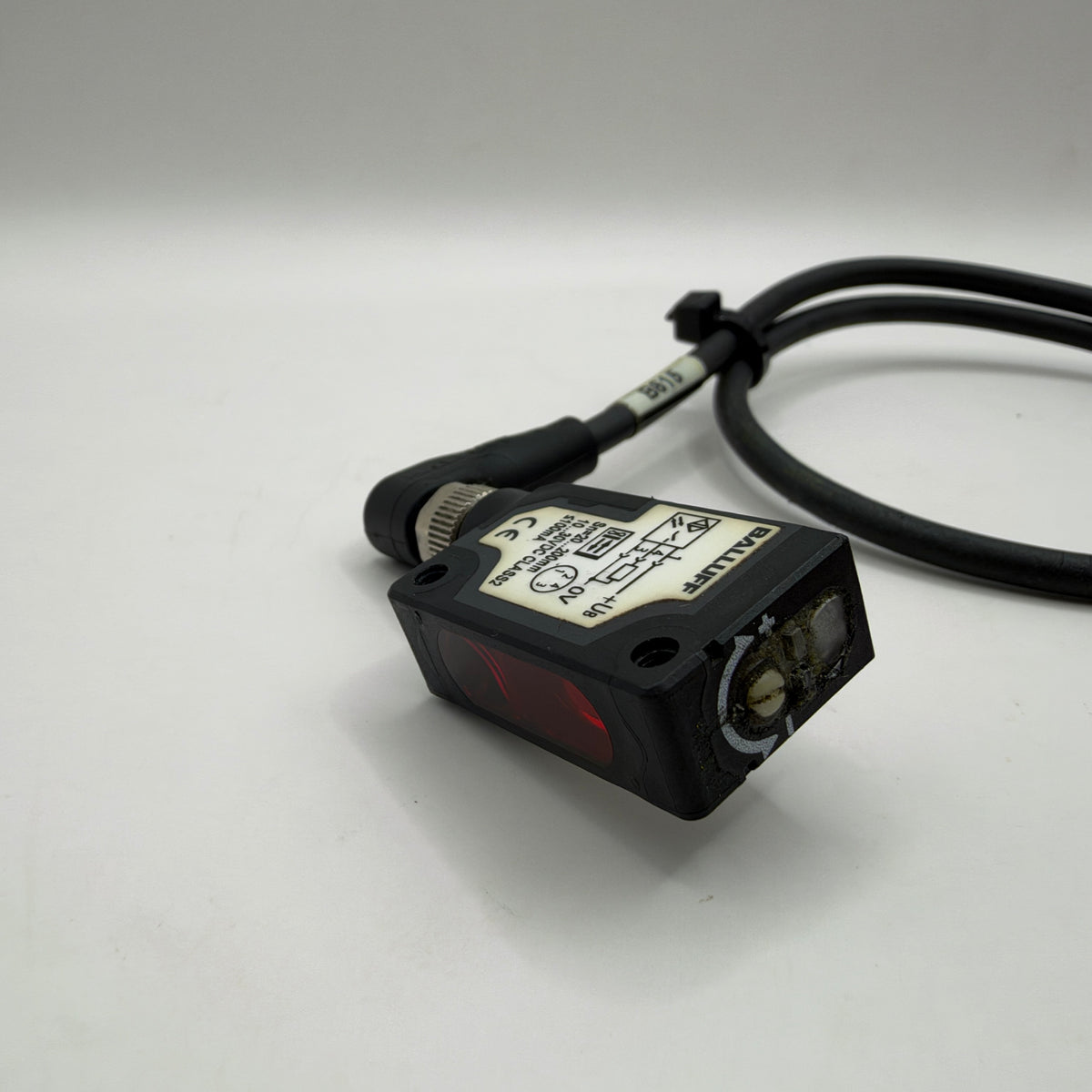

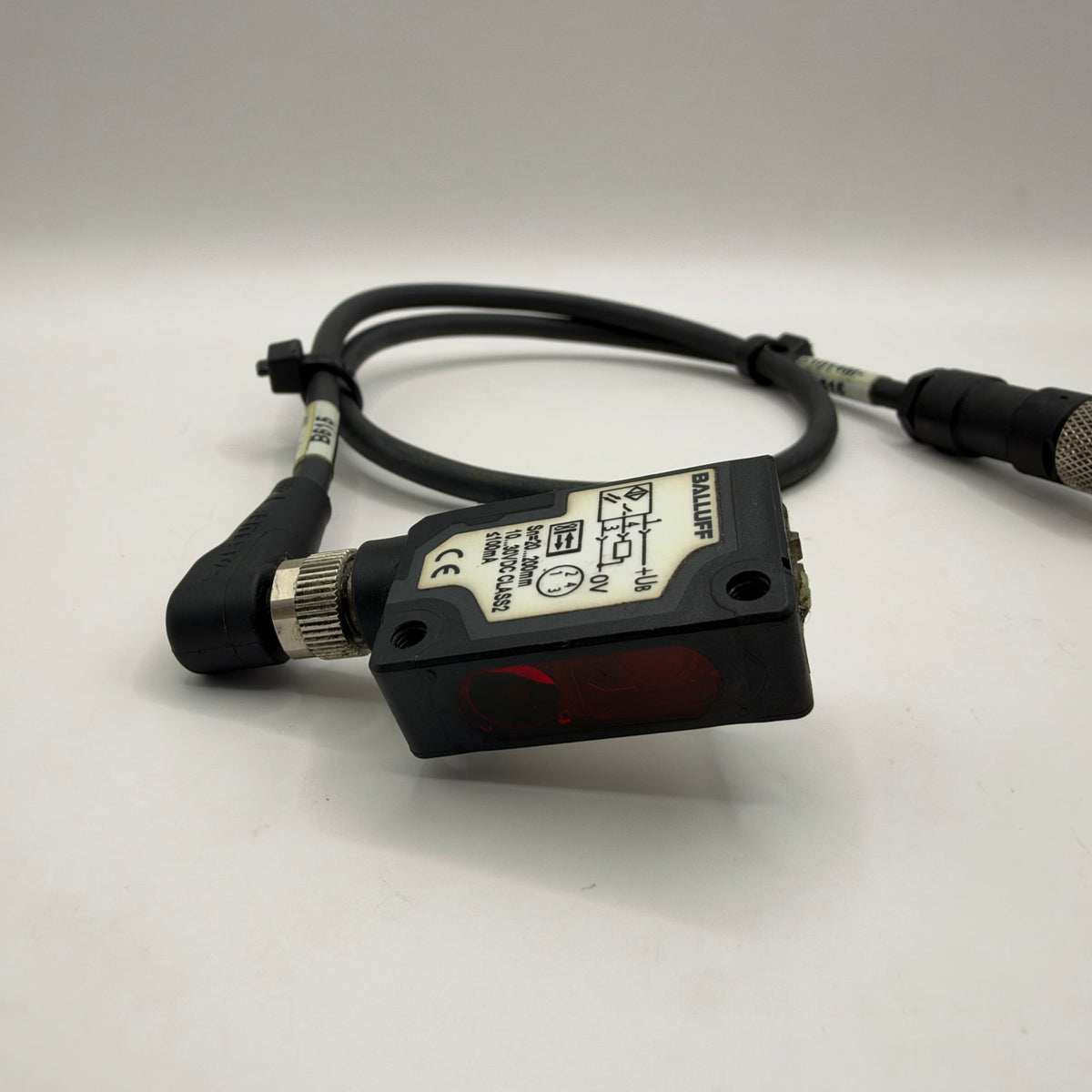

BALLUFF BOS012A, model BOS 5K-PS-RH12-S75, compact photoelectric diffuse sensor with background suppression, supplied with the pictured BALLUFF connection cable.
The sensor uses the triangulation principle for reliable object detection while reducing the influence of objects located behind the target. It features a PNP normally-open output and an adjustable sensing distance.
Technical specifications:
- Manufacturer: BALLUFF
- Order Code: BOS012A
- Model / MPN: BOS 5K-PS-RH12-S75
- Series: 5K
- Type: Diffuse photoelectric sensor
- Optical principle: Triangulation
- Special optical feature: Background suppression
- Switching output: PNP normally open (NO), Pin 4
- Switching function: Light-on
- Sensing distance marked on this unit: Sn = 20–200 mm
- Light source: Red LED, 660 nm
- Operating voltage: 10–30 VDC Class 2
- Rated operating current: ≤100 mA
- Switching frequency: 500 Hz
- Sensor connection: M8x1 male, 4-pin
- Housing material: PC / PBT
- Sensing surface: PMMA
- Protection rating: IP67
- Dimensions: approximately 10.8 × 43.2 × 19.5 mm
- Operating temperature: -25 to +55°C

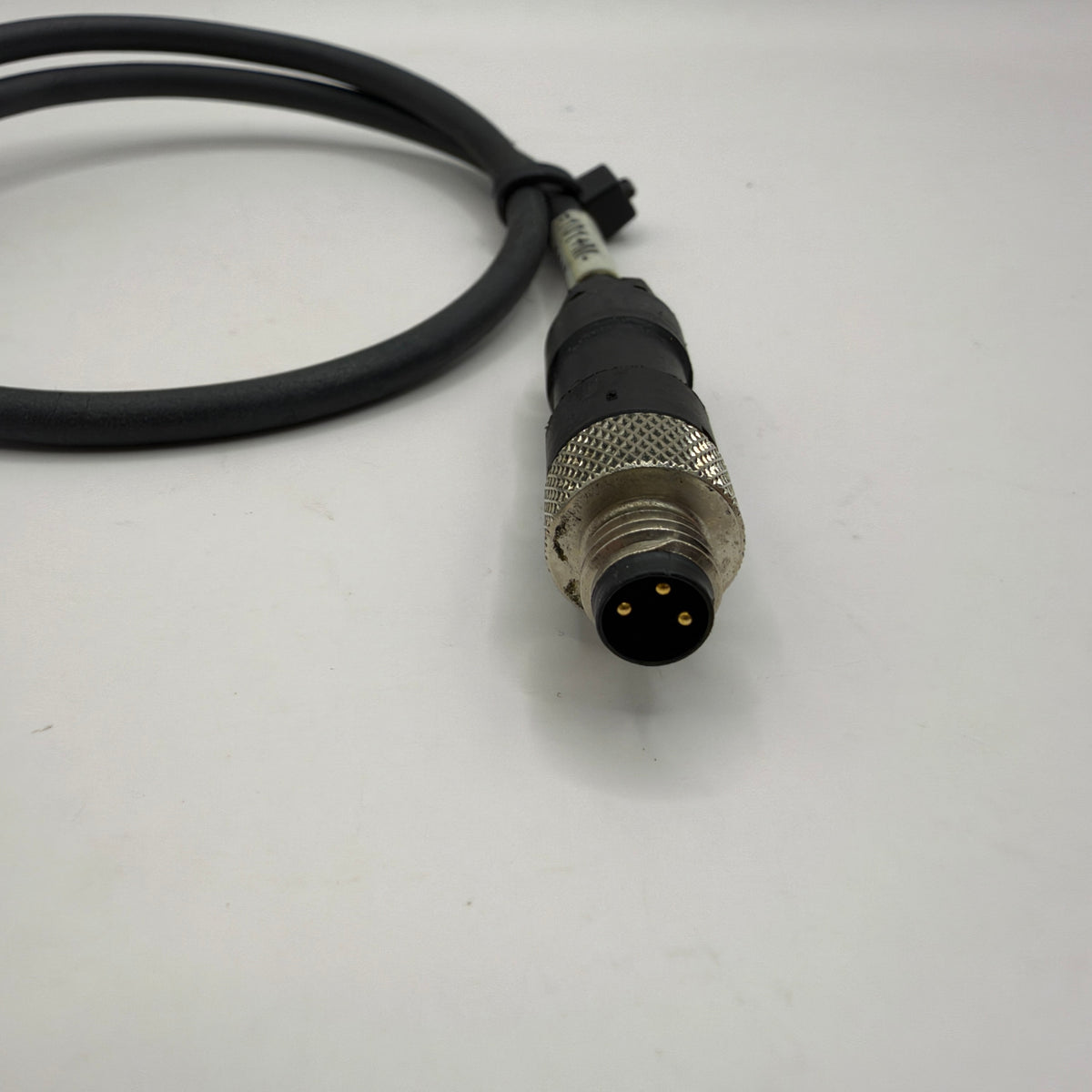

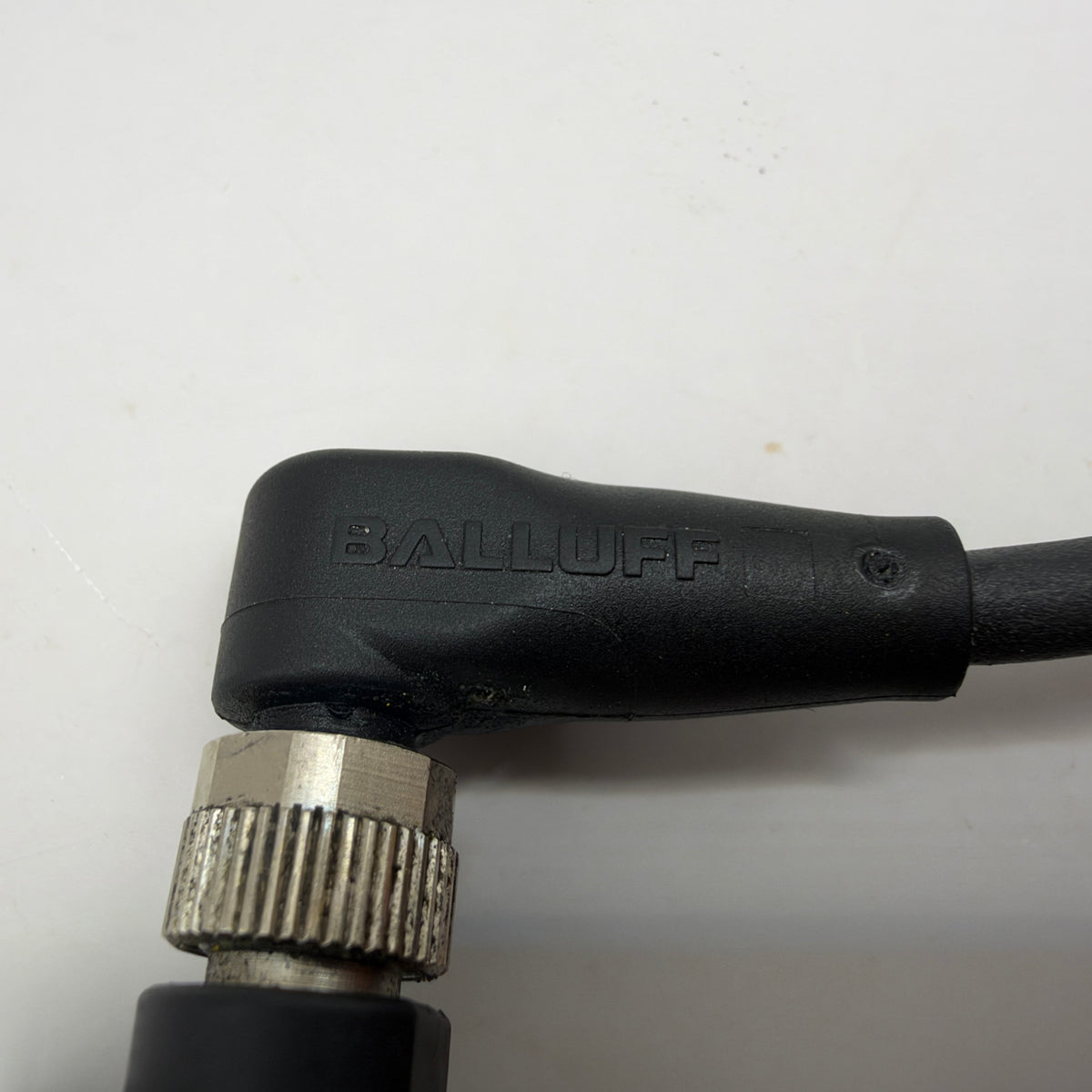

- Included accessory: BALLUFF connection cable as pictured

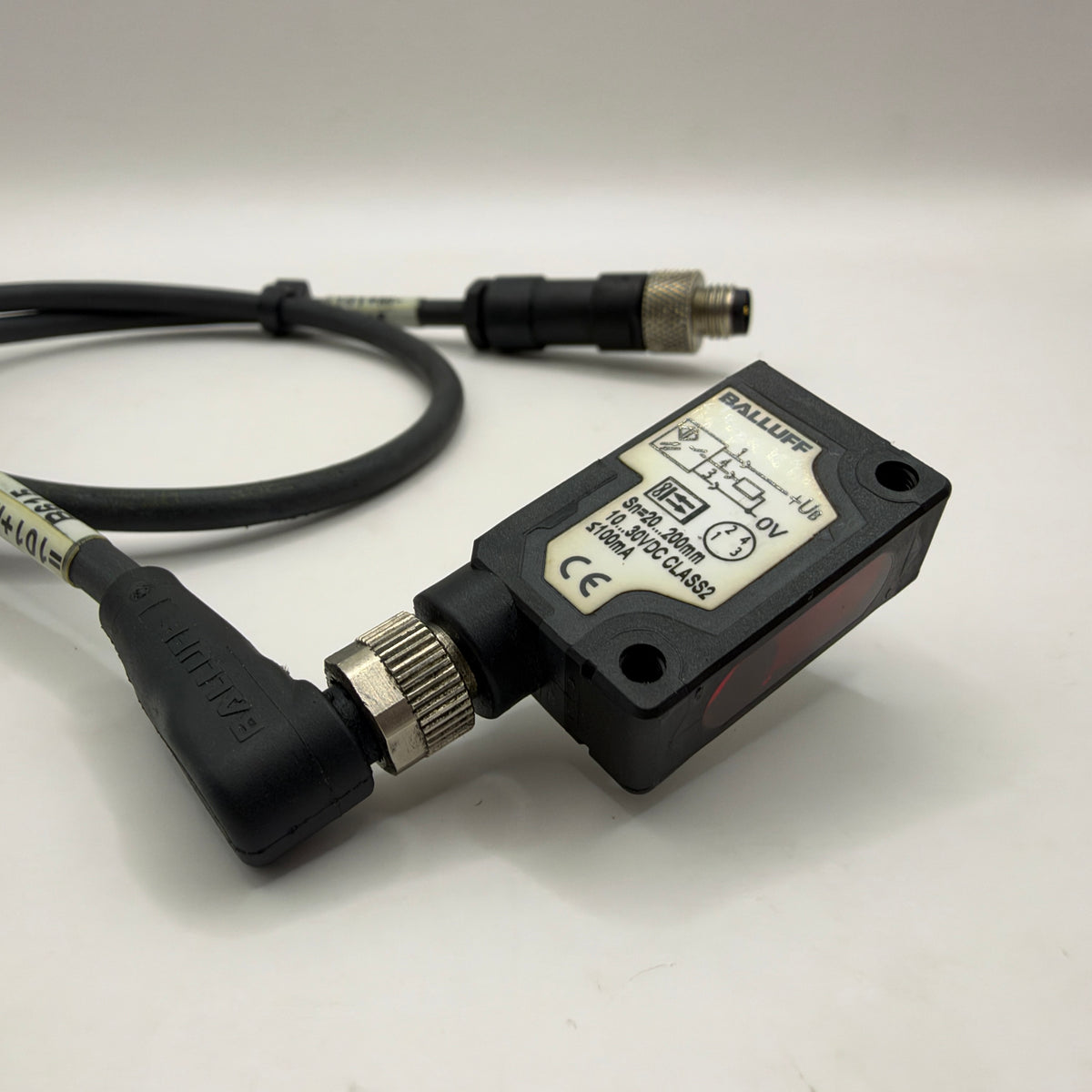

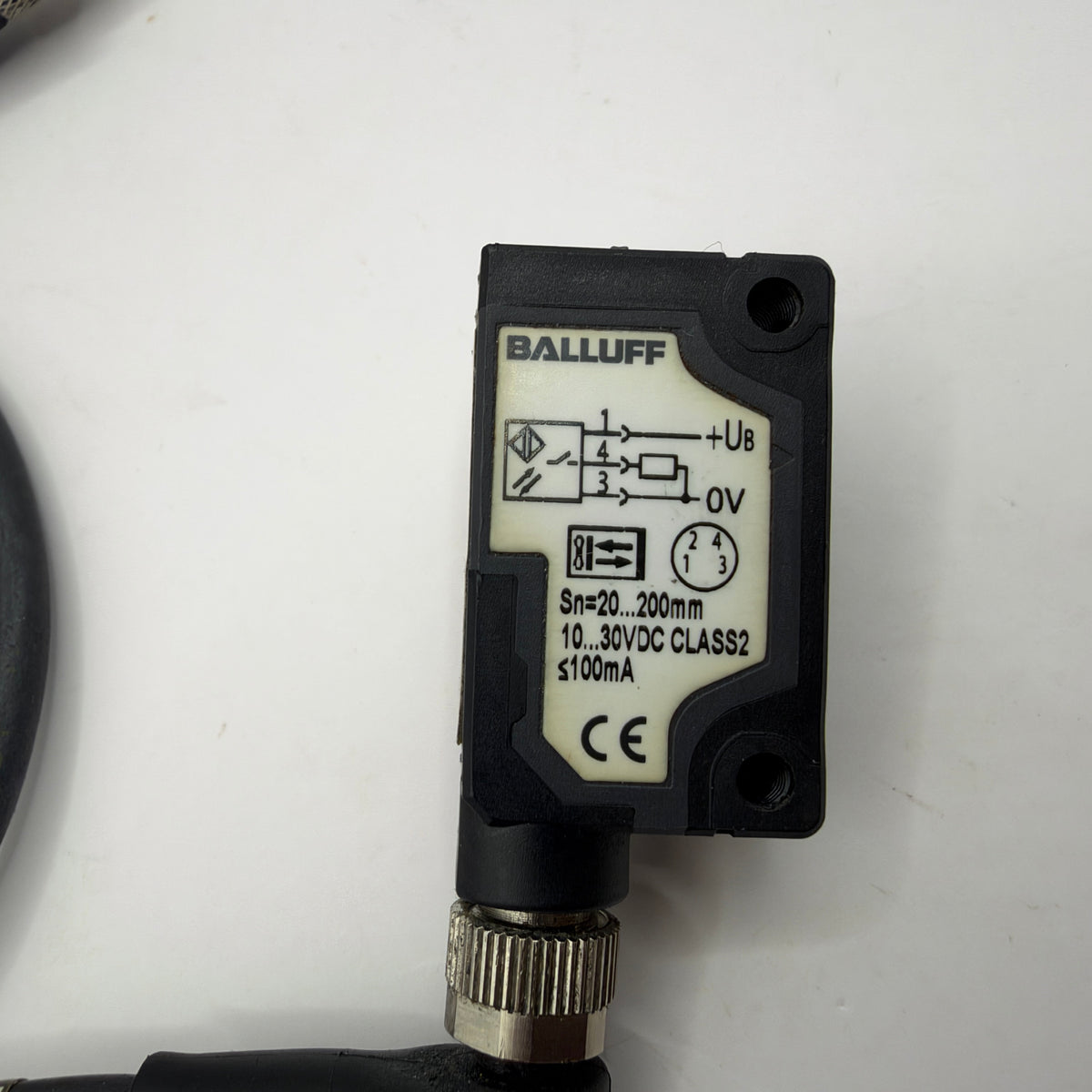

The sensor label on this specific unit states Sn = 20–200 mm. The exact part number and length of the included BALLUFF cable are not confirmed.
Used, fully functional.
