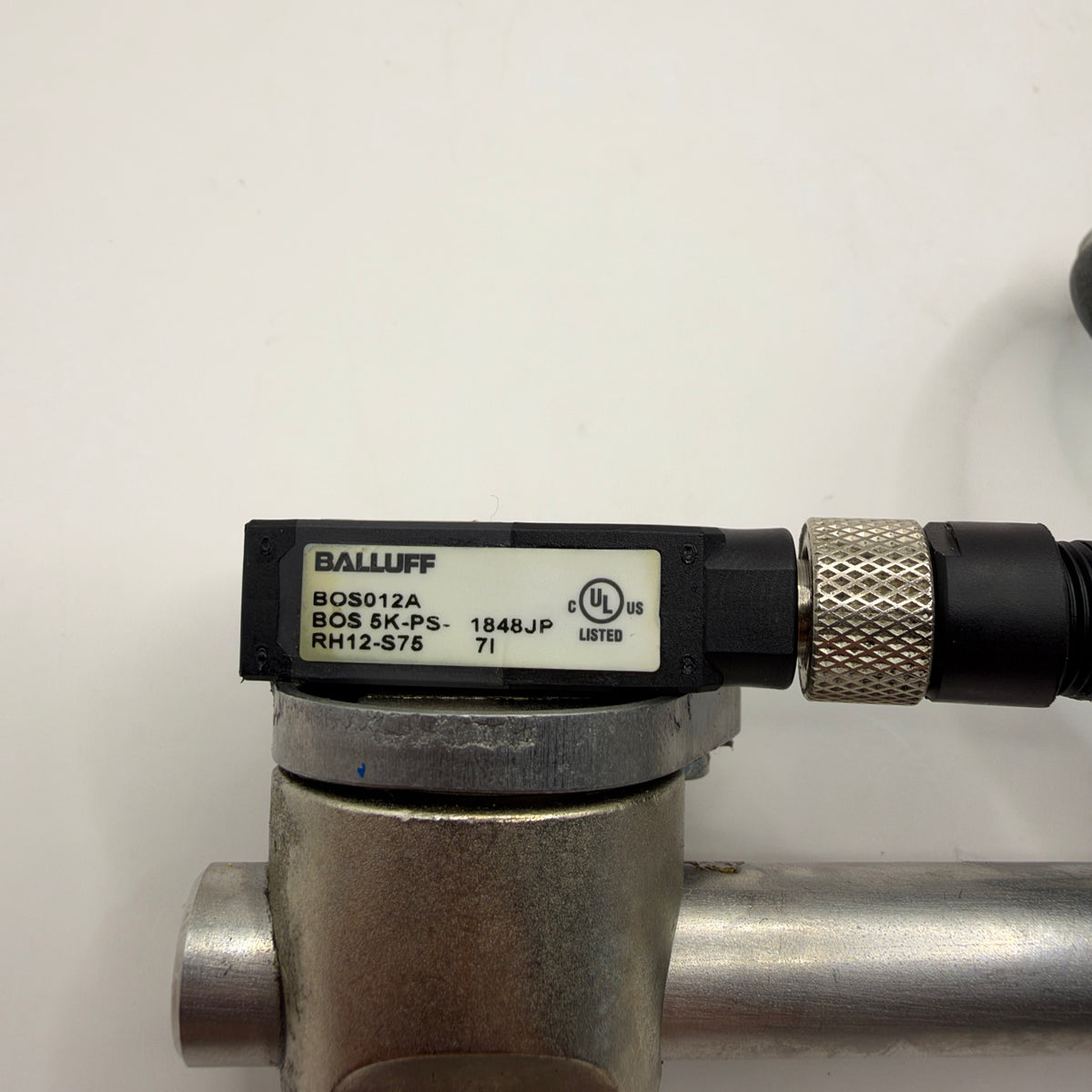

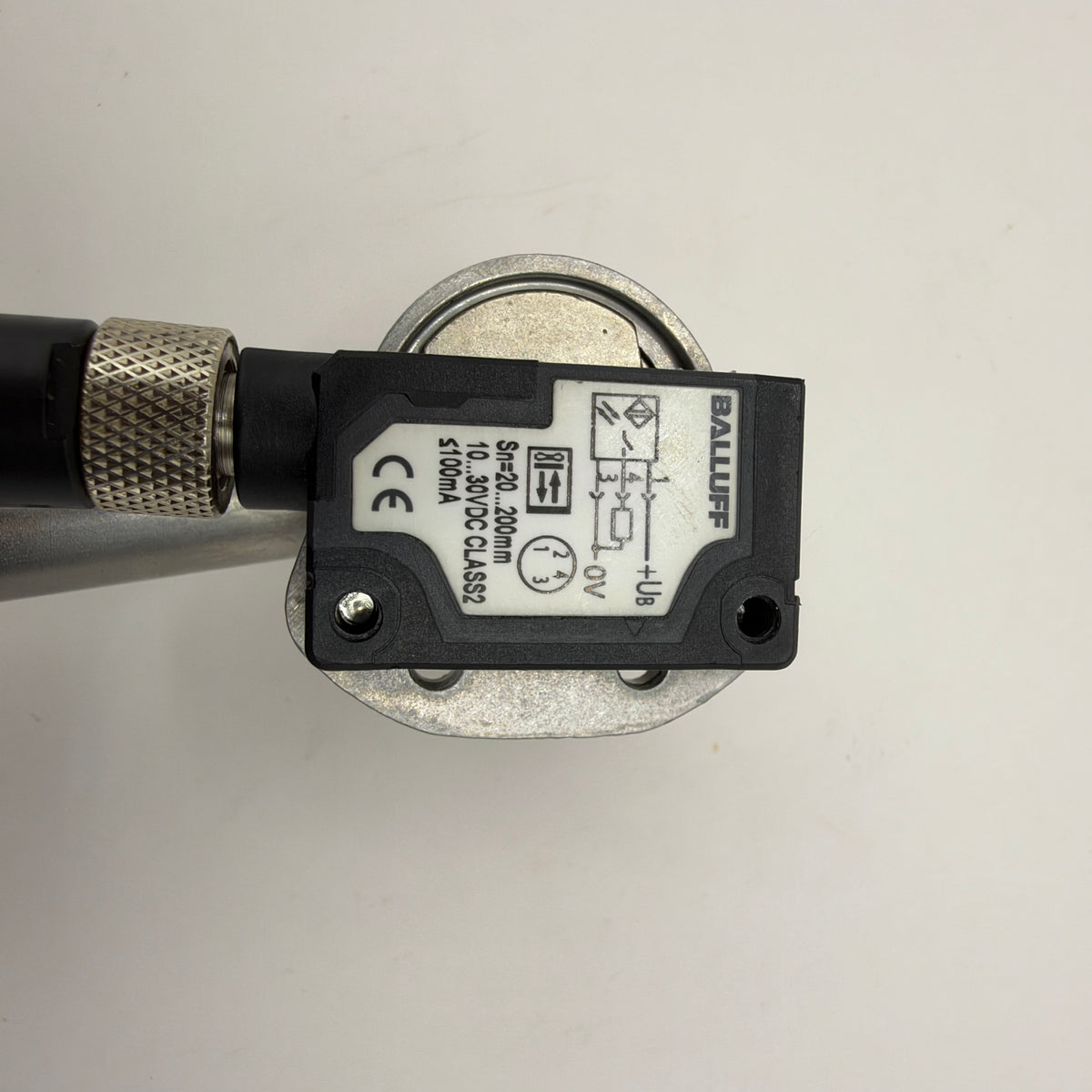

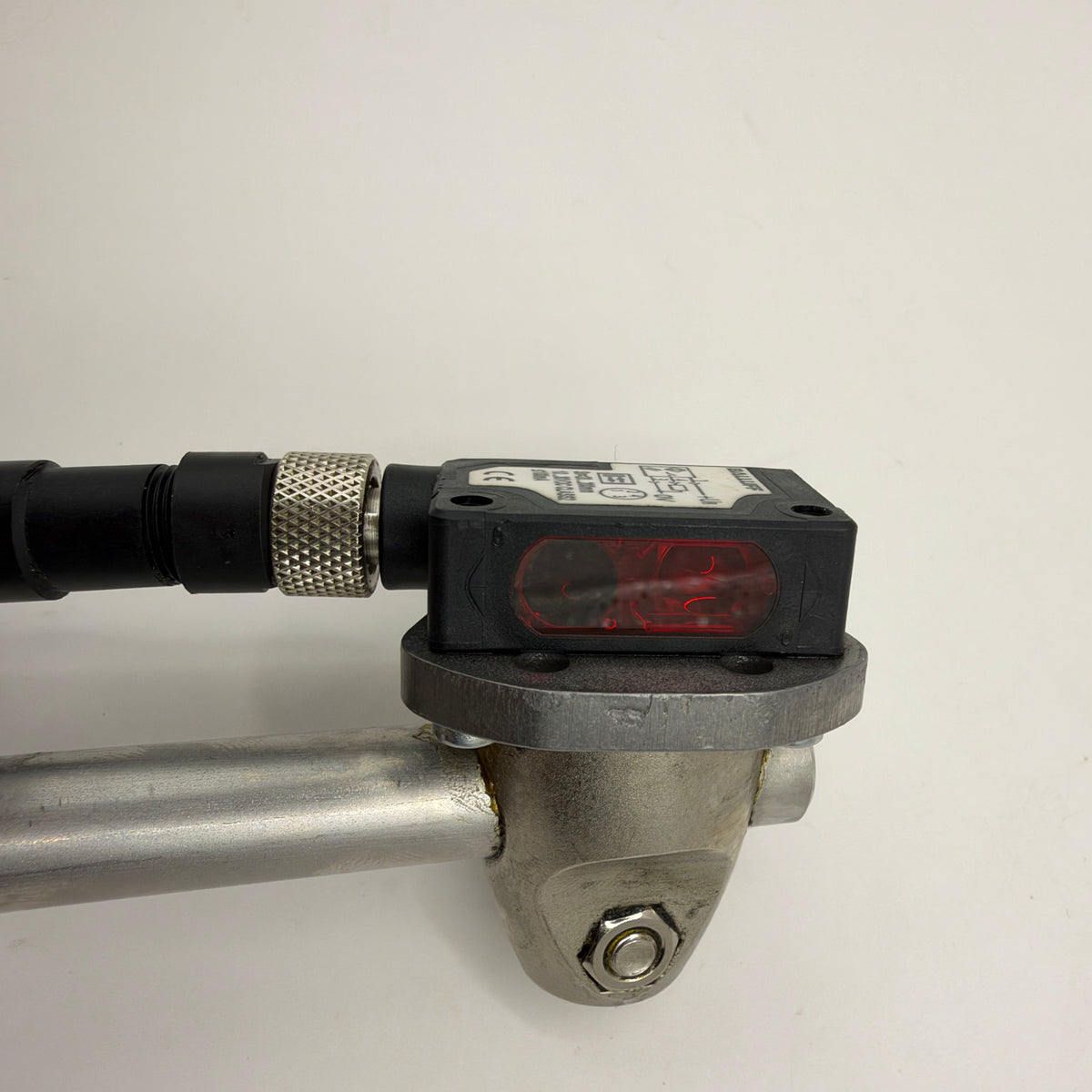

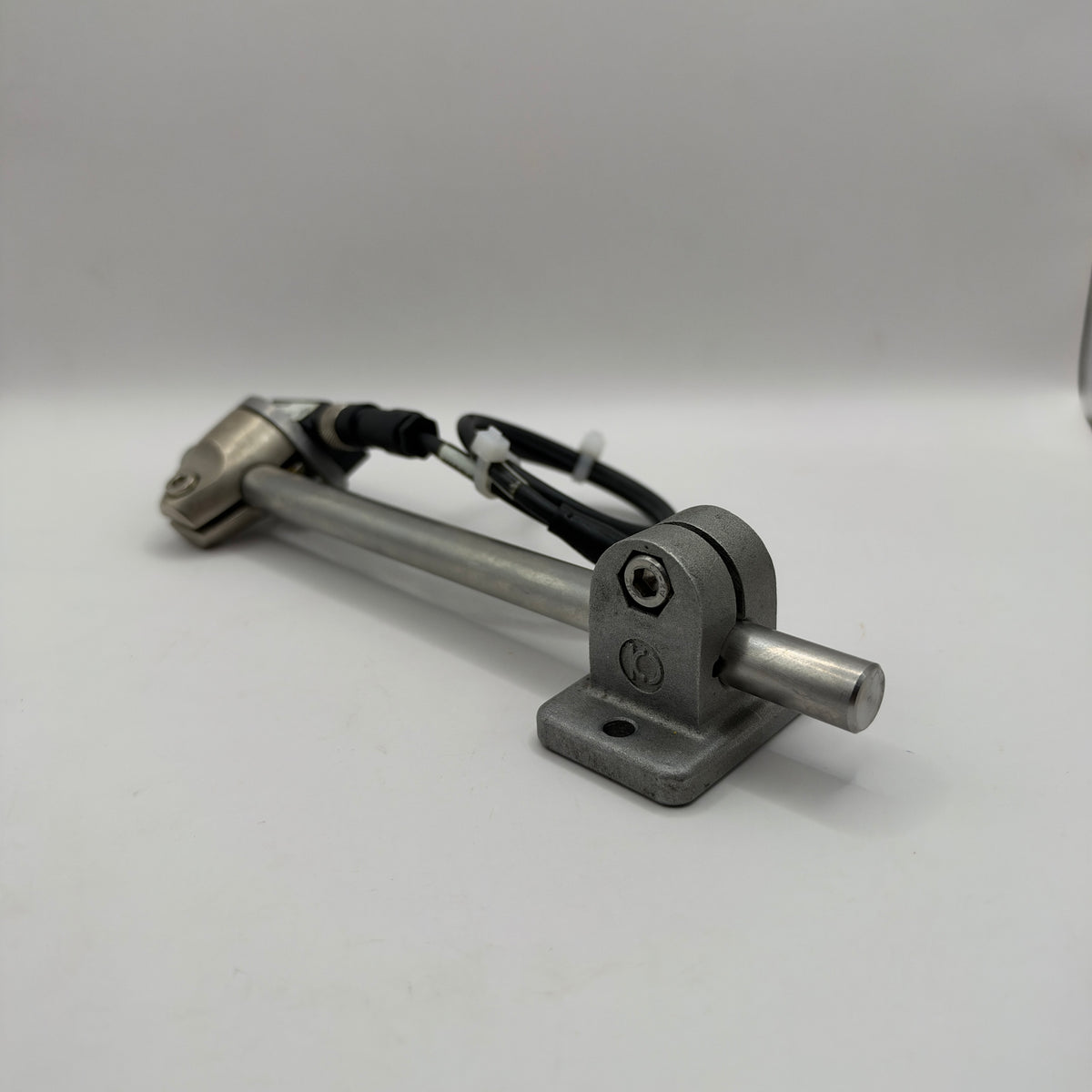

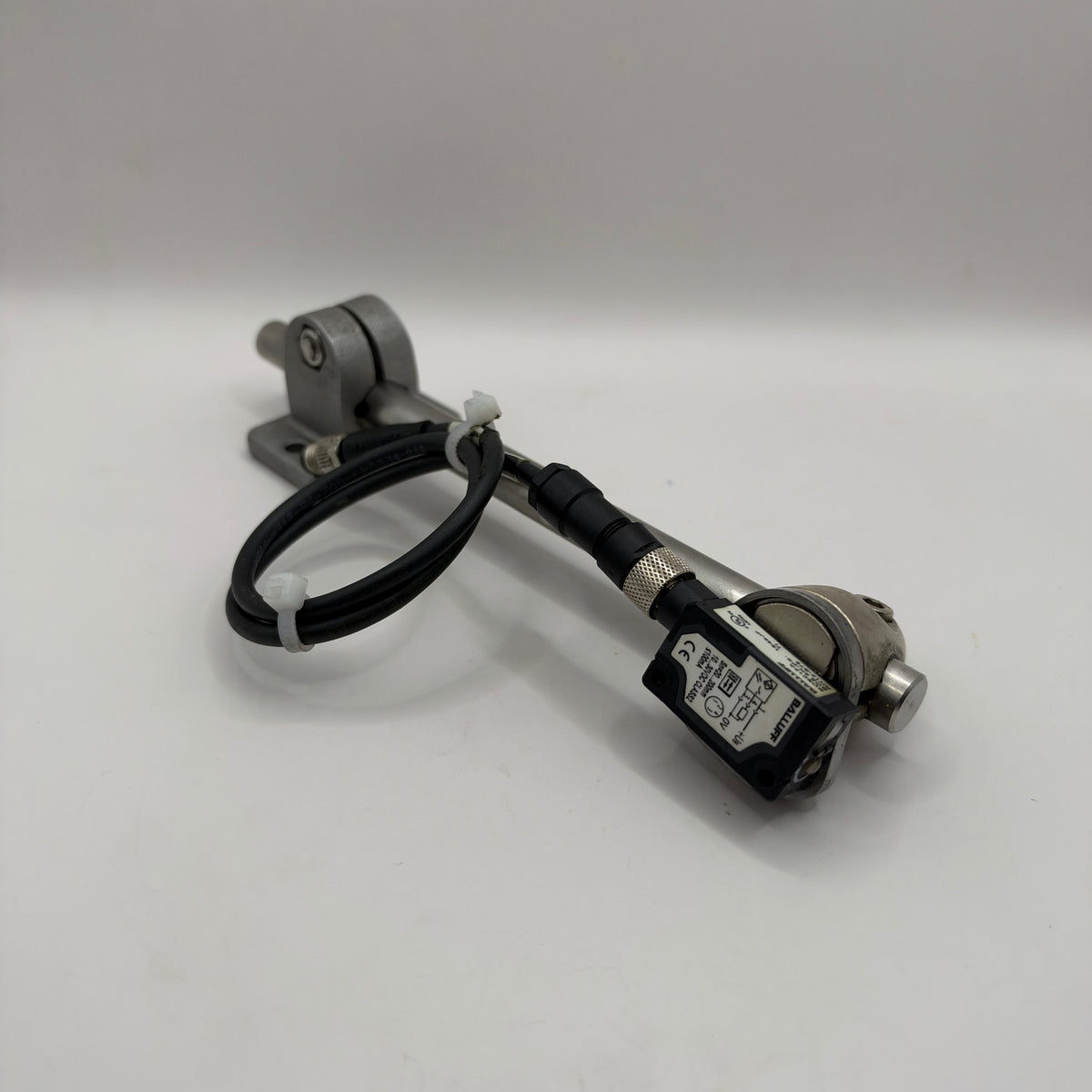

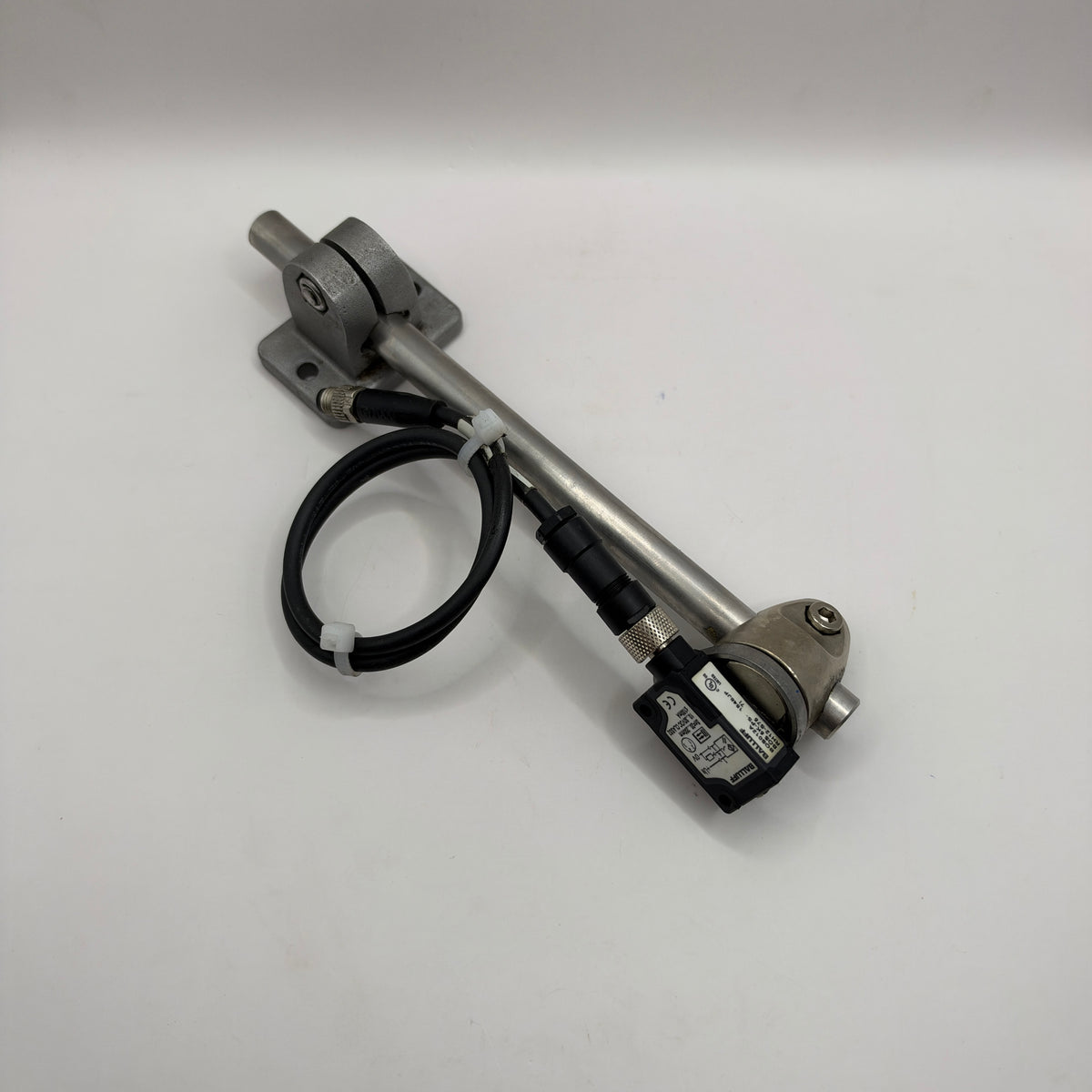

Balluff BOS012A / BOS 5K-PS-RH12-S75 photoelectric diffuse sensor with background suppression, supplied as shown with metal mounting assembly and approximately 45 cm cable.
The sensor uses the triangulation principle with red LED light and provides a PNP normally open (NO) switching output. Its adjustable sensing range is 40–200 mm. Electrical connection is via a 4-pin M8x1 connector.
Technical specifications:
- Manufacturer: Balluff
- Order code: BOS012A
- Part number: BOS 5K-PS-RH12-S75
- Series: 5K
- Type: Photoelectric diffuse sensor
- Optical principle: Diffuse sensor, triangulation
- Special optical feature: Background suppression
- Sensing range: 40–200 mm
- Rated operating distance: 200 mm, adjustable
- Light source: Red LED
- Wavelength: 660 nm
- Switching output: PNP, normally open (NO)
- Operating voltage: 10–30 VDC
- Rated operating voltage: 24 VDC
- Rated operating current: 100 mA
- Switching frequency: 500 Hz
- Connection: M8x1 male, 4-pin
- Protection rating: IP67
- Ambient temperature: -25 to +55 °C
- Sensor housing material: PC/PBT
- Cable length: approximately 45 cm
- Included: Sensor, connected cable and metal mounting assembly
- Product status: Discontinued by manufacturer
Used, fully functional.
