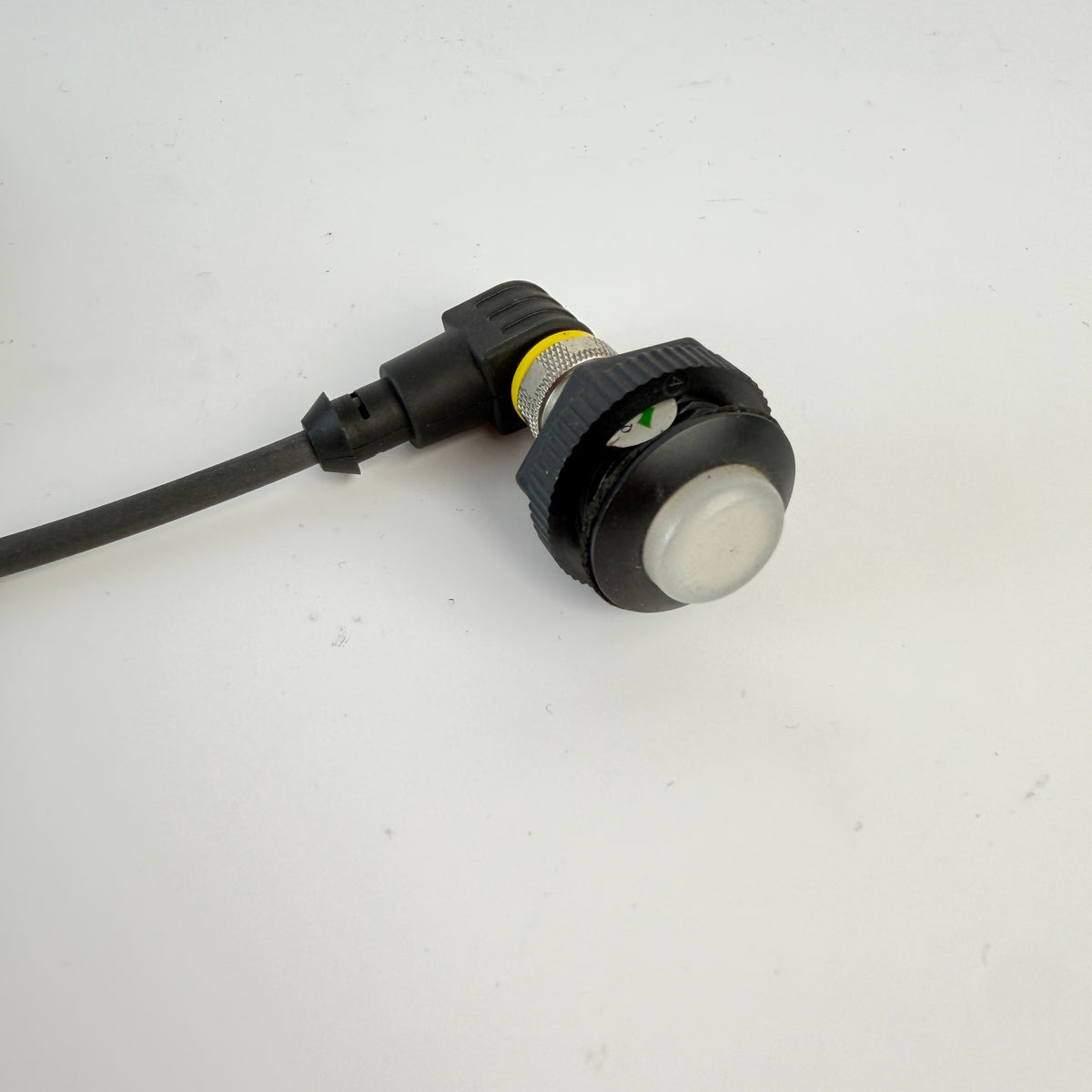

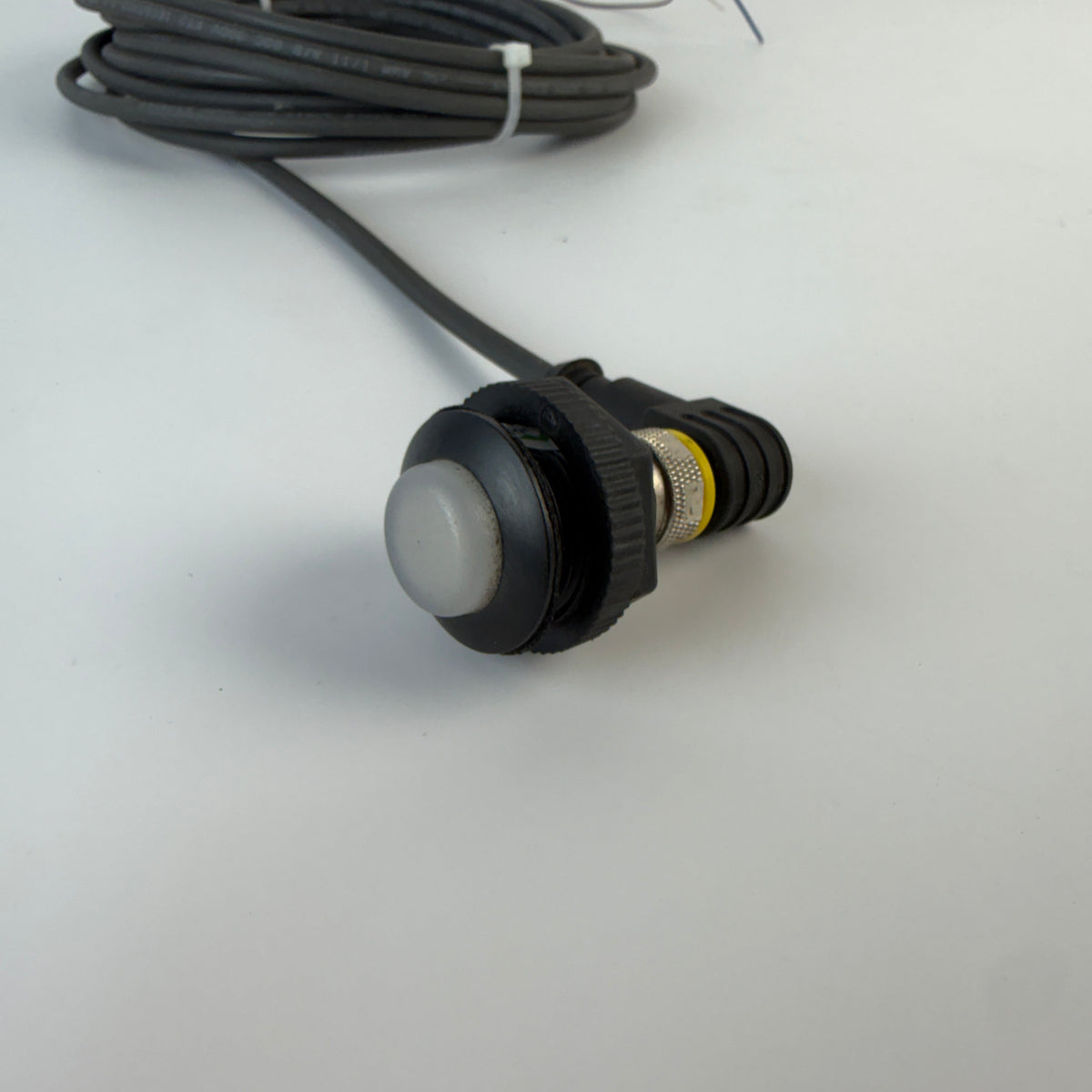

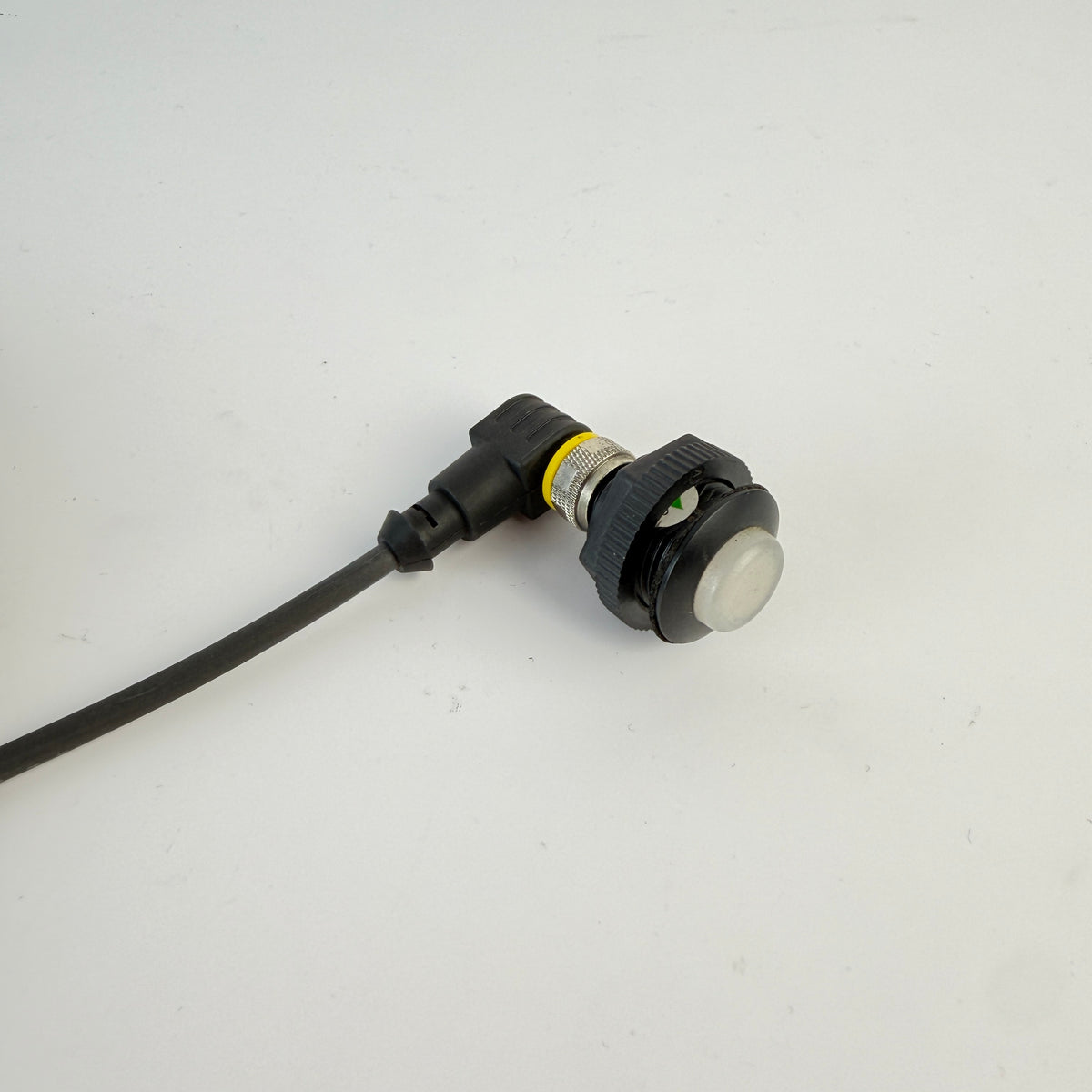

Banner Engineering S22LGRYPQ S22 Series industrial multicolor LED panel-mount indicator supplied with a TURCK WKC4.4T-5/TXL 5-meter M12 connection cable.

The S22LGRYPQ is a compact 22 mm panel-mounted status indicator designed for industrial machine and automation applications. It provides three independently controlled indication colors — green, red and yellow — from a single diffused indicator face.

The indicator operates from 10–30 VDC with PNP inputs and uses an integral 4-pin M12 quick-disconnect connection.

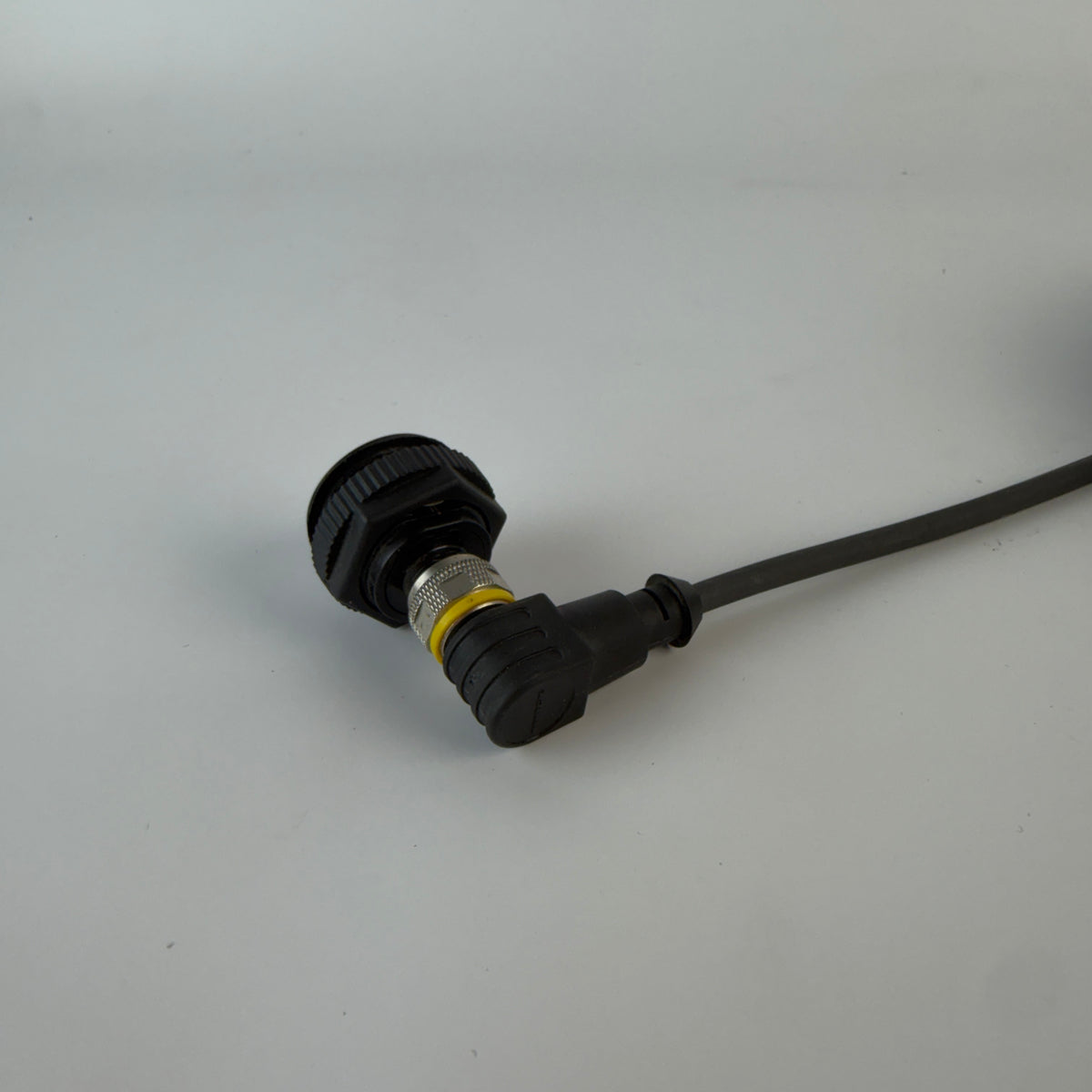

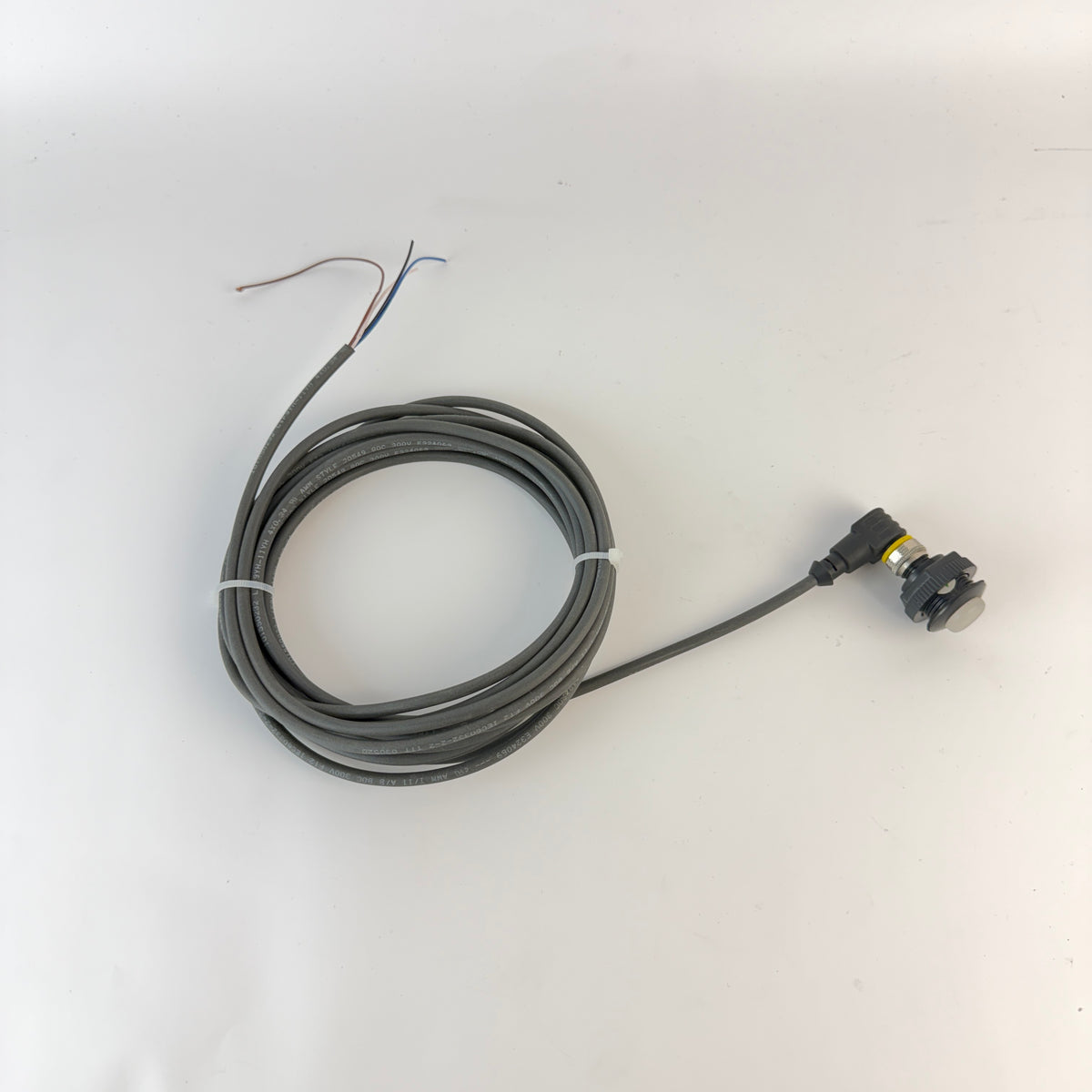

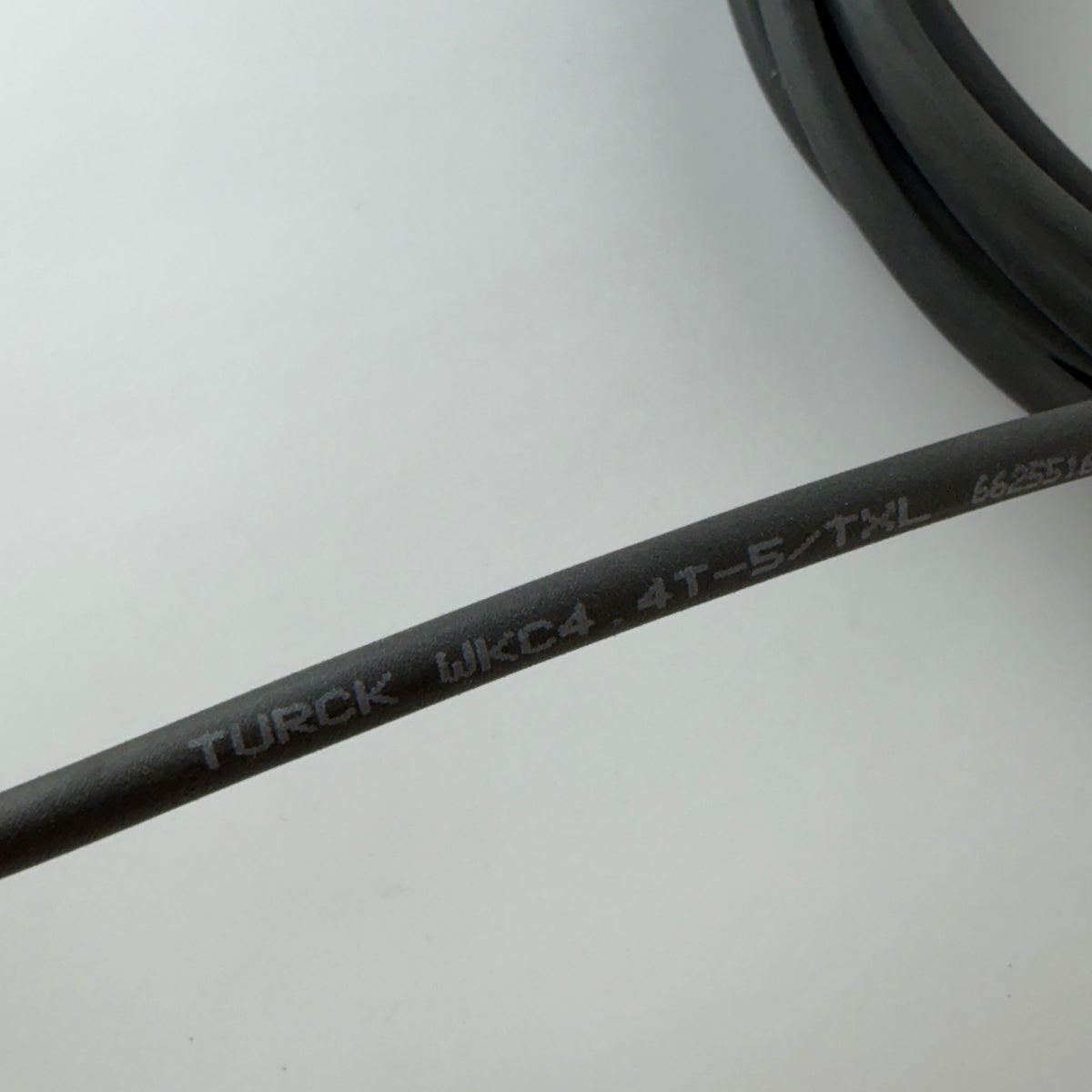

Included TURCK cable is model WKC4.4T-5/TXL, ID 6625516. It features an angled female M12 A-coded 4-pin connector and a 5-meter black PUR cable with open conductors at the opposite end.

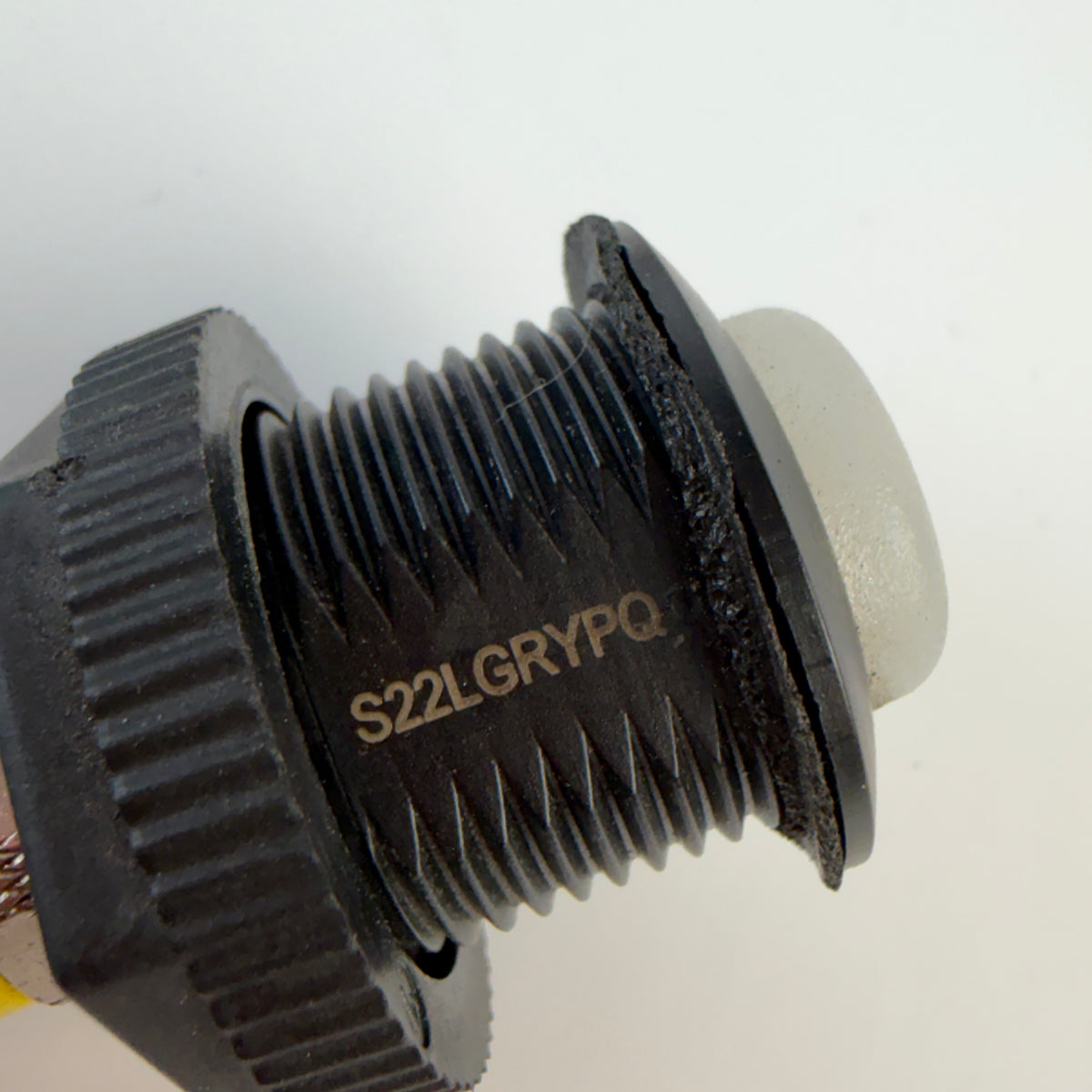

Banner S22LGRYPQ specifications:

• Manufacturer: Banner Engineering
• MPN: S22LGRYPQ
• Series: S22
• Type: Multicolor LED panel-mount indicator
• Indicator colors: Green / Red / Yellow
• Number of colors: 3

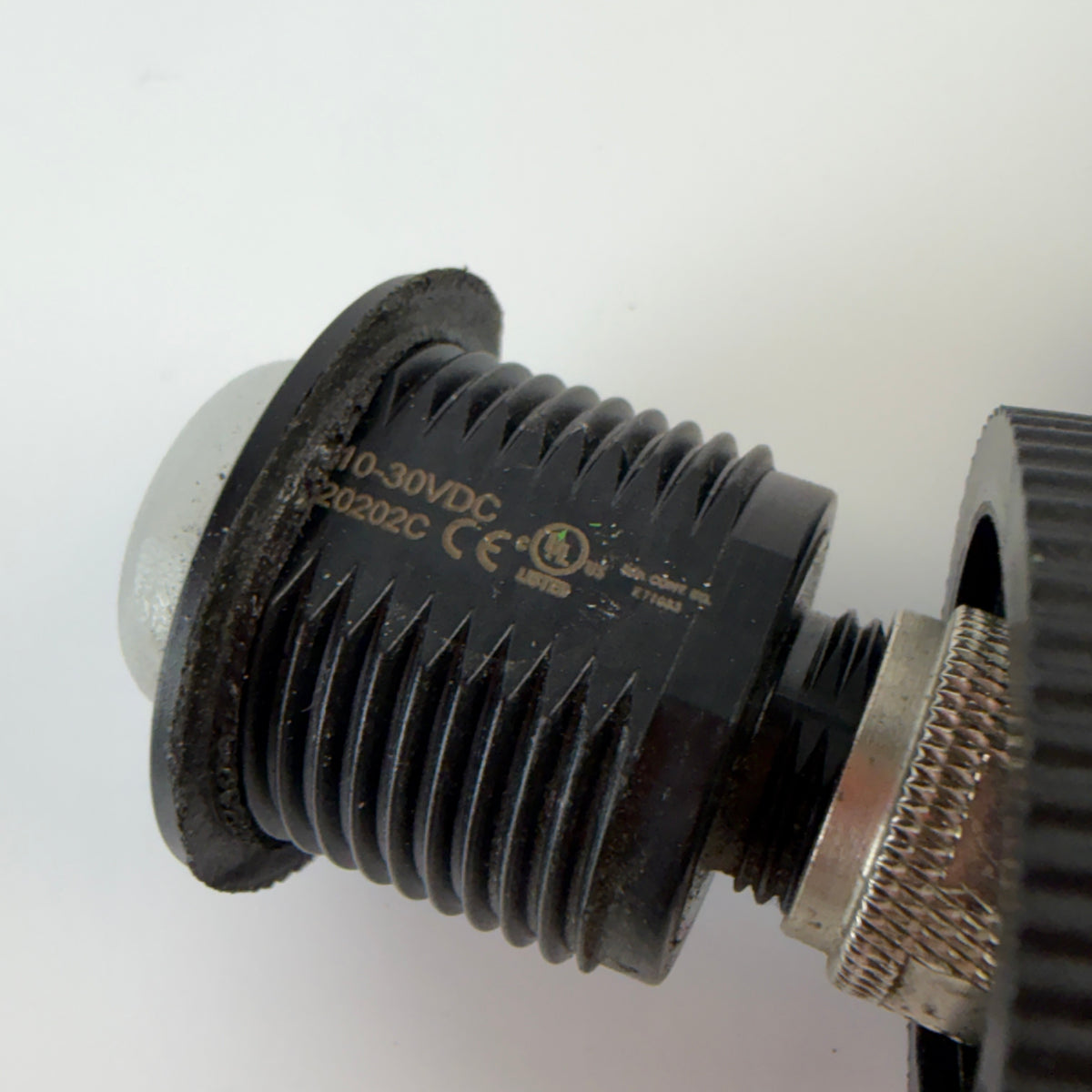

• Supply voltage: 10–30 VDC
• Input type: PNP
• Connection: Integral 4-pin M12 quick disconnect
• Mounting size: 22 mm
• Mounting thread: M22 × 1.5
• Protection rating: IP67 / IP69K
• Housing material: Polycarbonate
• Operating temperature: -40°C to +50°C

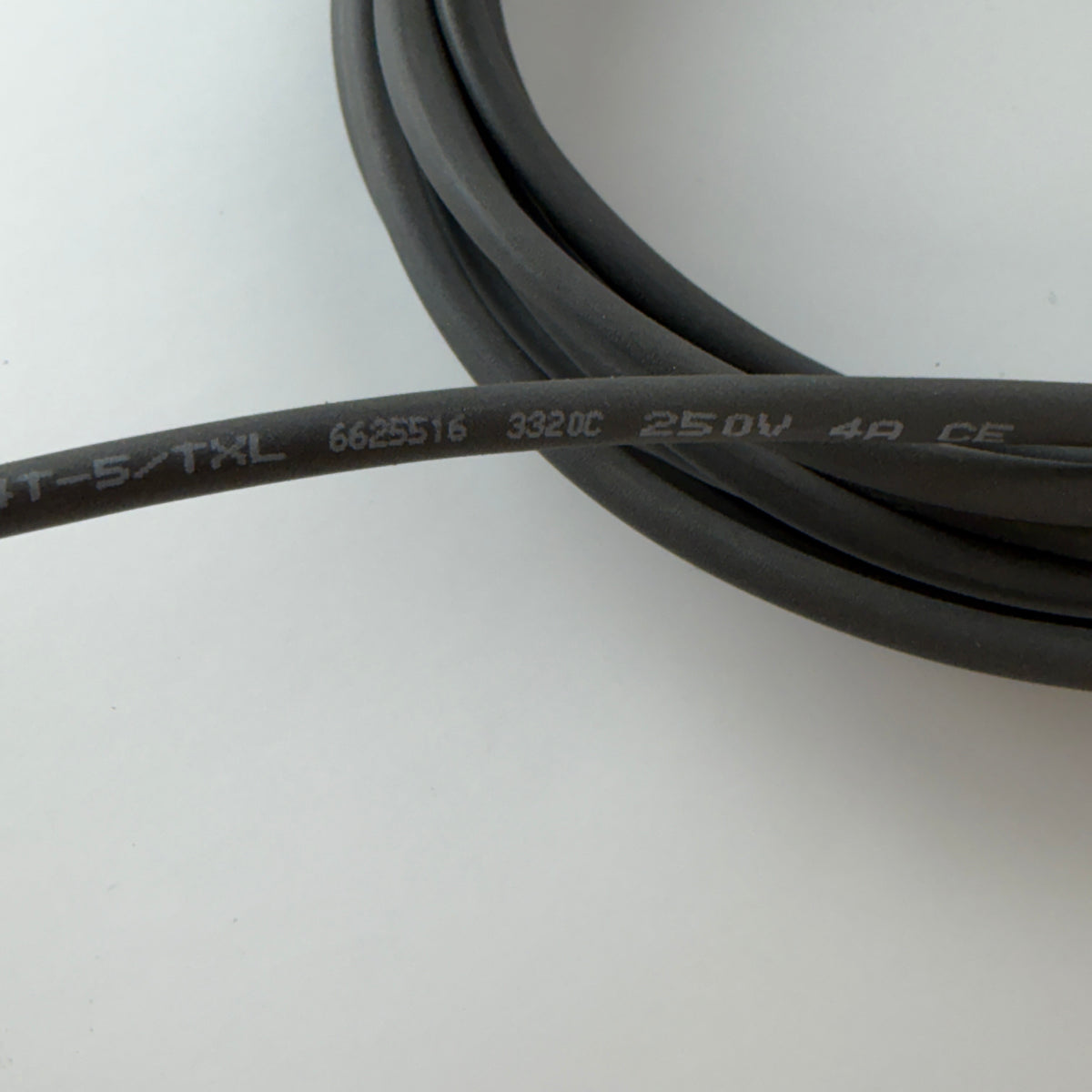

Included TURCK cable:

• Model: WKC4.4T-5/TXL
• ID: 6625516
• Length: 5 m
• Connector: Female M12 × 1, angled, A-coded
• Number of pins: 4
• Cable material: PUR
• Core cross-section: 4 × 0.34 mm²
• Protection rating: IP67 / IP69K when properly connected

Condition: Used, fully functional.
