Bosch Rexroth 0842900300 VE 2 Pneumatic Stop Gate with 2 Sensors and Cables

The Bosch Rexroth VE 2 is an industrial pneumatic stop gate designed to stop and separate workpiece pallets in automated conveyor and transfer systems.

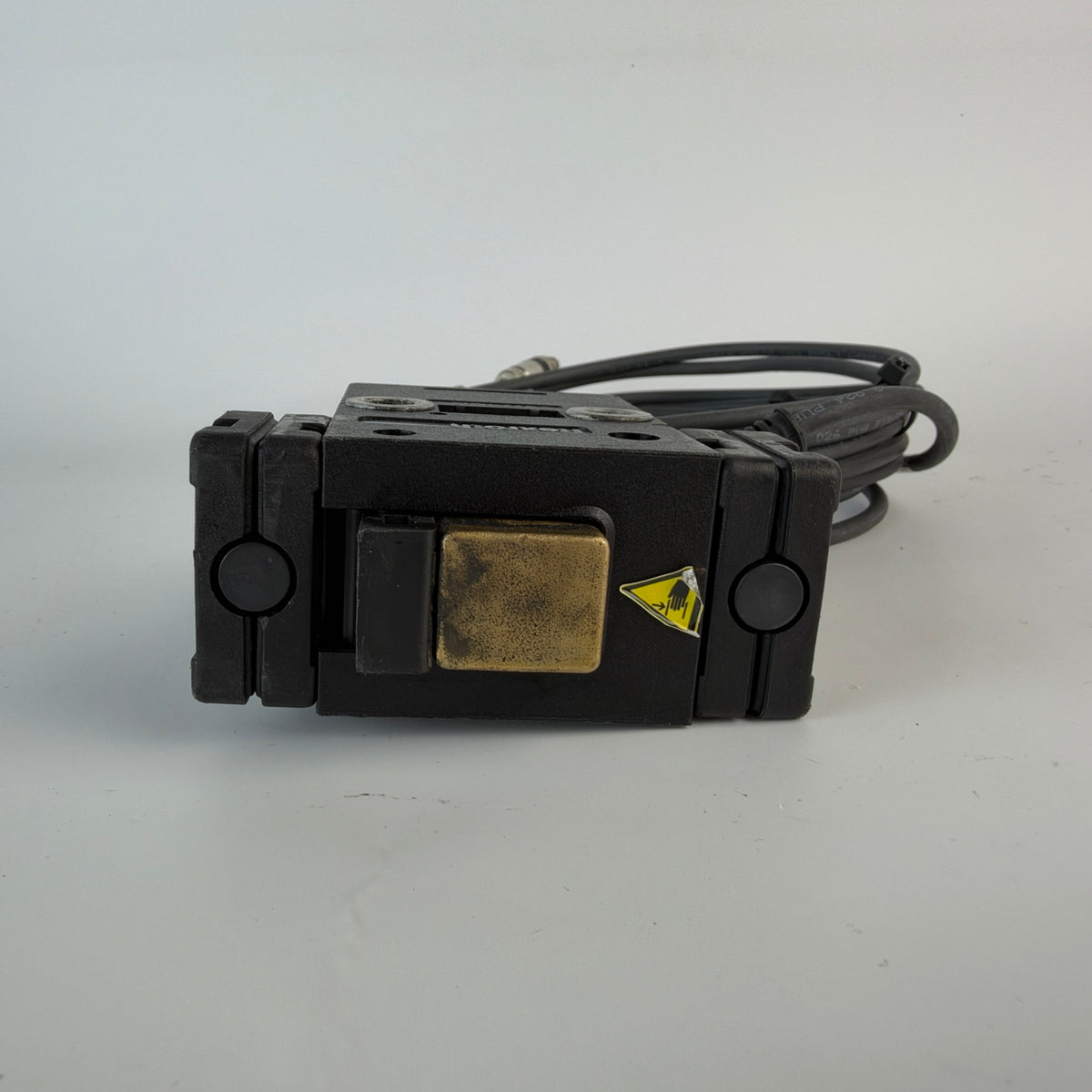

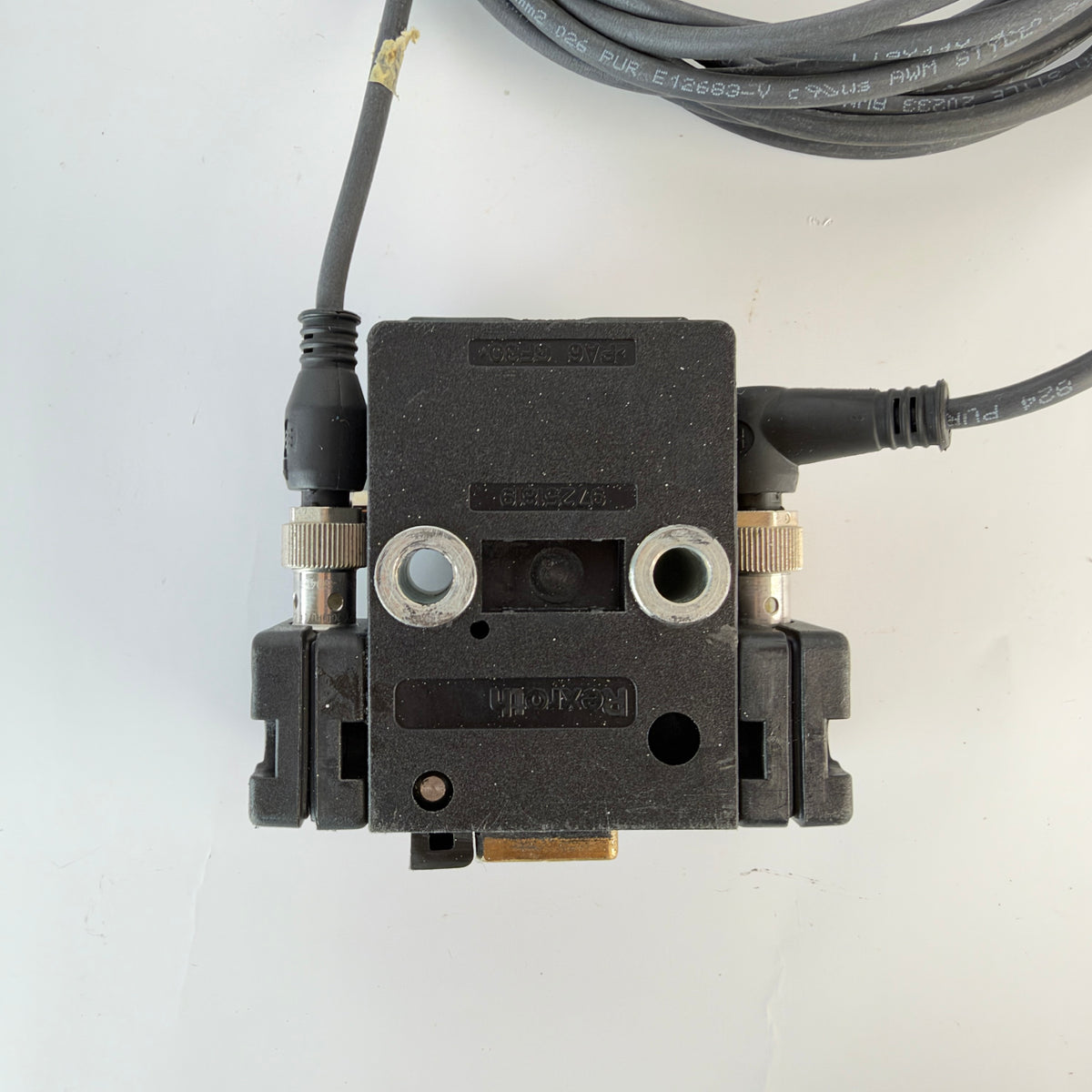

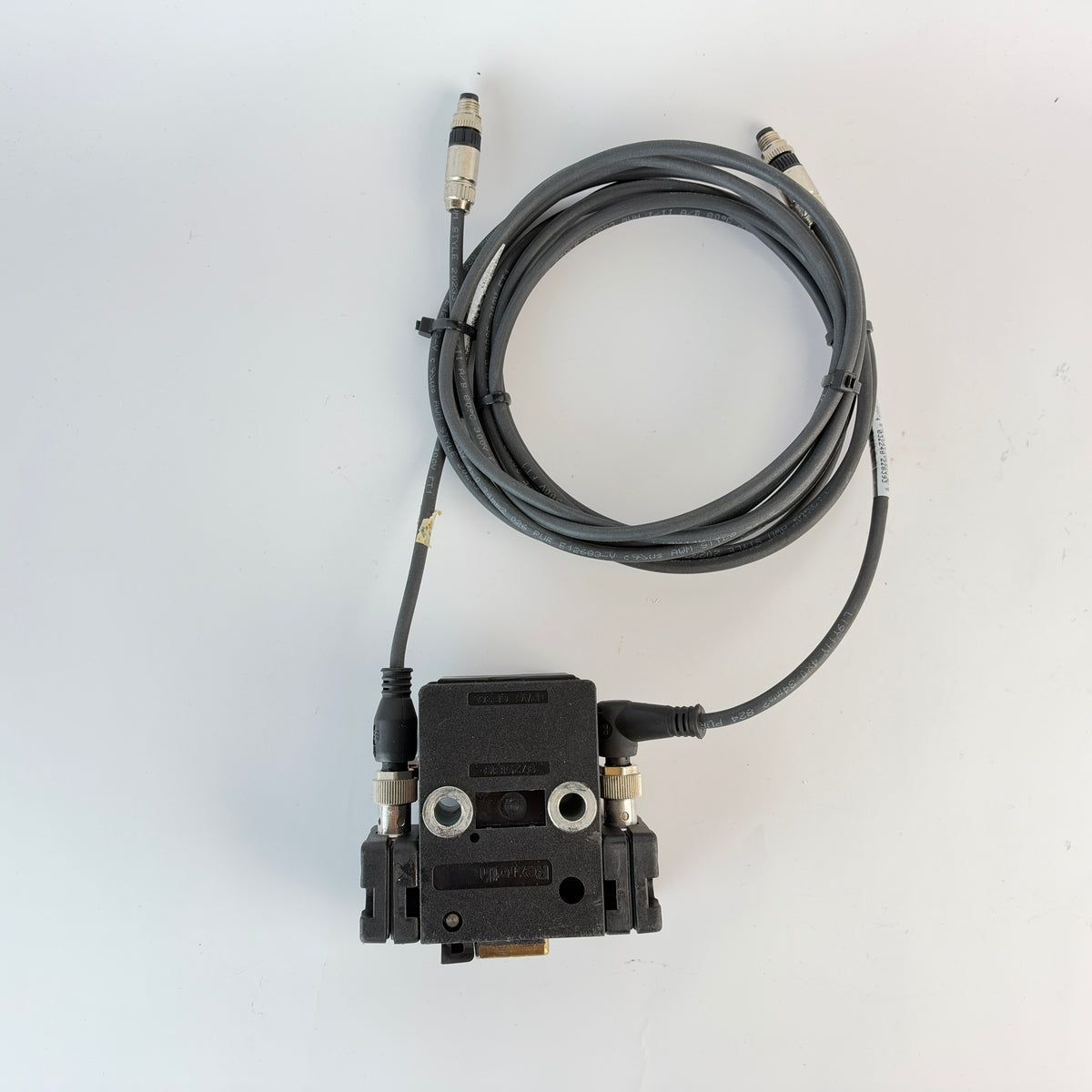

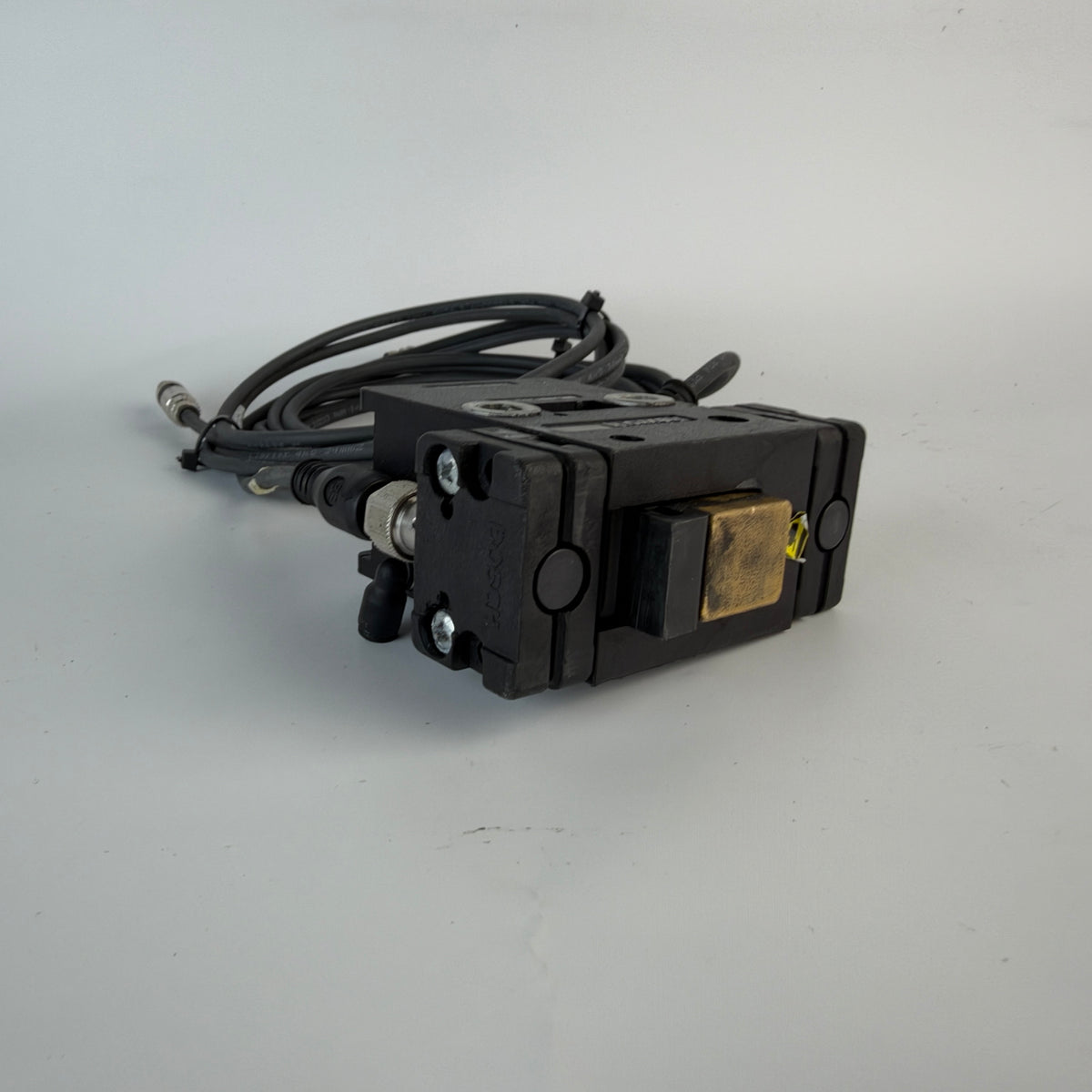

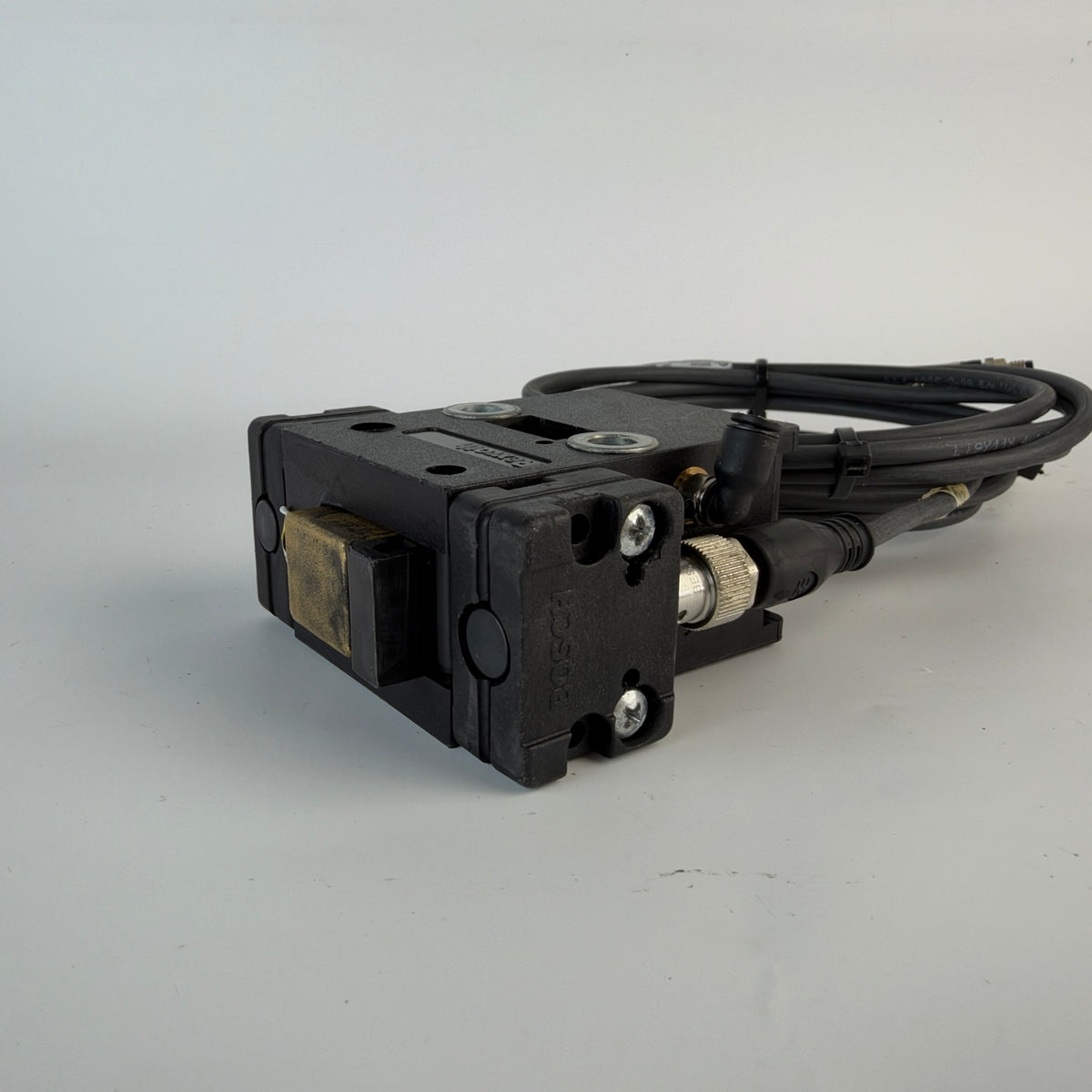

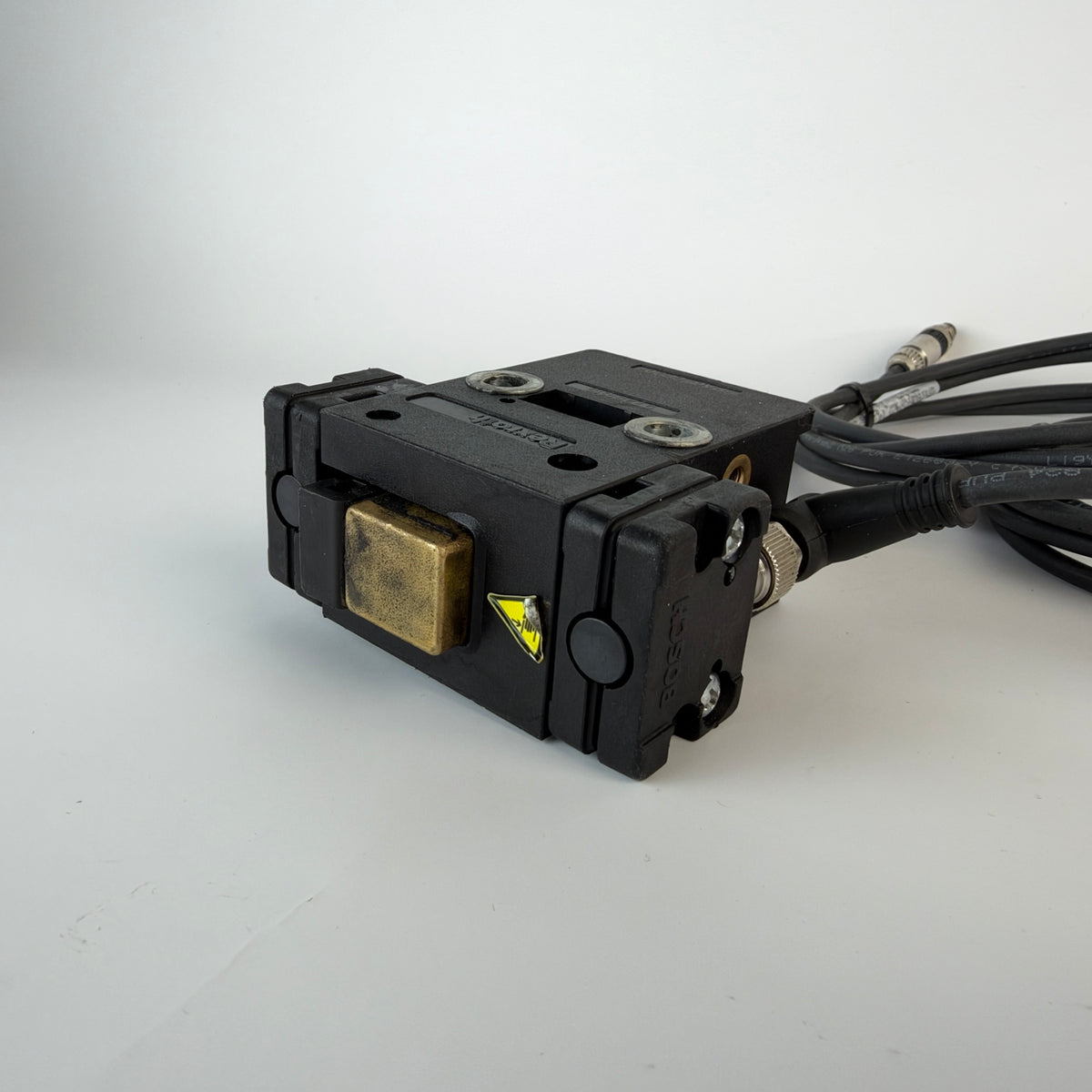

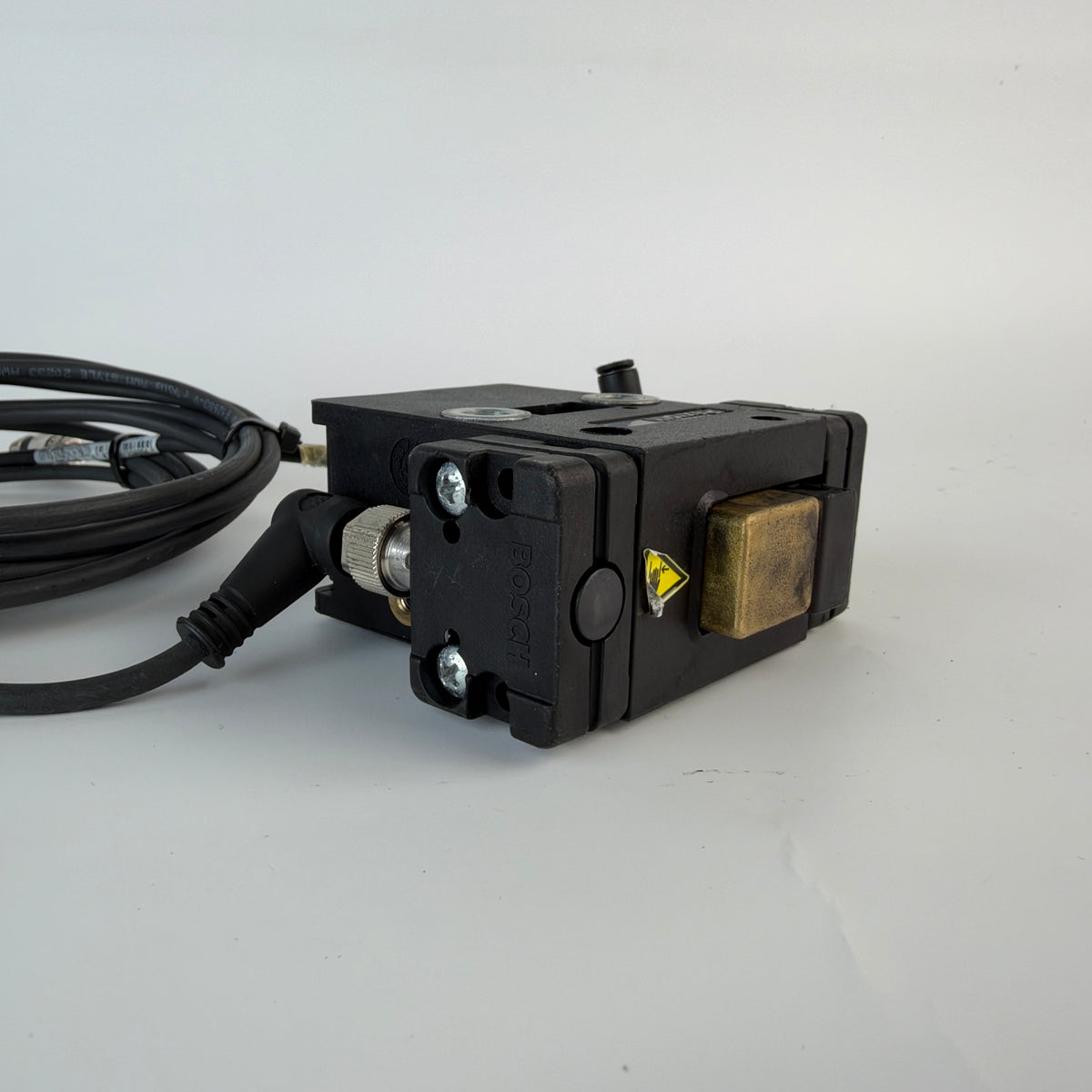

This unit is supplied with two mounted sensor connections and attached cables with circular connectors, as shown in the photographs.

The stop gate uses pneumatic actuation to release pallets and a spring-return mechanism to close the stop when pneumatic pressure is removed.

Product Details

• Manufacturer: Bosch Rexroth
• Model: VE 2
• Manufacturer Part Number: 0842900300

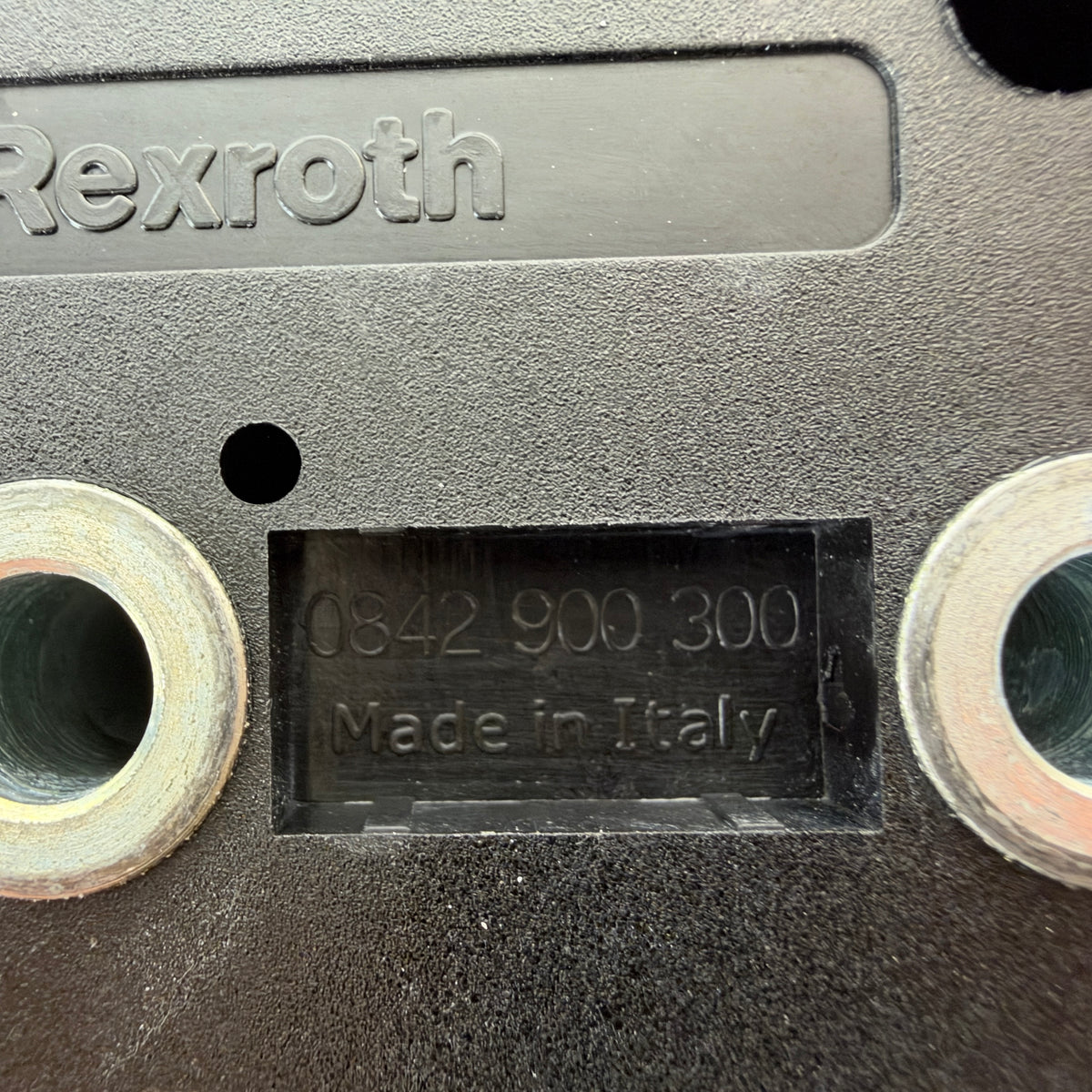

• Part Number Format: 0 842 900 300

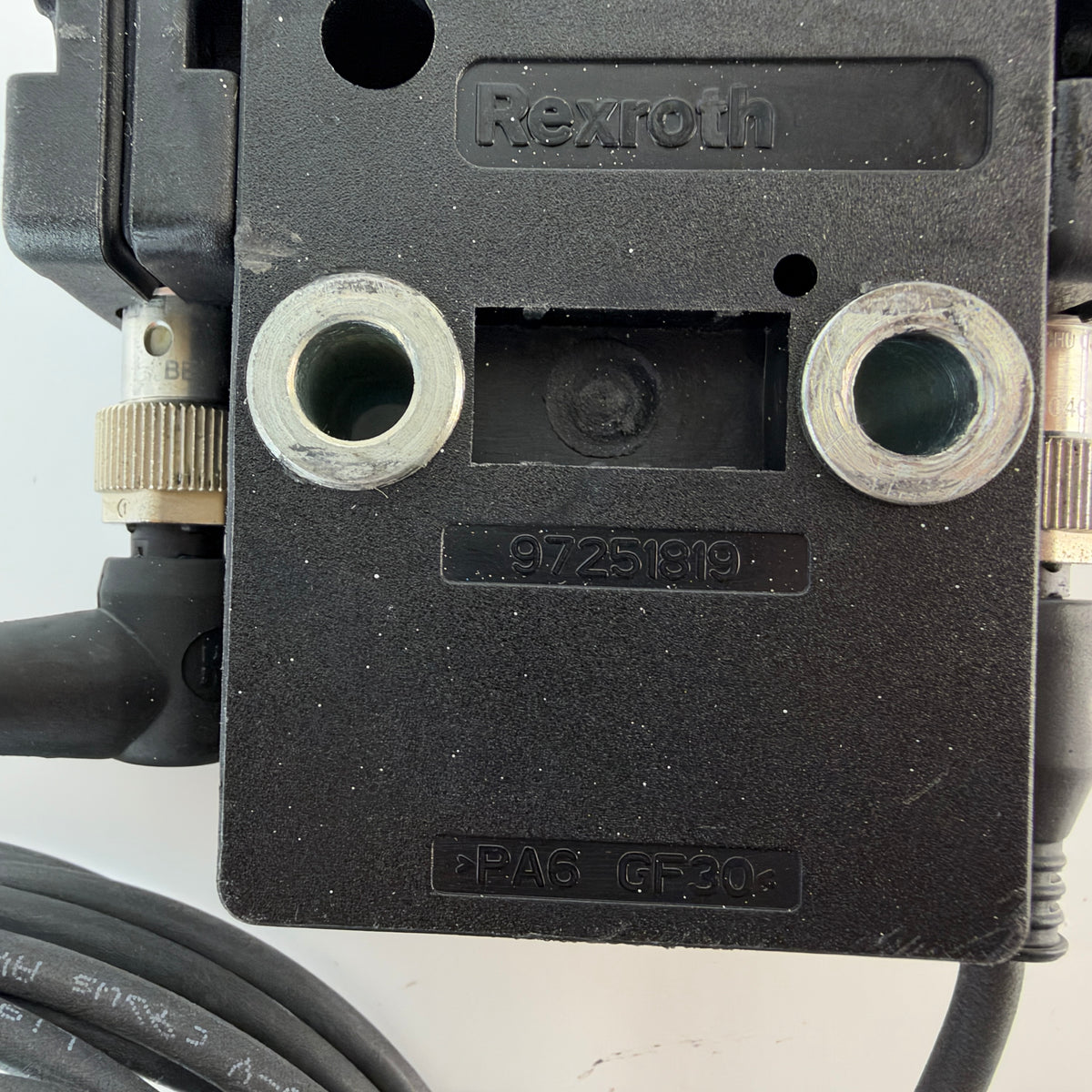

• Additional Housing Marking: 97251819
• Product Type: Pneumatic pallet stop gate
• Application: Automated pallet conveyor and transfer systems
• Product Family: TS 2plus

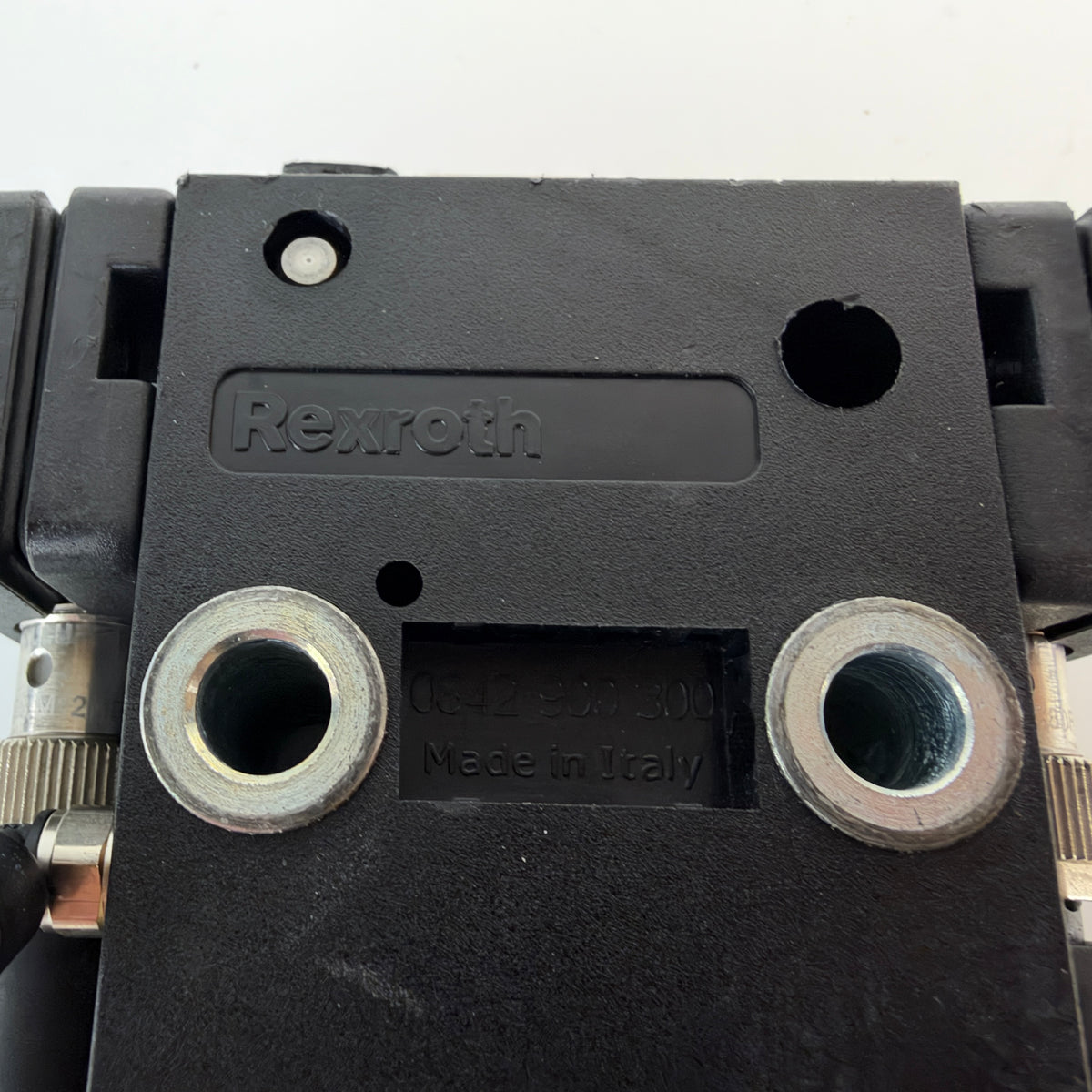

• Country of Origin: Italy

Manufacturer Specifications – VE 2

• Operating Pressure: 4–6 bar
• Pneumatic Connection: 4 mm
• Maximum Workpiece Pallet Weight: 200 kg, depending on conveyor speed
• Operating Temperature: 0°C to +60°C
• Housing Material: PA6
• Stop Cam Material: PA66
• Safety Catch Material: Brass

Included Components

• 1 × Bosch Rexroth VE 2 pneumatic stop gate
• 2 × Mounted sensor connections

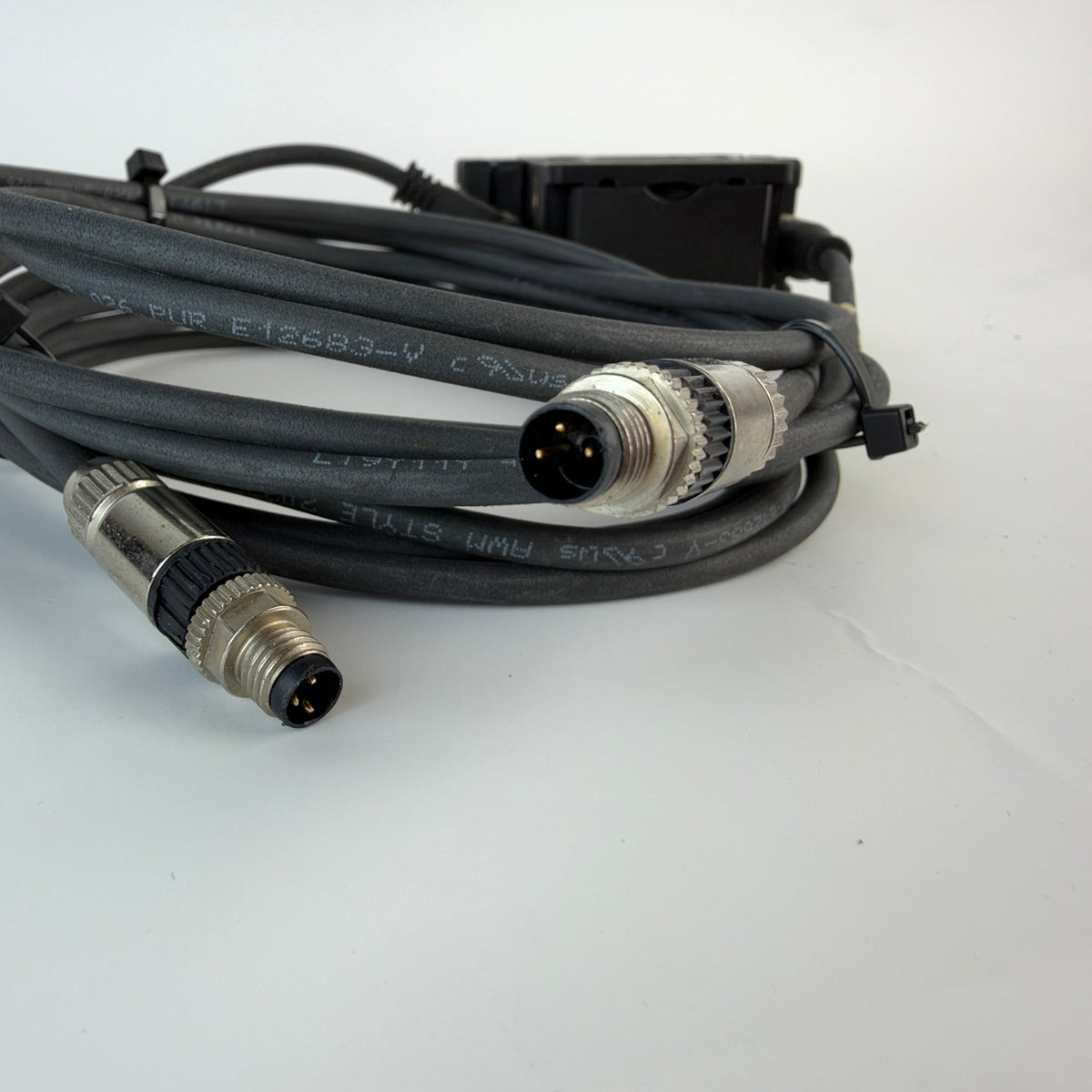

• Attached sensor cables with circular connectors

The sensors and cables are included as pictured. Their exact electrical specifications and individual part numbers have not been confirmed.

Condition: Used, fully functional.

Supplied as the complete assembly shown in the photographs.
