Bosch Rexroth 1070076807 SR-A3.0068.030-00.000 Brushless Permanent Magnet Servo Motor

Industrial brushless permanent magnet servo motor manufactured by Bosch Rexroth Electric Drives and Controls GmbH.

The motor belongs to the Rexroth SR series and is designed for industrial motion-control and servo-drive applications requiring precise speed and torque control.

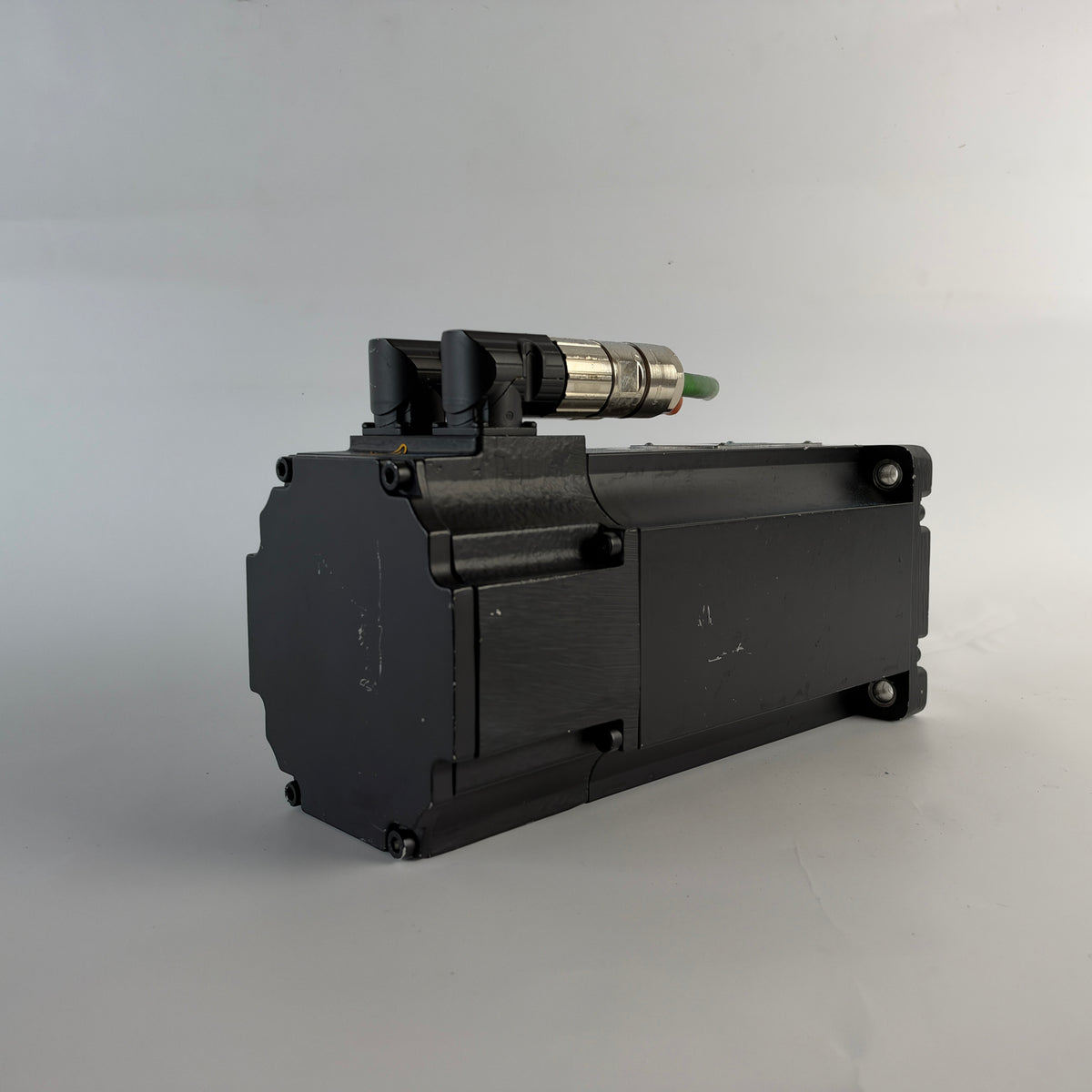

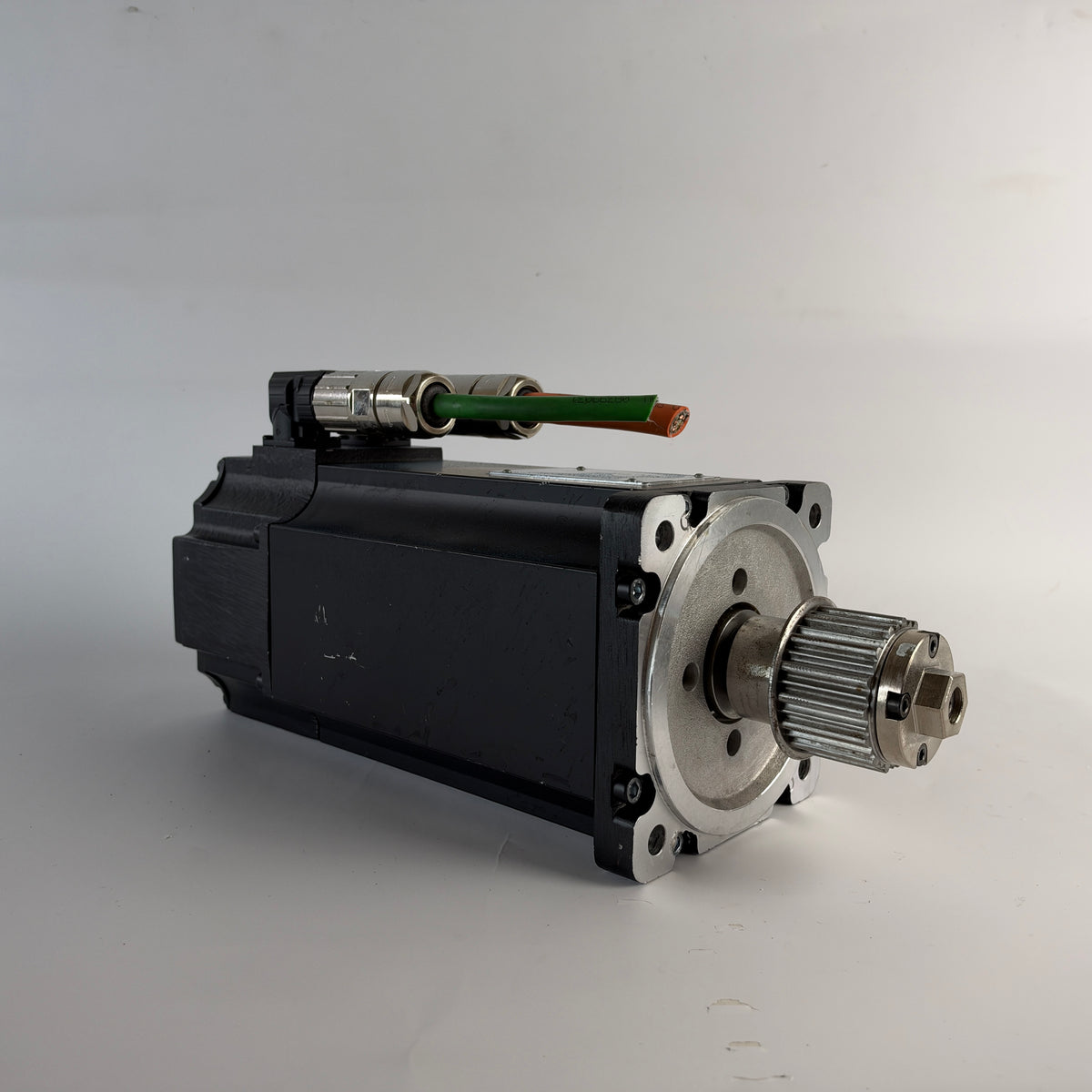

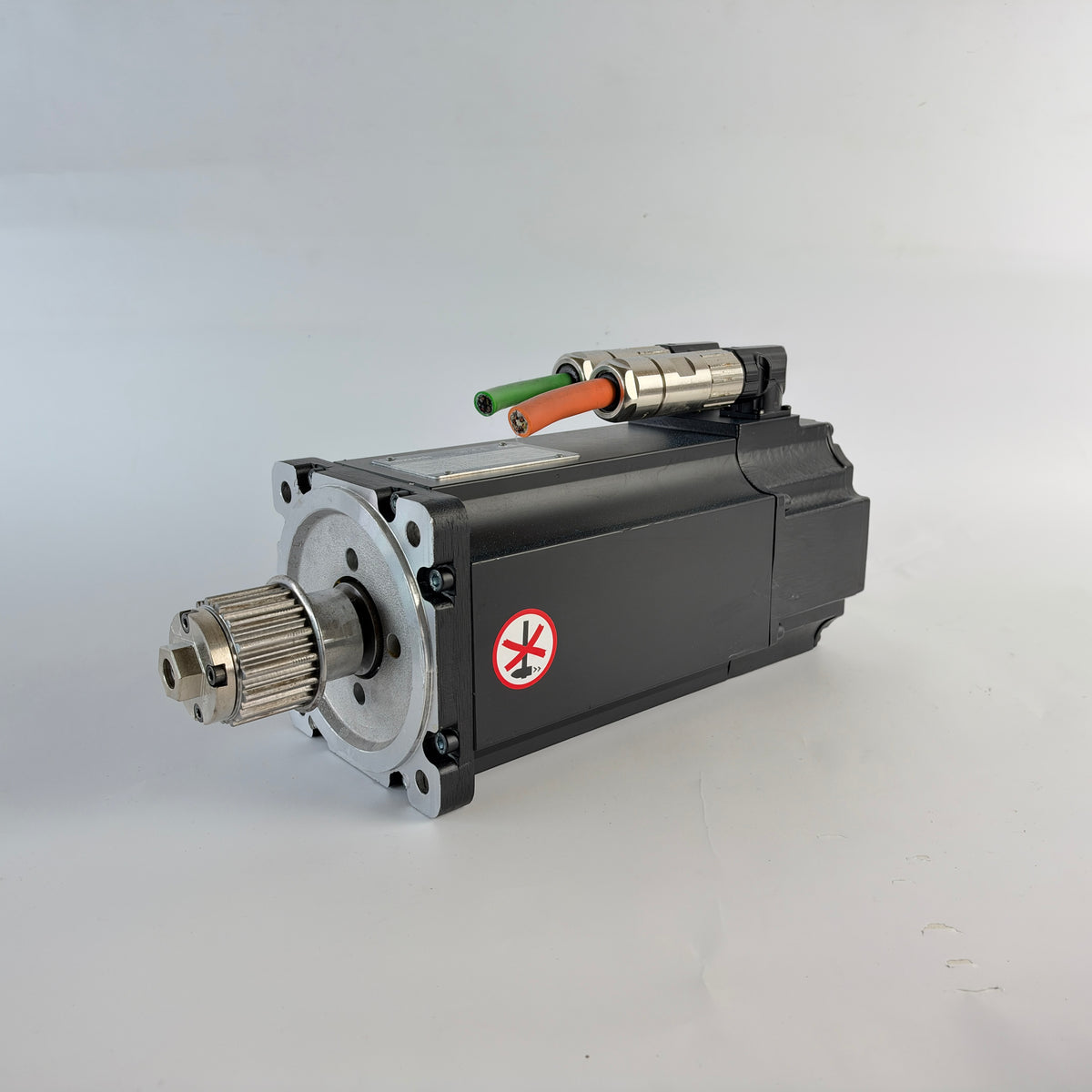

This unit features a flange-mounted housing, integrated electrical connections and a toothed timing pulley installed on the output shaft.

Technical Specifications

• Manufacturer: Bosch Rexroth
• Motor Type: Brushless Permanent Magnet Servo Motor
• Series: SR
• Model: SR-A3.0068.030-00.000
• Manufacturer Part Number (MNR): 1070076807
• Rated Speed: 3000 RPM
• Torque (VT): 6.8 Nm
• Current (Io): 4.5 A
• EMF: 288 V
• Inverter Duty: VPWM
• Protection Rating: IP67
• Insulation Class: F
• Rotor Inertia (J): 11.3 kg·cm²
• Brake Voltage Marking: 24 V DC
• Connector Current Rating (CSA): 20 A
• Additional Marking: BR155-1
• Country of Manufacture: Italy

Design and Features

• Brushless permanent magnet motor construction
• Designed for industrial servo-drive systems
• 3000 RPM rated speed
• Flange mounting

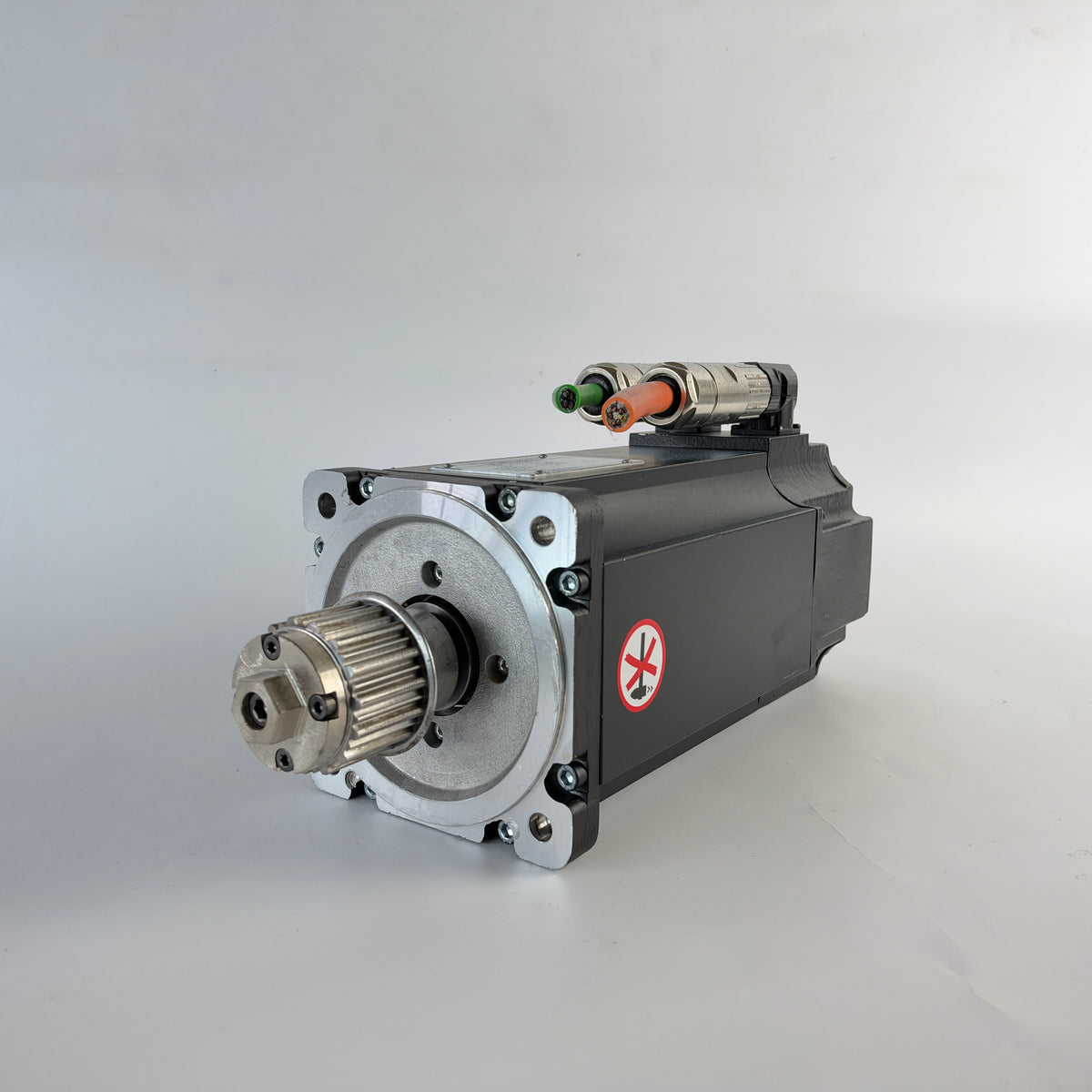

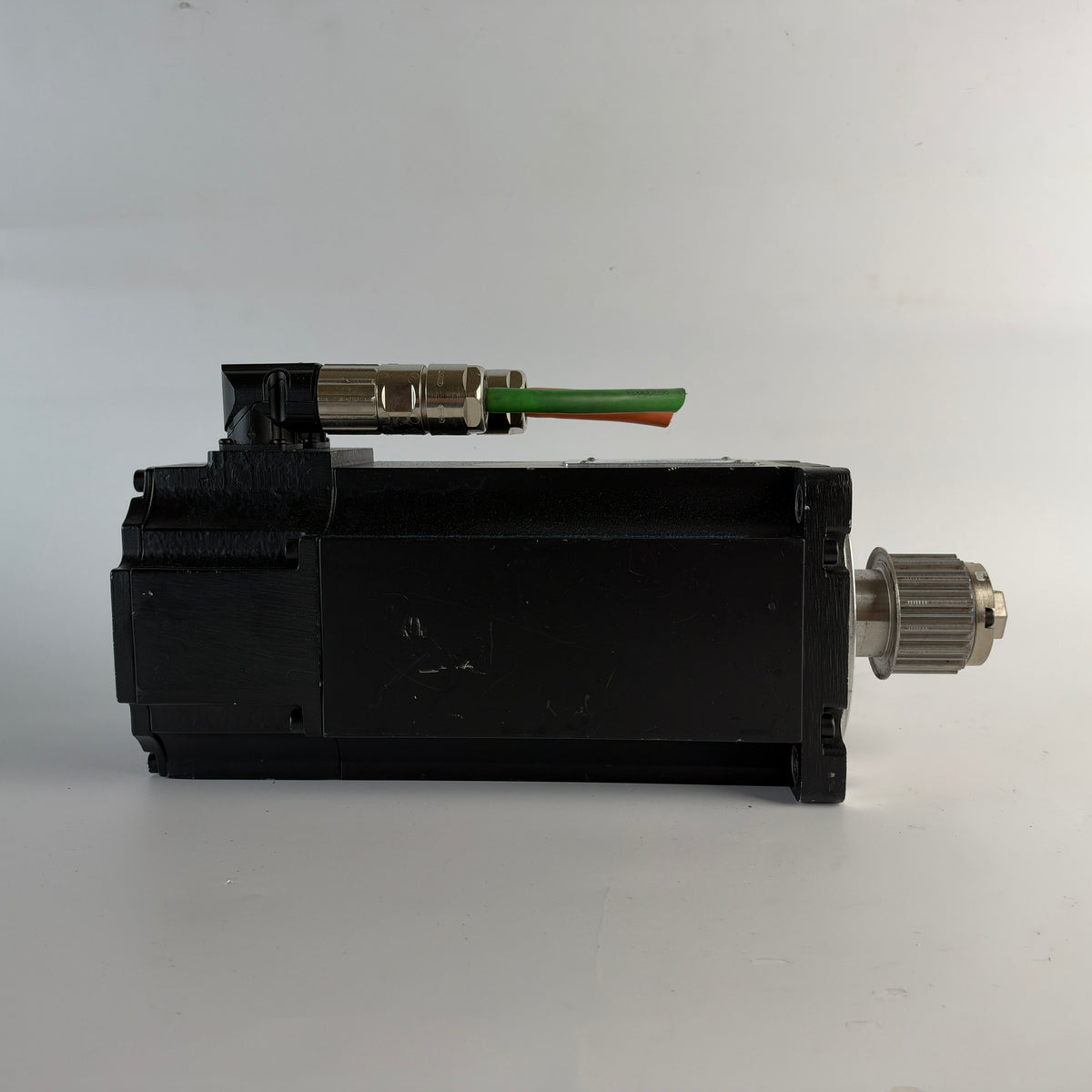

• Toothed timing pulley fitted to the output shaft

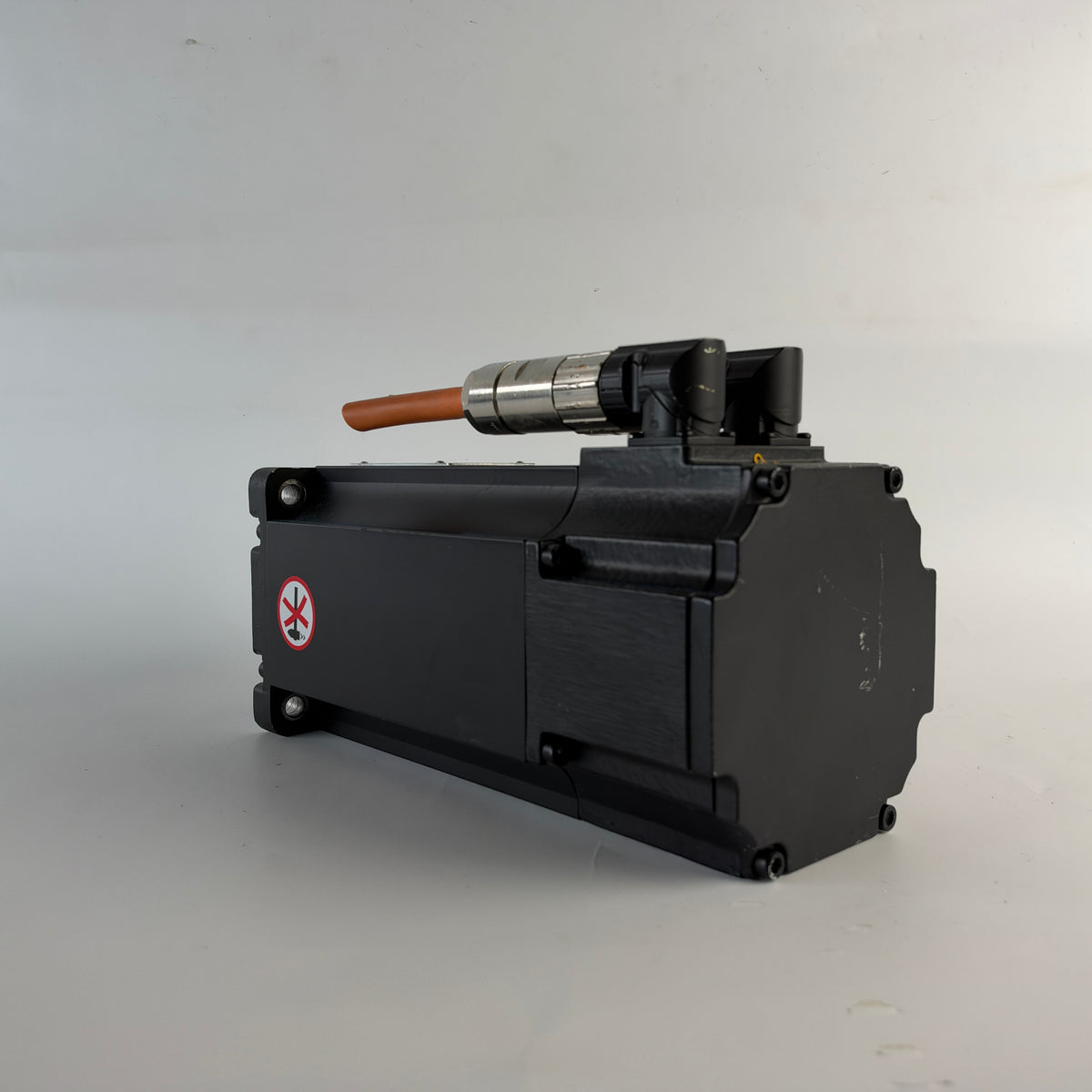

• Separate electrical connections visible on the motor housing

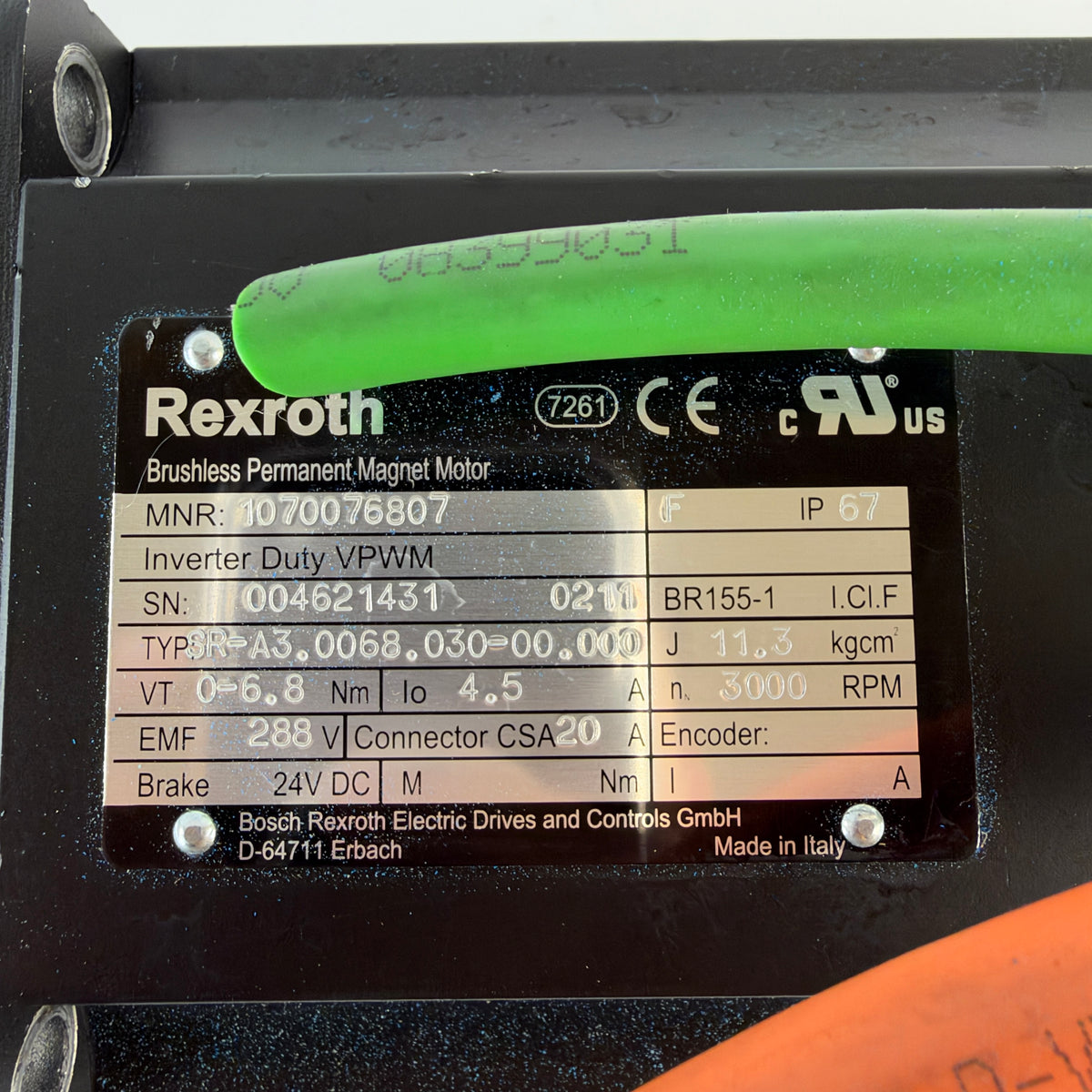

• IP67 protection rating indicated on the nameplate

Condition

Used, fully functional.

The motor shows signs of previous industrial use, including minor scratches and cosmetic wear.

The timing pulley is included as shown in the photographs.

Important Information

The exact encoder configuration and compatible drive models have not been confirmed.

The nameplate includes a 24 V DC brake marking; brake specifications and operation should be verified before installation.

Please verify the complete model number, electrical requirements and mechanical dimensions against your application.

Included in Sale

One Bosch Rexroth SR-A3.0068.030-00.000 servo motor with the installed timing pulley, exactly as pictured.
