Bosch Rexroth 1070076967 SR-A3.0068.030-04.000 Brushless Permanent Magnet Servo Motor

Industrial brushless permanent magnet motor from Bosch Rexroth, designed for precision motion-control and servo-drive applications.

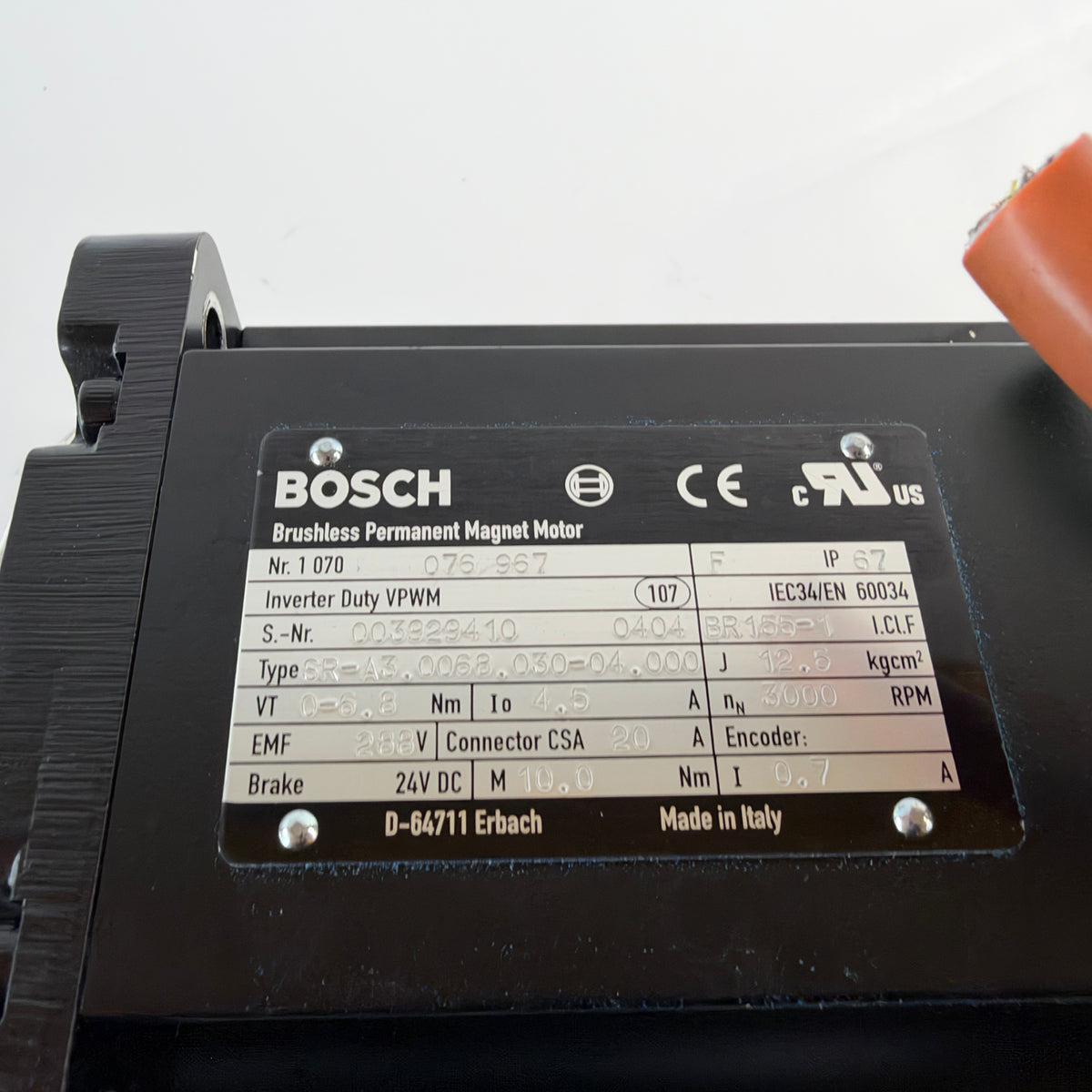

The motor nameplate identifies the unit as type SR-A3.0068.030-04.000 with a rated speed of 3000 RPM, 6.8 Nm torque rating and an integrated 24 V DC brake.

Technical Specifications:

• Manufacturer: Bosch / Rexroth
• Type: Brushless Permanent Magnet Motor
• Model: SR-A3.0068.030-04.000
• Manufacturer Part Number: 1070076967
• Inverter Duty: VPWM
• Rated Speed: 3000 RPM
• Torque (VT): 6.8 Nm
• Current (Io): 4.5 A
• EMF: 288 V
• Protection Rating: IP67
• Insulation Class: F
• Rotor Inertia (J): 12.6 kg·cm²
• Connector Rating: CSA 20 A
• Brake Voltage: 24 V DC
• Brake Torque: 10.0 Nm
• Brake Current: 0.7 A
• Additional Marking: BR155-1
• Country of Manufacture: Italy

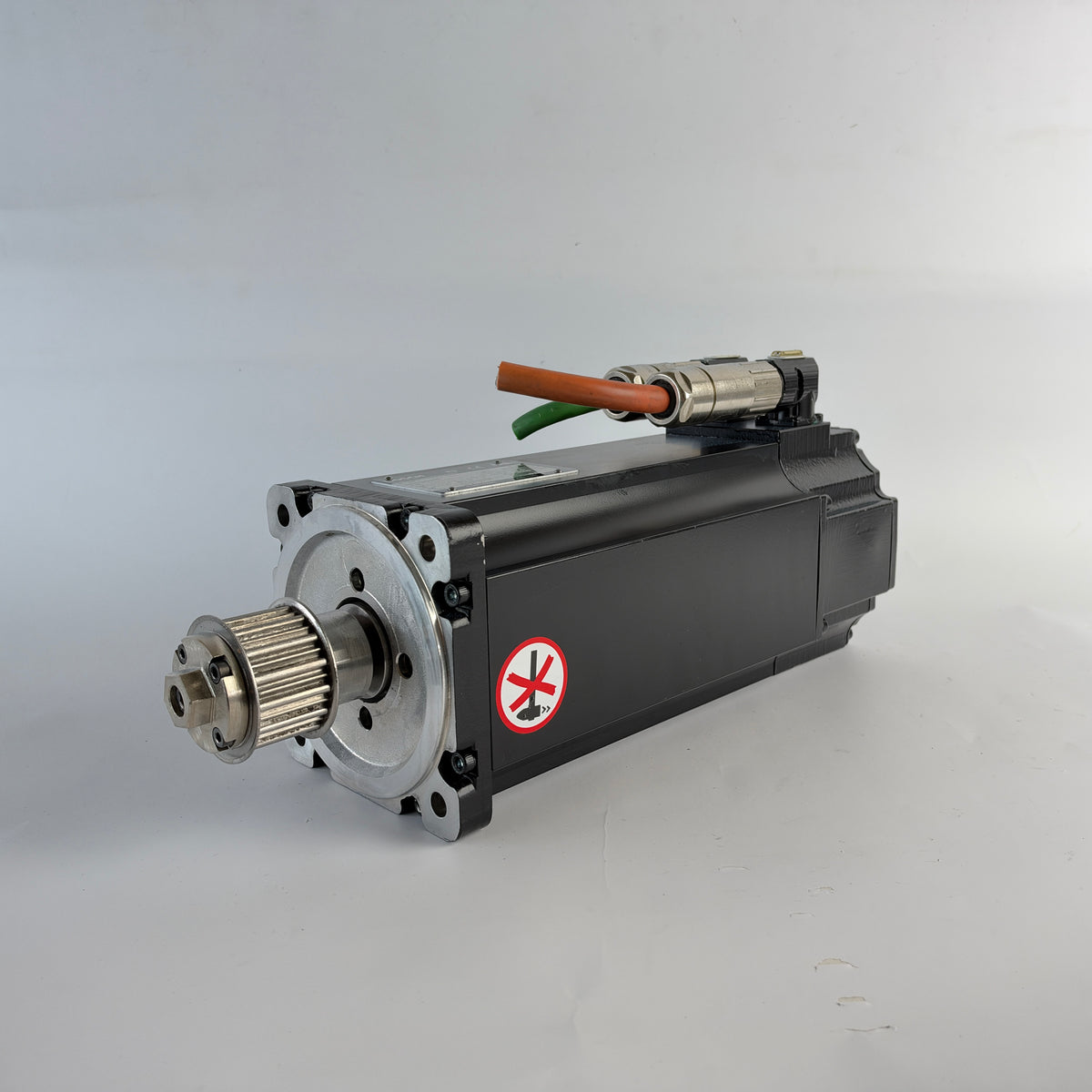

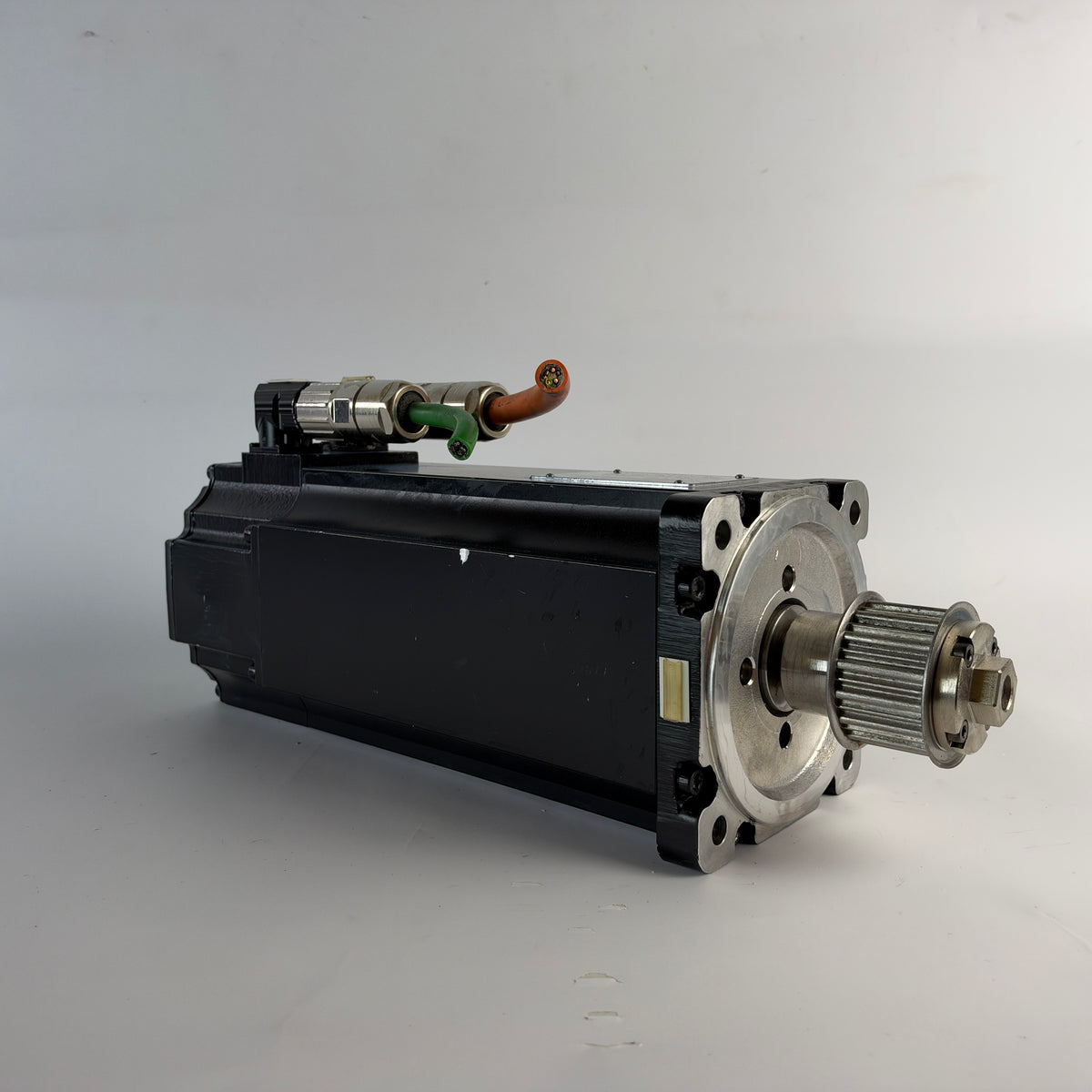

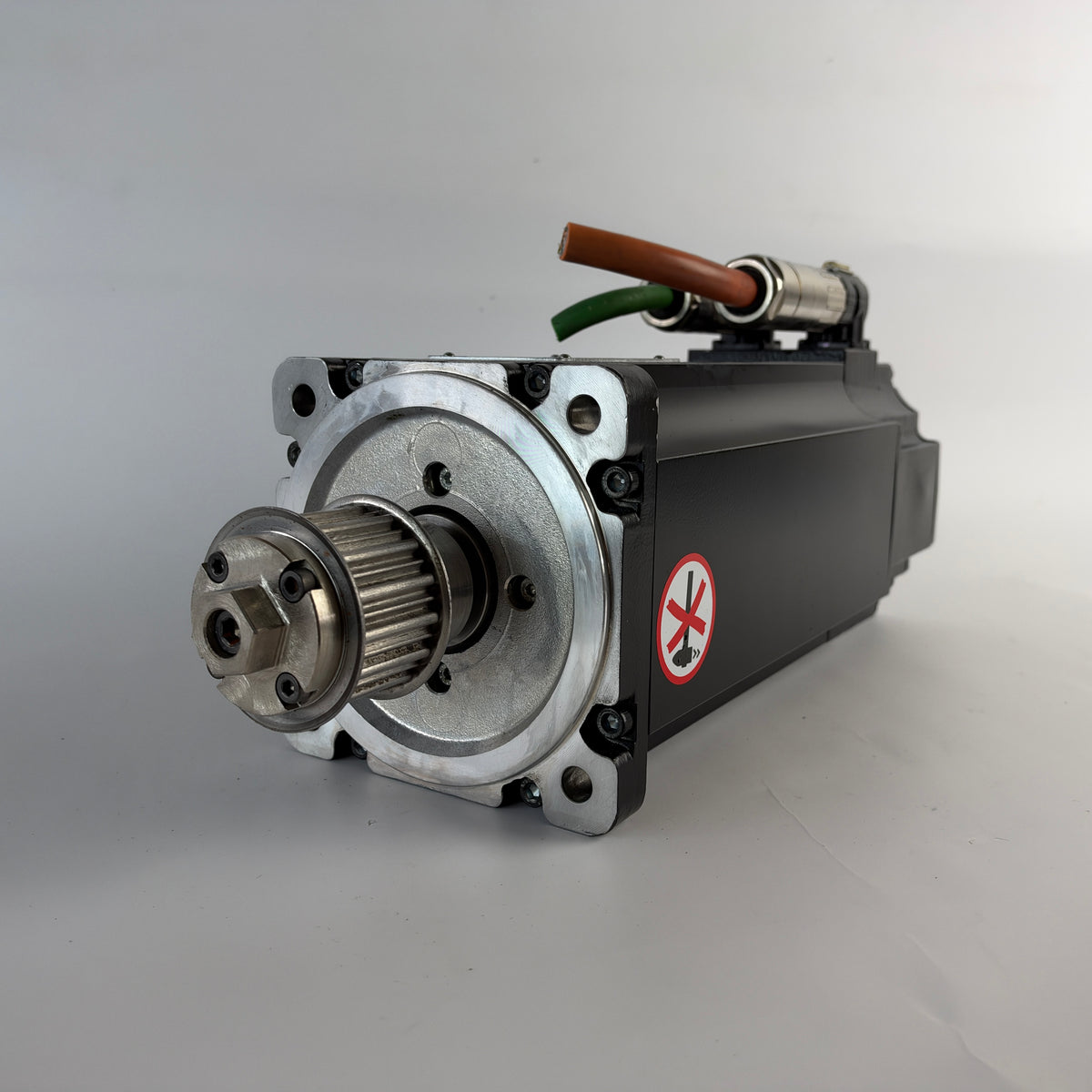

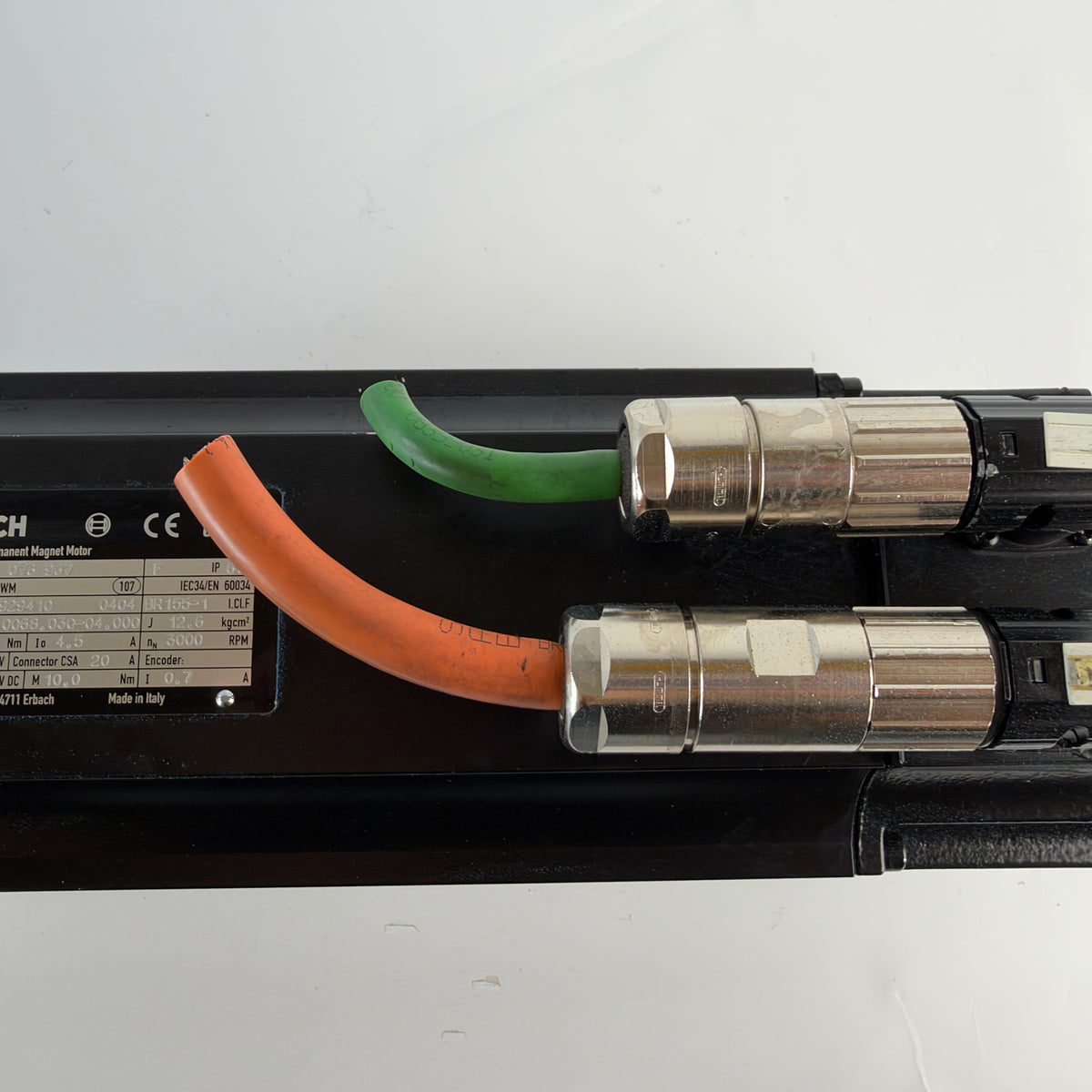

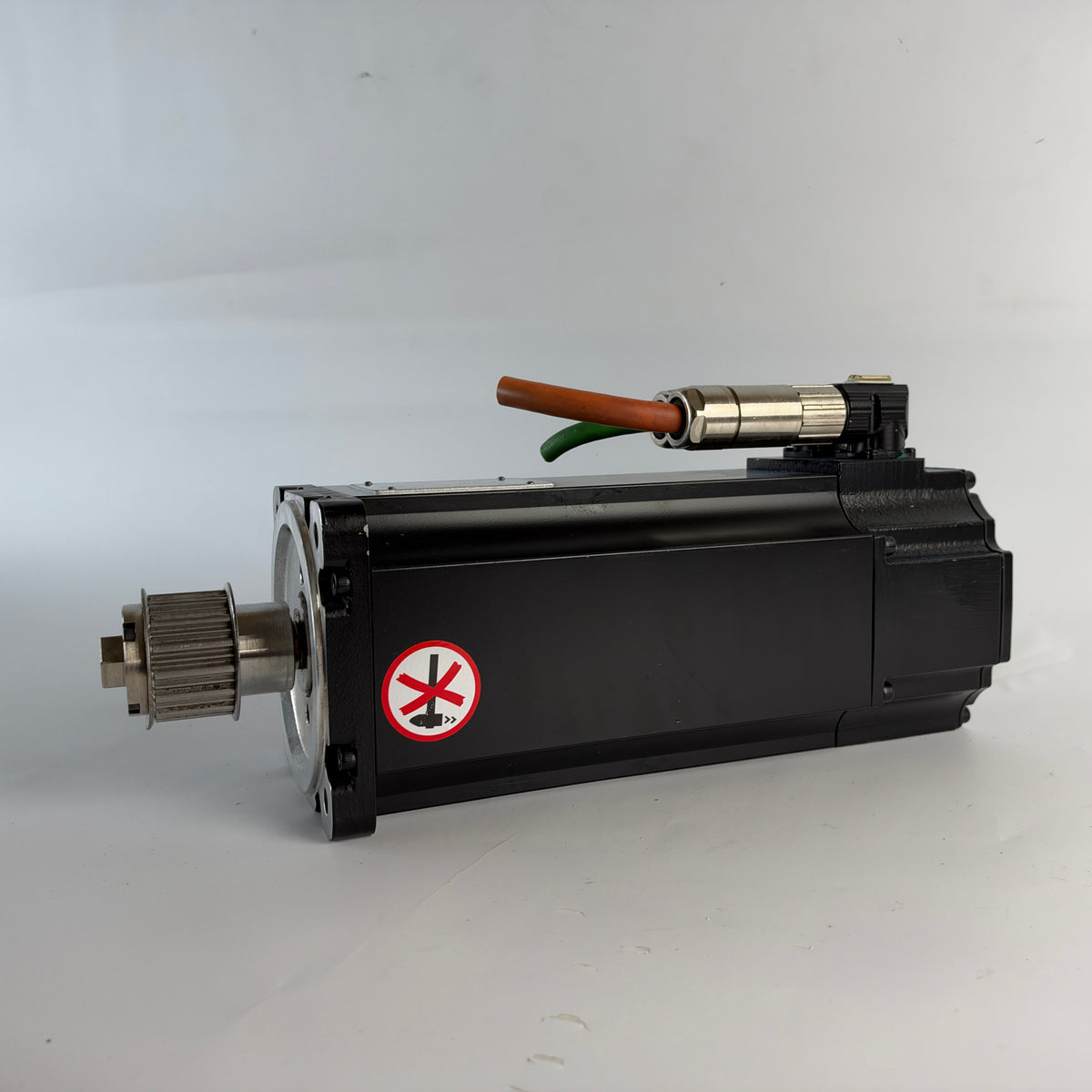

The motor is supplied with the toothed timing pulley currently fitted to the output shaft. Electrical leads and connector assemblies are present as shown in the photographs.

Used, fully functional.

The unit shows normal cosmetic signs of previous industrial use.

The exact encoder configuration and compatibility with specific servo drives have not been confirmed. Please verify the complete model number, electrical requirements, connector configuration and mechanical dimensions for your application before purchase.
