Bosch Rexroth 1070076967 SR-A3.0068.030-04.000 Brushless Permanent Magnet Motor

Industrial brushless permanent magnet servo motor designed for inverter-driven motion and automation applications.

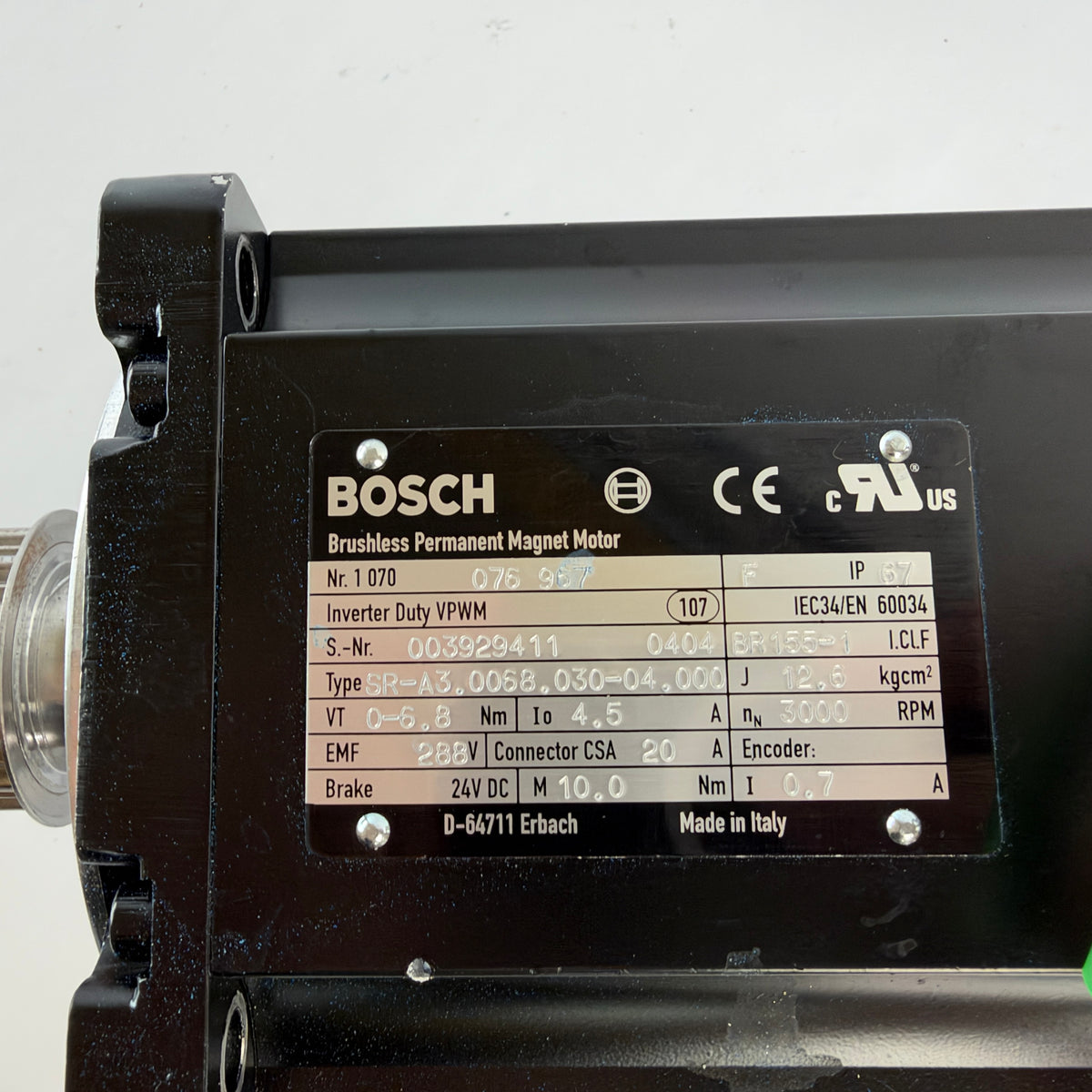

Nameplate specifications:

• Manufacturer: Bosch / Rexroth
• Part Number: 1070076967
• Type: SR-A3.0068.030-04.000
• Motor Type: Brushless Permanent Magnet Motor
• Inverter Duty: VPWM
• Rated Speed: 3000 RPM
• Torque (VT): 0–6.8 Nm
• Current (Io): 4.5 A
• EMF: 288 V
• Protection Rating: IP67
• Insulation Class: F
• Rotor Inertia (J): 12.6 kg·cm²
• Connector Rating: CSA 20 A
• Brake: 24 V DC
• Brake Torque: 10.0 Nm
• Brake Current: 0.7 A
• Additional Marking: BR155-1
• Standard Marking: IEC34 / EN 60034
• Country of Manufacture: Italy

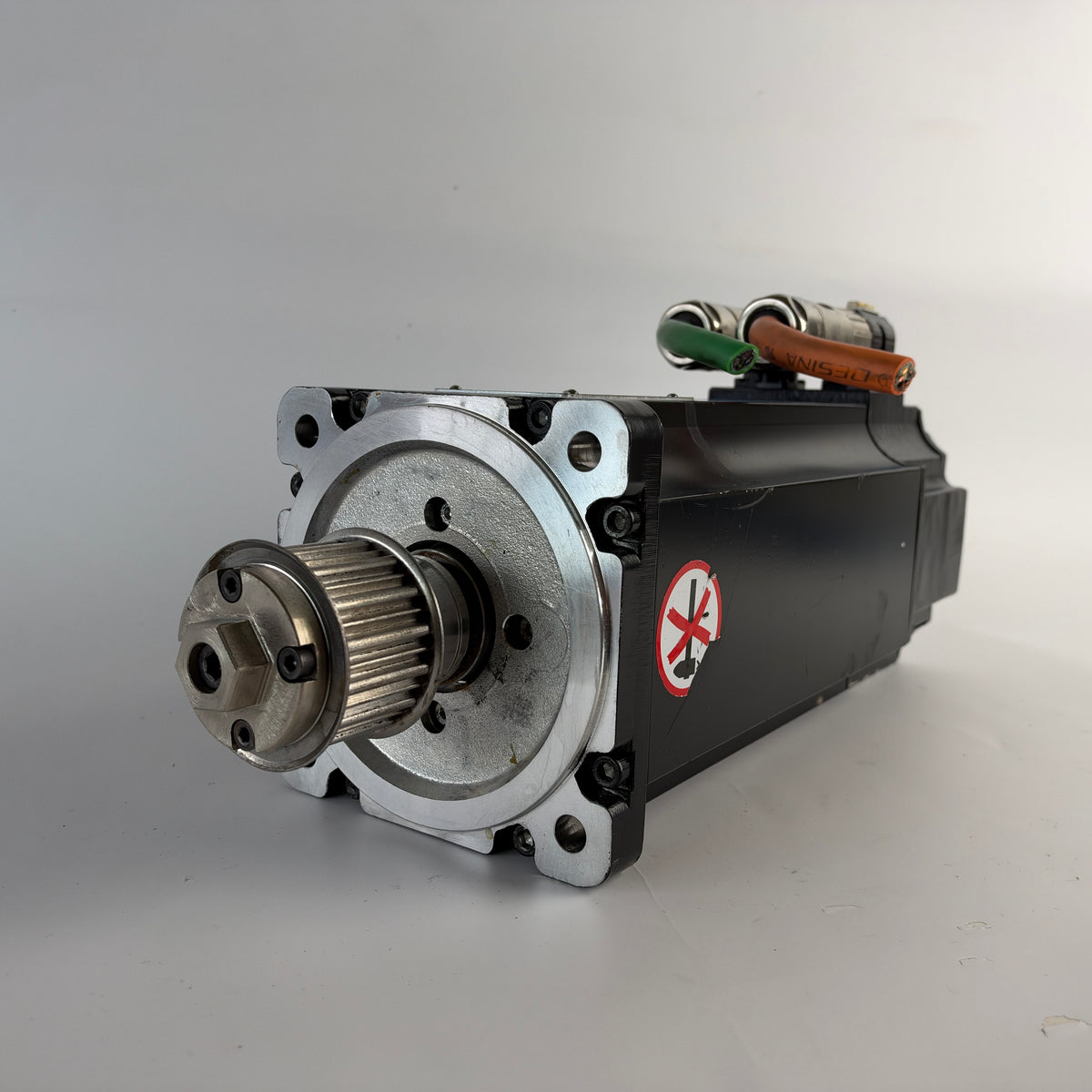

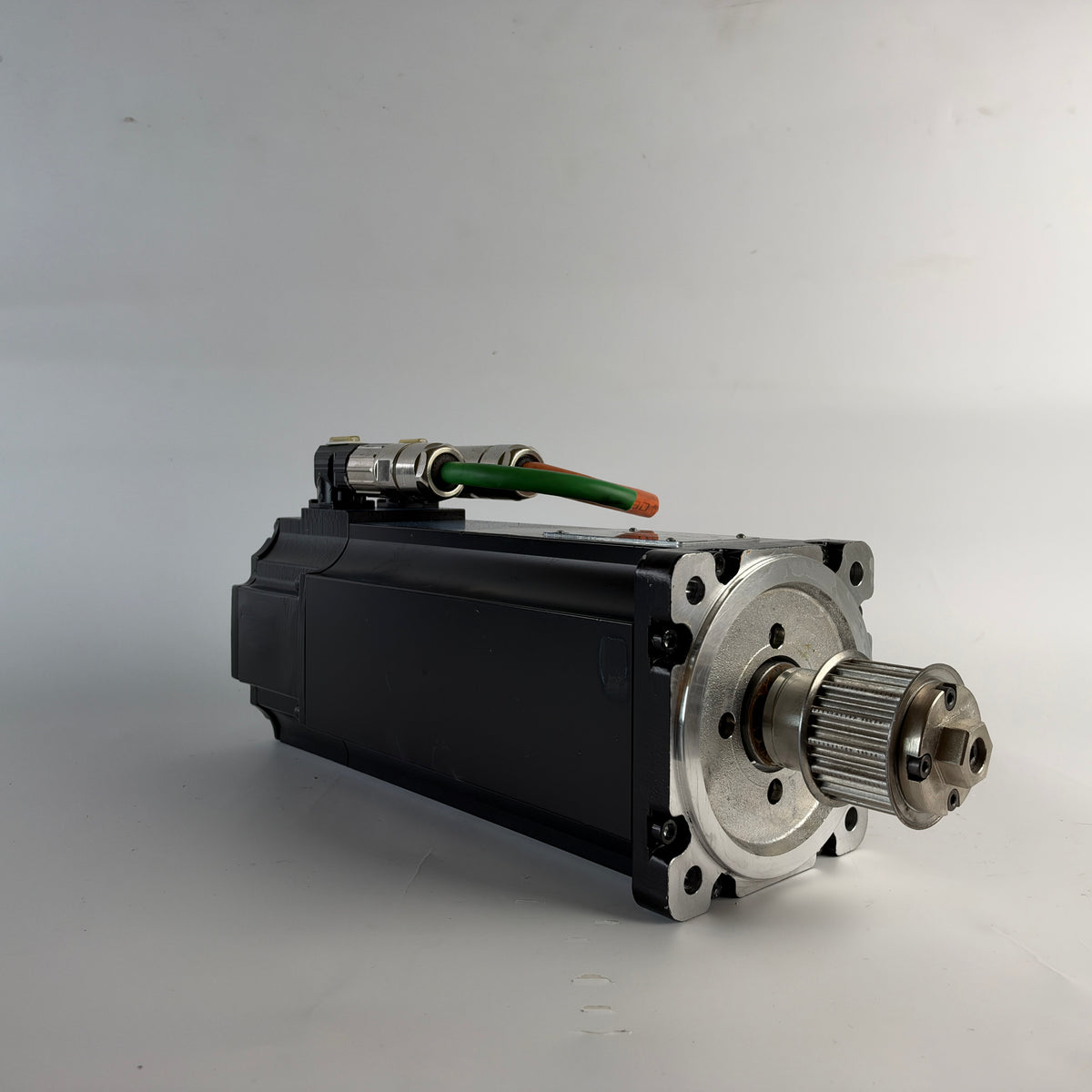

A toothed timing pulley is installed on the motor shaft and is included as pictured.

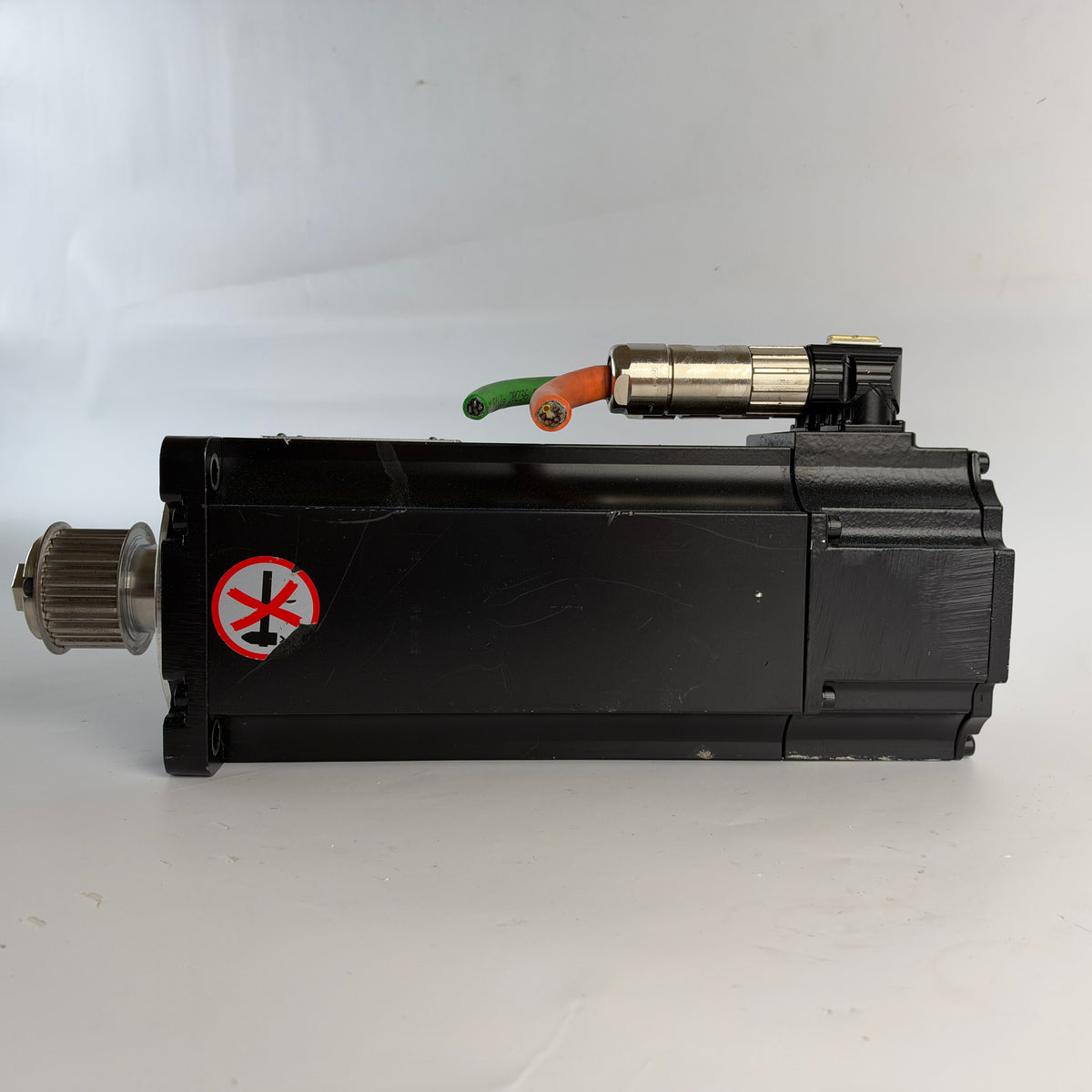

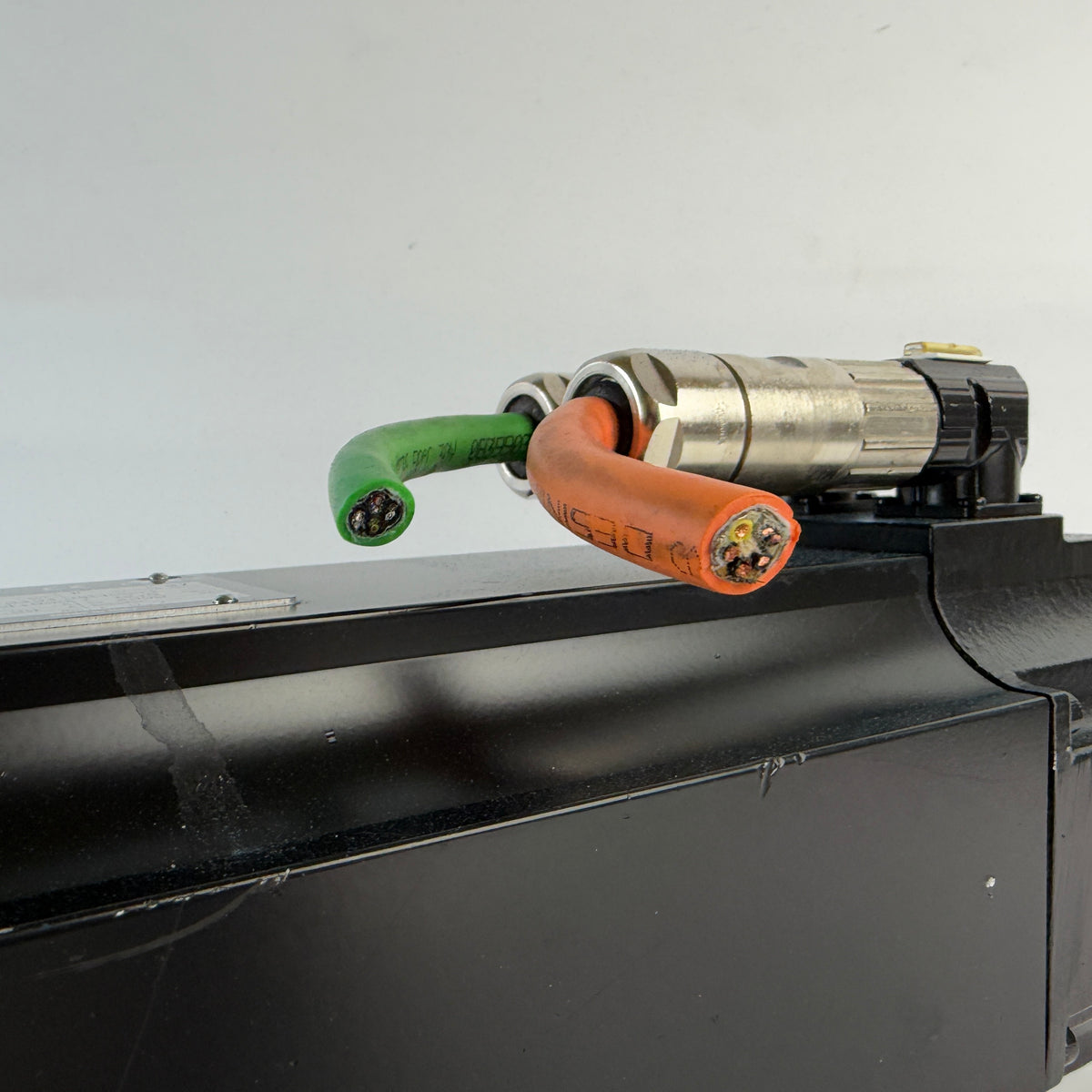

Important: The green and orange electrical cables are cut, as clearly shown in the photographs. The exact encoder specification has not been confirmed.

Used, fully functional.

Please verify the complete model designation, electrical specifications, cable requirements, mechanical dimensions and drive compatibility before installation.
