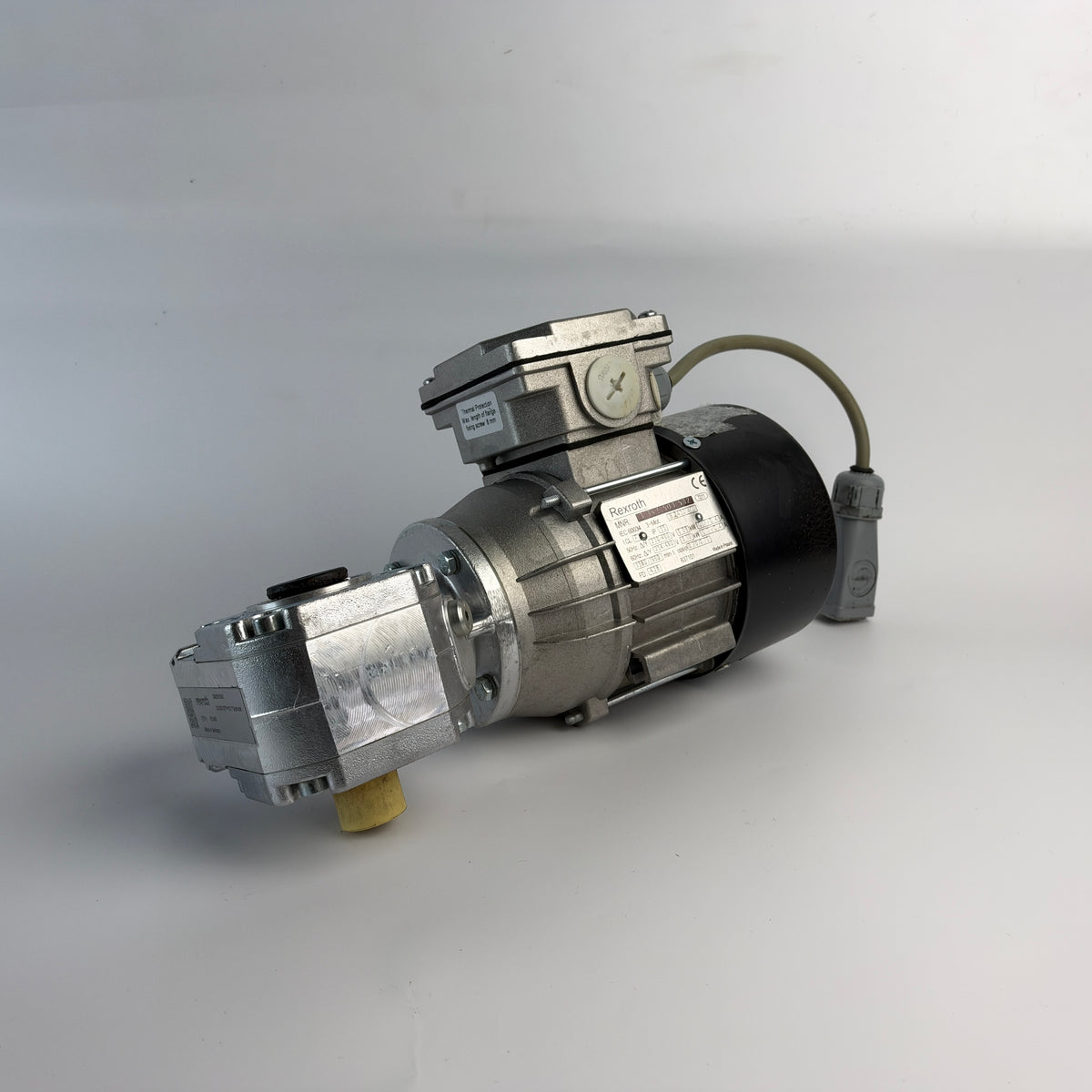

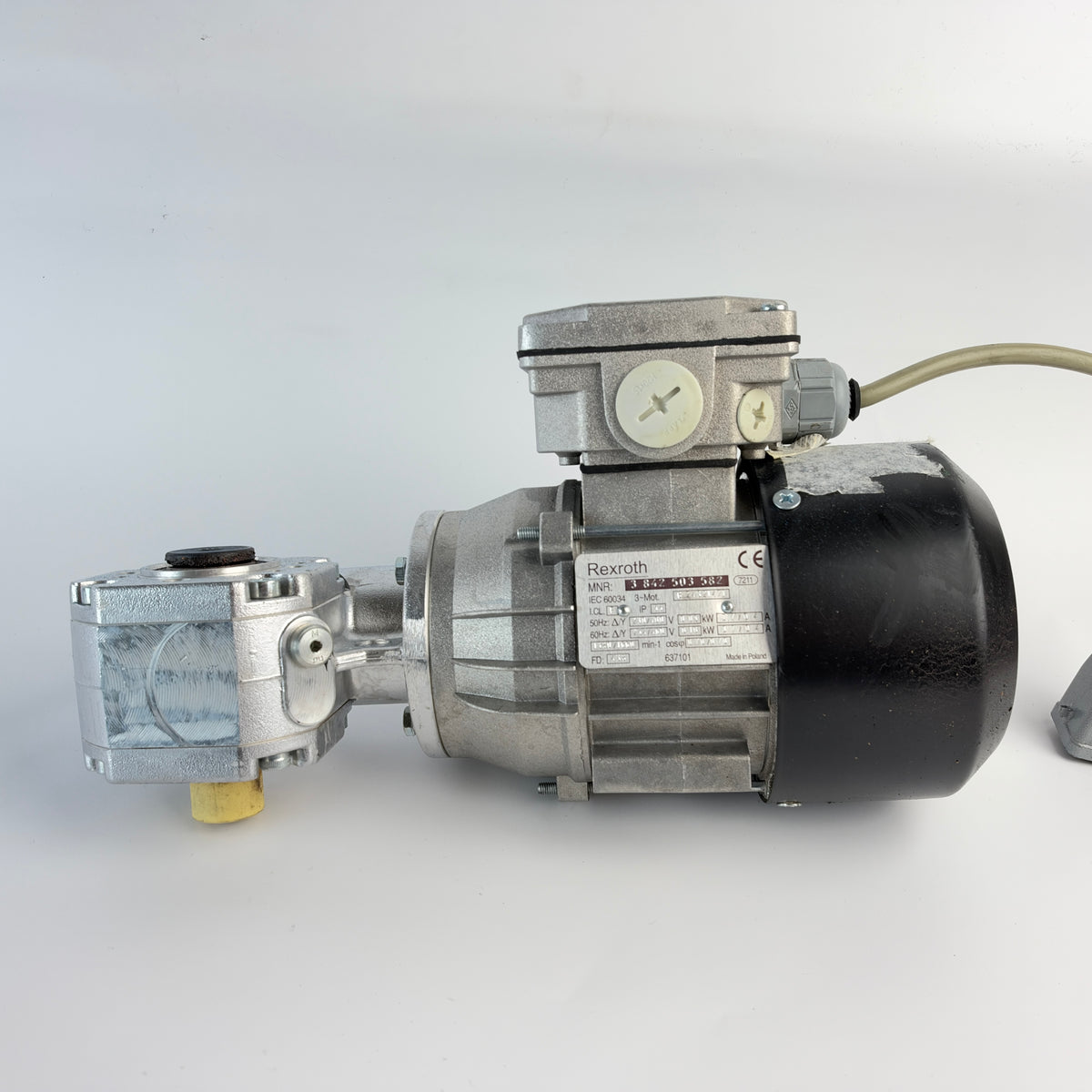

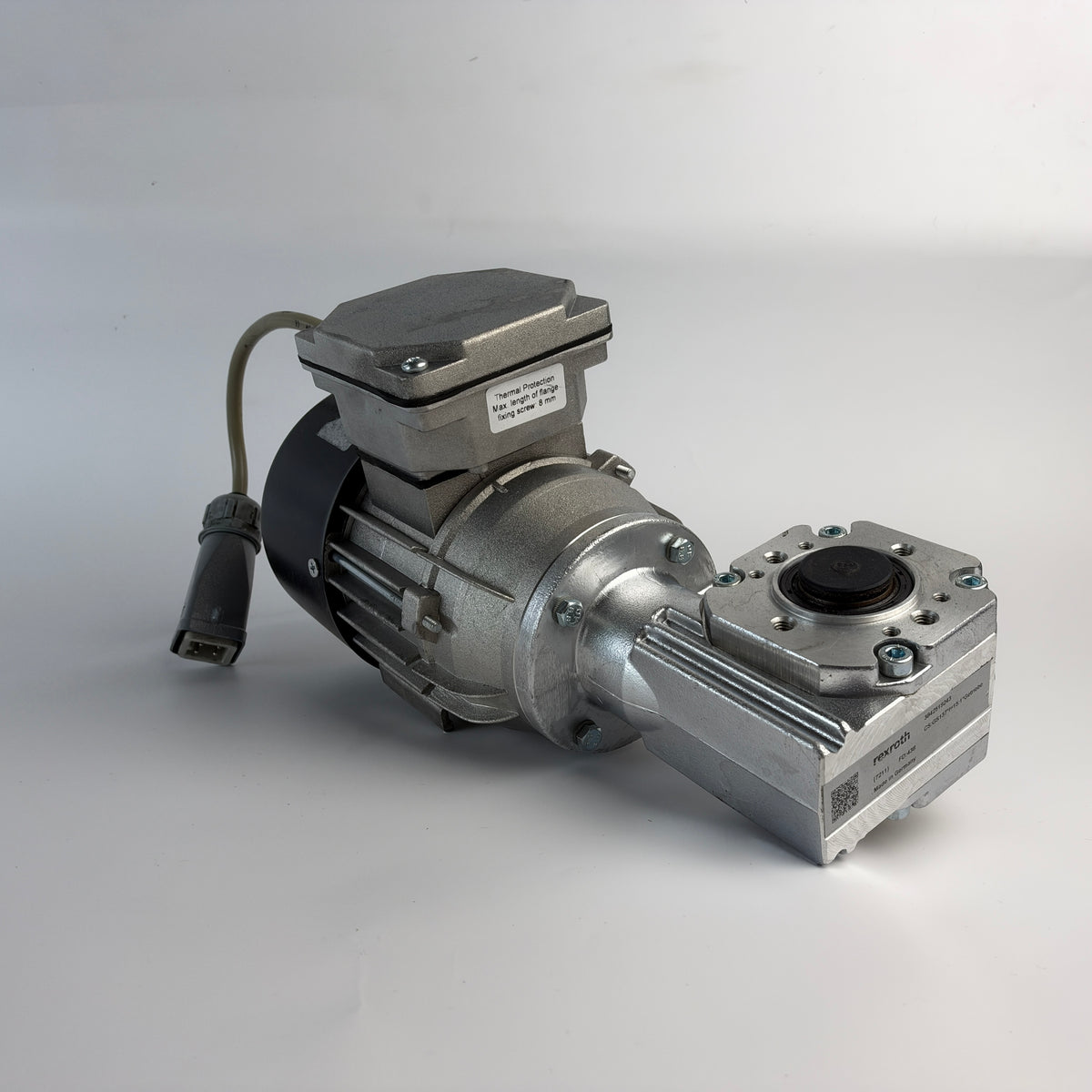

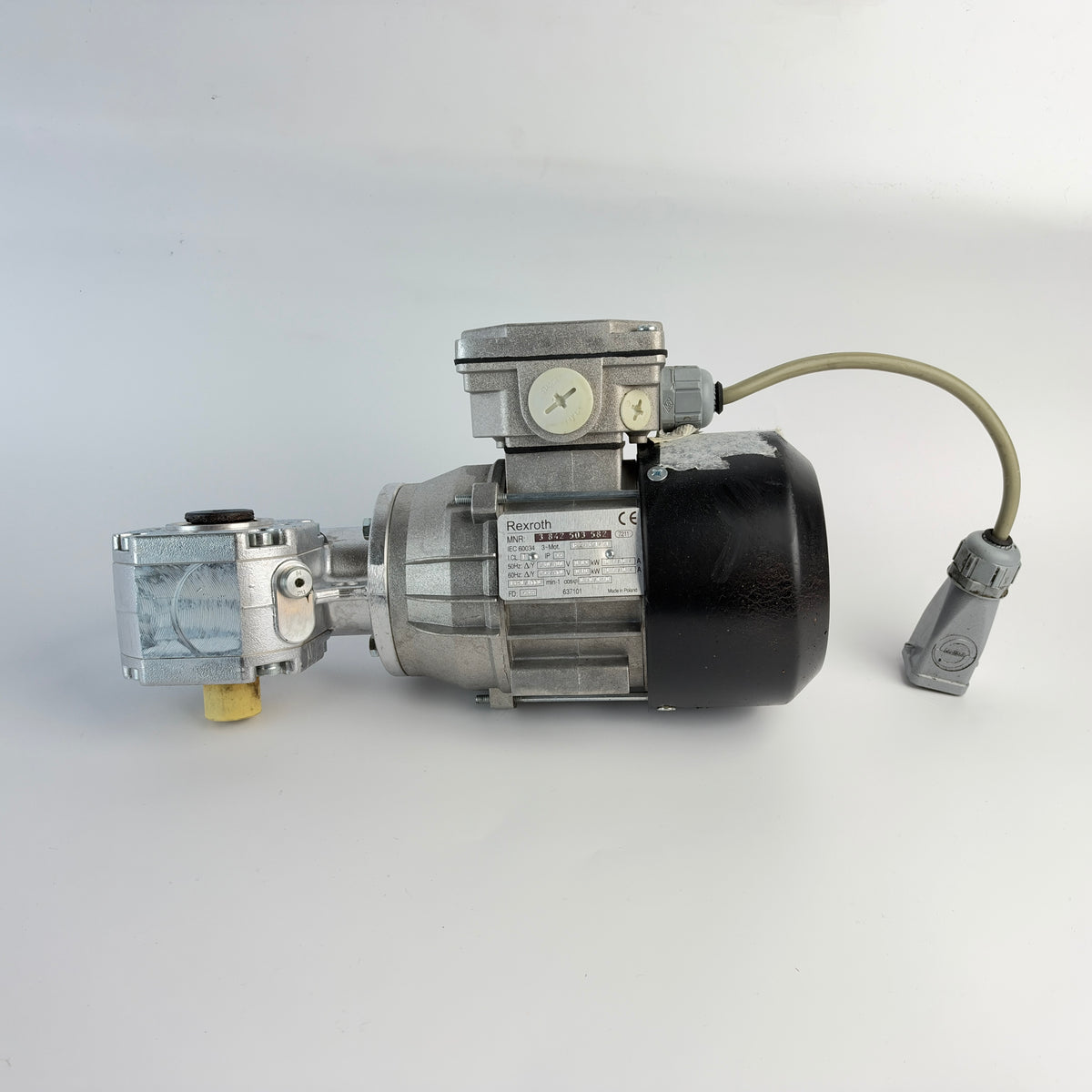

Bosch Rexroth Conveyor Drive Motor and Gearbox Assembly – 3842503582 / 3842519243
Industrial conveyor drive assembly consisting of a Bosch Rexroth three-phase AC electric motor and a GS137 right-angle reduction gearbox.
The assembly is designed to provide mechanical drive power for industrial conveyor and material handling systems.
The electric motor generates rotational power, while the attached gearbox reduces output speed and increases available torque for conveyor drive applications.
Included Components
1. Bosch Rexroth Three-Phase AC Motor
- Manufacturer: Bosch Rexroth
- Part Number: 3842503582
- Alternative Number Format: 3 842 503 582
- Motor Type: Three-Phase AC Motor
- Standard: IEC 60034
- Protection Rating: IP55
- Insulation Class: F
- Country of Manufacture: Poland

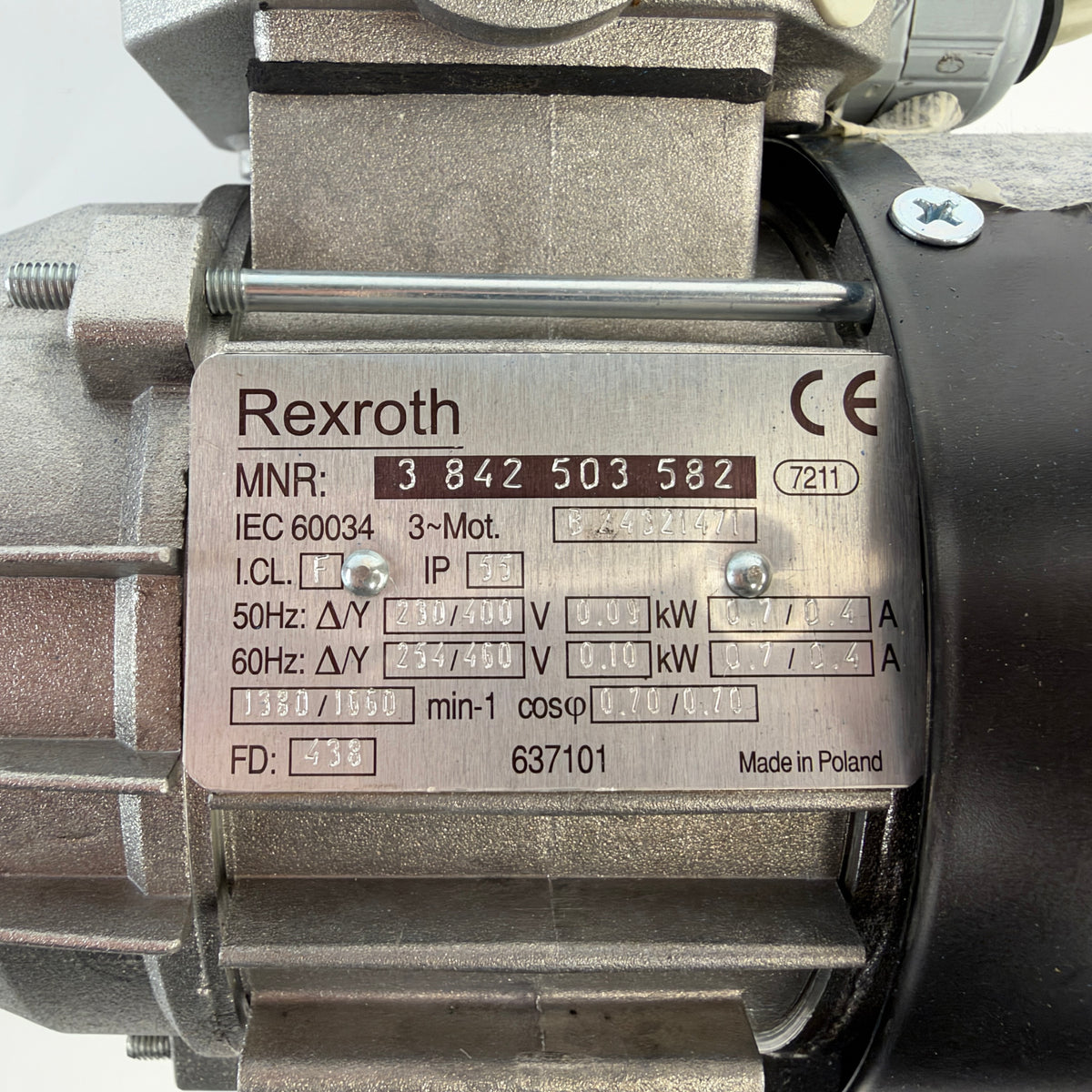

Motor Electrical Specifications
50 Hz Operation:
- Rated Voltage: 230/400 V AC (Delta/Star)
- Rated Power: 0.09 kW
- Rated Current: 0.7/0.4 A
- Rated Speed: 1380 rpm
- Power Factor: 0.70
60 Hz Operation:
- Rated Voltage: 234/460 V AC (Delta/Star)
- Rated Power: 0.10 kW
- Rated Current: 0.7/0.4 A
- Rated Speed: 1560 rpm
- Power Factor: 0.70
Additional Motor Features
- Three-phase industrial electric motor
- Aluminum motor housing
- Integrated terminal box
- Electrical connection cable with industrial connector

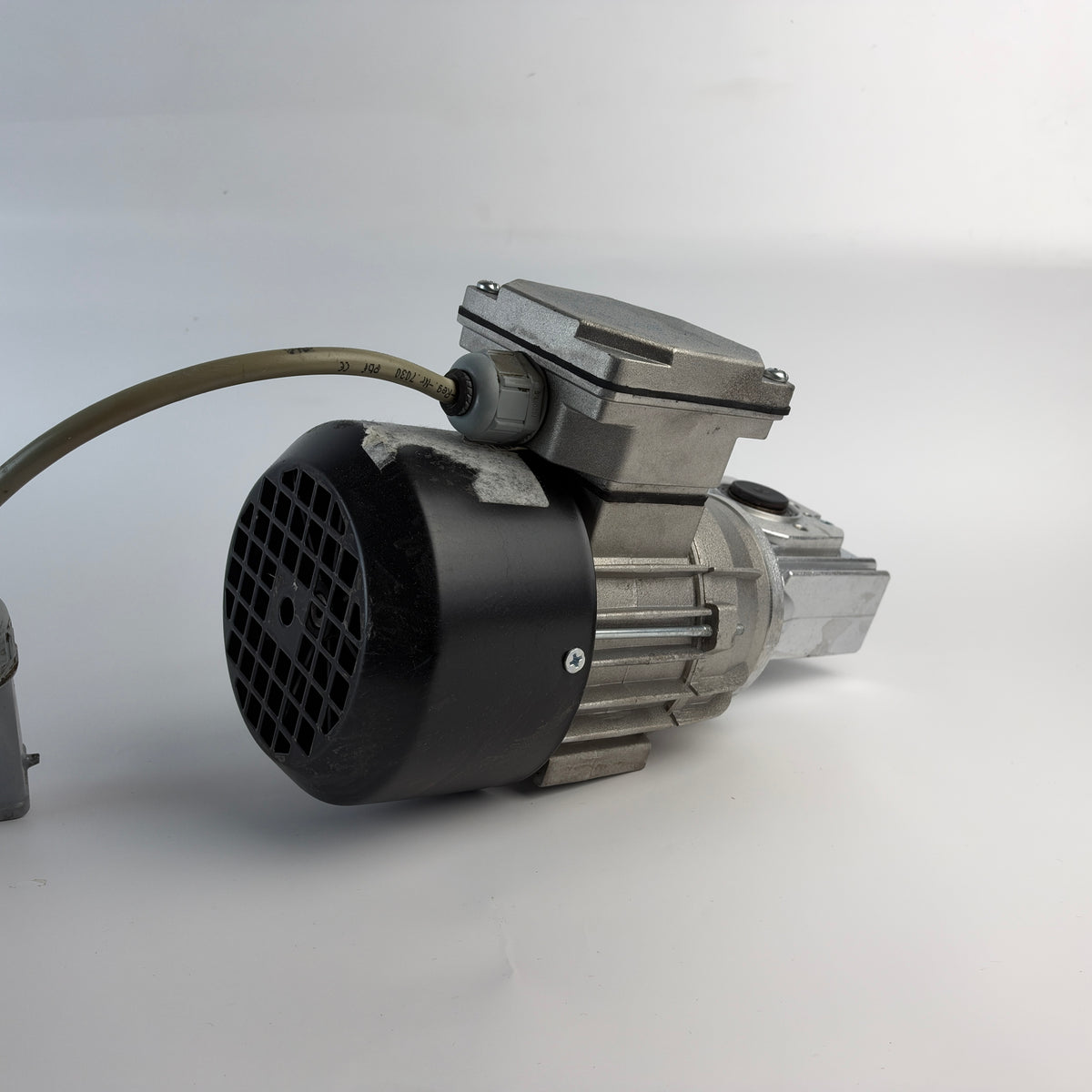

- Protective cooling fan cover
- Suitable for industrial conveyor drive applications

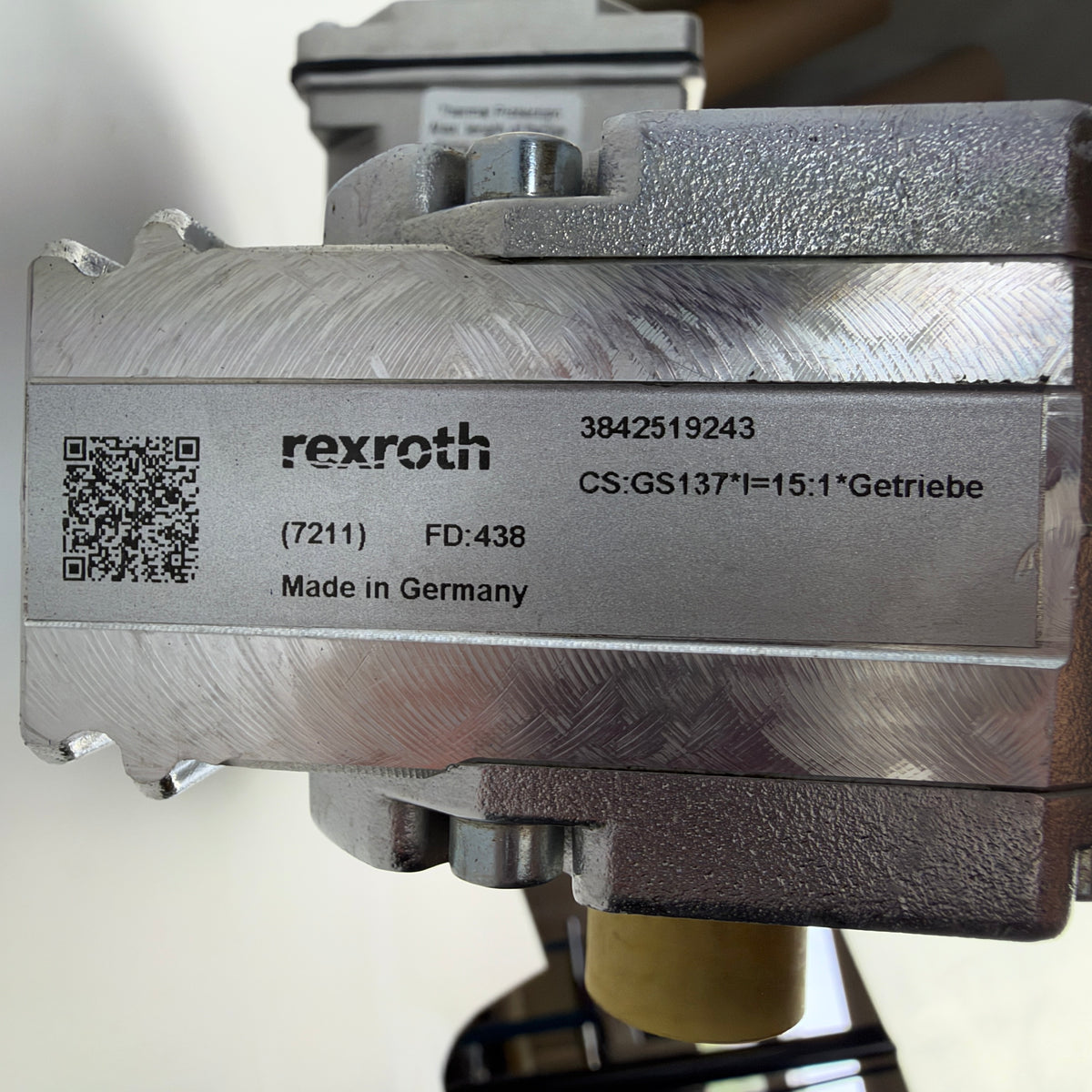

2. Bosch Rexroth GS137 Gear Reducer
- Manufacturer: Bosch Rexroth
- Part Number: 3842519243
- Alternative Number Format: 3 842 519 243
- Gearbox Model: GS137
- Gearbox Designation: CS:GS137
- Type: Slip-On Gear Unit
- Gear Ratio: 15:1

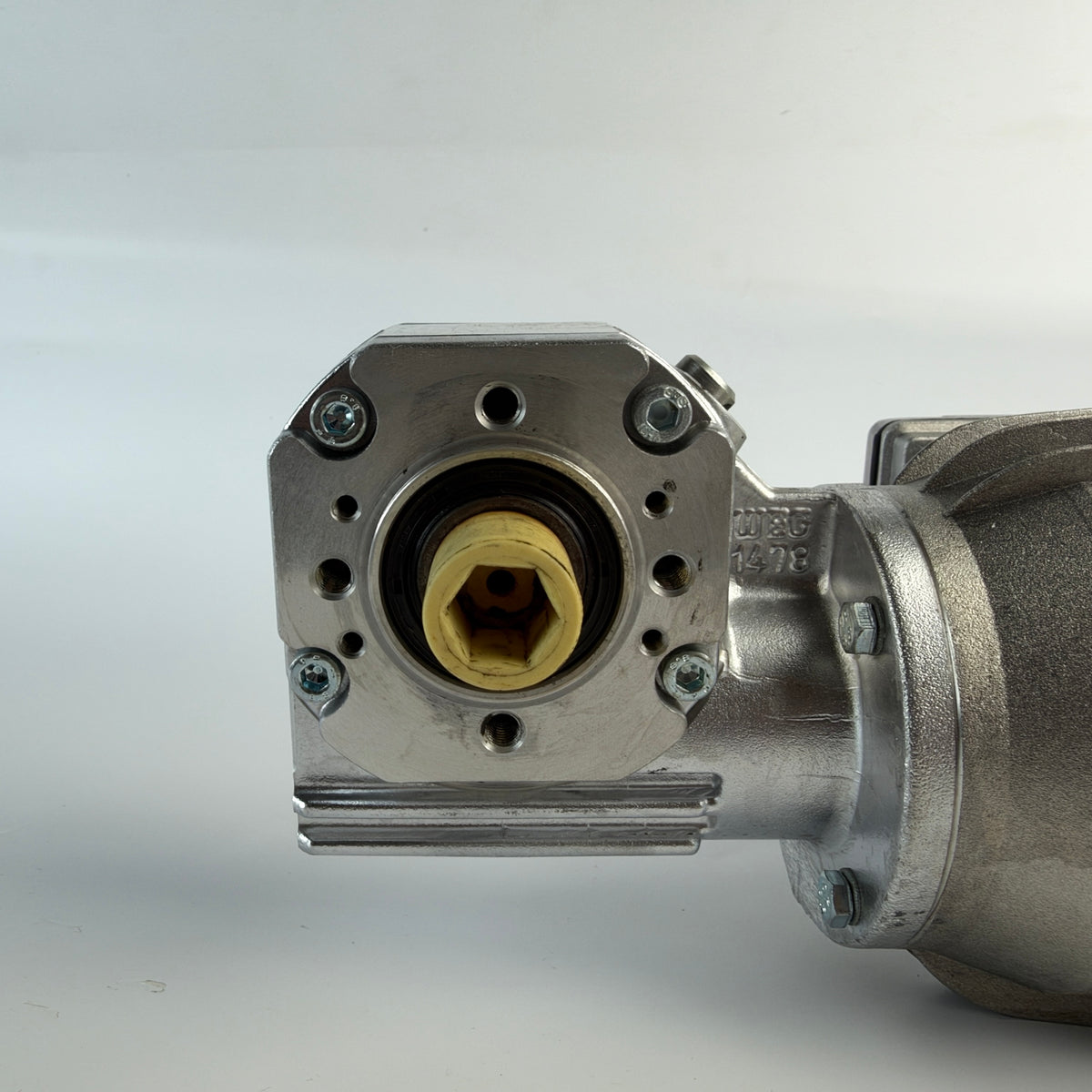

- Output Configuration: Right-Angle Drive
- Country of Manufacture: Germany
Gearbox Features
- Compact industrial gearbox
- Right-angle power transmission
- 15:1 speed reduction
- Integrated mounting interface
- Designed for conveyor drive systems
- Directly coupled to the electric motor
Complete Assembly Specifications
| Specification | Value |
|---|---|
| Manufacturer | Bosch Rexroth |
| Product Type | Conveyor Motor and Gearbox Assembly |
| Motor Part Number | 3842503582 |
| Gearbox Part Number | 3842519243 |
| Motor Type | Three-Phase AC |
| Motor Power | 0.09 kW at 50 Hz / 0.10 kW at 60 Hz |
| Motor Voltage | 230/400 V AC at 50 Hz |
| Motor Voltage at 60 Hz | 234/460 V AC |
| Motor Speed | 1380 rpm at 50 Hz |
| Motor Speed at 60 Hz | 1560 rpm |
| Gearbox Model | GS137 |
| Gear Ratio | 15:1 |
| Motor Protection | IP55 |
| Insulation Class | F |
| Motor Country of Origin | Poland |
| Gearbox Country of Origin | Germany |
Applications
This drive assembly is suitable for industrial applications involving:
- Conveyor Belt Systems
- Industrial Transport Systems
- Material Handling Equipment
- Automated Assembly Lines
- Factory Automation
- Workpiece Transfer Systems
- Industrial Conveyor Maintenance
- Replacement Conveyor Drive Units
The GS137 gearbox is associated with Bosch Rexroth conveyor technology, including BS1 transverse conveyor applications.
Compatibility with a particular conveyor system must be verified before installation.
Condition
Used, fully functional.
The unit shows cosmetic signs of previous industrial use, including surface marks and wear on the motor fan cover and gearbox housing.
Included in Sale
1 × Bosch Rexroth 3842503582 Three-Phase AC Motor
1 × Bosch Rexroth 3842519243 GS137 Gearbox, 15:1 Ratio

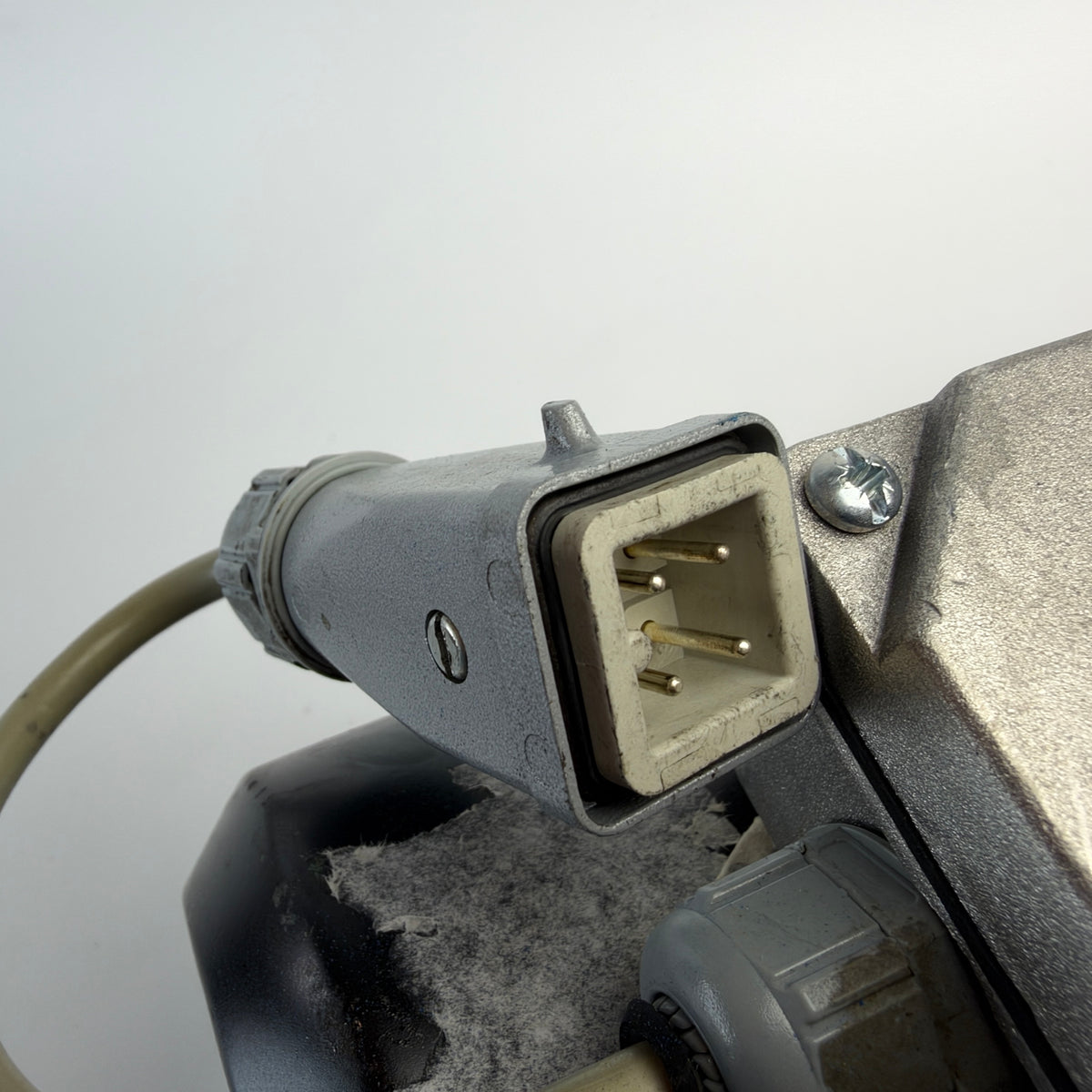

Attached electrical cable and connector, as pictured.
Important Information
The motor and gearbox are supplied together as one assembled drive unit.
The motor is marked Made in Poland, while the gearbox is marked Made in Germany.
Please verify voltage, mounting dimensions, gearbox output connection, and conveyor compatibility before installation.
The photographs show the actual item offered for sale.
