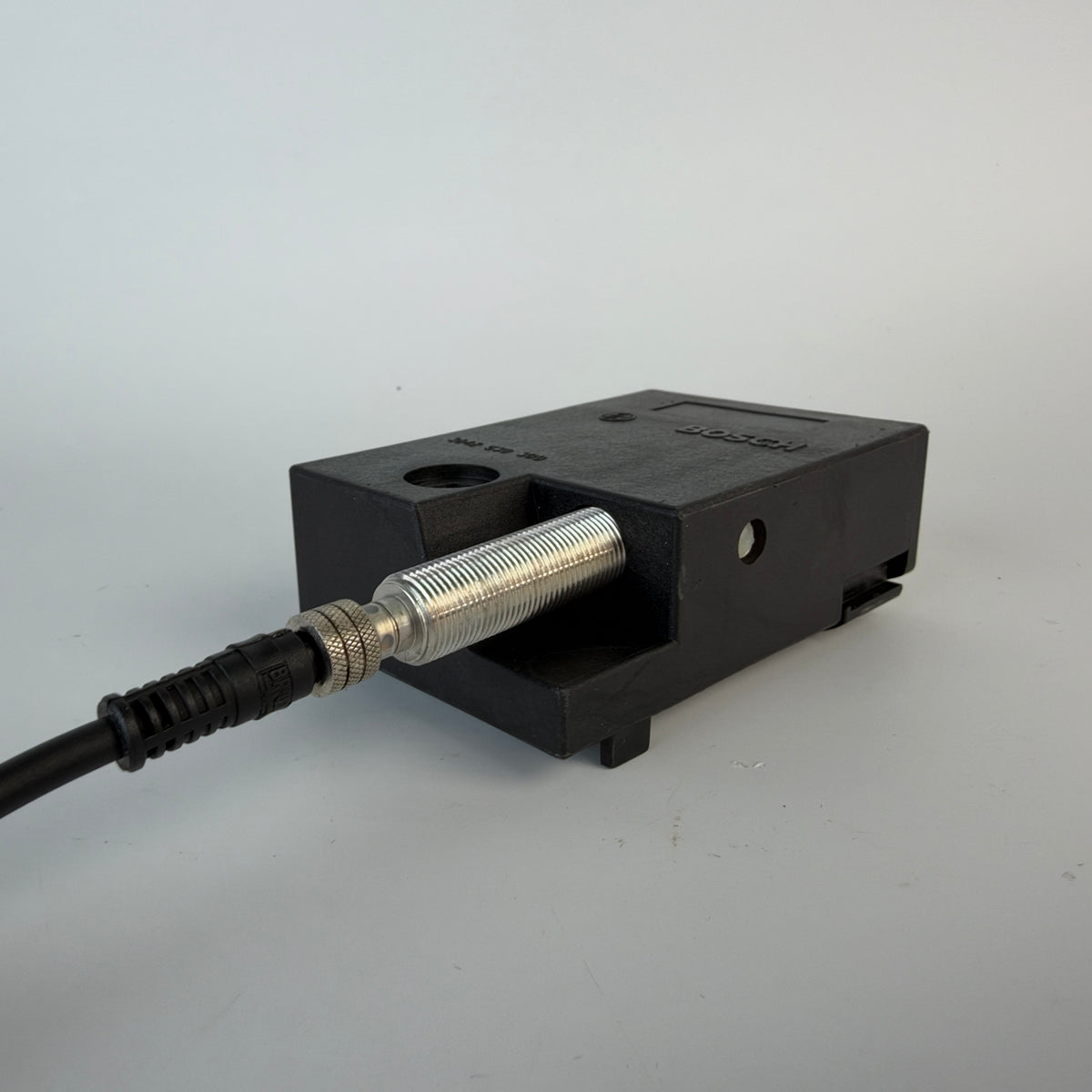

Bosch Rexroth 3842549812 Inductive Proximity Sensor with Bosch 3842530309 Rocker Housing and Cable
Industrial sensor assembly consisting of a Bosch Rexroth 3842549812 inductive proximity switch, Bosch 3842530309 rocker housing and an attached connection cable.
The proximity sensor is designed for non-contact detection of metallic objects and position monitoring in industrial automation systems.
Bosch Rexroth uses this sensor type for workpiece pallet position detection and other positioning applications in compatible conveyor and transfer systems.
The black Bosch housing provides a mechanical mounting arrangement for the sensor.
Included Components

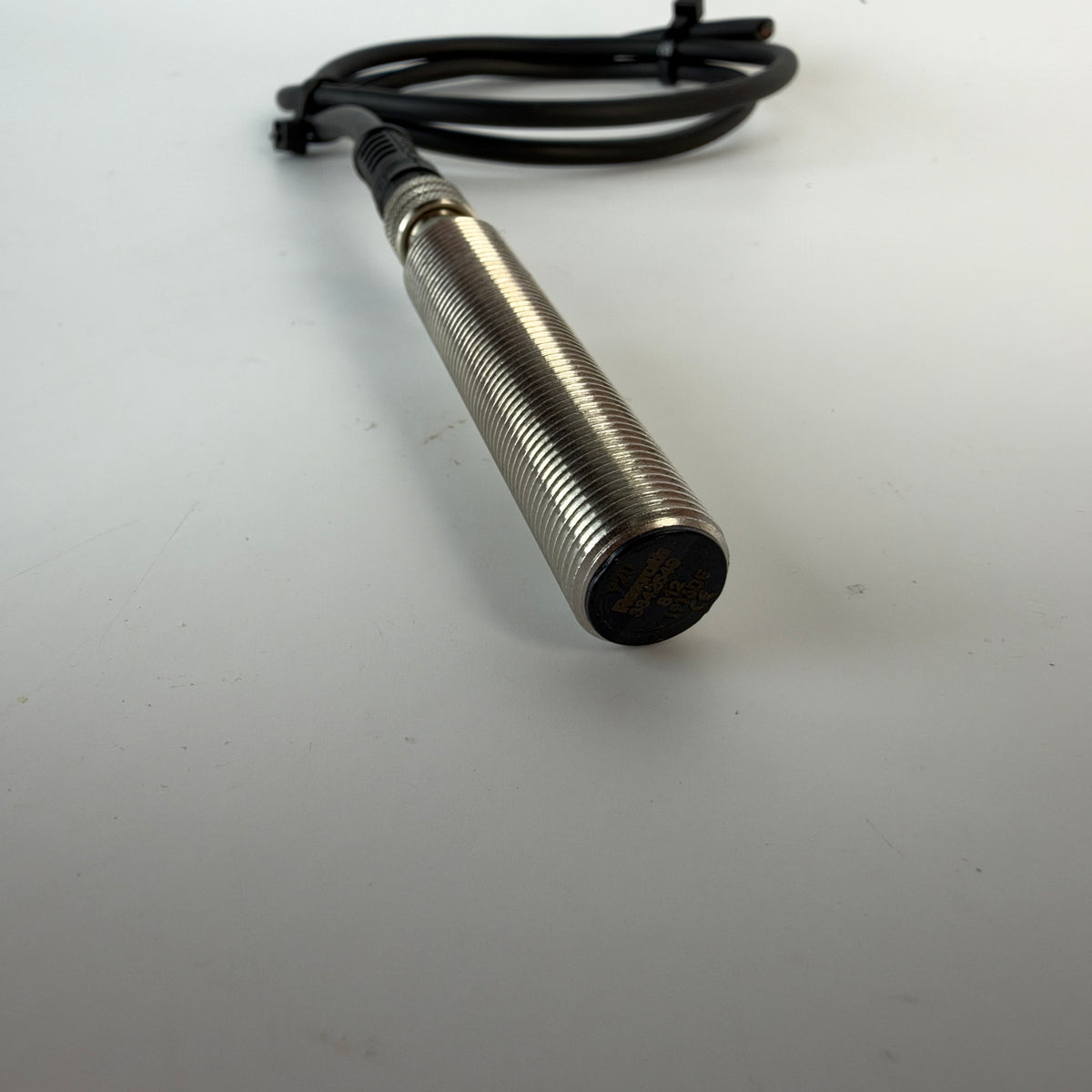

- Bosch Rexroth 3842549812 inductive proximity sensor
- Bosch 3842530309 rocker housing
- Connection cable with M8 sensor connector
- Assembly as shown in the photographs
Proximity Sensor Specifications
| Specification | Value |
|---|---|
| Manufacturer | Bosch Rexroth |

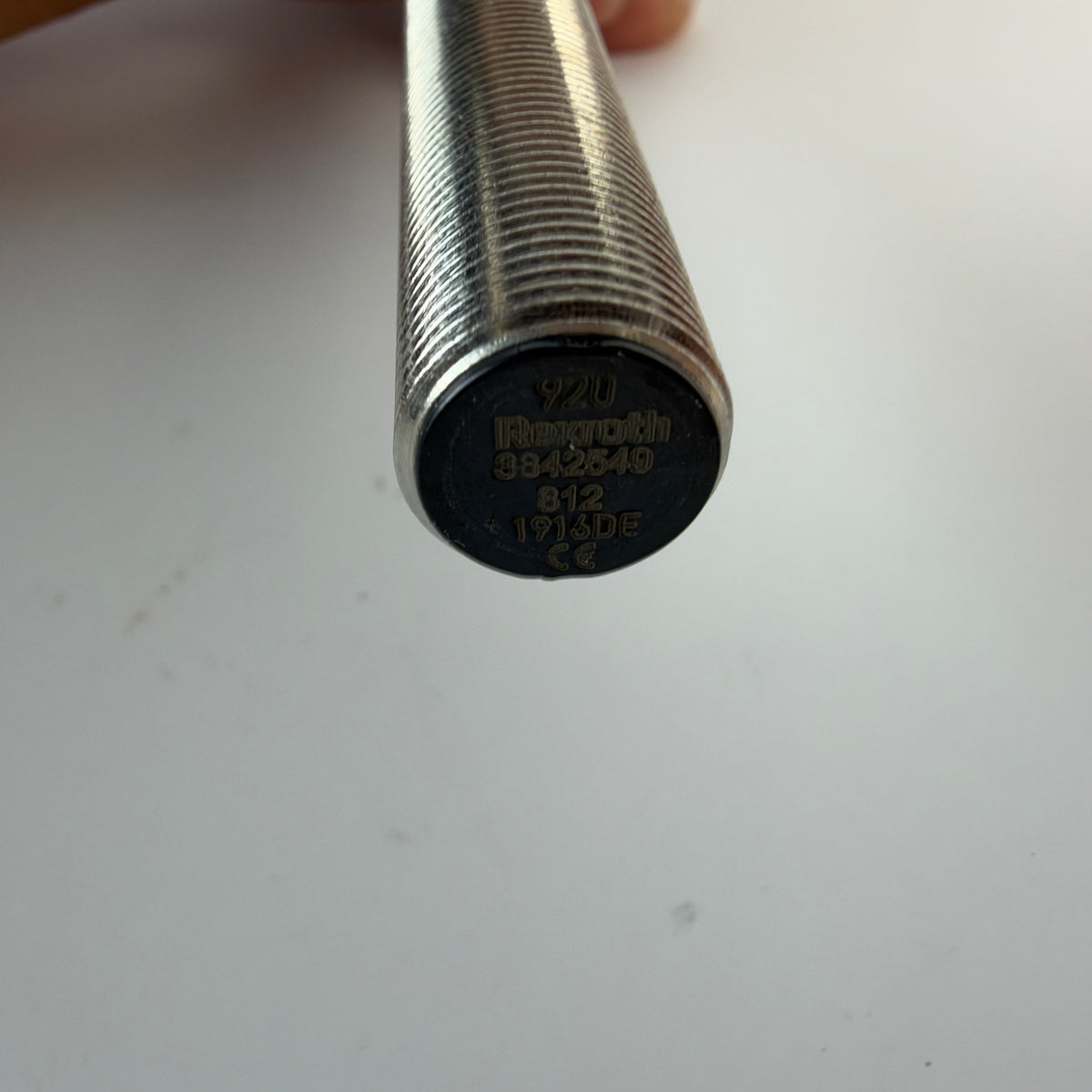

| Part Number | 3842549812 |
| Product Type | Inductive Proximity Switch |
| Sensor Dimensions | M12 × 67 mm |
| Nominal Sensing Distance | 4 mm |
| Operating Voltage | 10–30 V DC |
| Switching Output | PNP |
| Switching Function | Normally Open (NO) |
| Maximum Operating Current | 200 mA |
| Switching Frequency | 2,500 Hz |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Installation | Flush Mounting |
| Sensor Connection | M8 × 1 |
| Status Indication | LED |
| Sensor Housing Material | Coated Brass (CuZn) |
| Active Surface Material | LCP |

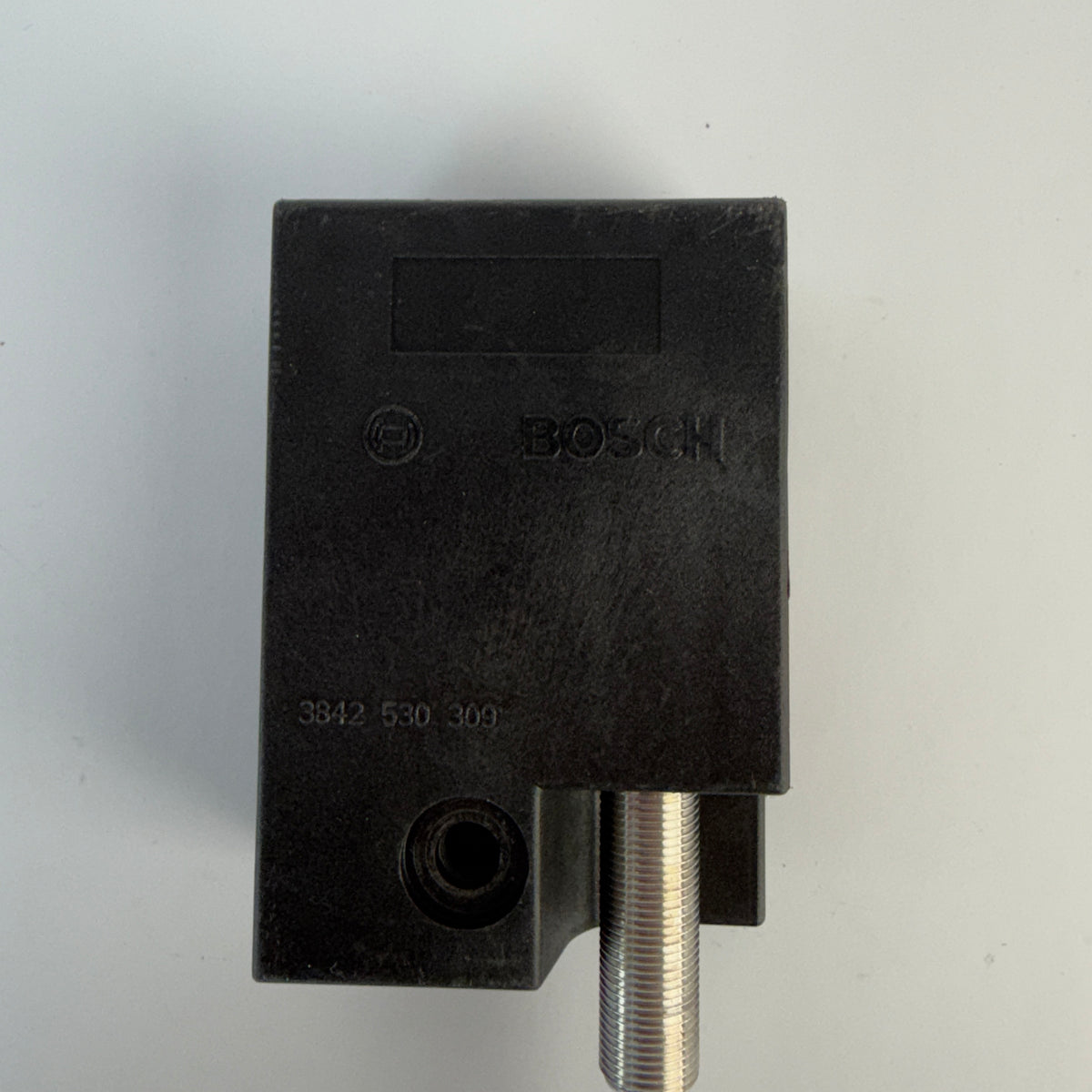

Bosch Housing
- Brand: Bosch
- Marking: 3842 530 309
- Part Number: 3842530309
- Type: Rocker housing / mechanical sensor mounting assembly
- Material: Black molded housing
- Application: Industrial conveyor position detection assemblies
Condition
Used, fully functional.
Important Condition Details

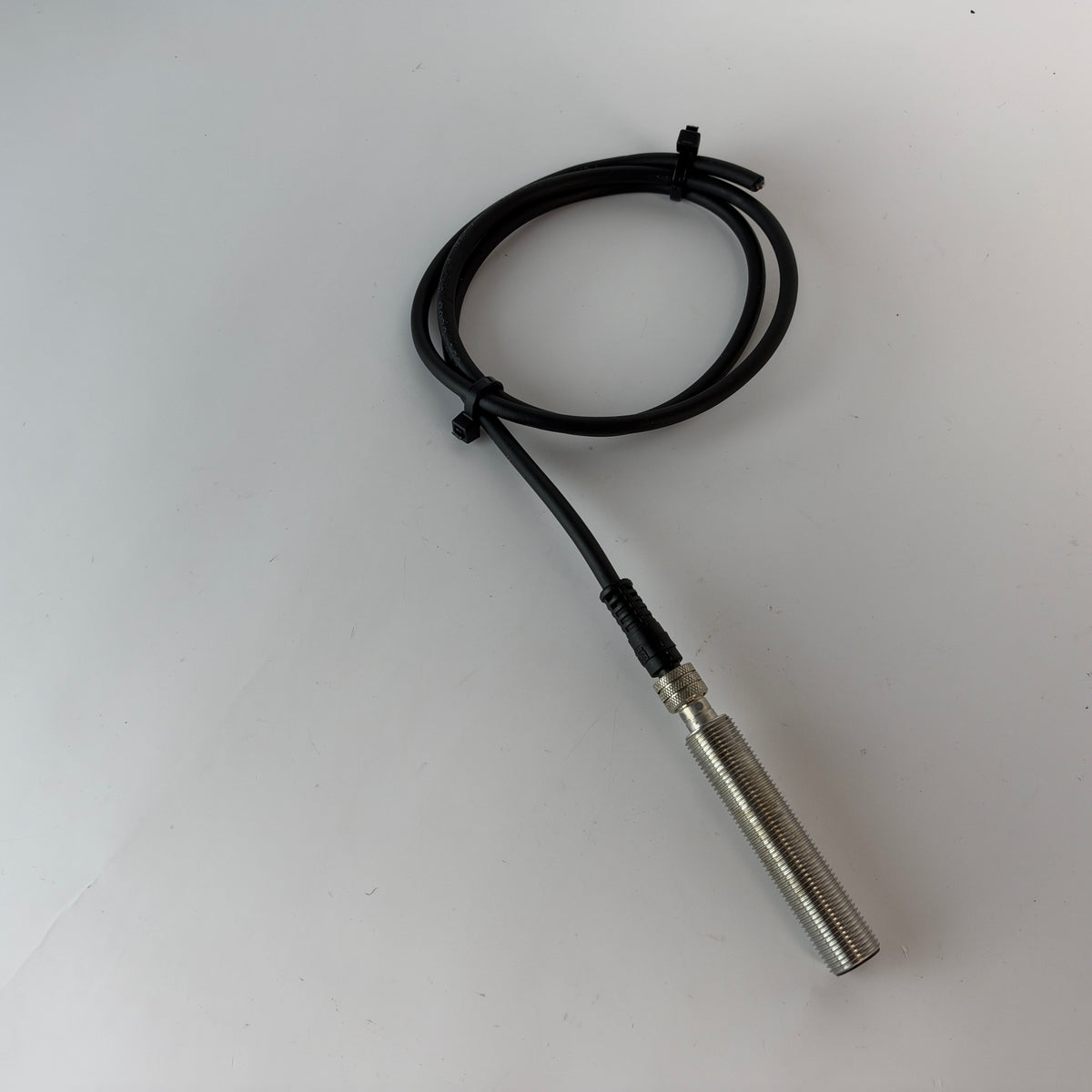

- The cable is cut at its free end.
- The sensor-side M8 connection is present.

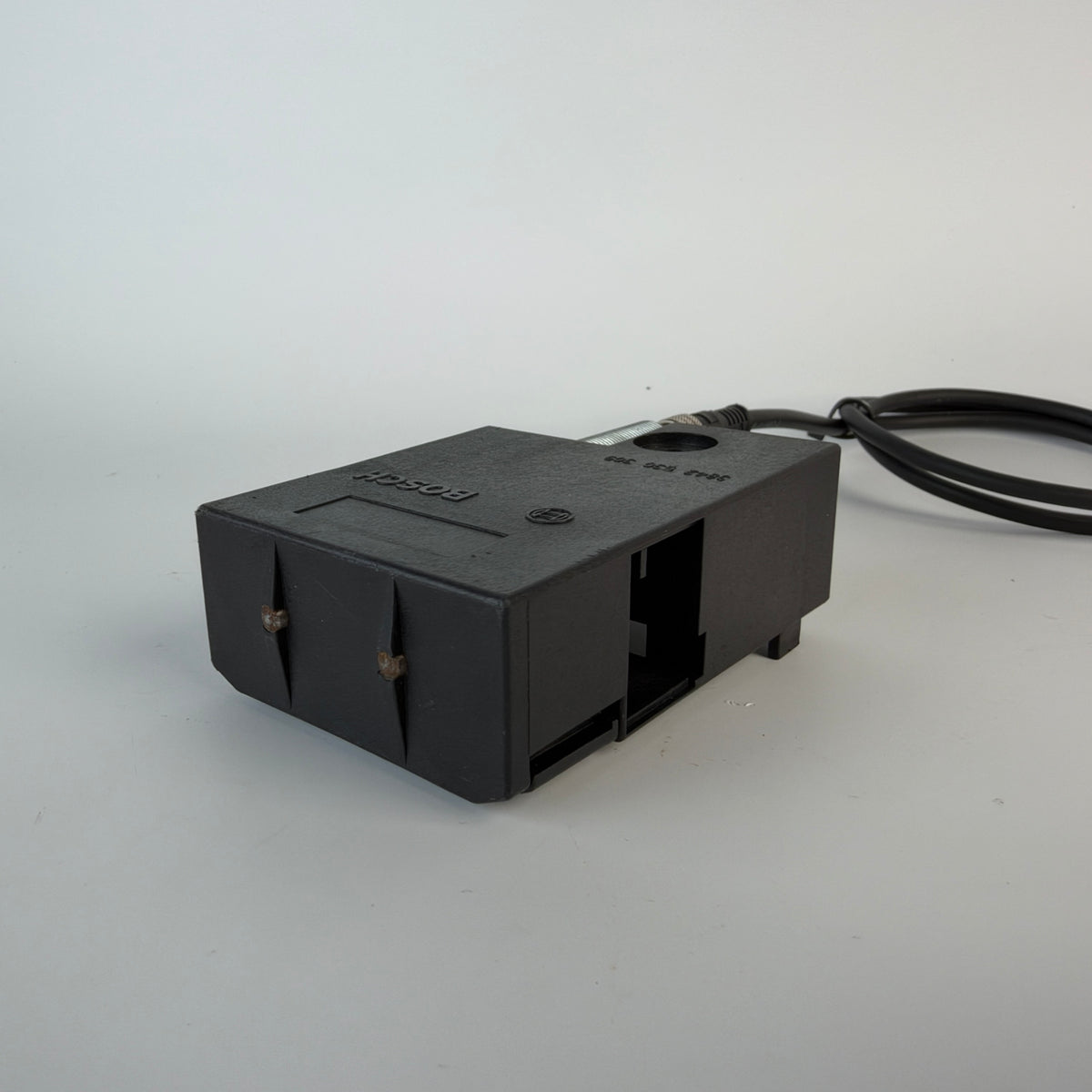

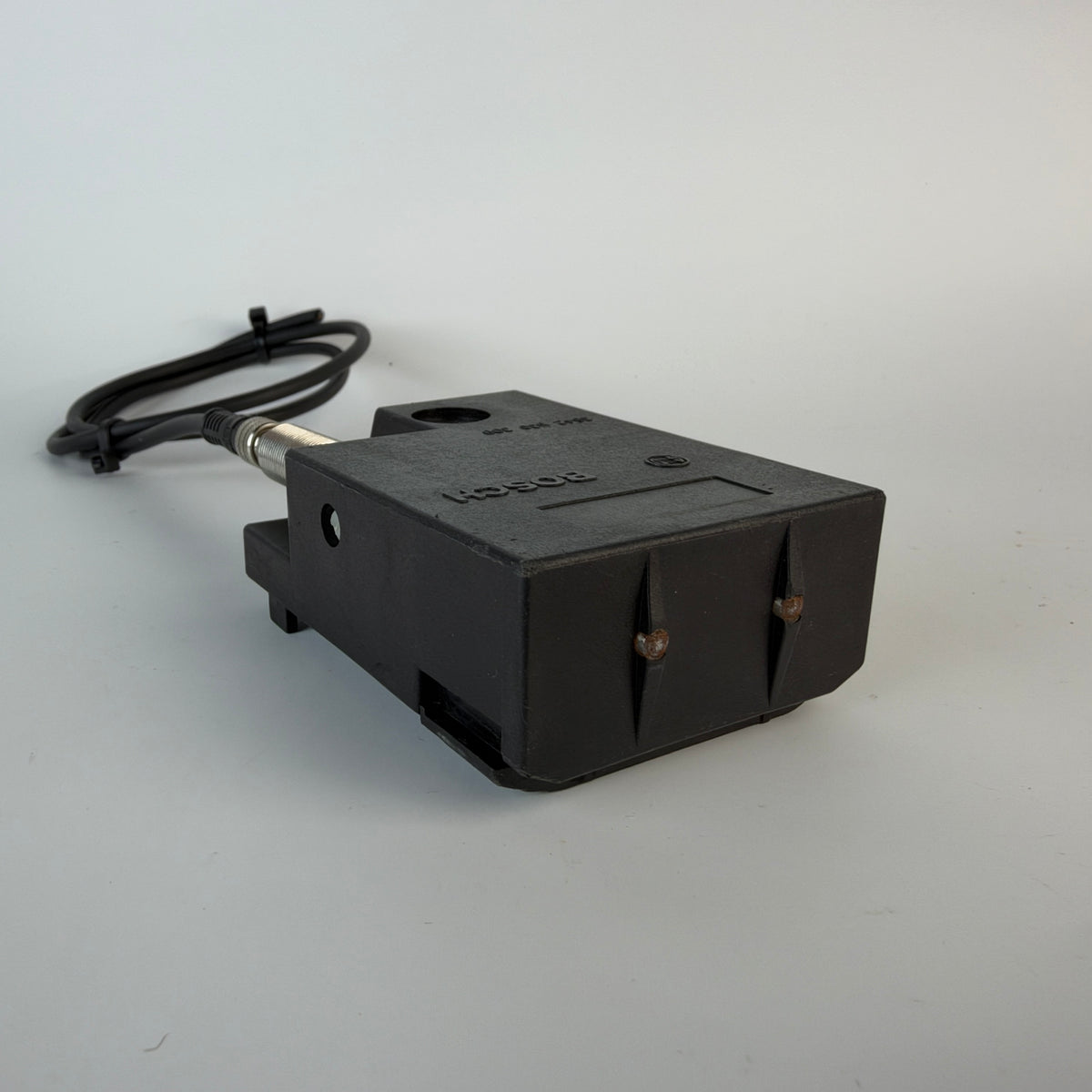

- Minor surface corrosion is visible on two metal elements of the housing.
- The assembly shows signs of previous industrial use.
Country of Origin: Not confirmed.

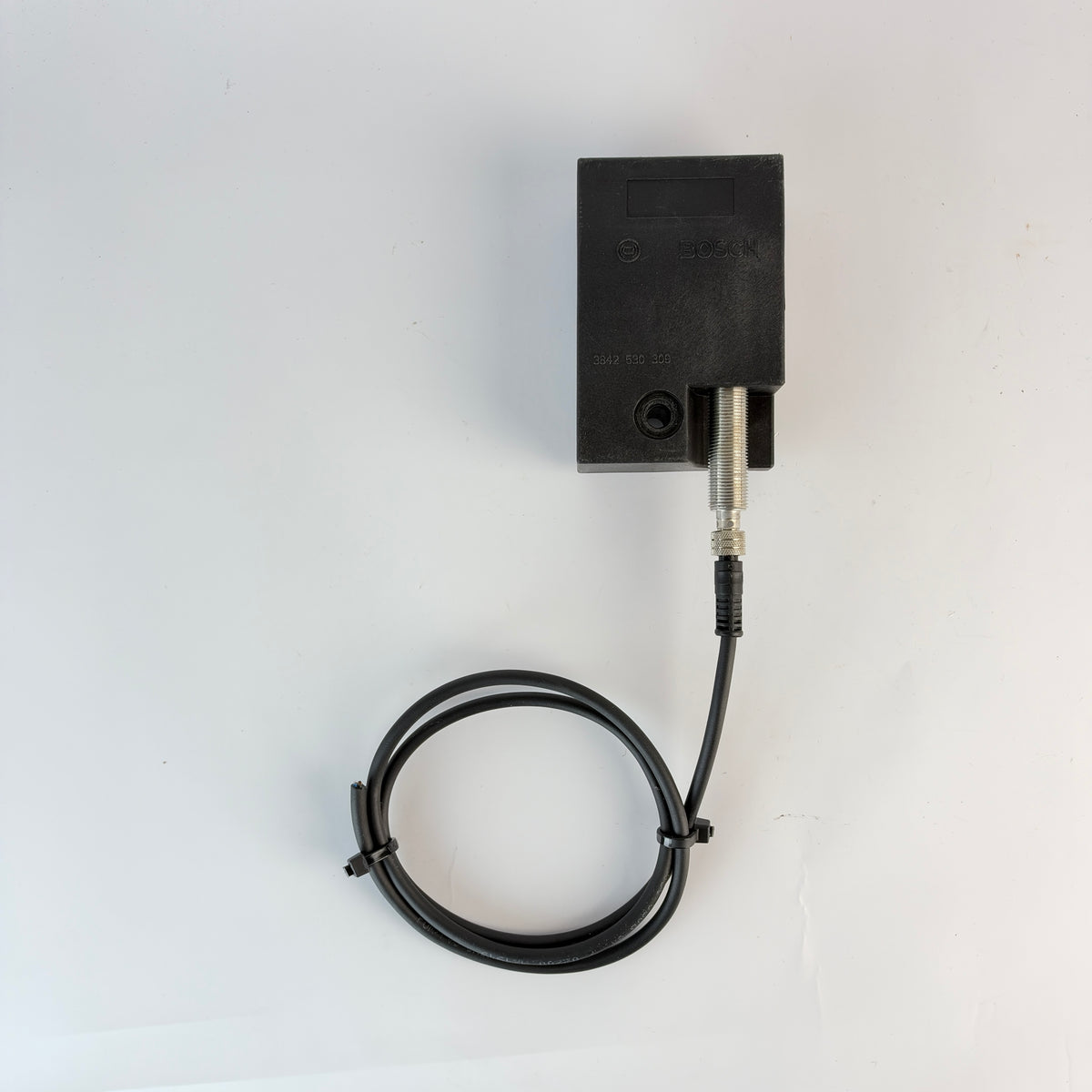

Package Contents: One sensor with Bosch rocker housing and attached cable, exactly as pictured.
