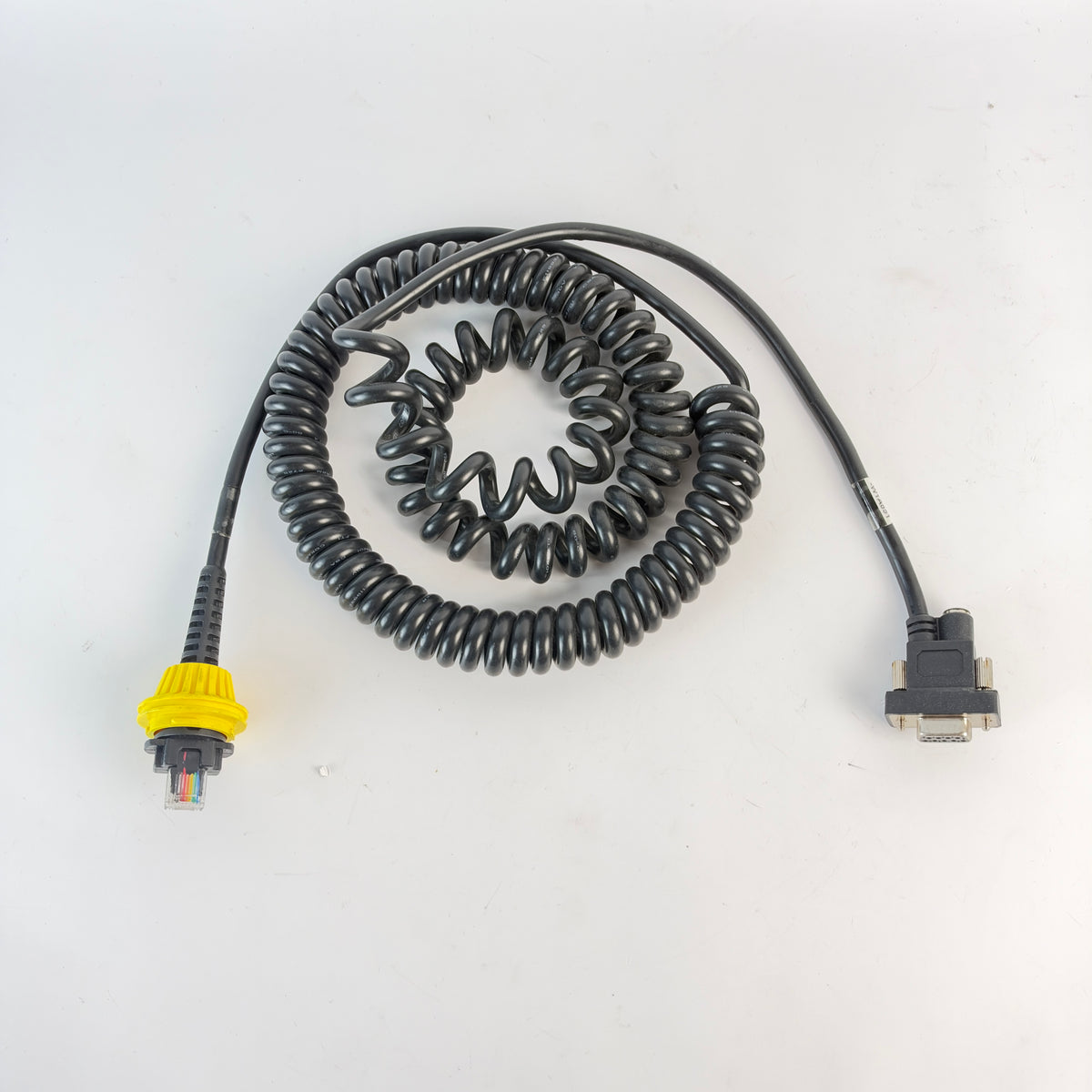

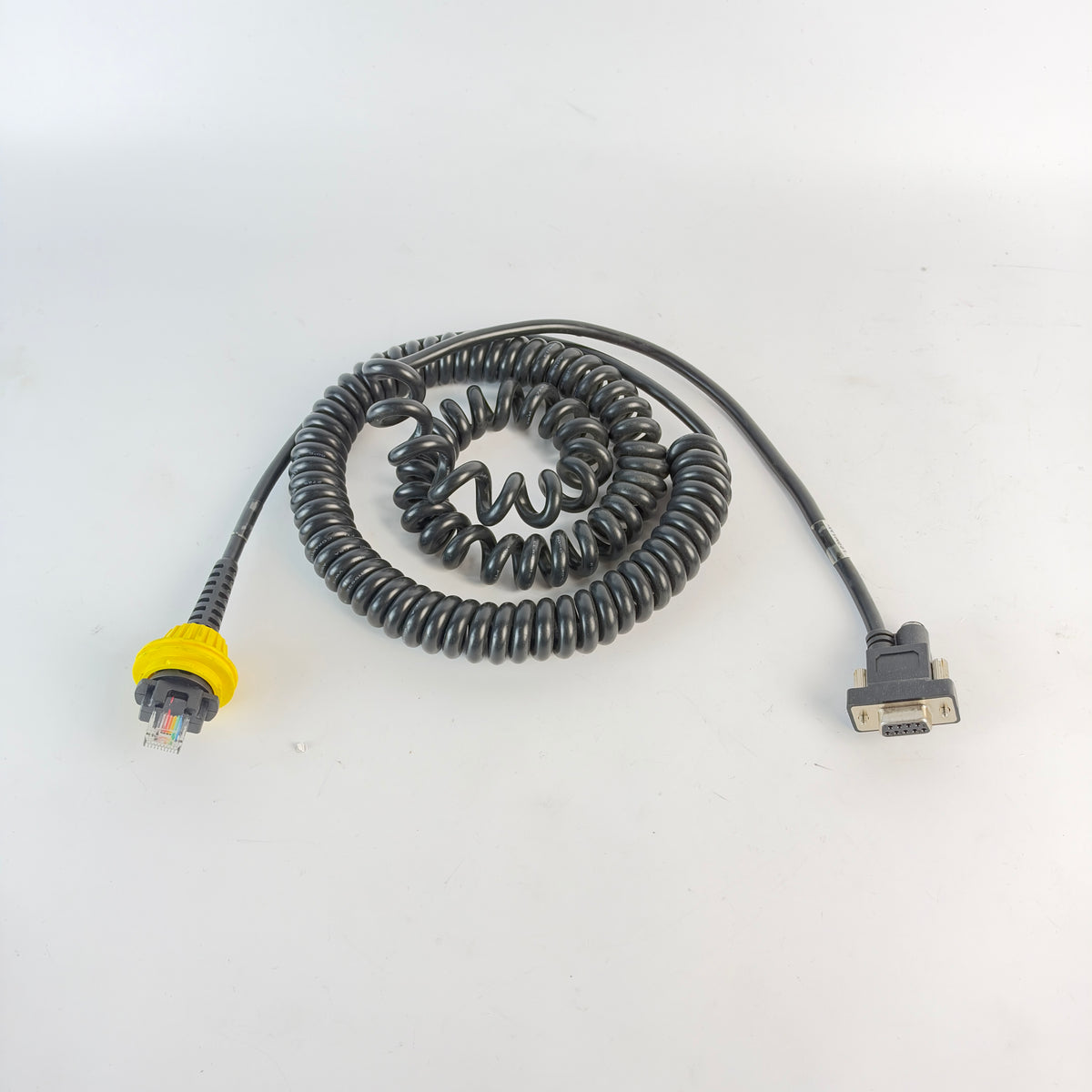

Cognex coiled RS-232 communication cable for DataMan 8000 Series handheld barcode readers, suitable for use with the Cognex DataMan DM8050X.

The cable features the Cognex reader-side modular connector with locking collar on one end and a 9-pin D-Sub (DB9) female RS-232 connector on the other. The DB9 connector housing also incorporates a DC power input connection for powering the reader in an RS-232 configuration.

Cognex documentation identifies the corresponding DataMan 8050 coiled RS-232 reader cables as DM8000-RS232 series cables. Both 2.5 m and longer coiled versions exist; the exact cable part number and length of this specific unit are not confirmed.

Specifications:

• Manufacturer: Cognex
• Product Type: Coiled RS-232 Reader Cable
• Compatible Series: Cognex DataMan 8000 Series

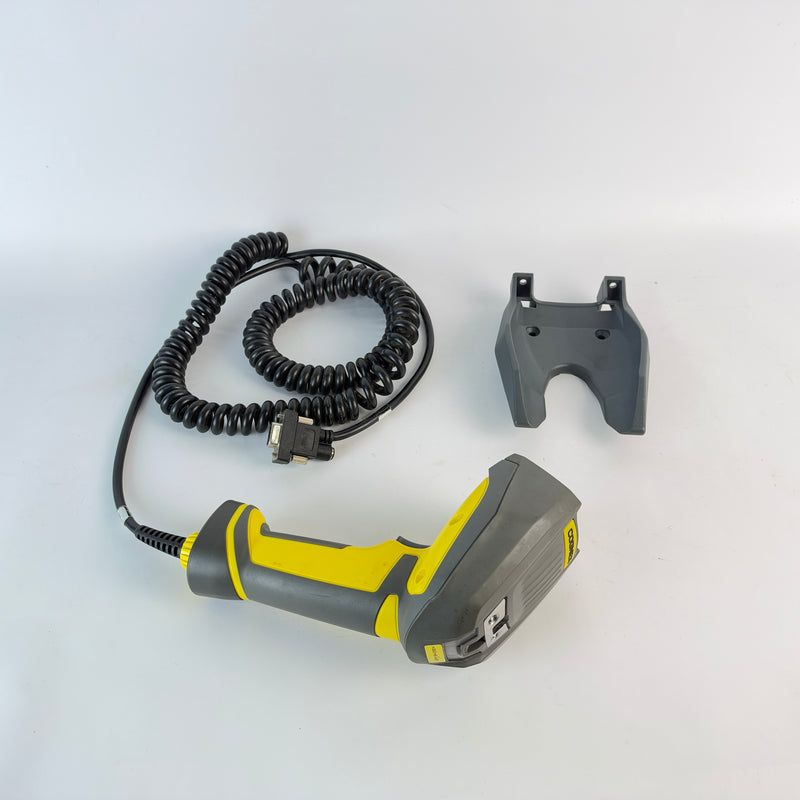

• Compatible Reader: DataMan DM8050X
• Communication Interface: RS-232

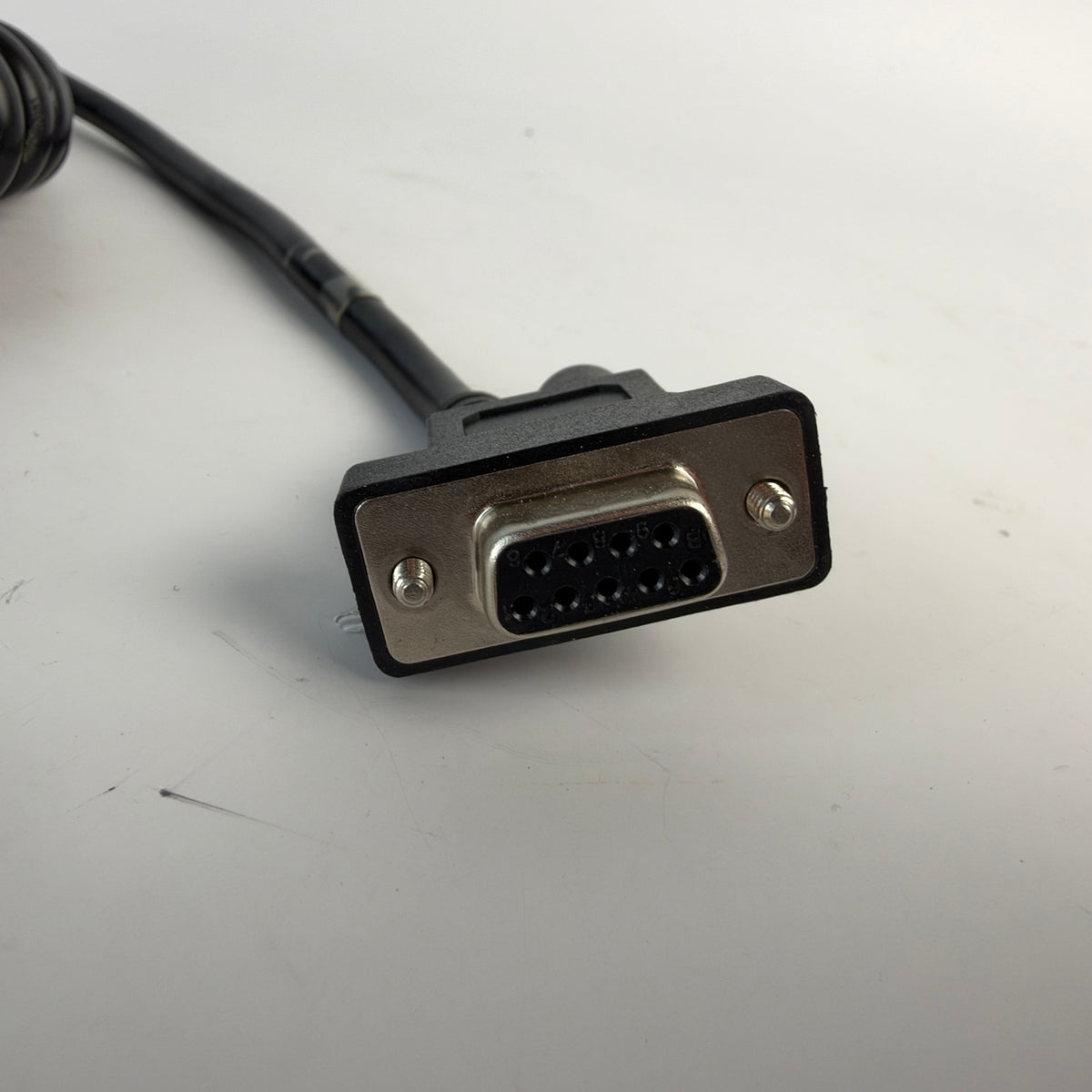

• Host Connector: 9-pin D-Sub (DB9) female

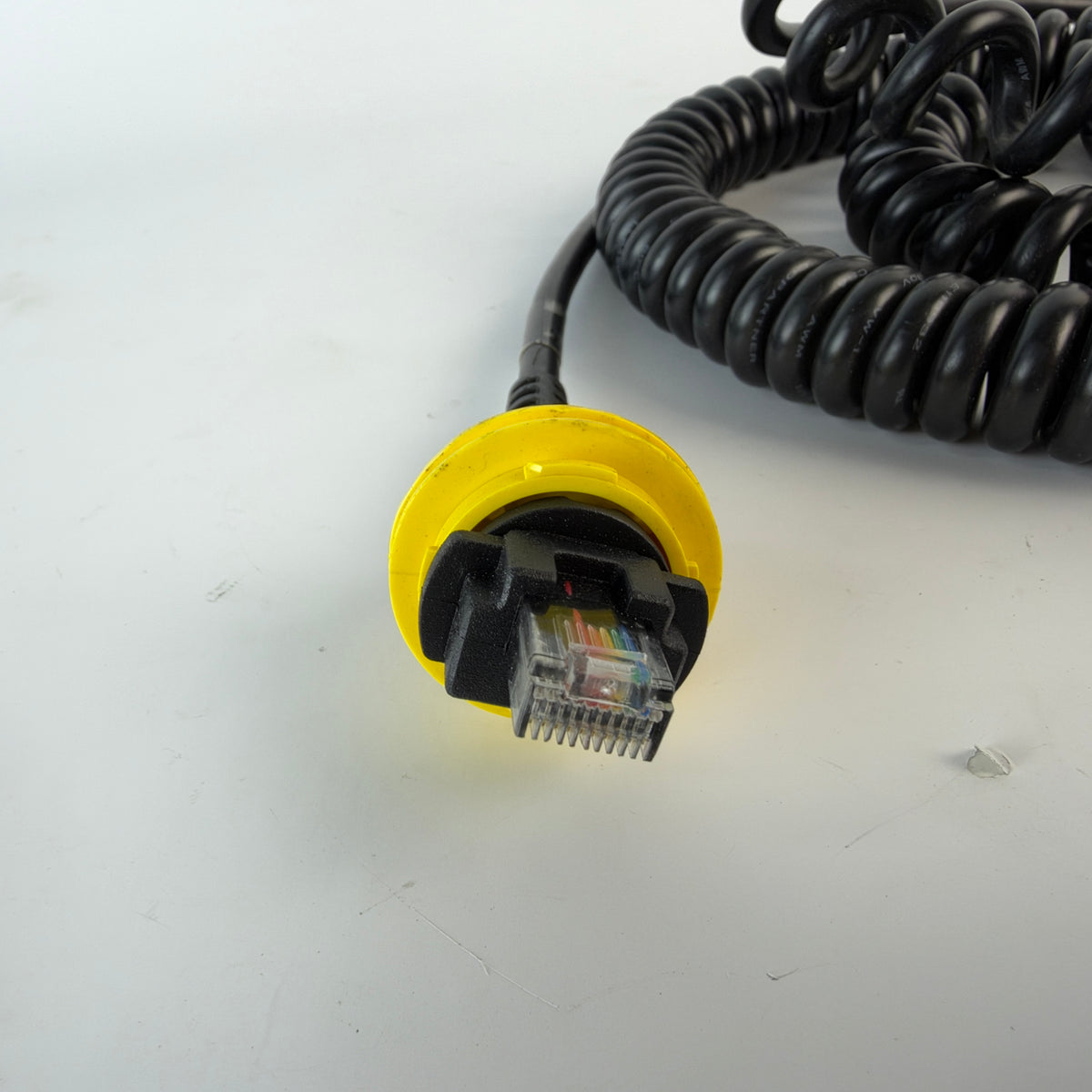

• Reader Connector: DataMan 8000 Series reader connector with locking collar
• Additional Connection: DC power input at DB9 connector housing
• Cable Type: Coiled / retractile
• Exact MPN: Not confirmed
• Cable Length: Not confirmed

Cable only. Barcode reader and external power supply are not included.

Used, fully functional.
