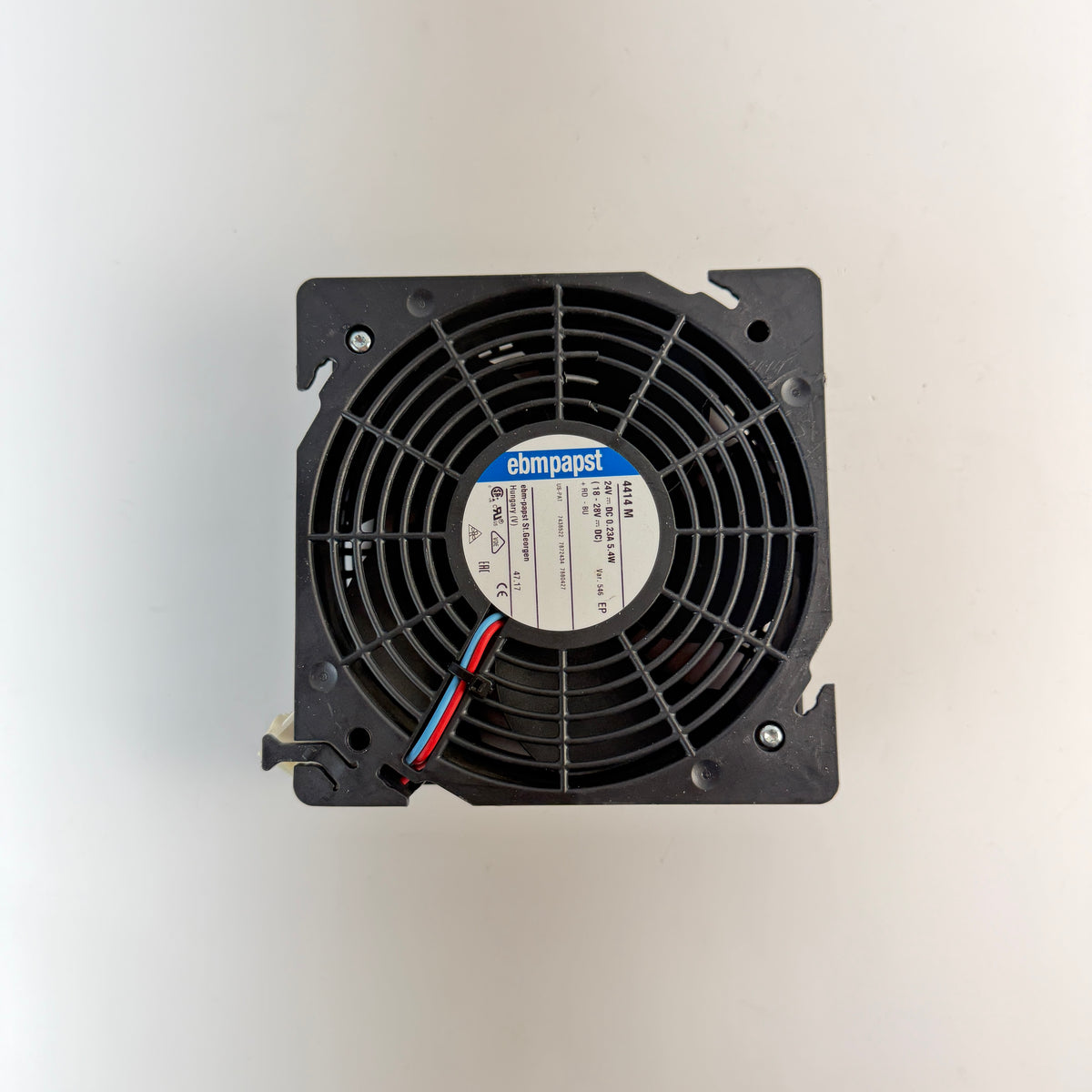

ebm-papst 4414 M Var. 546 EP DC axial compact cooling fan designed for ventilation and thermal management in industrial equipment, electrical cabinets, electronic systems and machinery.

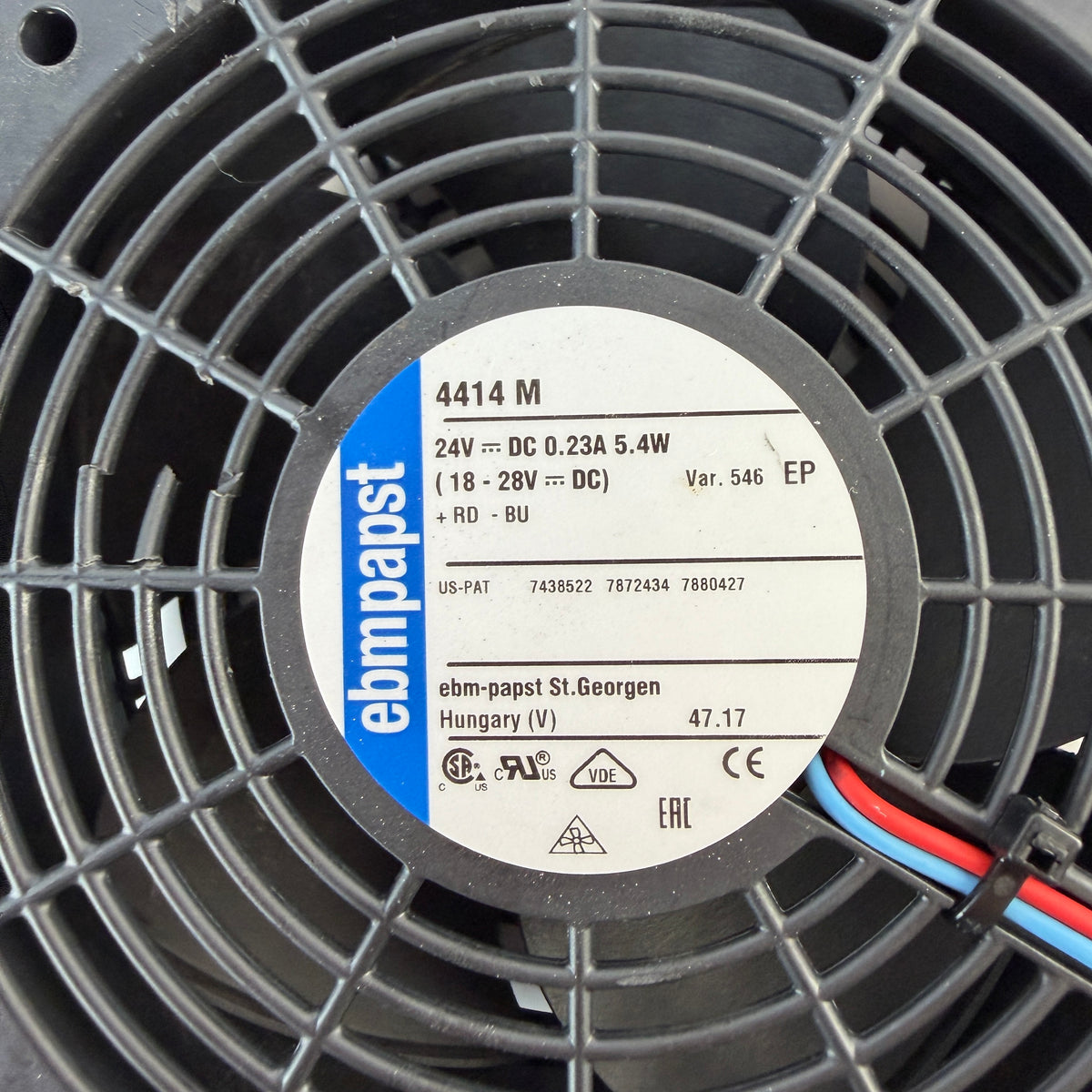

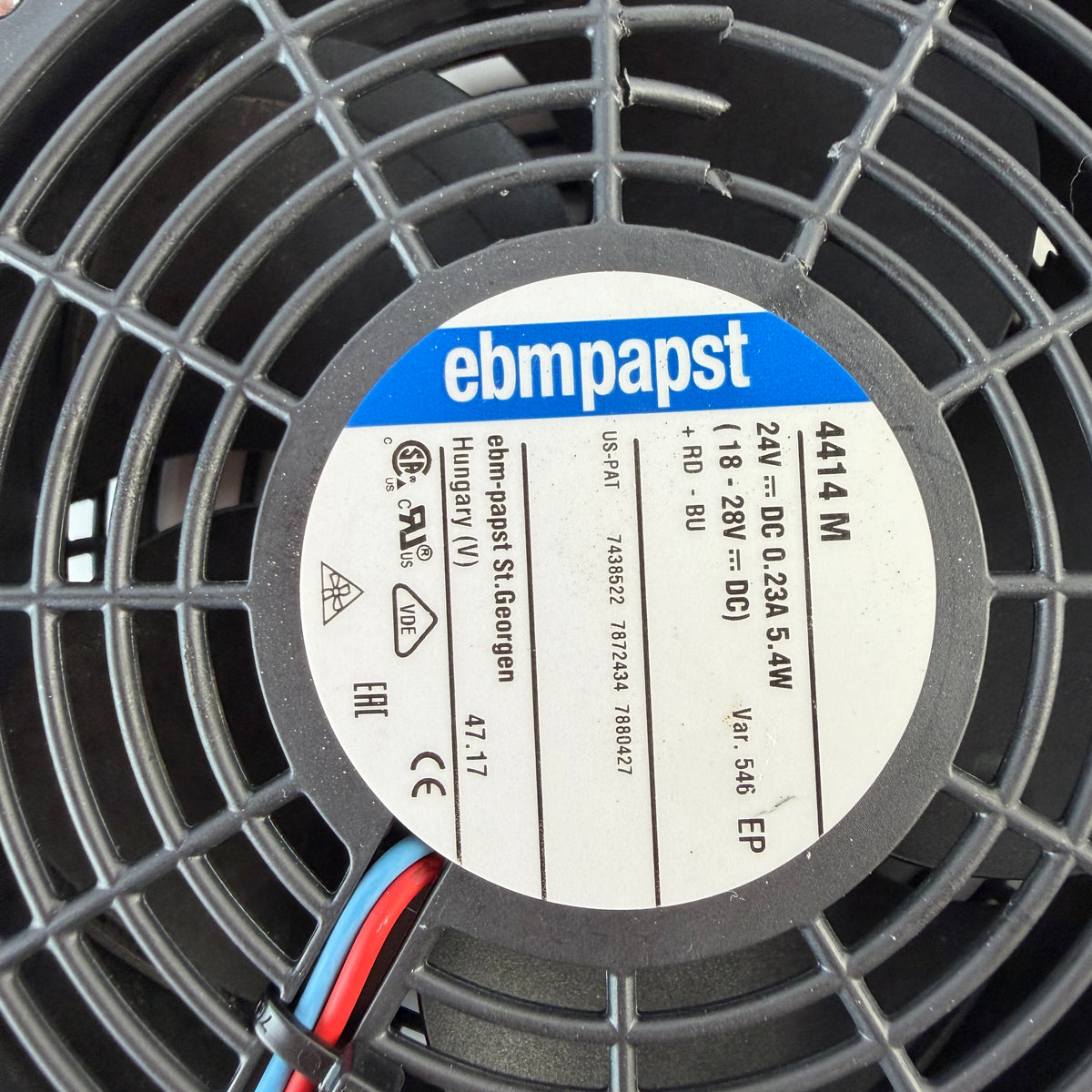

The identification label on this specific unit specifies 24 V DC nominal operation, 0.23 A current and 5.4 W power consumption, with an operating voltage range of 18–28 V DC.

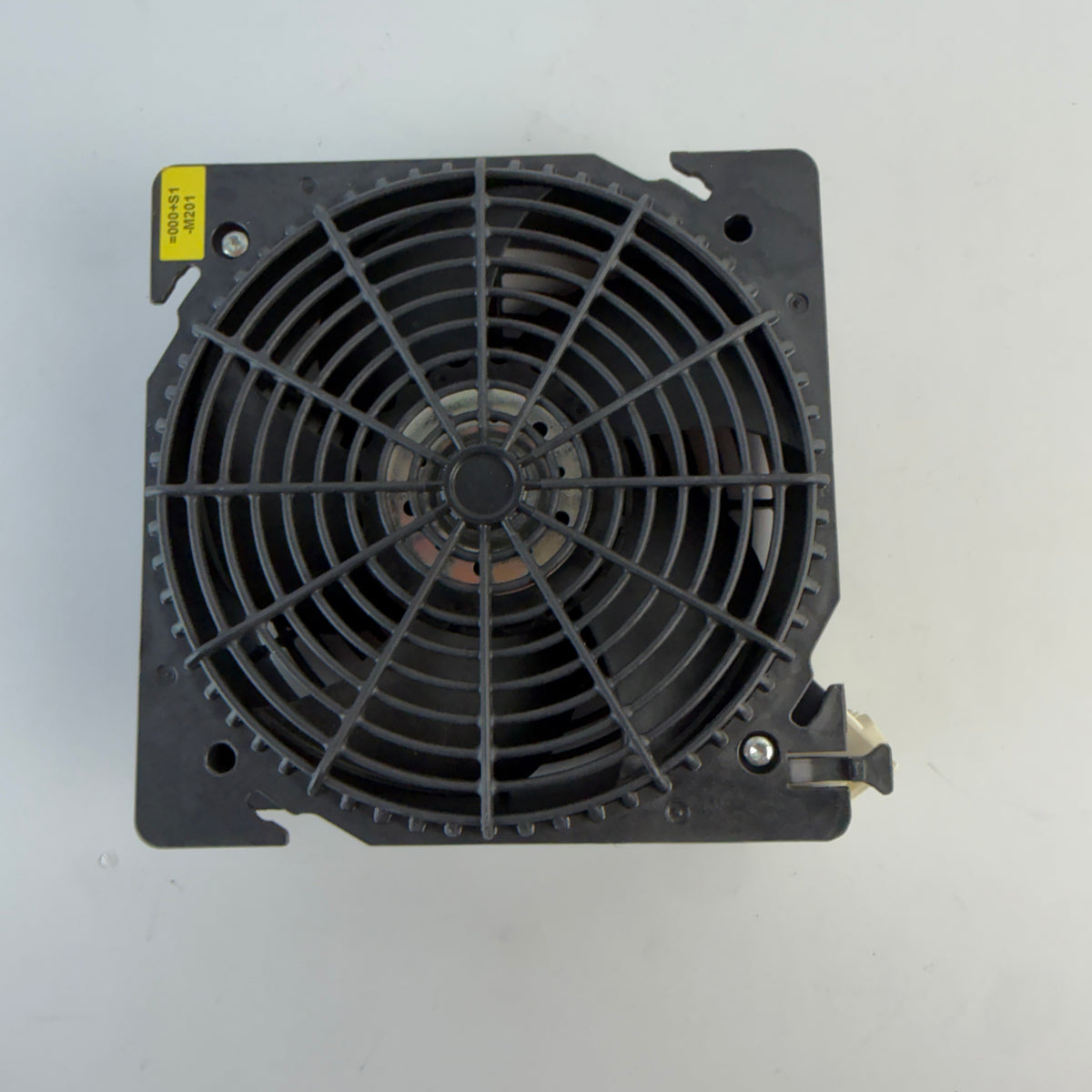

The standard 4414 M platform uses a 119 x 119 x 38 mm frame, ball-bearing construction and an electronically commutated DC motor. The fan is equipped with an integrated protective grille/frame and the terminal connection assembly shown in the photos.
Specifications:
- Manufacturer: ebm-papst
- Model: 4414 M
- Variant: 546 EP
- Type: DC axial compact fan
- Nominal Voltage: 24 V DC
- Operating Voltage Range: 18–28 V DC
- Current: 0.23 A
- Power: 5.4 W
- Frame Dimensions: 119 x 119 x 38 mm
- Nominal Speed: 3,300 rpm
- Maximum Free-Air Flow: approx. 184 m³/h
- Maximum Static Pressure: approx. 103 Pa
- Sound Pressure Level: approx. 42 dB(A)
- Bearing Type: Ball bearing
- Housing Material: Glass-fiber reinforced PBT
- Impeller Material: Glass-fiber reinforced PA
- Motor Protection: Reverse-polarity and blocked-rotor protection
- Wiring Polarity Marked: Red (+), Blue (-)

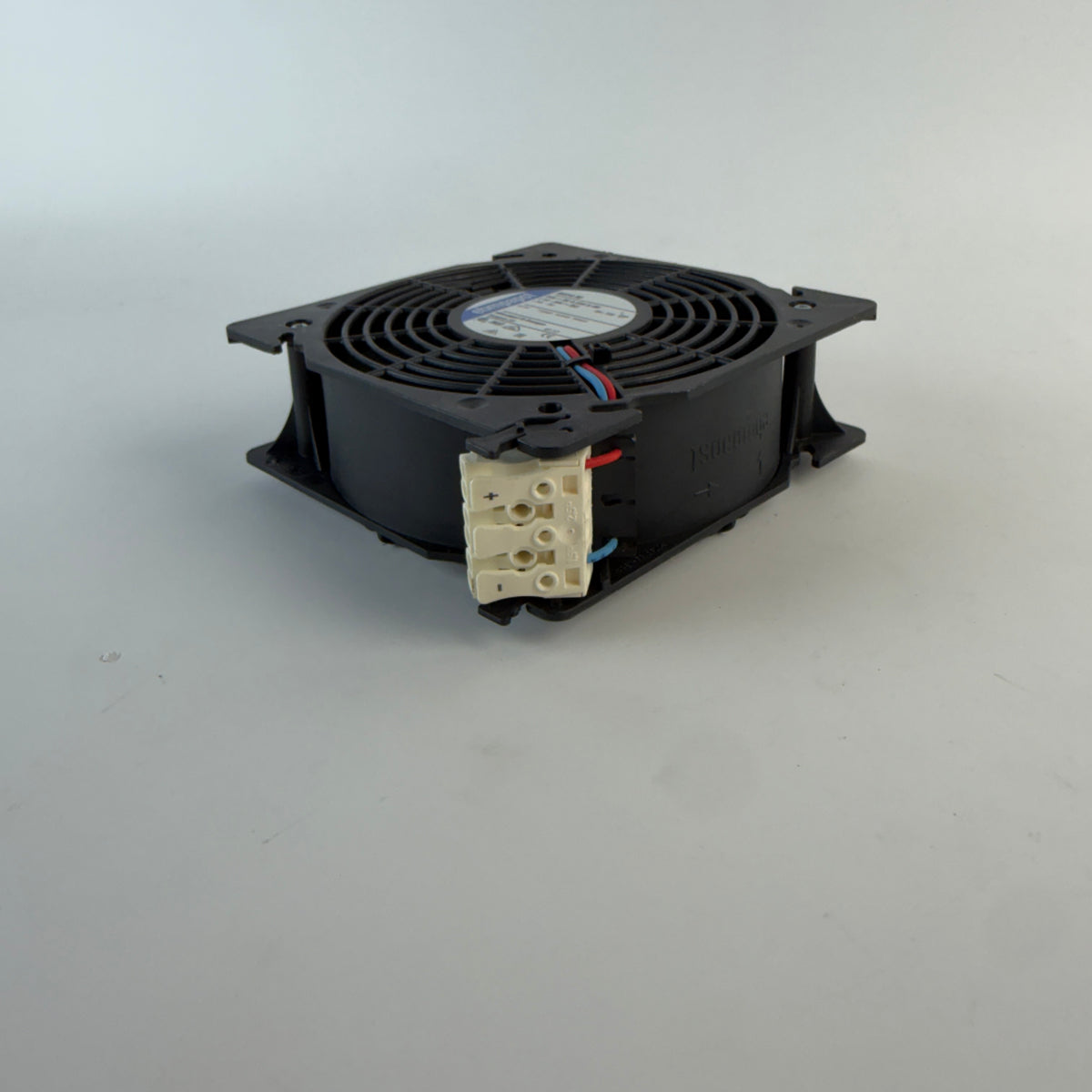

- Terminal connection assembly included as pictured
Used, fully functional.
Packed and dispatched within 1 working day of cleared payment. Worldwide delivery via DHL Express, typically 2–7 working days.
Import duties, taxes and customs fees are the buyer's responsibility. Tracking is provided on dispatch.
