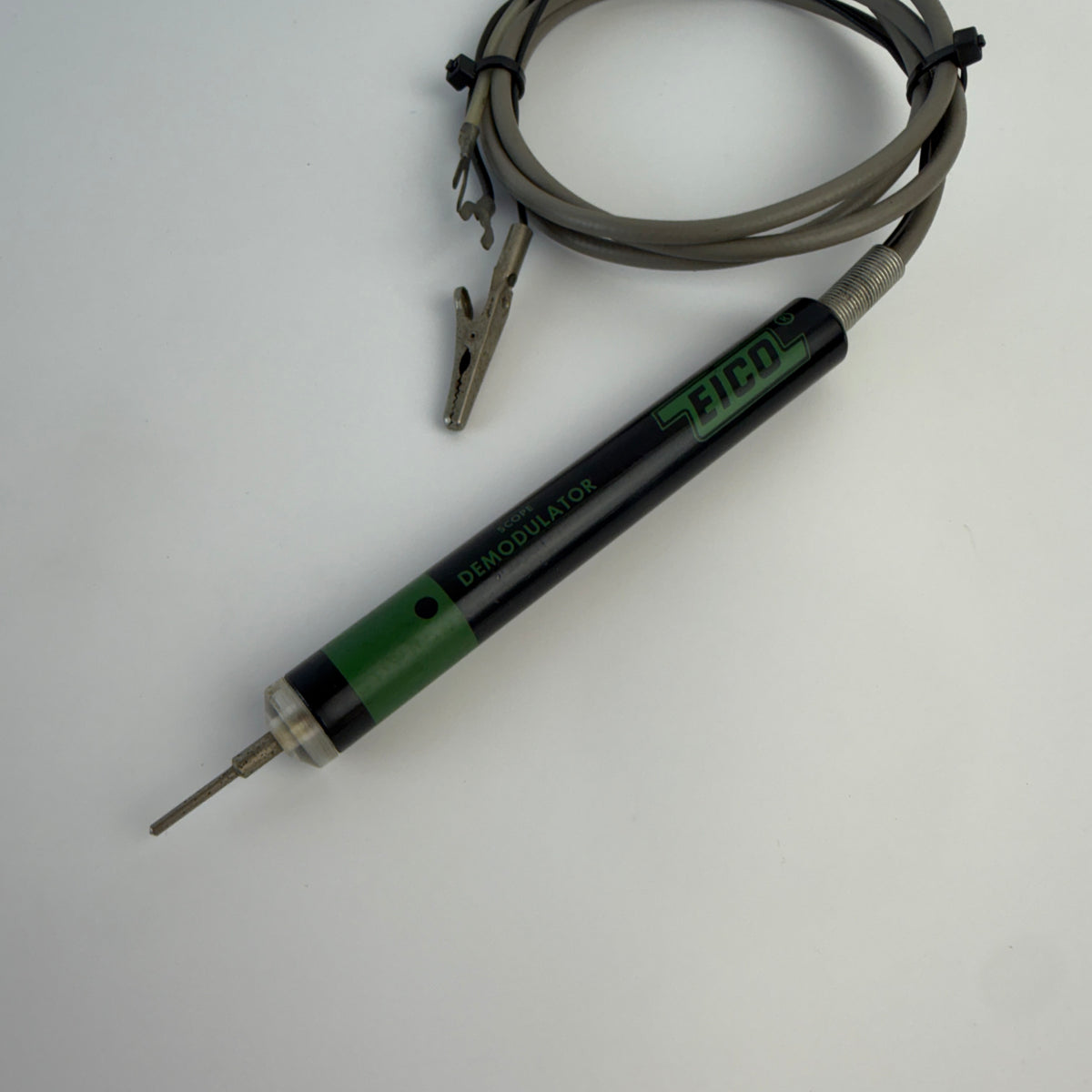

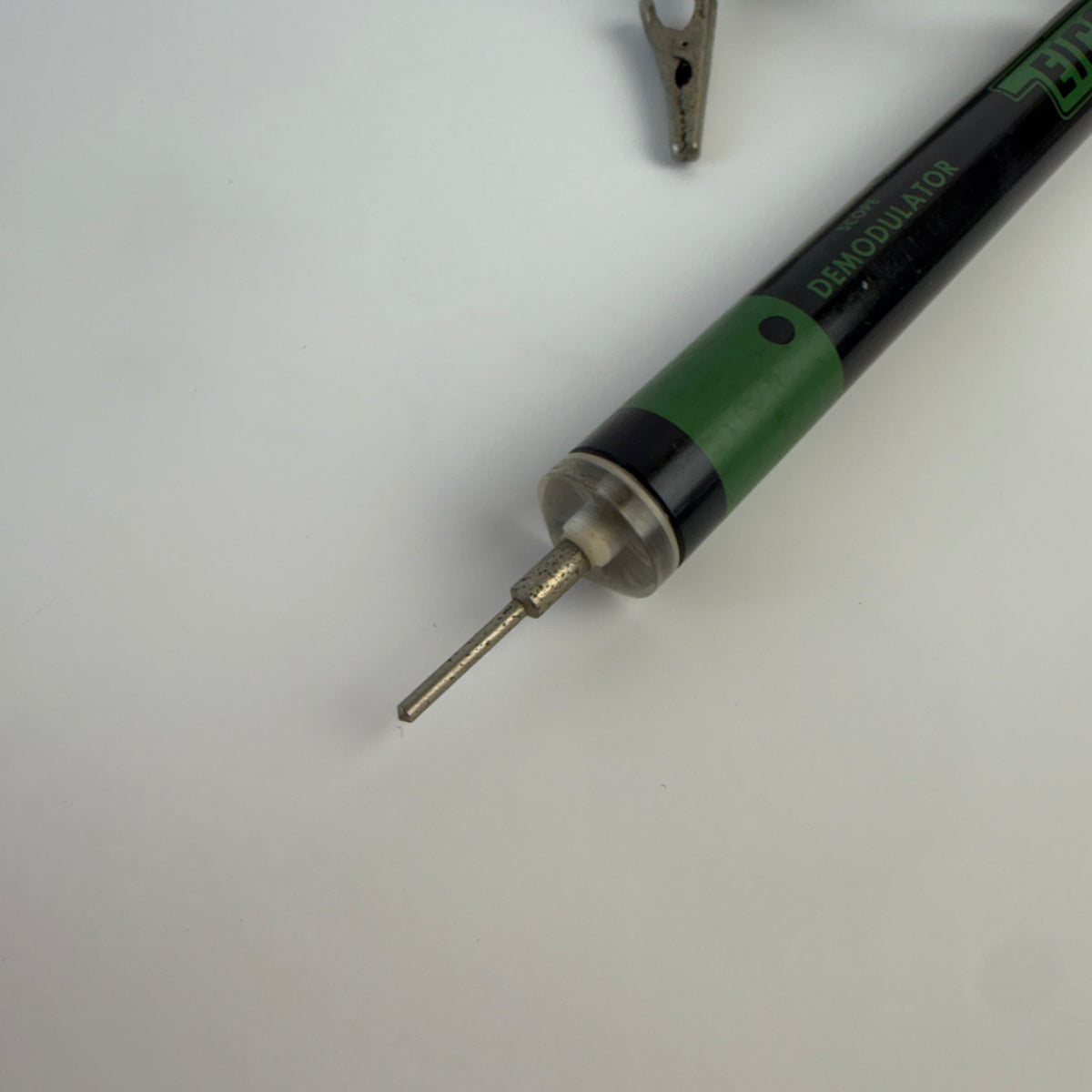

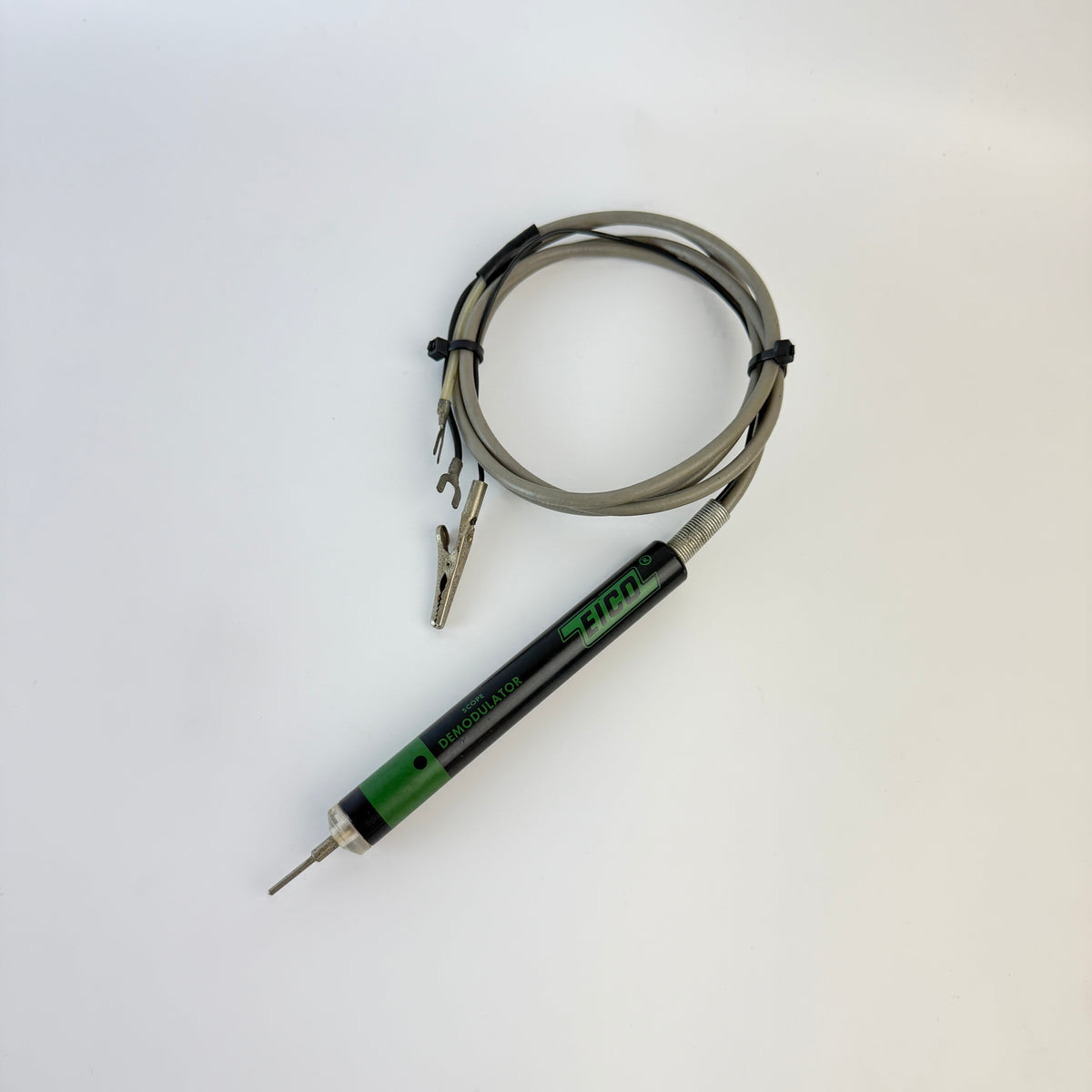

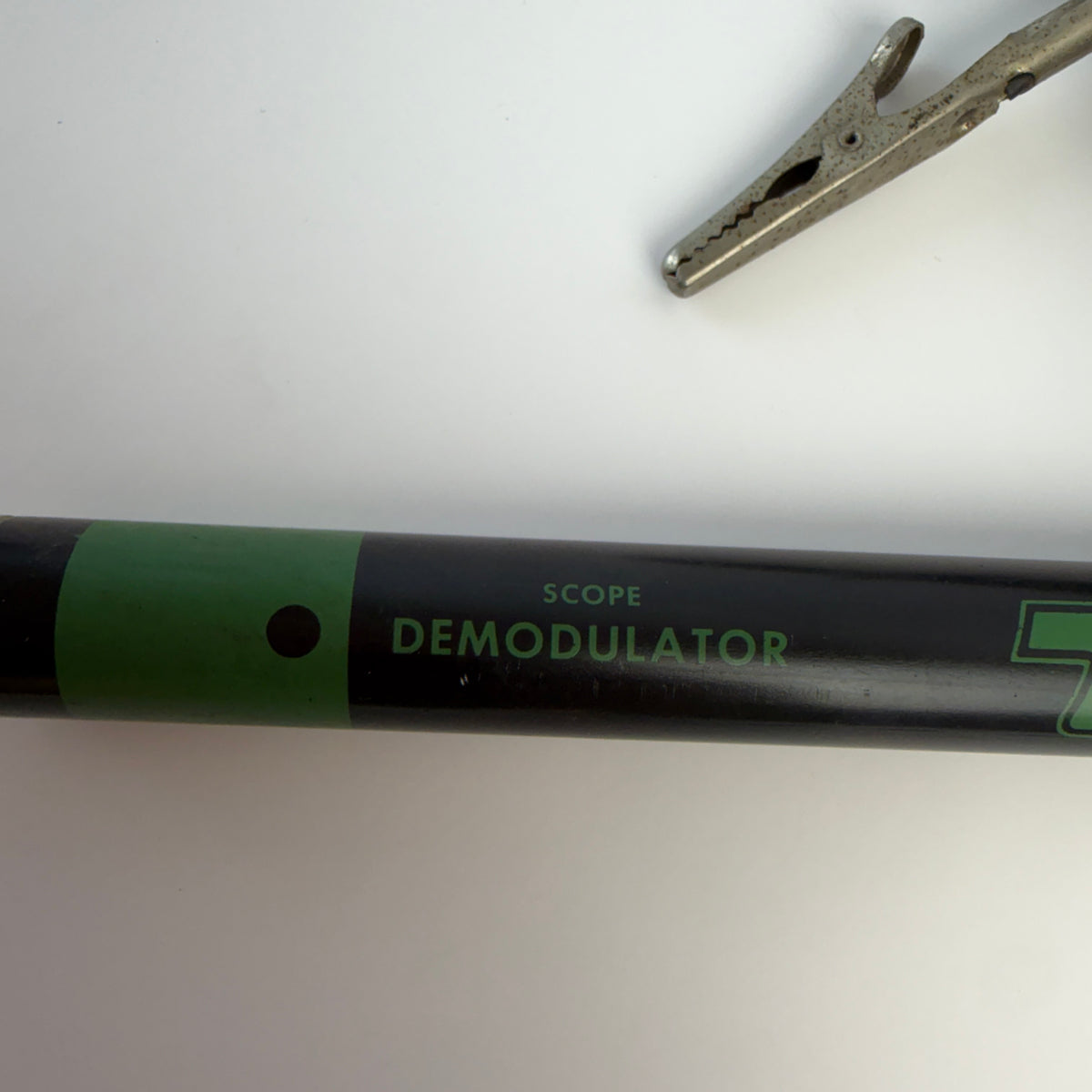

Vintage EICO PSD Scope Demodulator Probe with approximately 110 cm cable, designed for signal tracing and testing RF and IF stages using an oscilloscope.

The EICO PSD is a passive demodulator/detector probe that demodulates AM carriers, allowing an oscilloscope to display the modulation waveform rather than the RF carrier itself. Period EICO documentation specifies a carrier frequency range of 150 kHz to 250 MHz.

It was designed for servicing and alignment applications in radio and television electronics, allowing an oscilloscope to function as a waveform tracer, gain analyzer and alignment indicator.

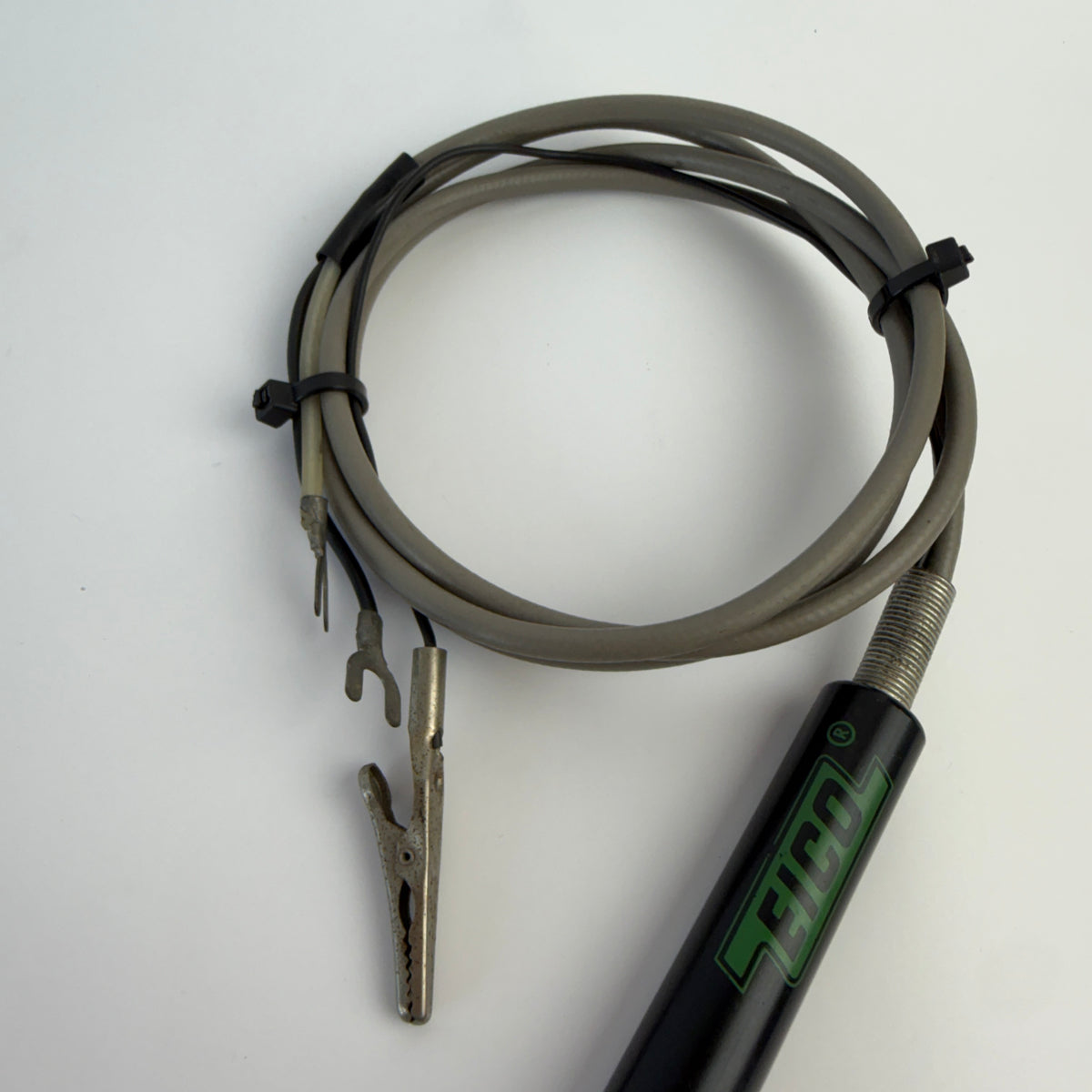

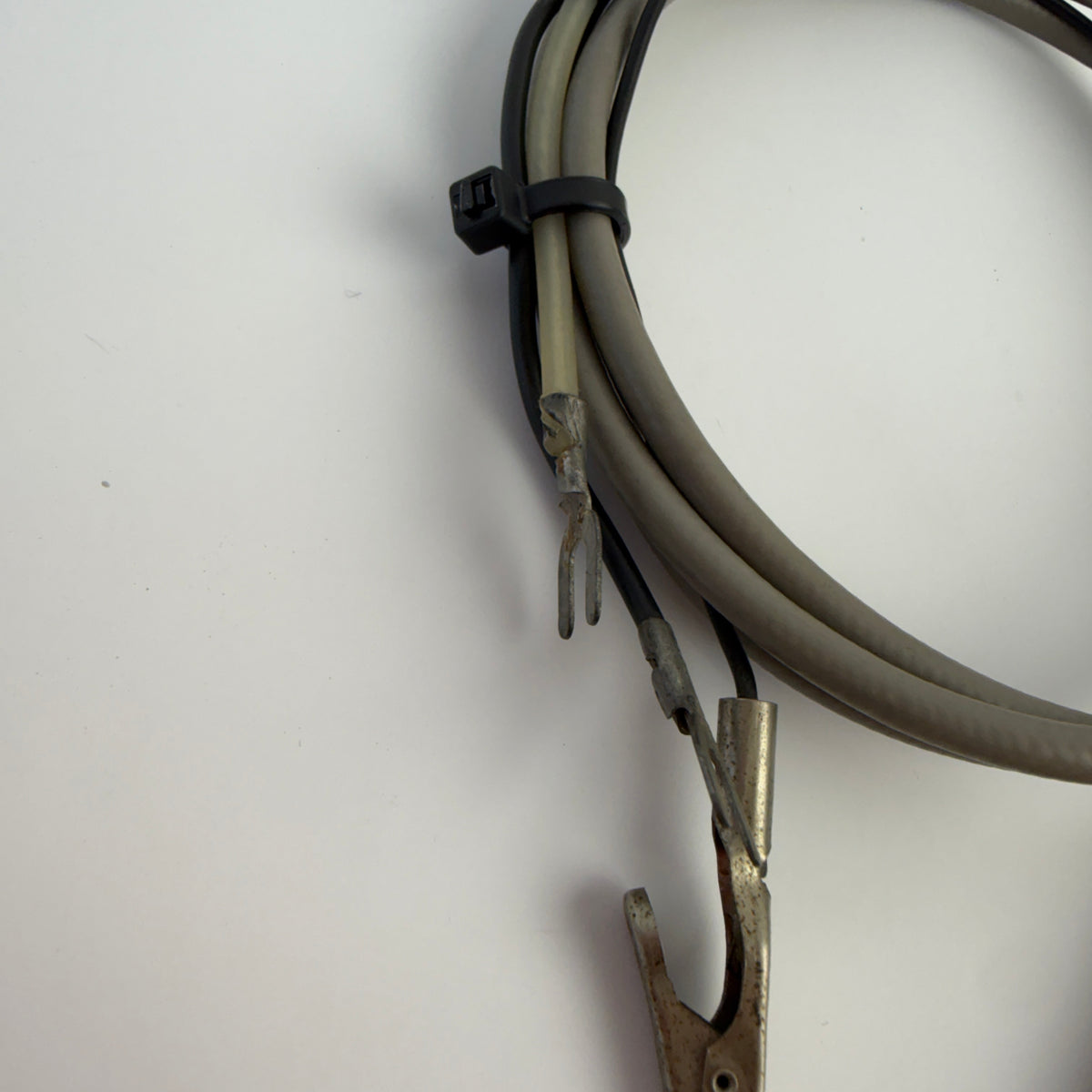

This example includes the original-style probe lead arrangement with alligator ground clip and connection leads, as pictured.

Technical Specifications

Applications

Suitable for vintage electronics servicing applications such as RF/IF signal tracing, waveform observation, gain analysis and alignment work with appropriate test equipment.

Package Contents

1 × EICO PSD Scope Demodulator Probe with approx. 110 cm cable and leads, exactly as pictured.
