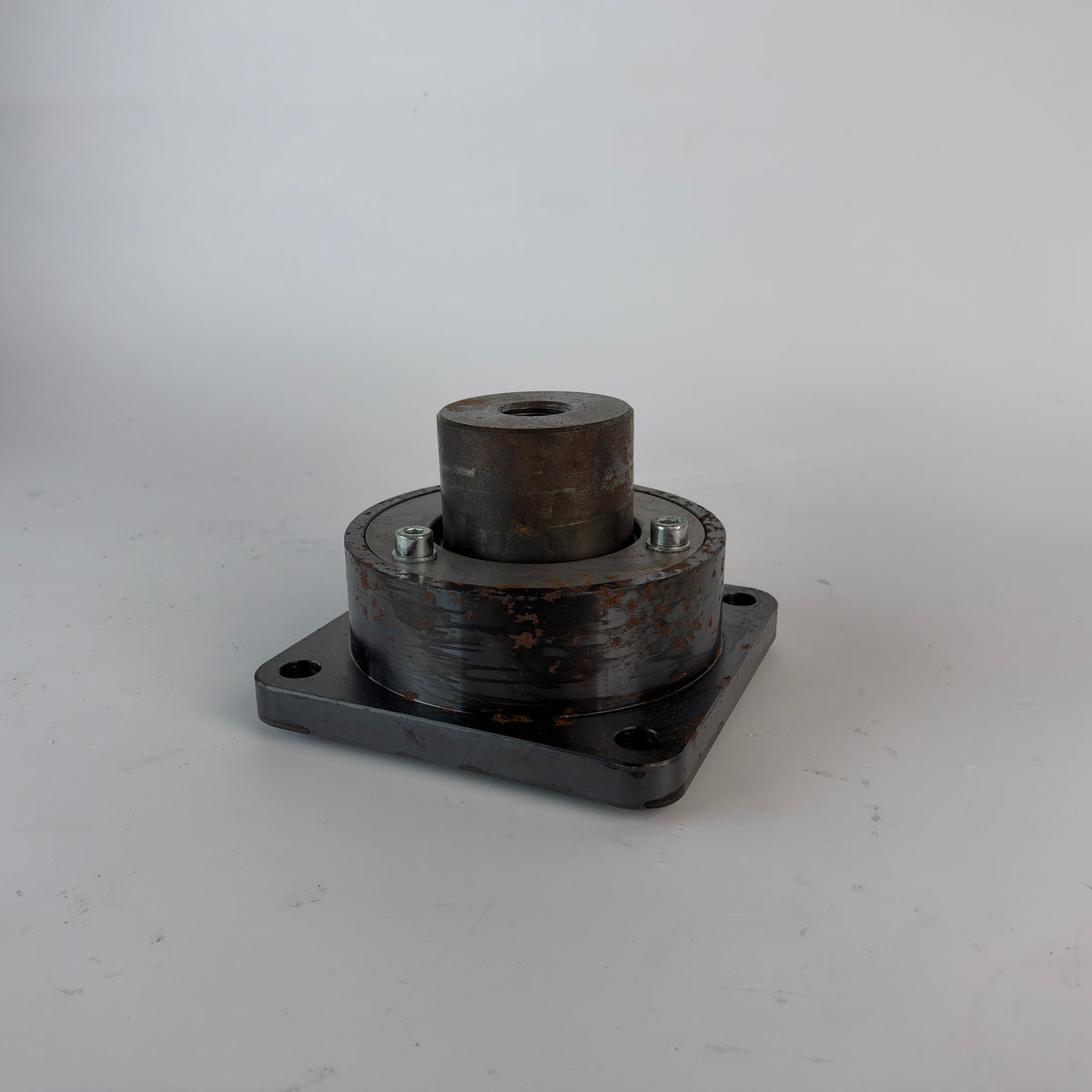

Heavy-Duty Swivel Cylinder Rod End Mounting Foot with Threaded Connection

Heavy-duty mechanical mounting component designed for installation on the threaded rod end of a large industrial cylinder or similar linear actuator.

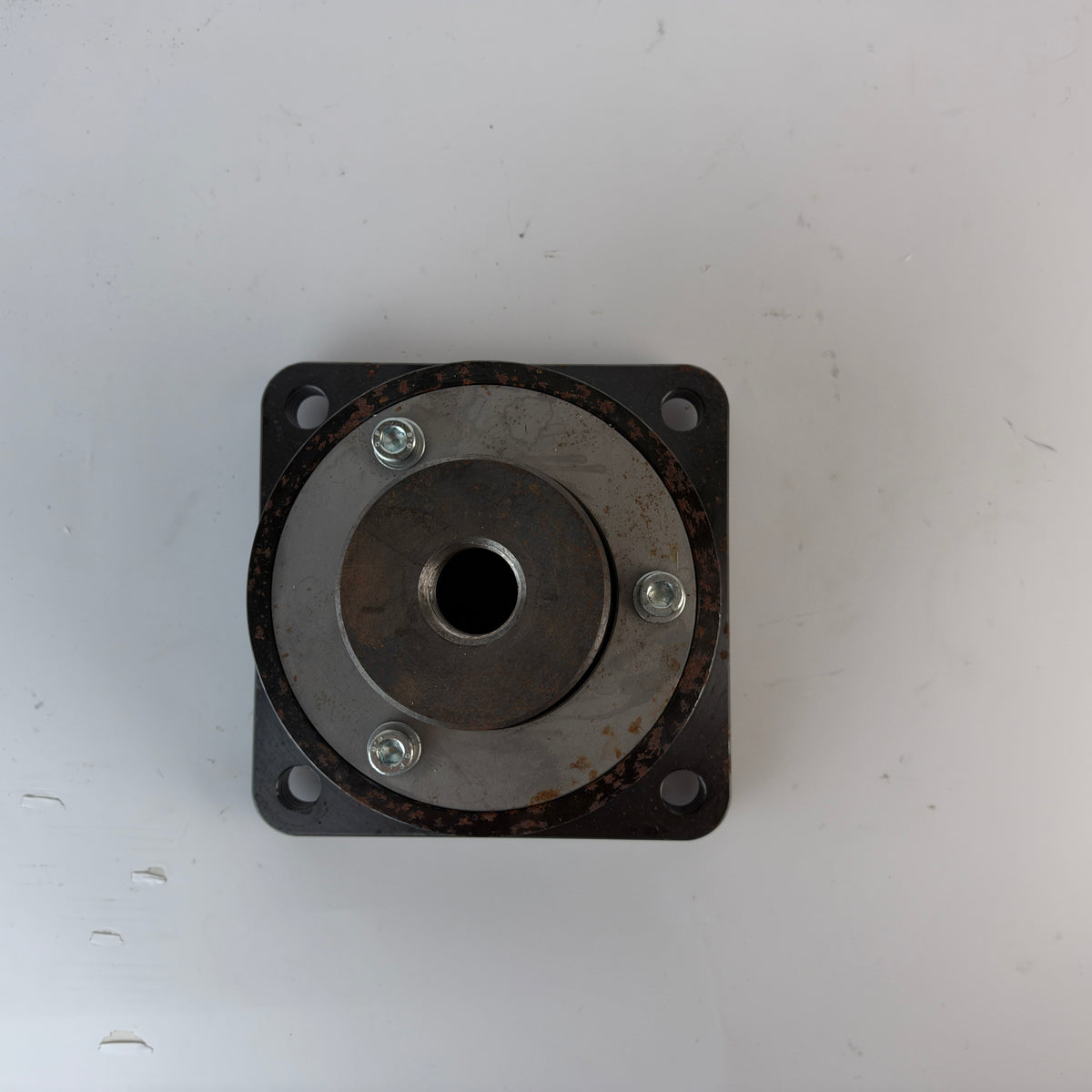

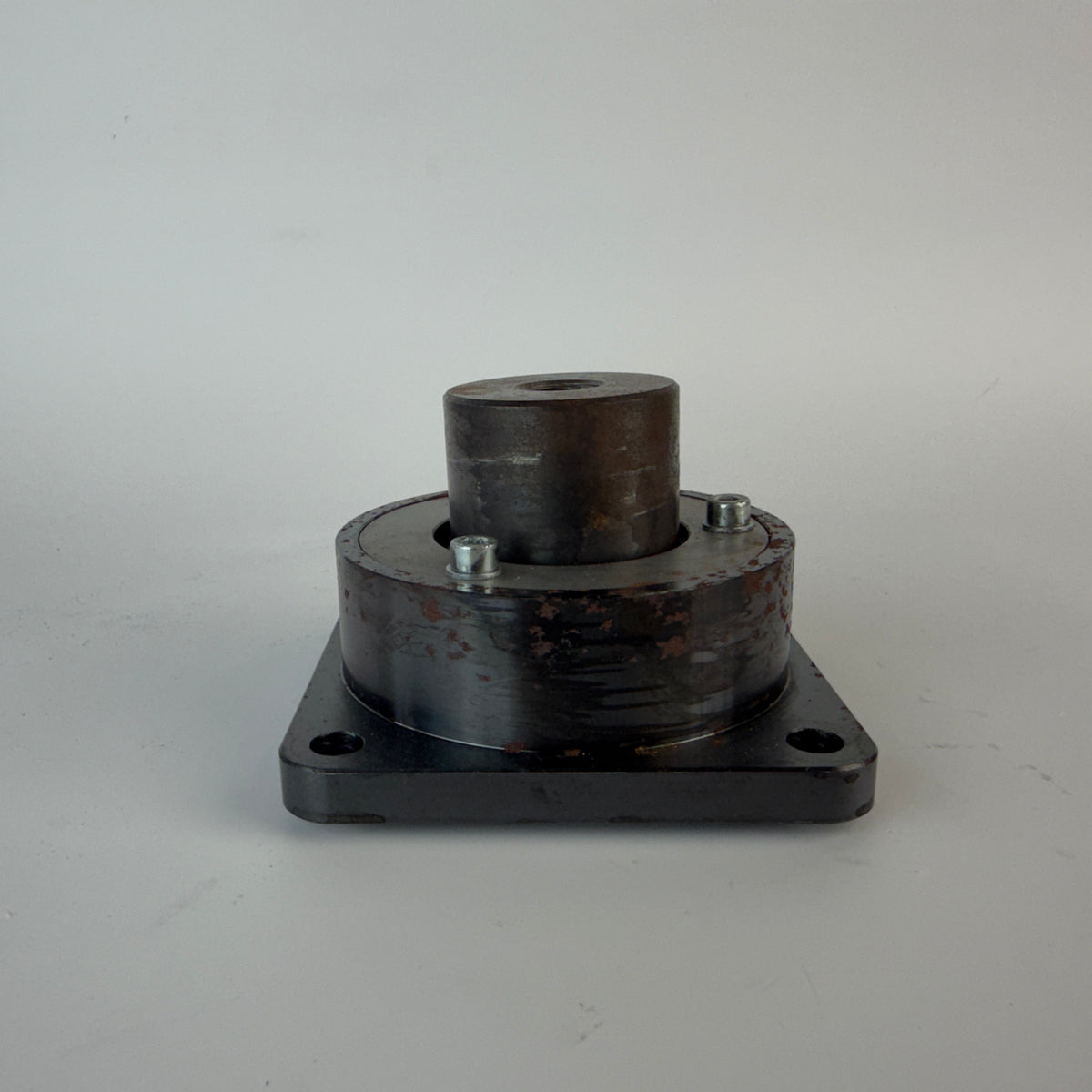

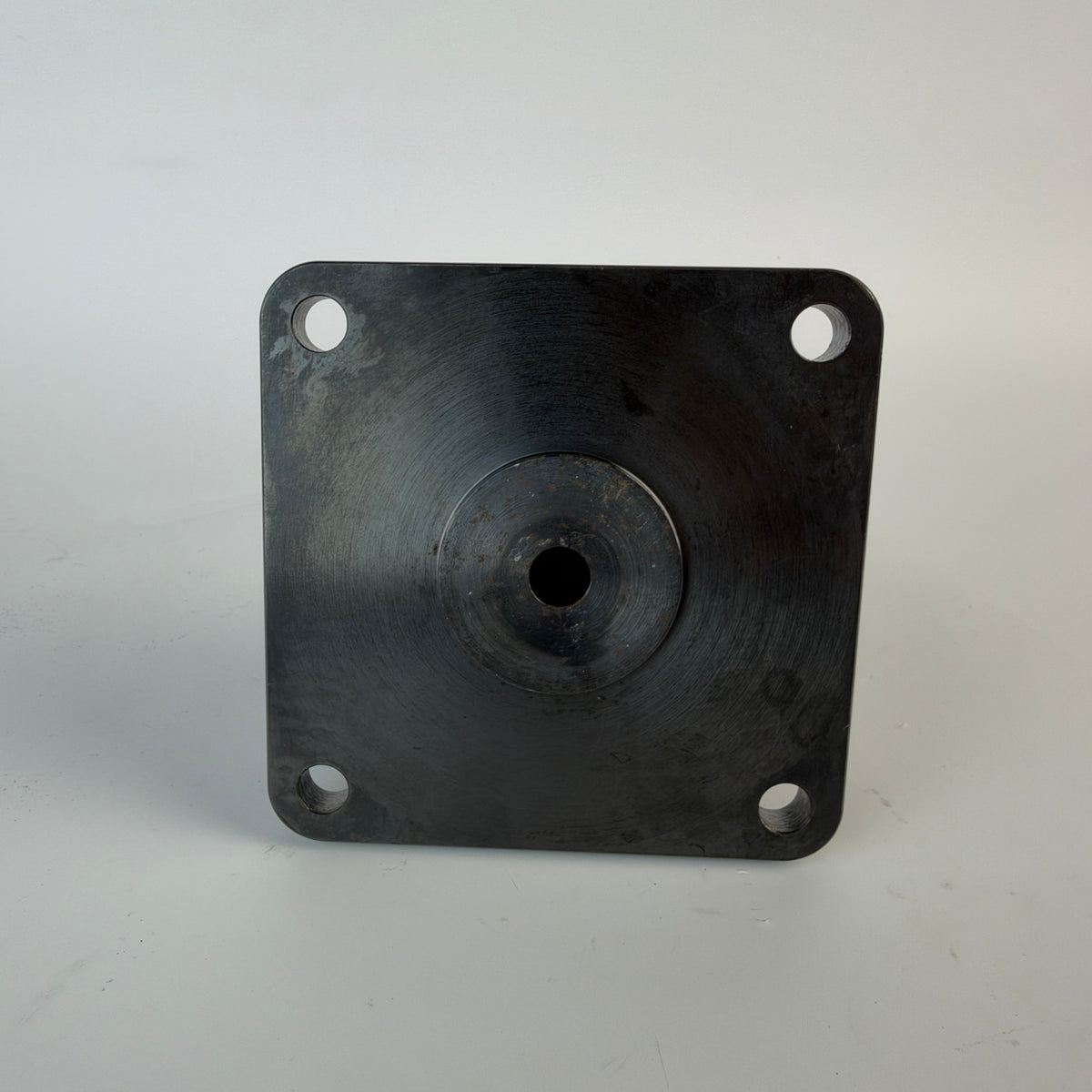

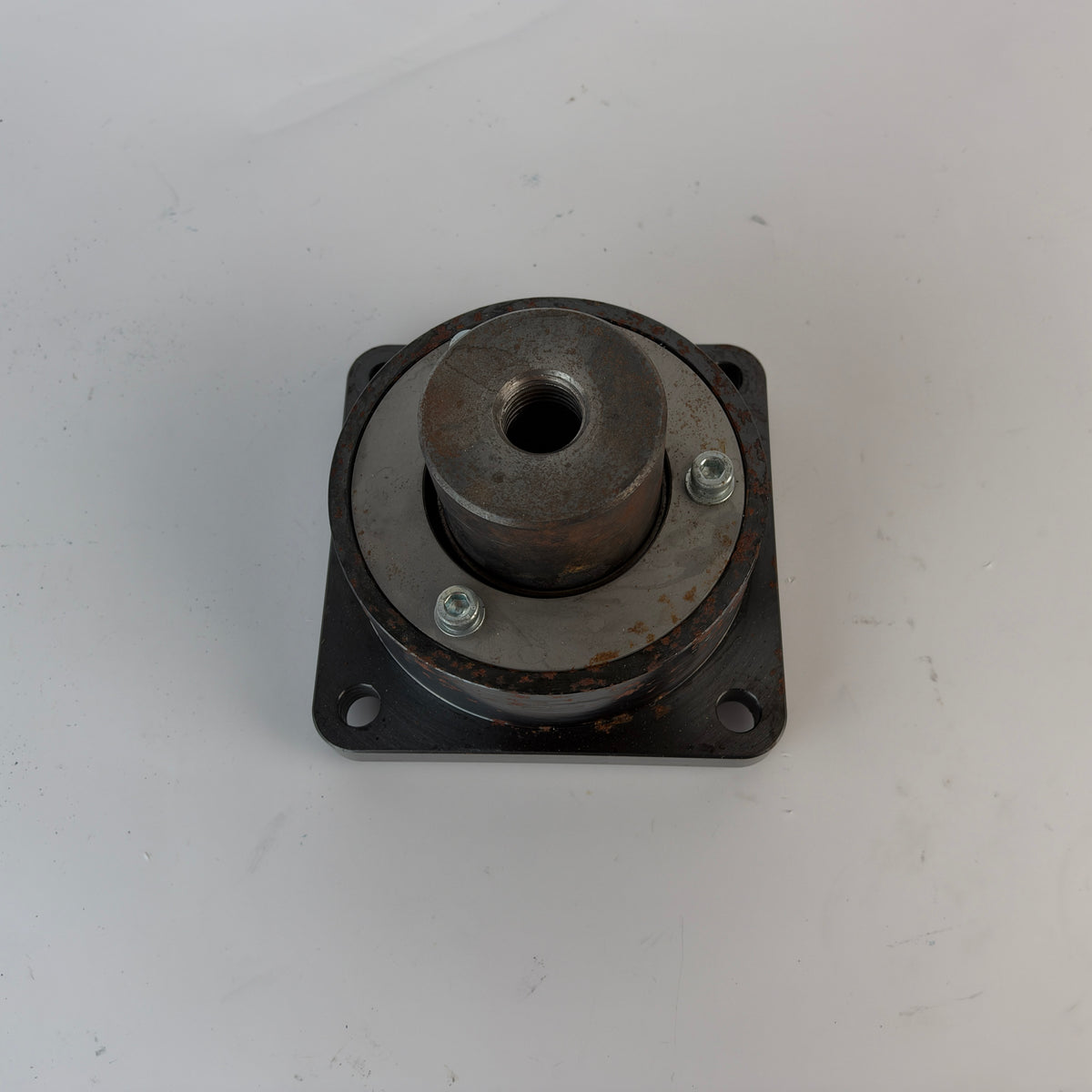

The assembly provides a robust interface between the cylinder rod and the surface or structure being actuated. It features a central threaded cylindrical connection and a square mounting base with four mounting holes.

The circular joint construction allows angular movement between the threaded connection and mounting base, helping accommodate alignment variations during cylinder operation.

Product Details:

• Type: Cylinder Rod End Swivel / Pivot Mount
• Application: Industrial cylinder or linear actuator mounting
• Connection: Female threaded central connection
• Base: Square mounting flange
• Mounting Points: 4
• Construction: Heavy-duty steel
• Articulating / Pivoting Design
• Manufacturer: Not confirmed
• Model / Part Number: Not confirmed
• Cylinder Compatibility: Not confirmed

Condition:

Used, fully functional.

The item shows signs of previous industrial use, including surface wear, scratches and visible surface corrosion. Please review the photographs carefully for the actual physical condition.

Important:

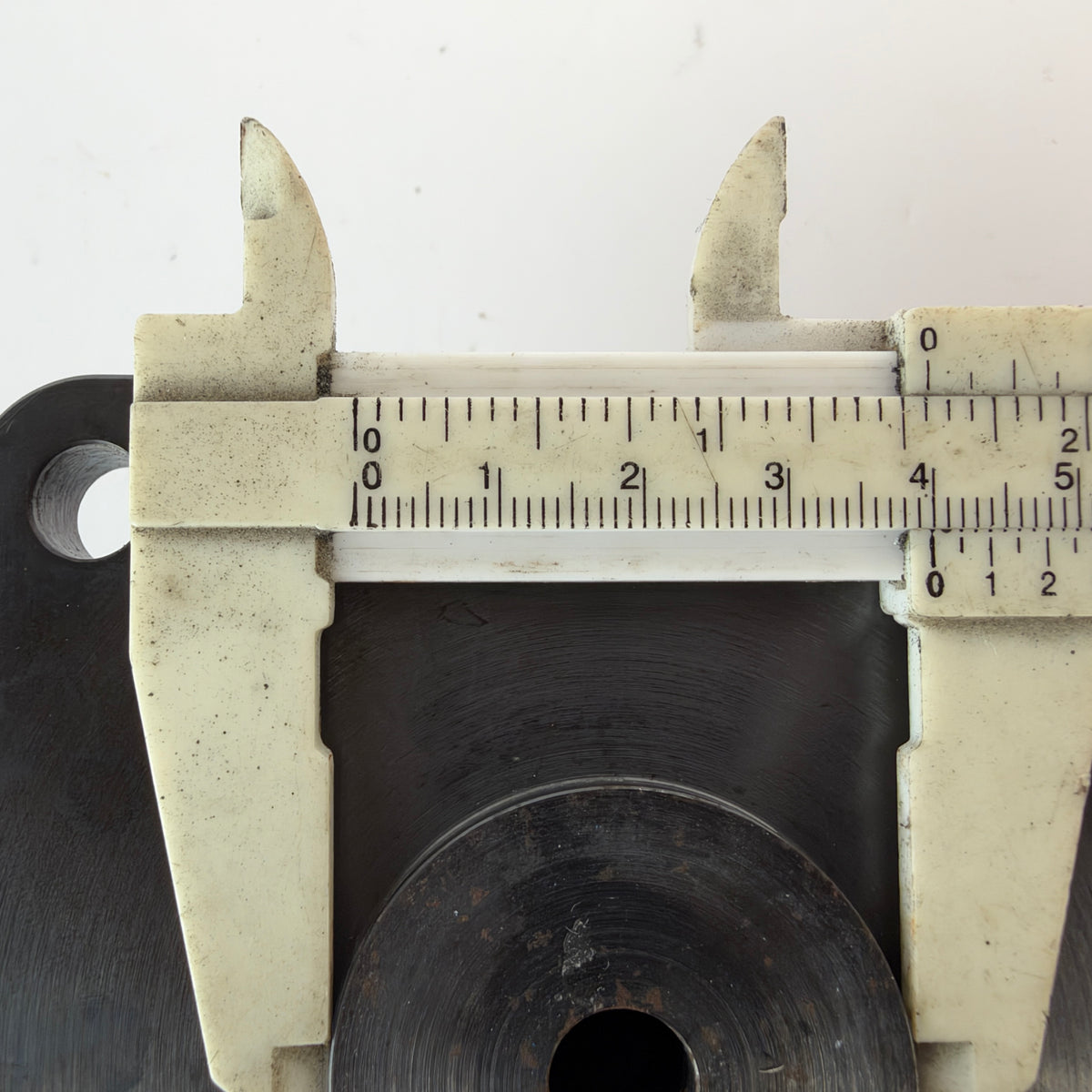

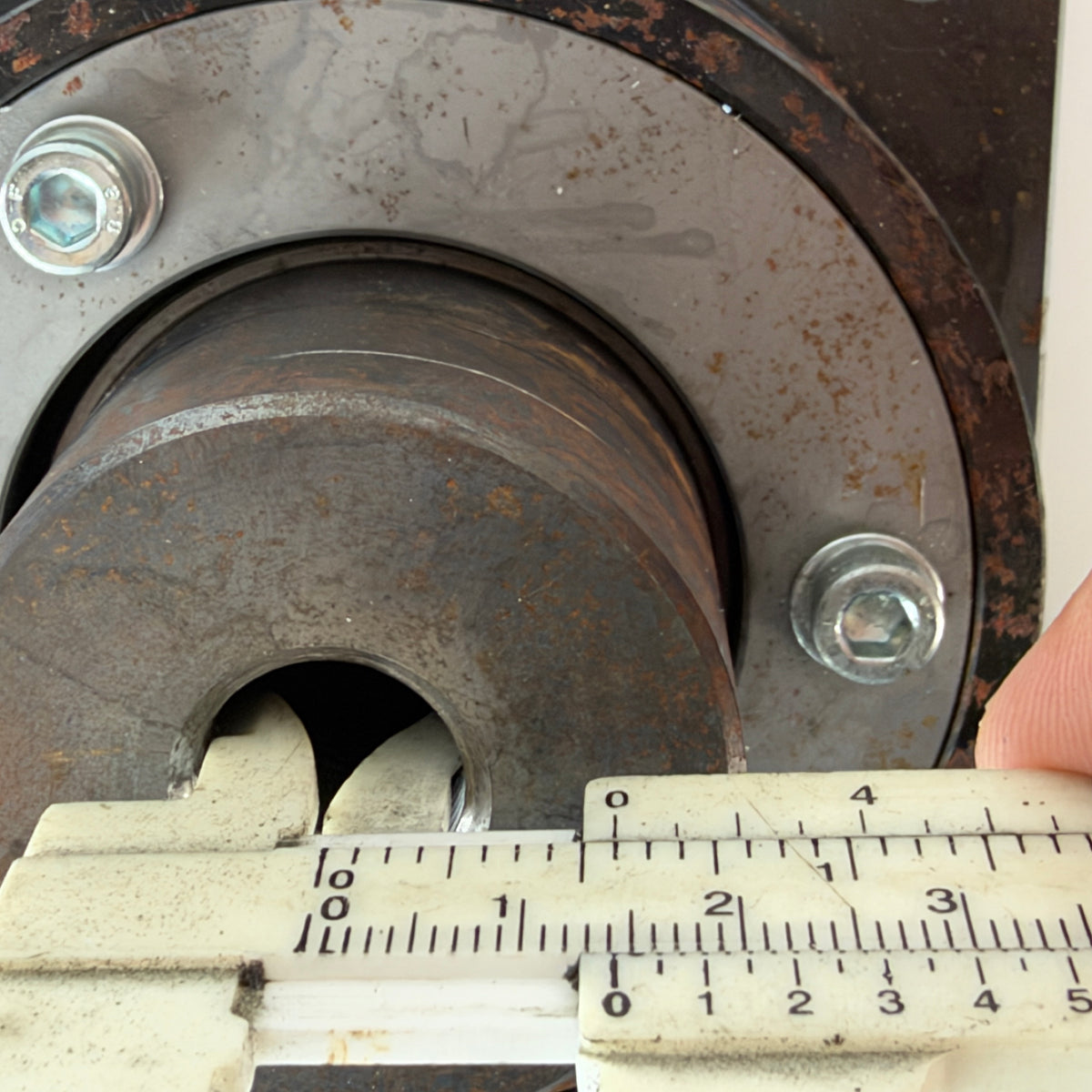

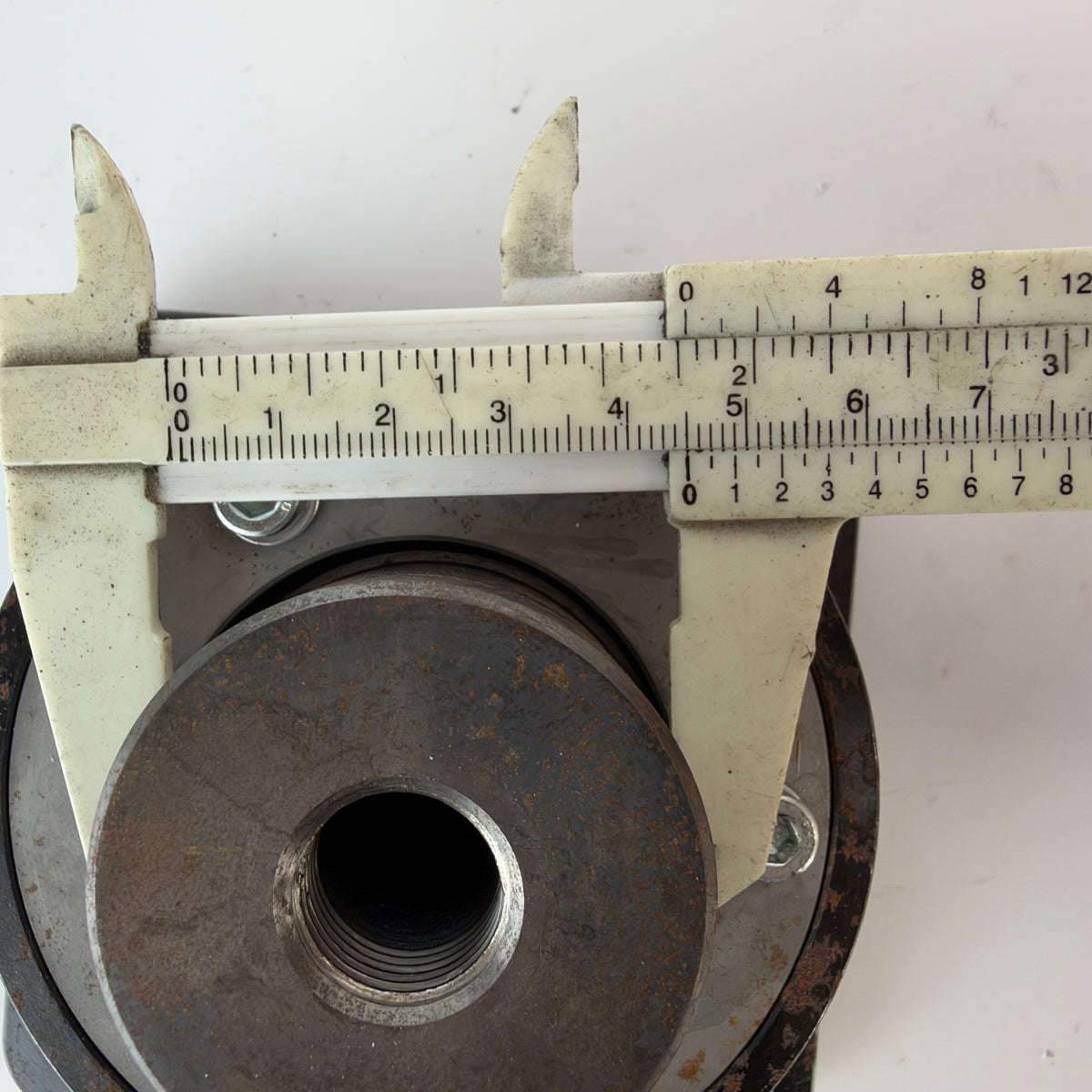

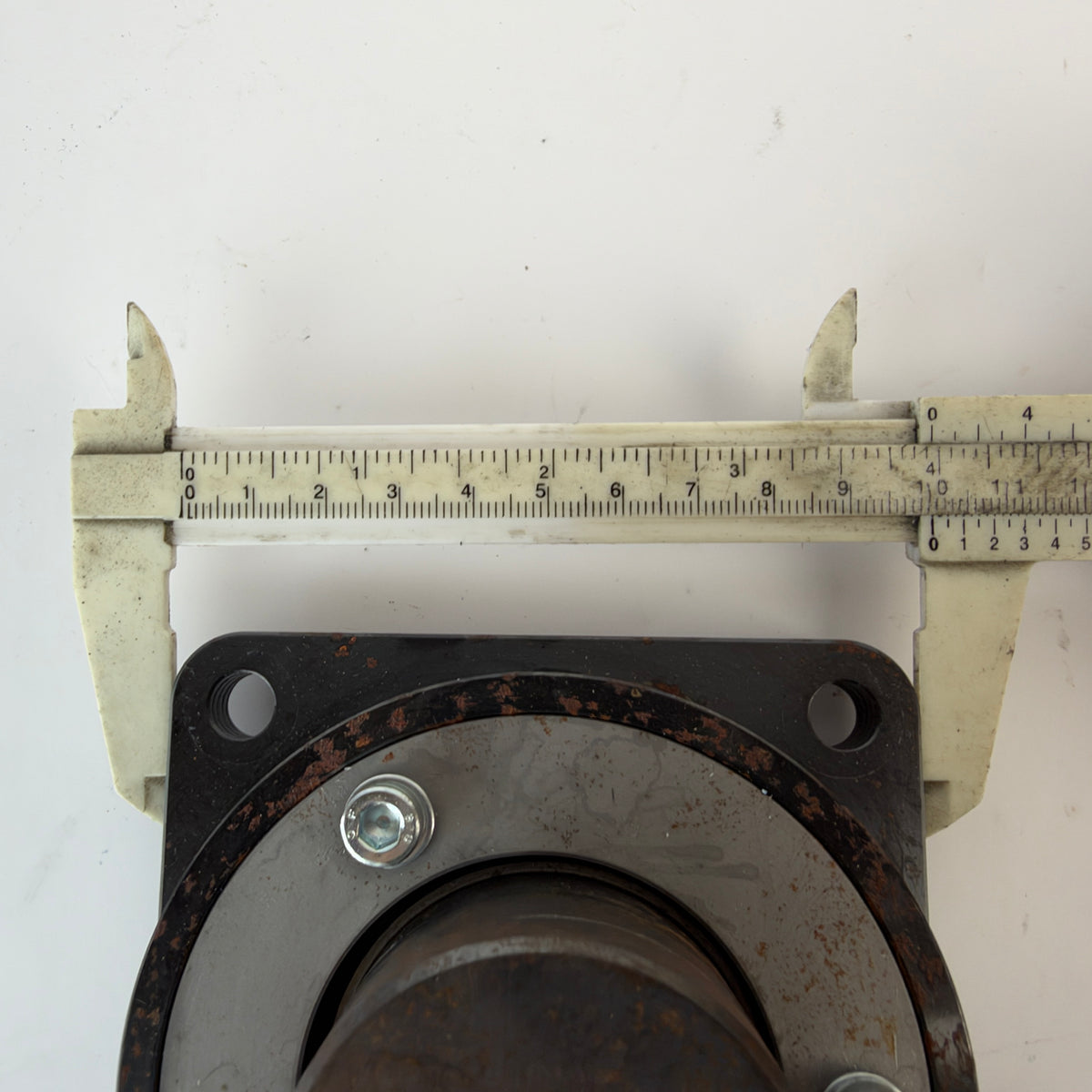

Exact thread specification, load capacity, manufacturer and compatible cylinder series have not been confirmed. Dimensions should be checked against the intended installation before purchase.

Only the component shown in the photographs is included. Cylinder and mounting hardware are not included.
