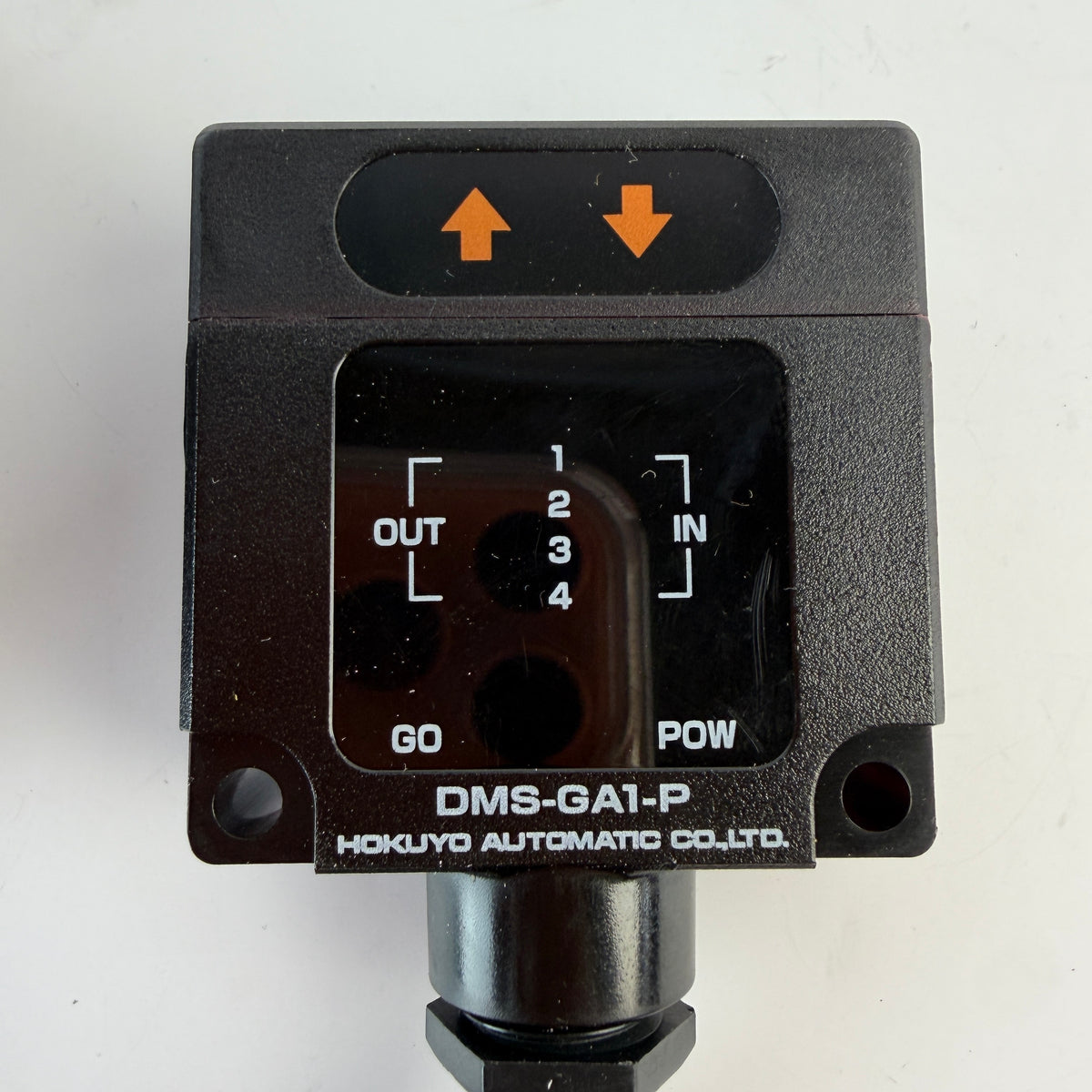

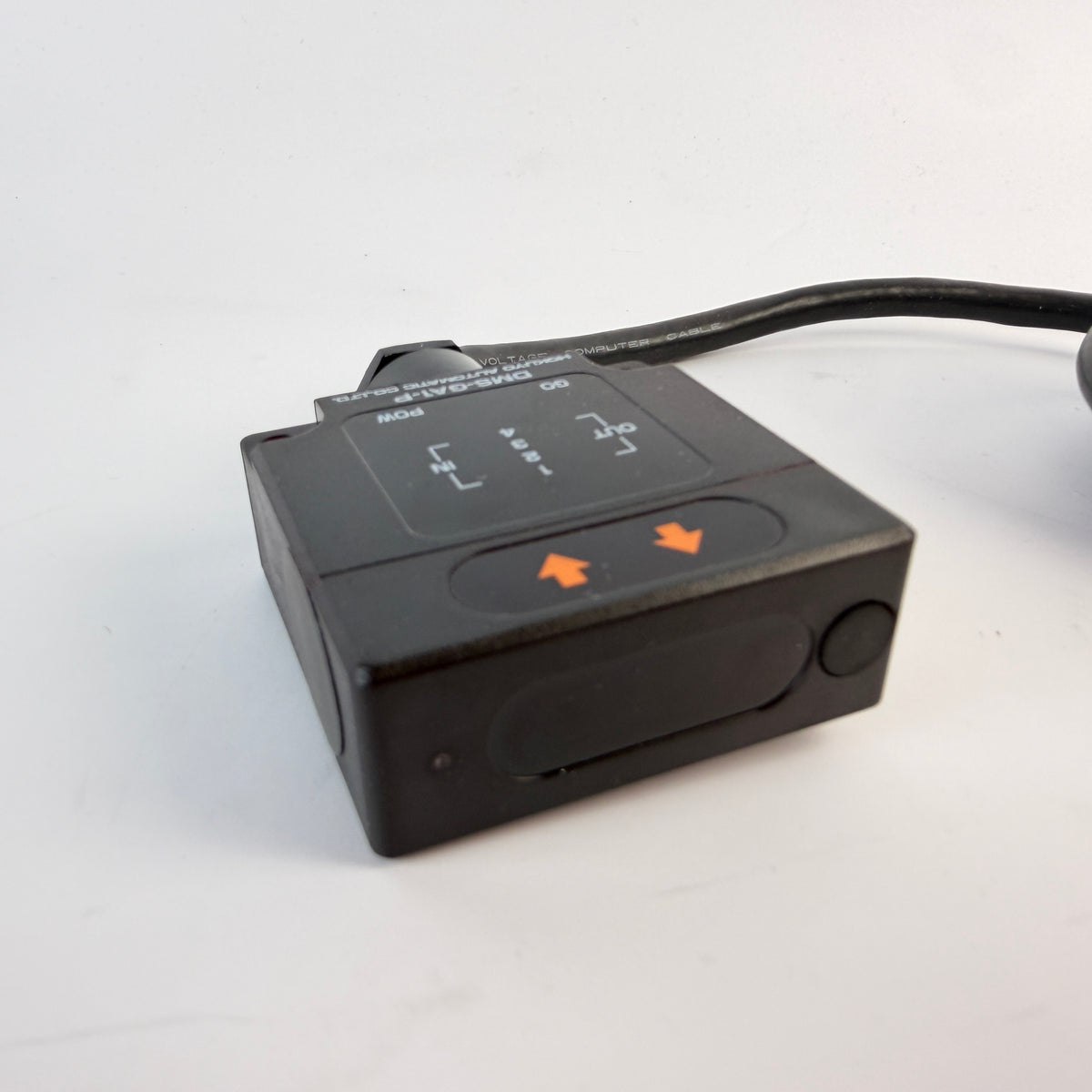

HOKUYO DMS-GA1-P industrial optical data transmission device designed for contactless communication in automation systems, conveyors, transfer equipment and AGV applications.
The DMS-GA1-P is a Head-On optical communication unit with a 4-bit parallel I/O interface and PNP transistor outputs. It provides half-duplex bidirectional data transmission using optical communication, eliminating the need for a physical communication cable between paired moving and stationary equipment.
Technical Specifications:
- Manufacturer: HOKUYO AUTOMATIC
- Model / MPN: DMS-GA1-P
- Product Type: Optical Data Transmission Device
- Series: DMS-G/H-P
- Transmission Direction: Head-On
- Transmission Capacity: 4-bit input / 4-bit output
- Output Type: PNP open collector
- Transmission Distance: 0–1.0 m, adjustable
- Directional Angle: 30° total
- Transmission Method: Half-duplex bidirectional
- Transmission Time: 40 ms
- Modulation: Pulse modulation
- Verification: Parity check
- Supply Voltage: 24 VDC
- Operating Voltage Range: 18–30 VDC
- Current Consumption: 100 mA max.; up to 350 mA with connected load
- Output Rating: 30 VDC, 50 mA max.
- Ambient Illuminance: 4,000 lx max.
- Operating Temperature: -10°C to +50°C
- Relative Humidity: Up to 85% RH
- Protection Rating: IP64
- Connection: Integrated 15-core shielded cable
- Housing Size: Approx. 50 × 50 × 20 mm
Used, fully functional.

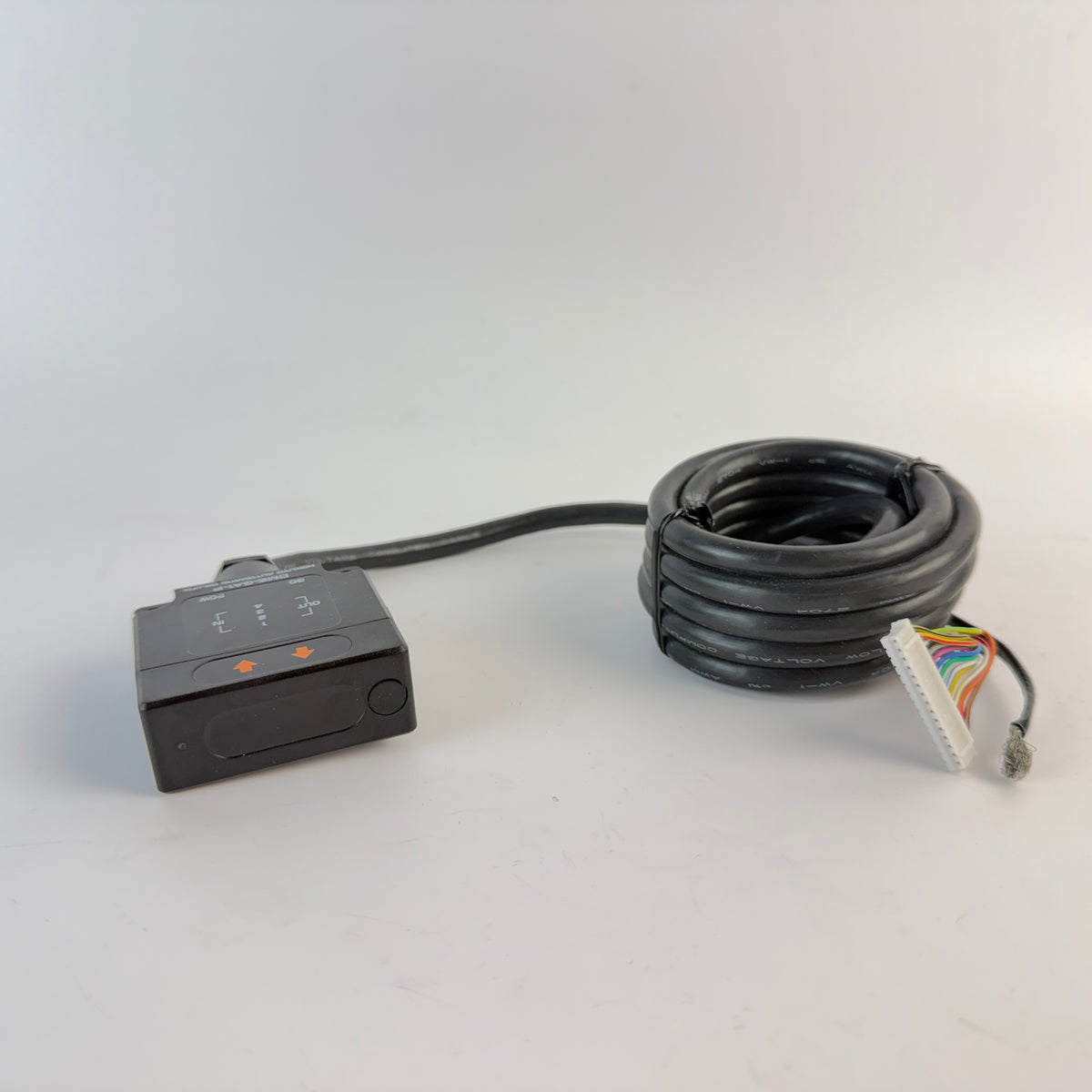

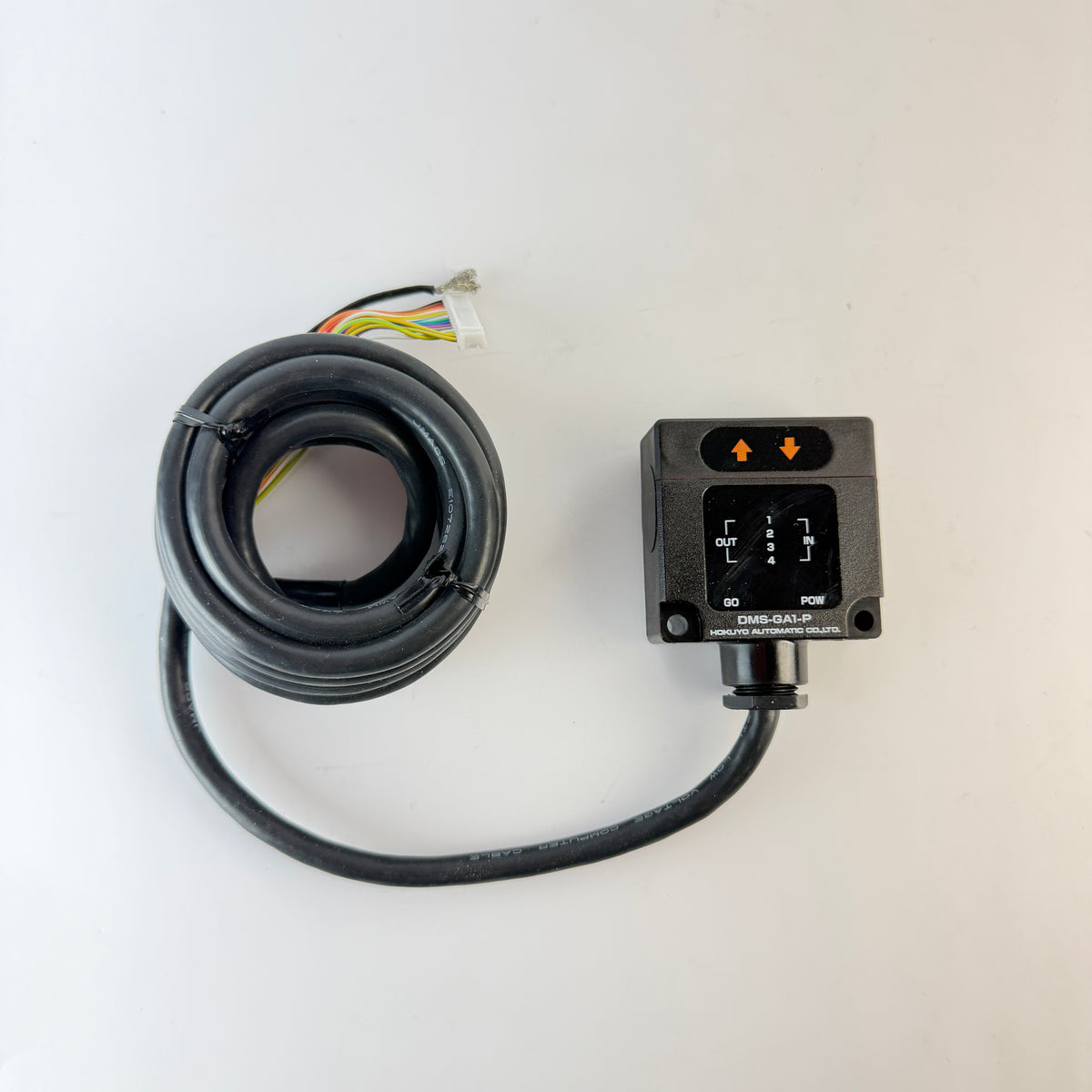

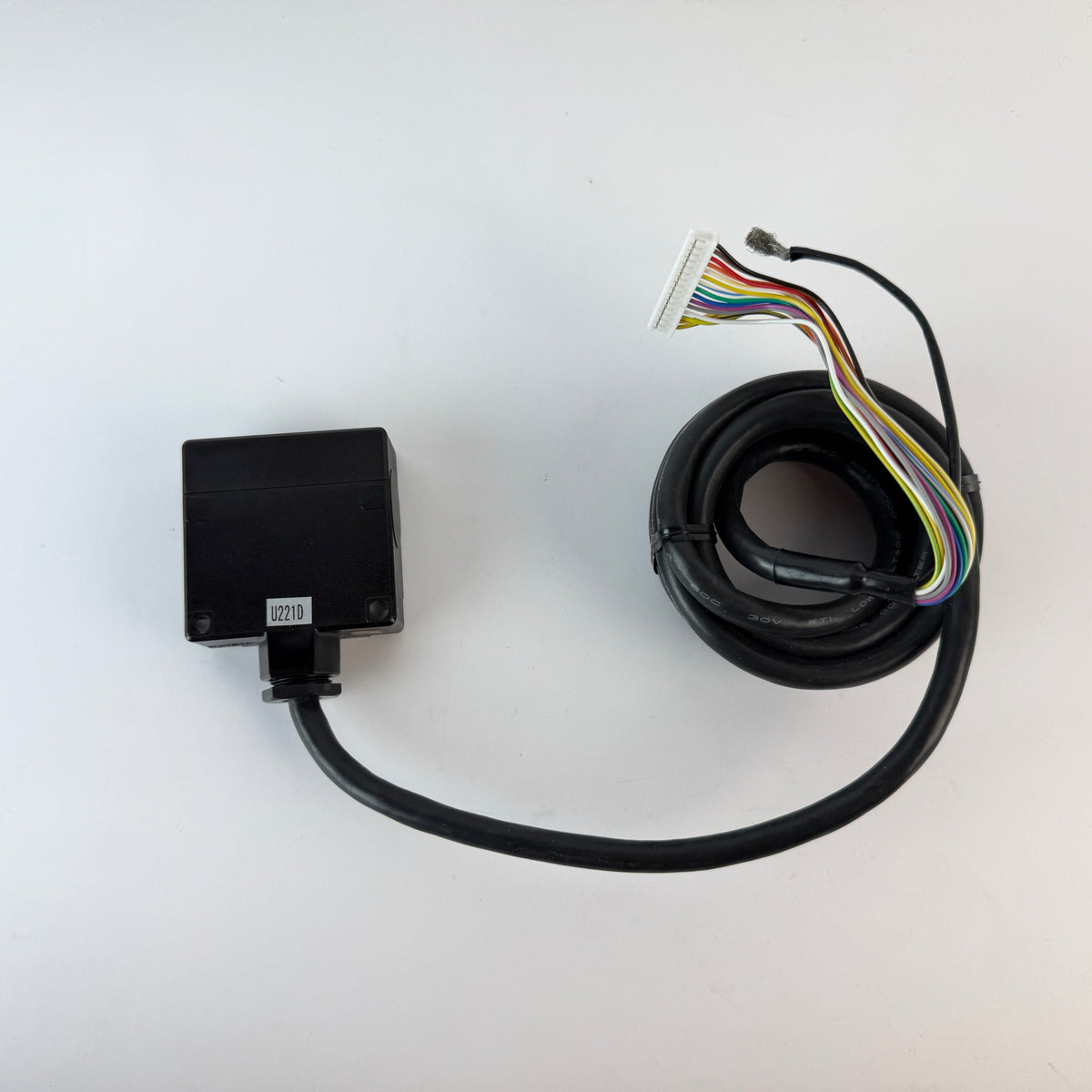

Integrated cable and connector are included exactly as pictured.
