icotek KEL-ER Split Cable Entry Frames – Mixed Lot of 2

A set of two original icotek KEL-ER industrial cable entry frames with installed split cable grommets.

These frames are designed for routing pre-terminated cables through electrical cabinets, control panels and industrial machine enclosures without removing the cable connectors.

The split grommet design allows cables to be installed or replaced while retaining their existing connectors.

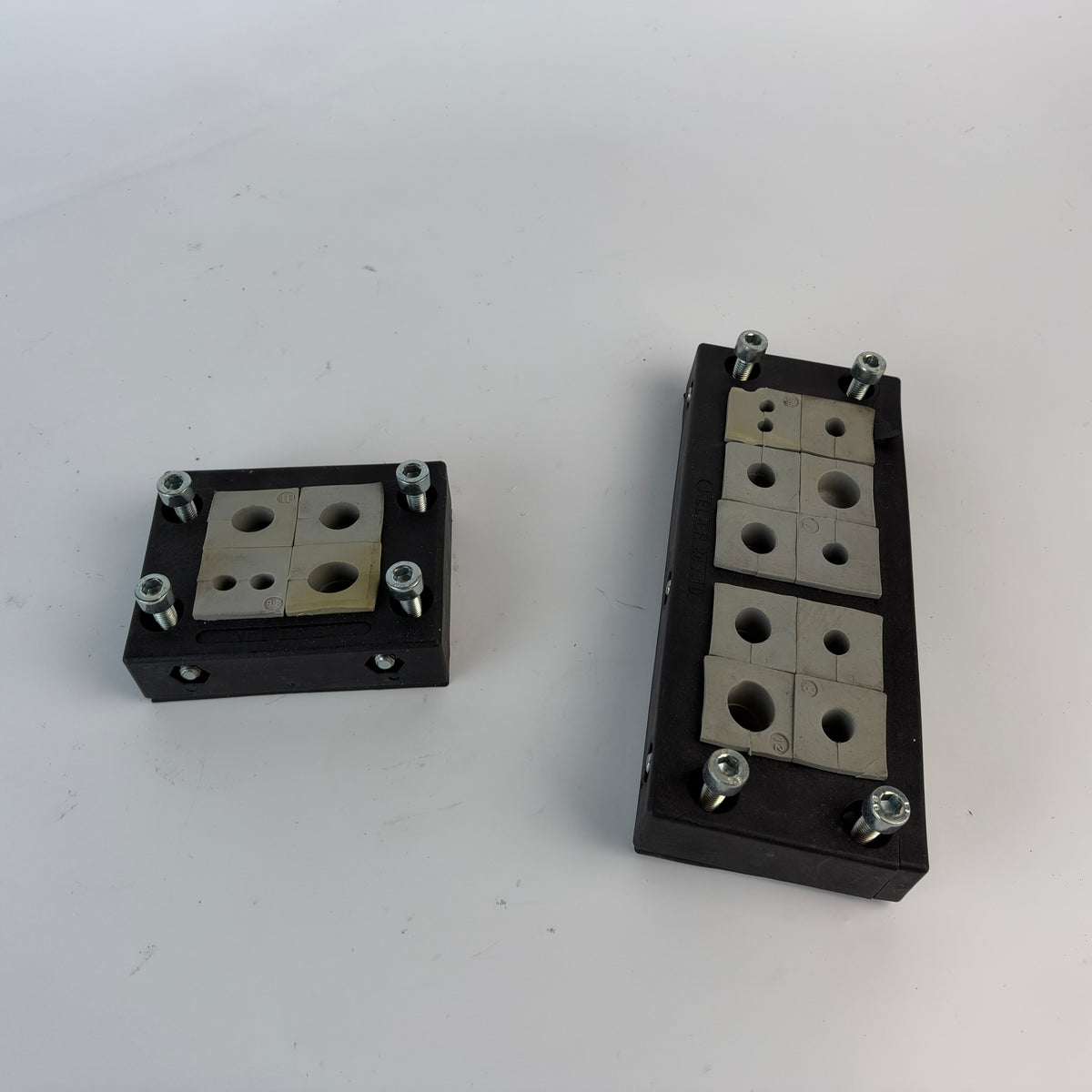

Included in This Lot

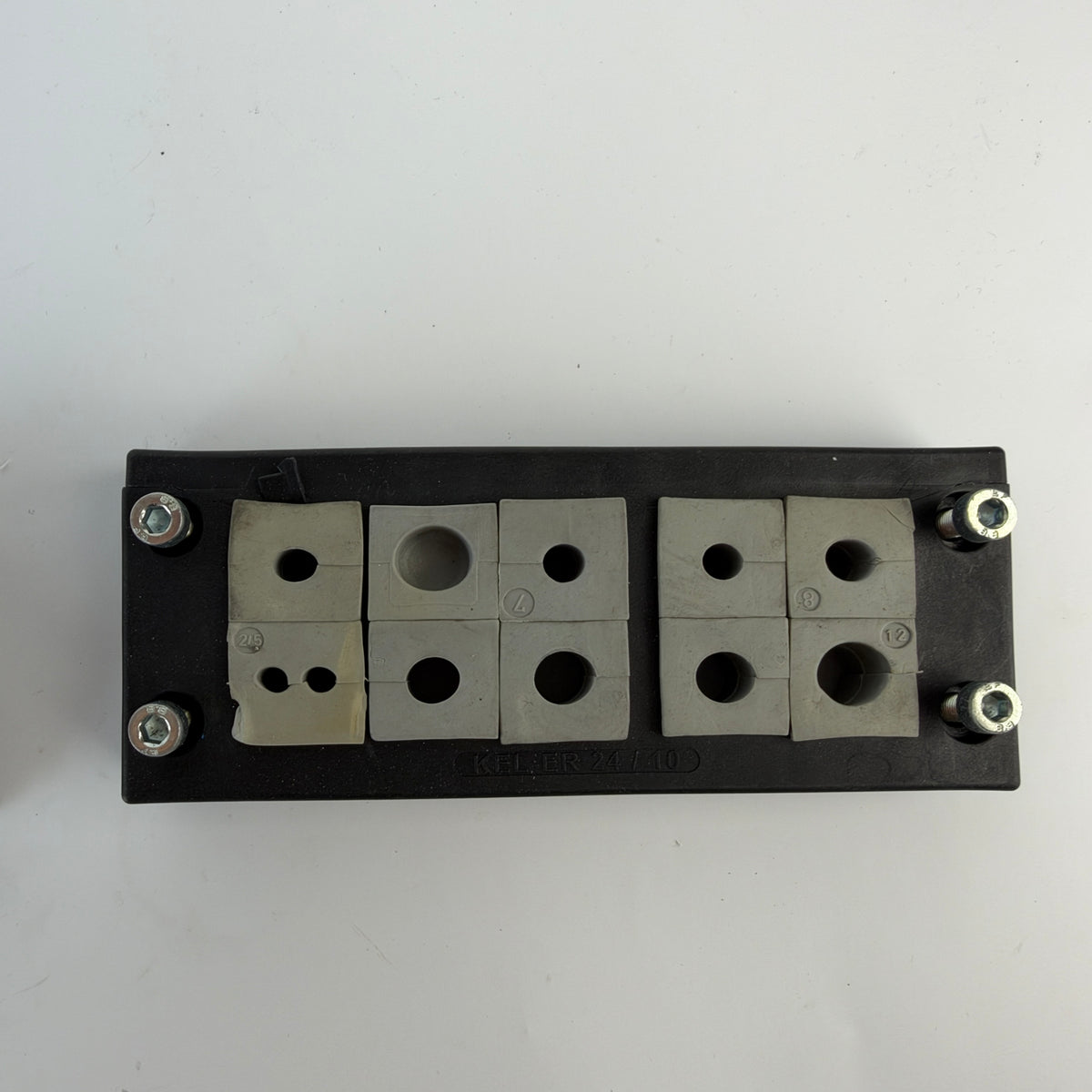

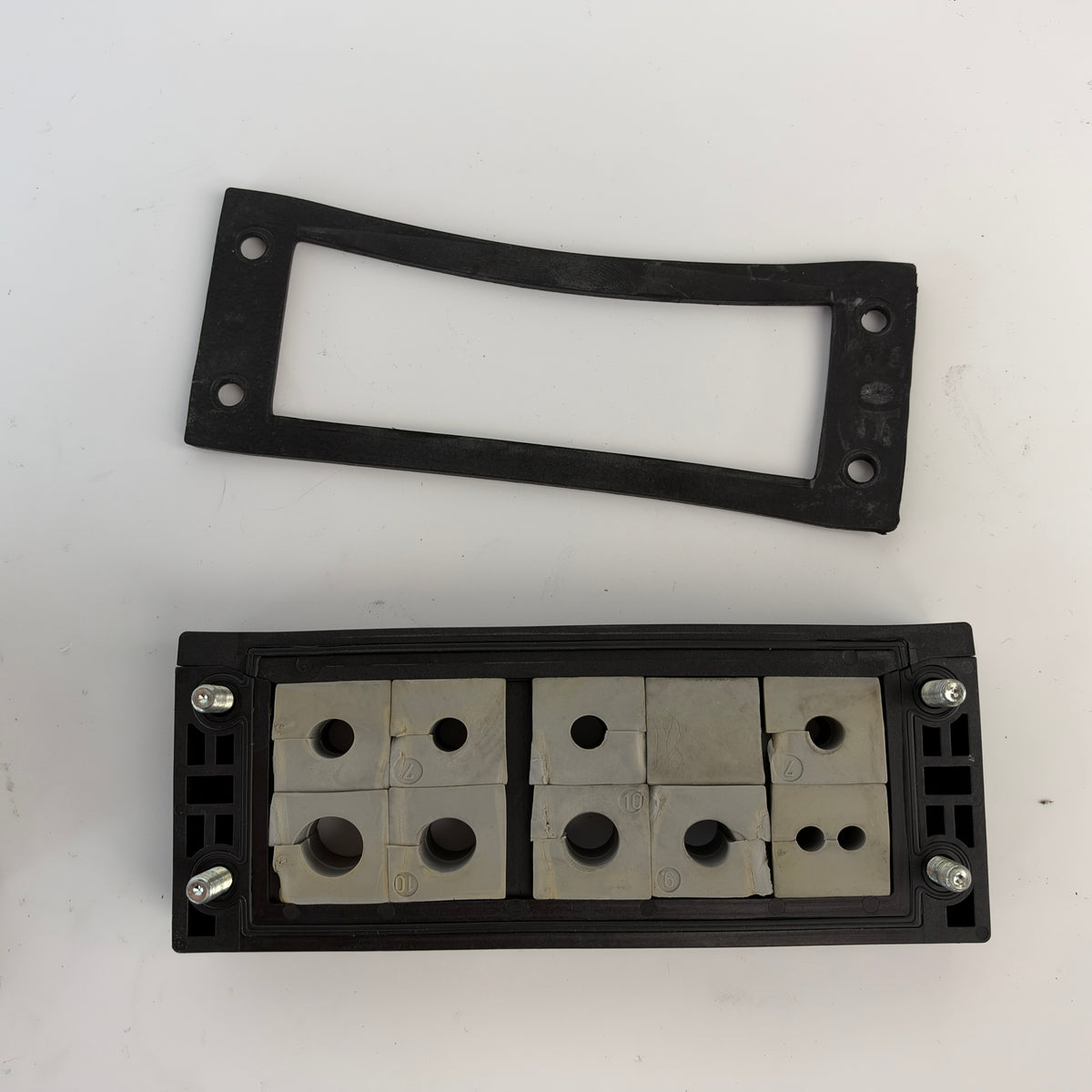

1 × icotek KEL-ER 24/10

• Series: KEL-ER
• Model: KEL-ER 24/10
• Type: Split cable entry frame
• Maximum cable positions: 10
• Frame material: Polyamide
• Mounting: Screw-mounted
• Standard panel cut-out: 112 × 36 mm
• Frame dimensions: 147 × 58 mm
• Mounting height: 17 mm
• Four mounting positions
• Includes 10 installed split cable grommets

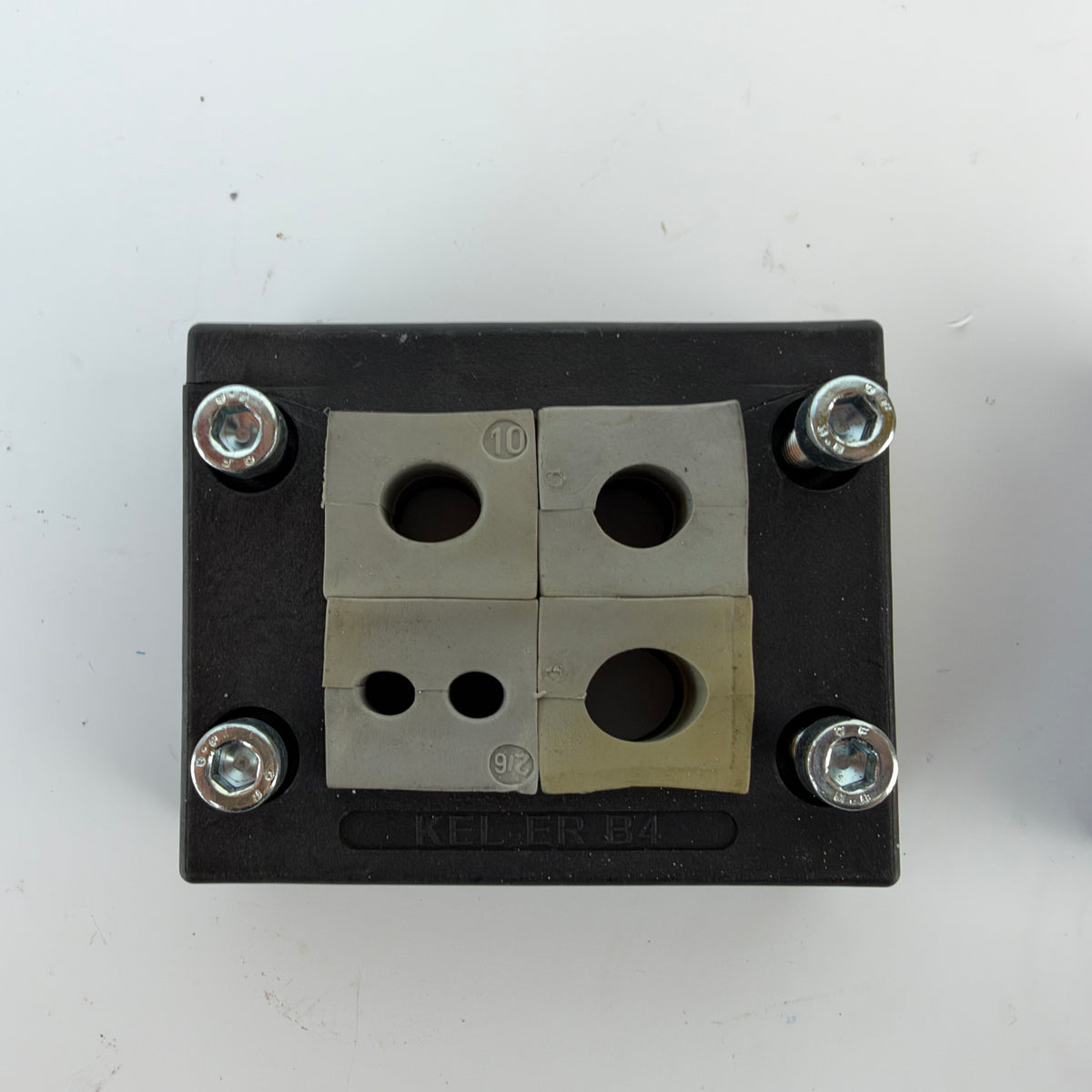

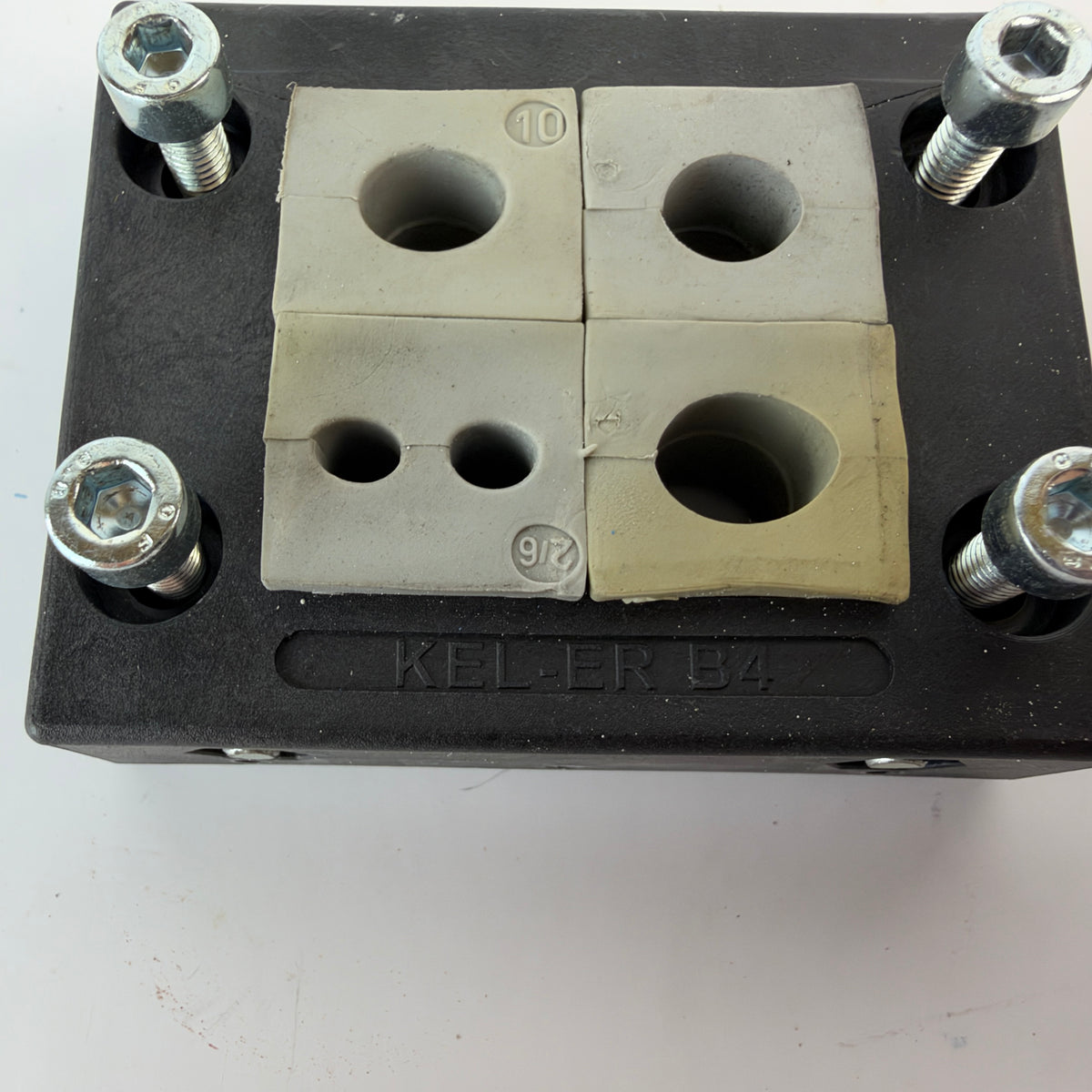

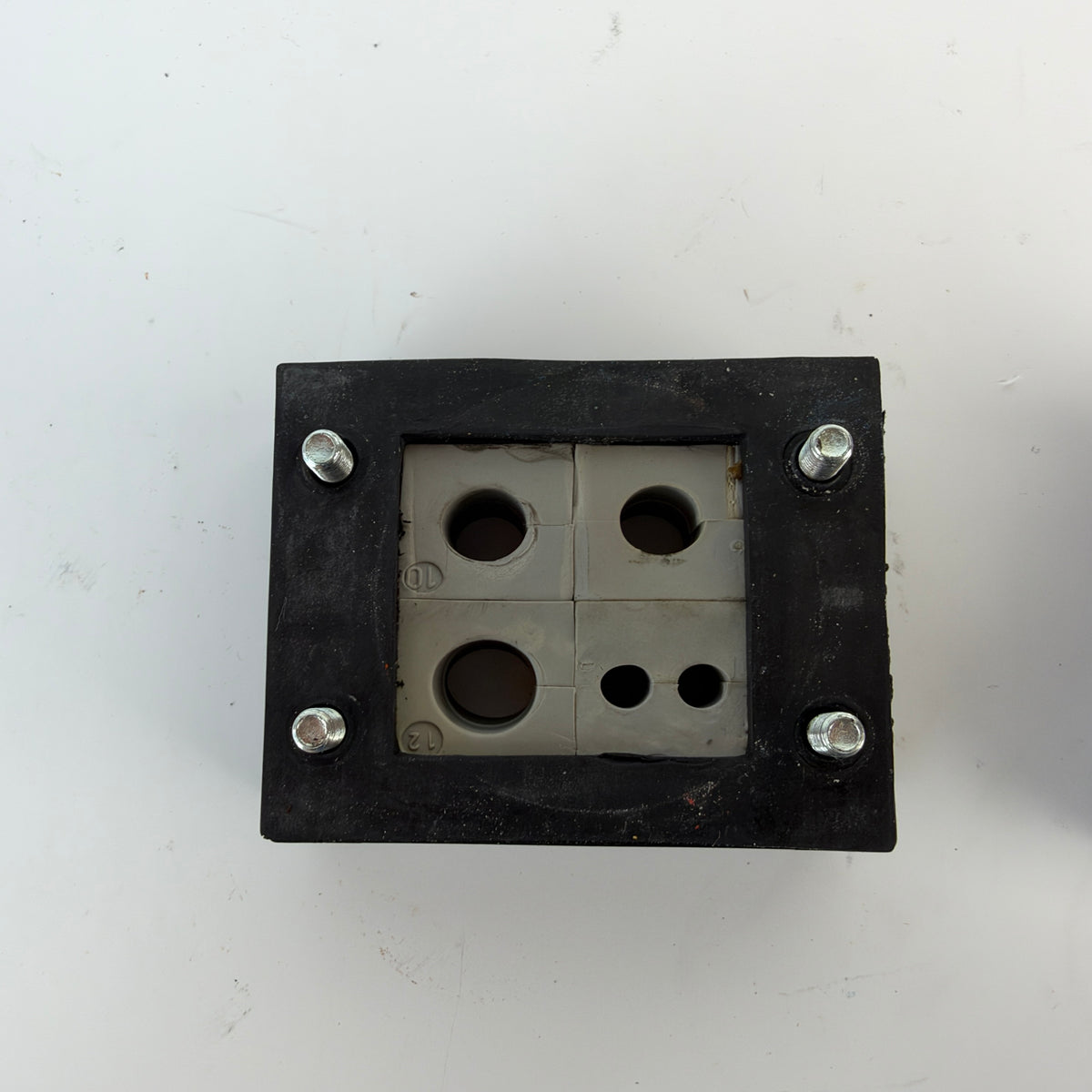

1 × icotek KEL-ER B4

• Series: KEL-ER
• Model: KEL-ER B4
• Type: Compact split cable entry frame
• Maximum cable positions: 4
• Frame material: Polyamide
• Mounting: Screw-mounted
• Designed for a 46 × 46 mm panel cut-out
• Four mounting positions
• Includes 4 installed split cable grommets

Product Features

• Cable routing without removing existing connectors
• Split cable grommet system
• Suitable for industrial enclosure installations
• Screw-mounted frame construction
• Supports cable organization and strain relief when correctly assembled
• Manufacturer-rated protection up to IP66 under specified installation conditions

Typical Applications

• Industrial automation systems
• Electrical control cabinets
• Machinery and equipment enclosures
• Cable management
• Machine maintenance and retrofitting
• Replacement of existing cable entry assemblies

Condition

Used, fully functional.

Both frames show signs of previous industrial use, including surface marks, dirt and wear.

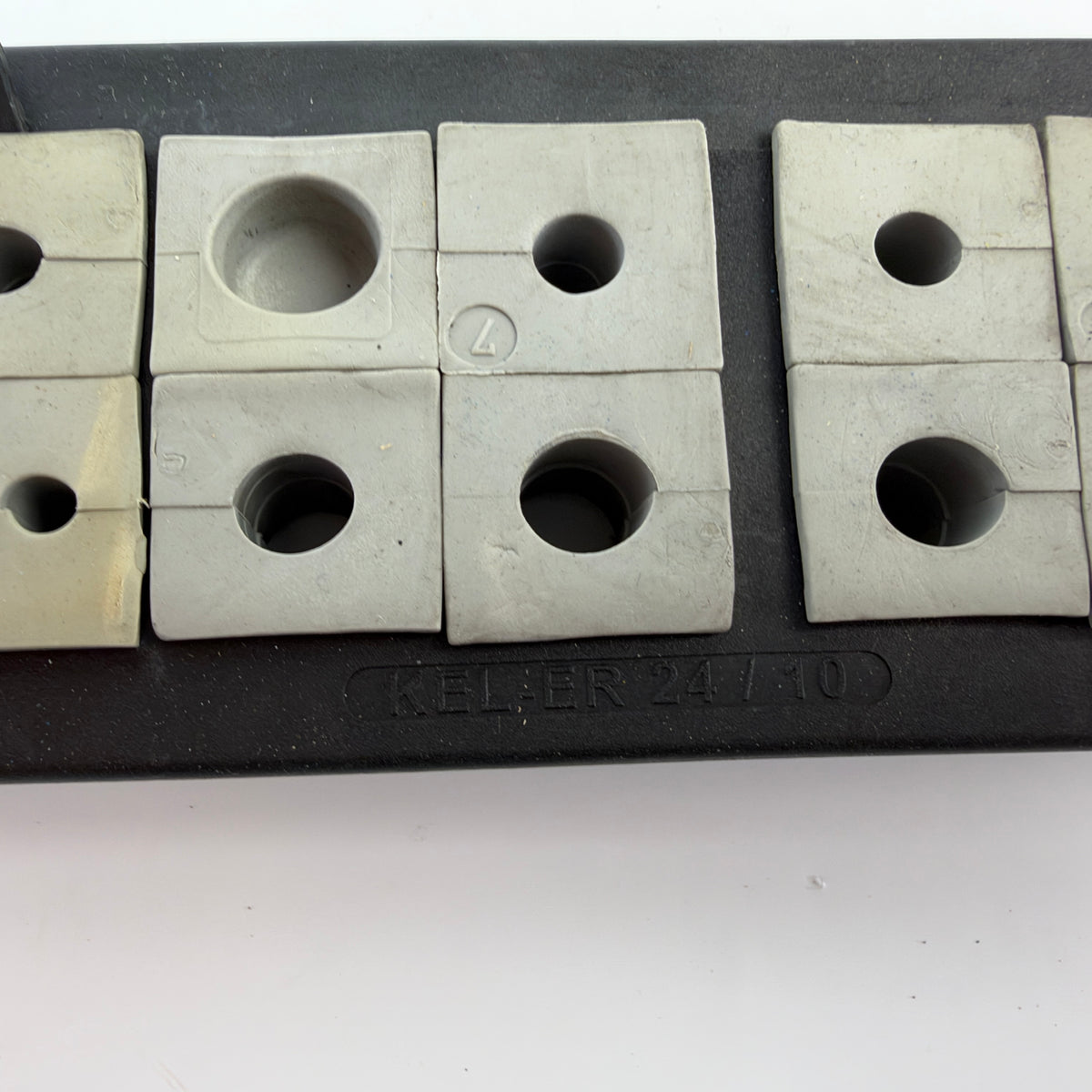

The installed split grommets have been used with cables of different diameters. Some grommets show visible deformation, edge wear or minor damage.

Important: The manufacturer's original IP protection rating cannot be guaranteed for these used assemblies. Replacement grommets may be required to achieve proper sealing with new cables.

Package Contents

• 1 × icotek KEL-ER 24/10 frame with 10 installed grommets
• 1 × icotek KEL-ER B4 frame with 4 installed grommets

Total: 2 complete cable entry frame assemblies.

Only the items shown in the photographs are included.
