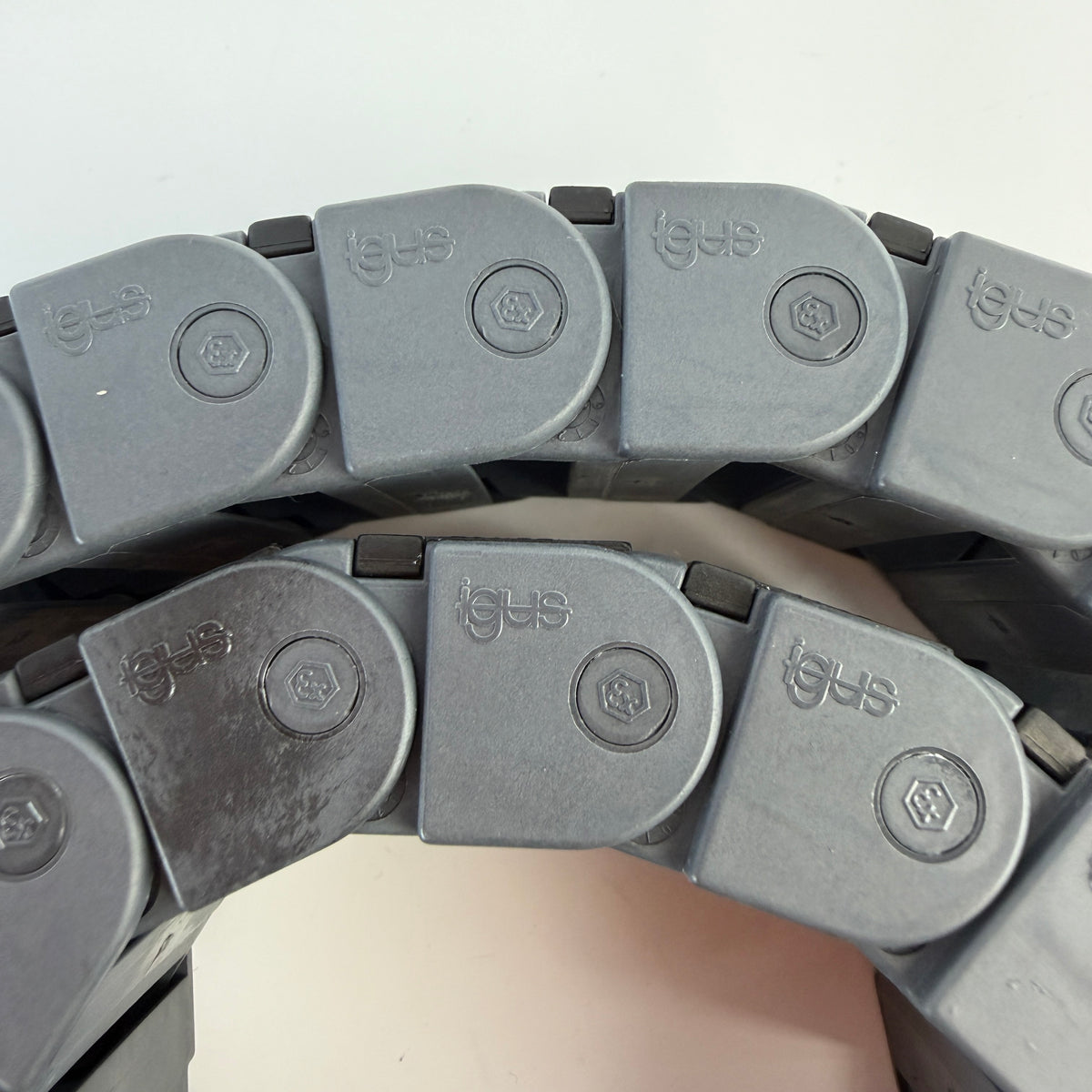

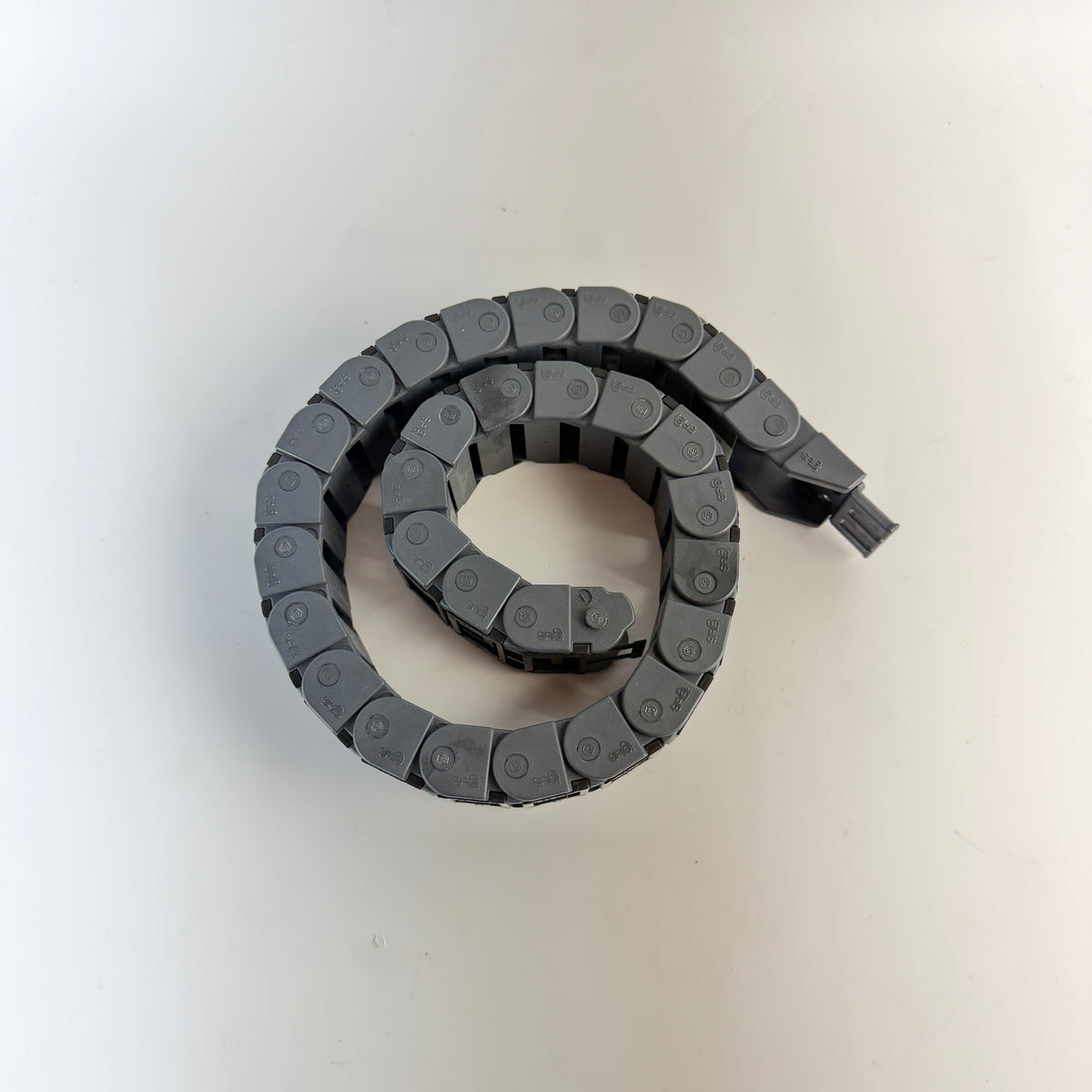

igus Series 09 ESD zipper-style industrial cable carrier / energy chain, configuration 09.30.028 with ESD construction.

Designed for guiding and protecting moving electrical cables, signal wiring, pneumatic tubing and other service lines in industrial machinery and automation equipment. The ESD version is manufactured from electrically conductive igumid ESD material for applications where controlled dissipation of electrostatic charge is required.

Technical specifications:

• Manufacturer: igus
• Product family: zipper e-chain
• Series: 09 ESD
• Catalog configuration: 09.30.028.0.ESD
• Inner width: 30 mm
• Inner height: 15 mm
• Outer width: 38.2 mm
• Outer height: 19.3 mm
• Bending radius: 28 mm
• Pitch: 20 mm per link
• Number of links: 30

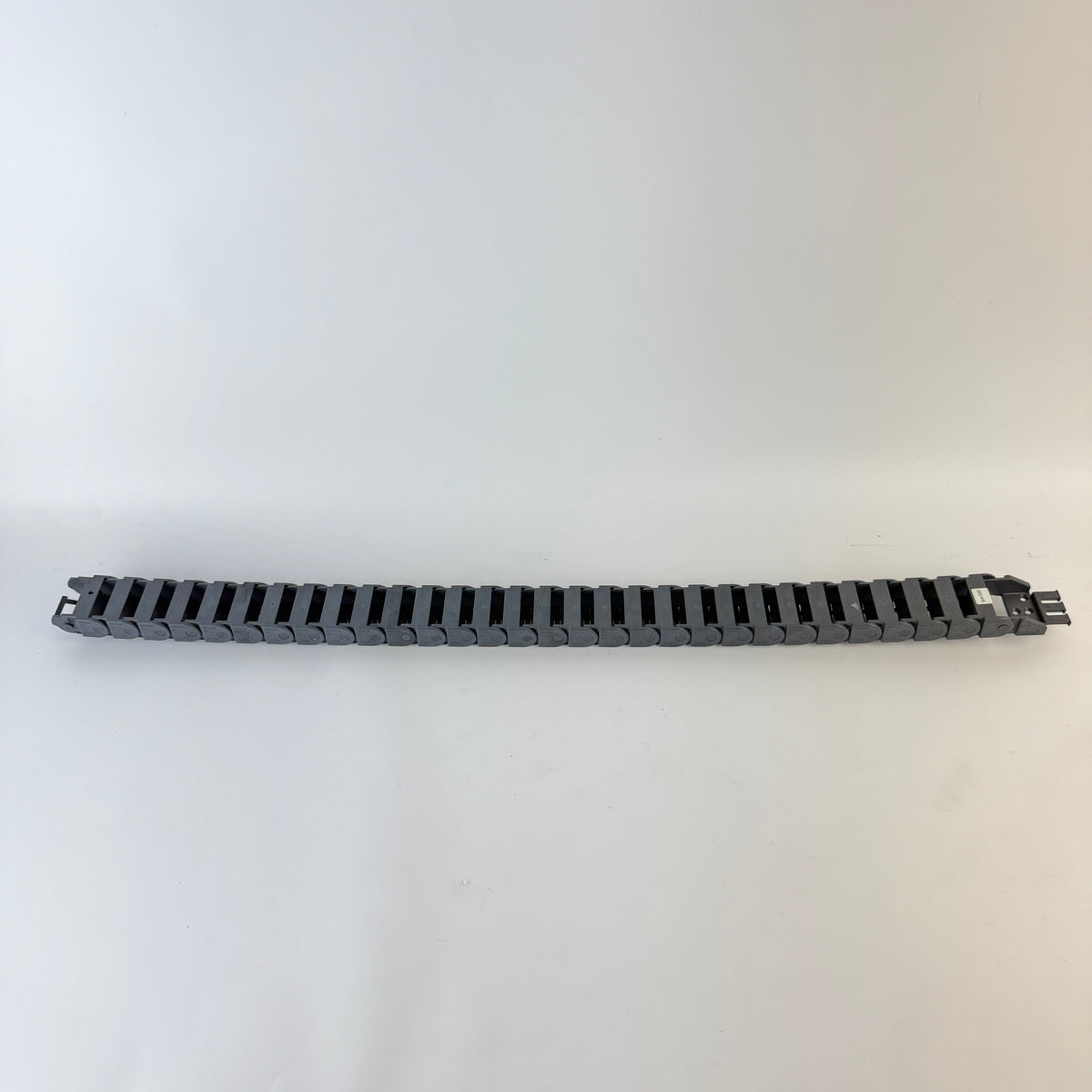

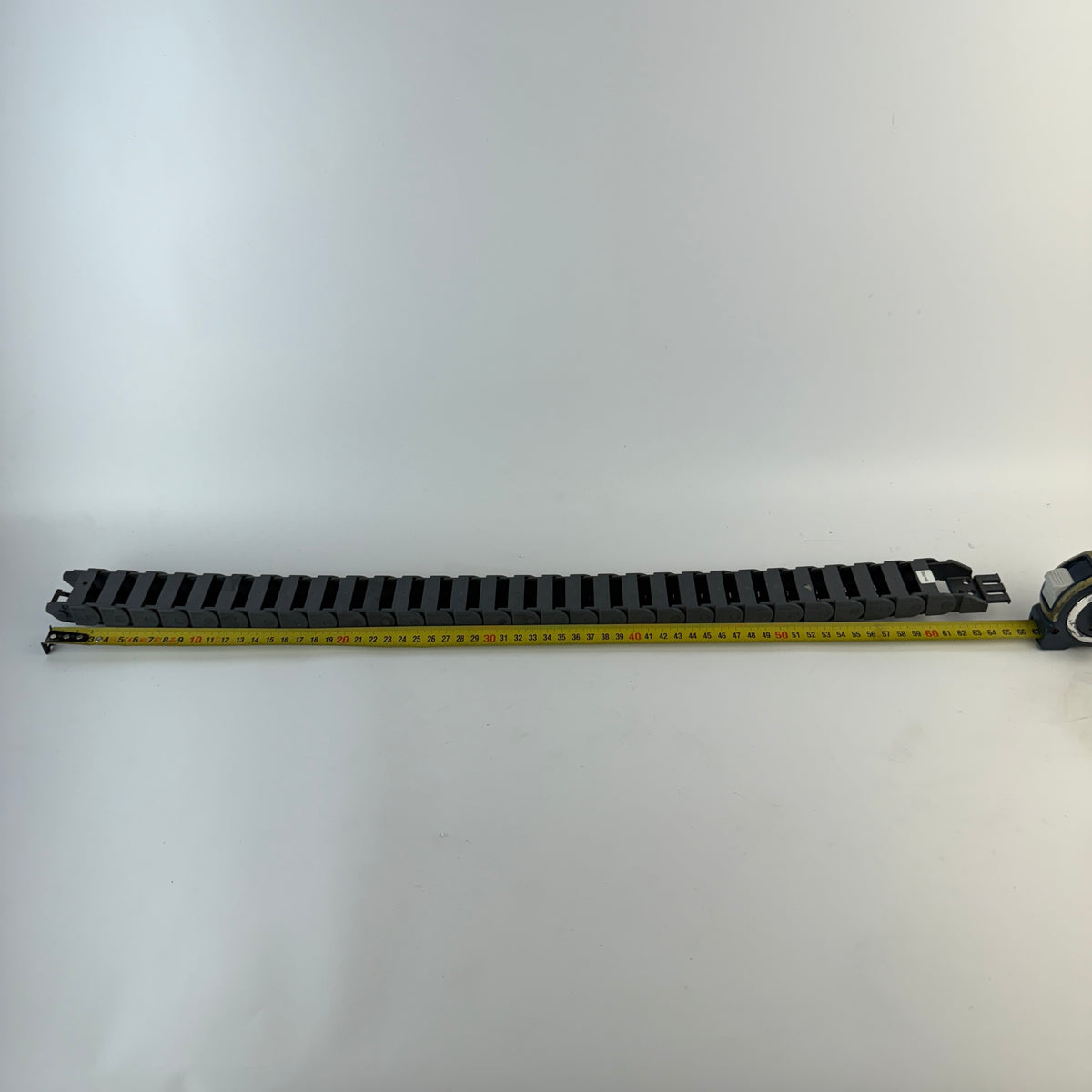

• Measured overall length: approx. 640 mm including end fittings

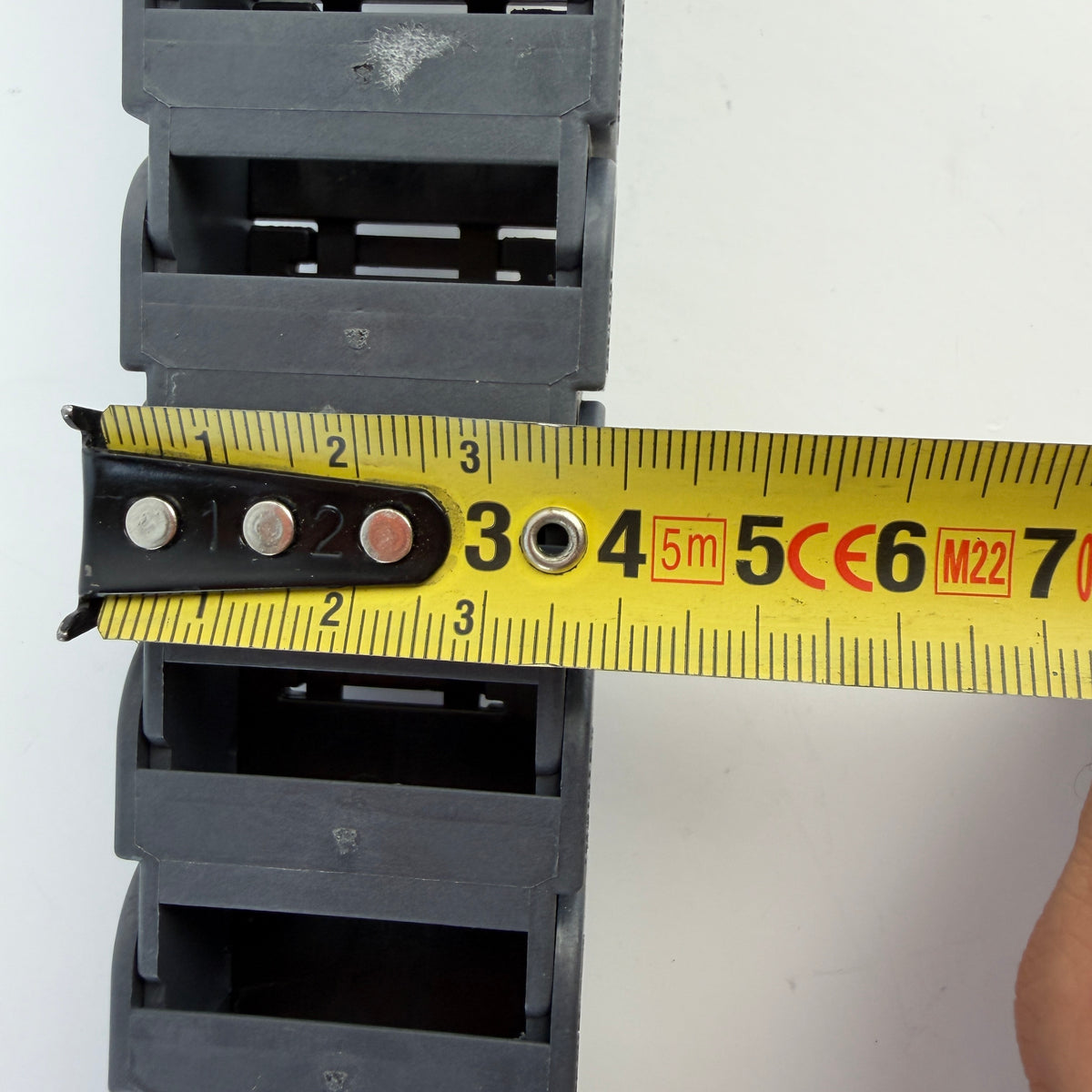

• Measured width: approx. 38 mm
• Material: igumid ESD
• Color: Gray
• Opening principle: Openable along the outer radius

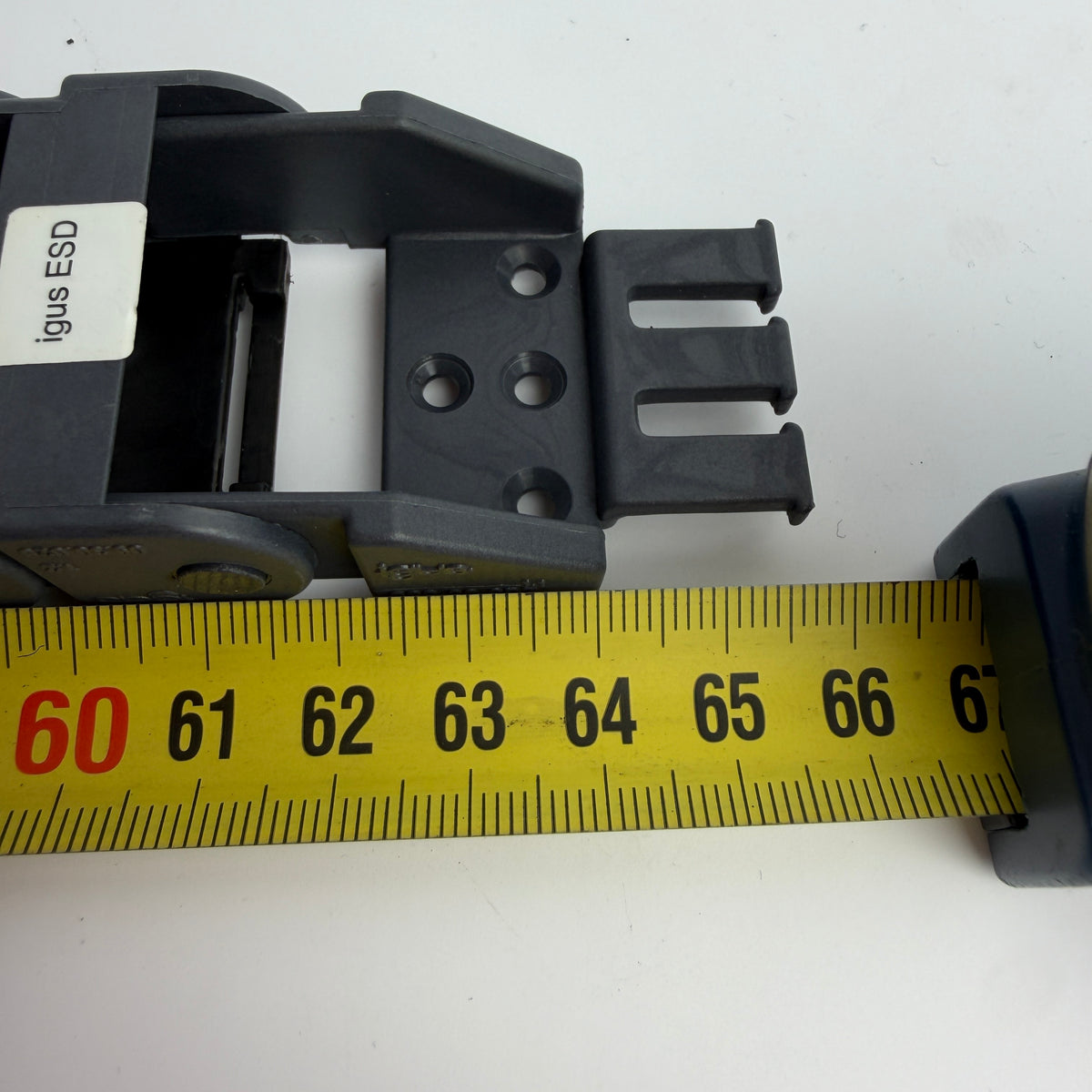

• End mounting elements included
• ESD / electrically conductive version

The zipper-style opening system allows the chain to be opened along the outer radius for installation, inspection and replacement of cables or hoses.

Used, fully functional.

Suitable for industrial automation, electronic manufacturing equipment, machinery and other installations where cable guidance and ESD control are required. Please verify dimensions, bending radius, mounting arrangement and electrical requirements before installation.
