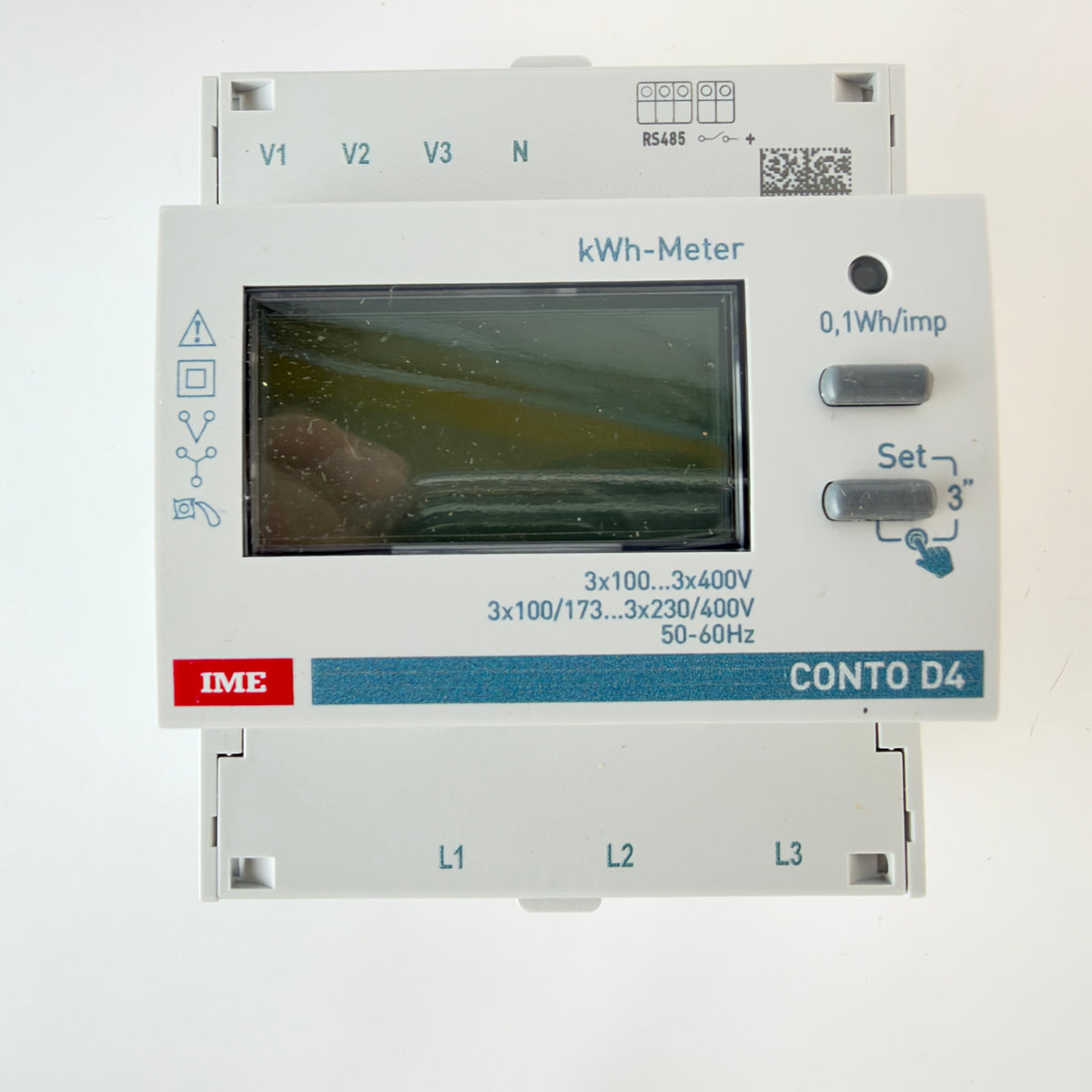

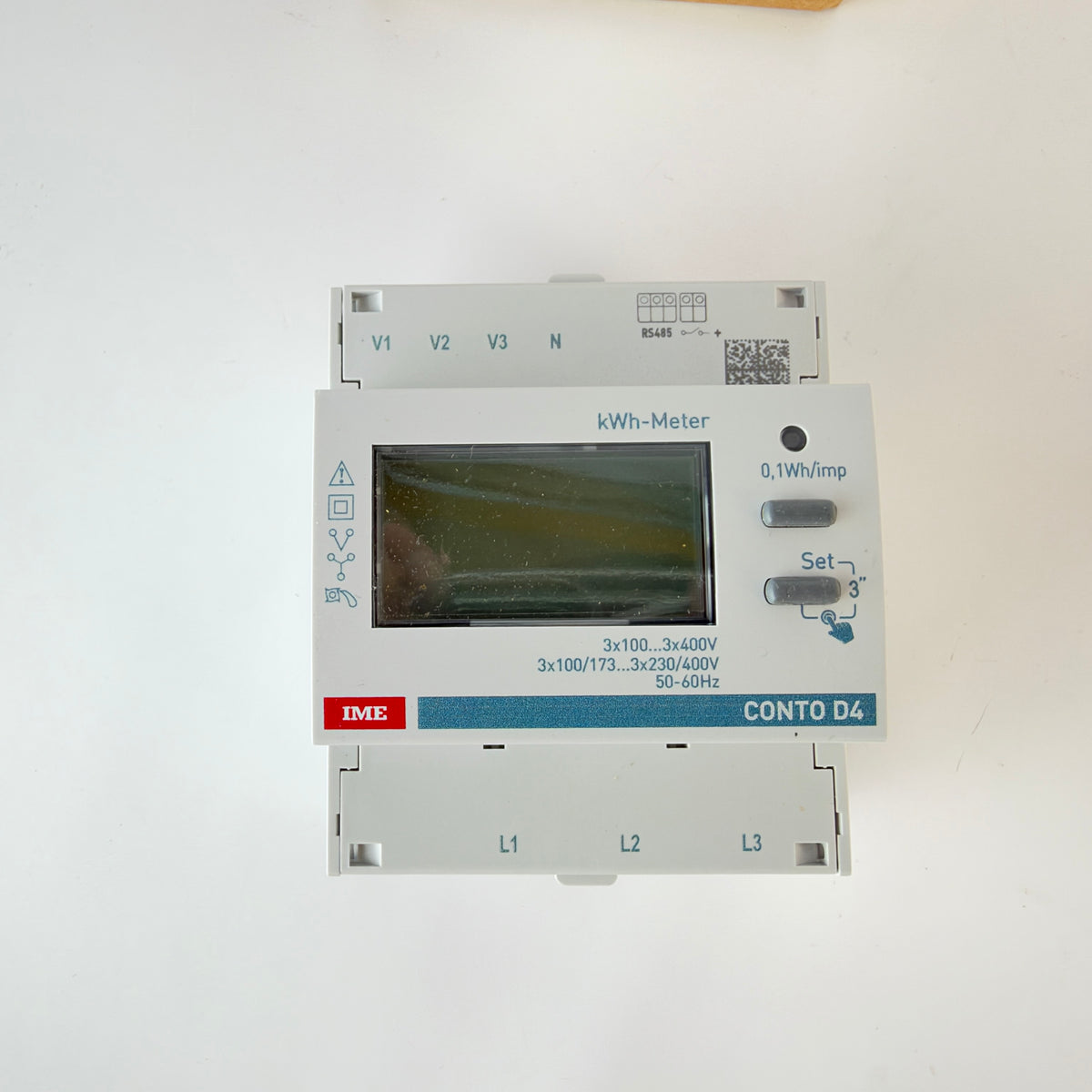

IME CONTO D4 CE4TBDTCL1 three-phase bidirectional energy meter for indirect measurement through external current transformers (CTs). The meter measures active and reactive energy and supports 4-quadrant measurement.

This version features RS485 Modbus communication, dual-tariff/pulse input functionality and a front LCD display. It is designed for standard 35 mm DIN rail installation and occupies four DIN modules.

Technical specifications:

• Manufacturer: IME
• Series: CONTO D4
• Model / MPN: CE4TBDTCL1
• Type: Digital Energy Meter
• Measurement: Active and reactive energy
• Measurement Mode: Bidirectional, 4-quadrant
• Connection: Indirect via external current transformers
• CT Secondary Input: 1 A / 5 A
• Voltage Range: 3 × 100 V, 3 × 230 V, 3 × 400 V ±15%
• Frequency: 50–60 Hz
• Communication: RS485 Modbus
• Input: Dual tariff / pulse
• Display: LCD
• Installation: 35 mm DIN rail
• Width: 4 DIN modules
• Supported connection configurations: 3N3E, 3-3E, 3-2E and 1N1E
• Active Energy Accuracy: Class 1
• Reactive Energy Accuracy: Class 2
• Operating Temperature: -25°C to +55°C
• Standards: EN 62053-21/23, IEC 61557-12 (PMD2)
• Country of Origin: Italy
• EAN: 8032826514227

New, unused.

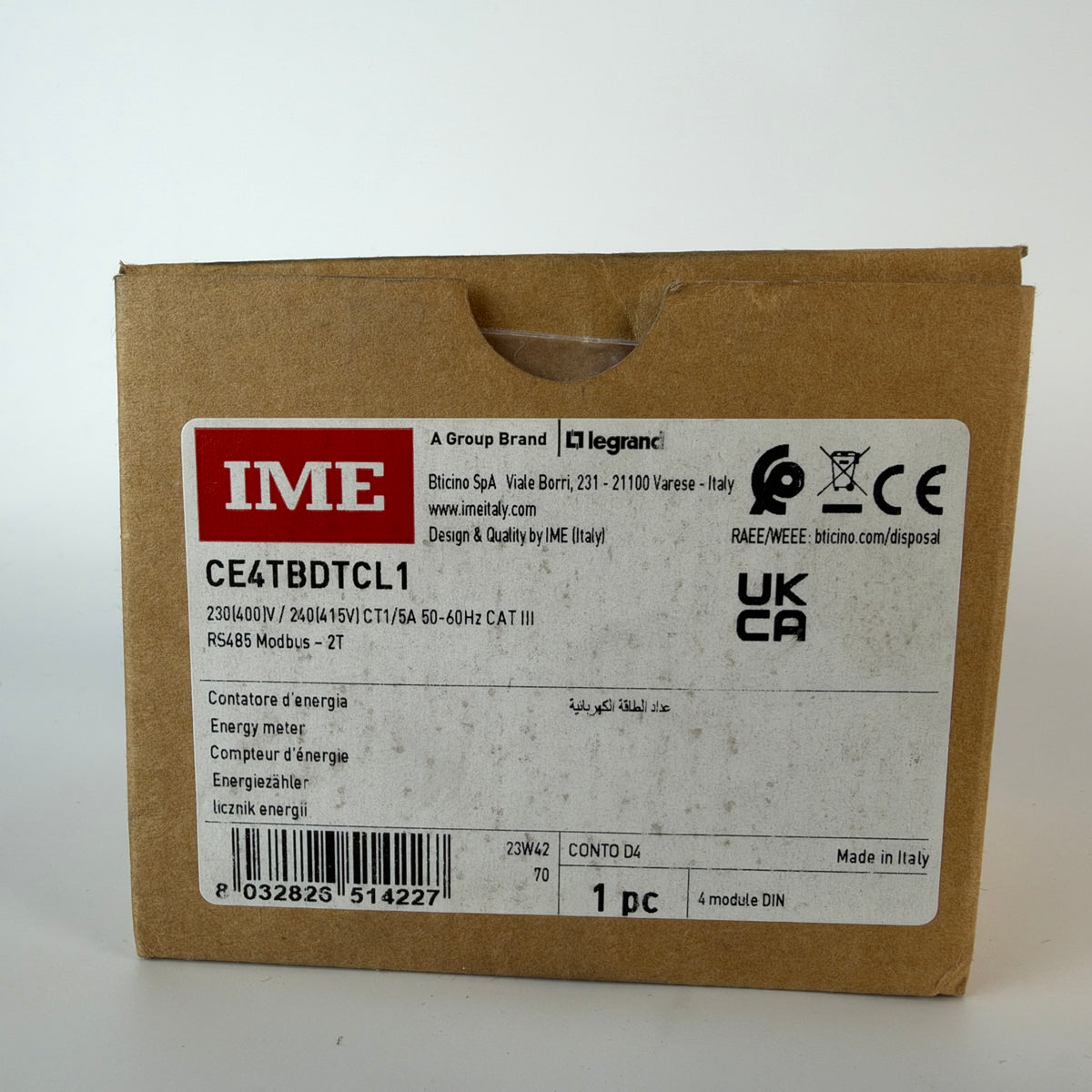

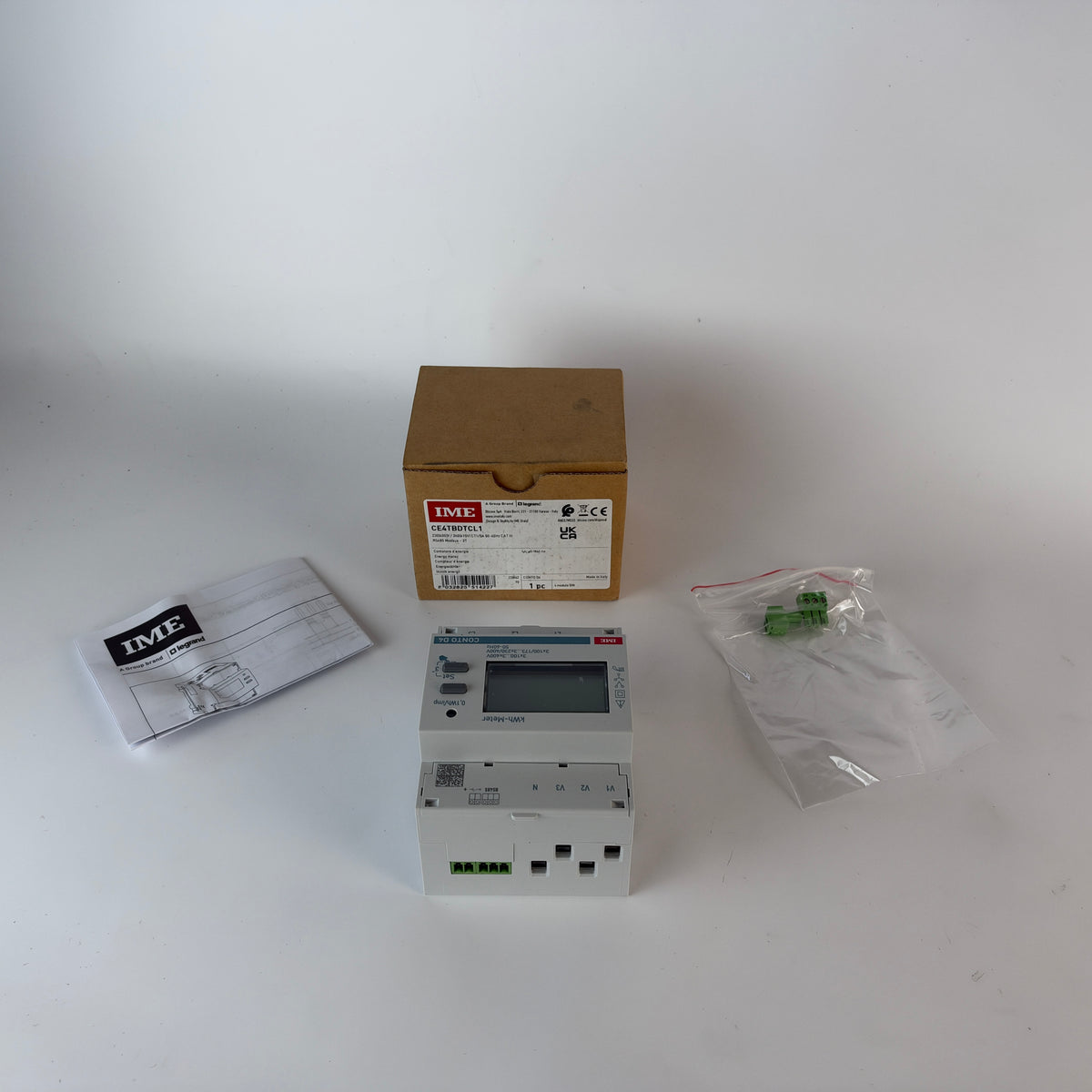

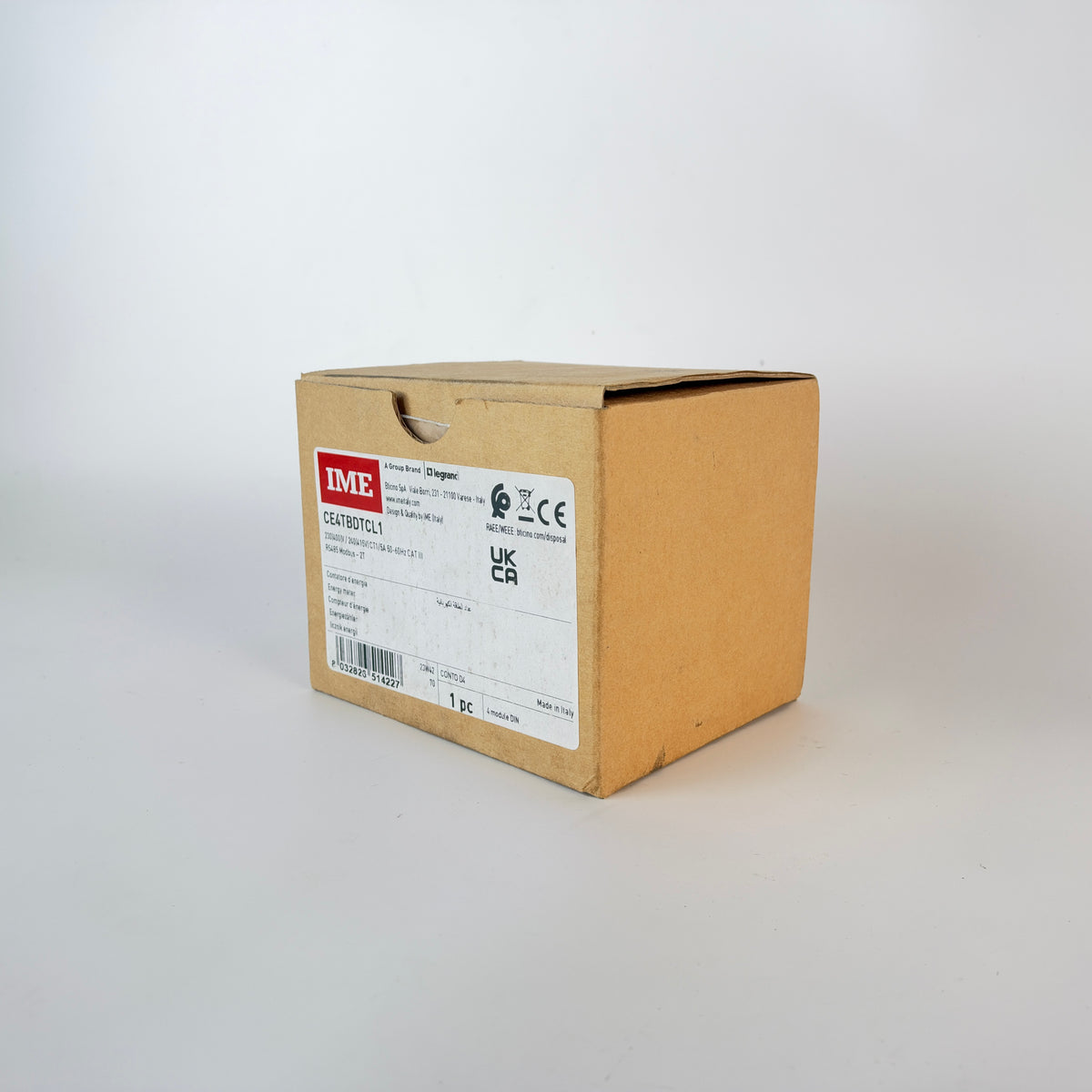

Supplied in the original packaging.
