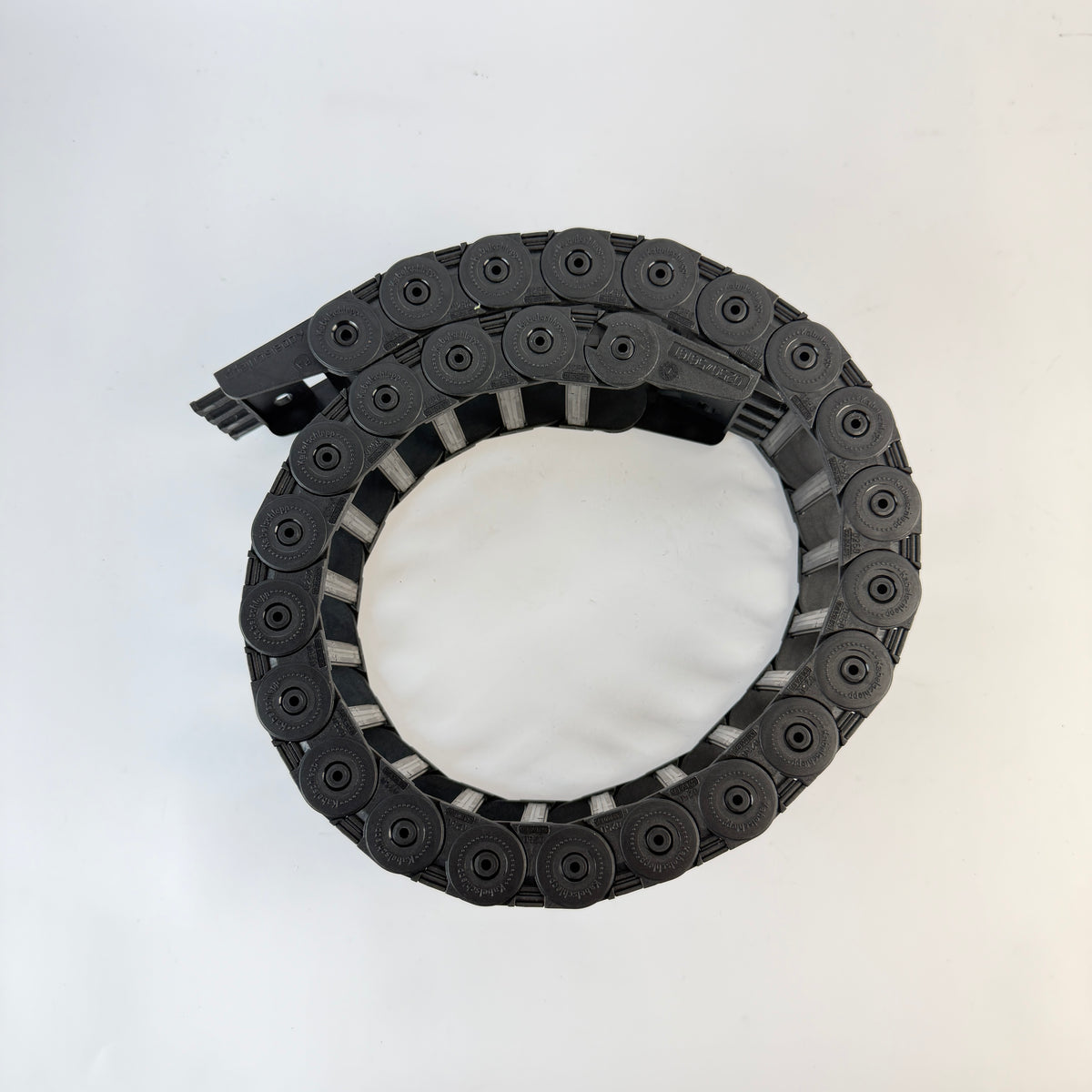

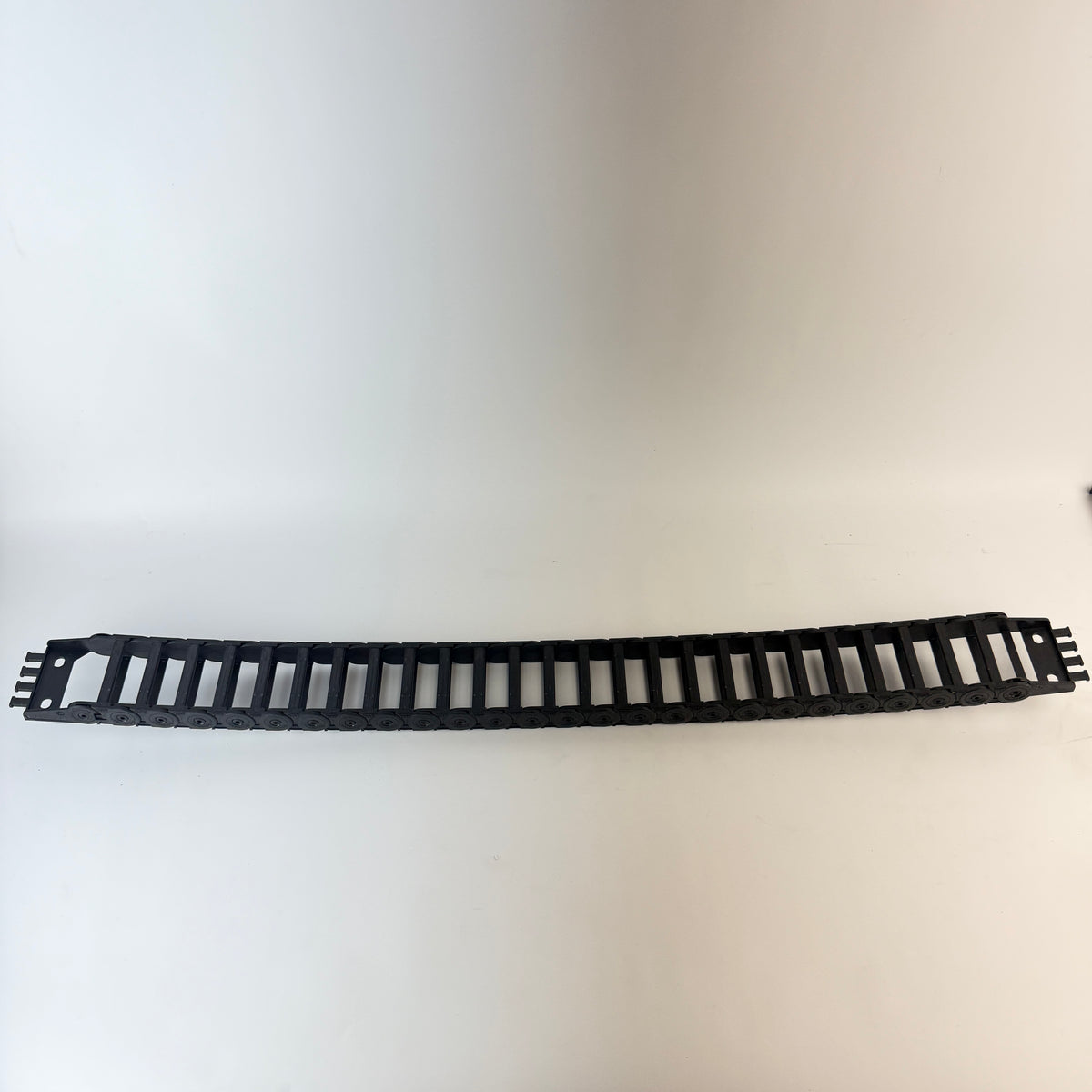

KABELSCHLEPP ET0250 industrial cable carrier / energy chain from the EasyTrax series, configuration 030.050.075.

Designed for routing and protecting moving electrical cables, pneumatic hoses and other service lines in industrial machinery, automation systems and linear motion applications.

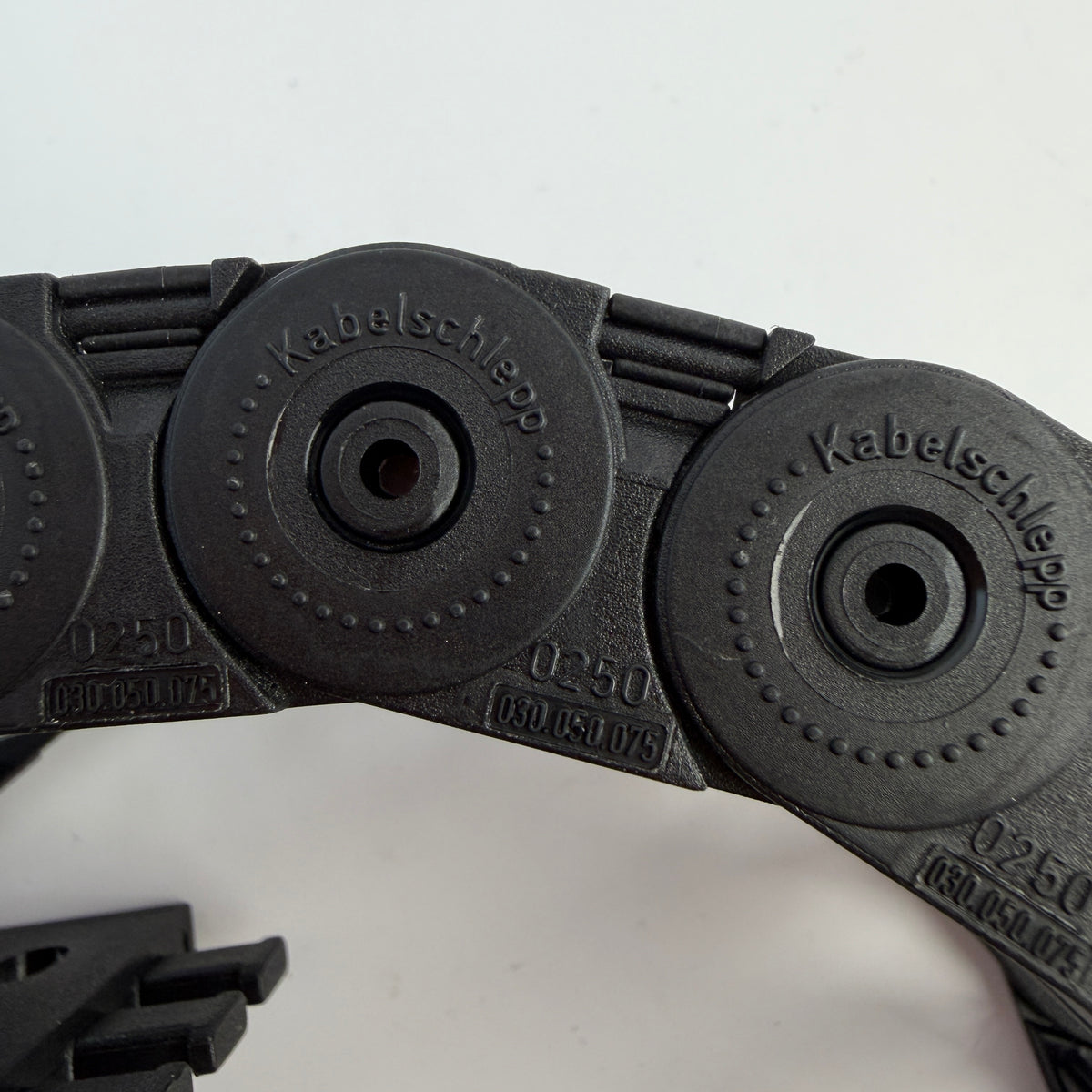

The markings visible on the carrier identify the ET0250 series and 030.050.075 configuration. This version features a 50 mm inner width and 75 mm bending radius.

Technical details:

• Manufacturer: KABELSCHLEPP
• Series: EasyTrax ET0250
• Configuration: 030.050.075
• Type: Cable carrier / energy chain / drag chain
• Number of links: 25

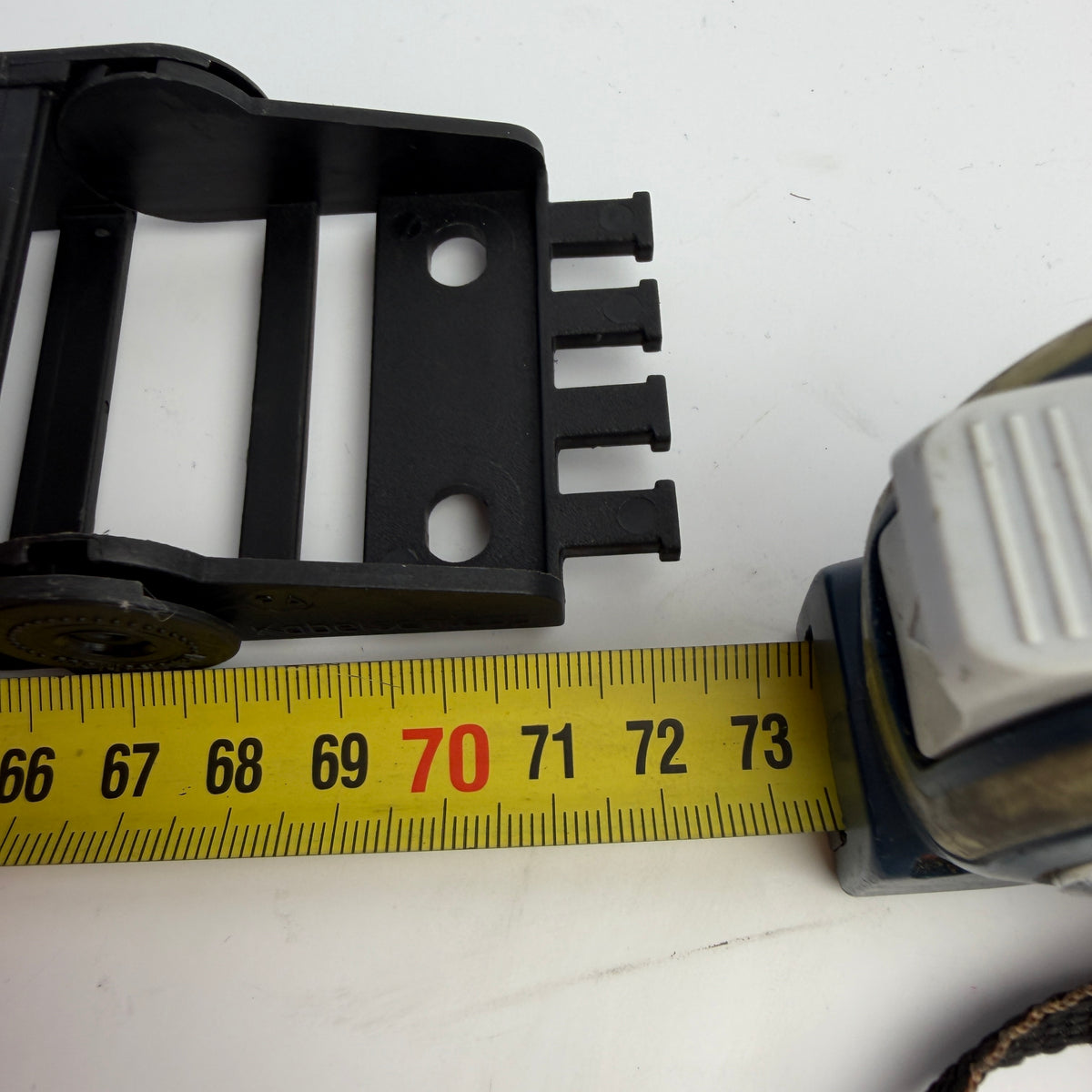

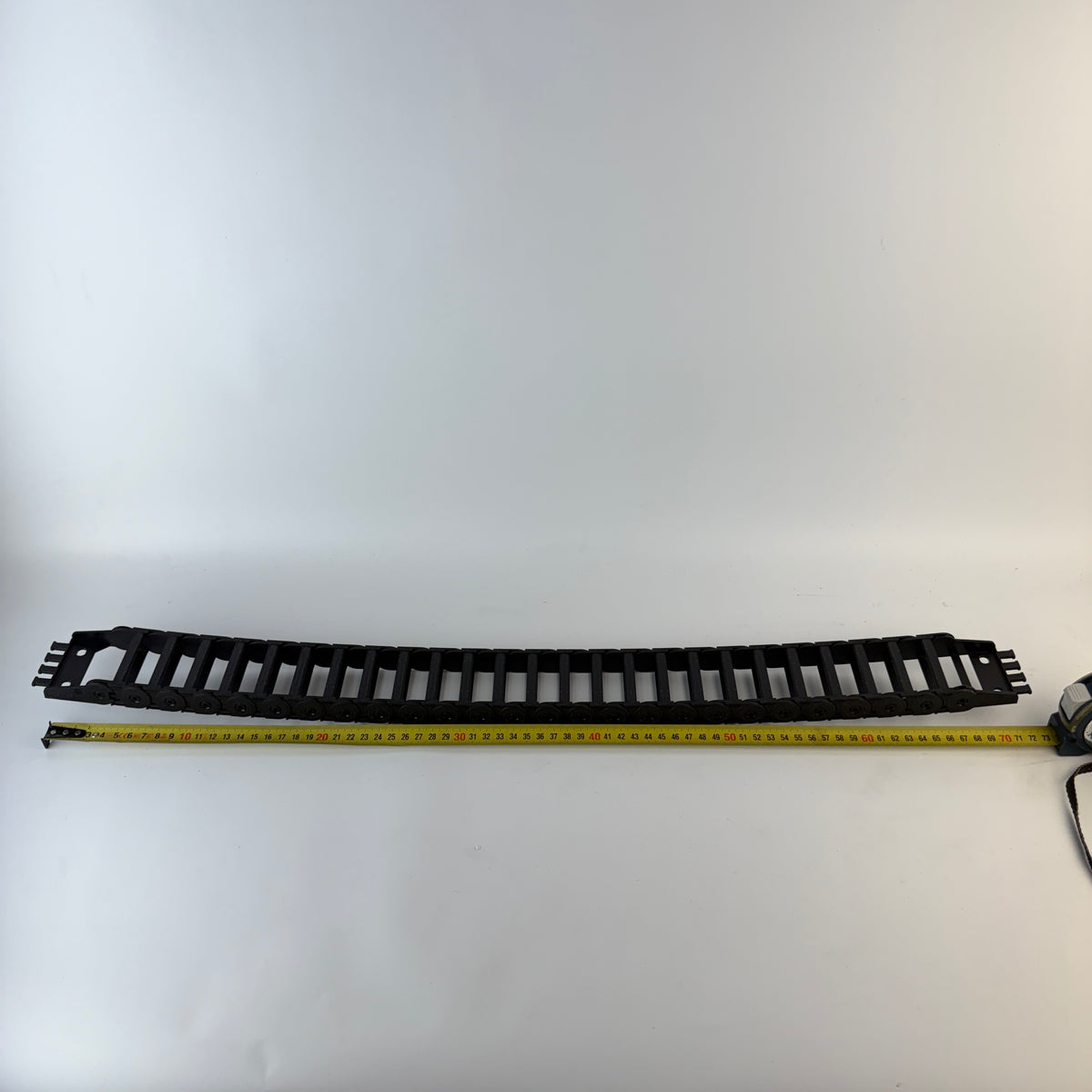

• Measured overall length: approx. 710 mm

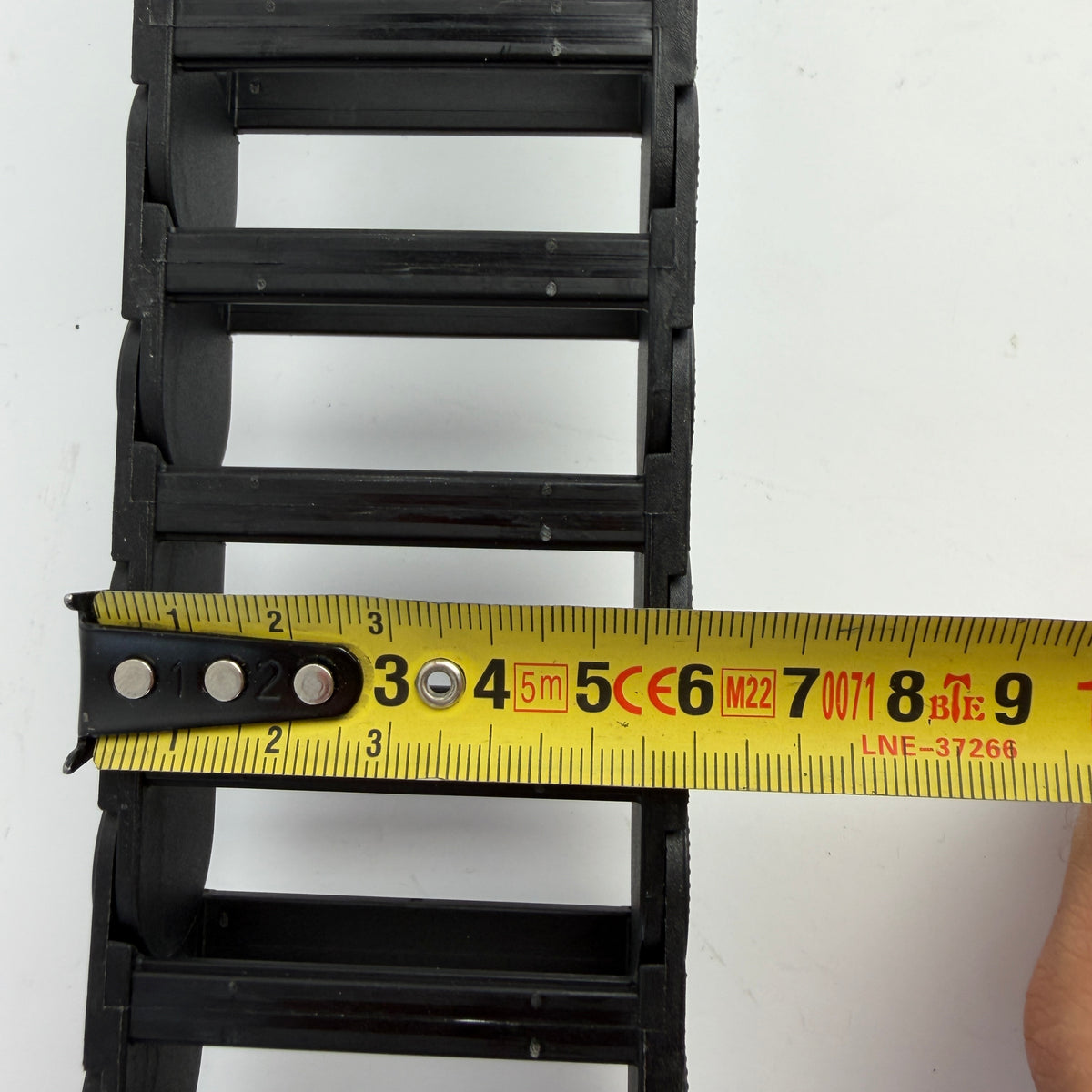

• Inner width: 50 mm
• Outer width: 60 mm
• Inner height: 16.5 mm
• Overall carrier height: 23 mm
• Pitch: 25 mm
• Bending radius: 75 mm
• Material: Plastic
• Stay variant: 030
• Opening arrangement: Lamellae in the outer radius
• End connection elements included

The EasyTrax ET0250.030 design uses a lightweight plastic frame with high torsional rigidity and lamellae that can be swivelled open from the outside for cable installation and servicing.

Used, fully functional.

Suitable for industrial machine maintenance, replacement and retrofit applications. Dimensions and mounting arrangement should be checked against the existing installation before purchase.
