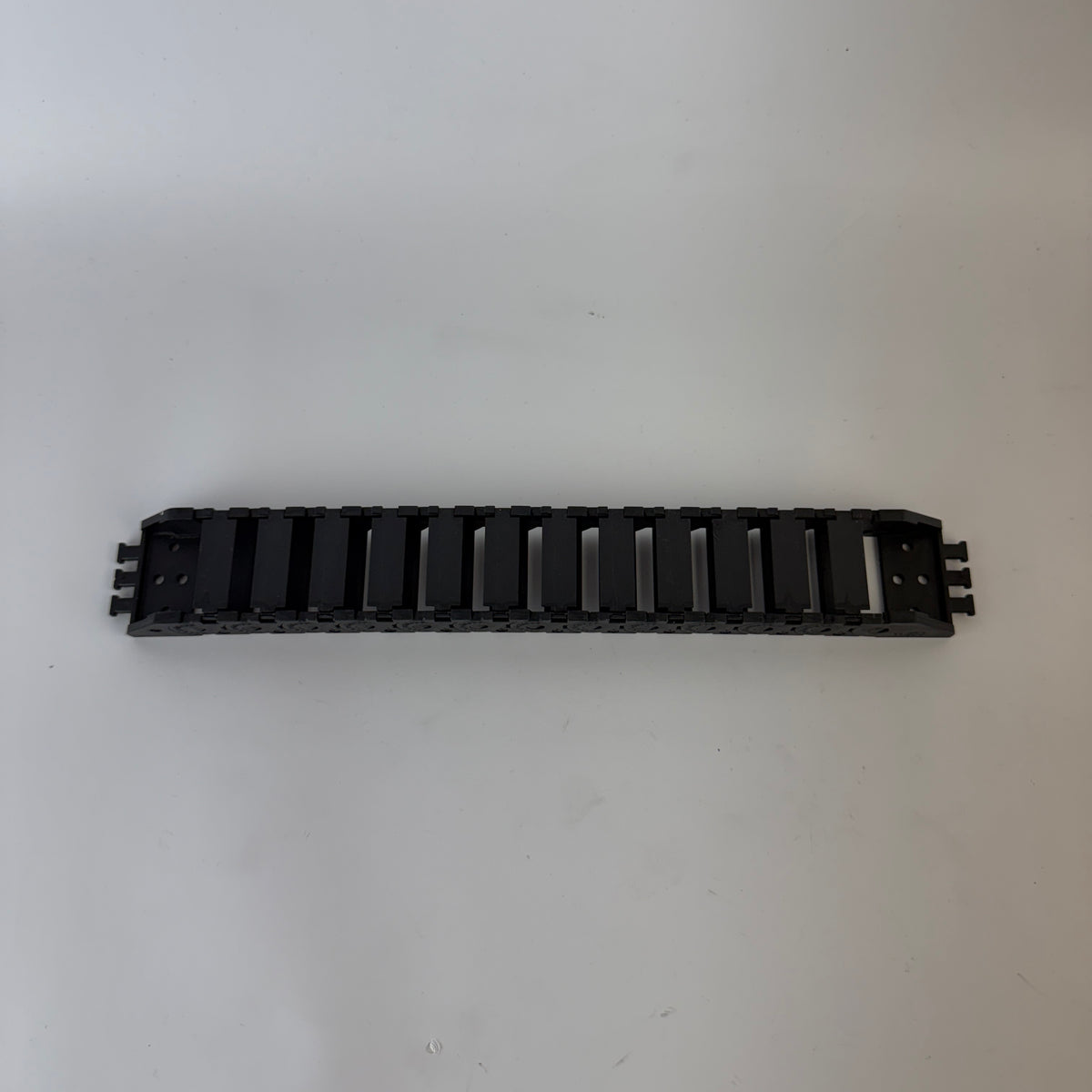

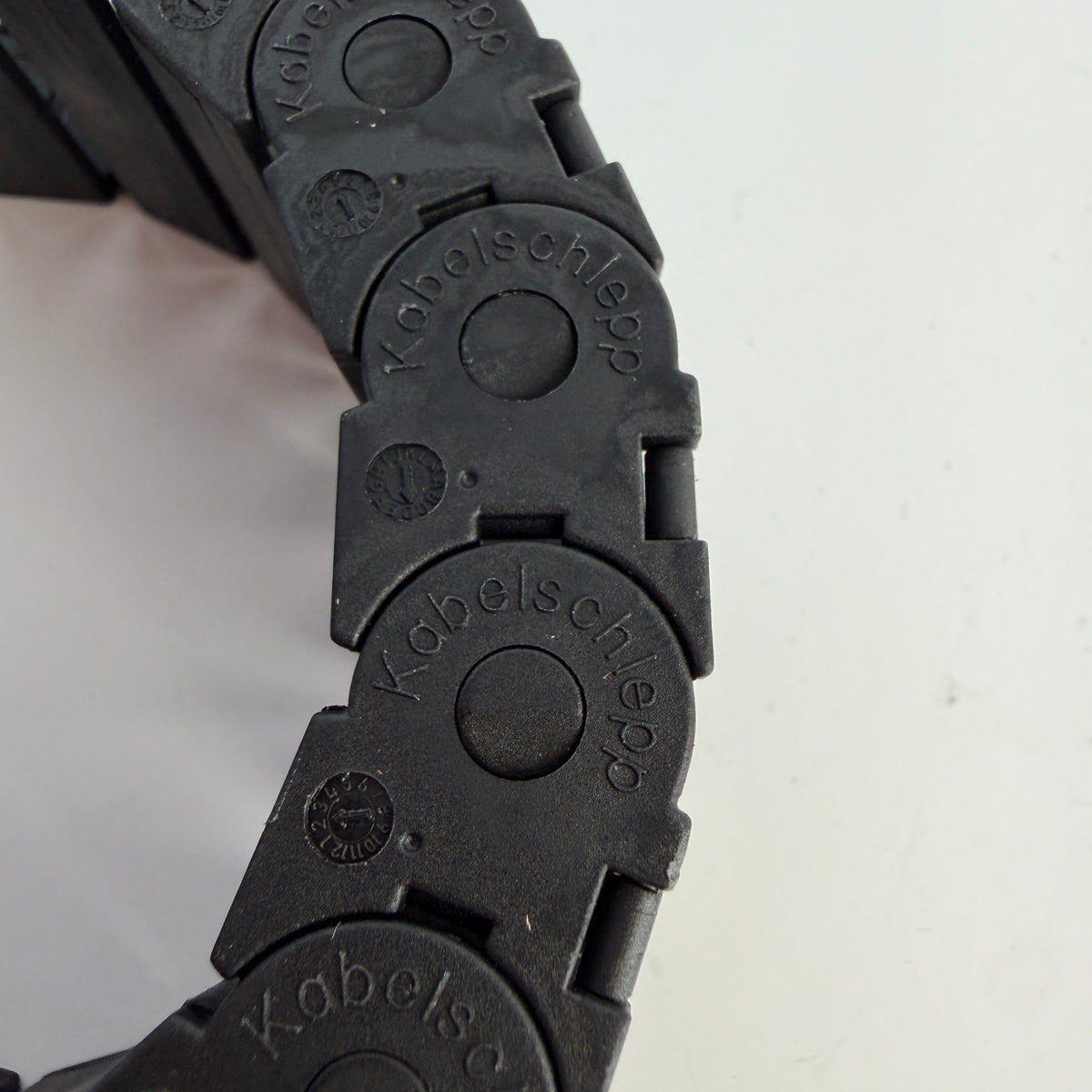

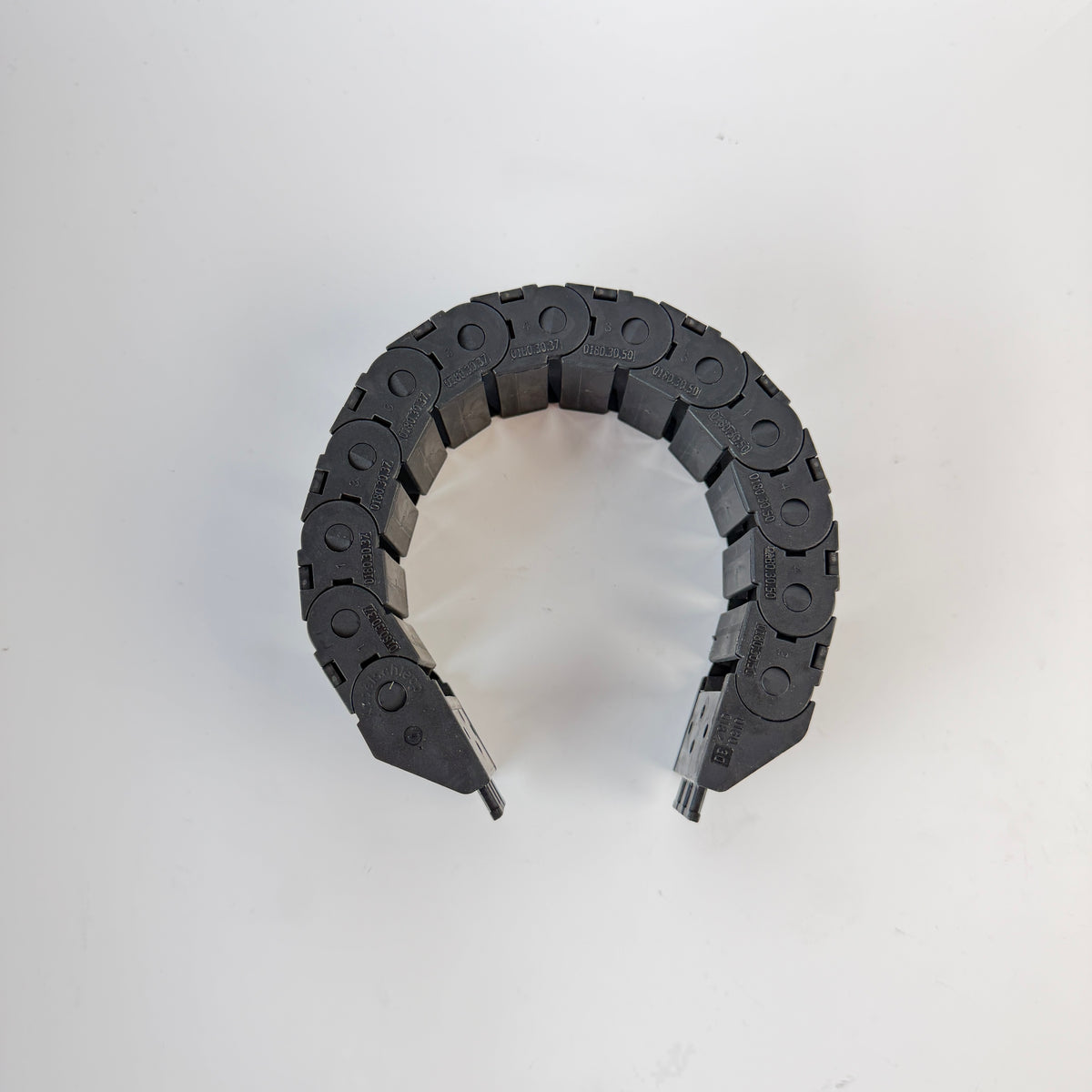

KABELSCHLEPP MONO 0180 industrial cable carrier / energy chain assembly with 12 links and end mounting elements.

This assembly is designed for guiding and protecting electrical cables, signal wiring, pneumatic hoses and other service lines on moving sections of industrial machinery and automation equipment.

Technical details:

• Manufacturer: KABELSCHLEPP
• Series: MONO 0180
• Number of links: 12

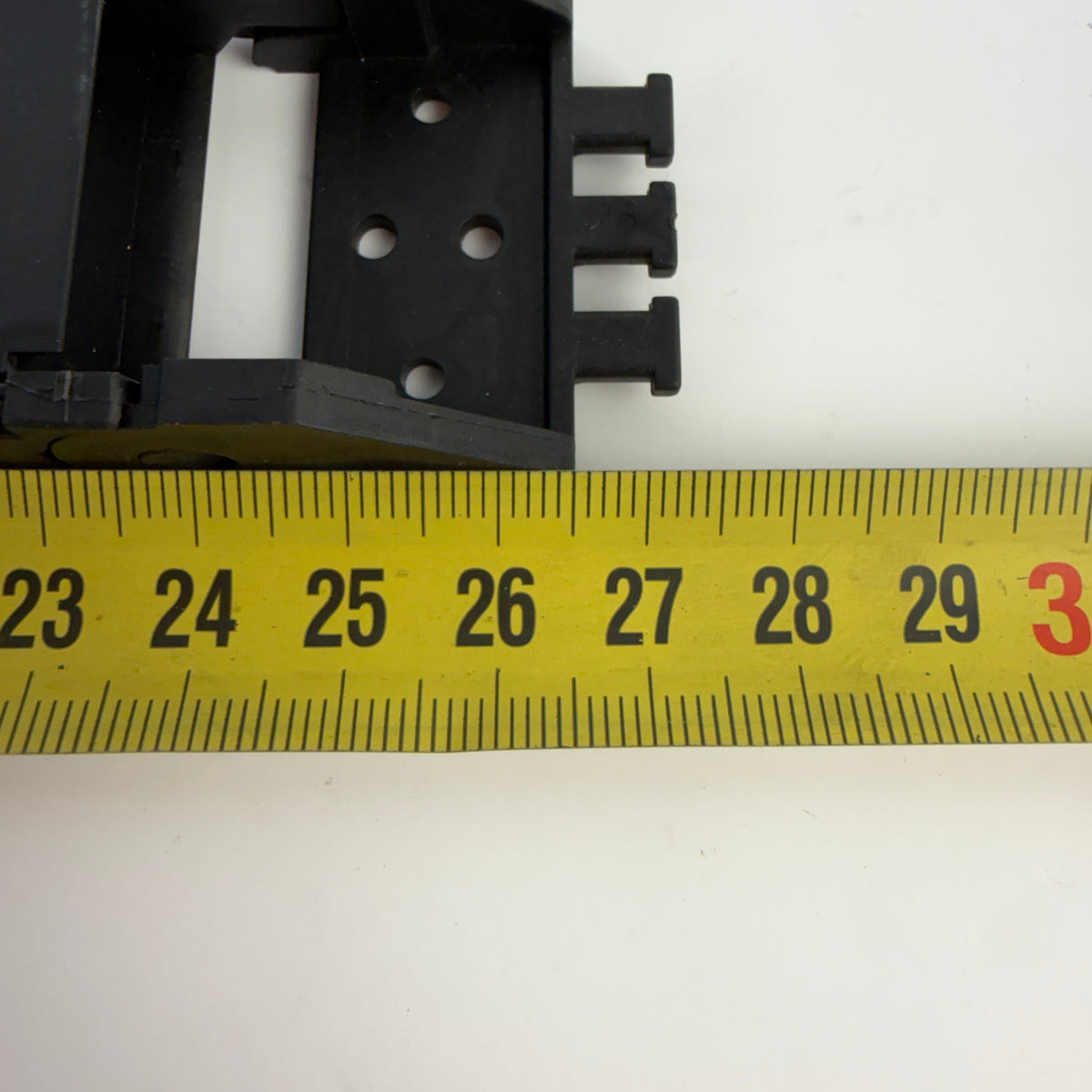

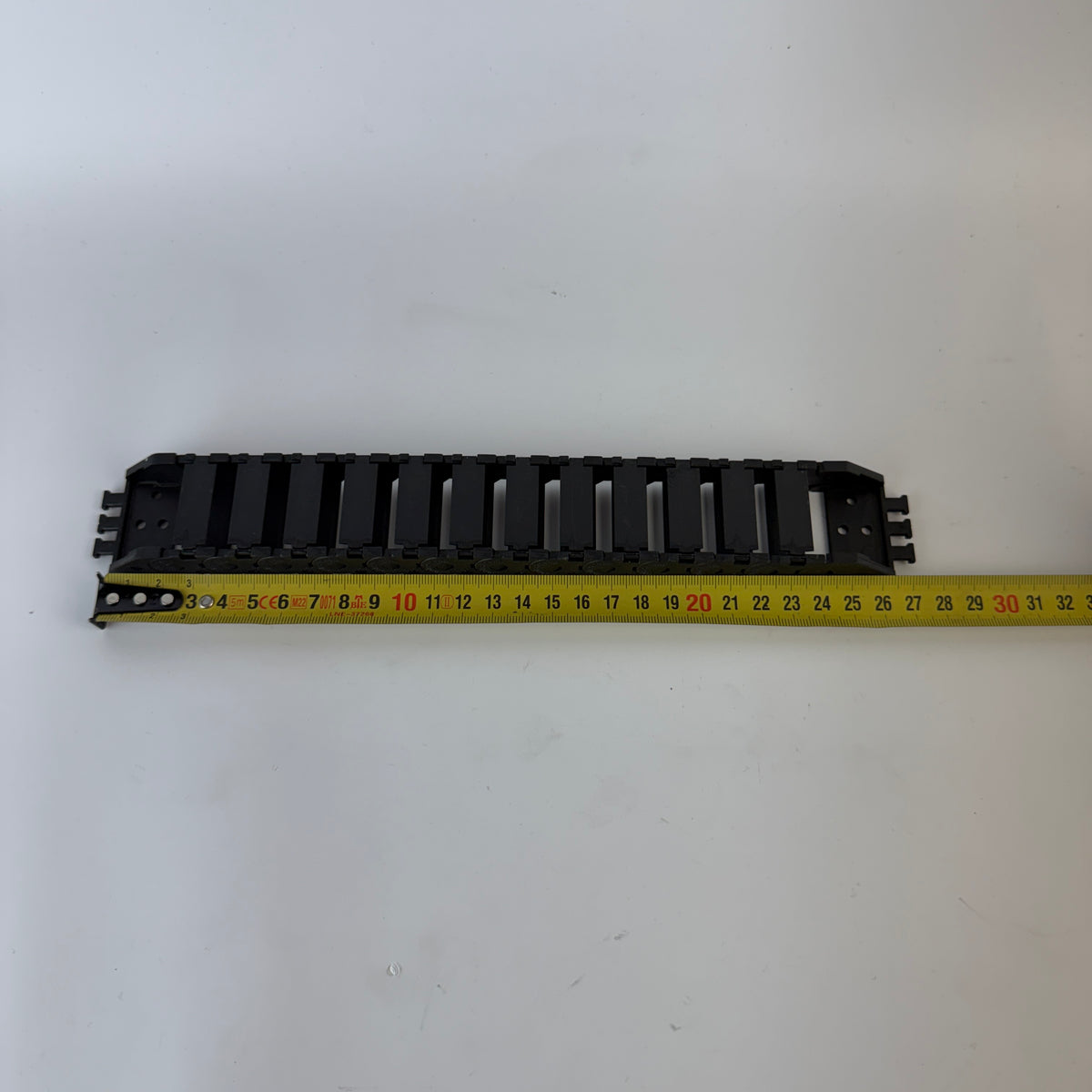

• Measured overall length: approximately 265 mm

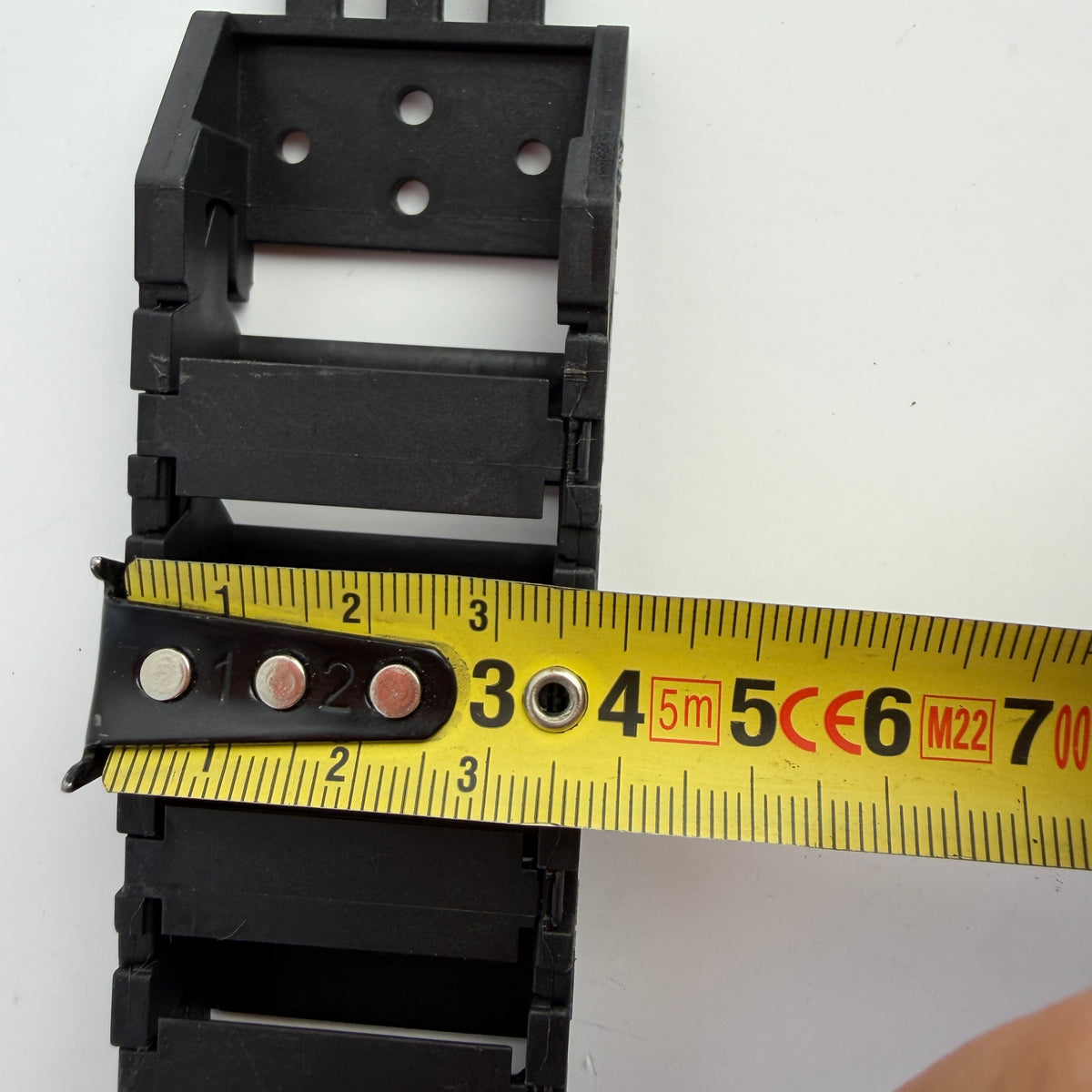

• Measured outer width: approximately 38 mm
• Inner width: 30 mm
• Inner height: 15 mm
• Outer width: 38 mm
• Outer height: 18 mm
• Pitch: 18 mm
• Construction: Plastic cable carrier
• Outside-opening crossbars
• End mounting elements included

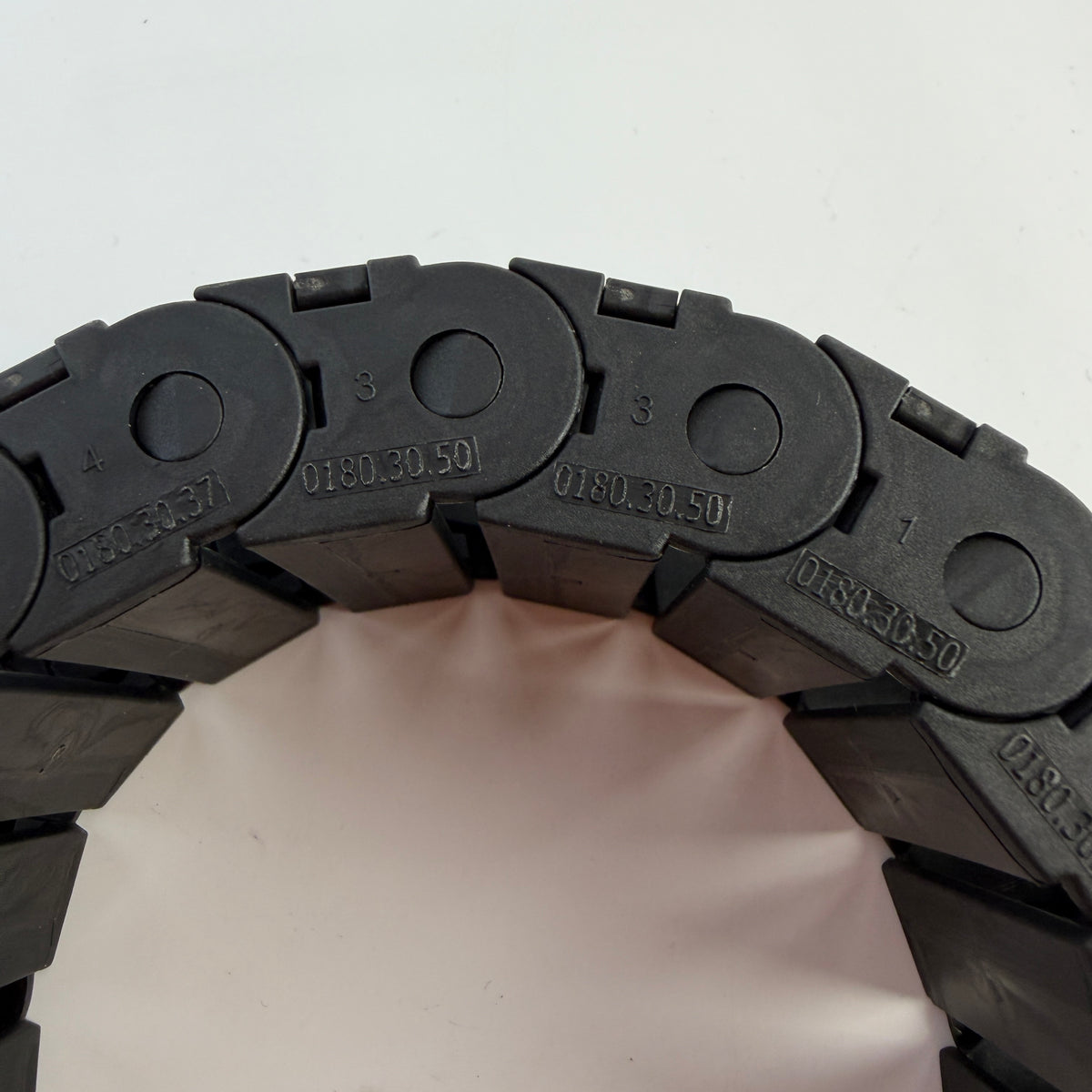

Important configuration note: the photographed assembly contains links with different molded markings. Most visible links are marked 0180.30.50, while at least one link is marked 0180.30.37. The assembly should therefore be considered a mixed 37 mm / 50 mm bending-radius configuration rather than a uniform 0180.30.50 chain.

Used, fully functional.

Please compare the link markings, dimensions, bending requirements and mounting arrangement with your application before installation.
