KABELSCHLEPP MONO 0182 industrial cable carrier / energy chain, marked 0182.30.28.

This closed-frame plastic cable carrier is designed for routing and protecting electrical cables, pneumatic tubing and other service lines in moving industrial machinery and automation systems.

Technical specifications:

• Manufacturer: KABELSCHLEPP
• Series: MONO
• Type: 0182

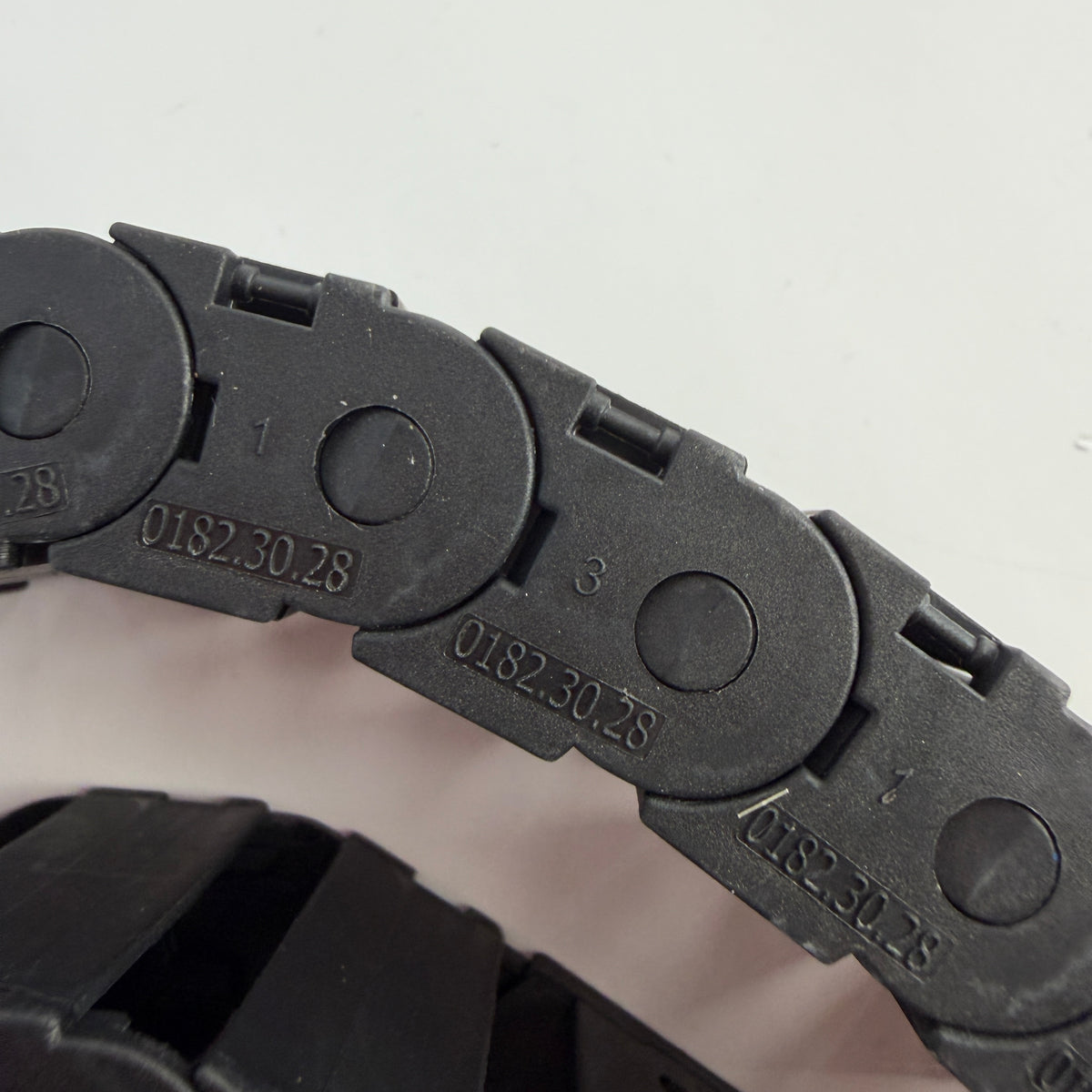

• Marking: 0182.30.28
• Number of links: 23

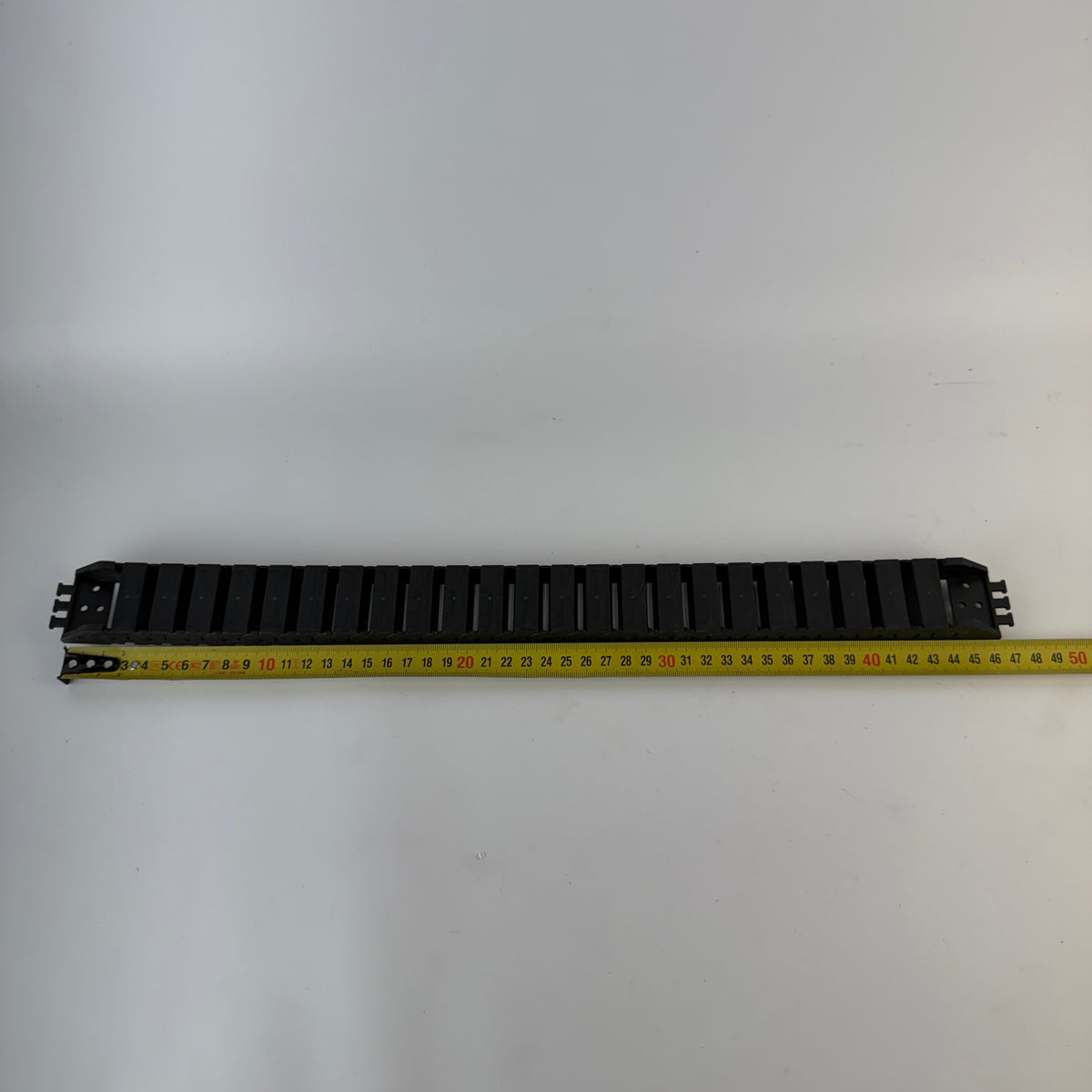

• Measured overall length: approx. 465 mm
• Inner width: 30 mm
• Outer width: 38 mm nominal
• Inner height: 15 mm
• Outer height: 18 mm
• Pitch: 18 mm
• Bending radius: 28 mm
• Frame type: Closed frame
• Construction: Plastic

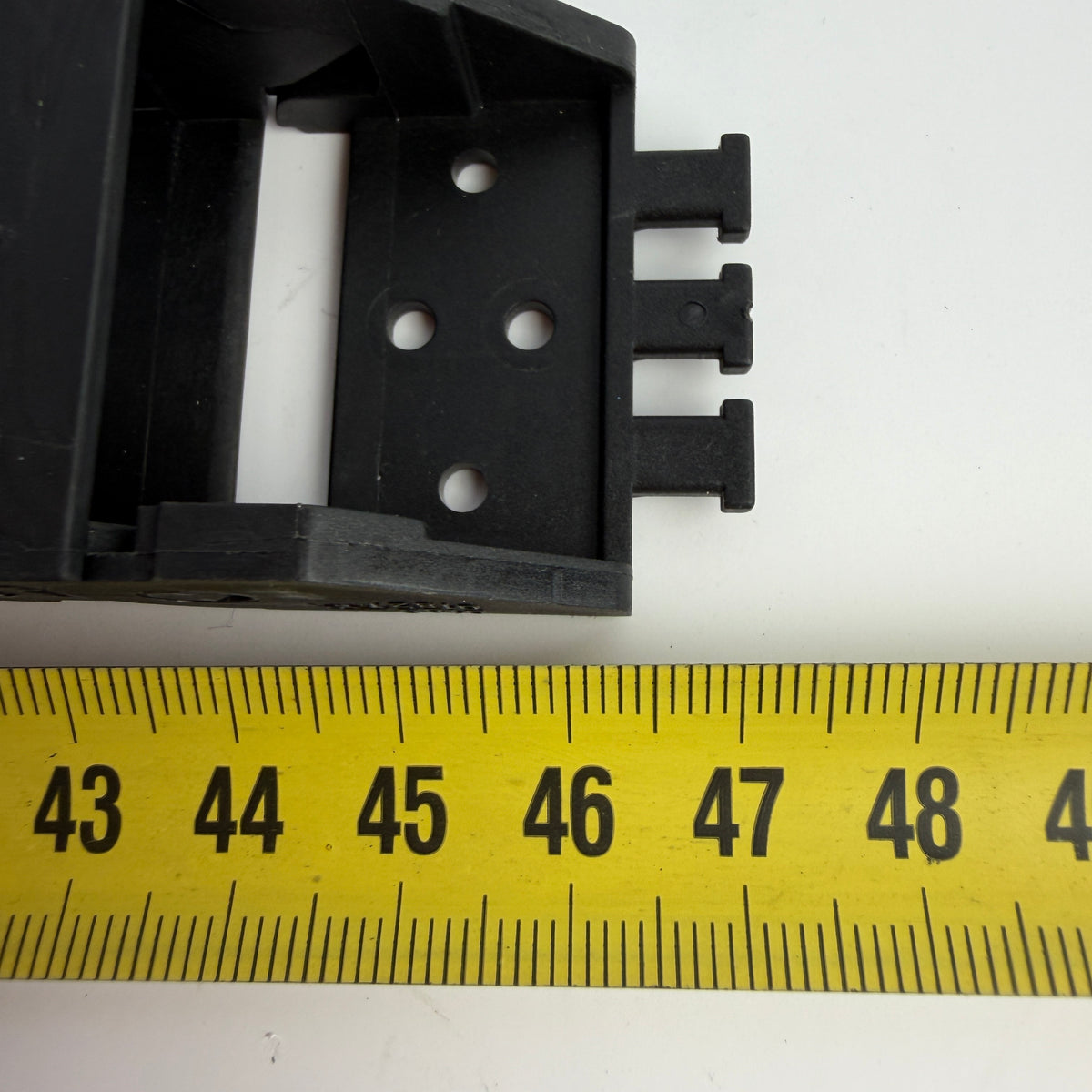

• End connection elements included
• Recommended maximum cable diameter for the 0182 series: up to 12 mm, depending on cable type and application

The MONO 0182 uses a weight-optimised closed plastic frame with high torsional rigidity. The individual frames are not designed to be opened from either side.

Used, fully functional.

Suitable for industrial machine repair, maintenance, retrofit and replacement applications. Please verify dimensions, bending radius and mounting arrangement against your existing cable carrier before purchase.
