MAC Valves 35A-AAA-DAAA-1CA industrial pneumatic solenoid valve from the MAC 35 Series. This is a compact 3-way poppet, single-operator universal valve designed for pneumatic and vacuum control applications.

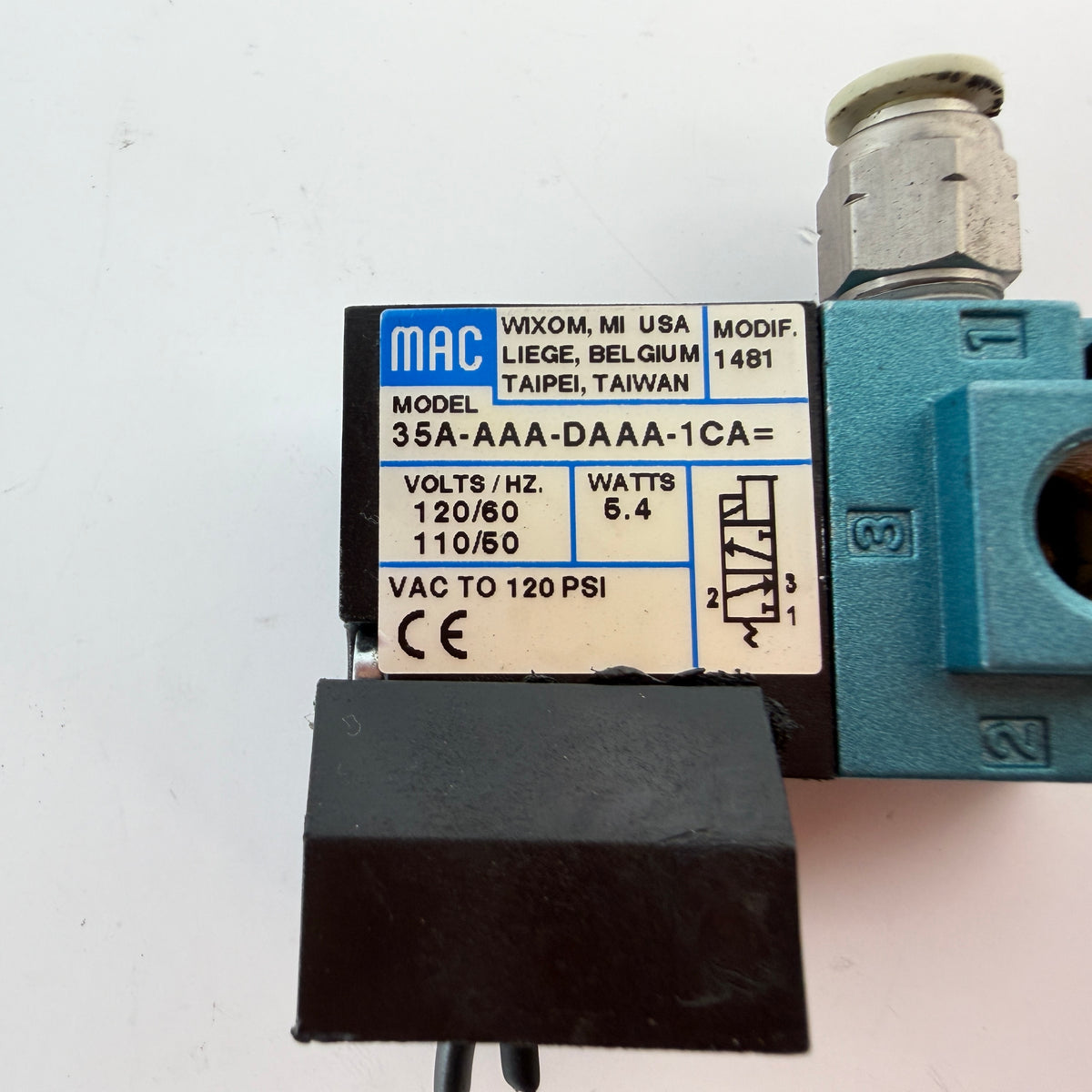

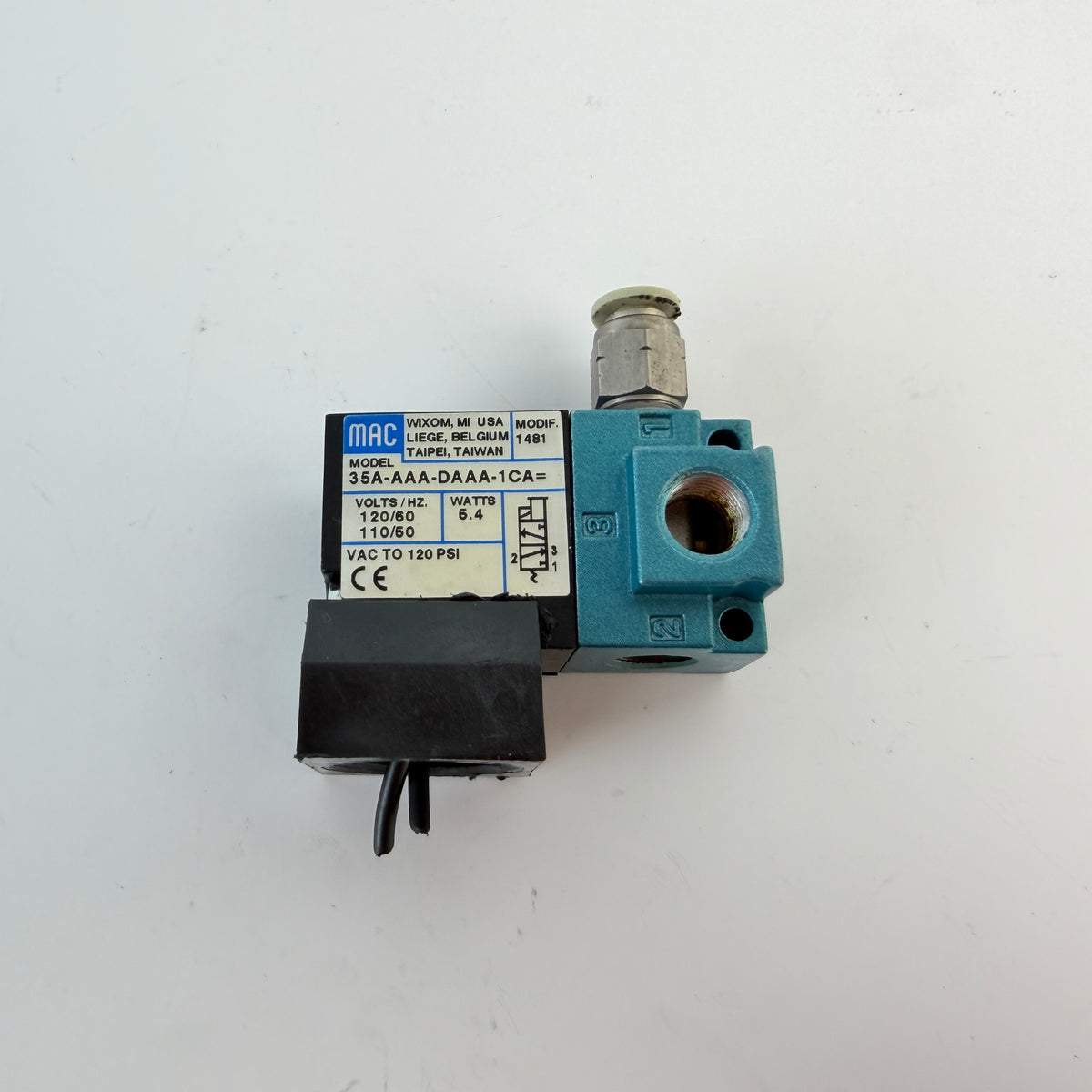

The identification label on this unit specifies 120 V AC at 60 Hz or 110 V AC at 50 Hz, 6.4 W power consumption, and an operating pressure range from vacuum up to 120 PSI.
Technical details:
- Manufacturer: MAC Valves
- Model / MPN: 35A-AAA-DAAA-1CA
- Series: 35 Series
- Type: Pneumatic Solenoid Valve
- Valve Design: 3-Way Poppet
- Configuration: Single Operator
- Function: Universal Valve
- Port Size: 1/8 in. NPTF
- Supply Voltage: 120 VAC / 60 Hz or 110 VAC / 50 Hz
- Power Consumption: 6.4 W
- Pressure Range: Vacuum to 120 PSI
- Electrical Leads: Flying leads
- Manual Operator: Non-locking recessed type

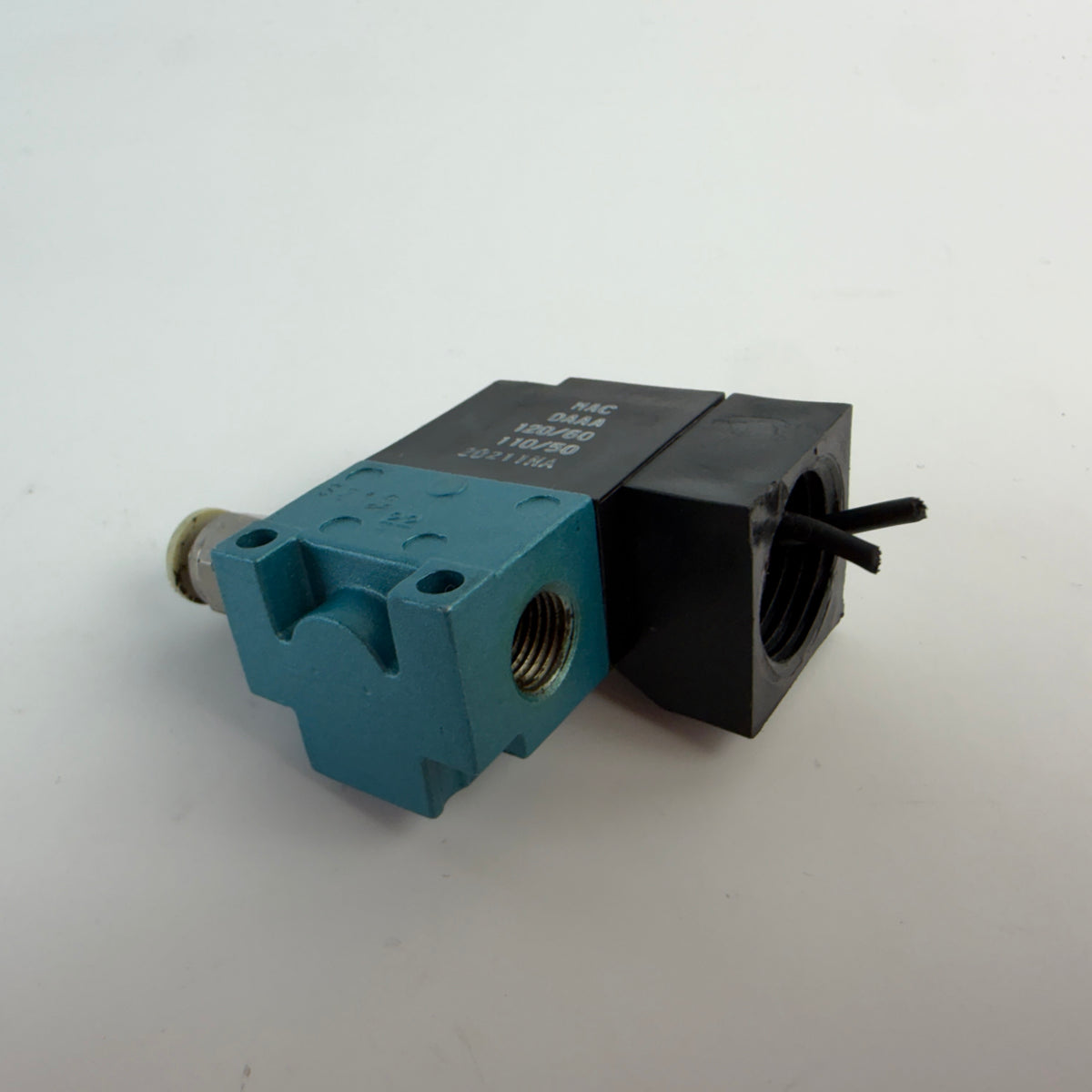

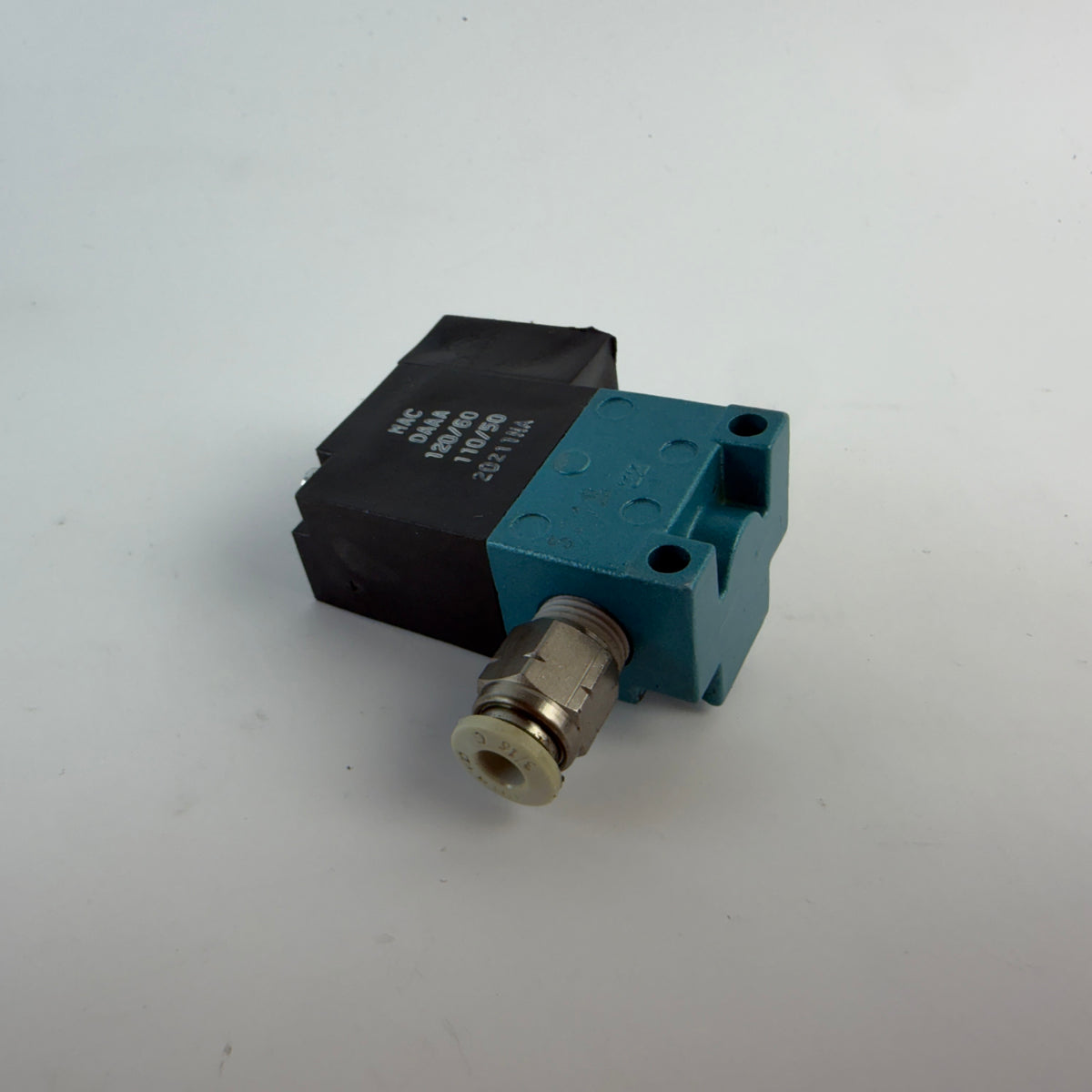

A push-in pneumatic fitting is installed on the valve as shown in the photos. Its exact manufacturer and part number are not confirmed.
Used, fully functional.
