MISATI BL-20 industrial pneumatic fastening clamp designed for securely clamping and holding workpieces in automated production, assembly, welding, checking and fixture applications.
This is the Ø20 version of the MISATI pneumatic clamp series. The clamp uses a double-acting pneumatic mechanism to actuate the clamping arm and provides high clamping force from a compact assembly.

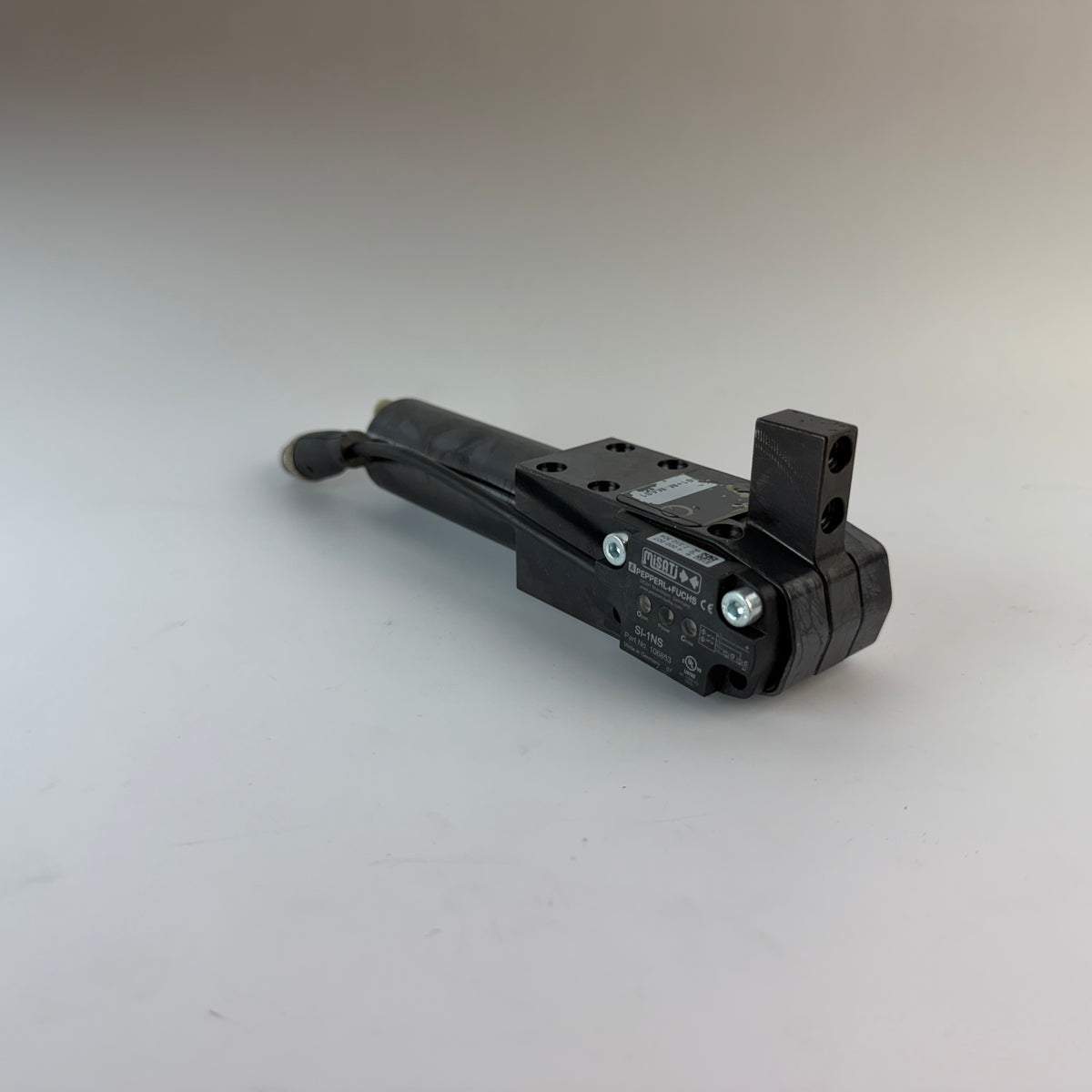

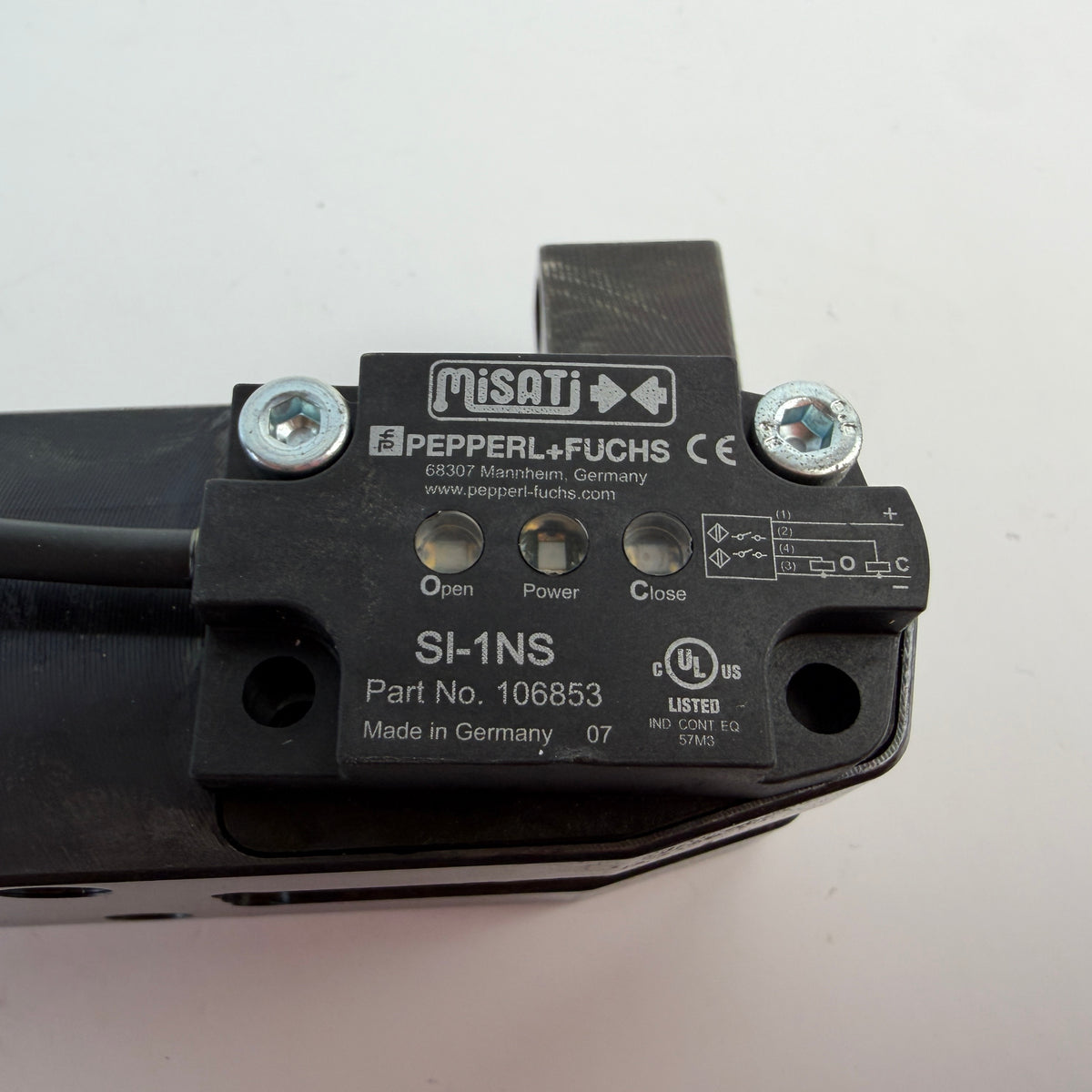

The unit is equipped with a Pepperl+Fuchs SI-1NS position sensor, Part No. 106853, providing open/closed clamp position detection. The sensor has Open, Power and Close indicators and is marked Made in Germany.
Technical details:
- Manufacturer: MISATI
- Model: BL-20

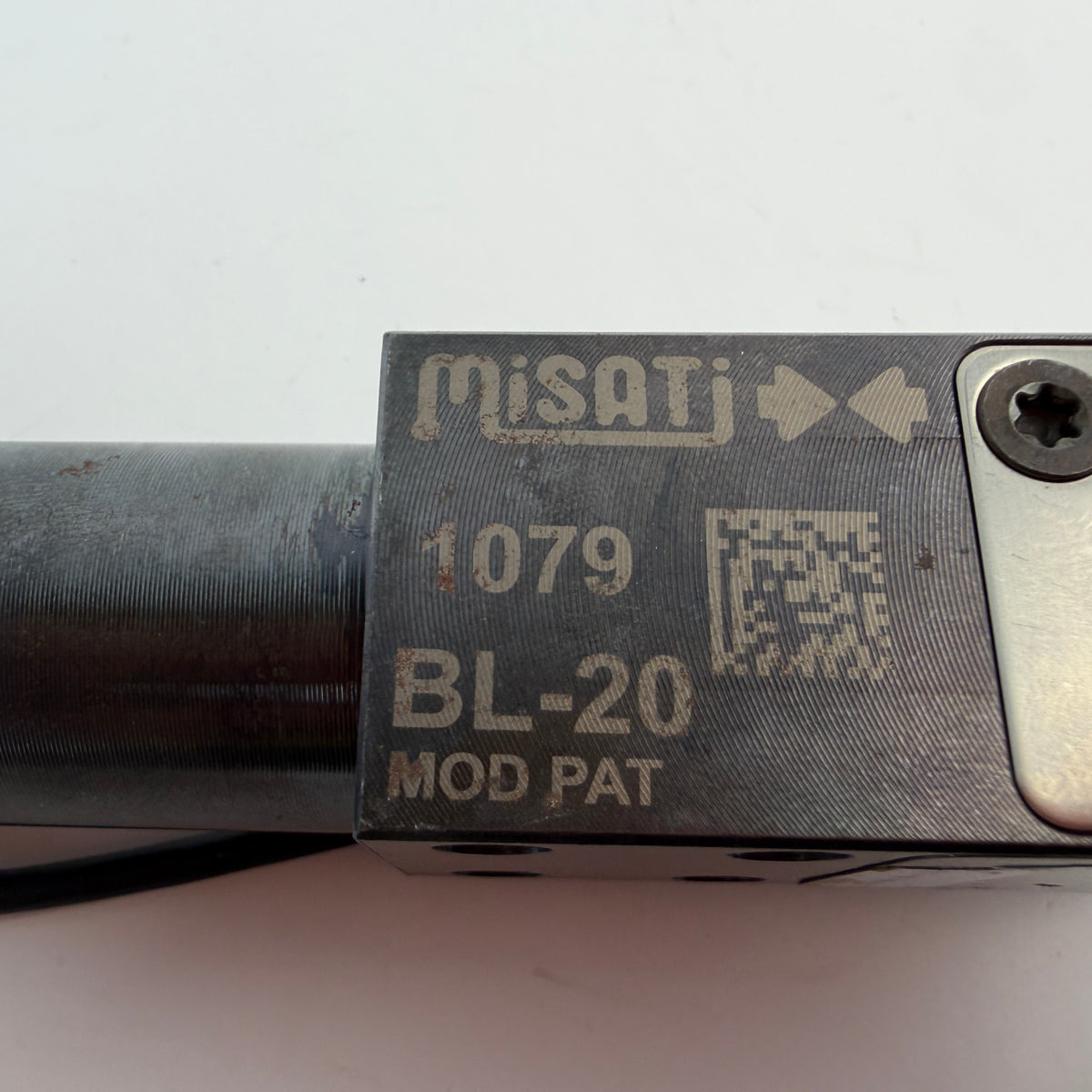

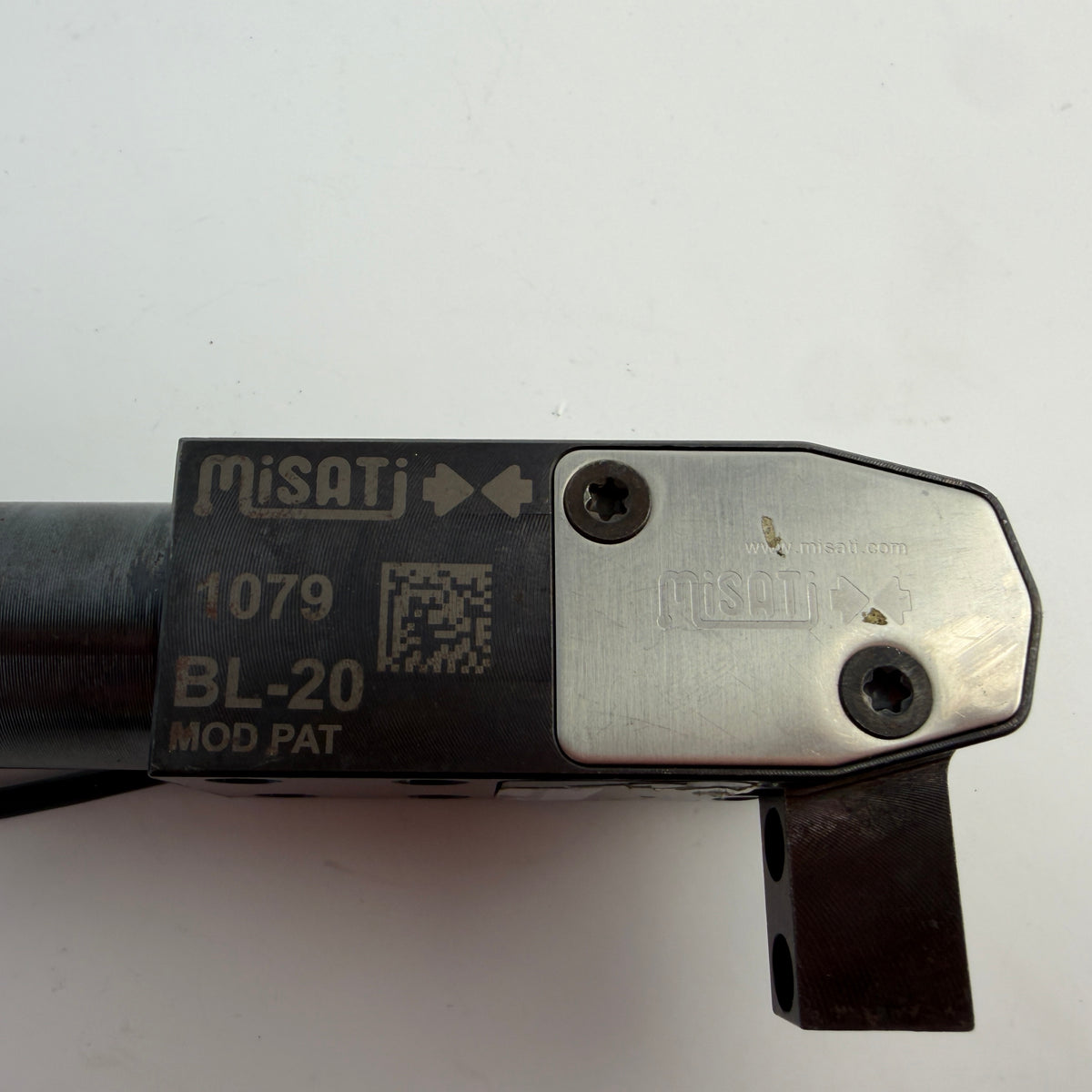

- Marking on unit: 1079
- Type: Pneumatic fastening / power clamp
- Pneumatic operation: Double acting
- Piston diameter: 20 mm
- Working pressure: 6 bar
- Maximum pressure: 10 bar
- Maximum clamping force: approx. 1200 N / 120 daN at specified reference geometry
- Sensor: Pepperl+Fuchs SI-1NS
- Sensor part number: 106853
- Position monitoring: Open / Close

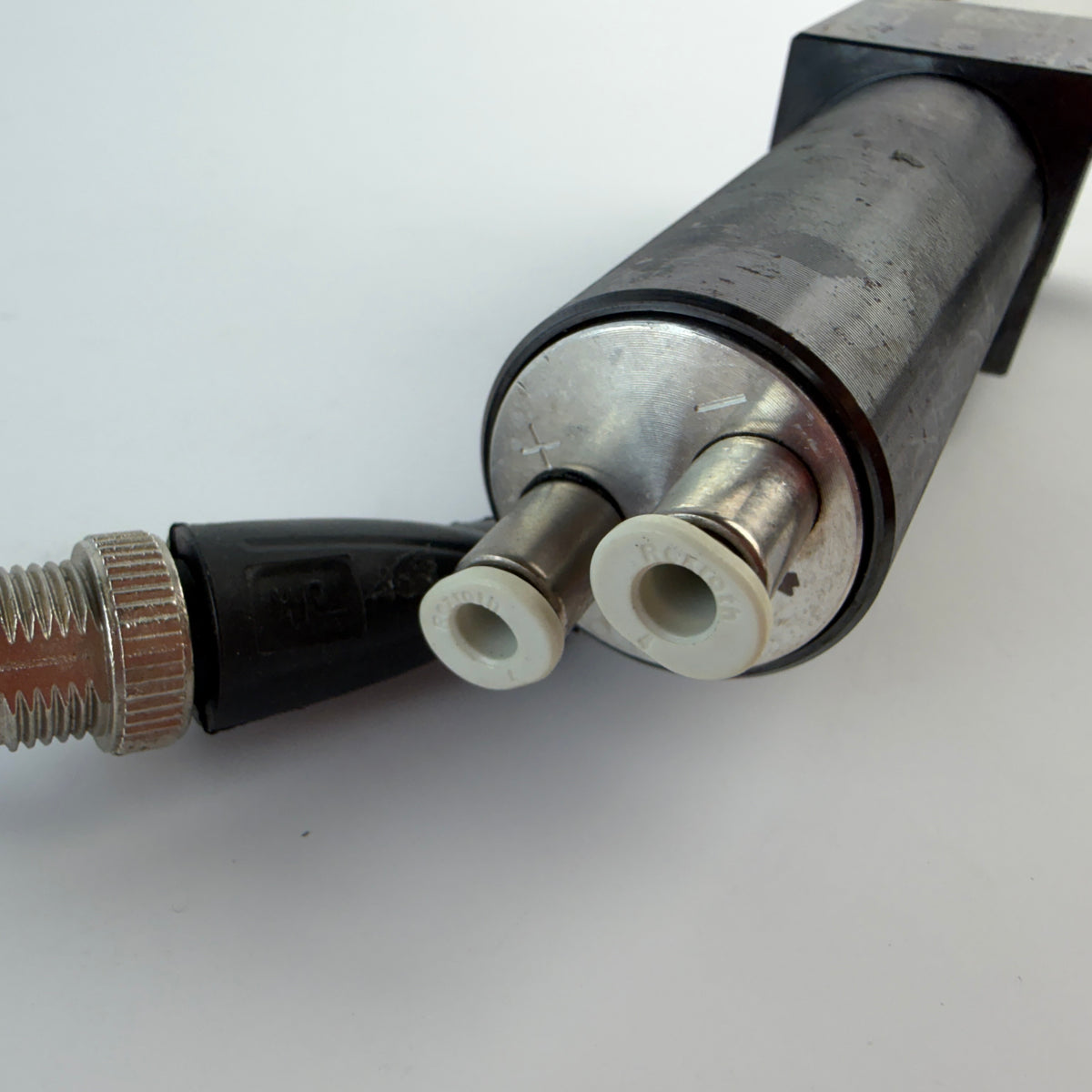

- Pneumatic connections: Push-in fittings installed
- Electrical connection: Connector and cable assembly included as pictured
- Construction: Machined and hardened steel clamp body
Suitable for industrial automation, tooling, welding fixtures, assembly fixtures and workpiece holding applications.

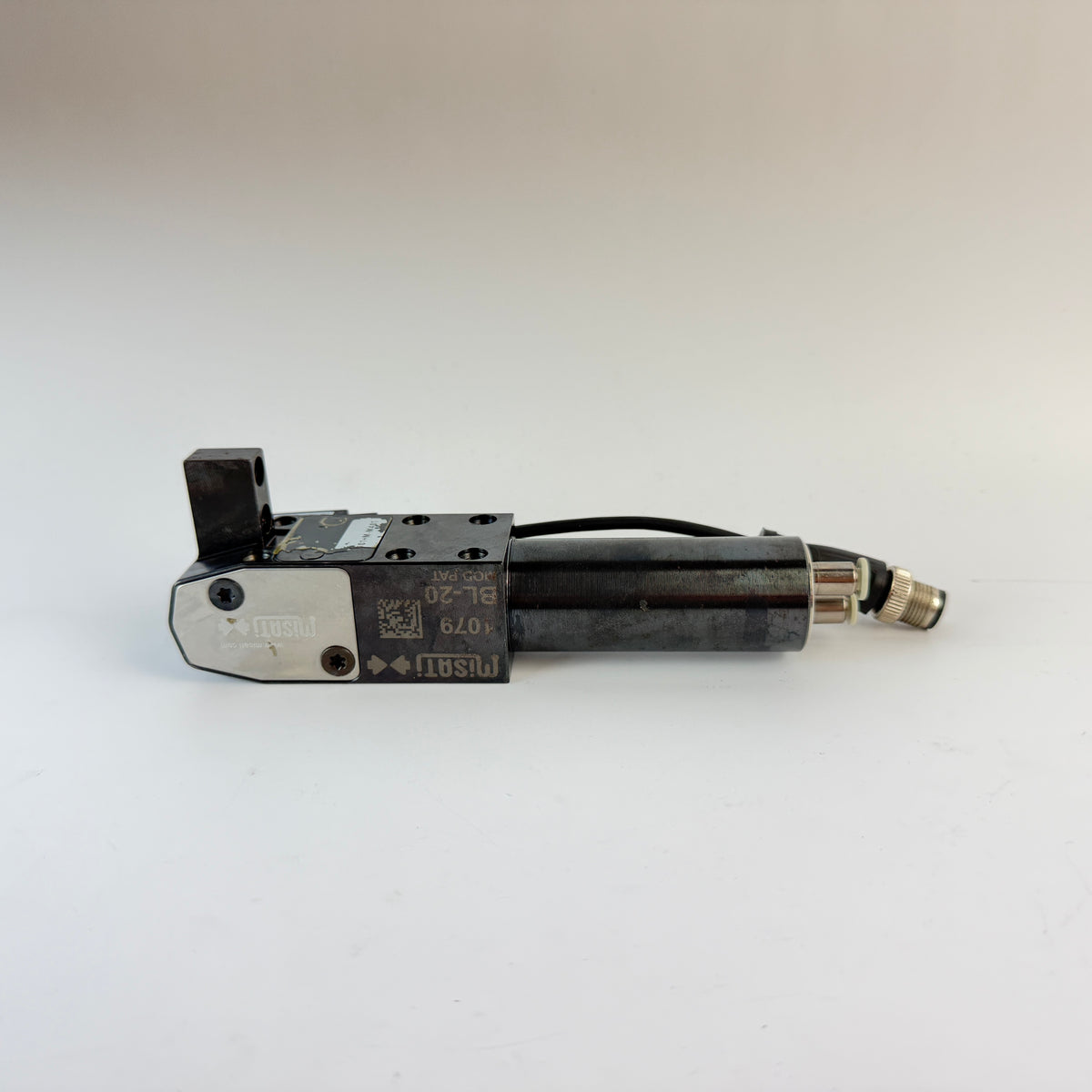

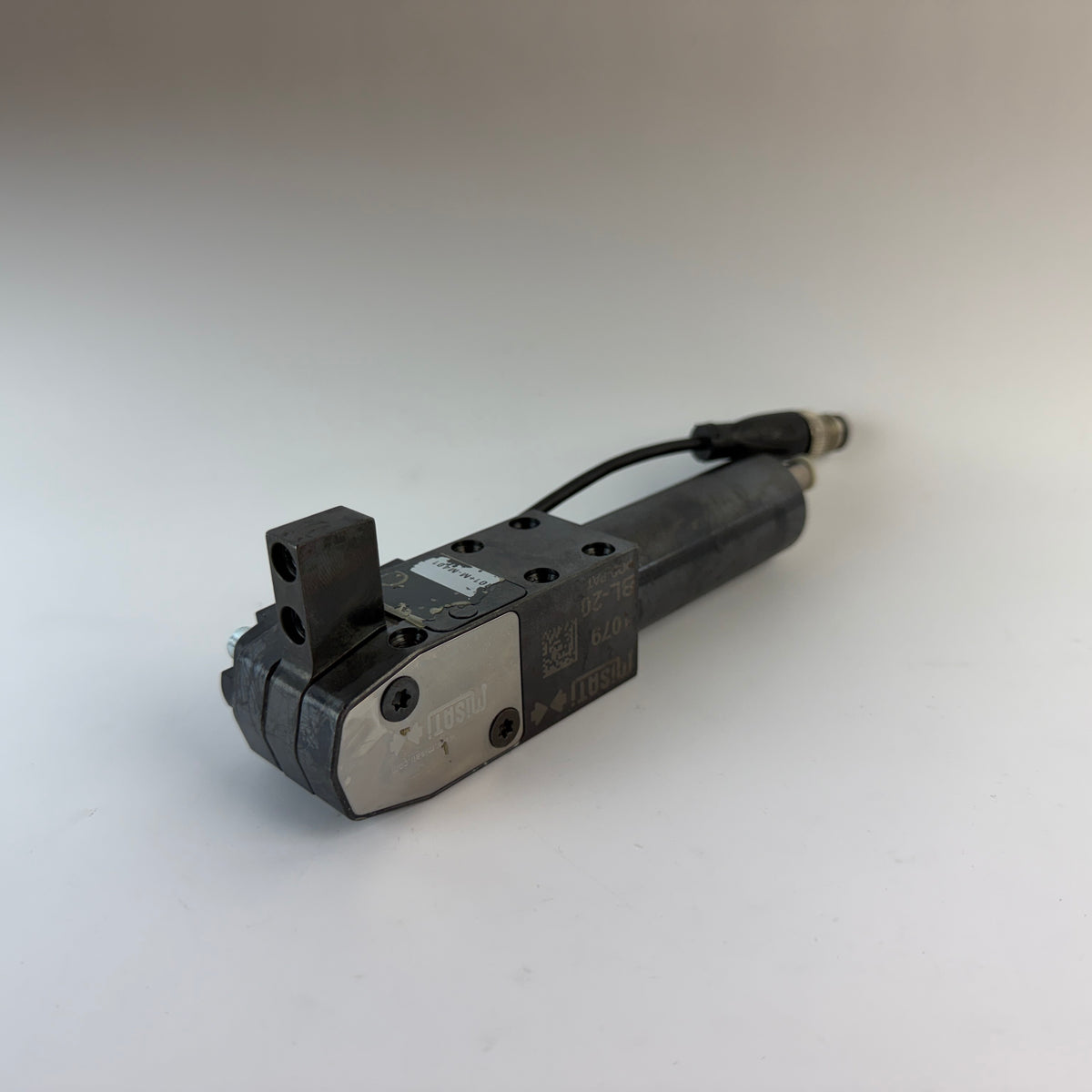

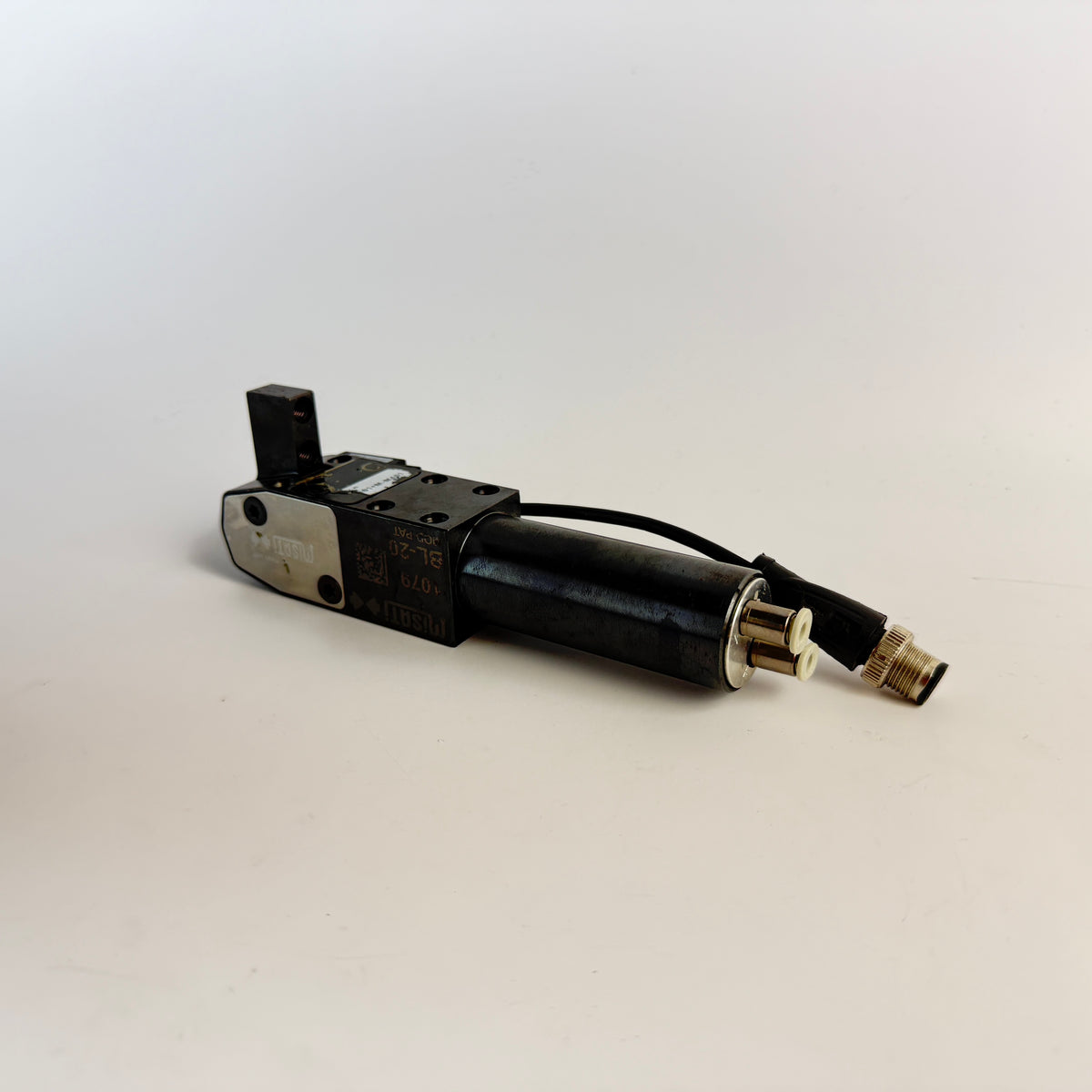

Supplied as the complete assembly shown in the photographs, including the MISATI clamp, Pepperl+Fuchs position sensor, pneumatic fittings and electrical connection.
Condition: Used, fully functional.
