Omron E2B-M18KS08-WP-C1 cylindrical inductive proximity sensor for non-contact detection of ferrous metal objects in industrial automation and machinery applications.
This model features an M18 × 1 short-body threaded housing, shielded sensing configuration, 8 mm nominal sensing distance, and NPN open-collector Normally Open (NO) output.
The sensor operates from 10–30 V DC, supports a control output of up to 200 mA, and provides a yellow operation indicator.

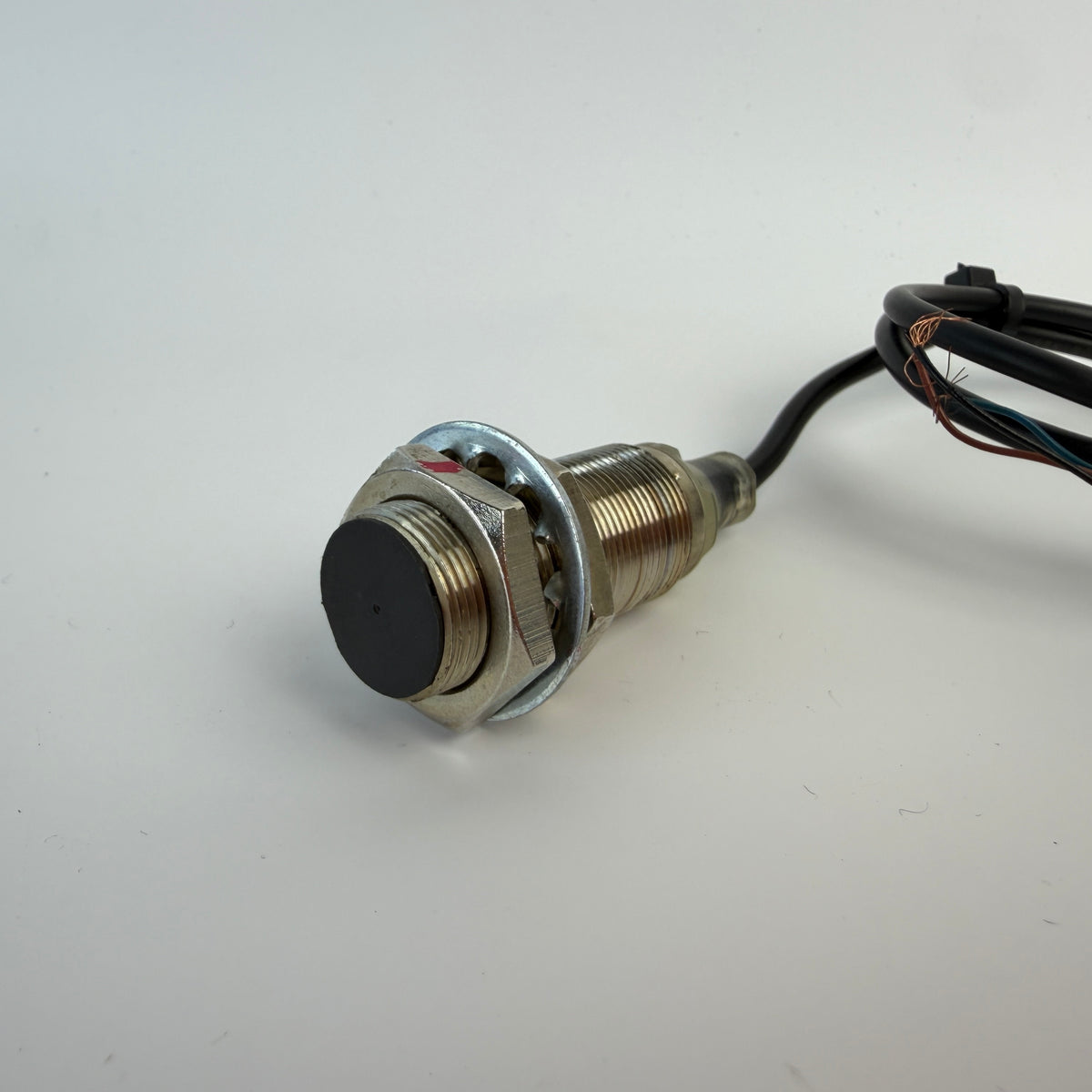

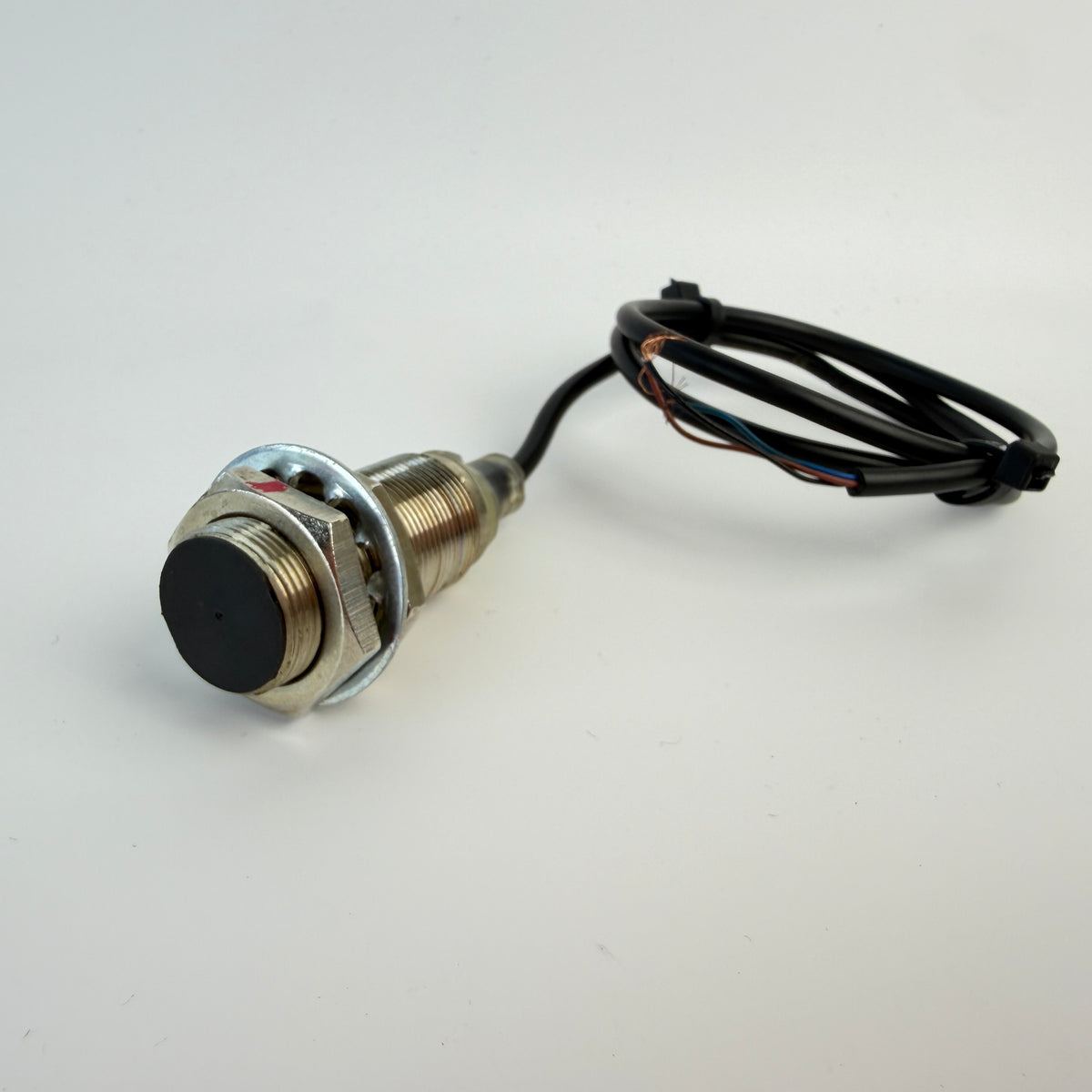

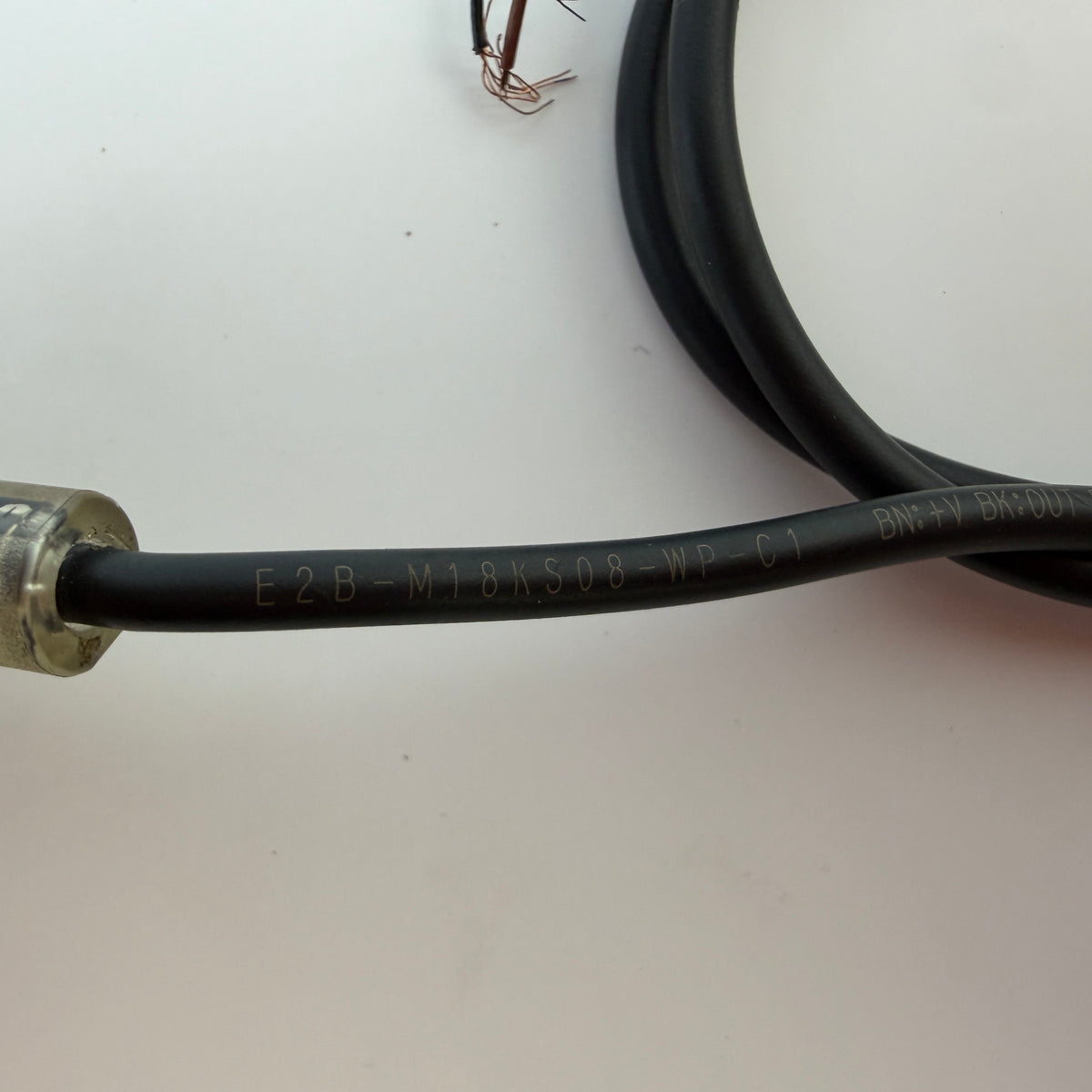

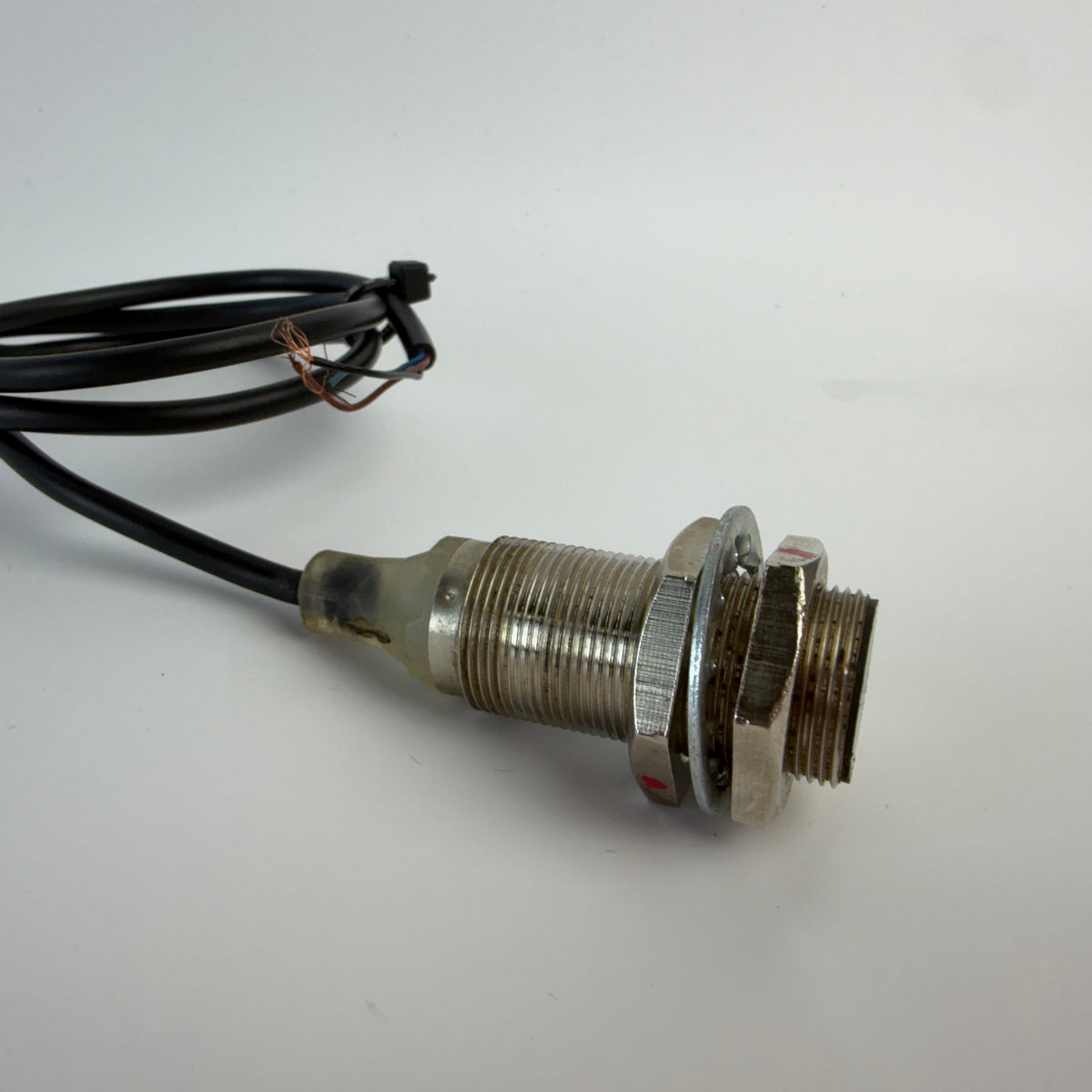

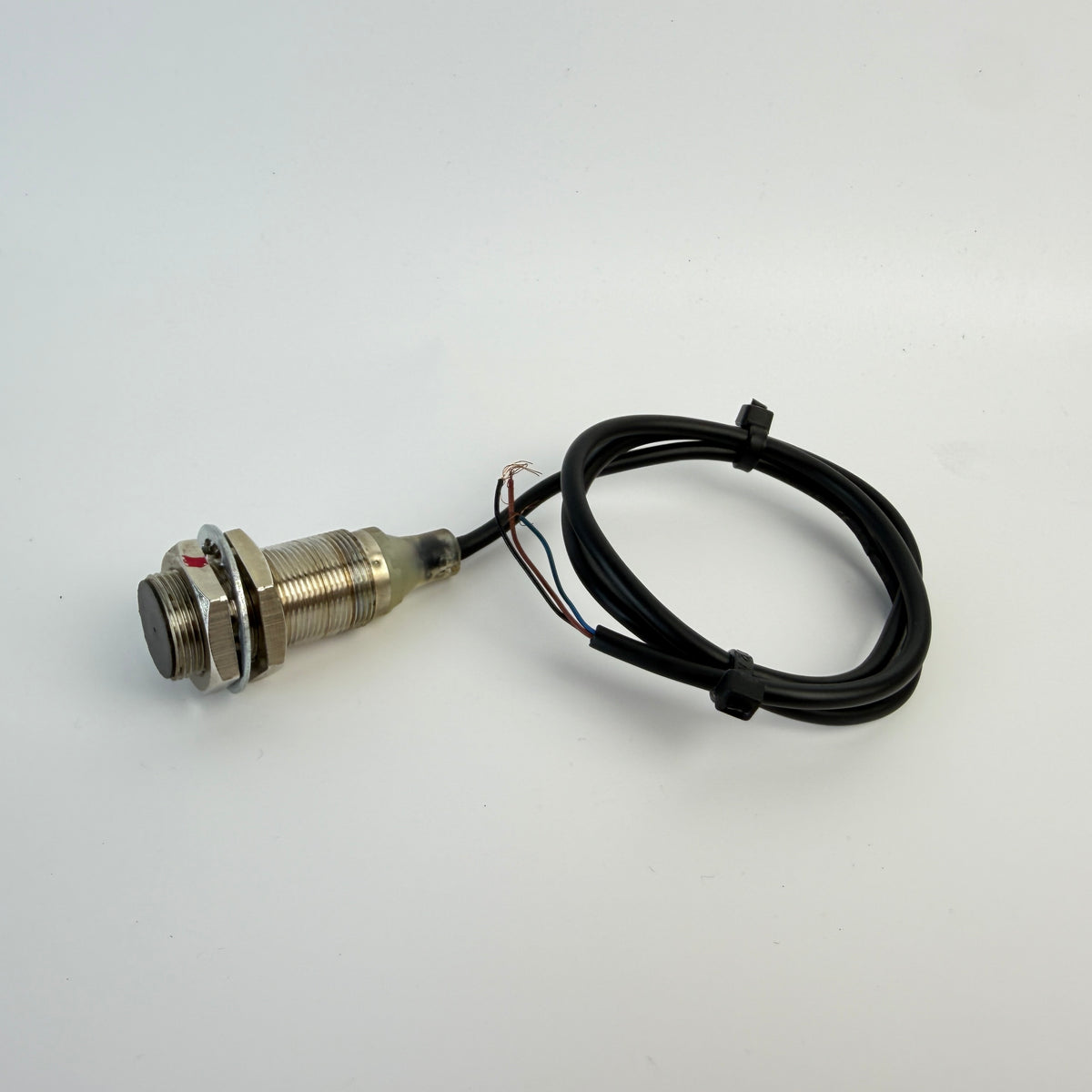

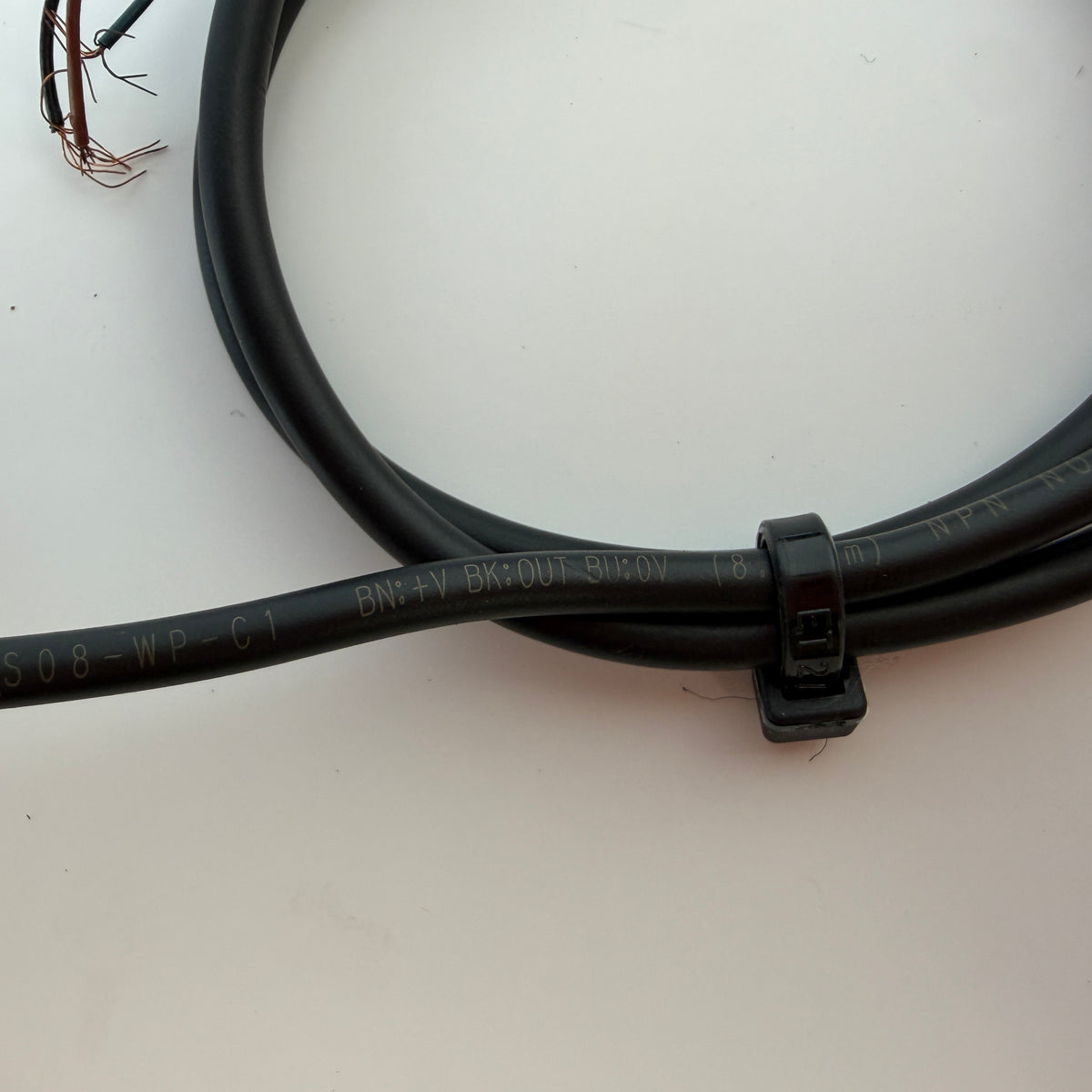

Important: The original pre-wired cable has been shortened. The unit offered here has approximately 60 cm of cable remaining with unterminated/free wire ends, as shown in the photos.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2B |
| MPN | E2B-M18KS08-WP-C1 |
| Sensor Type | Inductive proximity sensor |
| Housing Size | M18 |
| Thread | M18 × 1 |
| Body Type | Short body |
| Installation | Shielded |
| Nominal Sensing Distance | 8 mm ±10% |
| Setting Distance | 0–6.4 mm |
| Detectable Object | Ferrous metal |
| Output | NPN open collector |
| Operation | Normally Open (NO) |
| Supply Voltage | 10–30 V DC |
| Current Consumption | 10 mA max. |
| Load Current | 200 mA max. |
| Response Frequency | 500 Hz |
| Indicator | Yellow LED |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | Nickel-plated brass |
| Sensing Surface | PBT |
| Cable on This Unit | Approx. 60 cm, cut / unterminated |
| Protection Circuits | Reverse polarity, surge and short-circuit protection |
Package Contents
1 × Omron E2B-M18KS08-WP-C1 proximity sensor, exactly as pictured.
