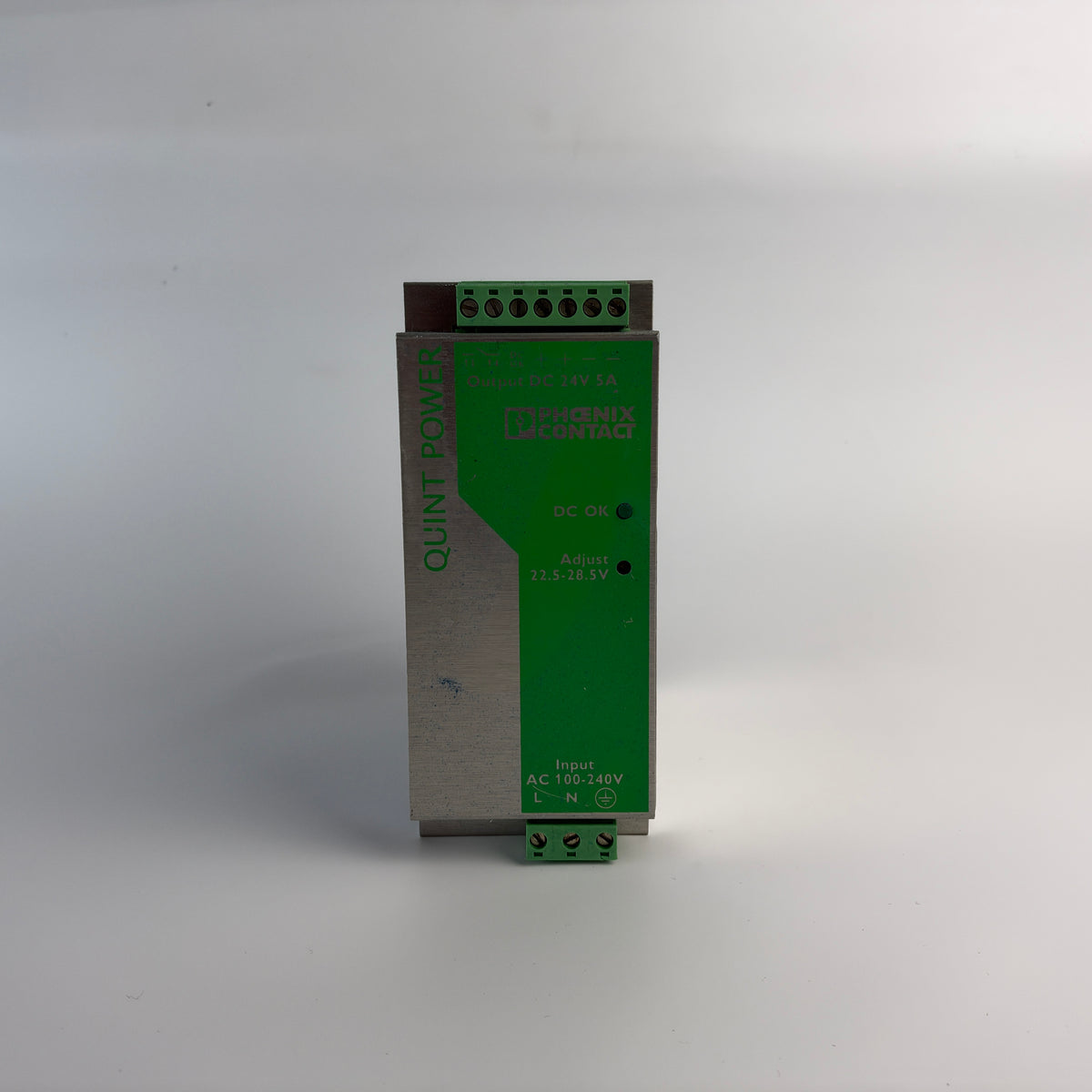

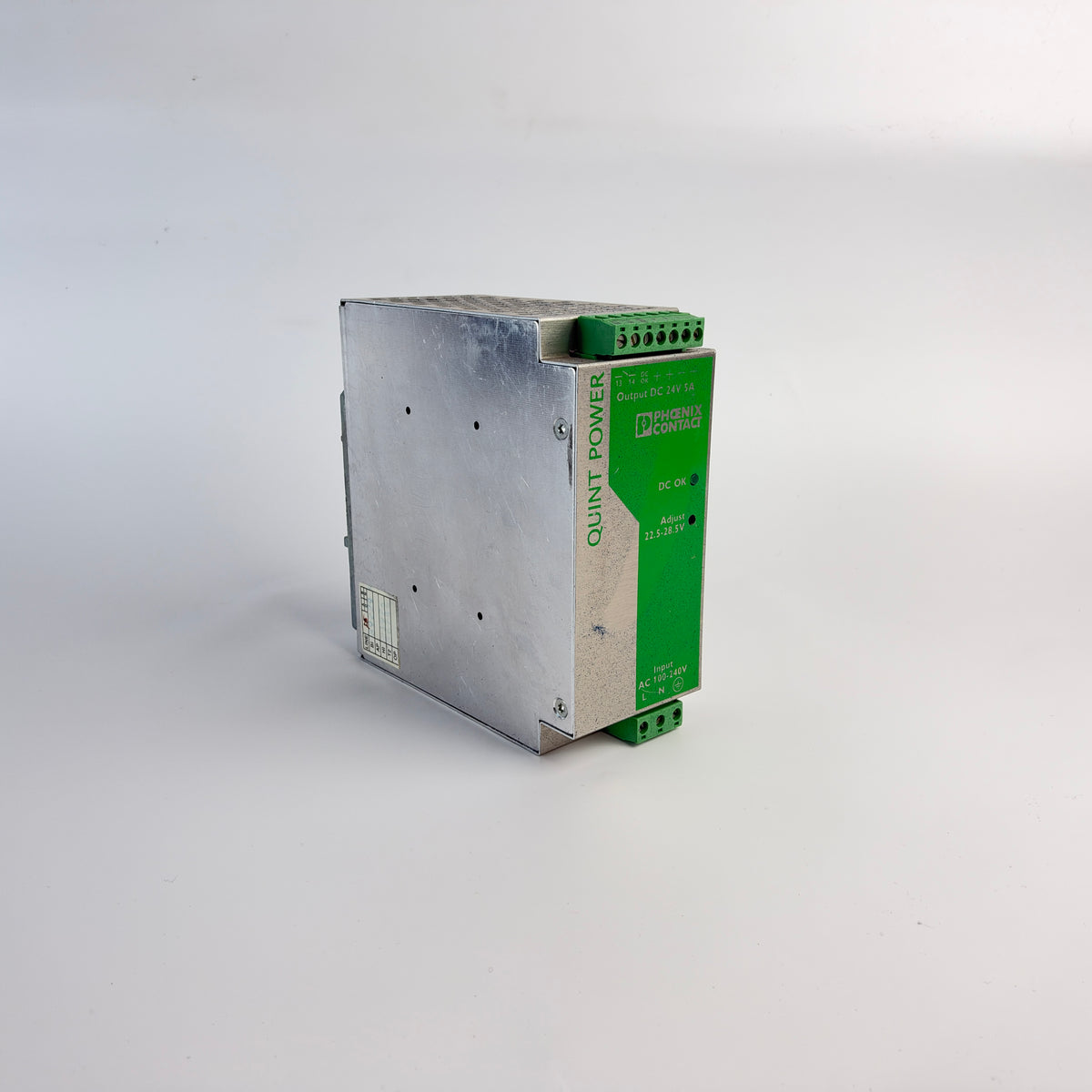

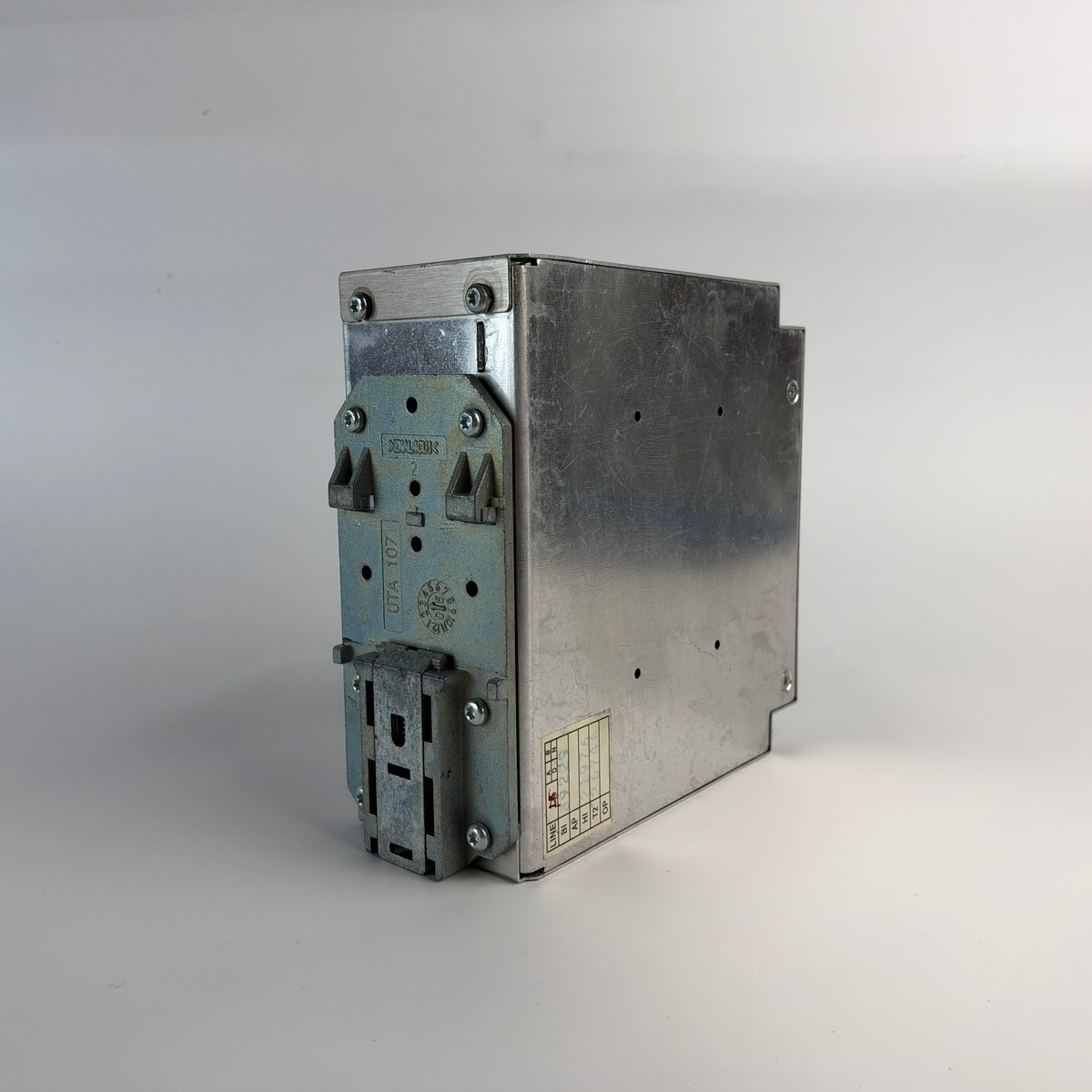

Phoenix Contact QUINT-PS-100-240AC/24DC/5 – Industrial DIN Rail Power Supply, 24V DC, 5A, 120W

The Phoenix Contact QUINT-PS-100-240AC/24DC/5 (Order No. 2938581) is a high-performance industrial switched-mode power supply designed to provide reliable 24V DC power for automation systems, industrial control cabinets, PLC systems, sensors, and other industrial equipment.

Part of the Phoenix Contact QUINT POWER series, this single-phase power supply features a wide input voltage range, adjustable output voltage, POWER BOOST technology, and integrated DC OK diagnostics.

Its robust metal housing and DIN rail mounting design make it suitable for demanding industrial environments.

Technical Specifications:

• Manufacturer: Phoenix Contact
• Series: QUINT POWER

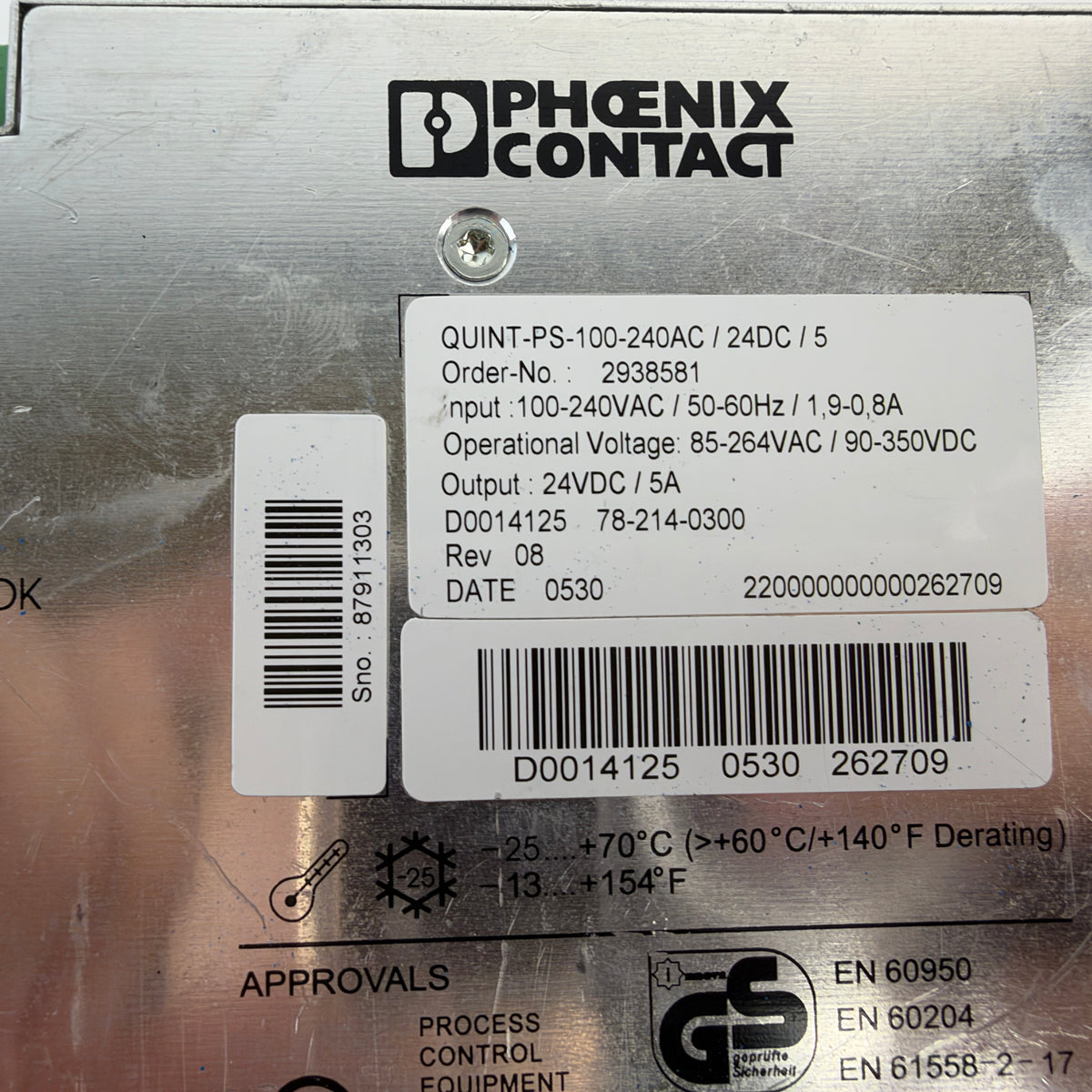

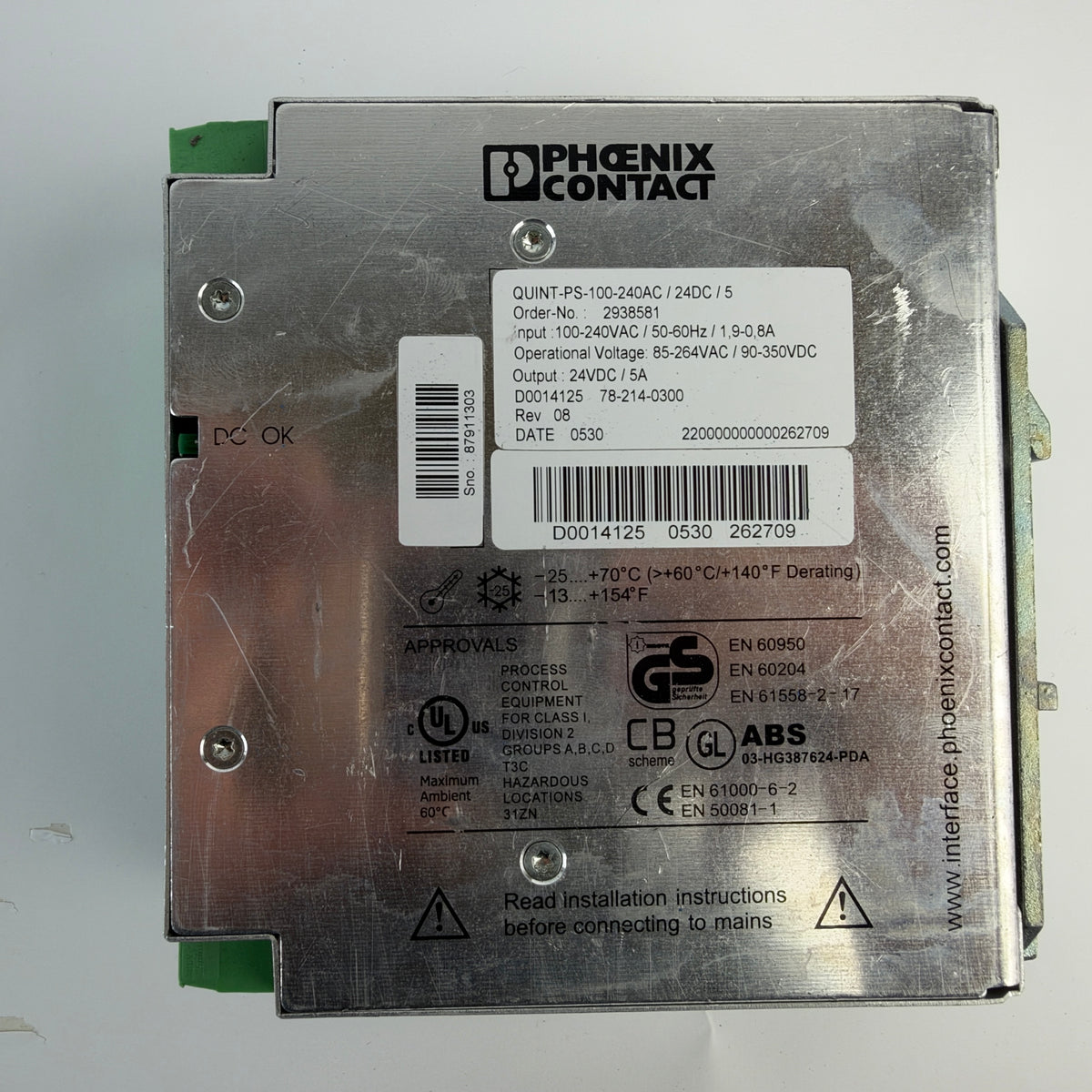

• Model: QUINT-PS-100-240AC/24DC/5
• Manufacturer Part Number: 2938581
• Revision: 08
• Type: Industrial Switched-Mode Power Supply
• Nominal Input Voltage: 100–240V AC
• Operating Input Voltage: 85–264V AC / 90–350V DC
• Input Frequency: 50/60 Hz
• Nominal Output Voltage: 24V DC
• Adjustable Output Voltage: 22.5–28.5V DC
• Nominal Output Current: 5A
• Rated Output Power: 120W
• POWER BOOST Current: 7.5A
• Efficiency: >89%

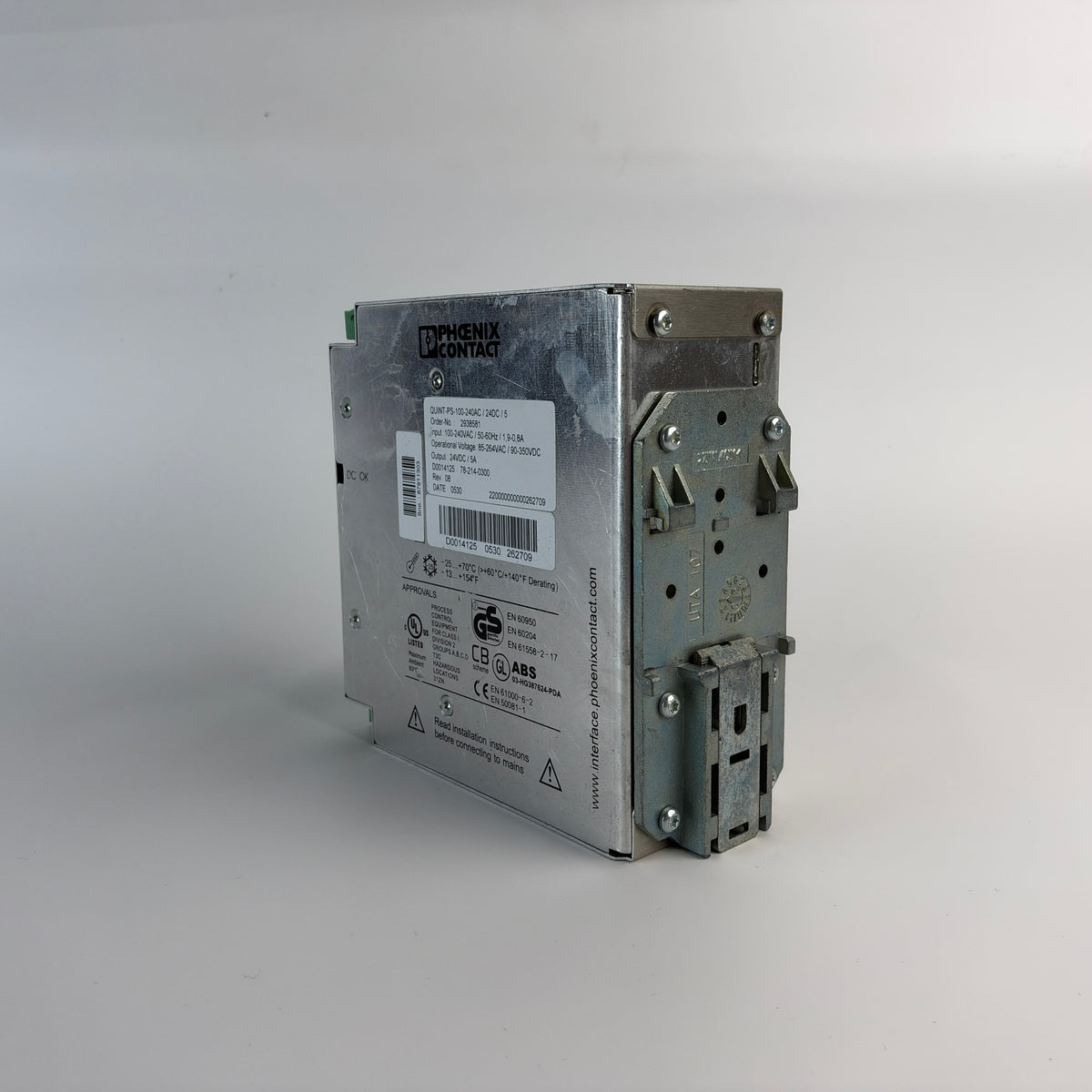

• Mounting: 35mm DIN Rail
• Connection Type: Pluggable Screw Terminals

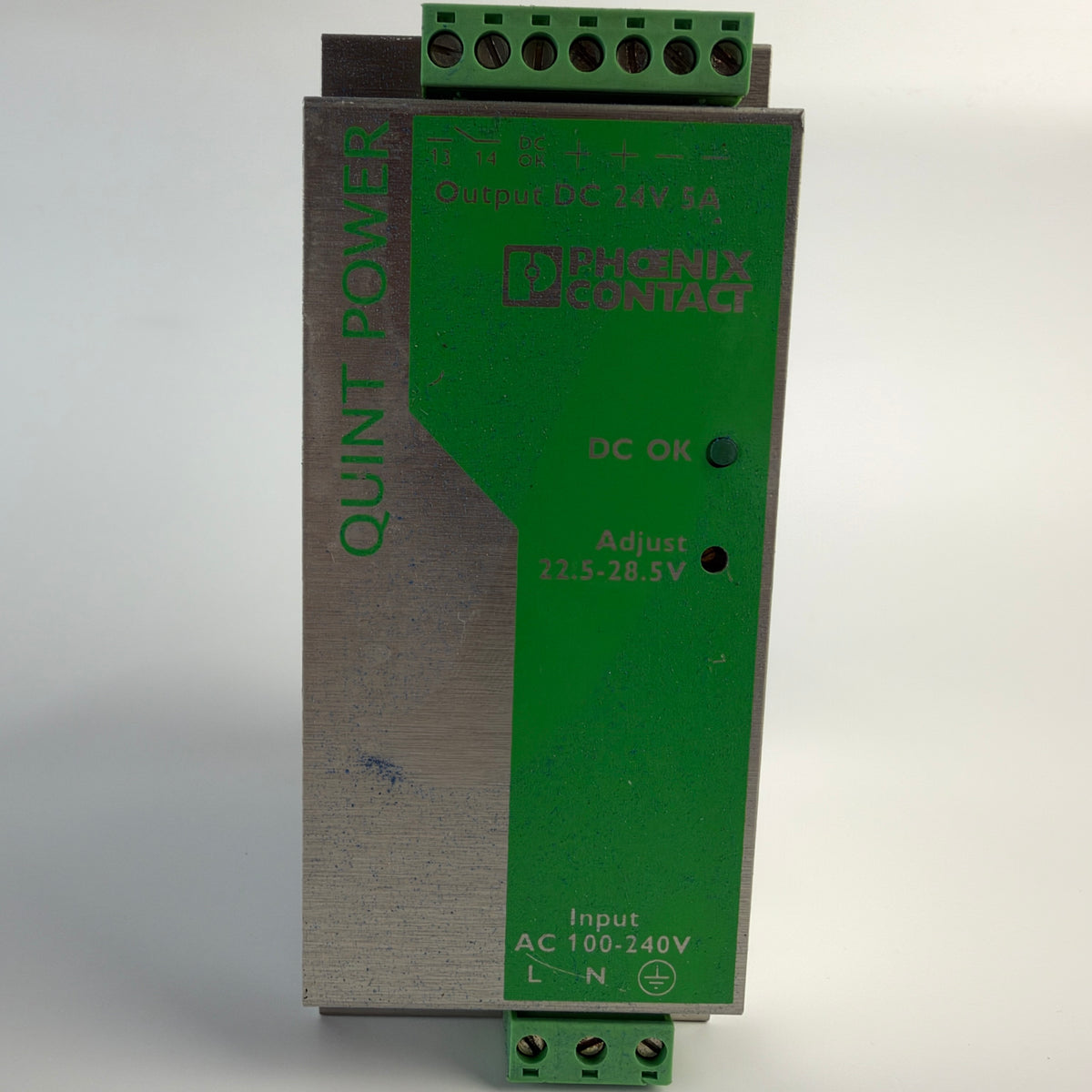

• Status Indication: DC OK LED
• Diagnostic Outputs: DC OK Relay Contact and Active Signal Output
• Protection Rating: IP20
• Operating Temperature: -25°C to +70°C (derating above +60°C)
• Dimensions: 55 × 130 × 125mm
• Housing: Metal
• Revision: Rev 08

Key Features:

• Reliable 24V DC power supply for industrial automation
• Wide-range AC/DC input
• Adjustable DC output voltage
• POWER BOOST technology for increased short-term load capacity
• Integrated DC OK monitoring
• Compact DIN rail mounting
• Robust industrial metal housing
• Suitable for control cabinets and industrial machinery

Condition:

Used, fully functional.

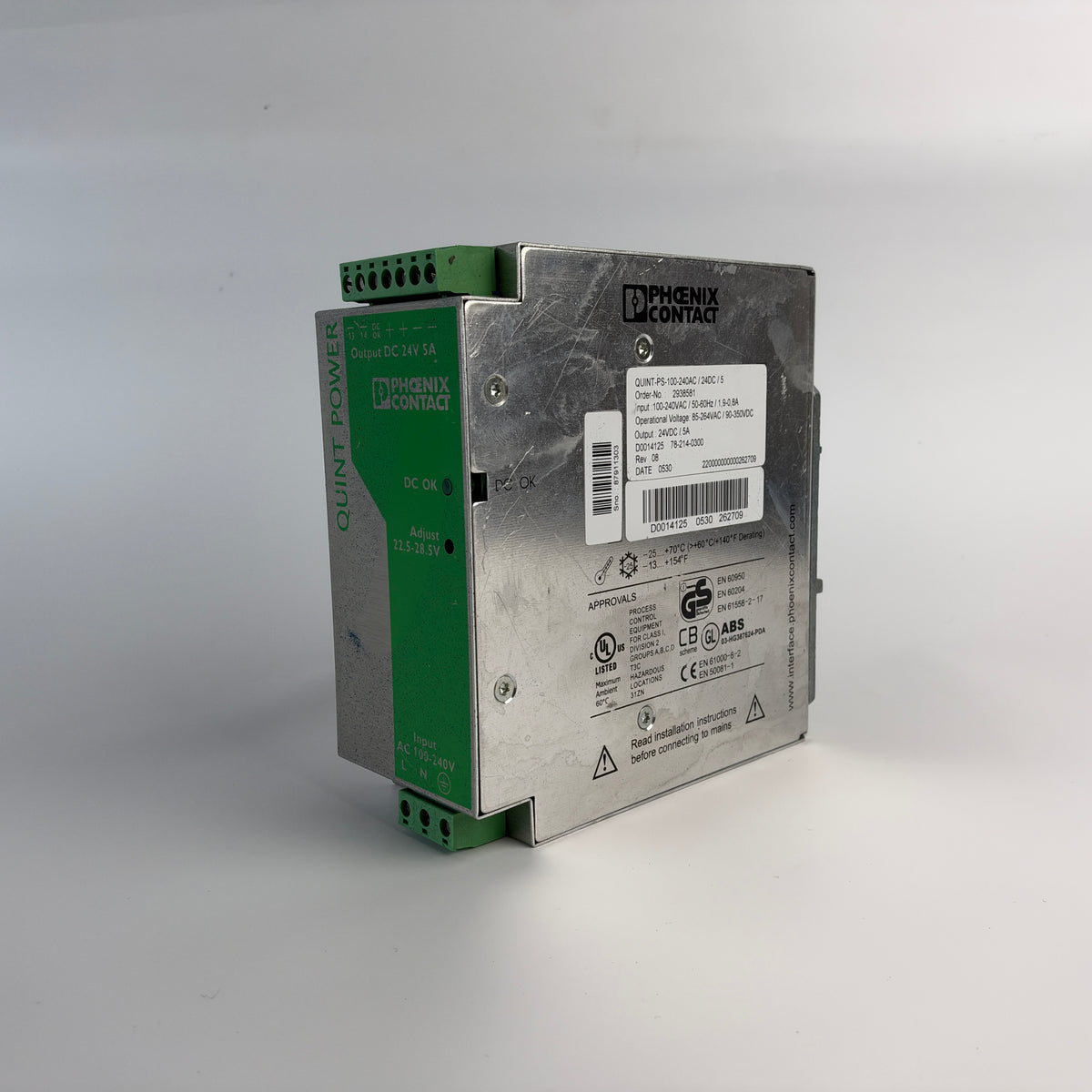

The unit shows visible cosmetic signs of previous use, including surface scratches and marks on the metal housing.

Applications:

Suitable for industrial automation systems, PLC control cabinets, machine control equipment, sensors, industrial electronics, and other applications requiring a regulated 24V DC power supply.
