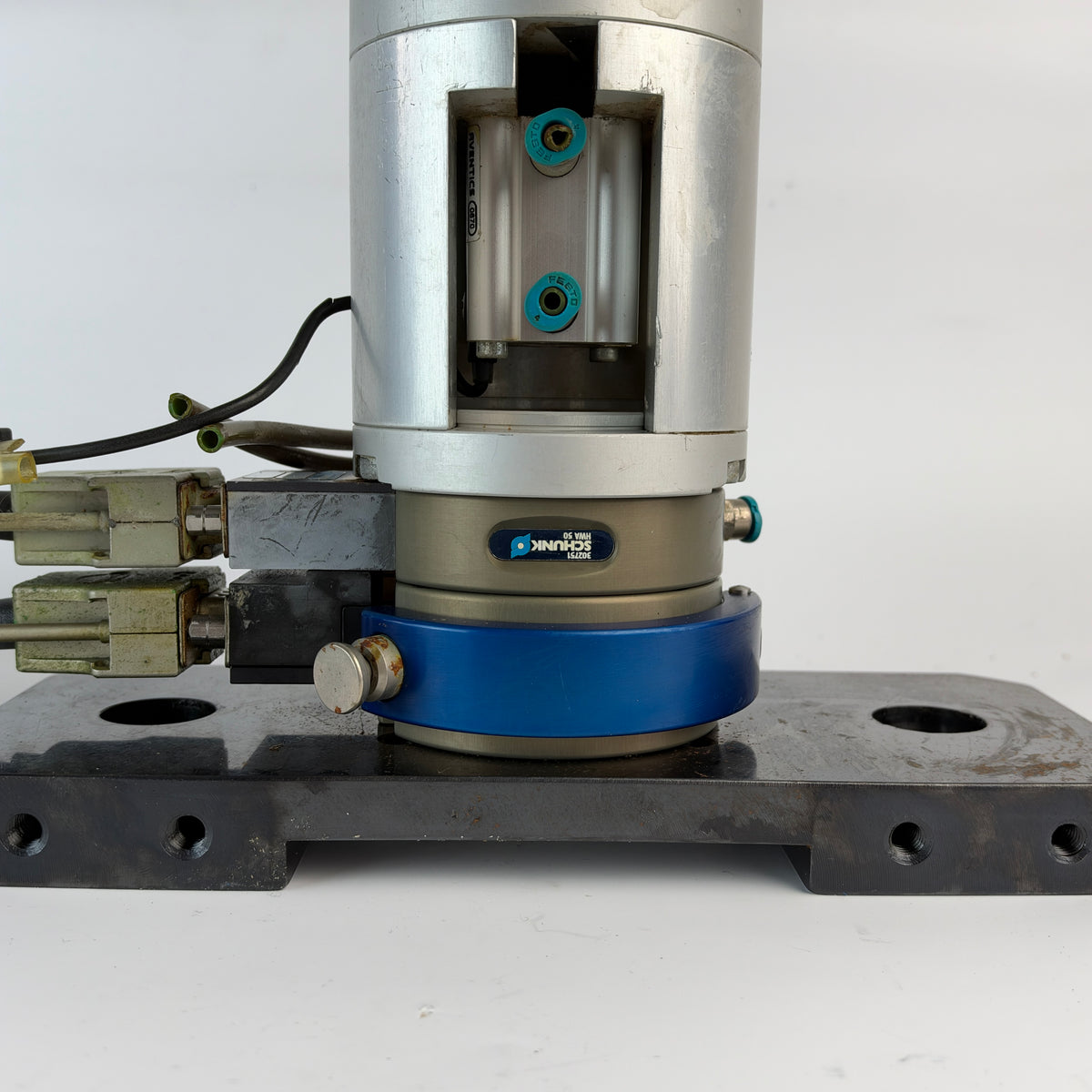

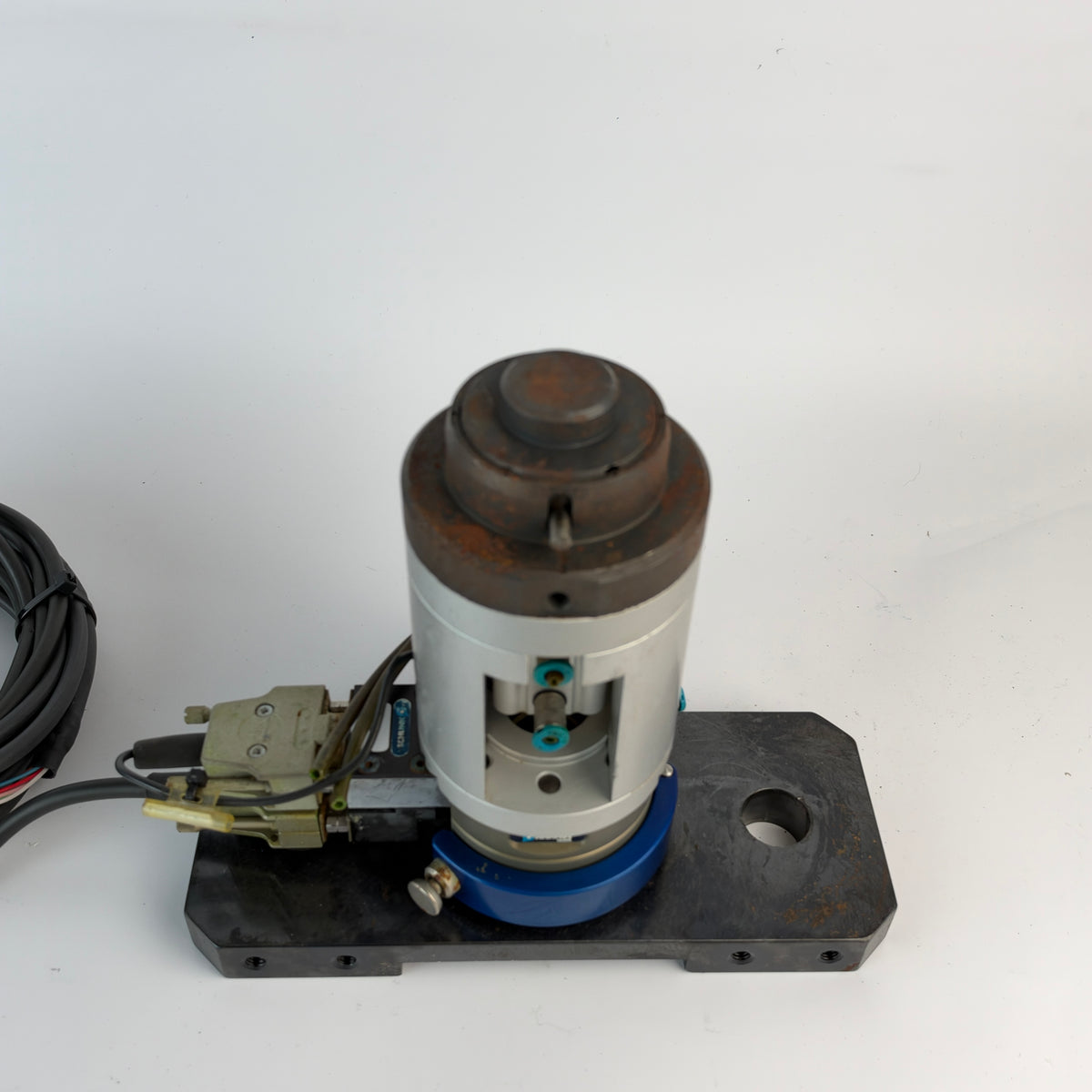

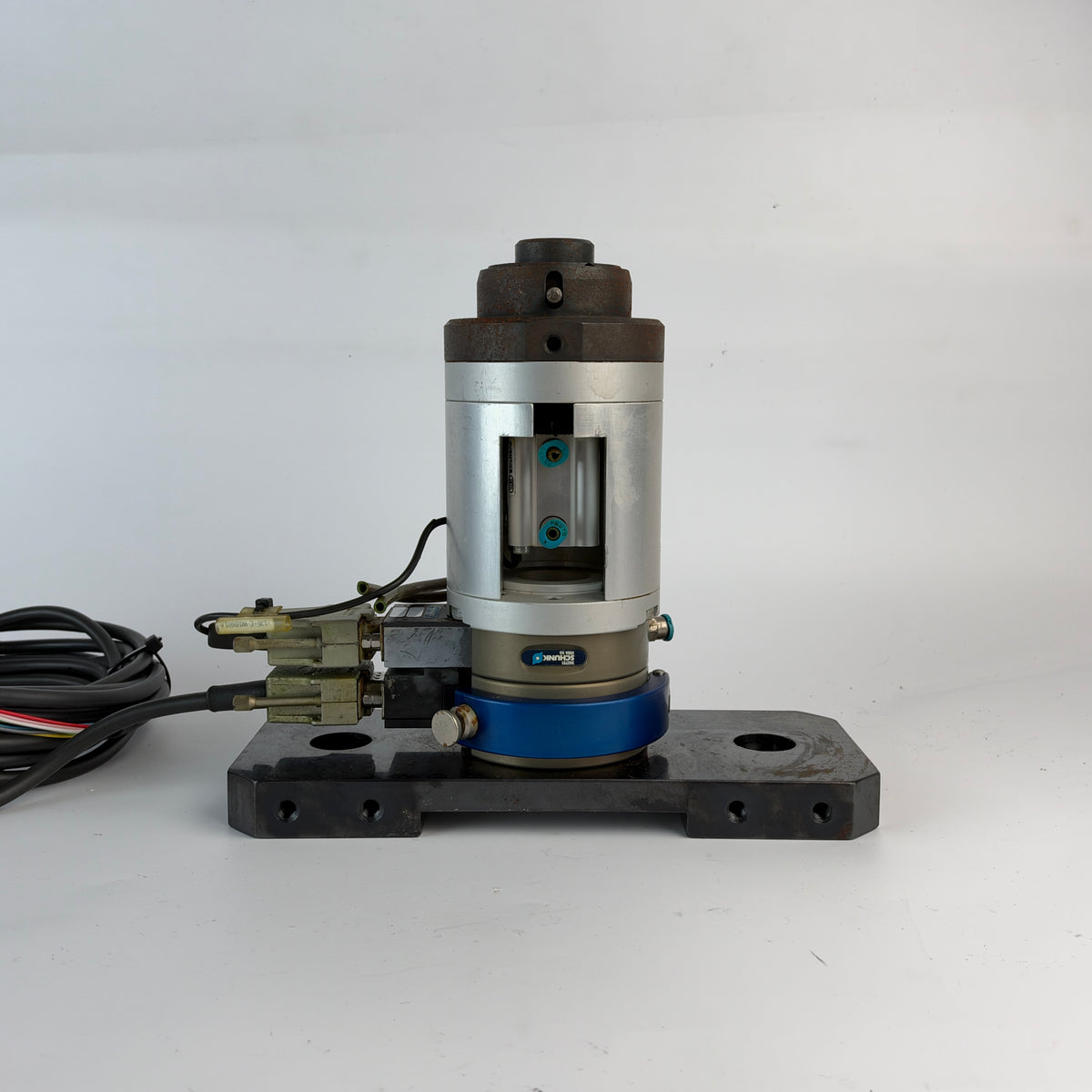

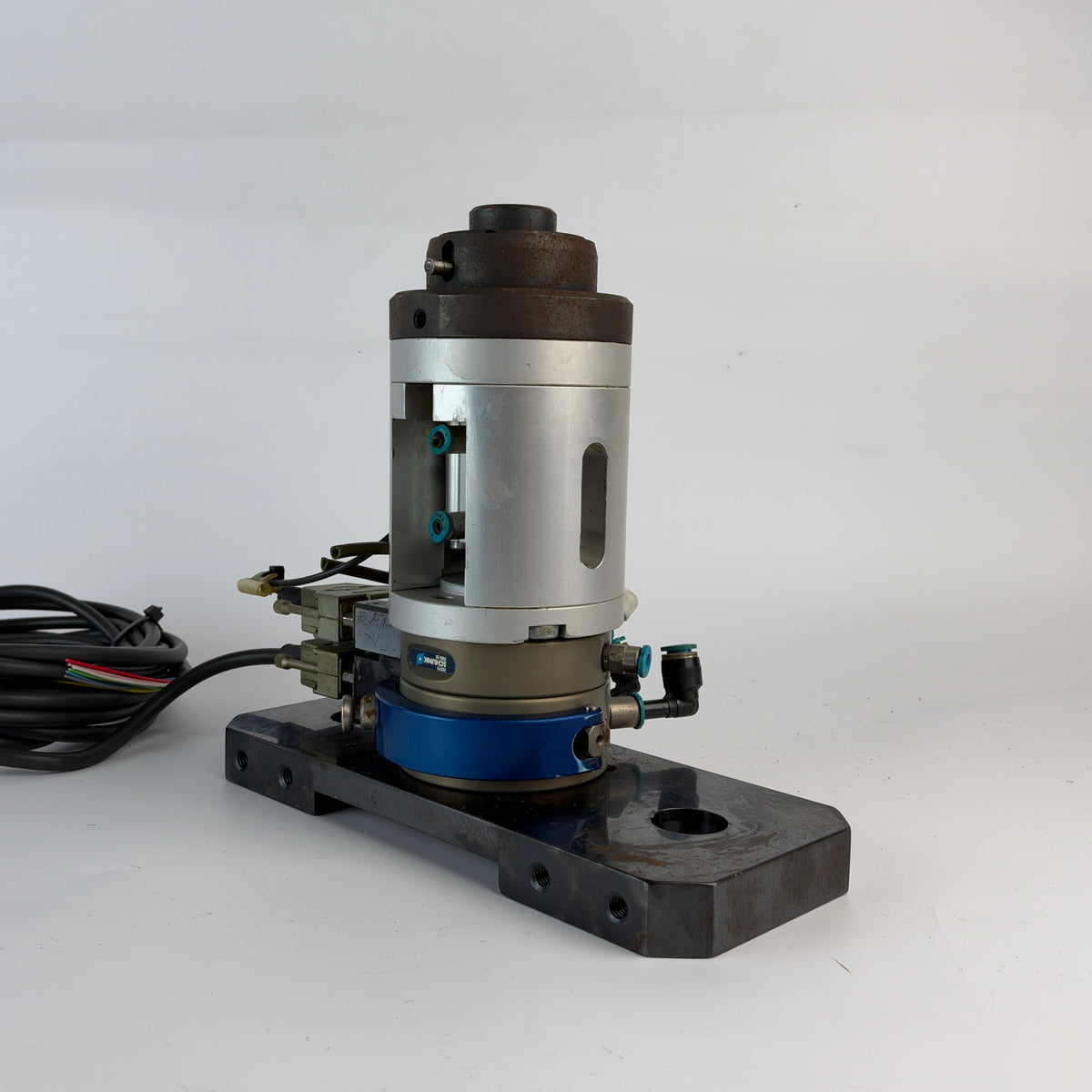

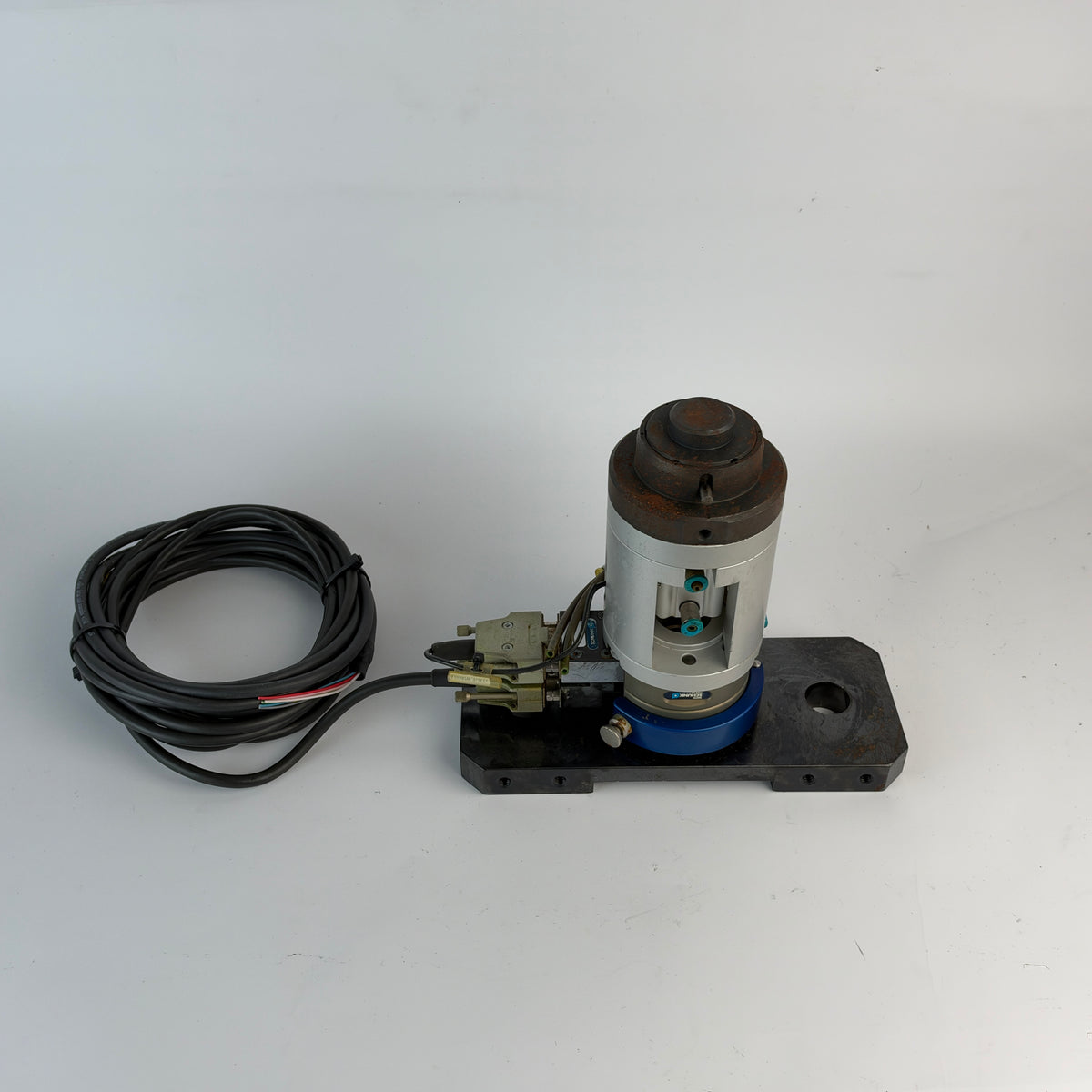

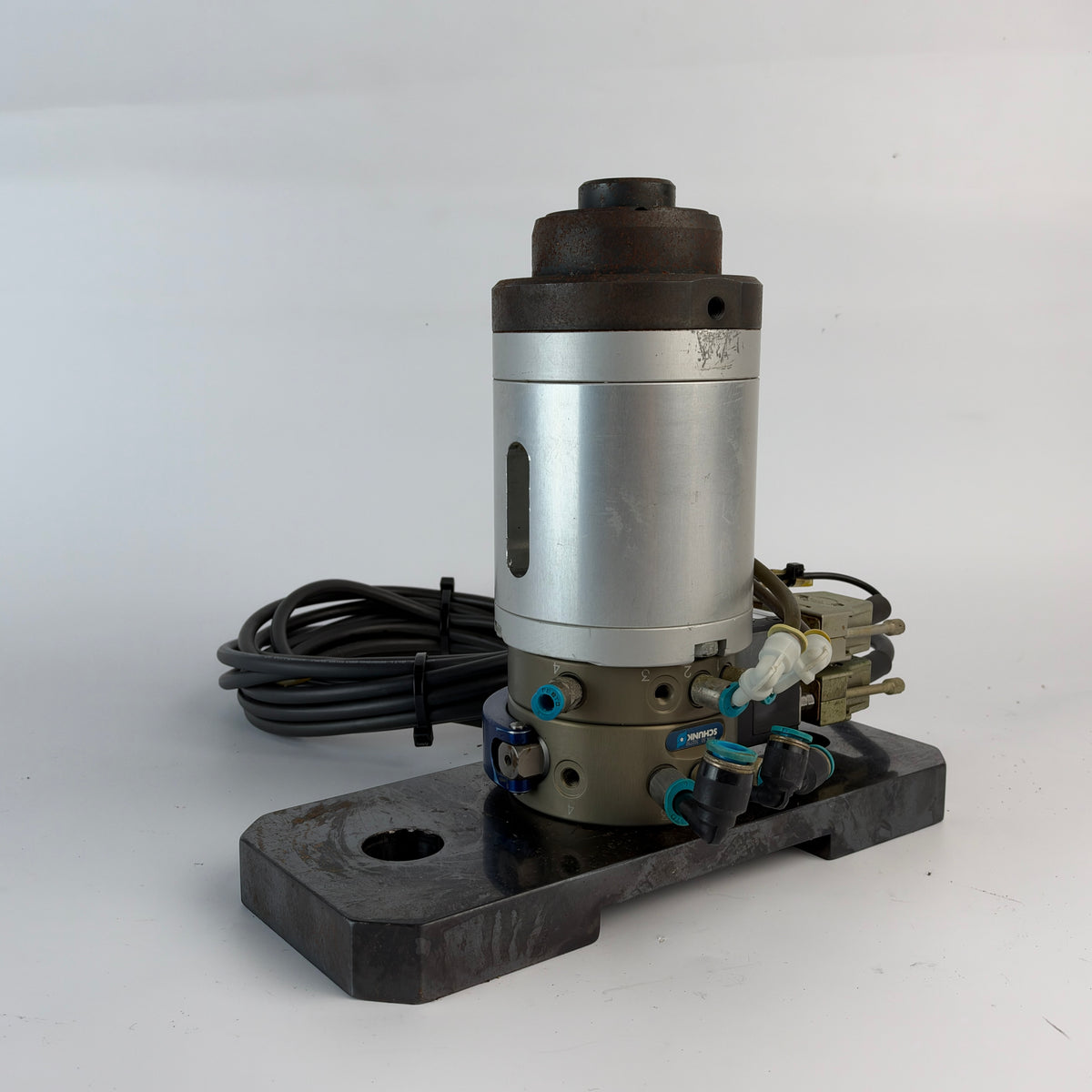

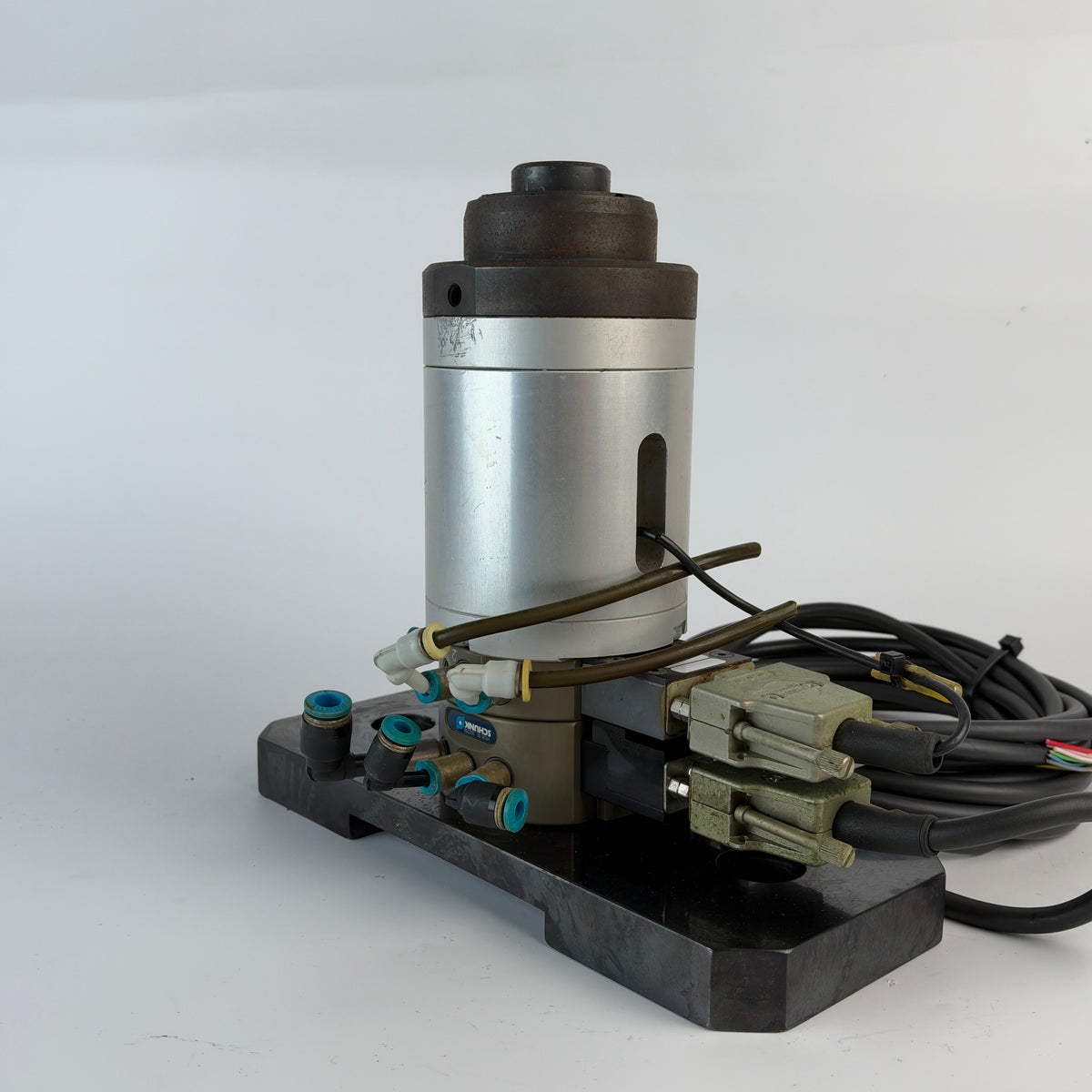

SCHUNK HWA 50 / HWK 50 Industrial Tool Changer Assembly with Pneumatic Cylinder

Industrial automation assembly incorporating SCHUNK HWA 50 and HWK 50 tool-changing components together with a pneumatic cylinder, control components, mounting hardware and a heavy-duty steel base plate.

The assembly includes:

• SCHUNK HWA 50 – Part No. 302751
• SCHUNK HWK 50 – Part No. 302750
• Pneumatic cylinder/actuator
• Pneumatic fittings and tubing
• Control/switch components with electrical cabling
• Mechanical mounting structure
• Heavy-duty steel mounting base

The SCHUNK HWA/HWK components form part of an industrial tool-changing interface intended for automation and robotic handling applications. This assembly appears to have been configured as part of a larger machine-specific tool-changing or positioning system.

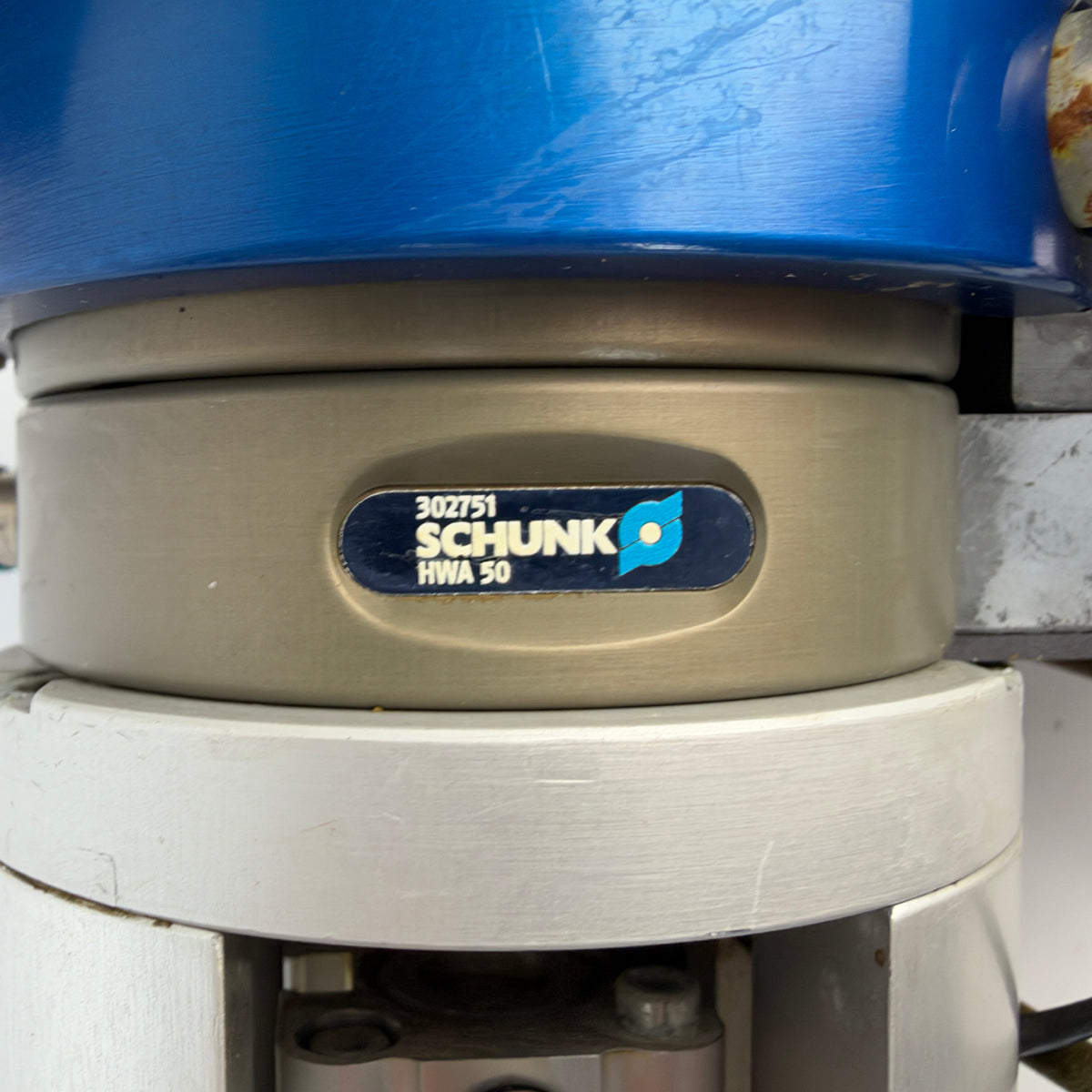

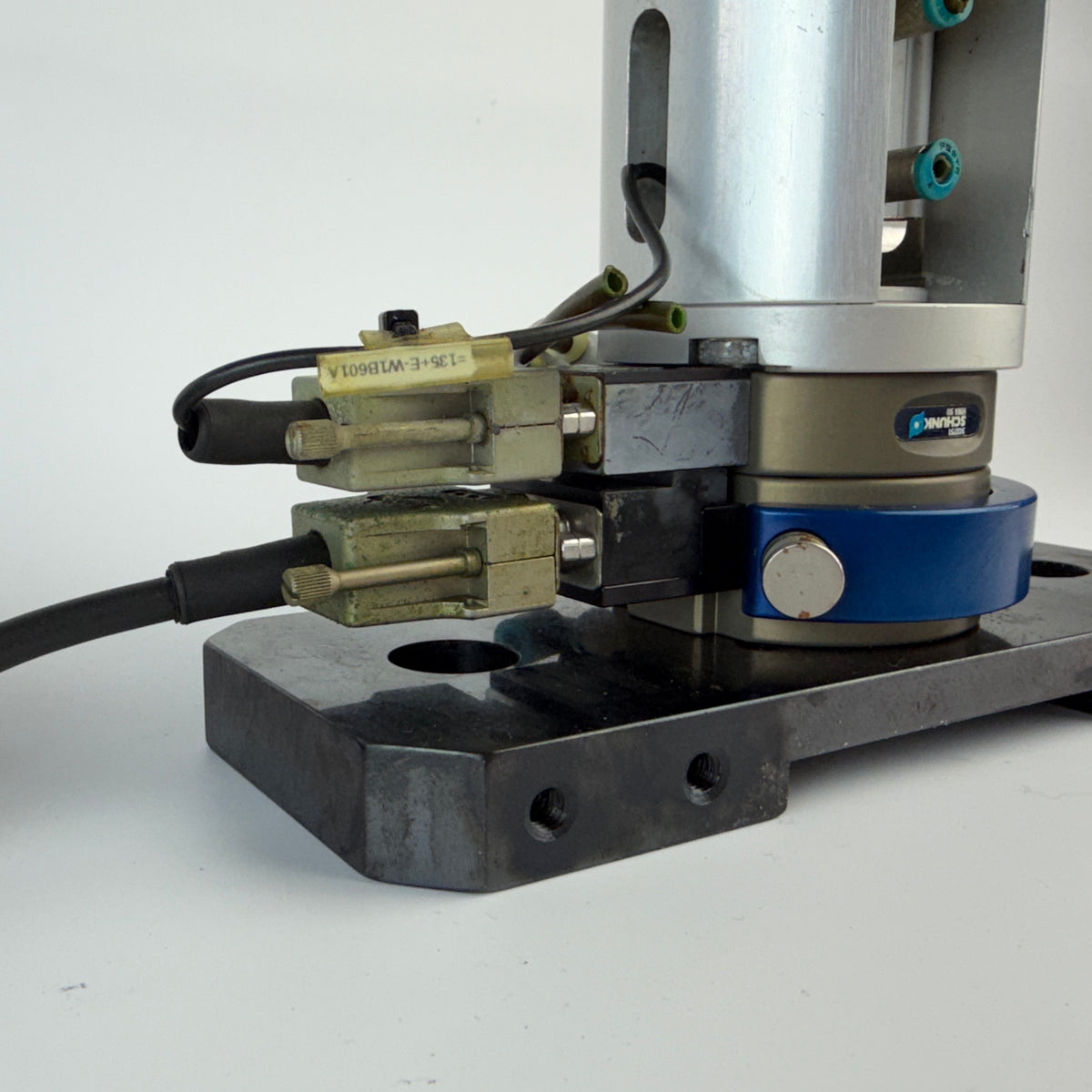

The HWA 50 identification and part number 302751 are visible on the unit. The HWK 50 / 302750 identification is supplied by the owner but is not clearly visible in the provided photographs.

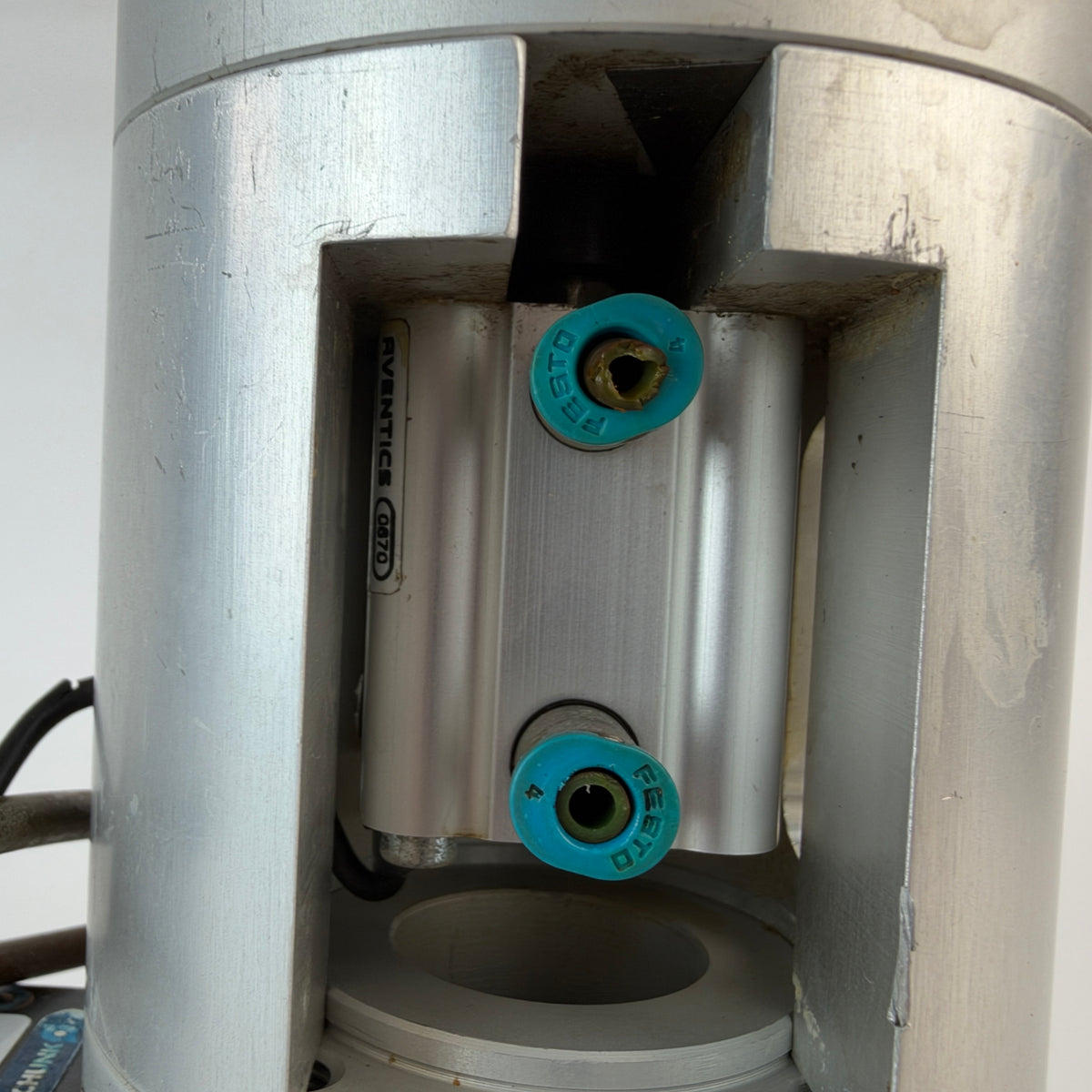

The pneumatic cylinder carries an AVENTICS marking and visible reference “08270”; however, its complete model, bore, stroke and operating specifications have not been confirmed.

Several pneumatic ports, push-in fittings and hoses are present, together with electrical cabling for the associated control/sensing components.

Condition: Used, fully functional.

Visible signs of previous industrial service are present, including scratches, surface wear and corrosion on exposed steel components and the mounting base.

Compatibility with a specific robot, machine or tool must be verified by the buyer before installation.

Sold as one complete assembly as pictured.
