SCHUNK HWA 50 Manual Robotic Tool Changer with Pneumatic Cylinder Assembly

Industrial robotic tool-changing assembly featuring a genuine SCHUNK HWA 50 manual tool changer, part number 302751, combined with an additional pneumatic actuator and associated pneumatic components.

The SCHUNK HWA series is designed for manual tool-changing applications in industrial automation and robotic systems.

Tool changers provide a mechanical interface for attaching and exchanging tools, grippers or other end-of-arm equipment.

This particular unit is supplied as a previously assembled industrial mechanism with additional pneumatic components.

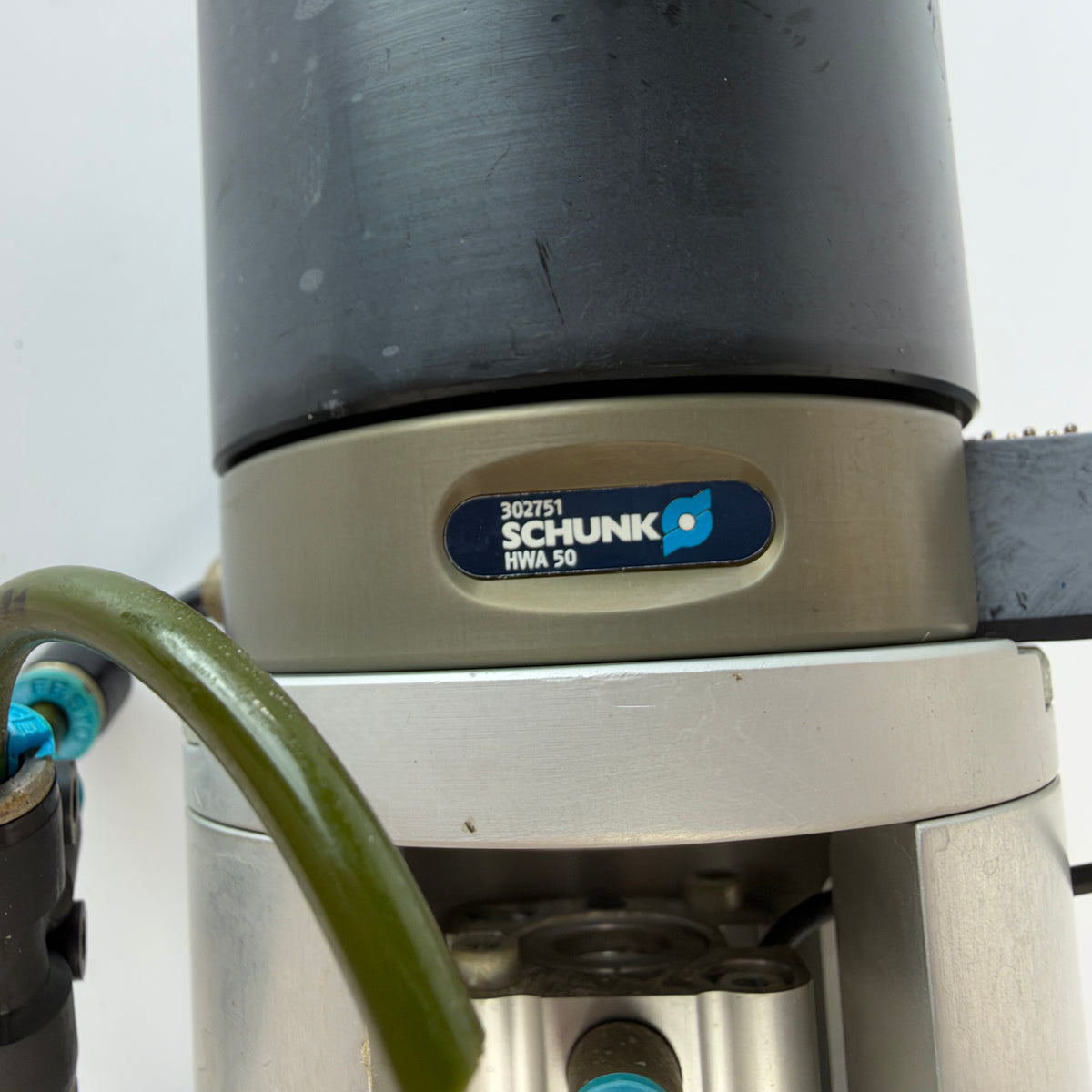

Main SCHUNK Component

• Manufacturer: SCHUNK
• Series: HWA
• Model: HWA 50
• Full Model Designation: HWA-050-000-000
• Part Number: 302751
• Type: Manual Robotic Tool Changer
• Application: Industrial Robot Tool-Changing Systems

Additional Assembly Components

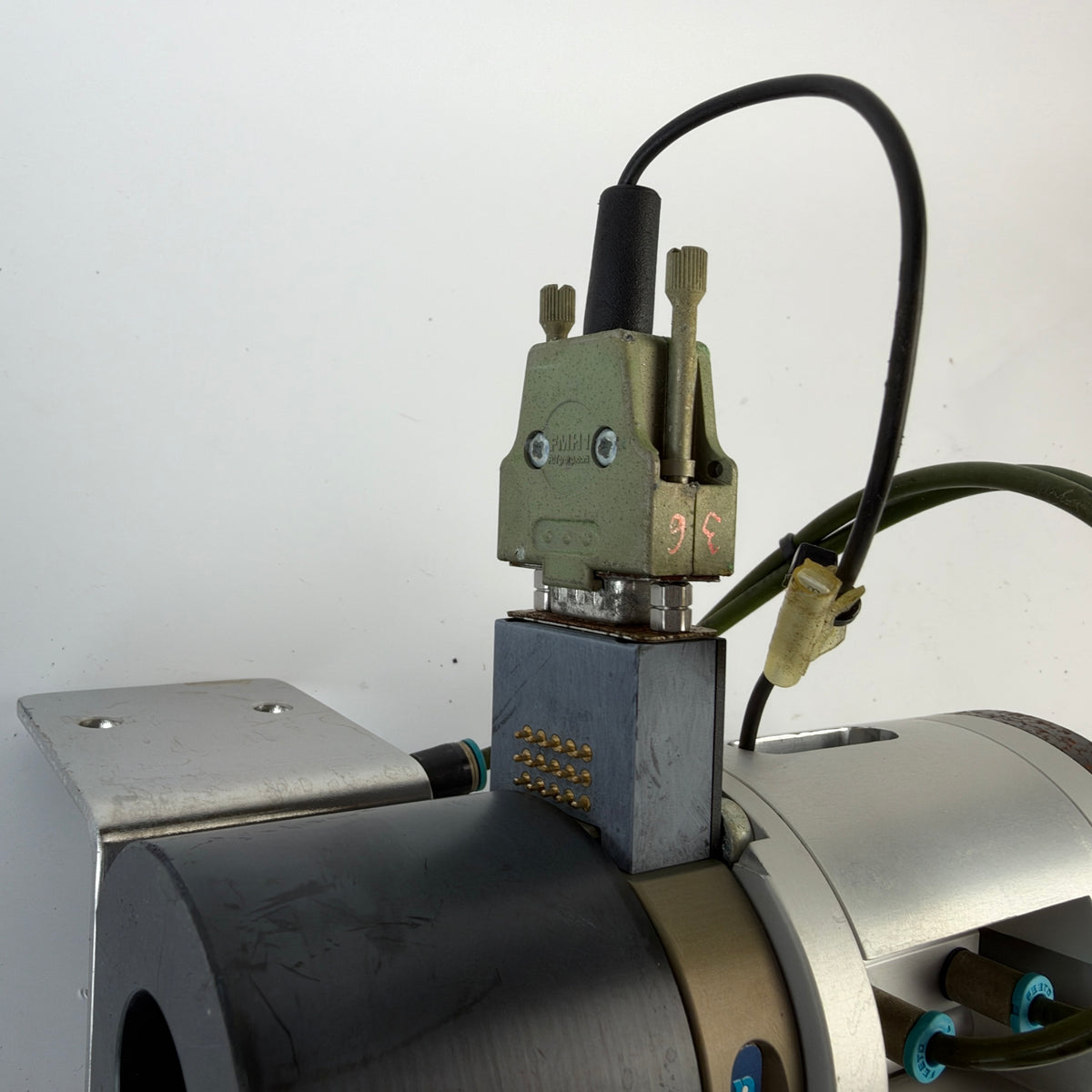

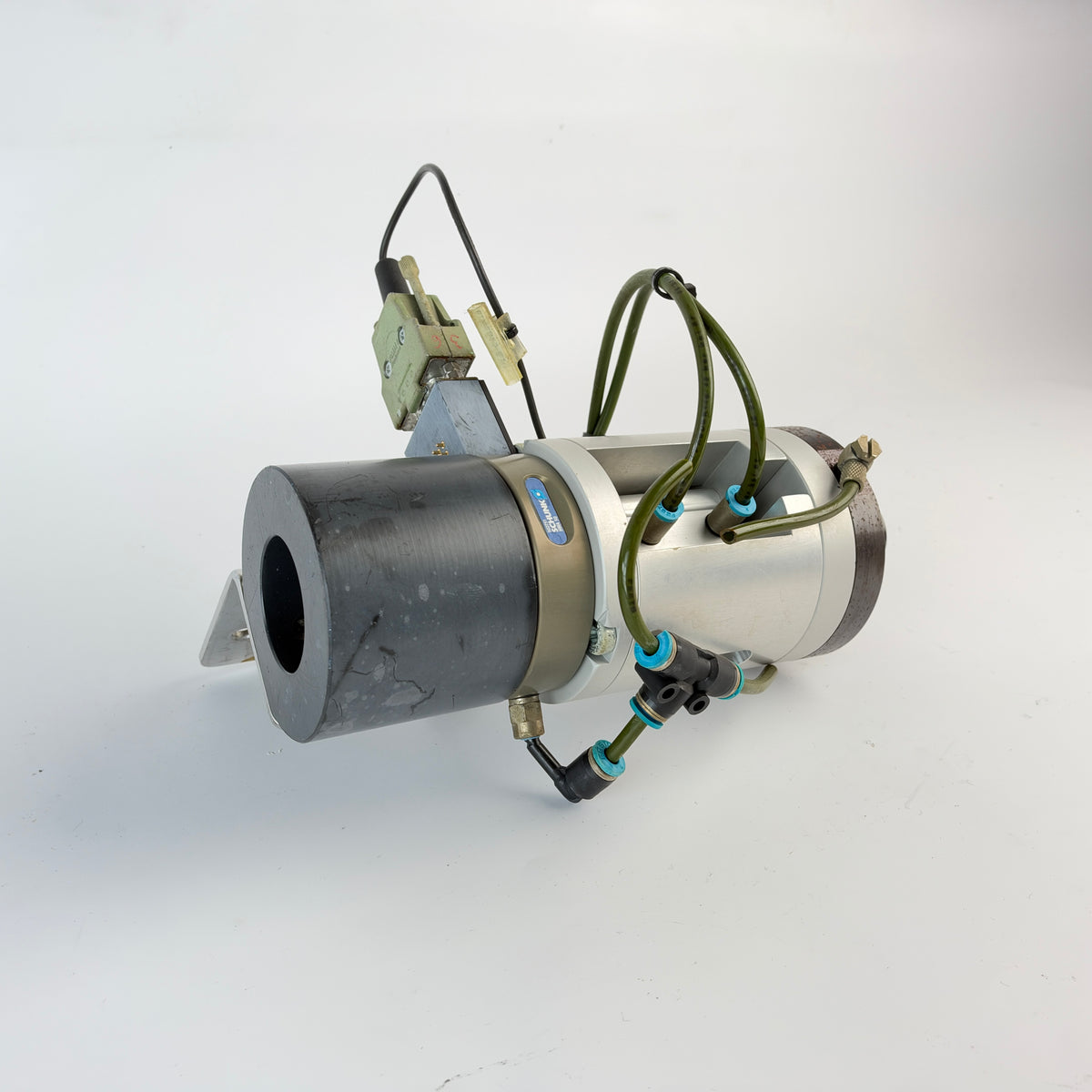

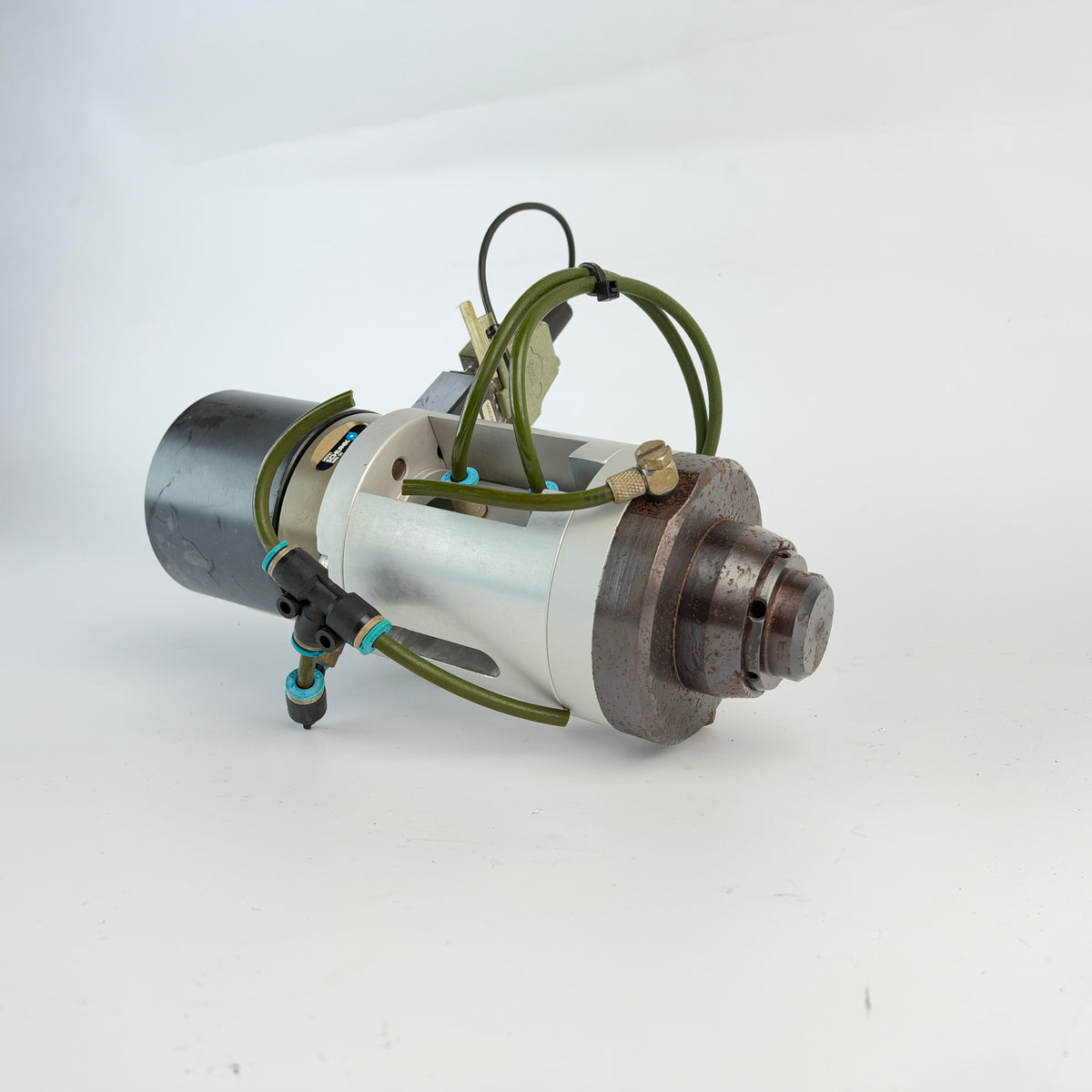

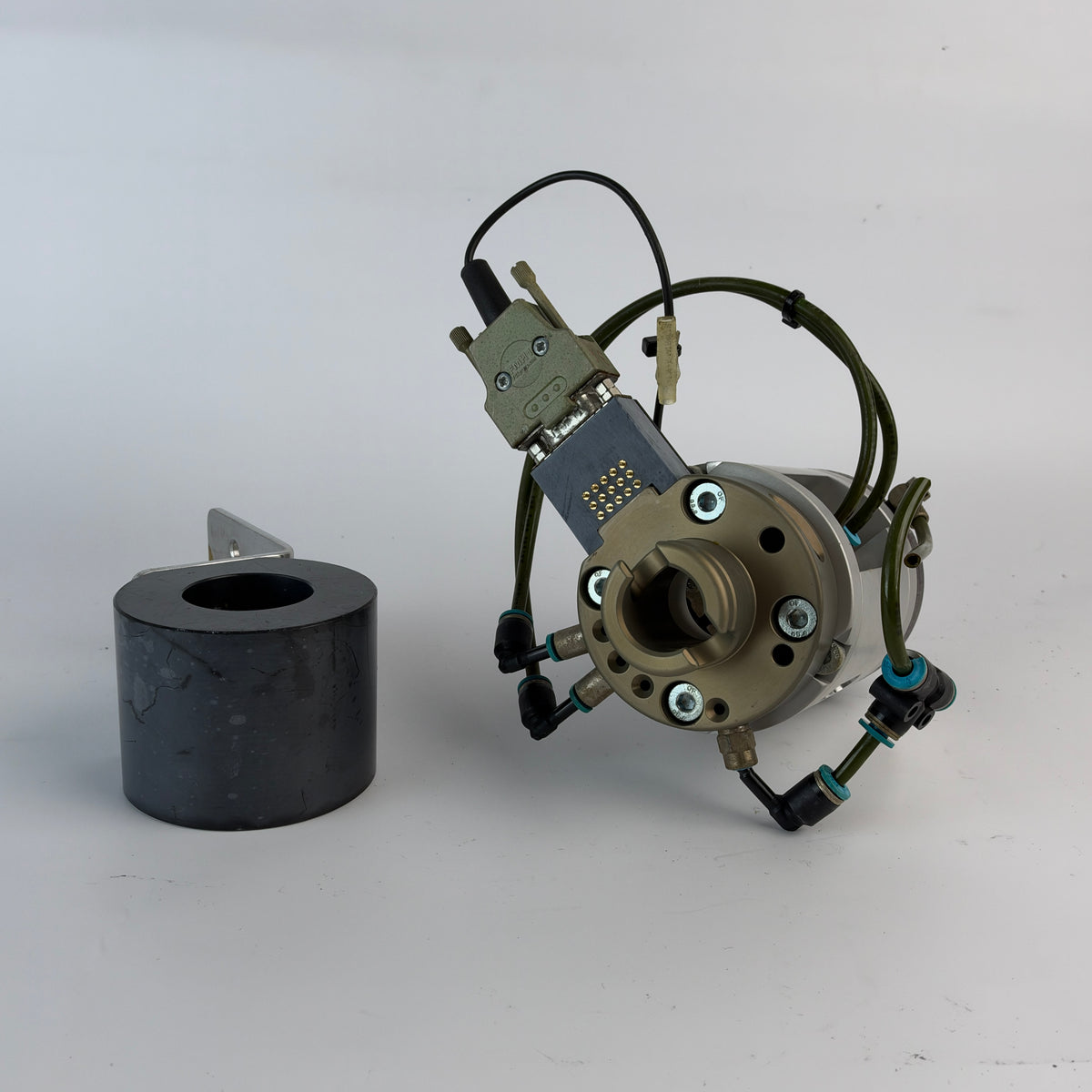

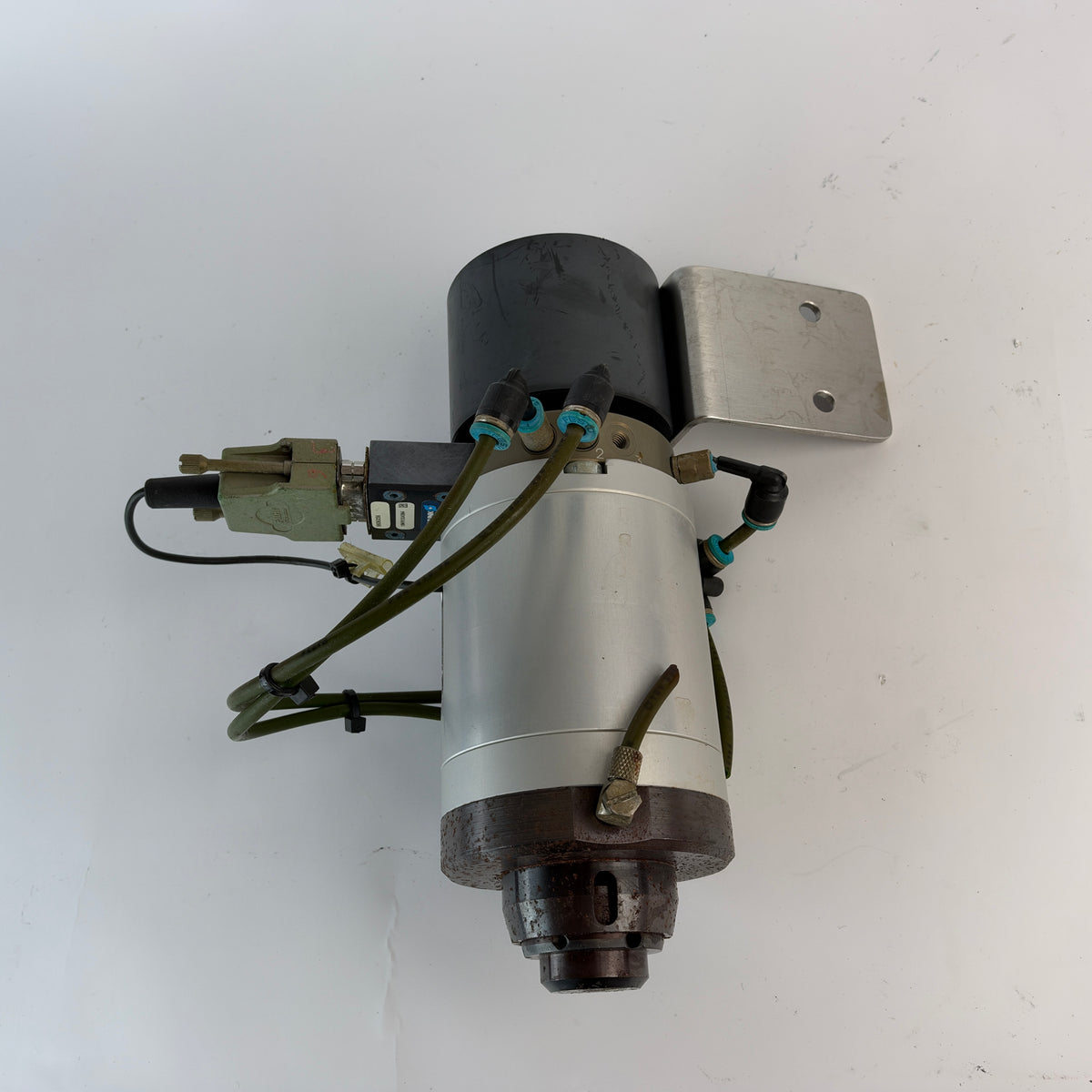

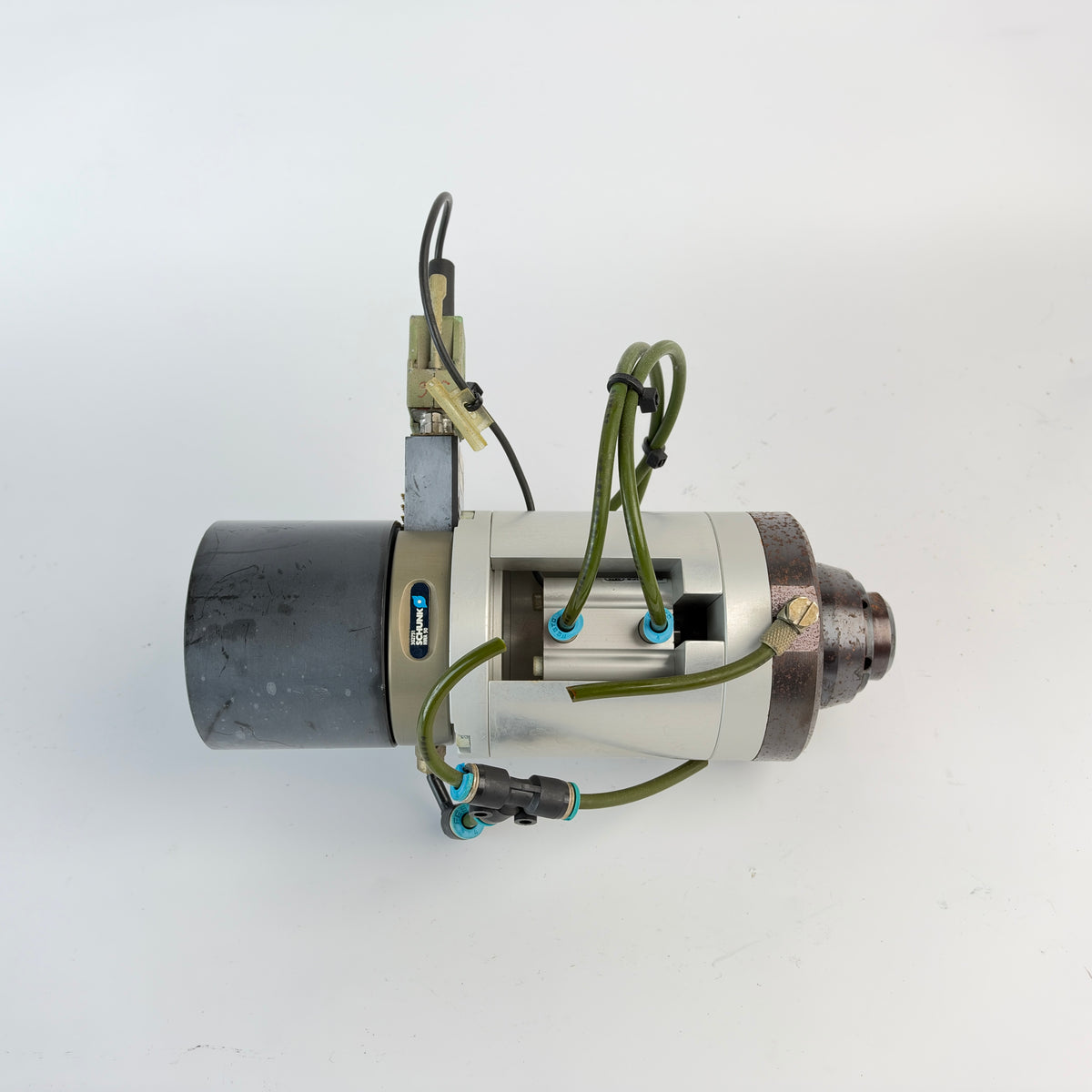

The photographed assembly includes:

• SCHUNK HWA 50 tool-changing component
• Additional pneumatic cylinder/actuator
• Pneumatic fittings and tubing
• Pneumatic control valve assembly
• Metal mounting bracket
• Mechanical output and mounting components

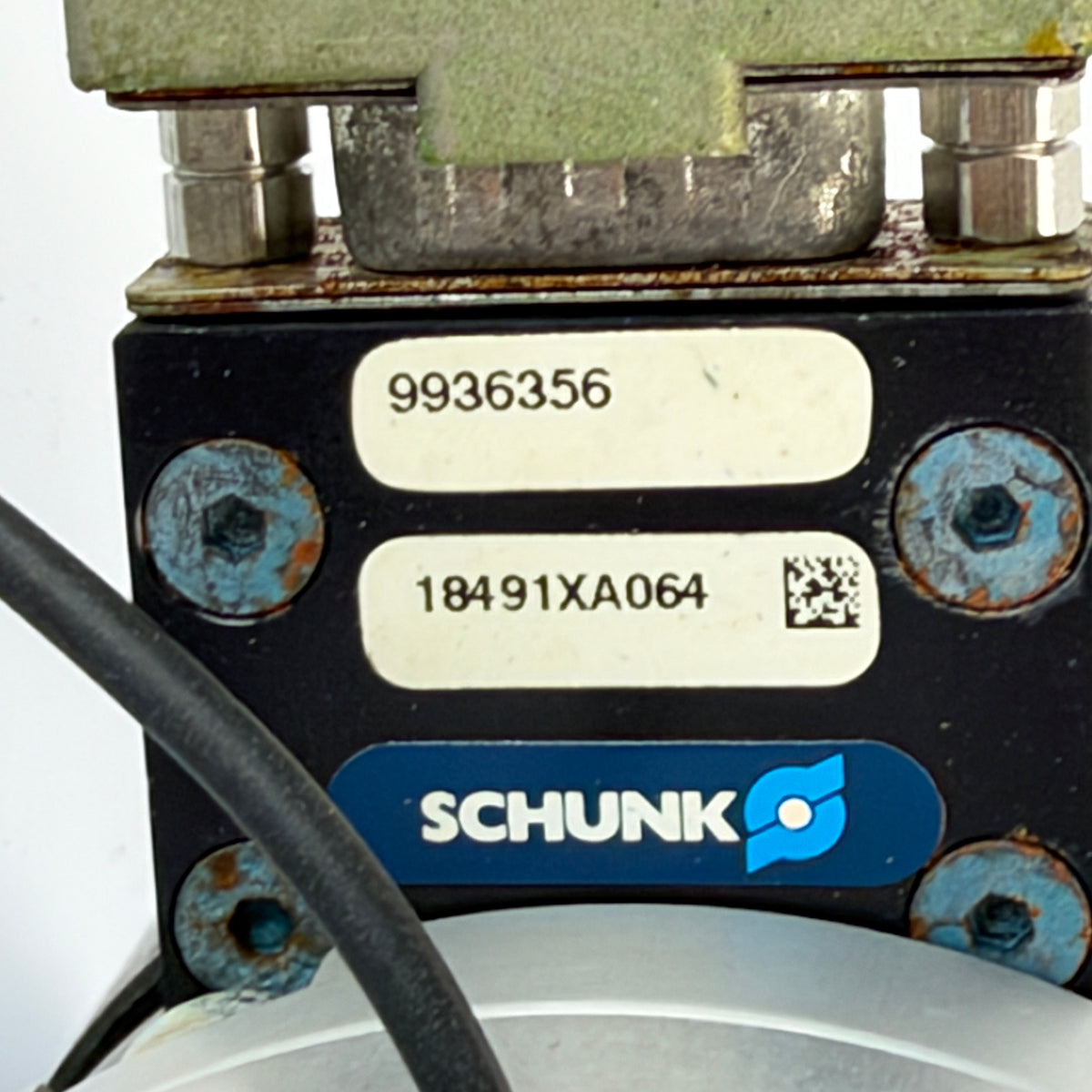

An additional SCHUNK-marked component carries the visible references:

• 9936356
• 18491XA064

The exact identification and function of this additional component have not been independently confirmed.

Pneumatic Configuration

The assembly includes several pneumatic push-in fittings and connected tubing.

The exact operating pressure, cylinder bore, stroke and pneumatic circuit configuration have not been confirmed.

Some pneumatic tubes have open or cut ends and may require replacement or reconnection before installation.

Condition

Used, fully functional.

The assembly shows visible signs of previous industrial use, including scratches, surface wear and corrosion on the steel output section.

Important Information

The SCHUNK HWA 50 identification applies specifically to the marked tool-changing component.

The additional pneumatic actuator and associated components form part of a larger assembly whose original machine application has not been established.

Compatibility with specific robots, tools or machinery must be verified before installation.

Included: One industrial assembly with SCHUNK HWA 50 tool changer, pneumatic actuator, valve, tubing and mounting components, as pictured.
