Smart Vision Lights S75-365 industrial UV LED brick light designed for machine vision, inspection, imaging, and automation applications.

The S75-365 uses 365 nm ultraviolet illumination and belongs to the Smart Vision Lights S75 Brick Light series. It operates from a 24 VDC supply and incorporates an internal Smart Driver for constant-on and strobe operation. The standard S75-365 configuration uses narrow-angle optics and is designed for direct/front machine-vision illumination.

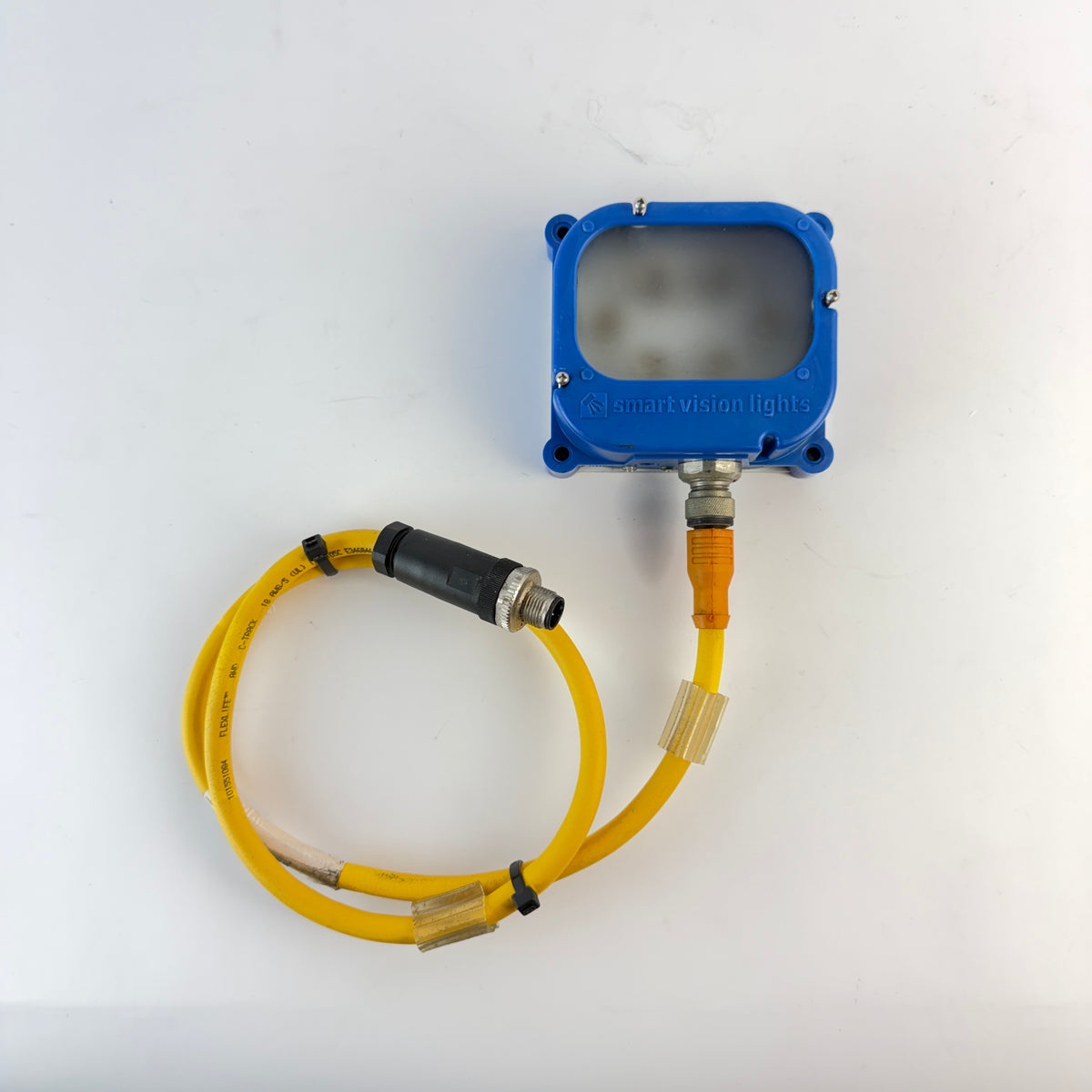

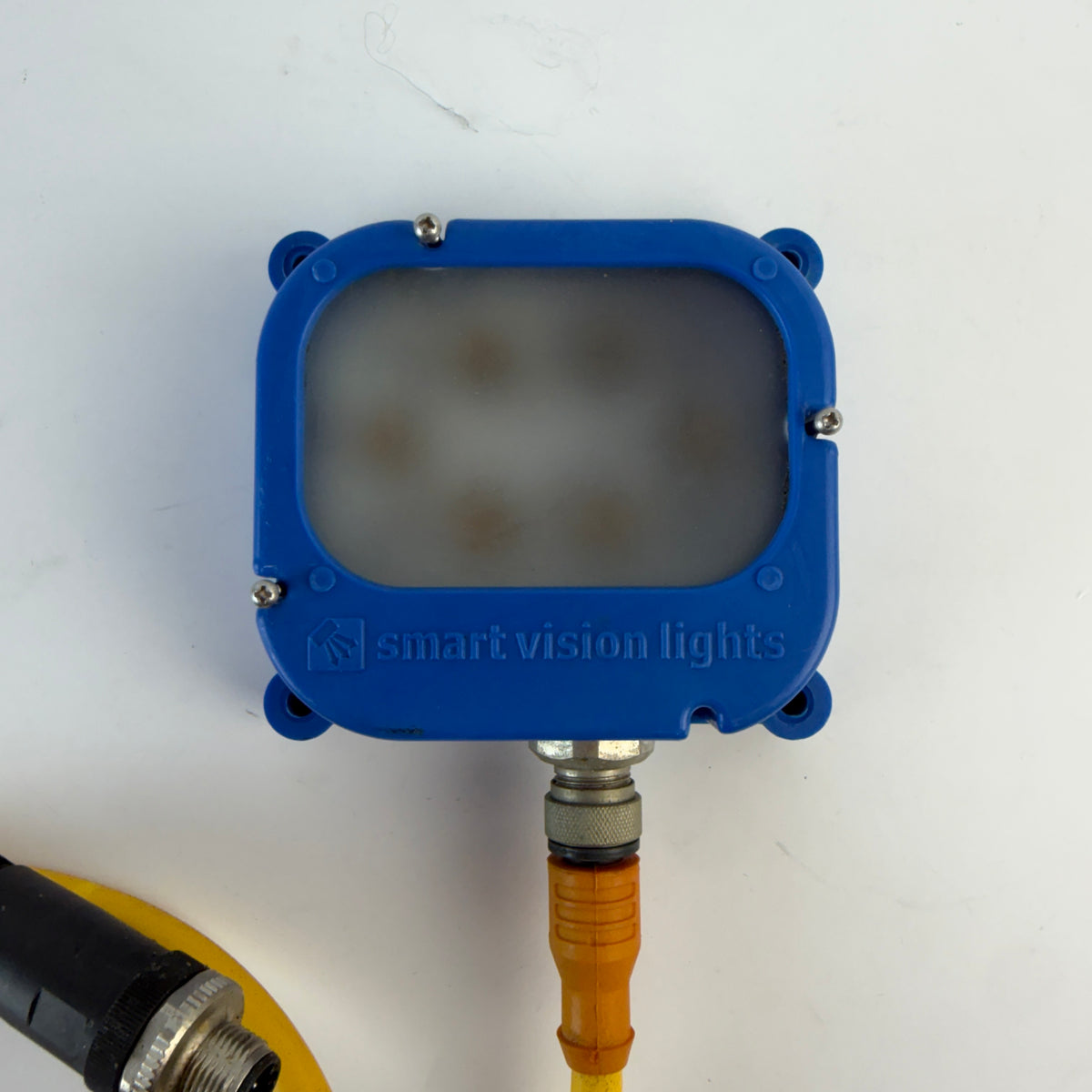

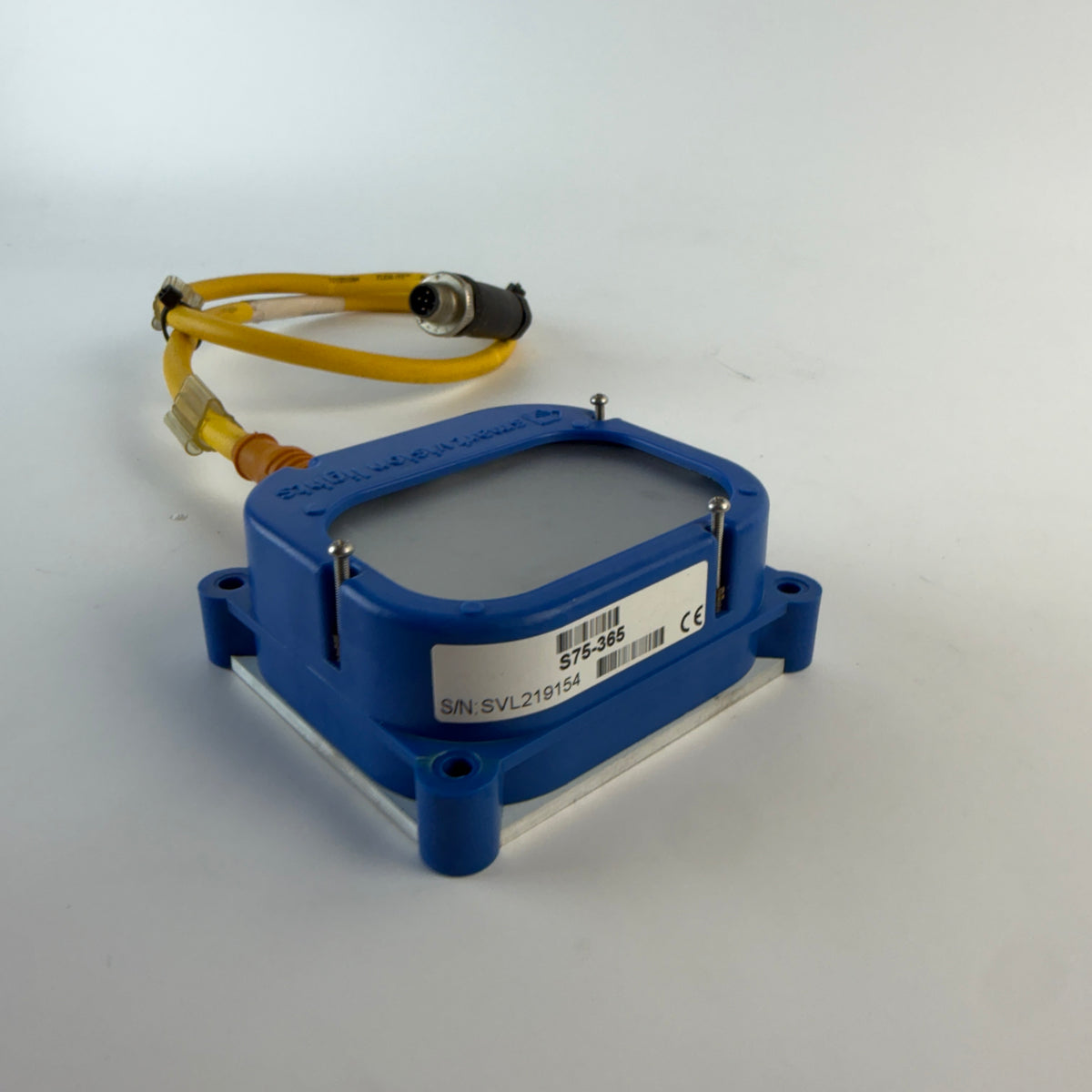

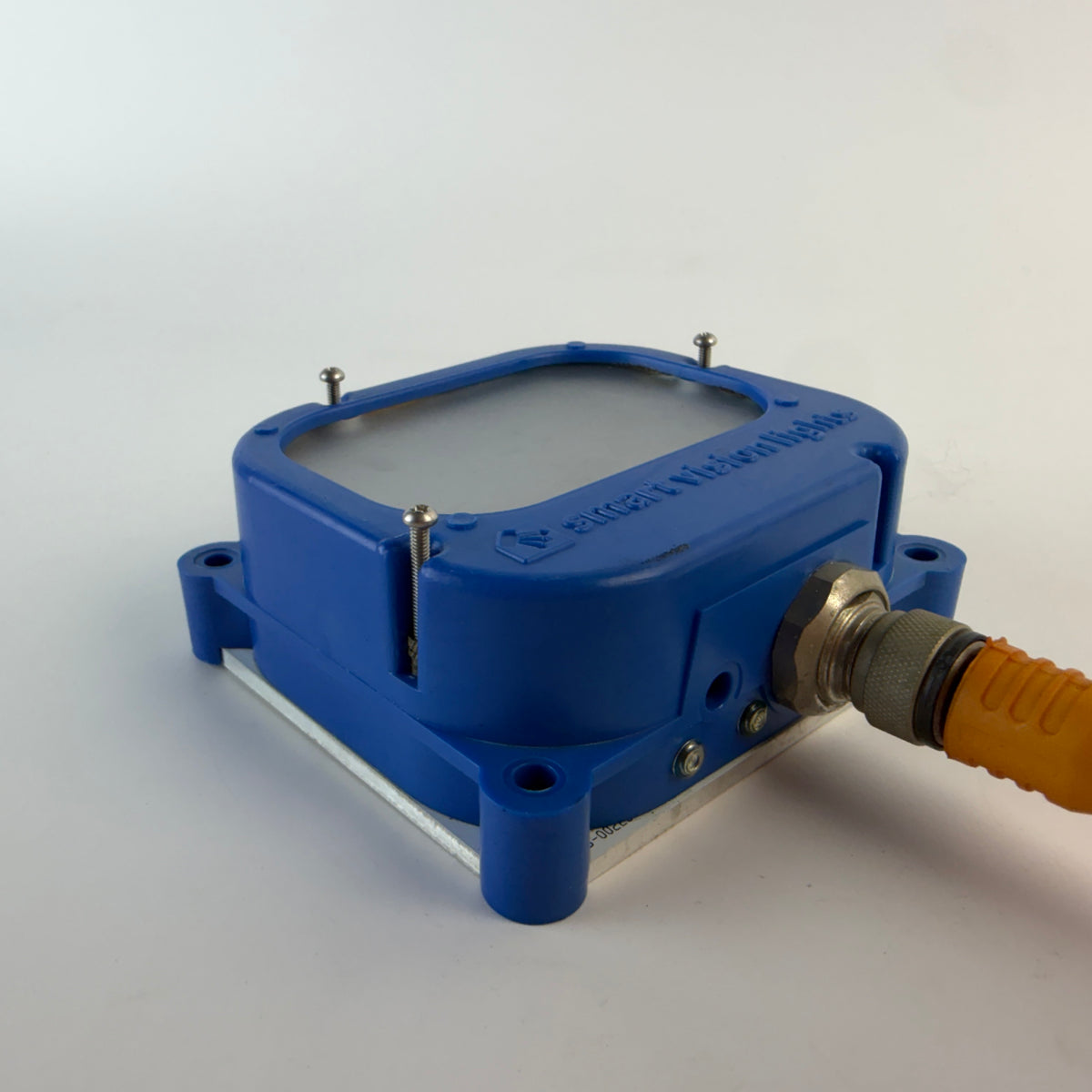

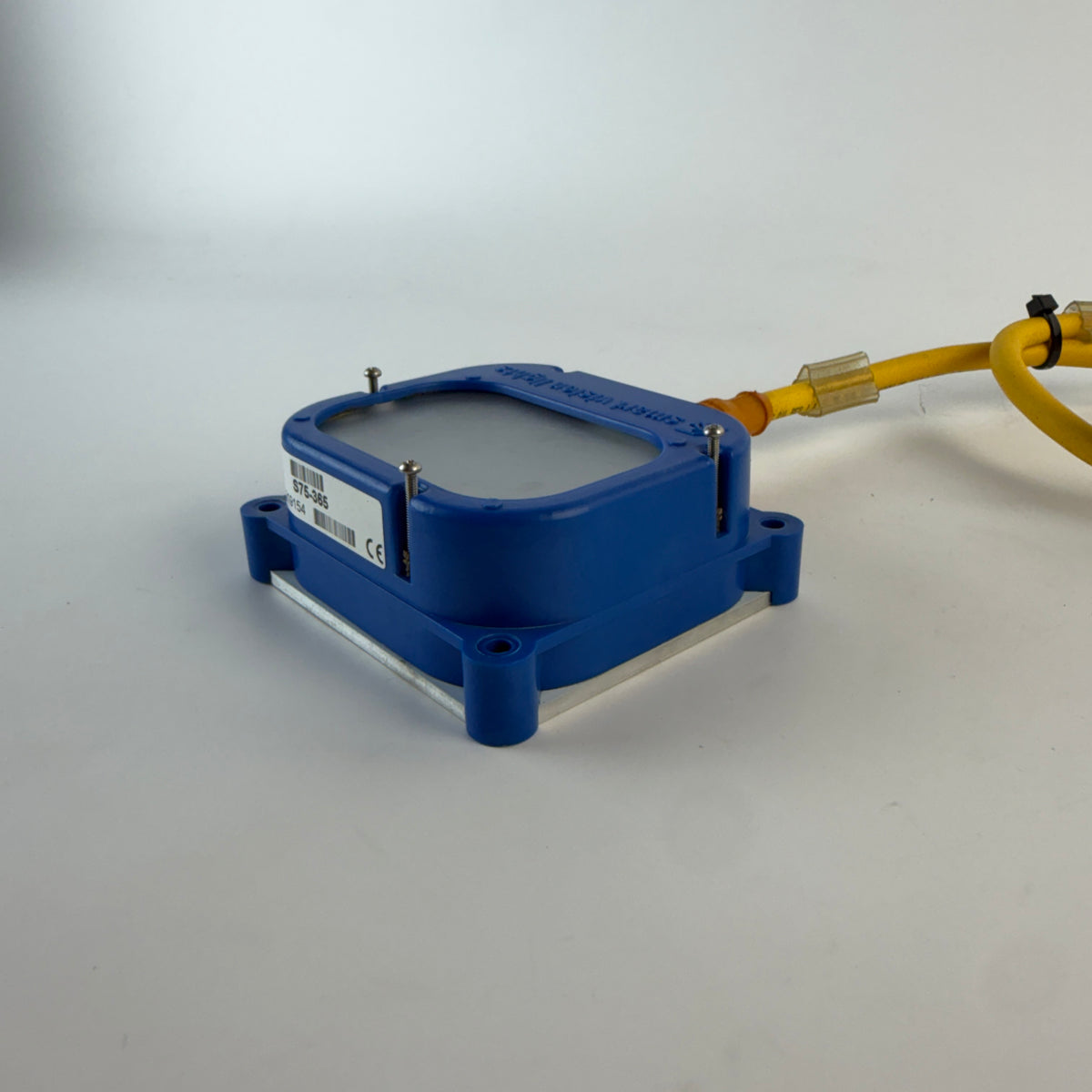

This unit is supplied with the approximately 70 cm cable and connectors shown in the photos.

Specifications:

• Manufacturer: Smart Vision Lights
• Model / Part Number: S75-365
• Product Type: Machine Vision UV LED Brick Light
• Series: S75
• Wavelength: 365 nm UV
• Supply Voltage: 24 VDC
• Maximum Input Power, Constant On: 9.6 W
• Maximum Current Requirement: 400 mA
• Standard Optics: Narrow, 10° lens
• Integrated Driver: Yes
• Operating Modes: Constant On and Strobe
• Intensity Control: Analog voltage / integrated potentiometer
• Trigger Support: PNP / NPN
• Light Connector: 5-pin M12
• IP Rating: IP50
• Approx. Dimensions: 77 × 69 × 35.7 mm
• Approx. Weight: 0.16 kg
• Operating Temperature: -10°C to +40°C
• Included Cable Length: Approx. 70 cm

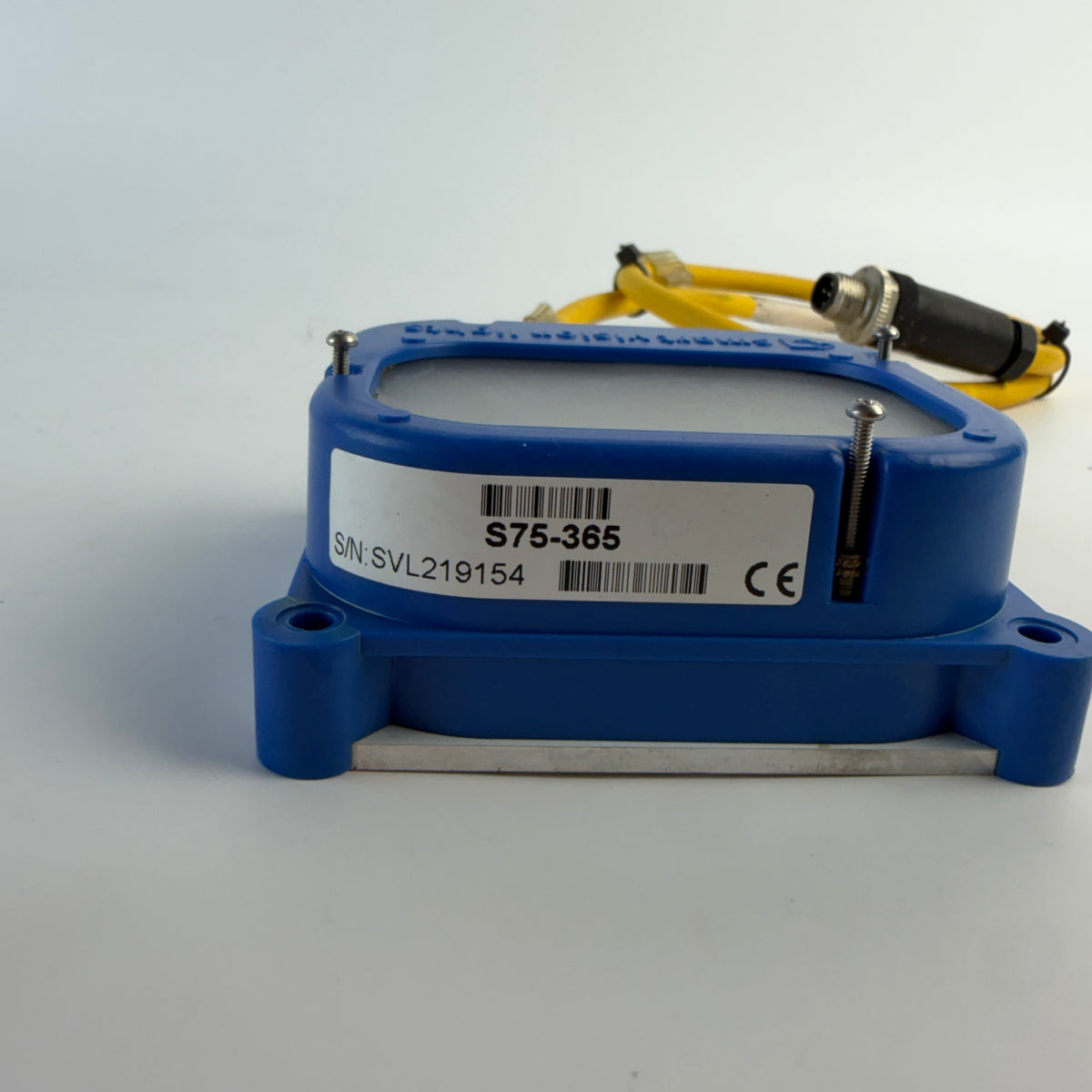

• Serial Number shown: SVL219154
• CE marked

Used, fully functional.

Supplied exactly as pictured.
