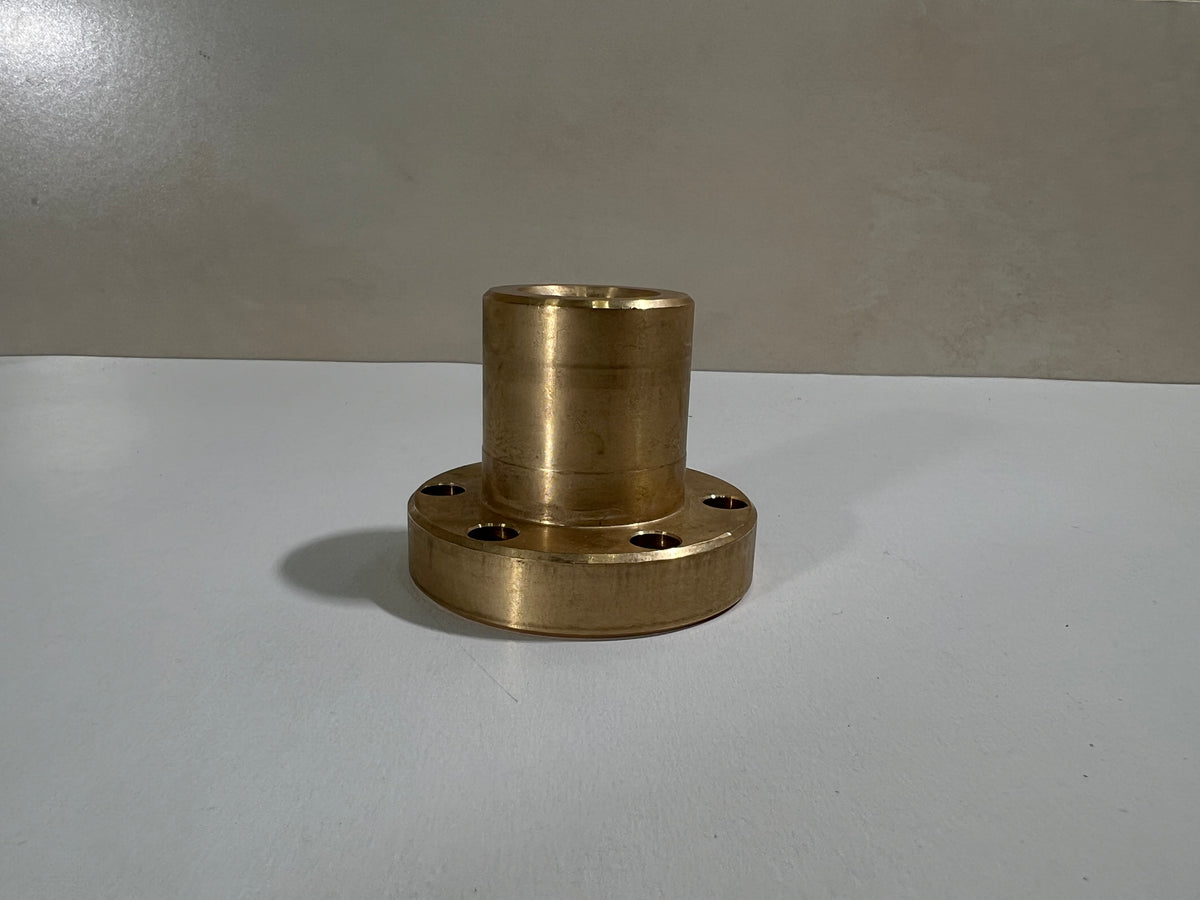

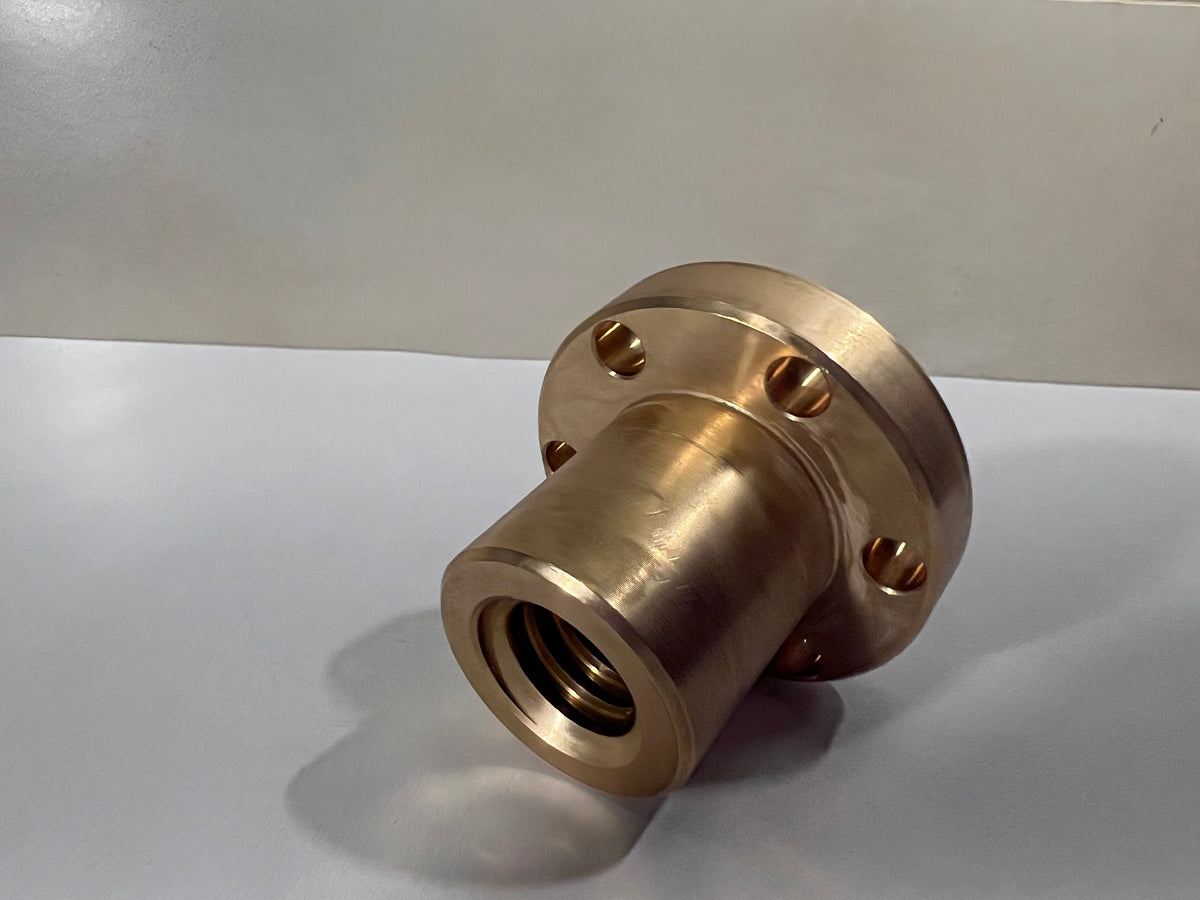

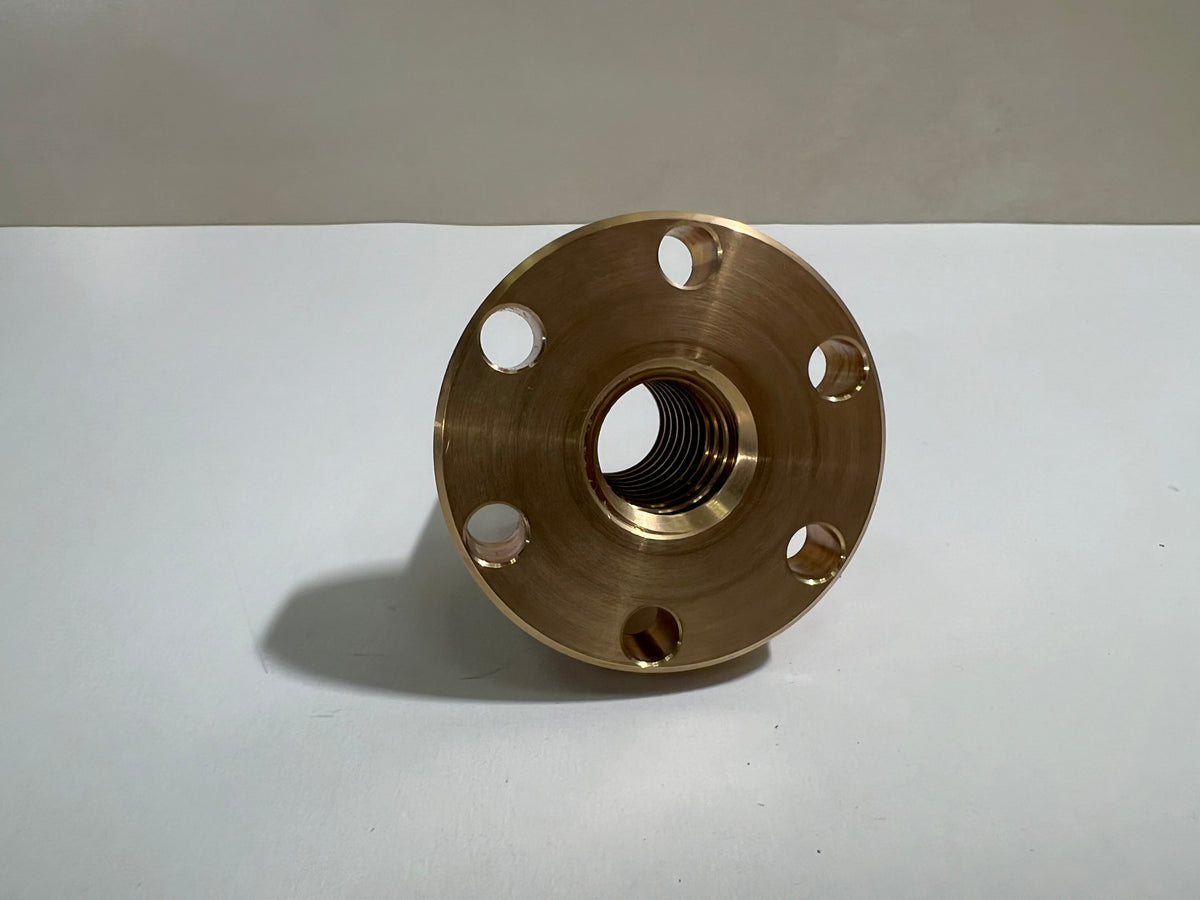

The TR20x4 flanged bronze trapezoidal nut is designed for precise linear motion and power transmission. Manufactured from durable bronze, it provides excellent wear resistance, smooth operation, and long service life. The flange allows secure mounting and easy integration into mechanical assemblies.

Technical Specifications:

• Material	Bronze CC493K
  Lead Direction	Right Hand
  No. of Starts	1
  Diameter [d]	20
  Pitch/Lead	4
  Diameter [D1] h9	32
  Diameter [D4] h11	55
  Diameter [D5]	45
  Diameter [D6]	7
  Dimension [L1] ±0.2	44
  Dimension [L2] +0.15/-0	12
  Dimension [L3] +0/-0.15	8
  Contact Surface (mm²)	870
  Mass kg	0.346

Applications:
Commonly used in CNC machines, 3D printers, linear actuators, and mechanical systems requiring precise lead screw motion and durable threaded components.

Item condition: New, in perfect working condition.
