Wiesemann & Theis W&T 86201 Industrial Serial Interface Converter, designed for bidirectional connection of RS232 devices to RS422 or RS485 equipment.
The unit provides galvanic isolation of at least 1 kV DC between connections, making it suitable for industrial automation and communication systems where electrical isolation and reliable serial data transmission are required.
It features one 9-pin Sub-D RS232 port with PC pin assignment and one switchable 9-pin Sub-D RS422/RS485 port. RS485 supports both 2-wire and 4-wire operation with automatic or handshake-controlled transceiver operation.
No transmission speed or data format configuration is required.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Wiesemann & Theis (W&T) |
| Part Number | 86201 |
| Product | RS232 <> RS422/RS485 Interface Industry |
| Serial Port A | RS232 |
| Serial Port B | Switchable RS422 / RS485 |
| Connectors | 2 × 9-pin Sub-D male |
| RS485 Modes | 2-wire / 4-wire |
| RS485 Control | Automatic or handshake controlled |
| Baud Rate | 0–115,200 baud |
| Data Format | Any |
| Supported Signals | RxD, TxD, CTS, DTR |
| Galvanic Isolation | Min. 1 kV DC |
| Supply Voltage | 12–24 V AC/DC ±10% |
| Current Consumption | Typ. 80 mA @ 12 V DC / 40 mA @ 24 V DC |

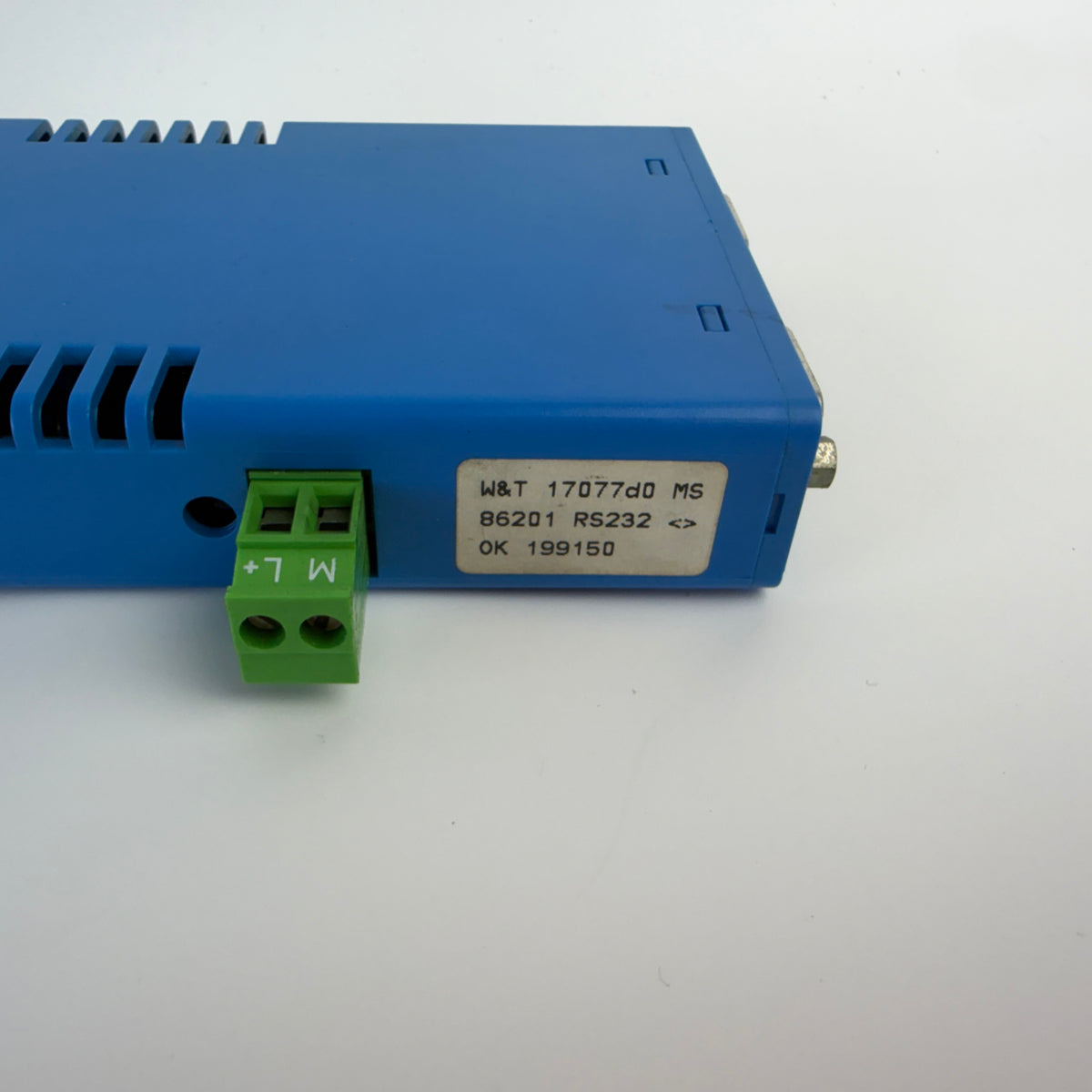

| Power Connection | Plug-in screw terminal, 5.08 mm pitch |
| Indicators | Power LED, Data LED |
| Housing | Plastic DIN-rail housing |
| Dimensions | Approx. 105 × 22 × 75 mm |
| Protection Rating | IP20 |
| Weight | Approx. 100 g |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Compliance | CE |
Key Features
- Industrial RS232 to RS422/RS485 conversion
- Galvanically isolated serial interfaces
- 1 kV DC isolation
- RS485 2-wire and 4-wire operation
- Automatic or handshake-controlled RS485 operation
- Switchable RS485 termination
- DIN-rail housing
- No baud-rate or data-format adjustment required
Package Contents

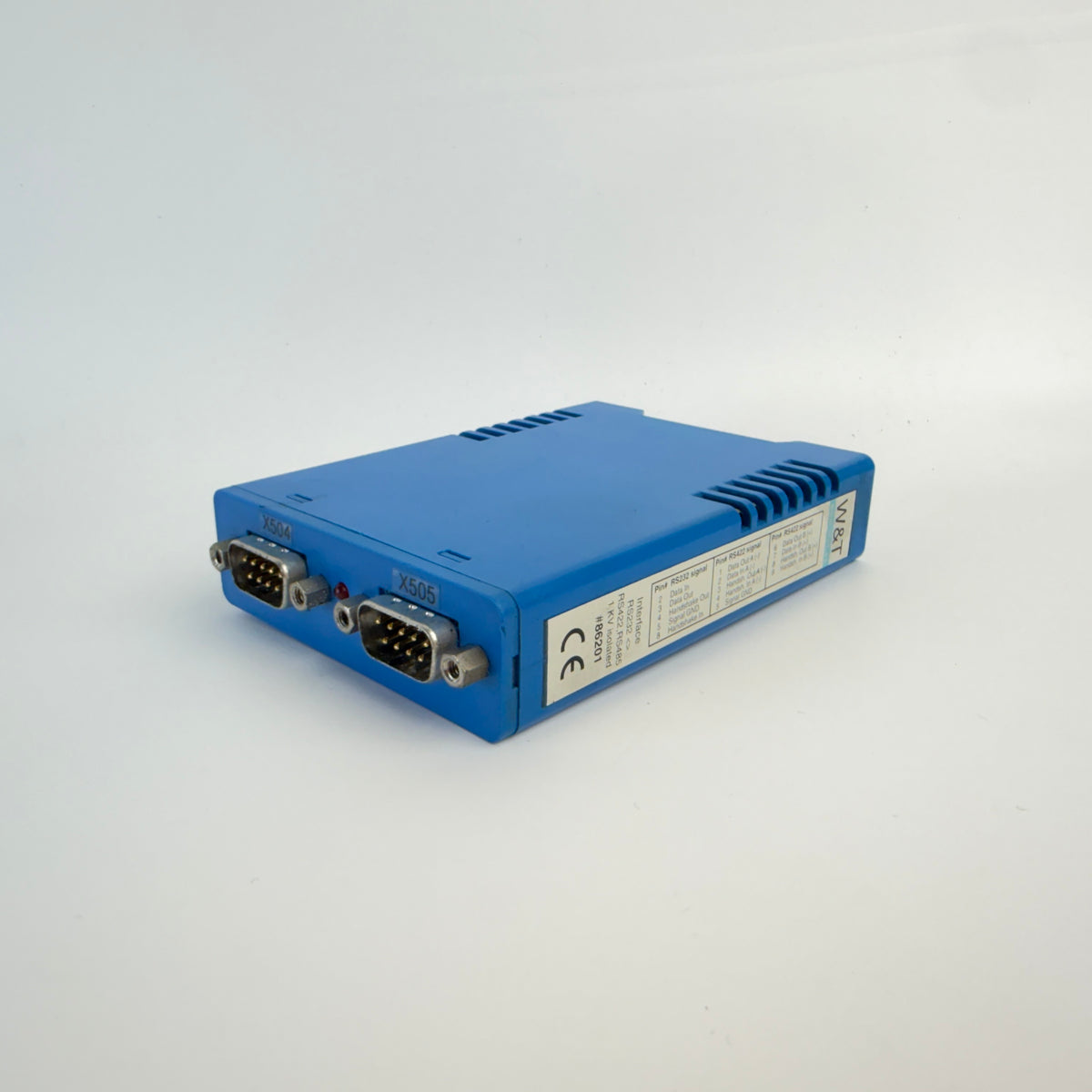

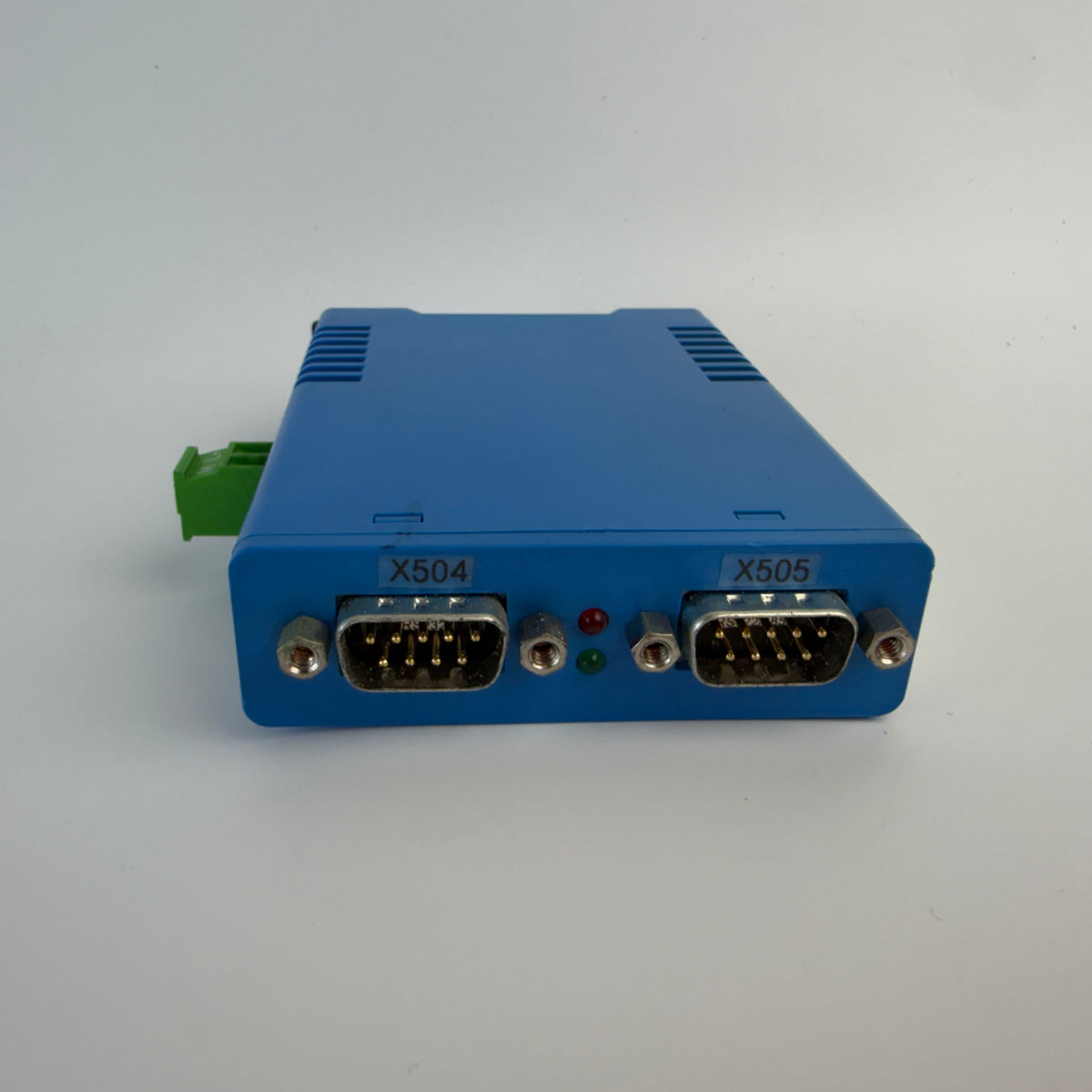

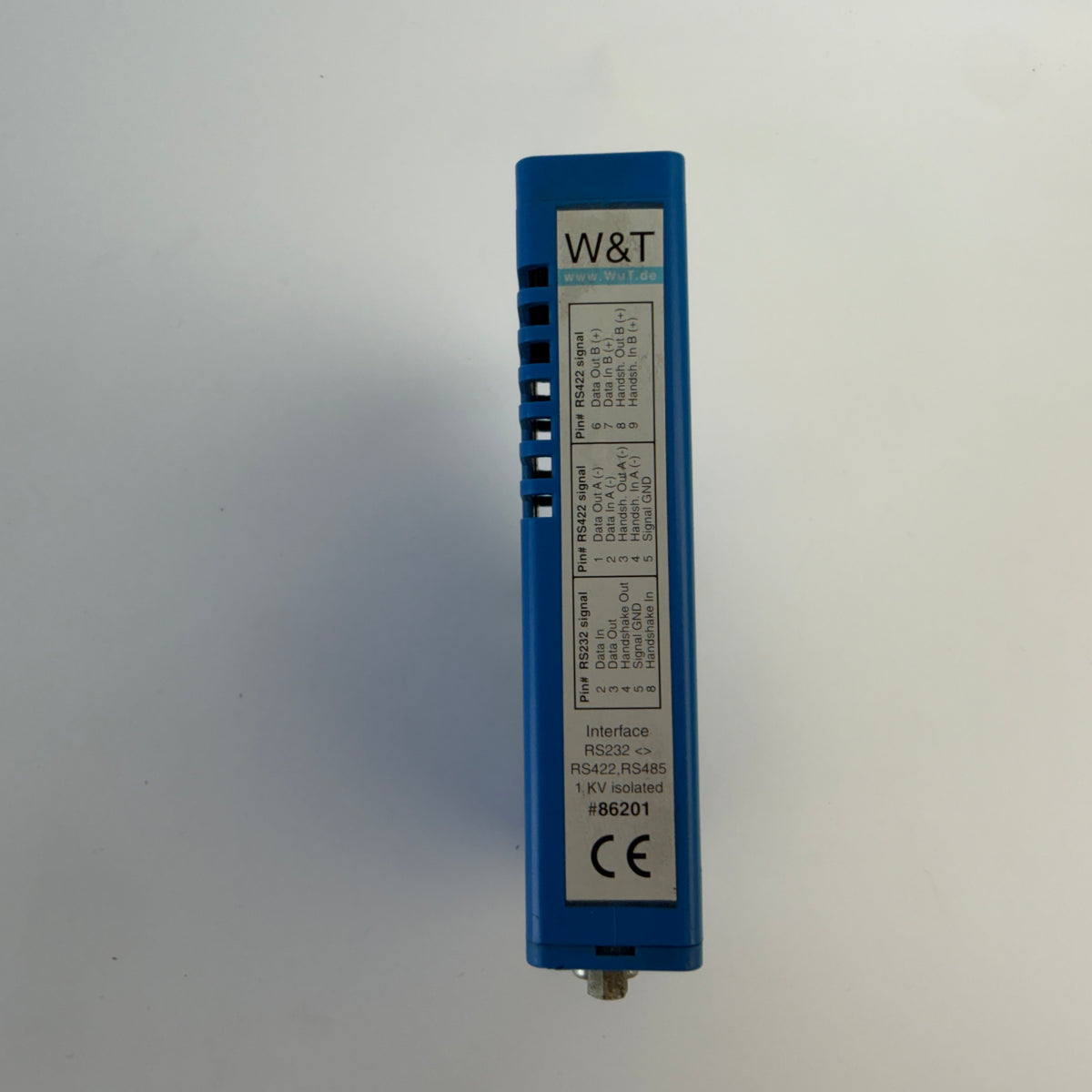

1 × W&T 86201 serial interface converter, as pictured.
