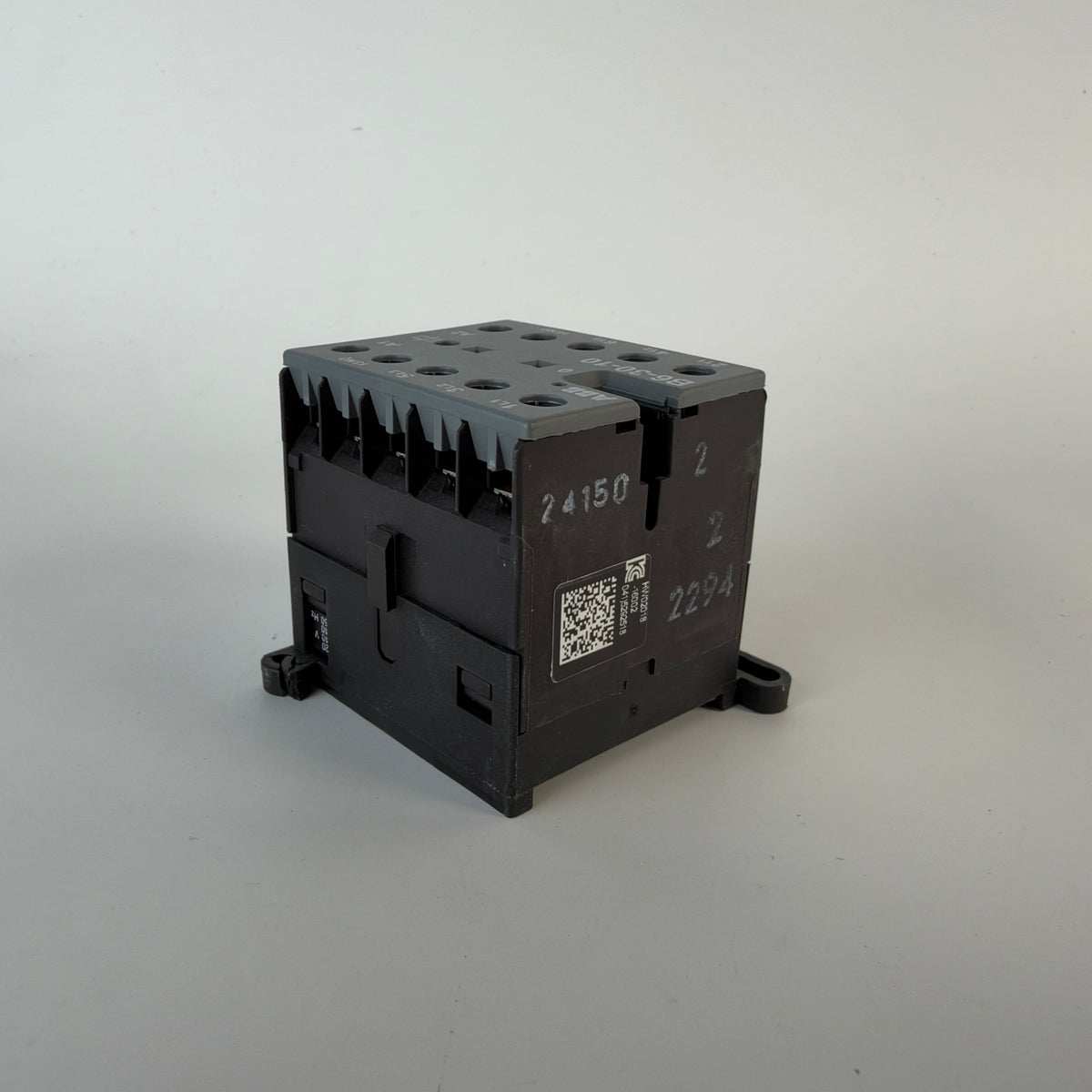

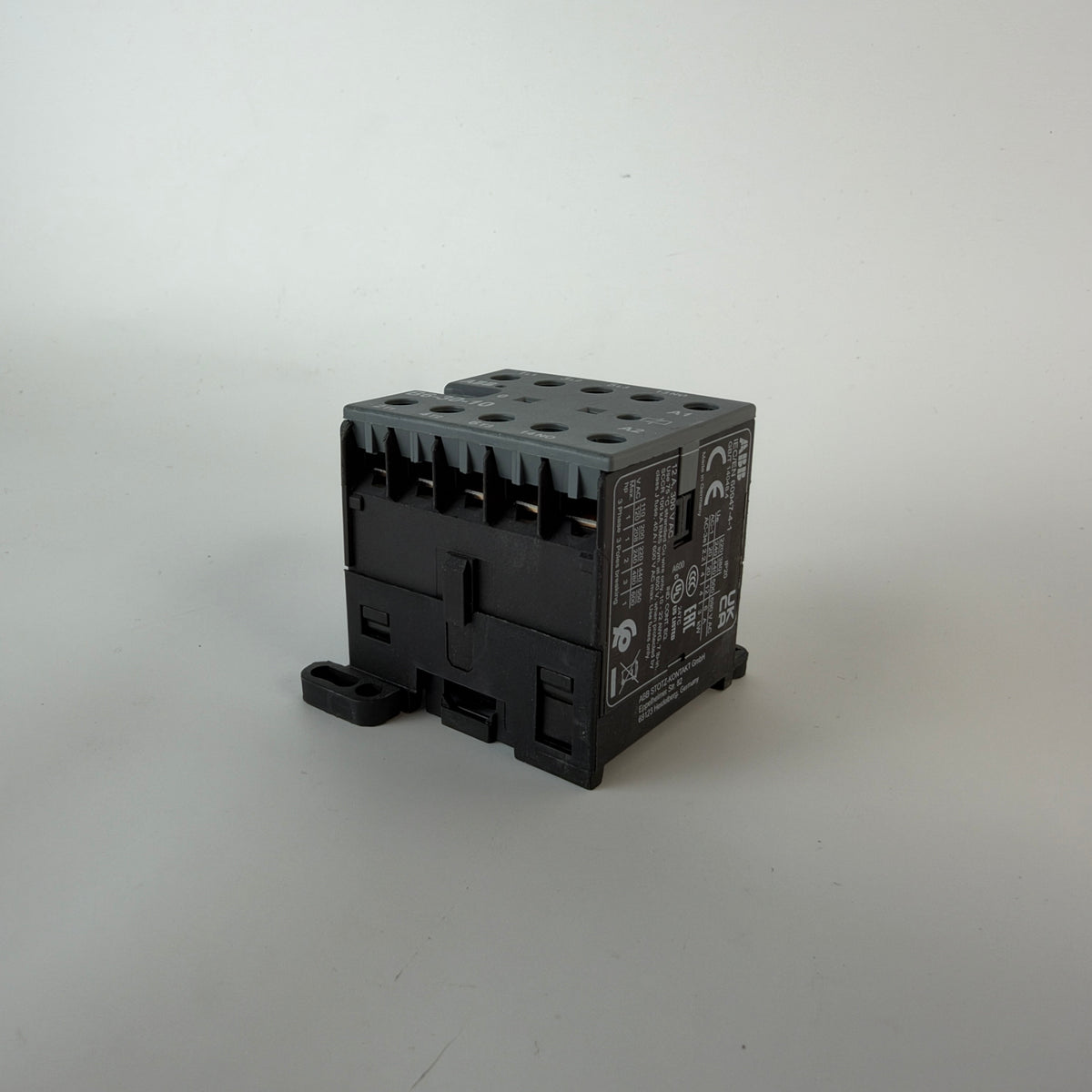

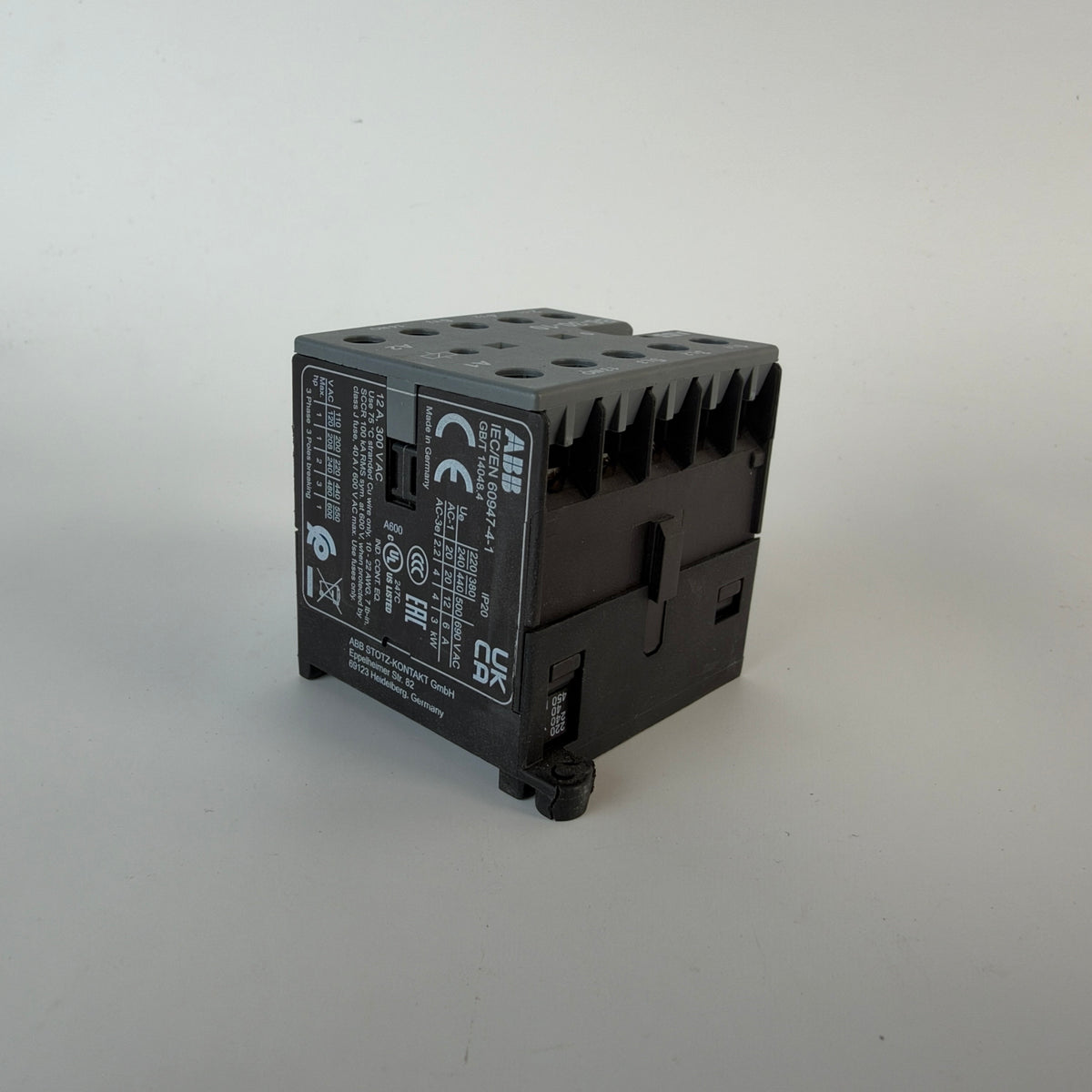

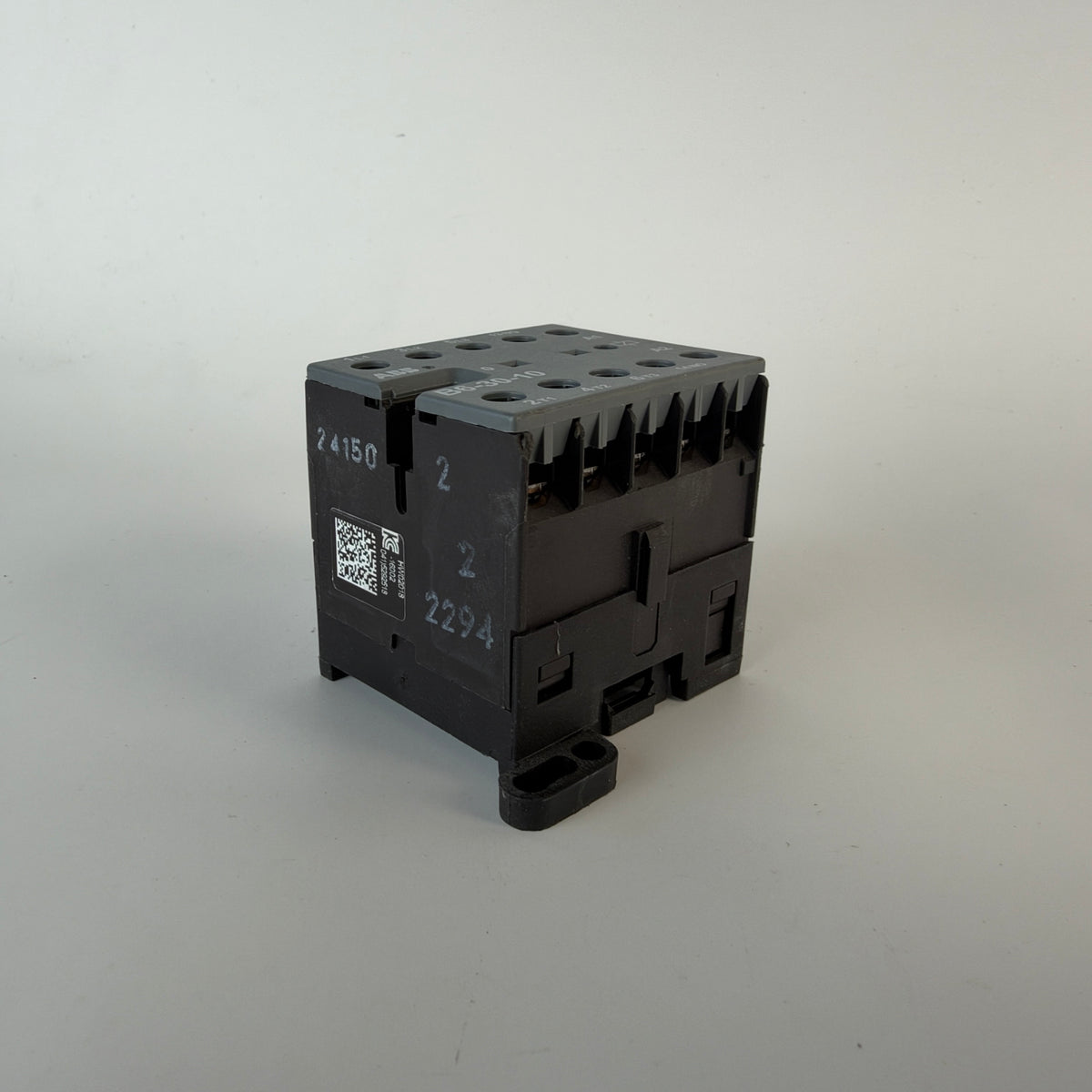

ABB B6-30-10 compact 3-pole mini contactor designed for switching three-phase motor and resistive loads in industrial control applications.

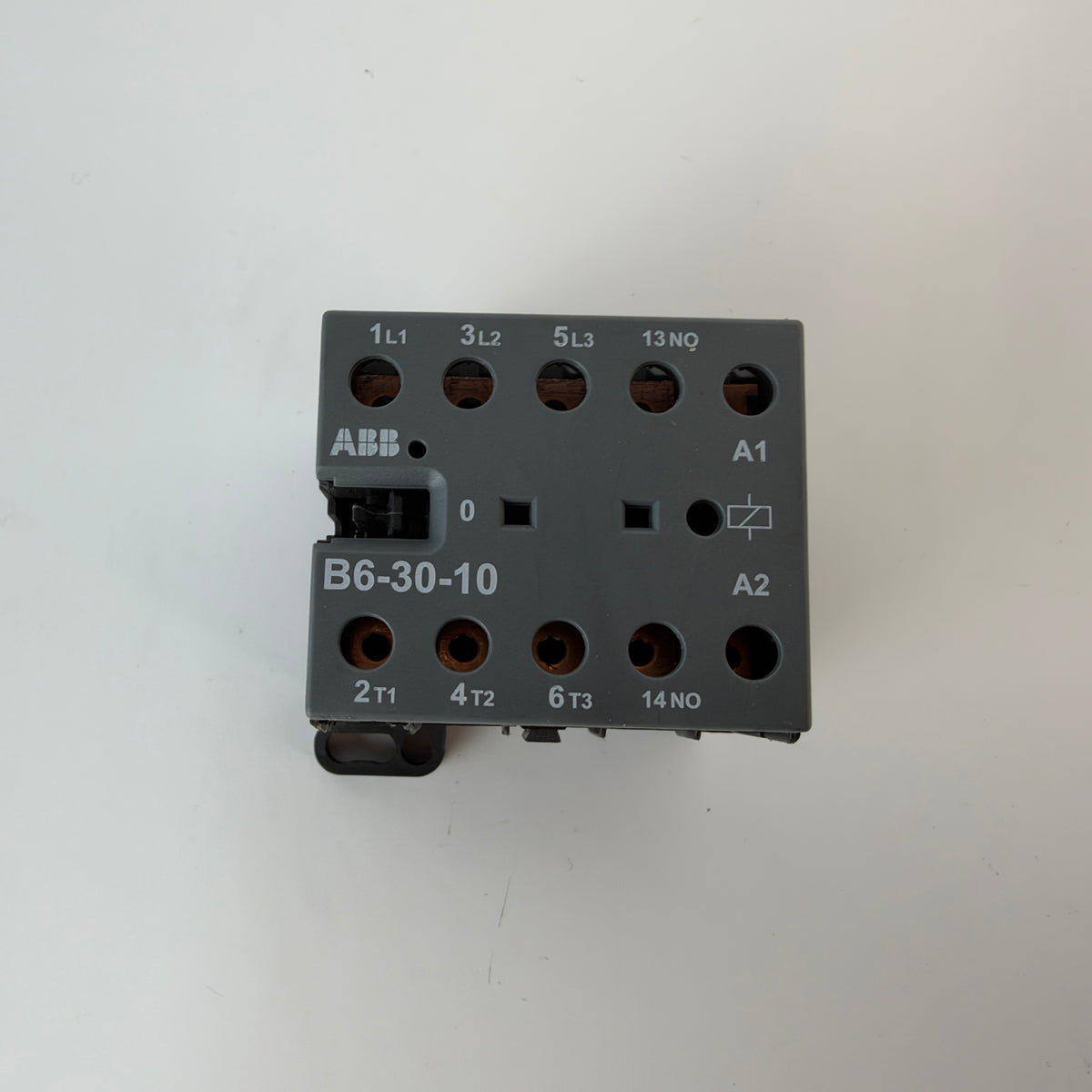

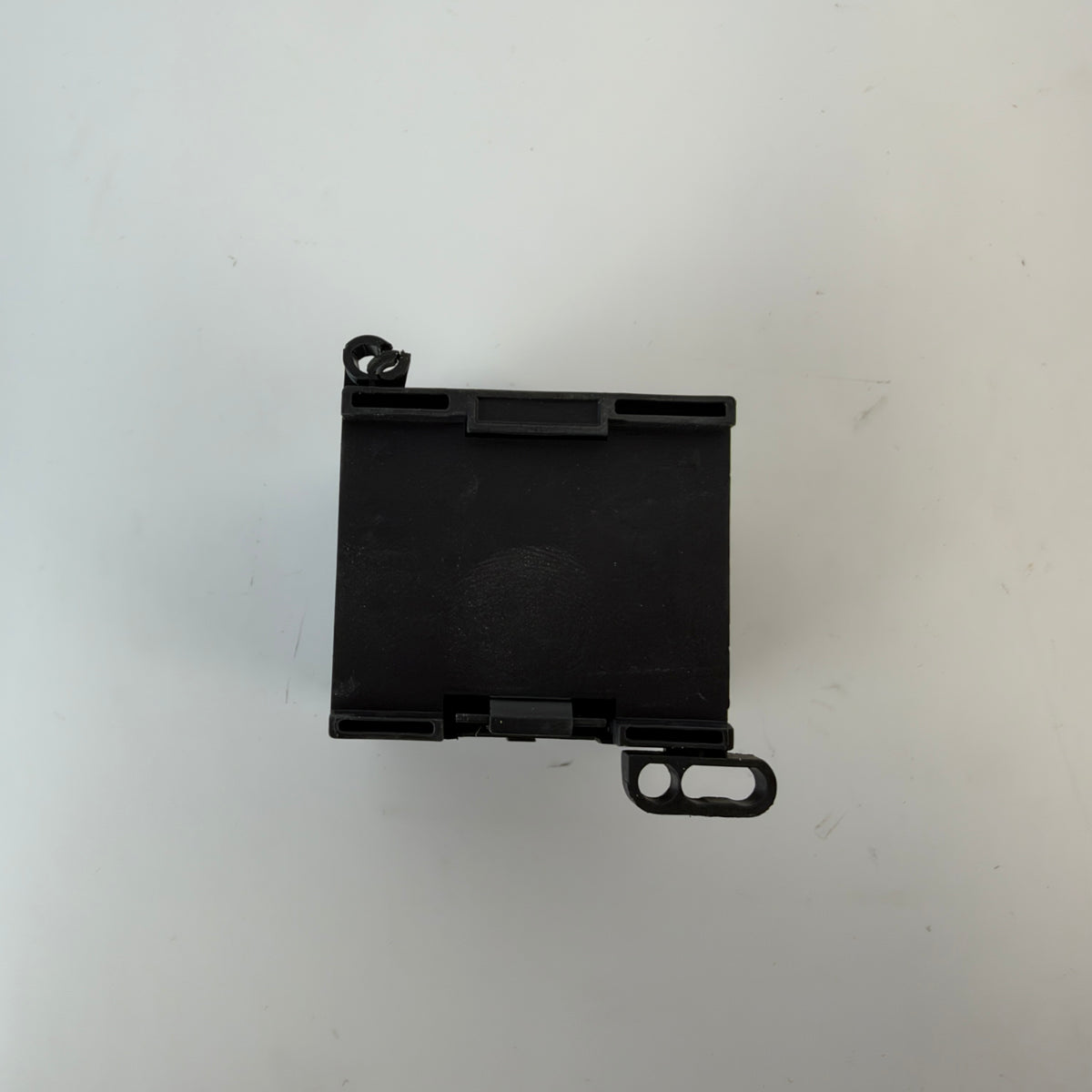

The contactor features three normally open main poles and one integrated normally open auxiliary contact (13-14). The unit uses screw terminals and supports DIN rail or panel mounting.
Technical specifications:
- Manufacturer: ABB
- Model: B6-30-10
- Type: 3-Pole Mini Contactor
- Main Contacts: 3 NO
- Integrated Auxiliary Contact: 1 NO (13-14)

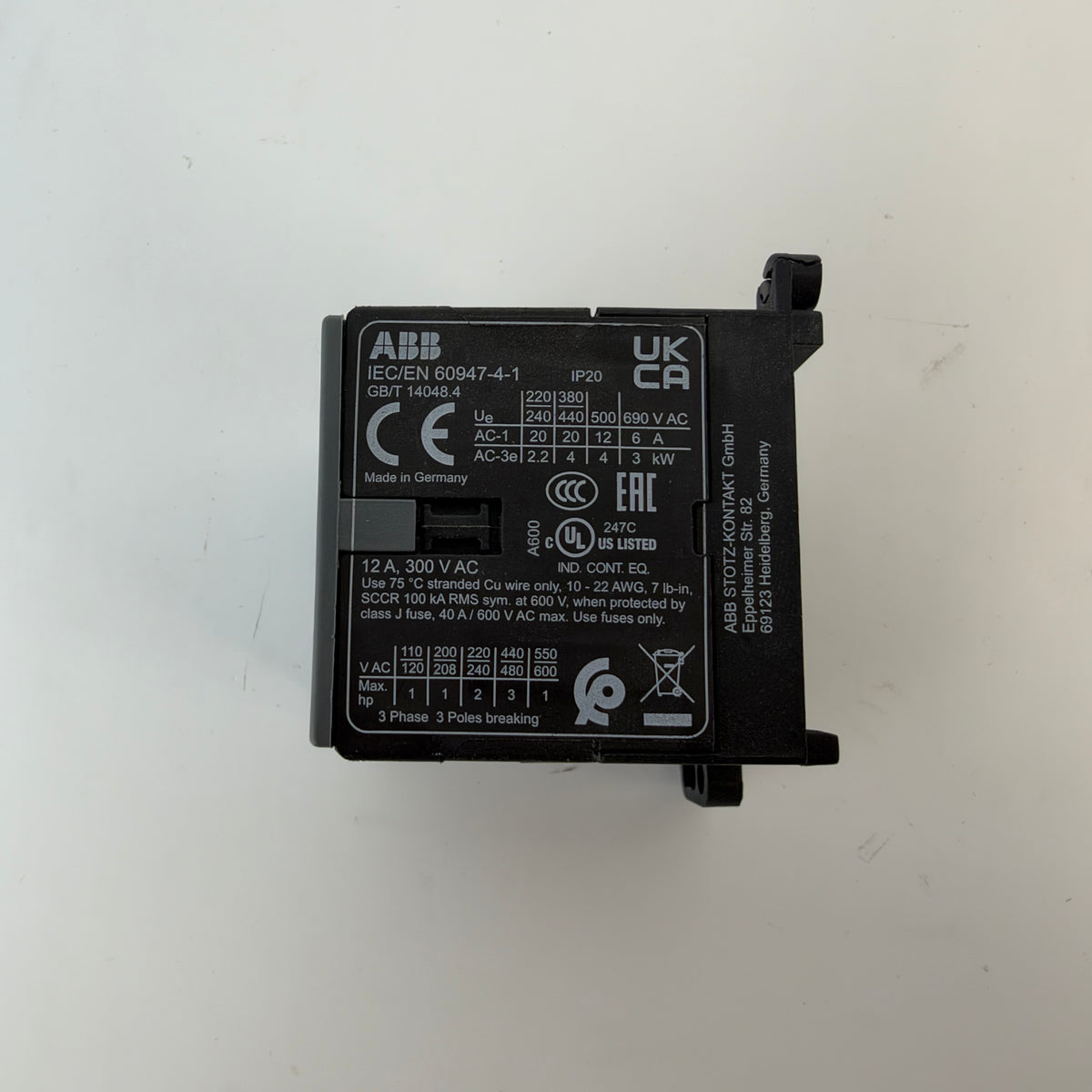

- AC-1 Rated Current: 20 A at 220/240 V and 380/440 V
- AC-1 Rated Current: 12 A at 500 V
- AC-1 Rated Current: 6 A at 690 V
- AC-3e Motor Rating: 2.2 kW at 220/240 V
- AC-3e Motor Rating: 4 kW at 380/440 V
- AC-3e Motor Rating: 4 kW at 500 V
- AC-3e Motor Rating: 3 kW at 690 V
- General Use Rating: 12 A at 300 V AC
- Number of Main Poles: 3
- Terminal Type: Screw
- Protection Rating: IP20
- Standard: IEC/EN 60947-4-1
- Country of Origin: Germany
- Coil Voltage: Not confirmed
Used, fully functional.
