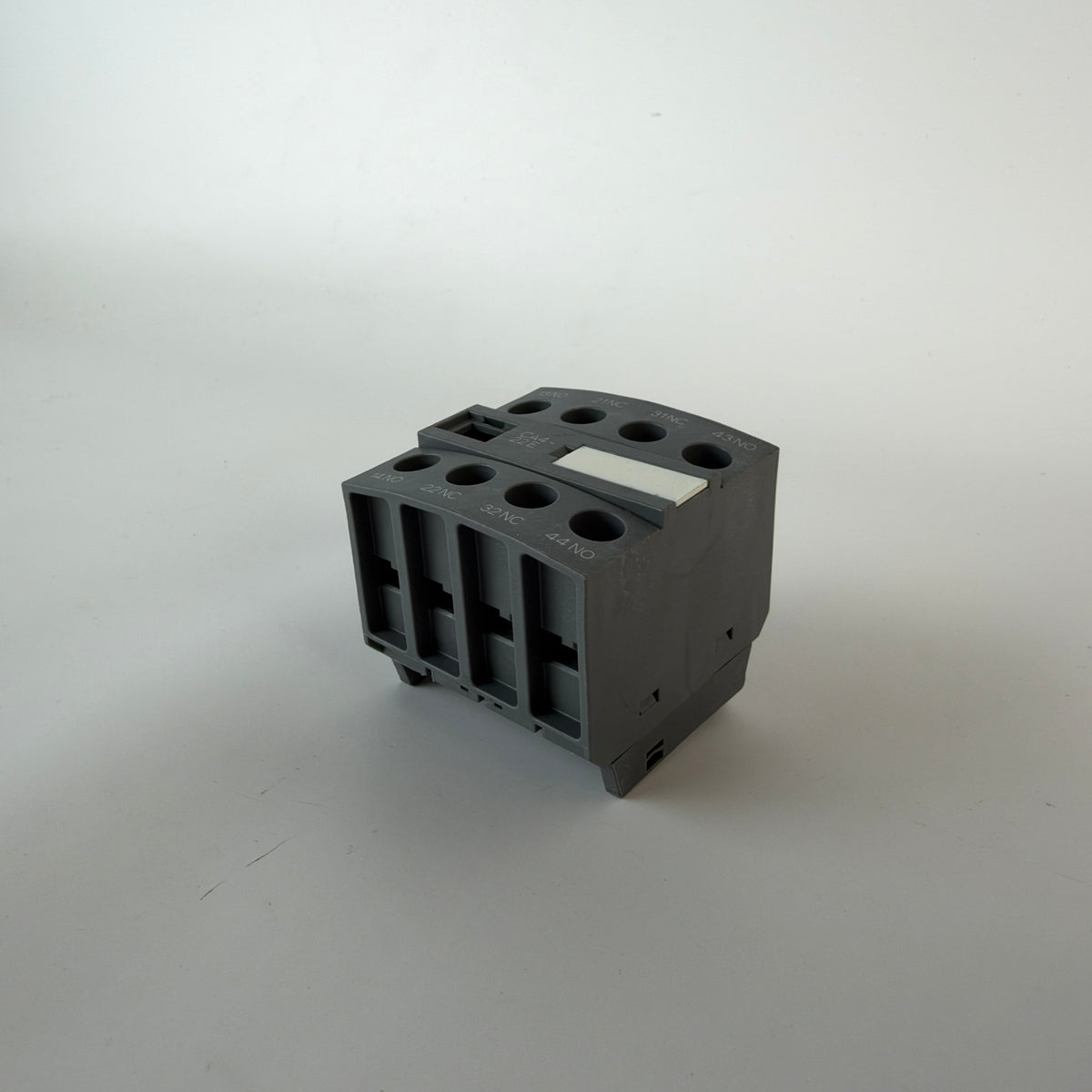

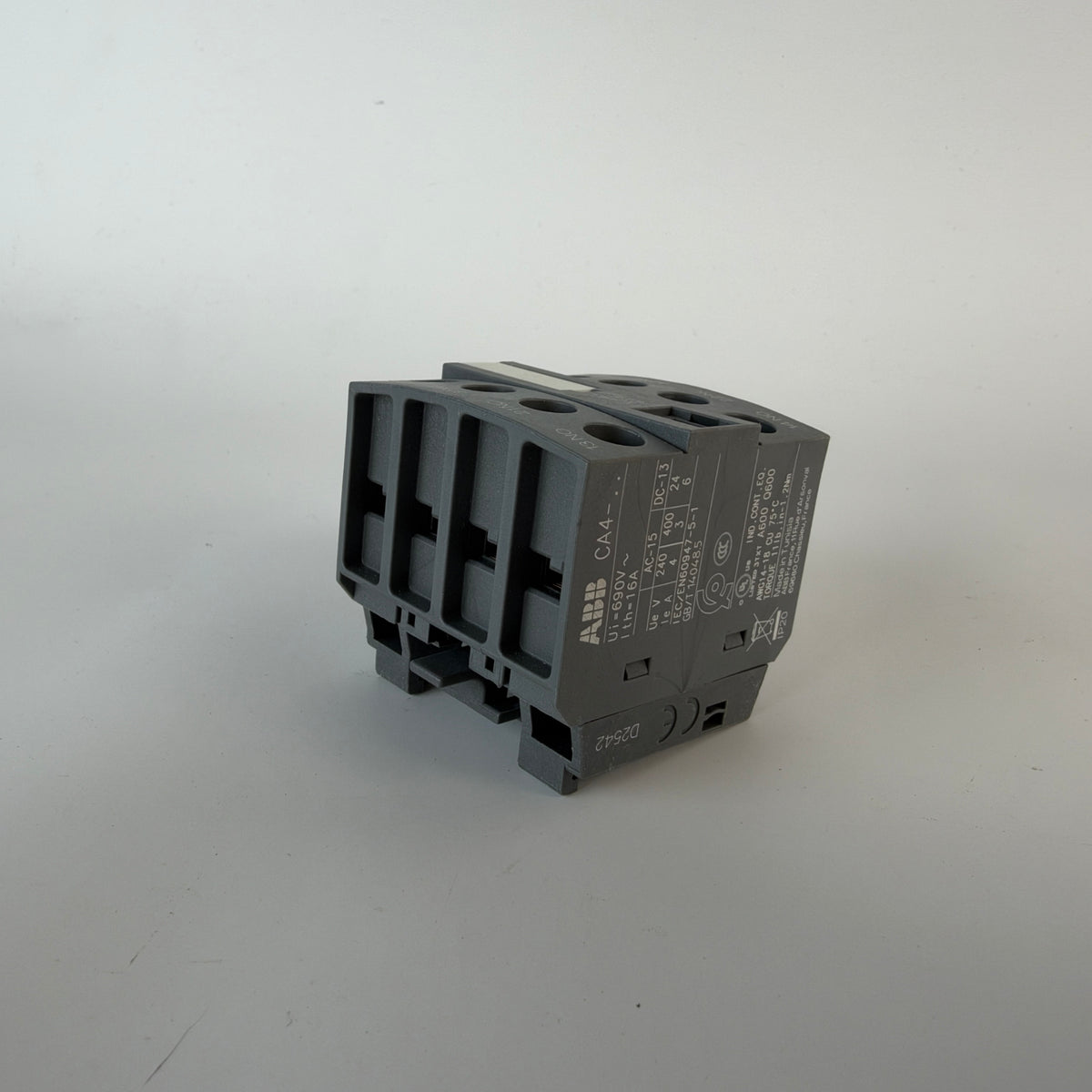

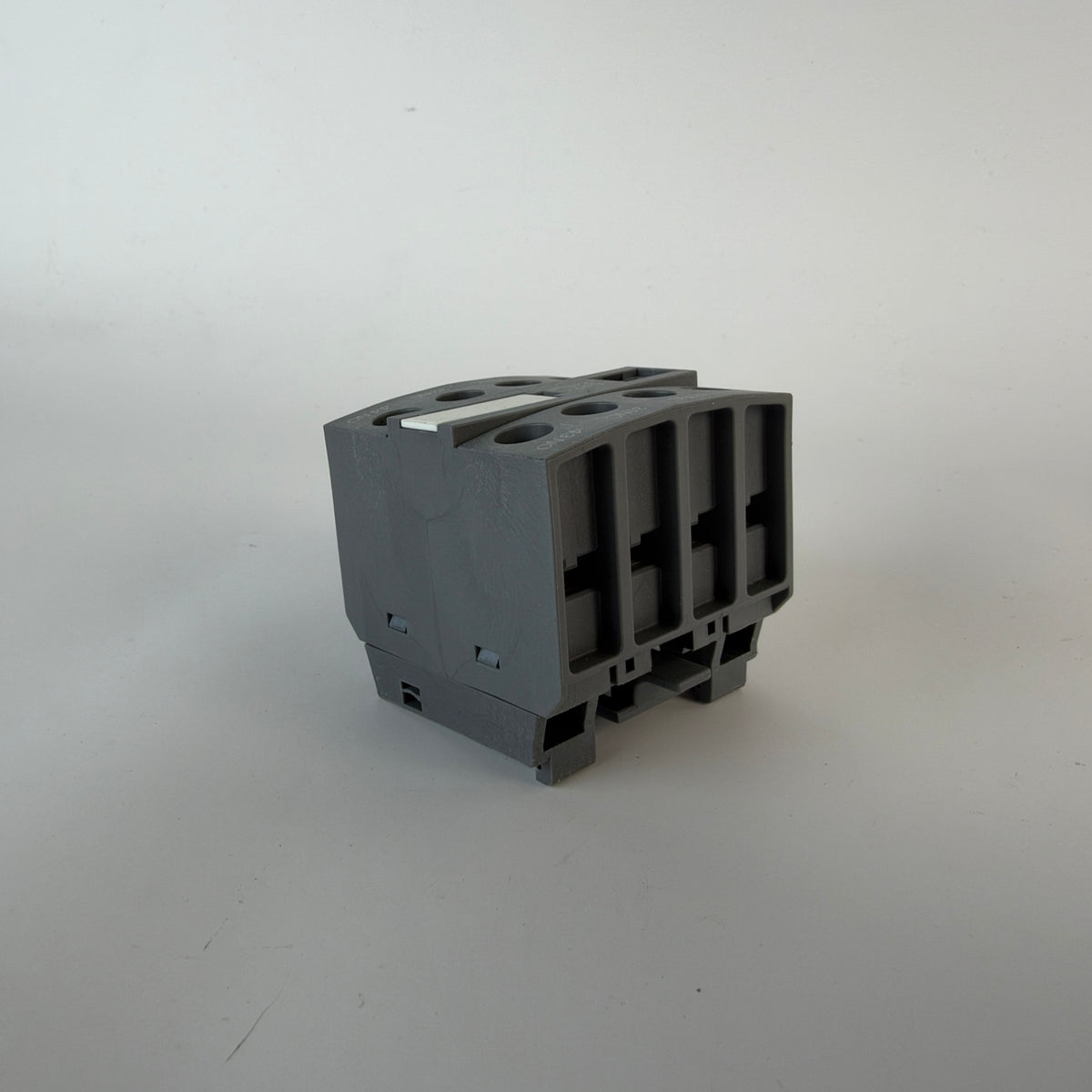

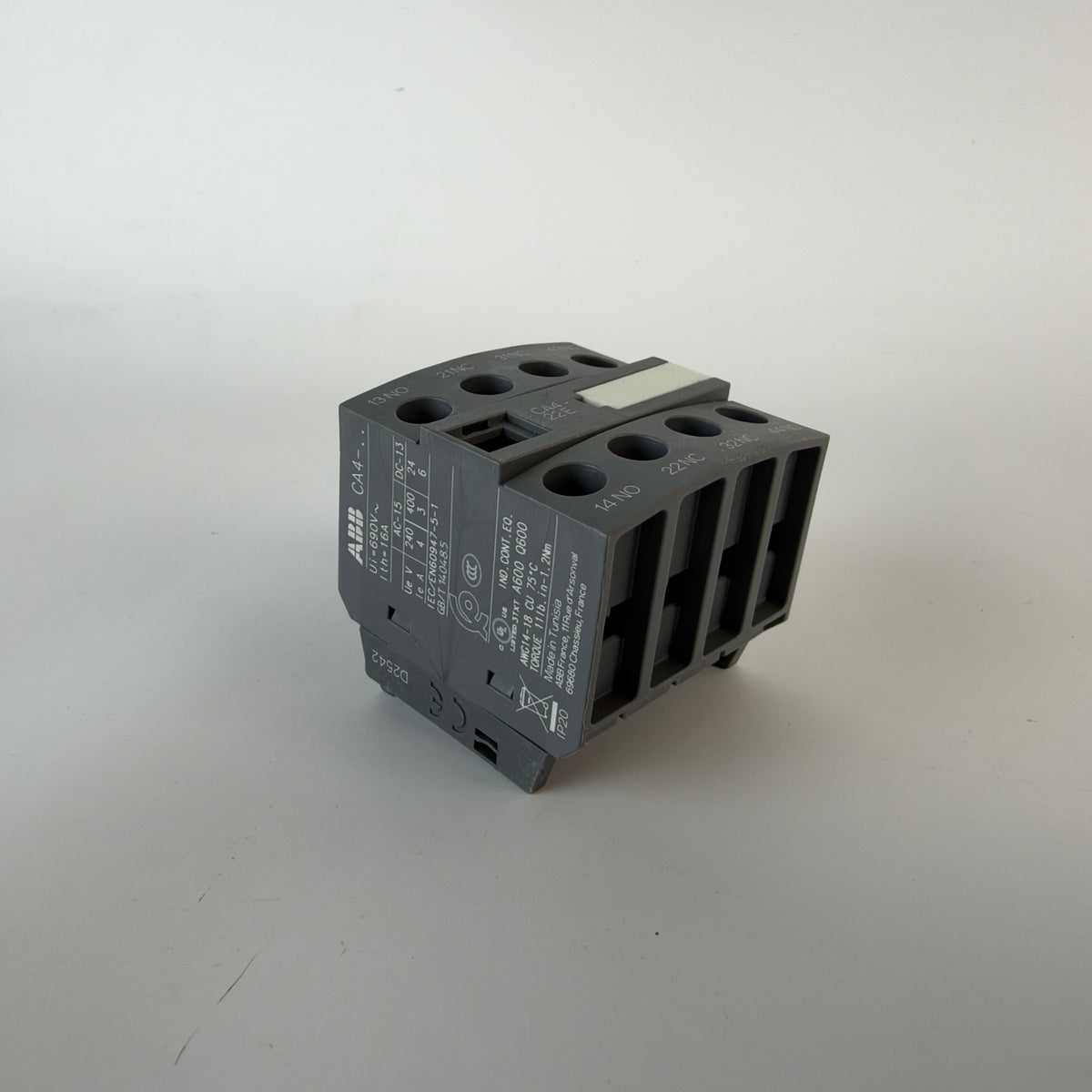

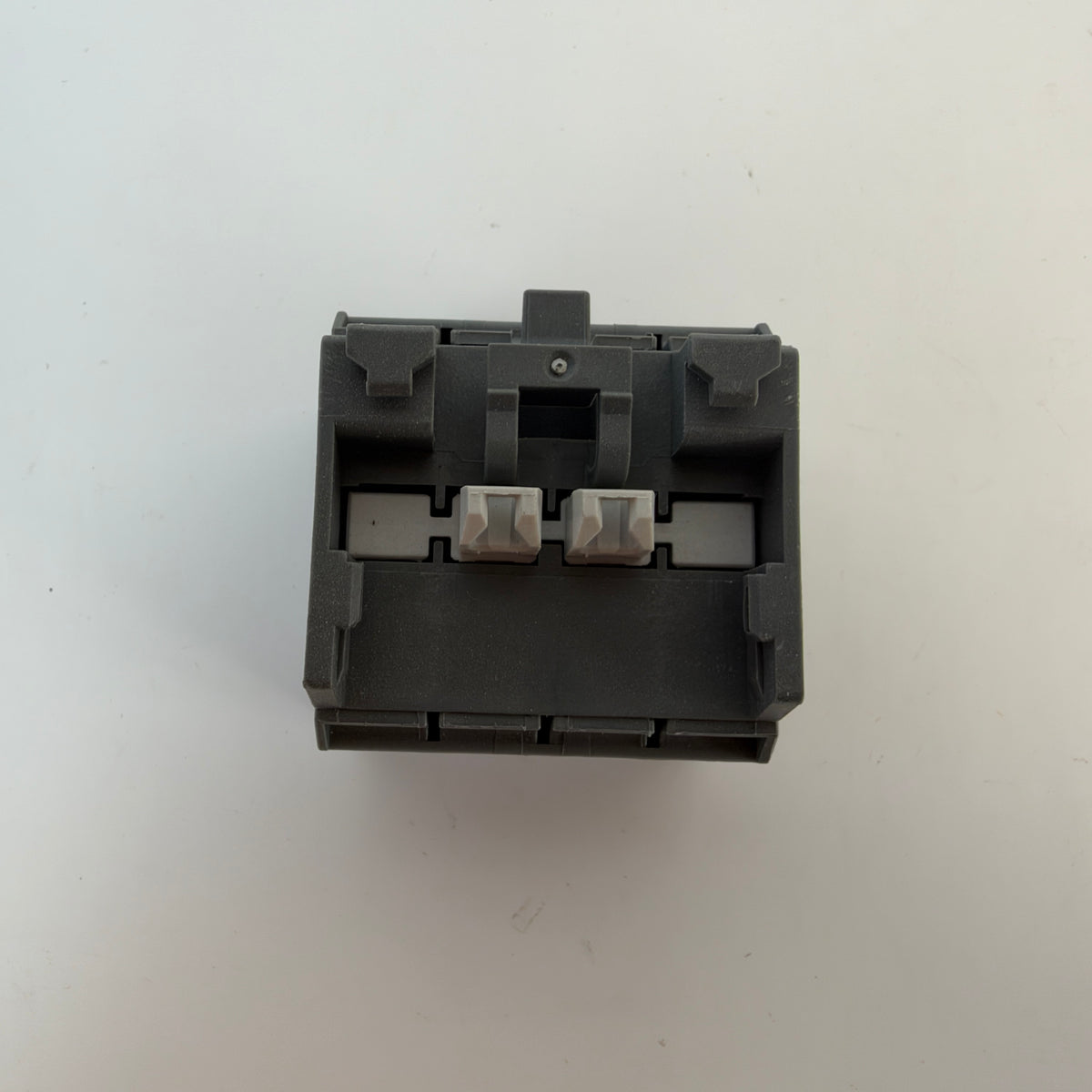

ABB CA4-22E auxiliary contact block, part number 1SBN010140R1022, designed for auxiliary and control circuits in industrial contactor applications.
The CA4-22E is a front-mounted 4-pole instantaneous auxiliary contact block providing two normally open (2 NO) and two normally closed (2 NC) contacts. It uses screw terminals and is intended for compatible ABB AF series contactors.
Technical specifications:
- Manufacturer: ABB
- Model: CA4-22E
- Part Number / MPN: 1SBN010140R1022
- Type: Auxiliary Contact Block
- Contact Configuration: 2 NO + 2 NC
- Number of Poles: 4
- Mounting Type: Front Mount
- Terminal Type: Screw Terminals
- Rated Insulation Voltage (Ui): 690 V
- Conventional Free-Air Thermal Current (Ith): 16 A
- AC-15: 4 A at 240 V; 3 A at 400 V
- DC-13: 6 A at 24 V
- Protection Rating: IP20
- Standard: IEC/EN 60947-5-1
- Country of Origin: Tunisia

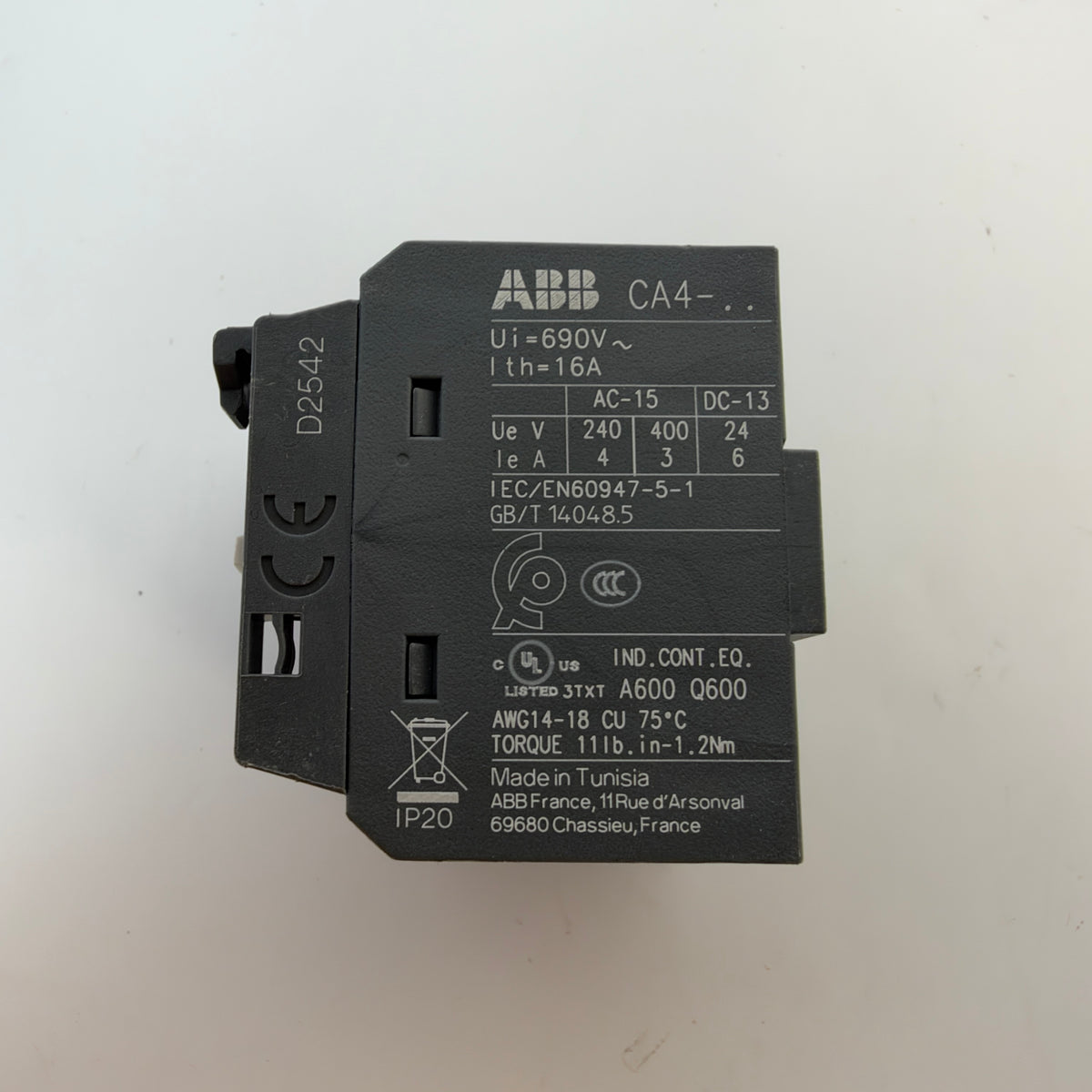

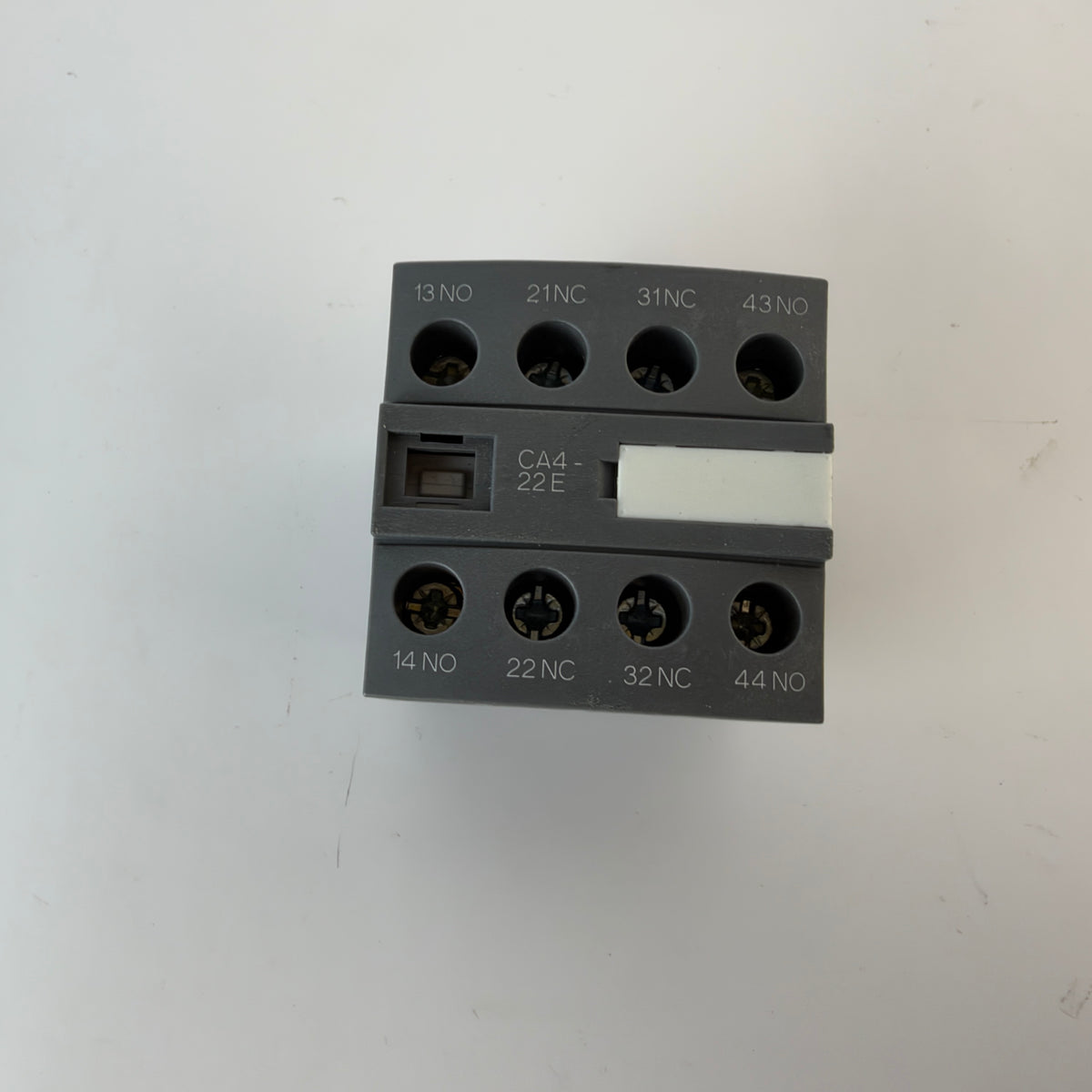

Terminal markings visible on the unit: 13-14 NO, 21-22 NC, 31-32 NC and 43-44 NO.
Used, fully functional.
