AVENTICS 0821302715 pneumatic pressure regulator from the NL1-RGS series, designed for compressed-air pressure regulation in industrial pneumatic and automation systems.

The regulator corresponds to configuration NL1-RGS-G014-GAU-MAN-060-SS and features G1/4 main pneumatic ports, a 0.2–6 bar adjustment range, mechanical pressure adjustment and relieving exhaust.

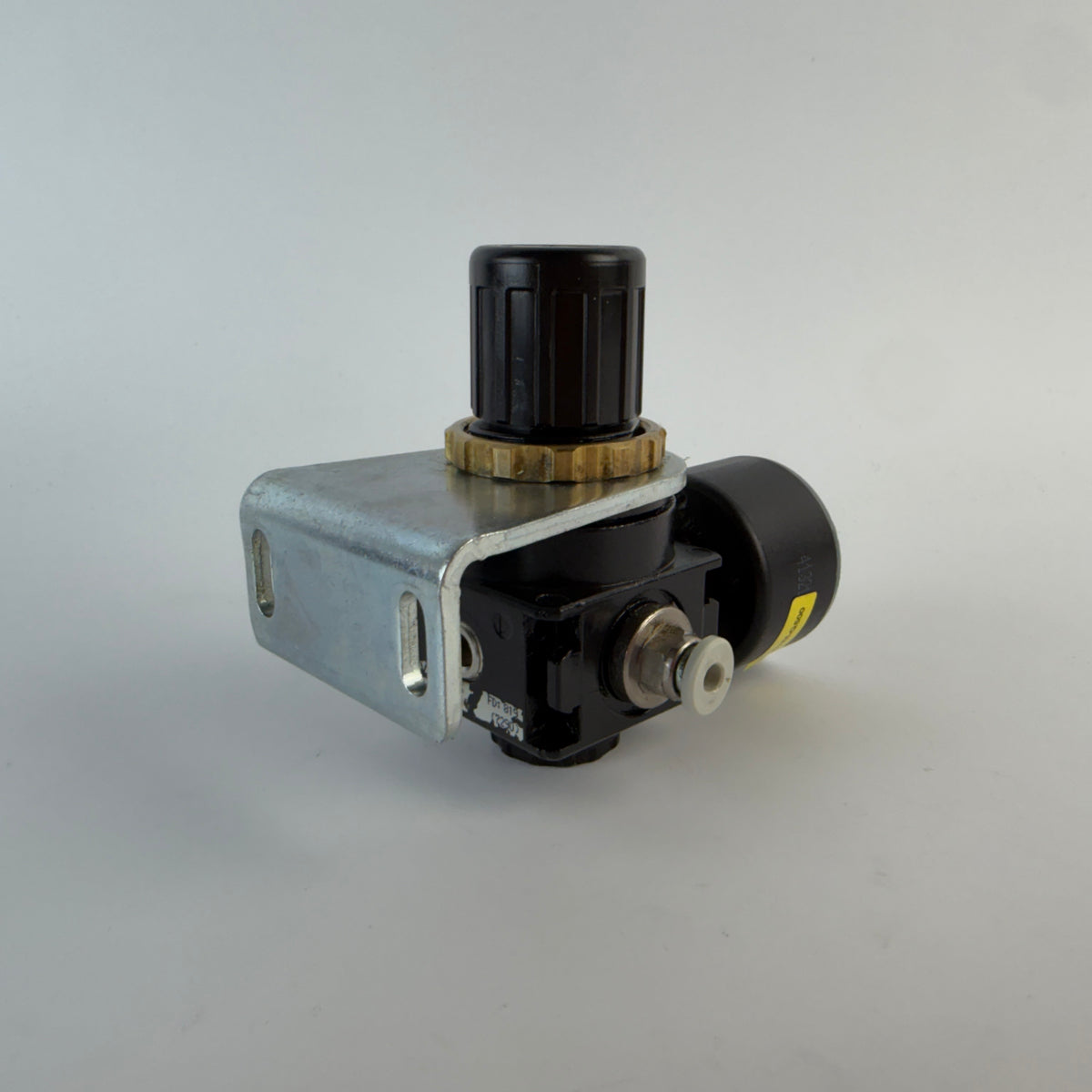

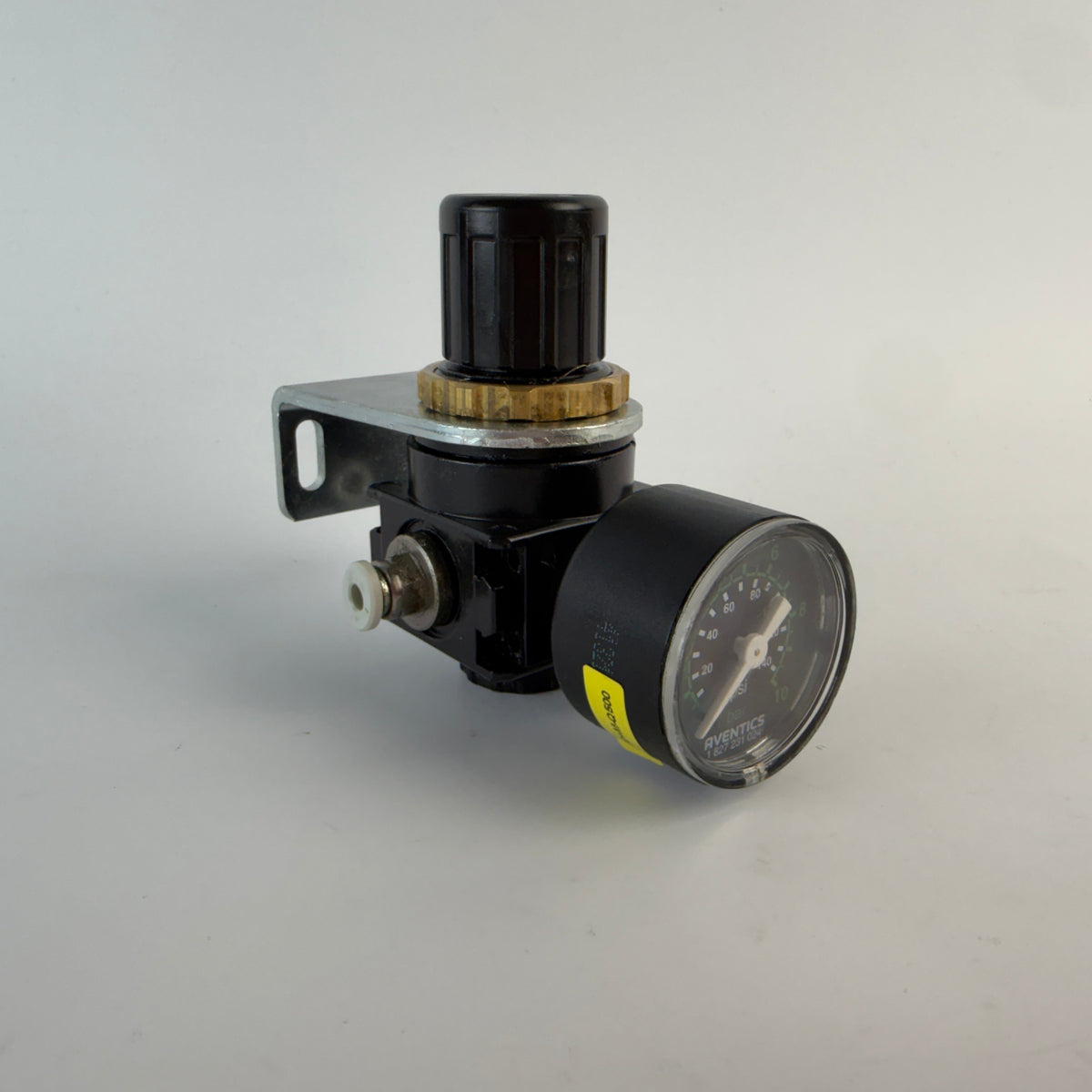

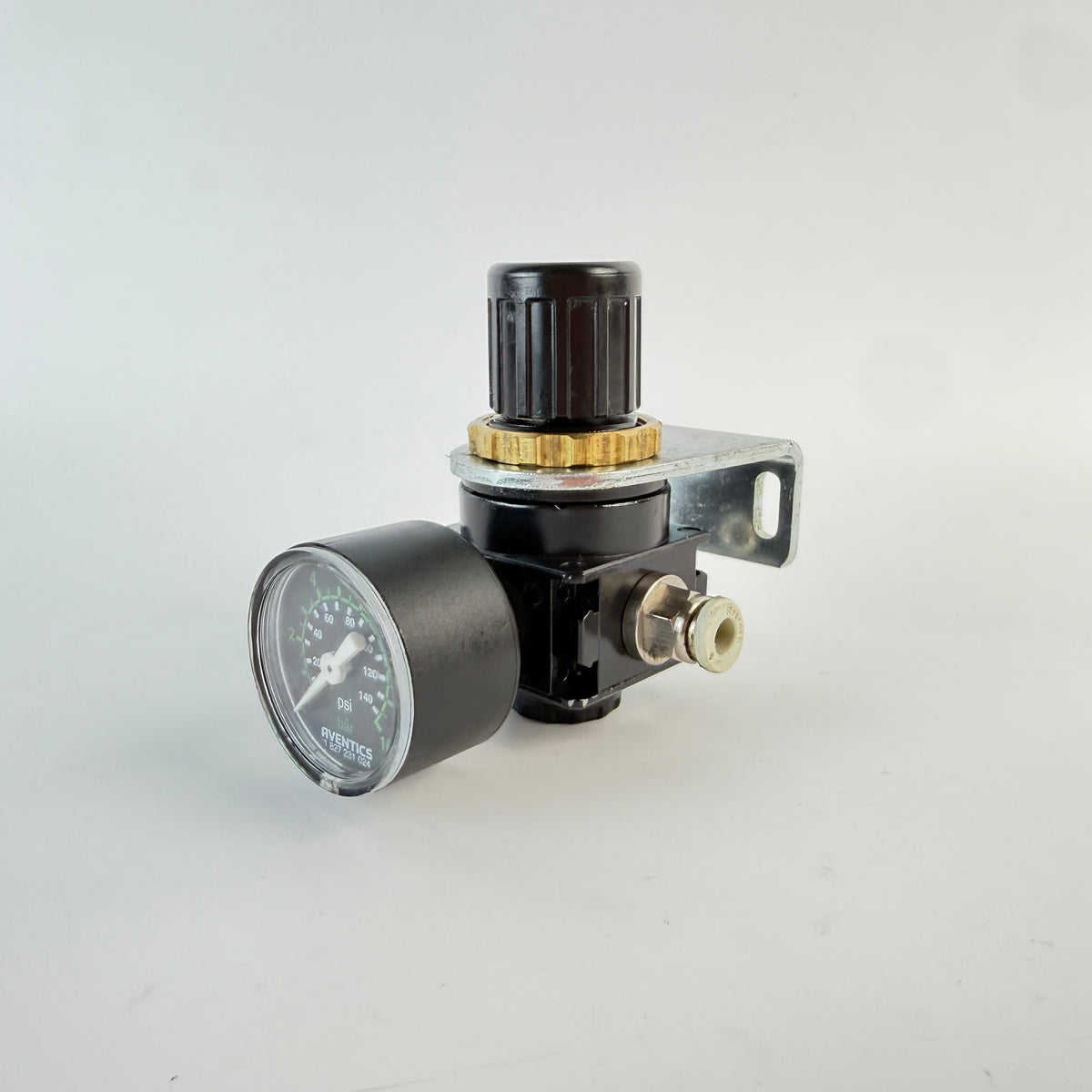

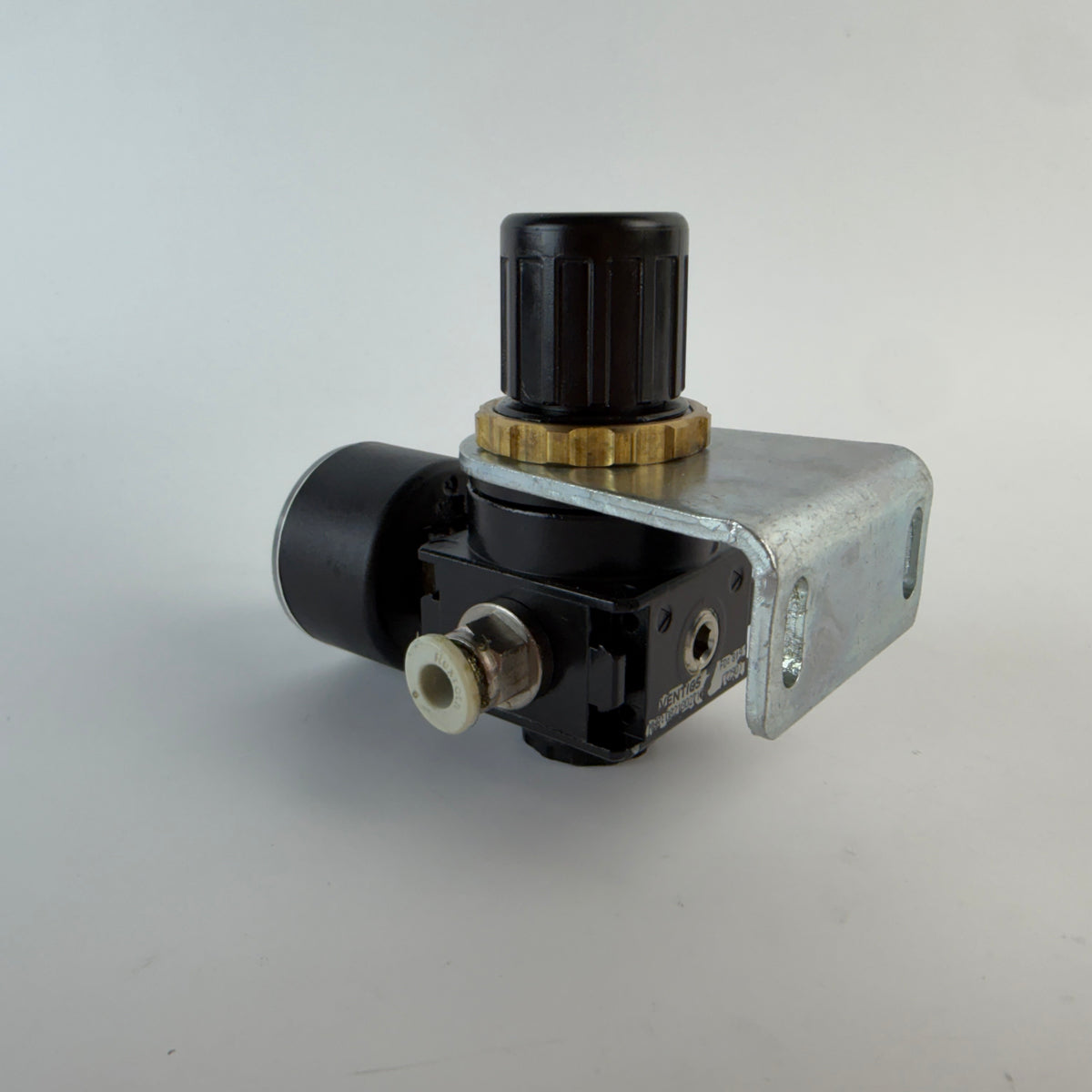

This unit is supplied with an AVENTICS pressure gauge, metal mounting bracket and installed push-in pneumatic fittings as pictured.

Technical details:

• Manufacturer: AVENTICS
• Series: NL1-RGS
• Part Number: 0821302715
• Configuration: NL1-RGS-G014-GAU-MAN-060-SS
• Type: Pneumatic pressure regulator
• Regulator type: Diaphragm-type

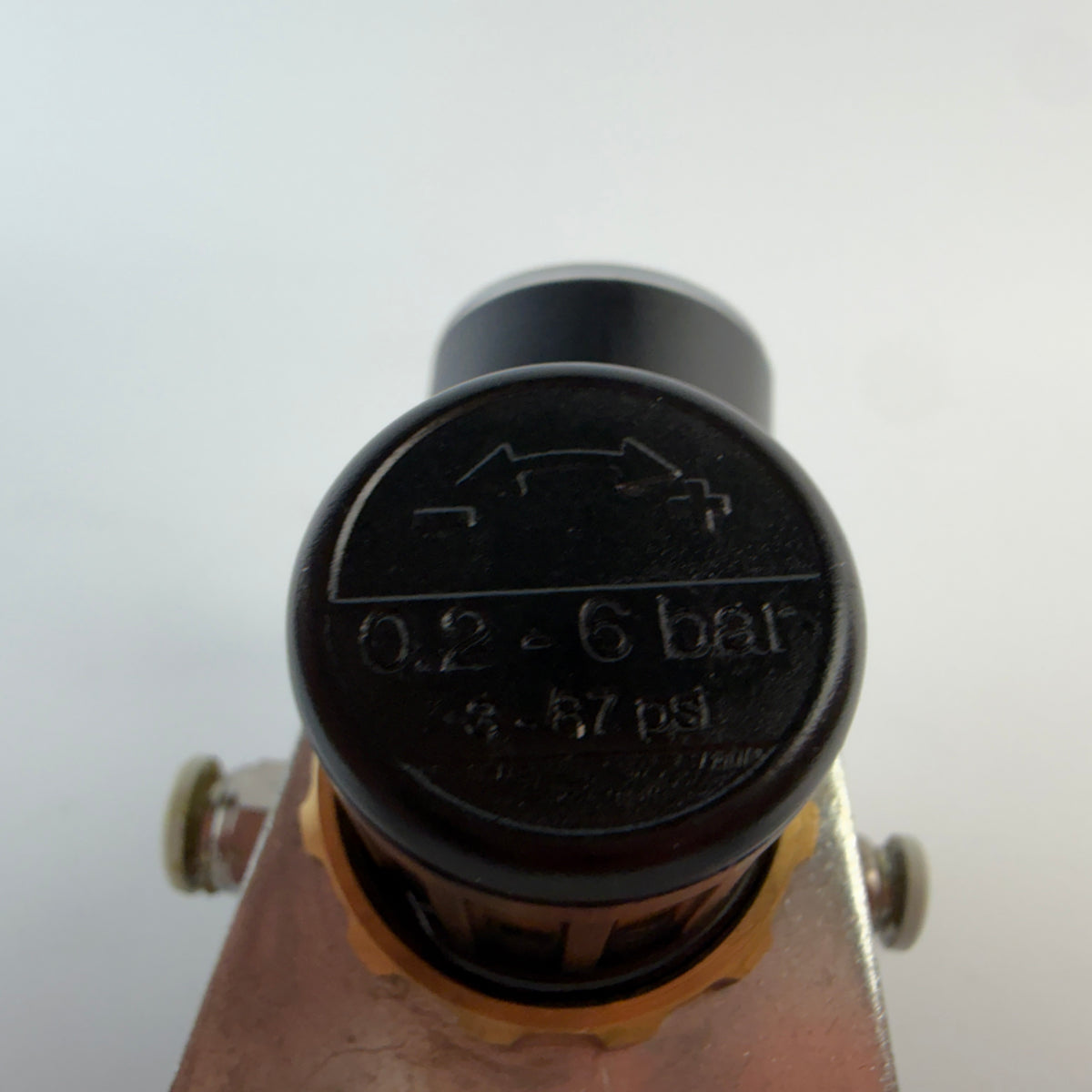

• Adjustment range: 0.2–6 bar
• Nominal flow Qn: 1350 l/min
• Main pneumatic ports: G1/4
• Ventilation port: G1/8
• Medium: Compressed air / neutral gases
• Regulator function: Adjustment with relieving air exhaust
• Operation: Mechanical
• Mounting orientation: Any
• Recommended pre-filtration: 5 µm

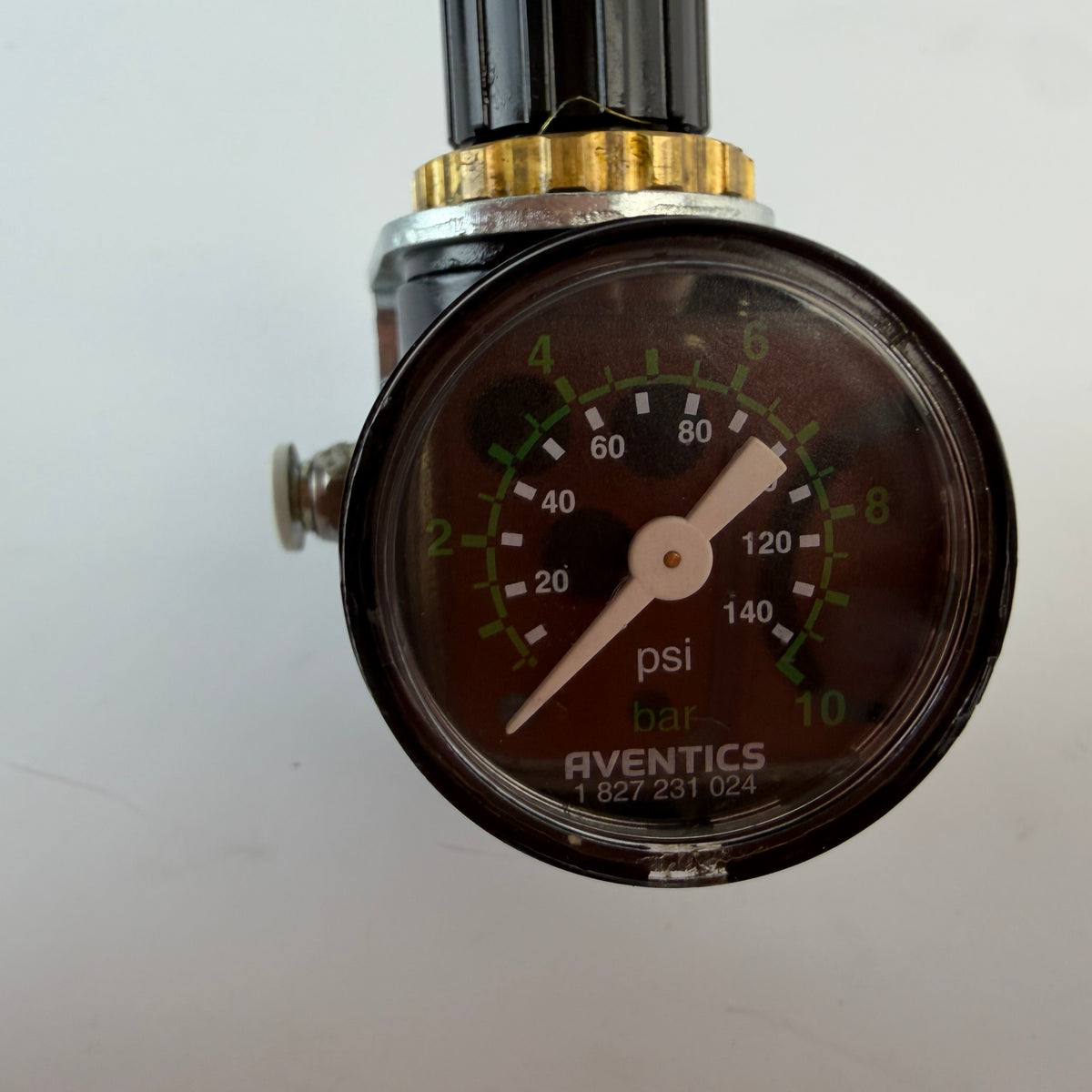

• AVENTICS pressure gauge: 1 827 231 024
• Gauge scale: 0–10 bar / 0–140 psi
• Published regulator weight with gauge: approx. 0.314 kg
• Metal mounting bracket included
• Push-in pneumatic fittings installed

Suitable for industrial machinery, pneumatic control systems, automation equipment and compressed-air preparation installations requiring adjustable downstream pressure.

Supplied as pictured with regulator, pressure gauge, mounting bracket and installed fittings.

Condition: Used, fully functional.
