AVENTICS 0821302735 pneumatic pressure regulator from the NL1-RGS series, designed for pressure regulation in industrial compressed-air and pneumatic automation systems.

The regulator is configuration NL1-RGS-G014-GAU-MAN-060-SS and features G1/4 main ports, a 0.2–6 bar adjustable output pressure range and a nominal flow rate of 1000 l/min.

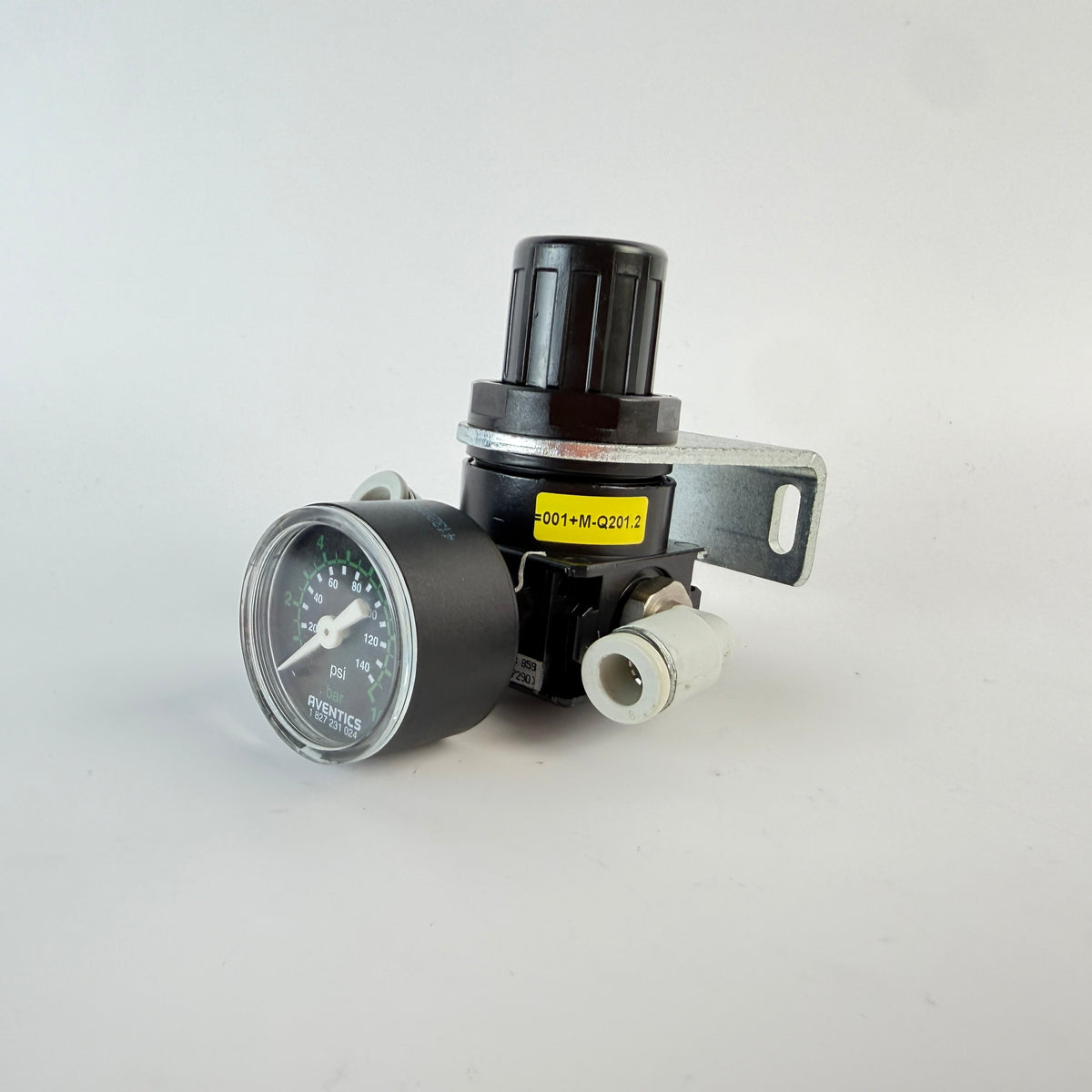

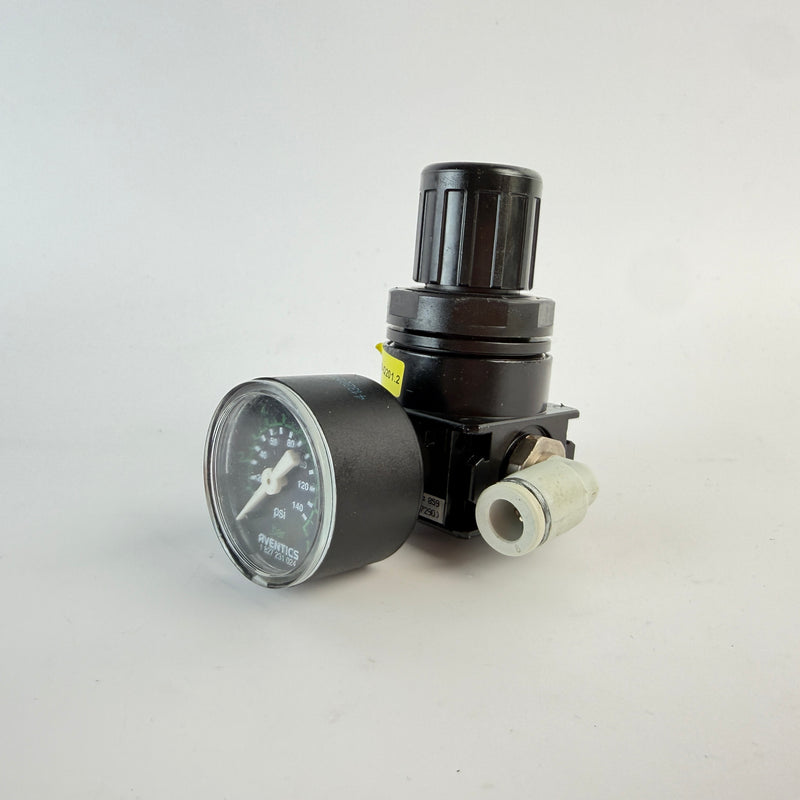

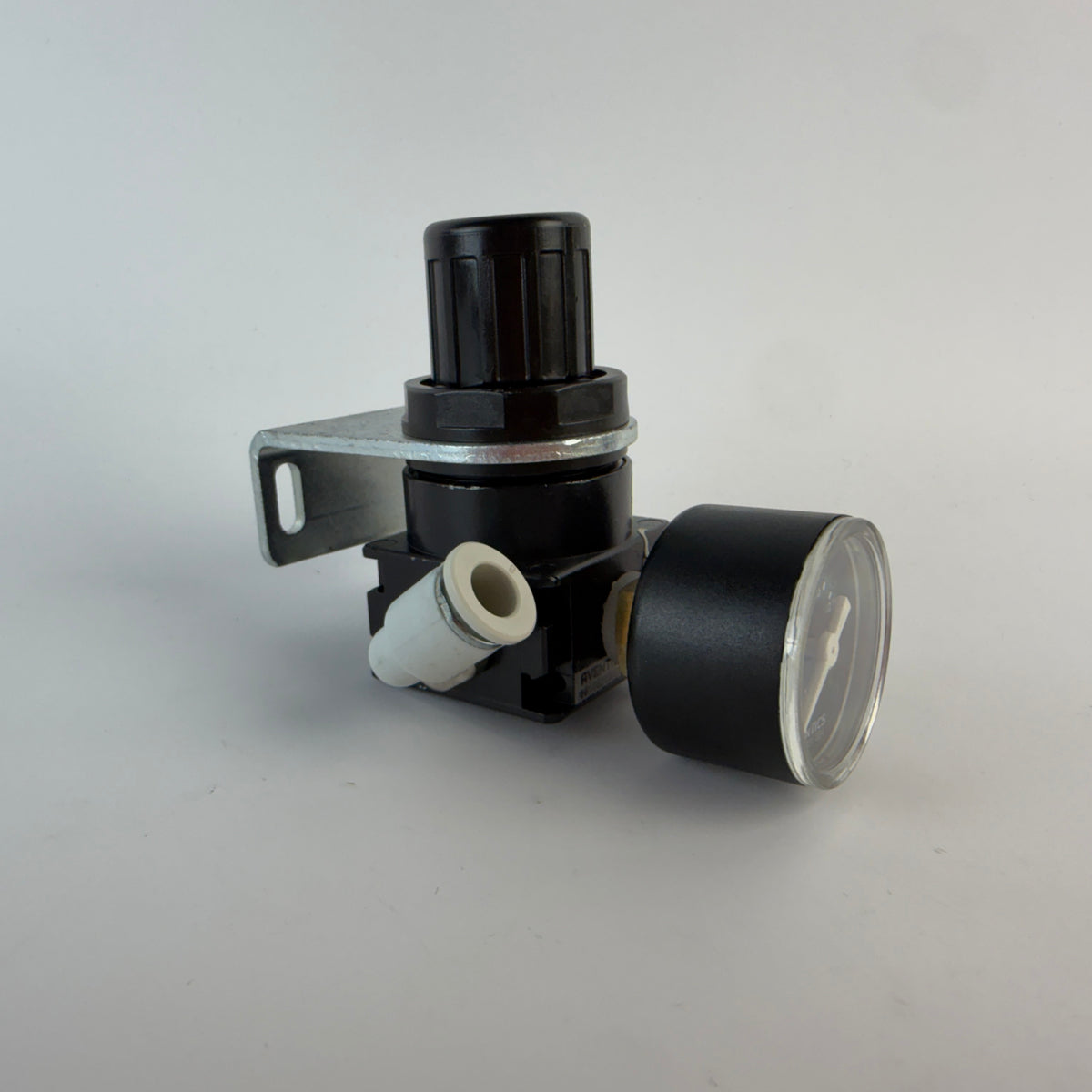

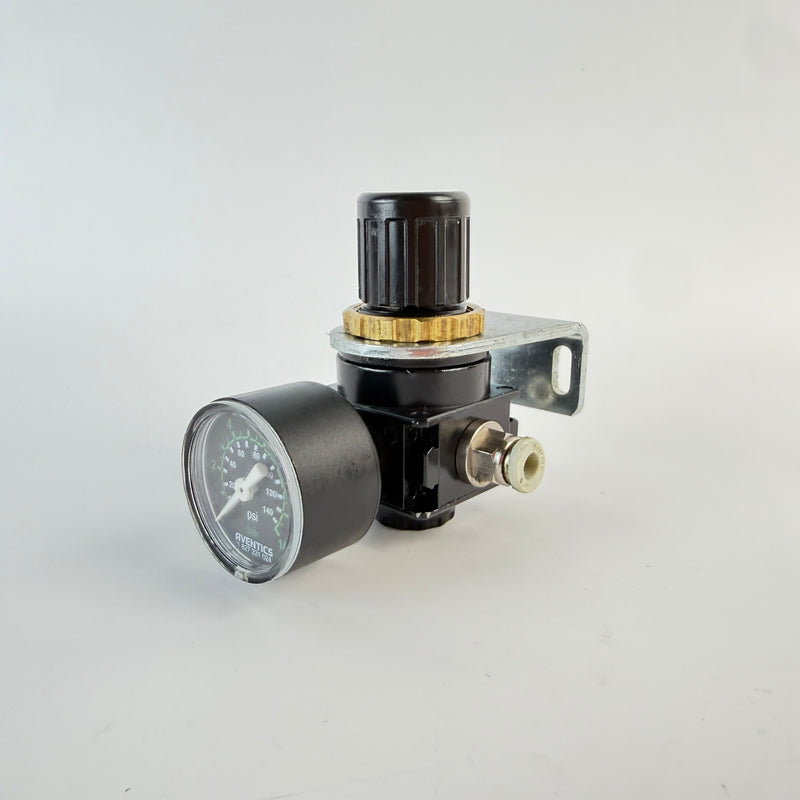

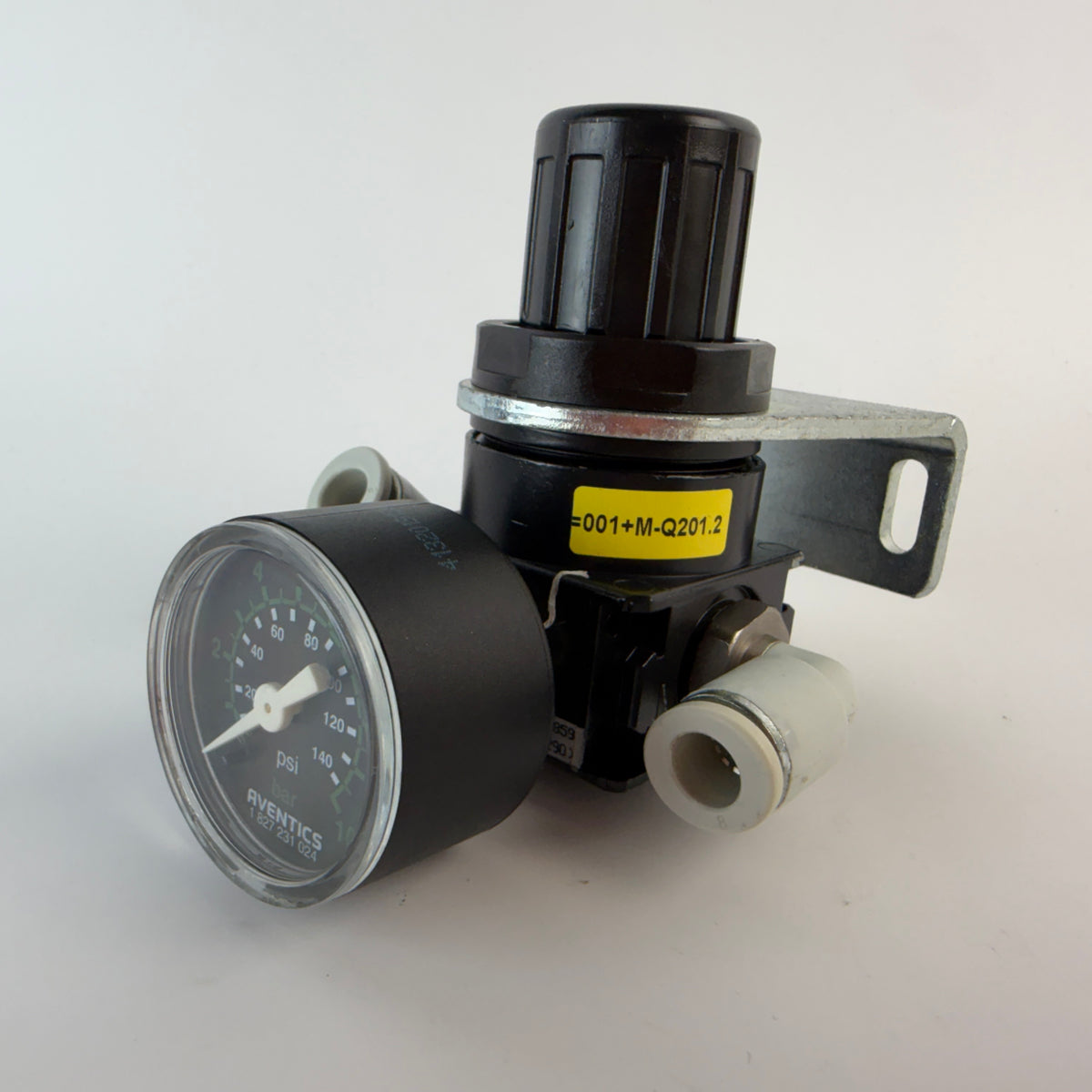

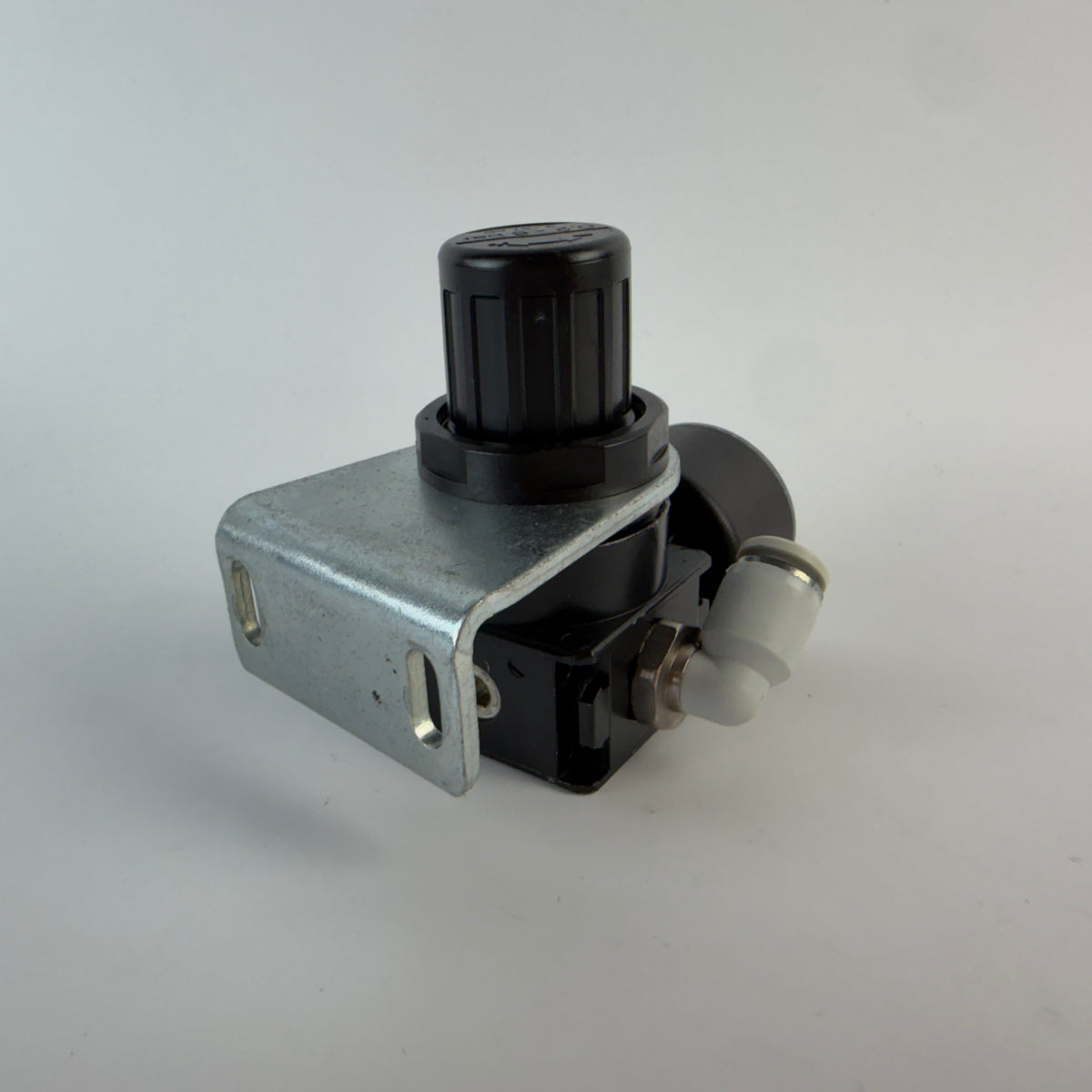

This unit is equipped with an AVENTICS pressure gauge, metal mounting bracket and two installed elbow push-in pneumatic fittings as pictured.

Technical details:

• Manufacturer: AVENTICS
• Series: NL1-RGS

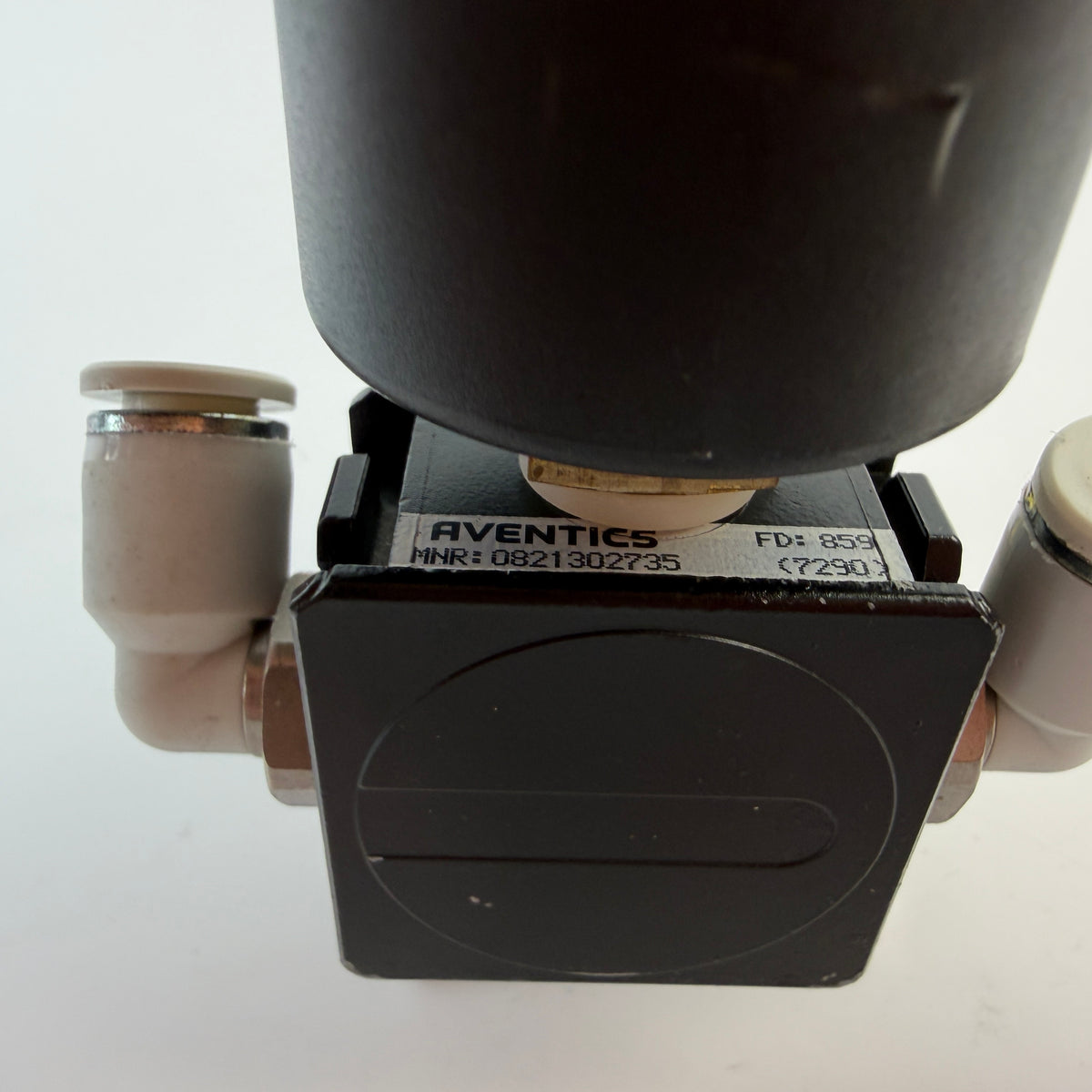

• Part Number: 0821302735
• Configuration: NL1-RGS-G014-GAU-MAN-060-SS
• Type: Pneumatic pressure regulator
• Regulator type: Diaphragm

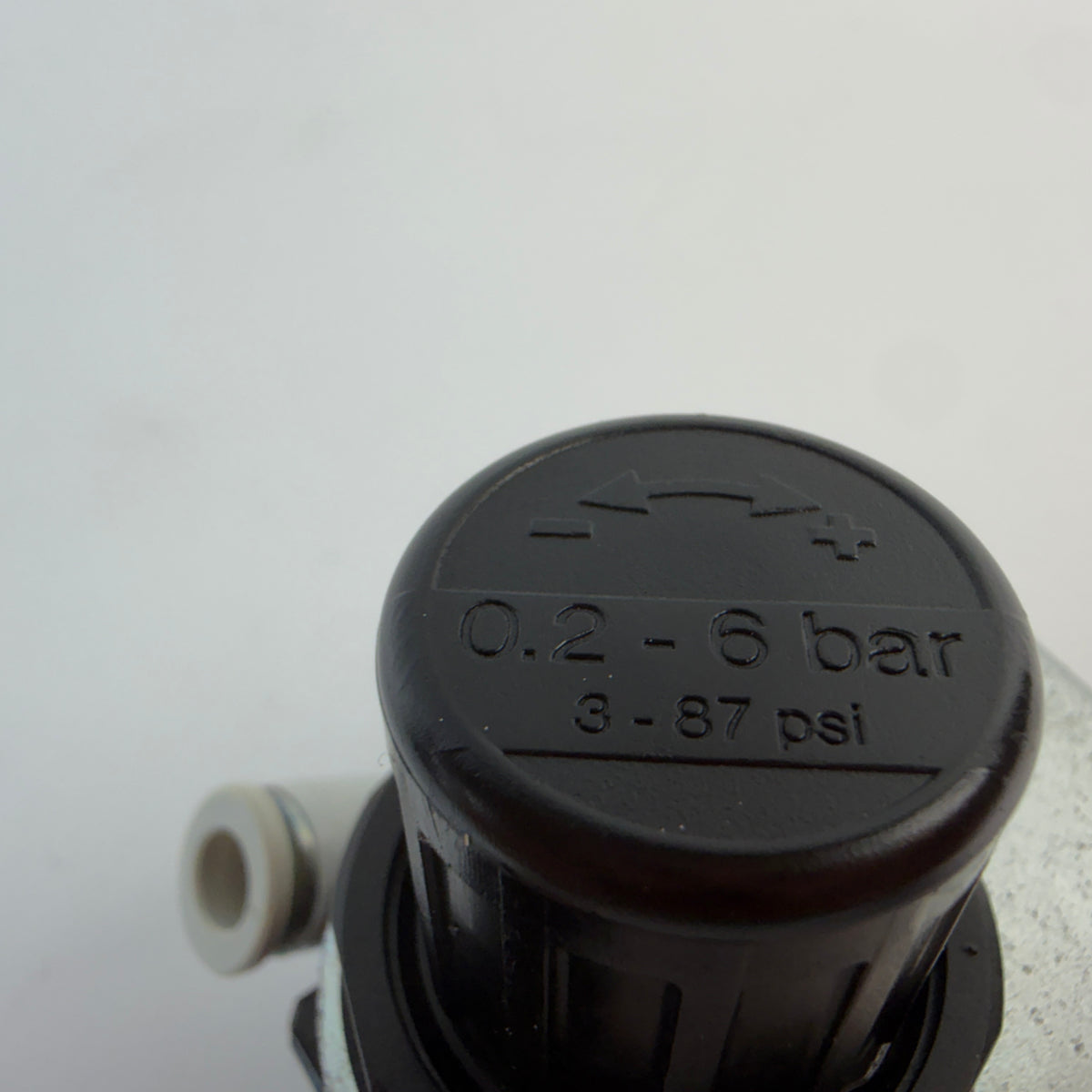

• Adjustment range: 0.2–6 bar
• Working pressure: 0.5–16 bar
• Nominal flow Qn: 1000 l/min
• Main ports: G1/4
• Pressure gauge connection: G1/8
• Ventilation port: G1/8
• Medium: Compressed air / neutral gases
• Relieving exhaust: Yes
• Activation: Mechanical
• Mounting orientation: Any
• Ambient temperature: -10 to +60°C
• Medium temperature: -10 to +60°C
• Recommended pre-filtration: 5 µm
• Housing: Die-cast zinc
• Seal material: NBR

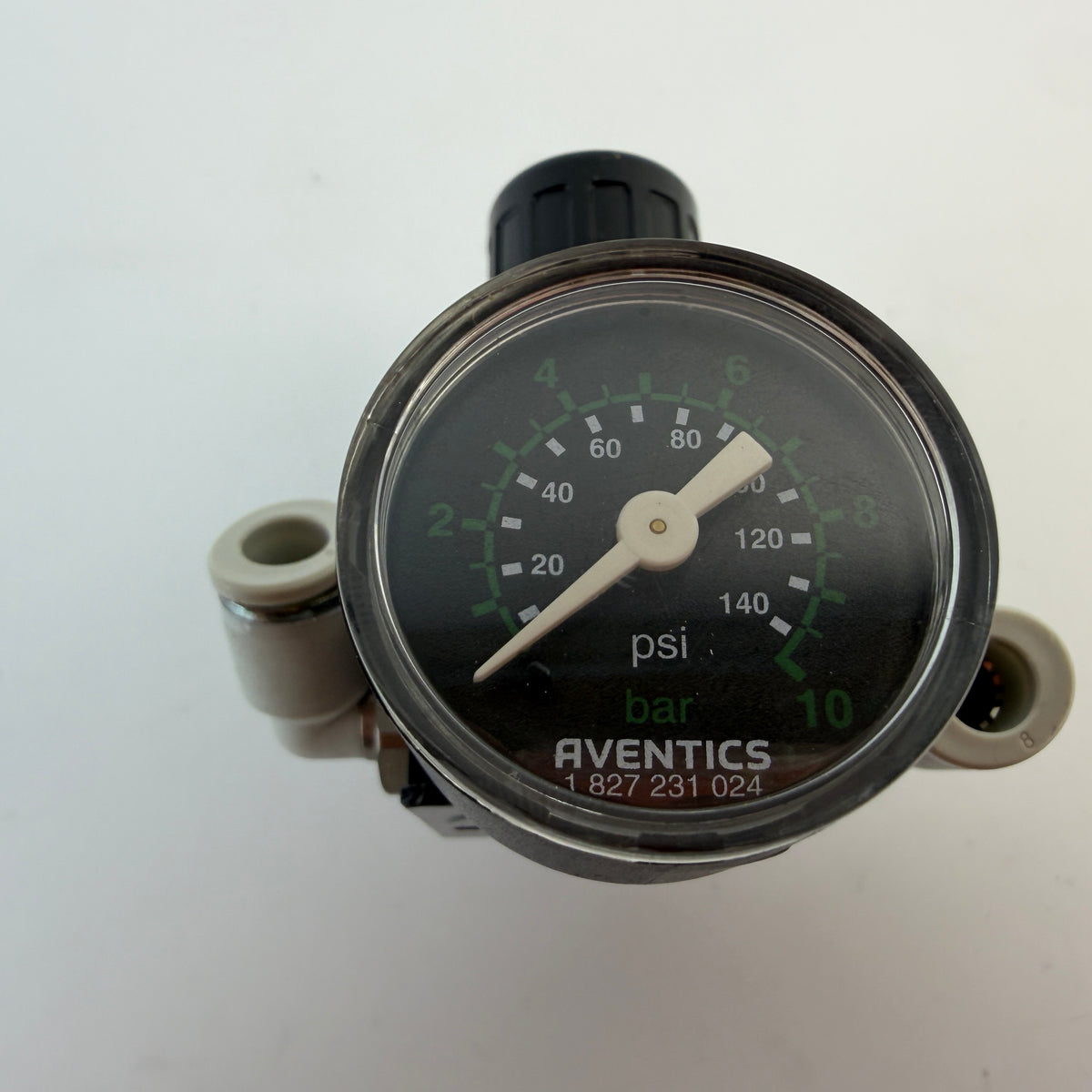

• Pressure gauge: AVENTICS 1 827 231 024
• Gauge scale: 0–10 bar / 0–140 psi
• Published regulator weight with gauge: approx. 0.294 kg

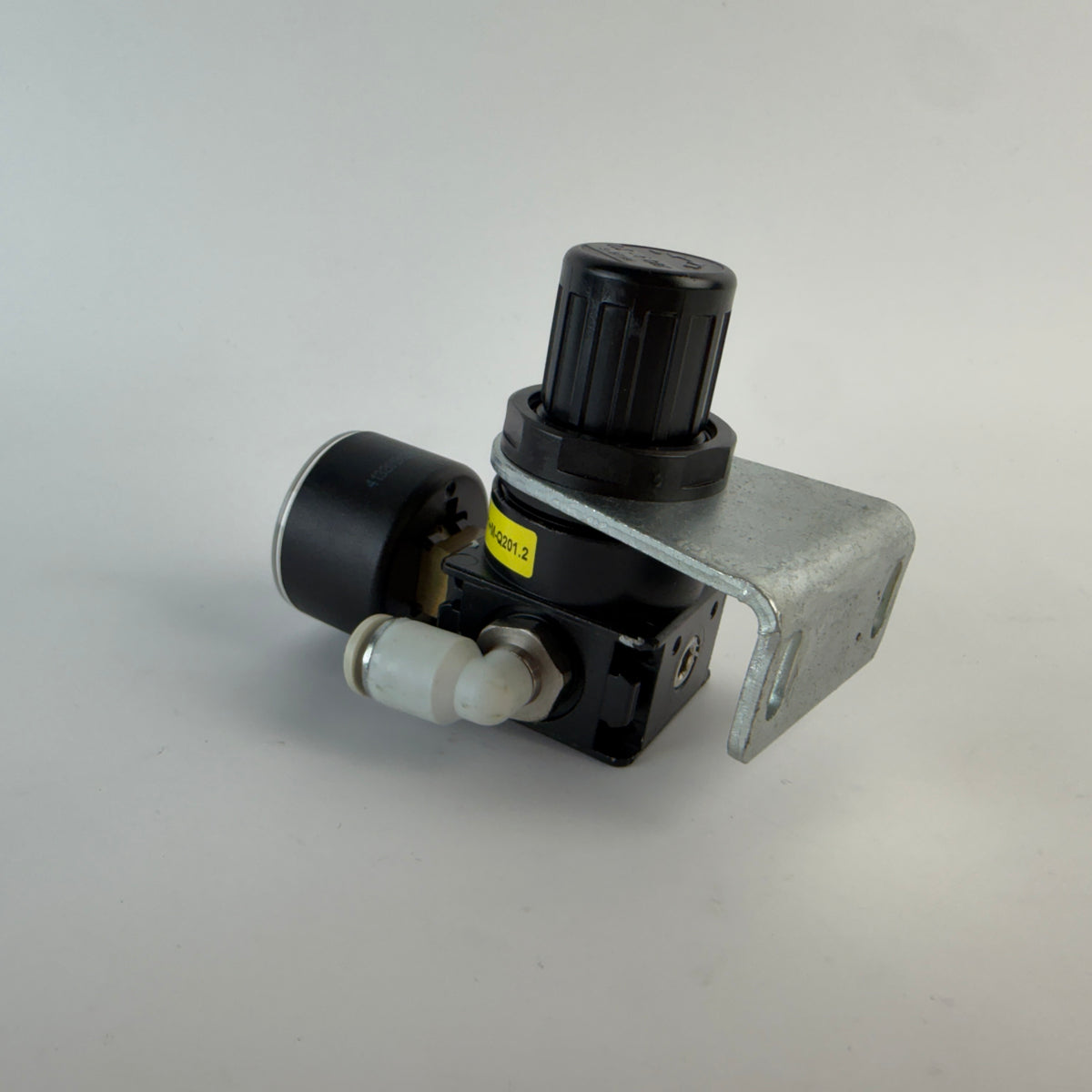

• Metal mounting bracket included

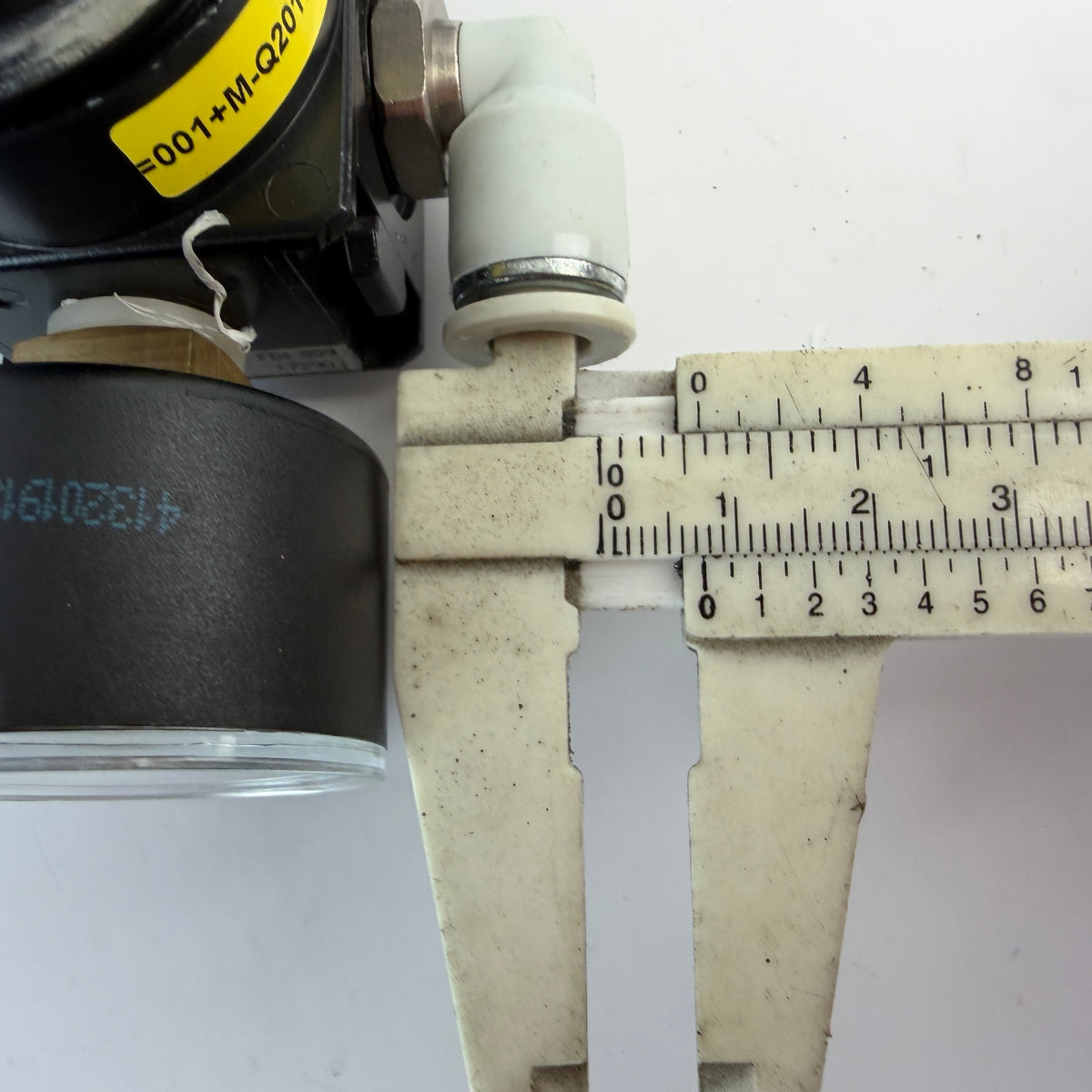

• Two elbow push-in fittings installed

Suitable for industrial machinery, pneumatic control systems, automation equipment and compressed-air preparation applications.

Supplied as pictured with pressure gauge, mounting bracket and installed pneumatic fittings.

Condition: Used, fully functional.
