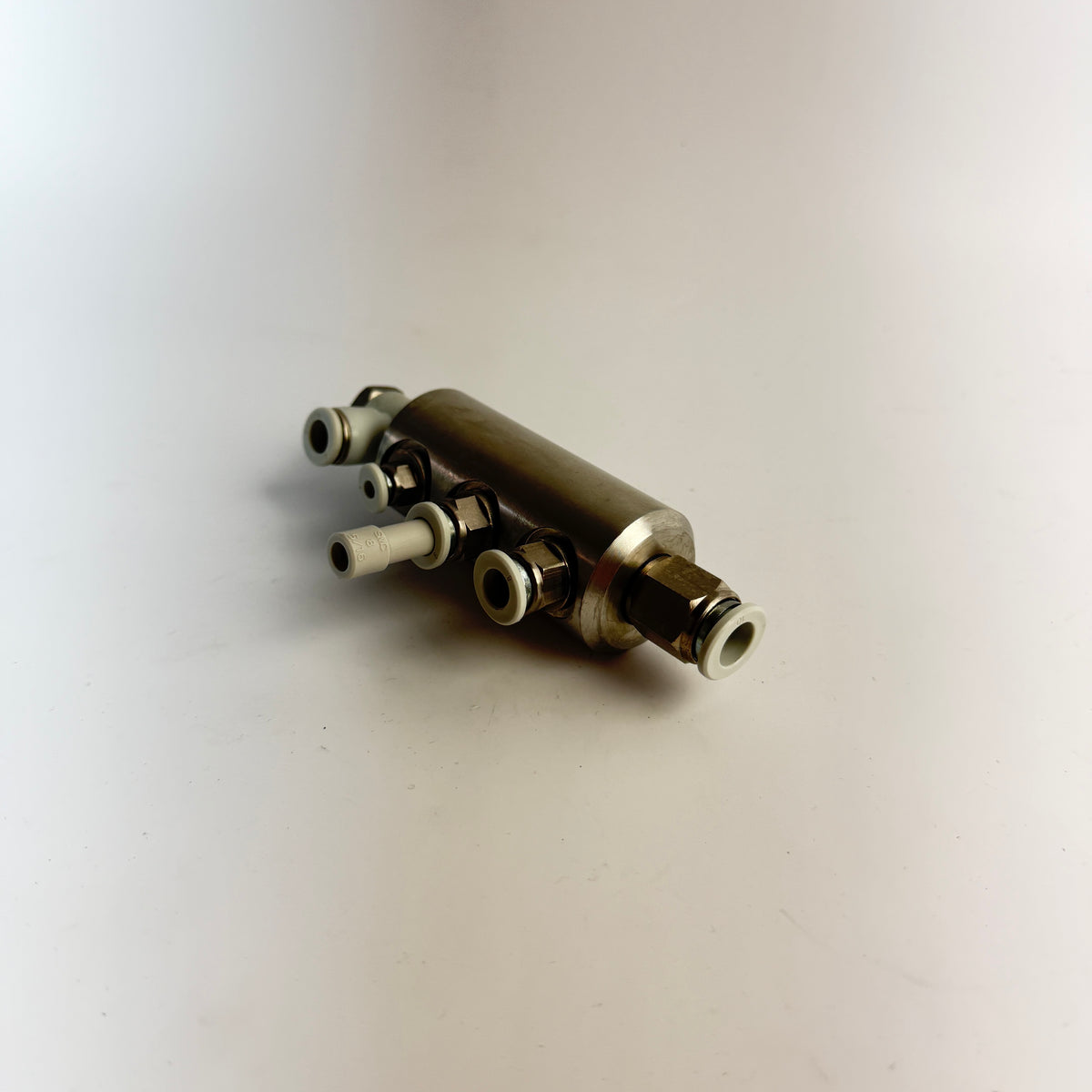

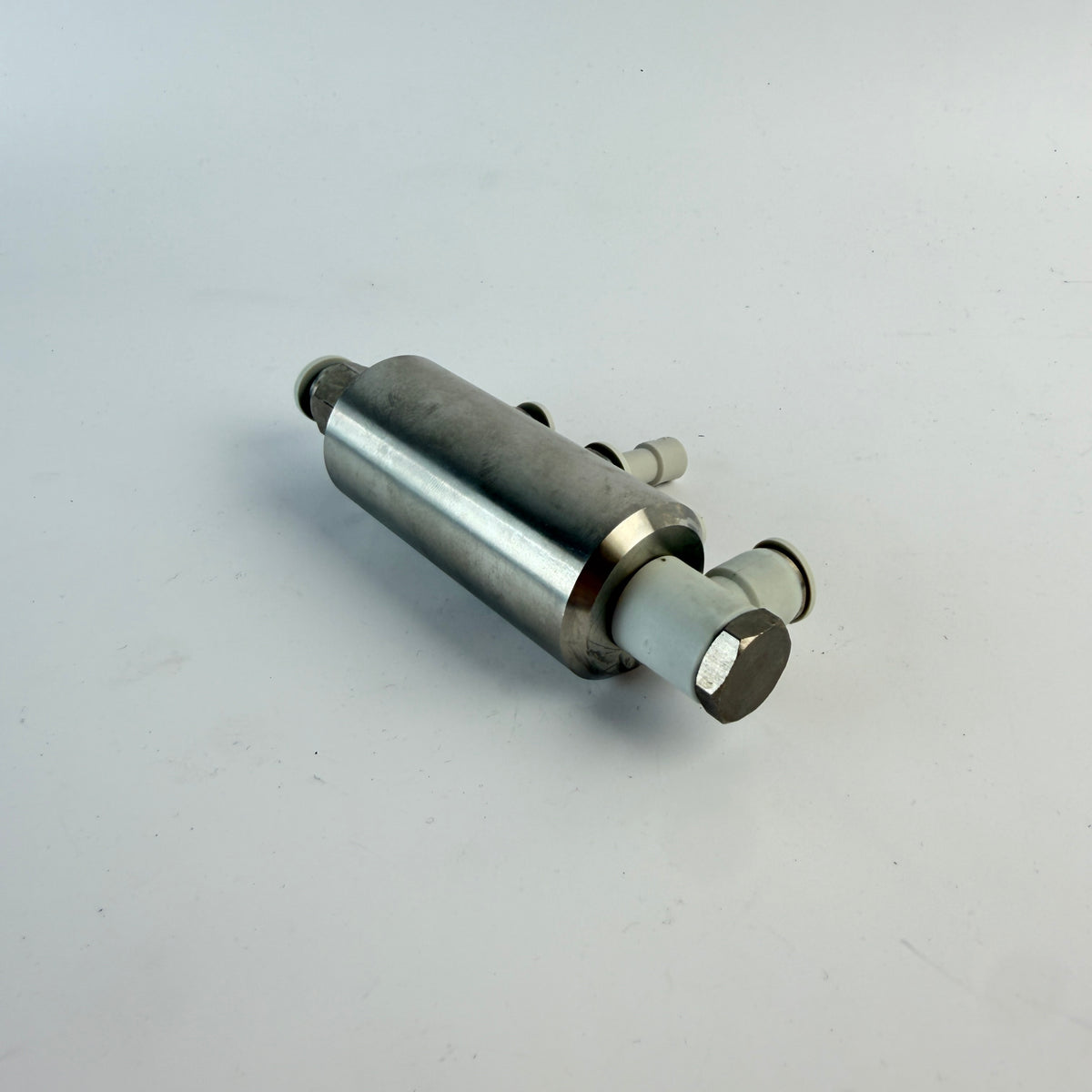

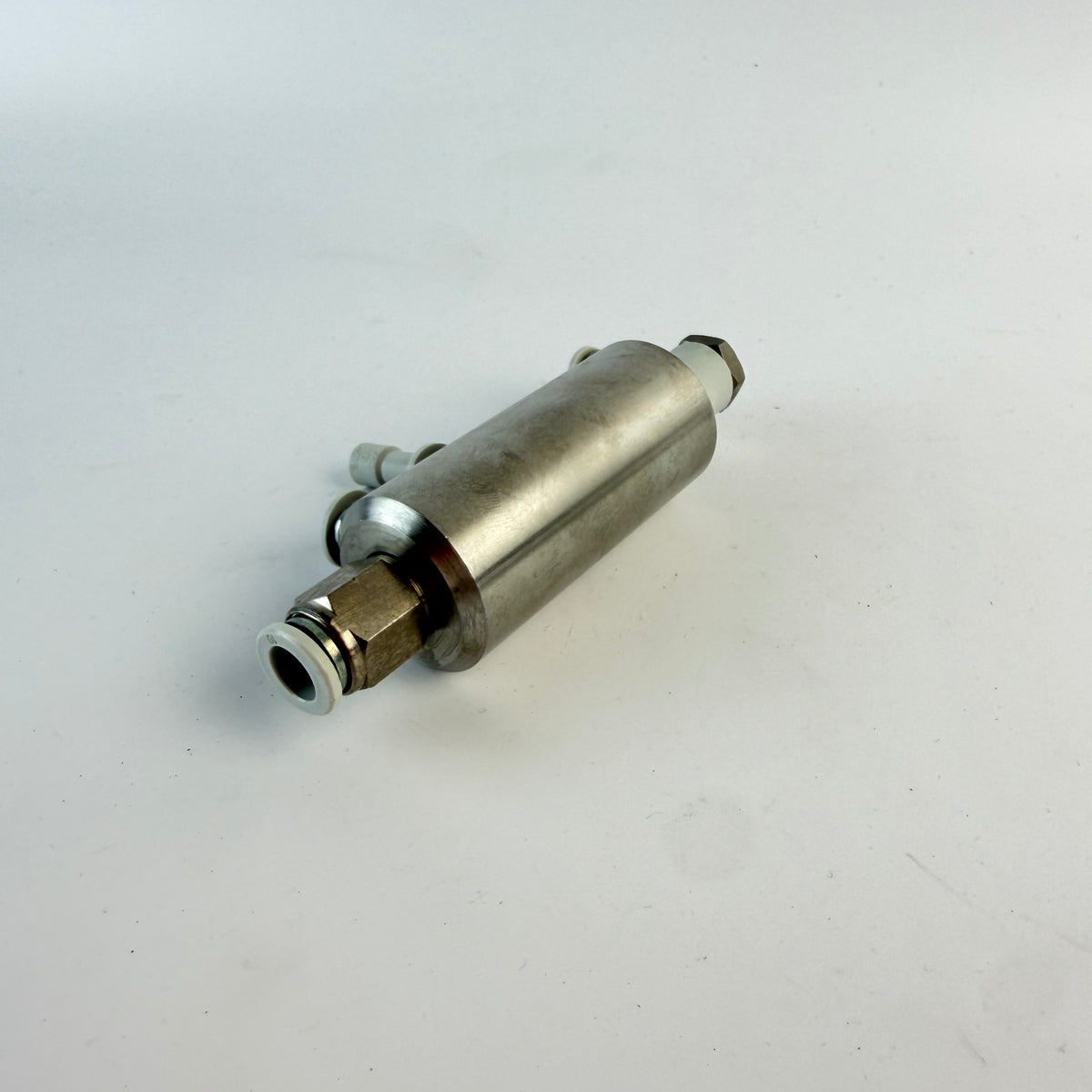

Bosch Rexroth pneumatic air distribution manifold assembly with multiple push-in pneumatic tube connections.

This component is designed to distribute a compressed-air supply between multiple pneumatic lines or devices. Its compact metal manifold body provides several connection points fitted with push-in tube connectors, allowing pneumatic tubing to be connected and disconnected quickly.

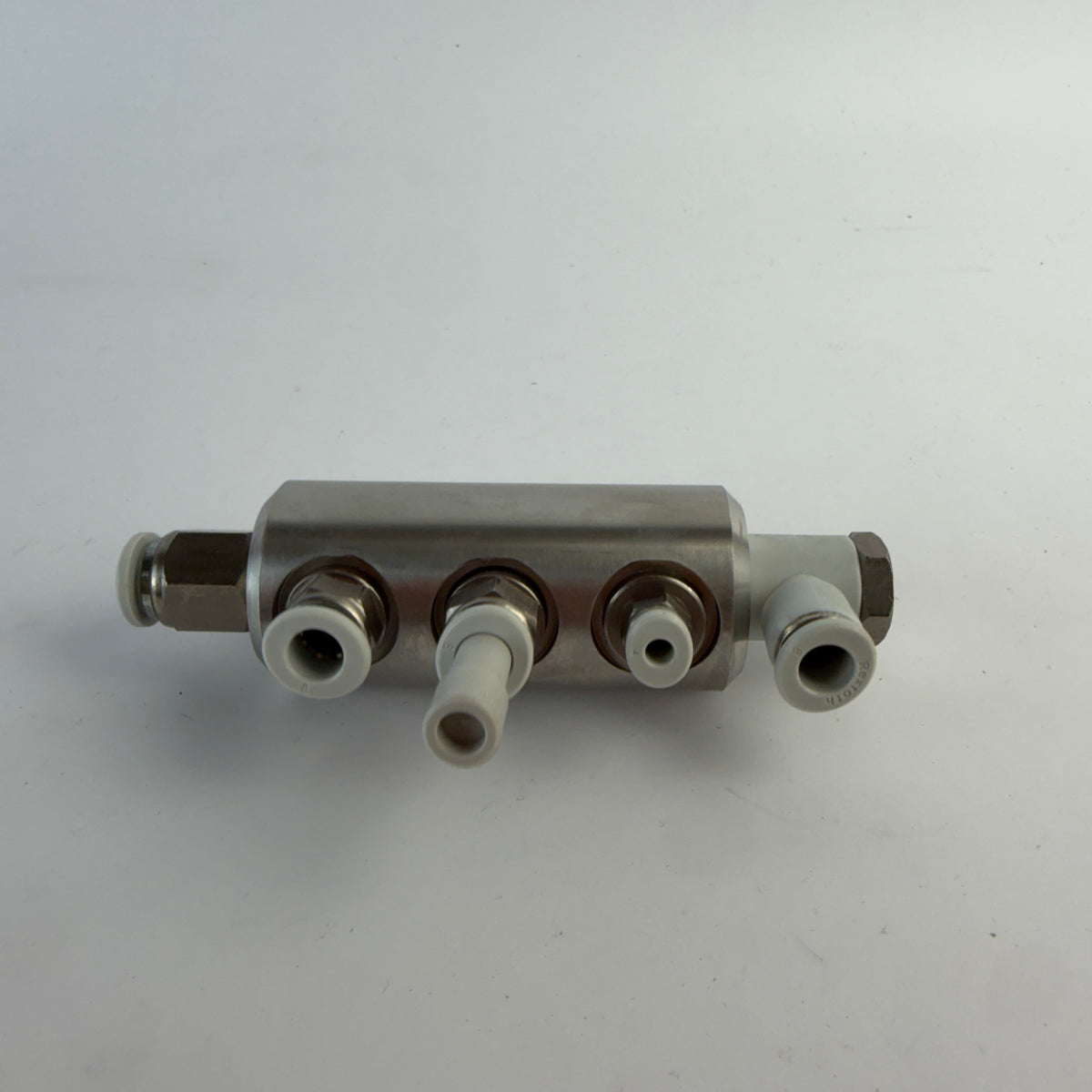

The assembly has five visible pneumatic connection points, including connections at both ends of the manifold and three connections along the side. The installed fittings include straight and elbow-style push-in connectors.

Product details:

• Brand: Bosch Rexroth
• Product Type: Pneumatic Air Distribution Manifold / Distribution Block
• Configuration: Multi-port pneumatic manifold
• Connection Type: Push-in pneumatic tube fittings
• Visible Connection Points: 5
• Body: Metal manifold block
• Application: Compressed-air distribution in industrial pneumatic systems
• Exact Model: Not confirmed
• MPN: Not confirmed
• Port / Tube Sizes: Not confirmed

Used, fully functional.

Suitable for industrial automation, machinery, pneumatic control systems, assembly equipment, and other applications requiring compressed air to be distributed between multiple pneumatic lines.

The exact original machine application and compatibility with specific Bosch Rexroth pneumatic systems have not been confirmed. Please compare the fitting configuration and dimensions with your existing equipment before purchase.
