Compact short-stroke pneumatic cylinder assembly supplied with an AVENTICS ST9 magnetic position sensor, pneumatic flow-control fittings and connection cable.

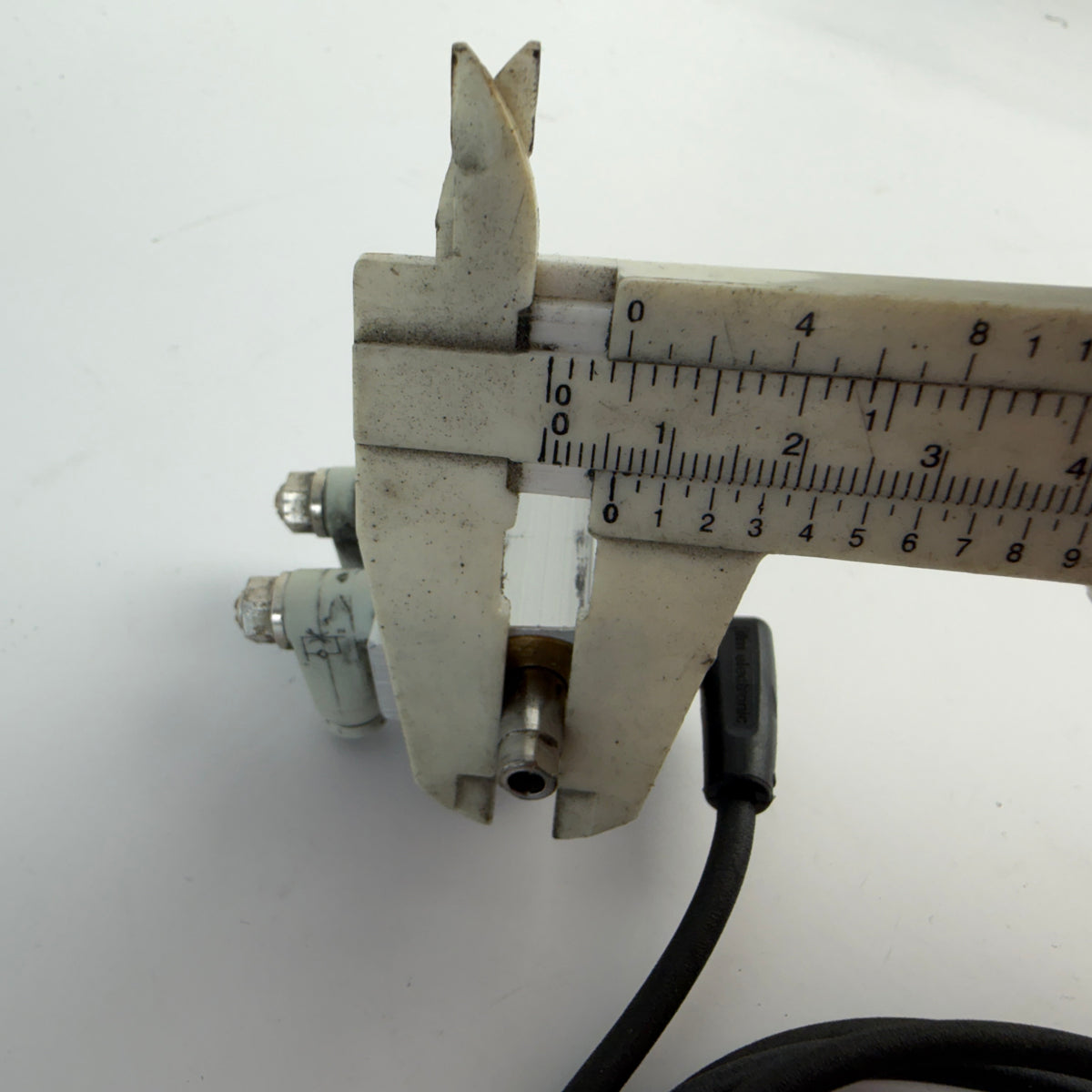

The exact manufacturer, model and part number of the pneumatic cylinder are not marked or otherwise confirmed. The cylinder has an approximately 6 mm measured piston rod diameter and approximately 6 mm measured stroke.

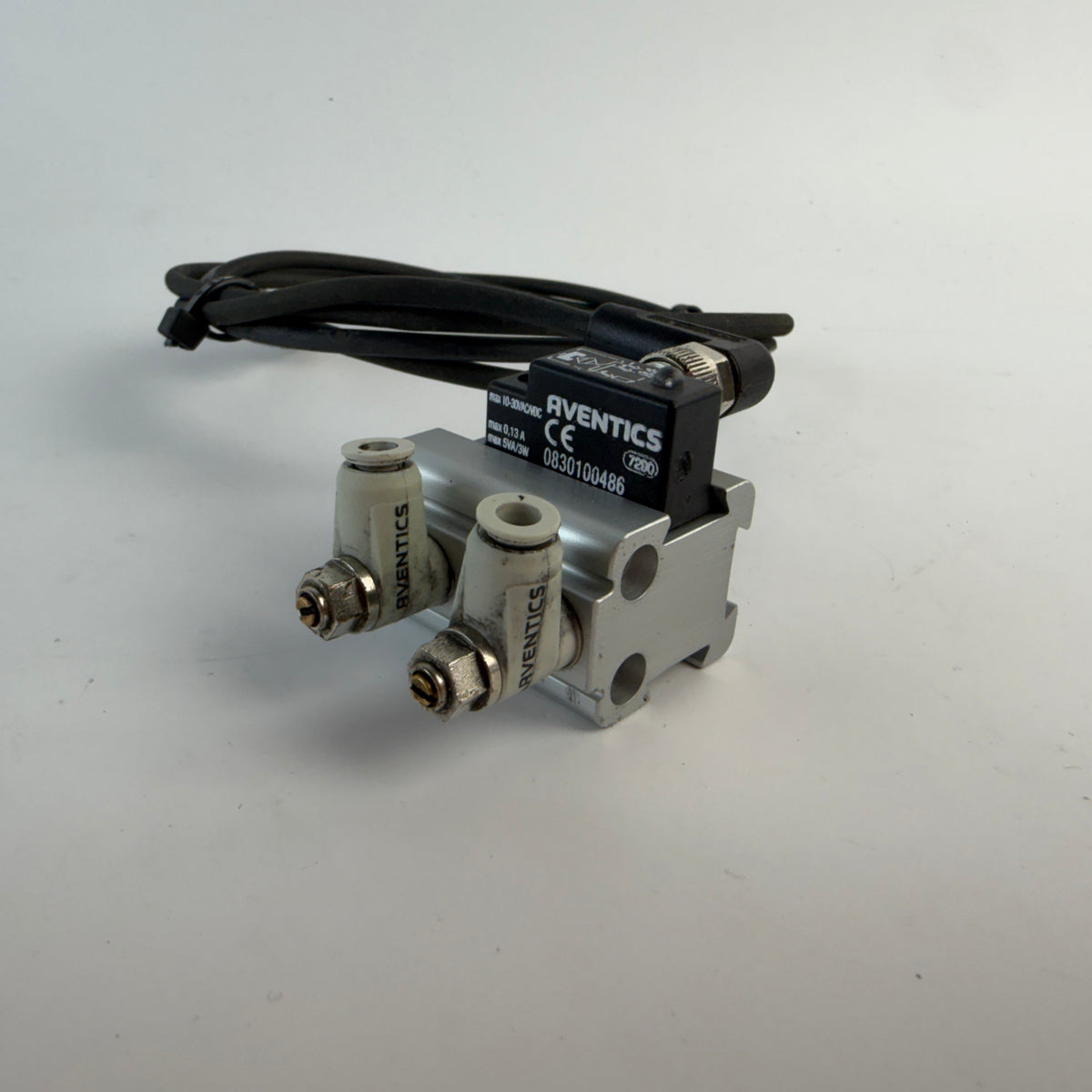

The installed position sensor is identifiable from its marking as an AVENTICS Series ST9, part number 0830100486 (ST9-R3-M008-030 27 OHM). This is a Reed-type magnetic cylinder sensor designed for a 9 mm groove.

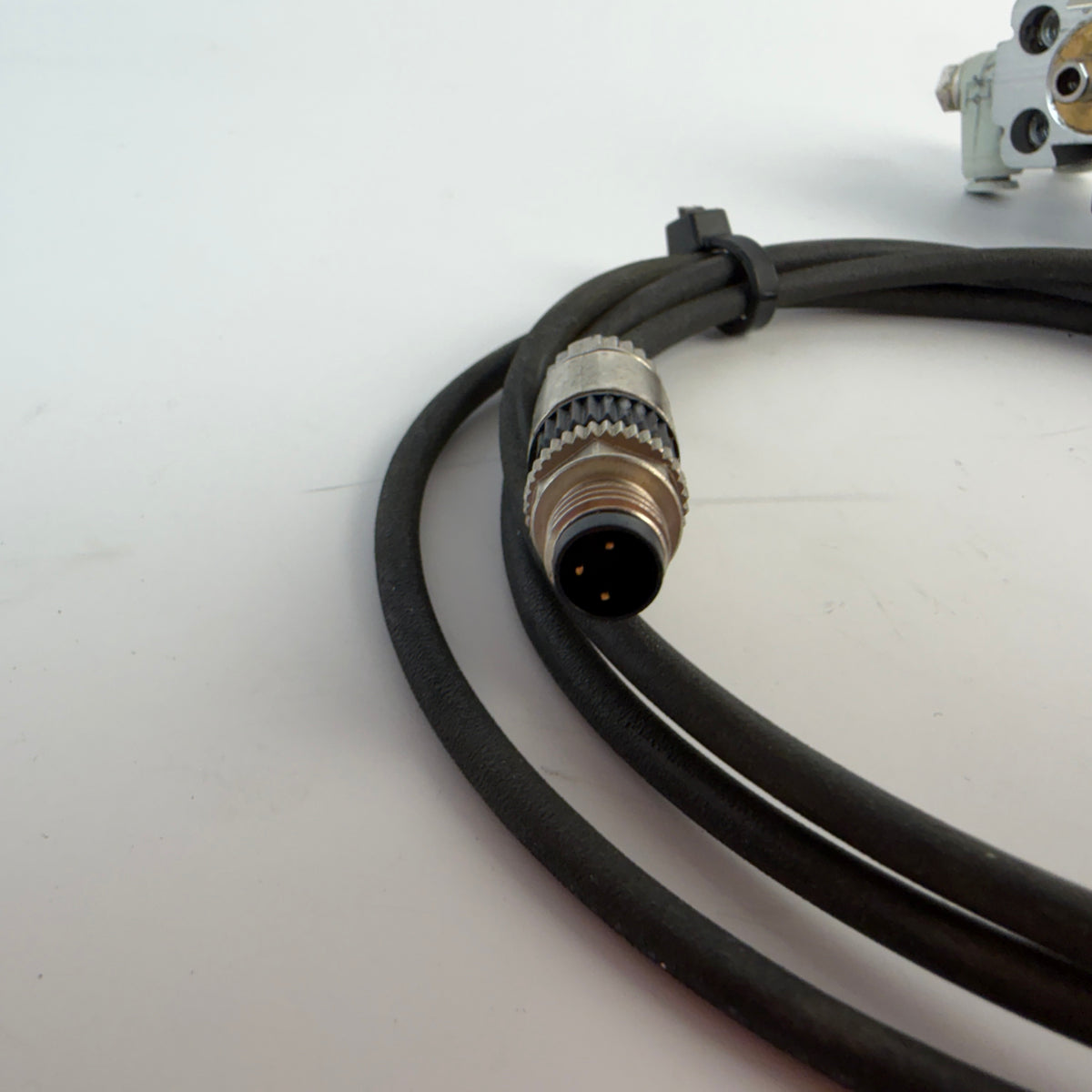

The included sensor cable connects to the sensor through an angled connector and terminates in a 3-pin M8 male circular connector.
Cylinder / assembly details:
- Type: Compact / short-stroke pneumatic cylinder
- Cylinder manufacturer: Not confirmed
- Cylinder model / MPN: Not confirmed
- Measured piston rod diameter: Approx. 6 mm
- Measured stroke: Approx. 6 mm
- Pneumatic fittings: Included as shown
- Two pneumatic flow-control fittings installed
AVENTICS sensor details:
- Manufacturer: AVENTICS
- Series: ST9
- Part Number: 0830100486
- Type Code: ST9-R3-M008-030 27 OHM
- Sensor Type: Reed magnetic position sensor
- Groove: 9 mm
- Operating Voltage: 10–30 V AC/DC
- Maximum DC Switching Current: 0.13 A
- Maximum AC Switching Current: 0.2 A
- Switching Capacity: 3 W / 5 VA
- Status LED: Yellow
- Protection Rating: IP65 / IP67
- Operating Temperature: -20°C to +80°C
- Sensor Connection: M8, 3-pin
- Cable included
- Cable termination: M8 3-pin male connector
Used, fully functional.

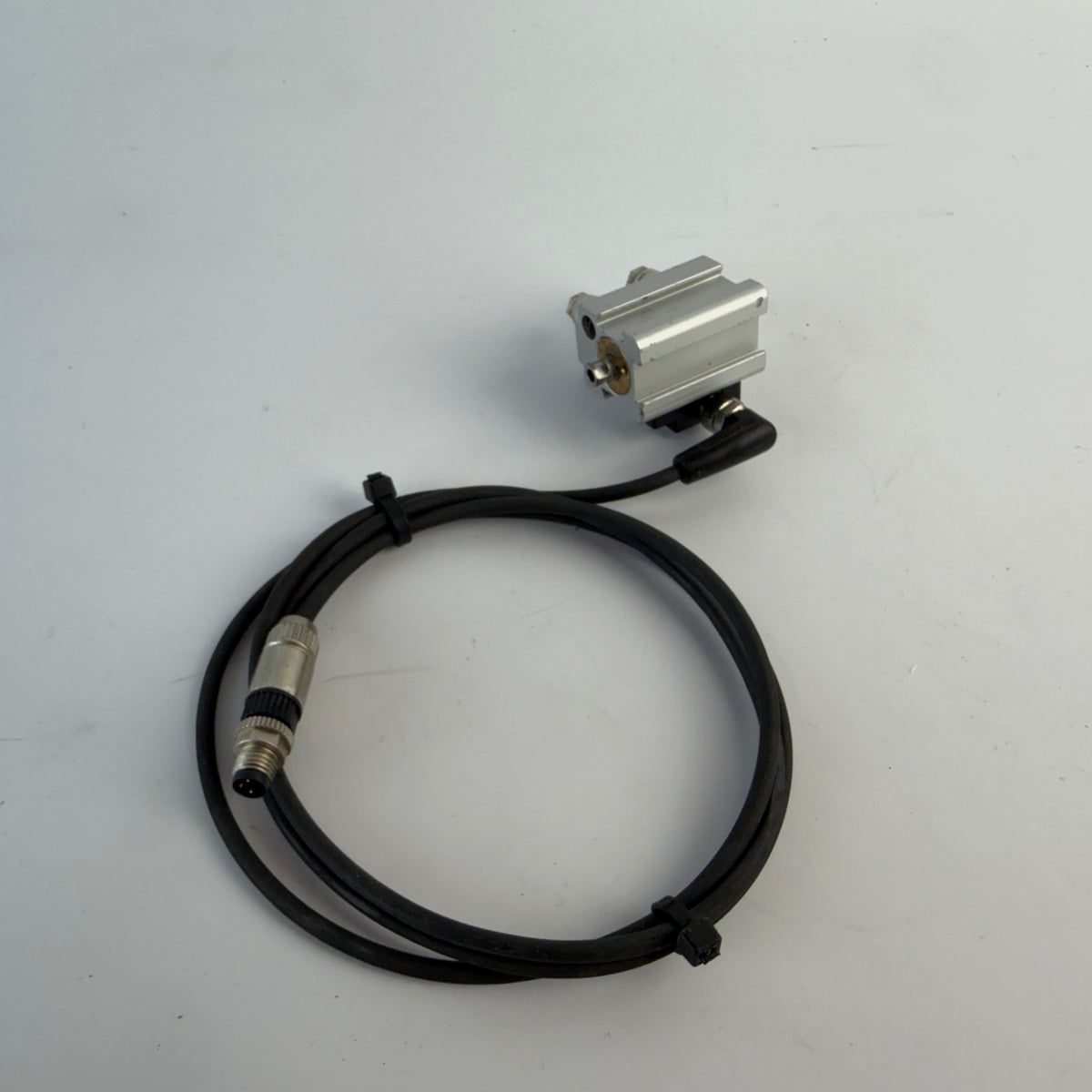

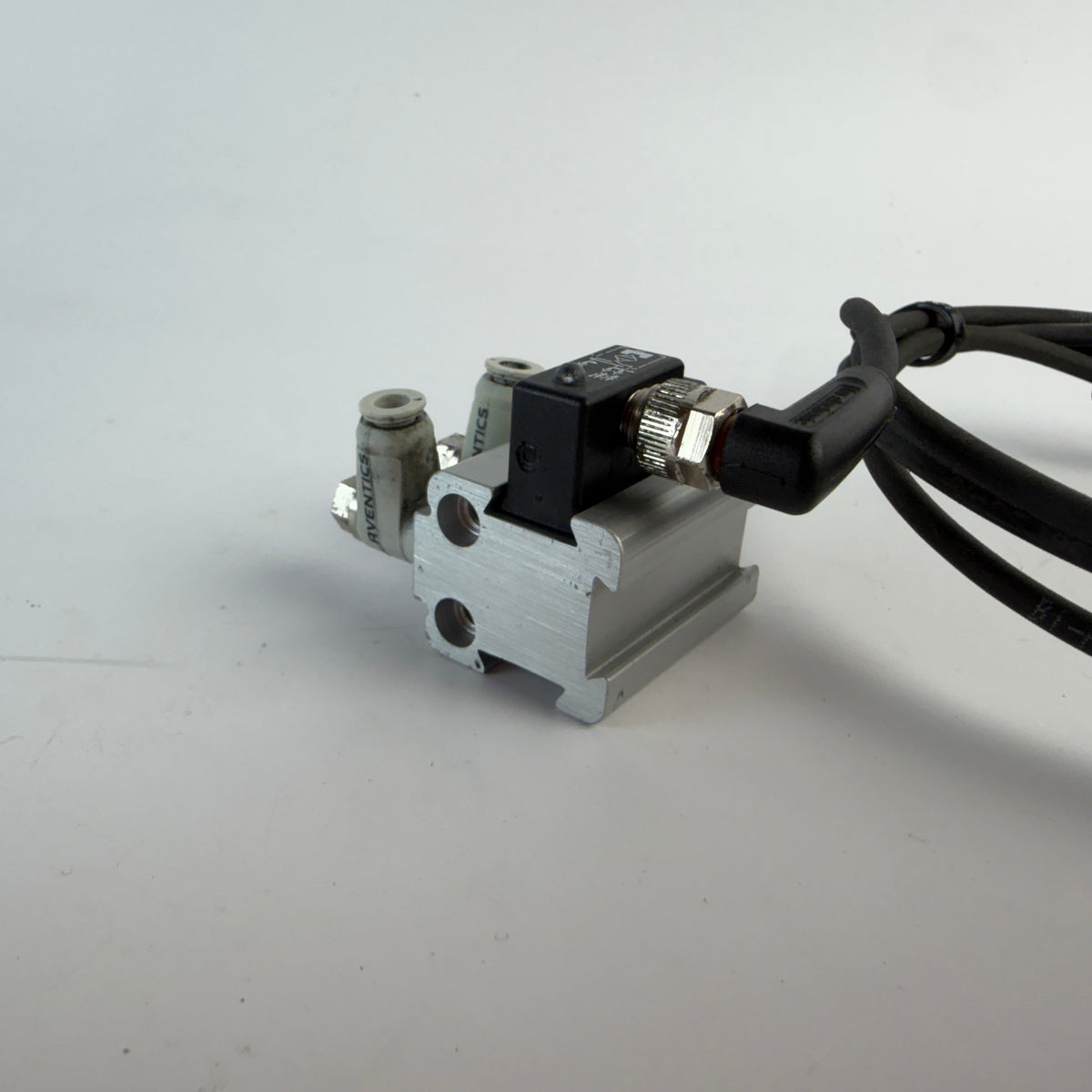

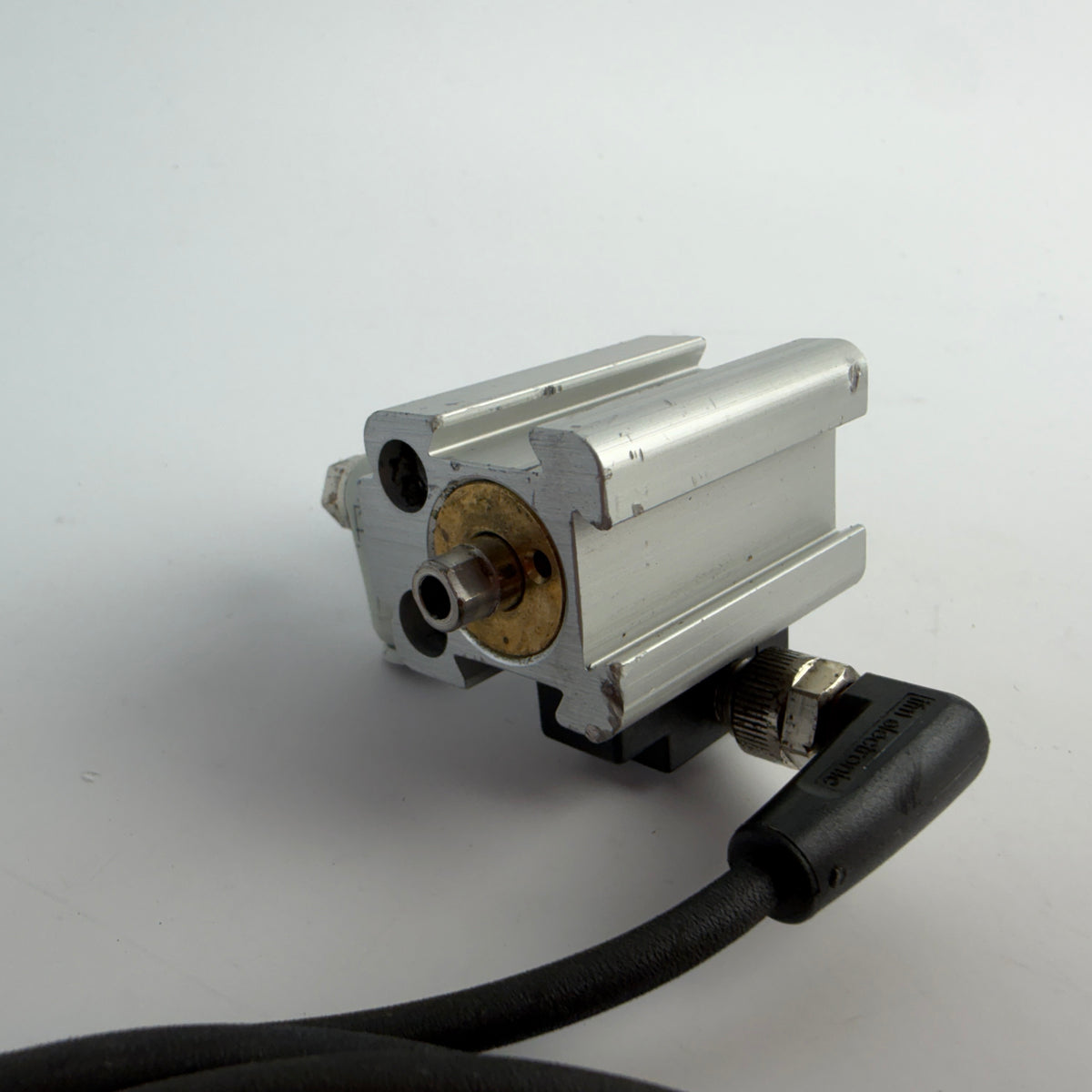

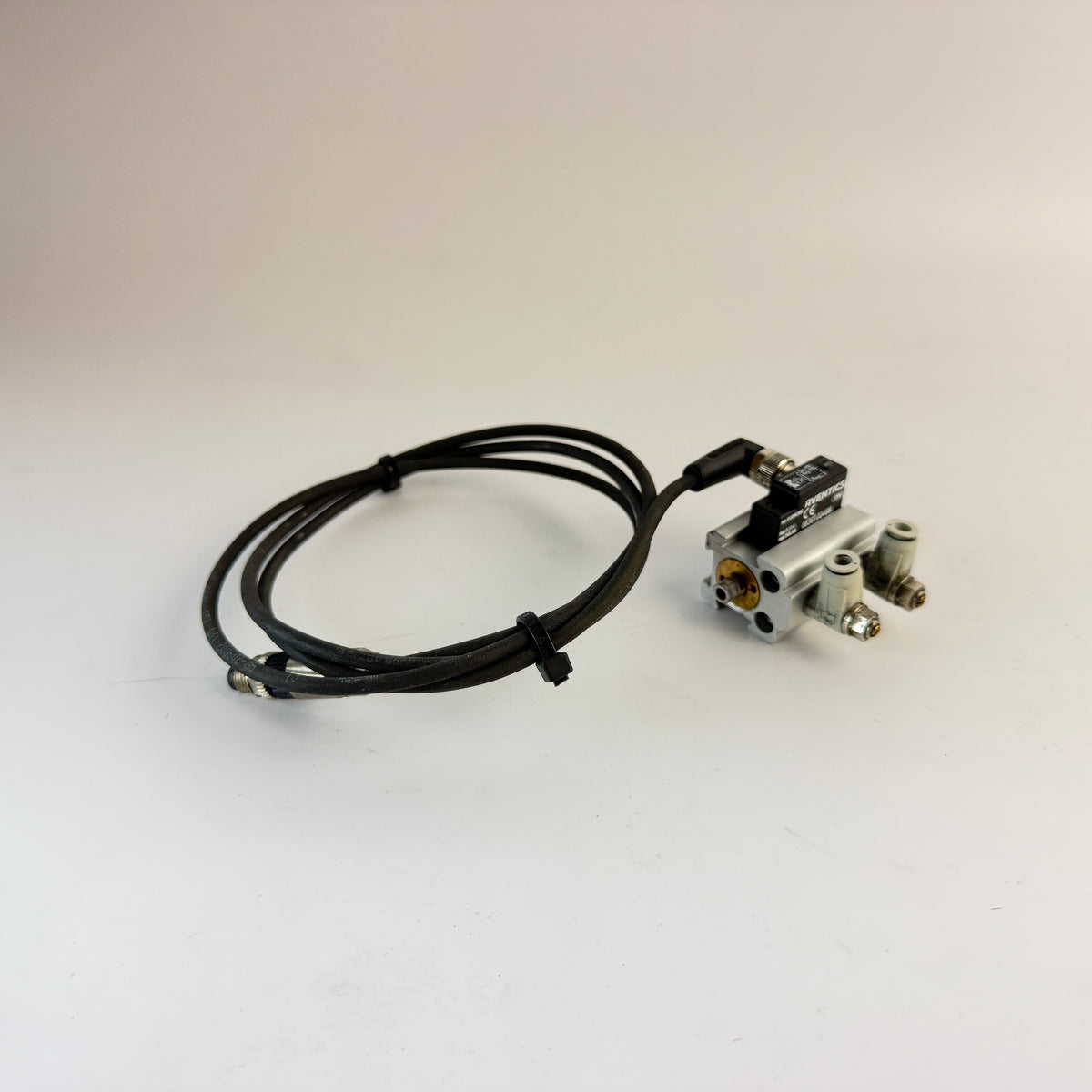

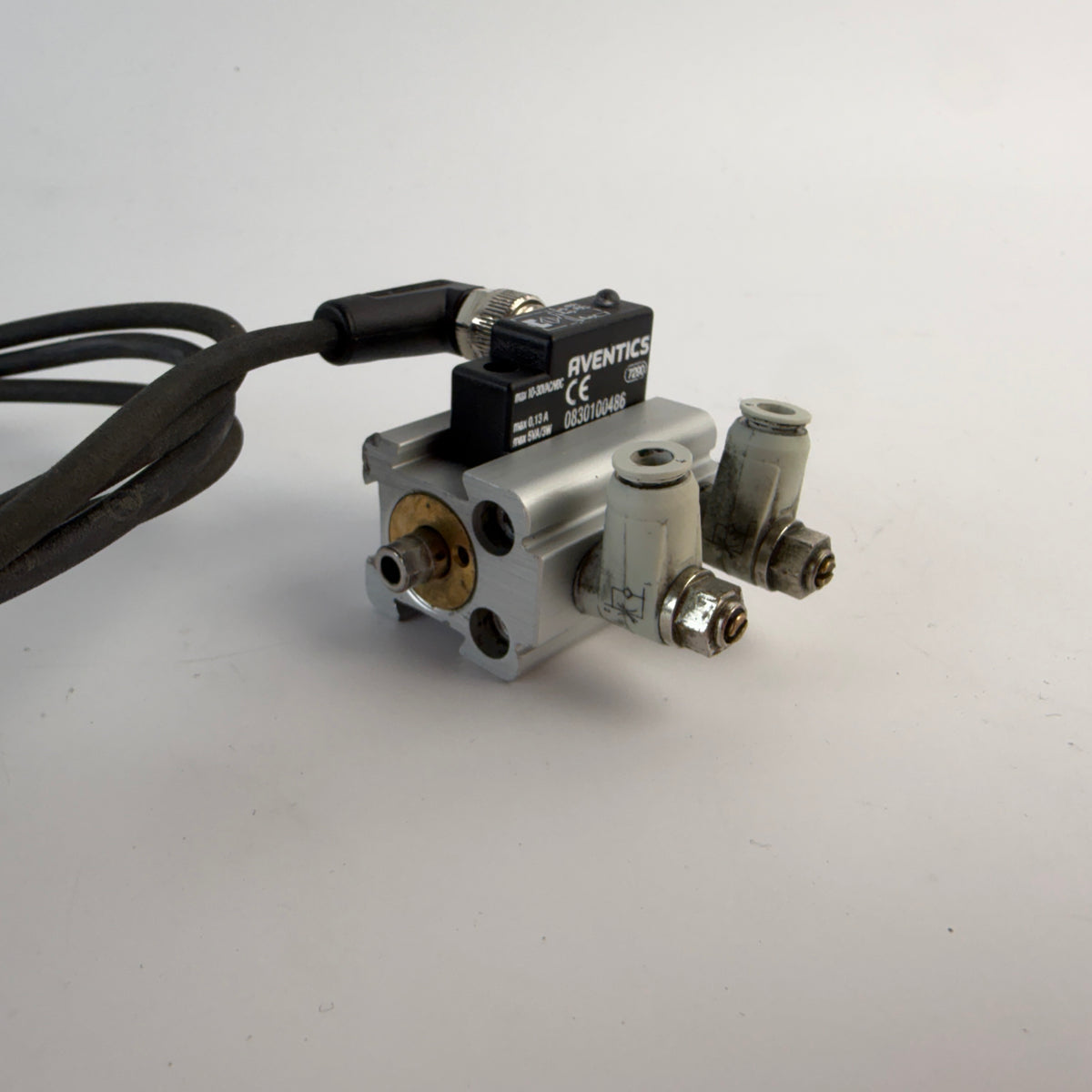

Supplied as the complete assembly shown in the photos: pneumatic cylinder, AVENTICS sensor, pneumatic fittings and connection cable.
