Festo 192306 pneumatic pressure regulator from the D-series, identified as LR-1/4-D-O-I-MINI.

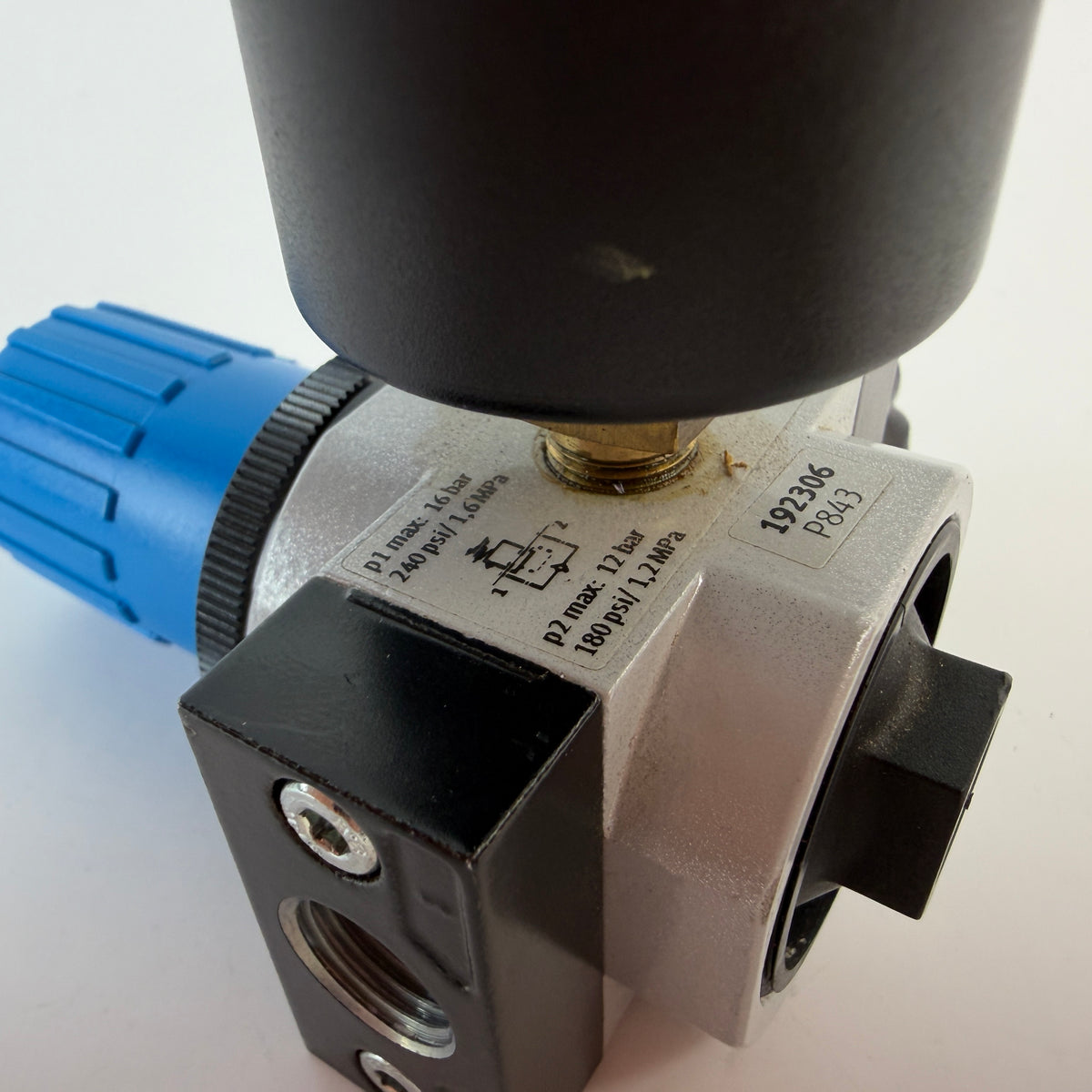

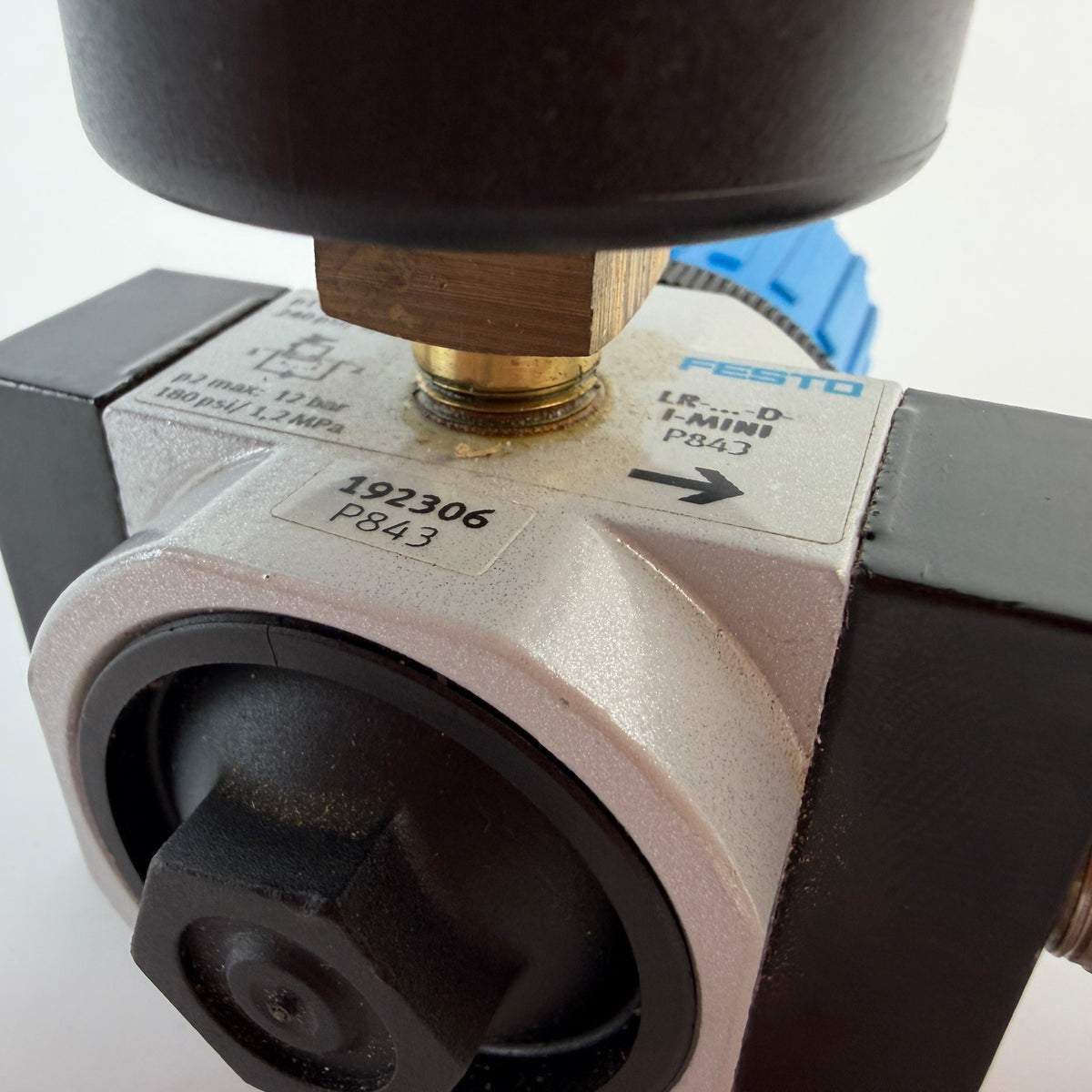

Designed for regulating compressed-air pressure in industrial pneumatic and automation systems. The regulator has a G1/4 connection size and an adjustable pressure range up to 12 bar. The housing marking specifies a maximum inlet pressure of 16 bar and maximum regulated outlet pressure of 12 bar.

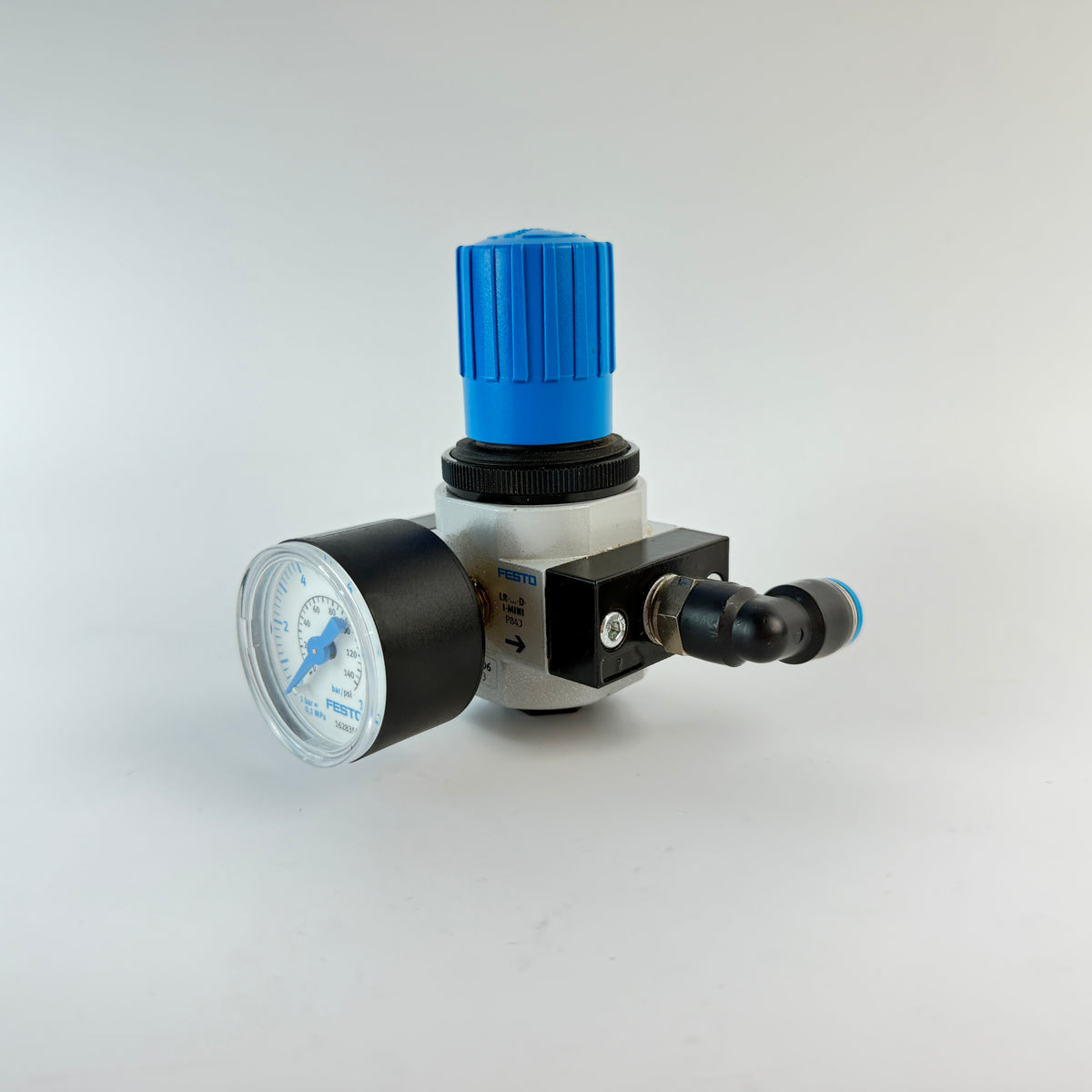

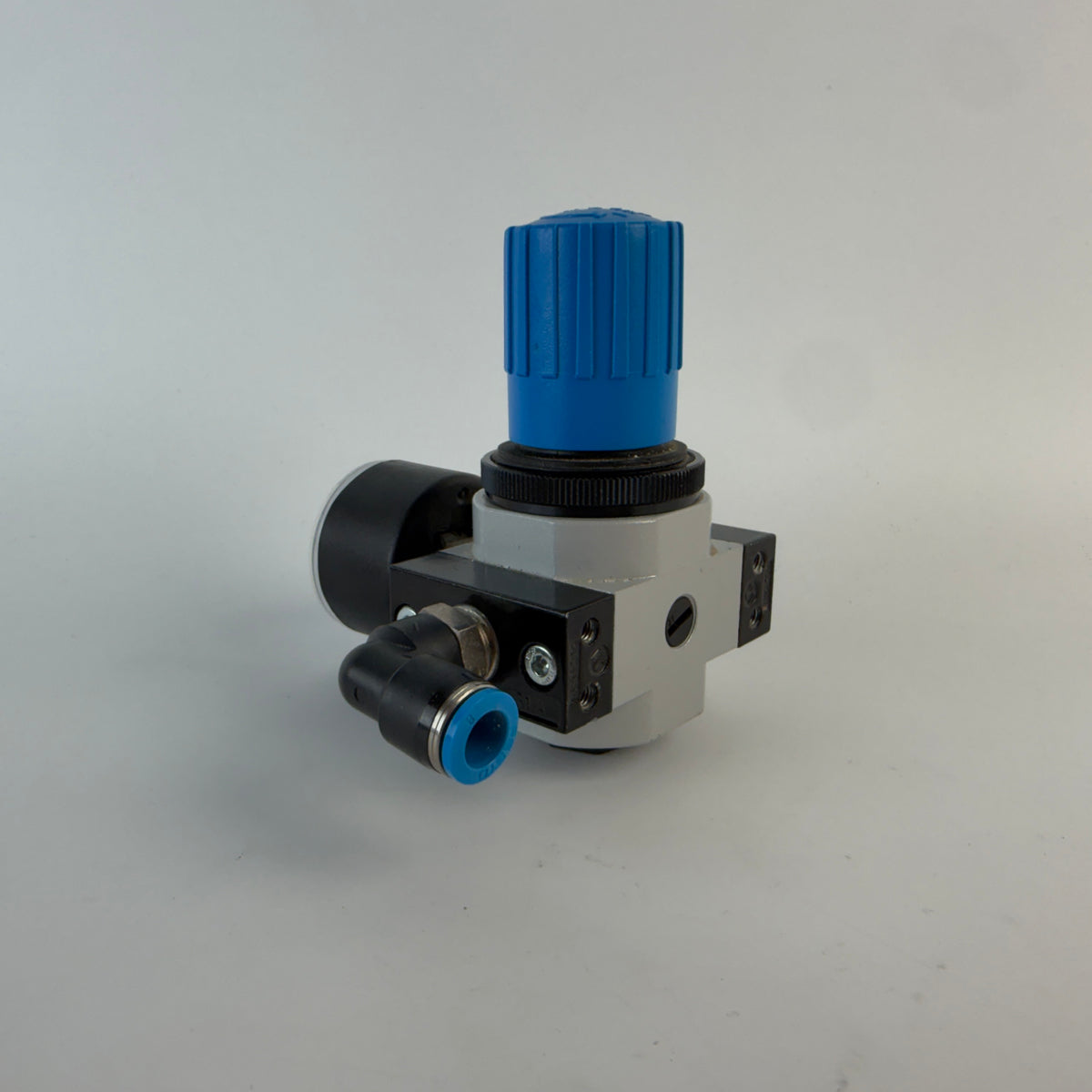

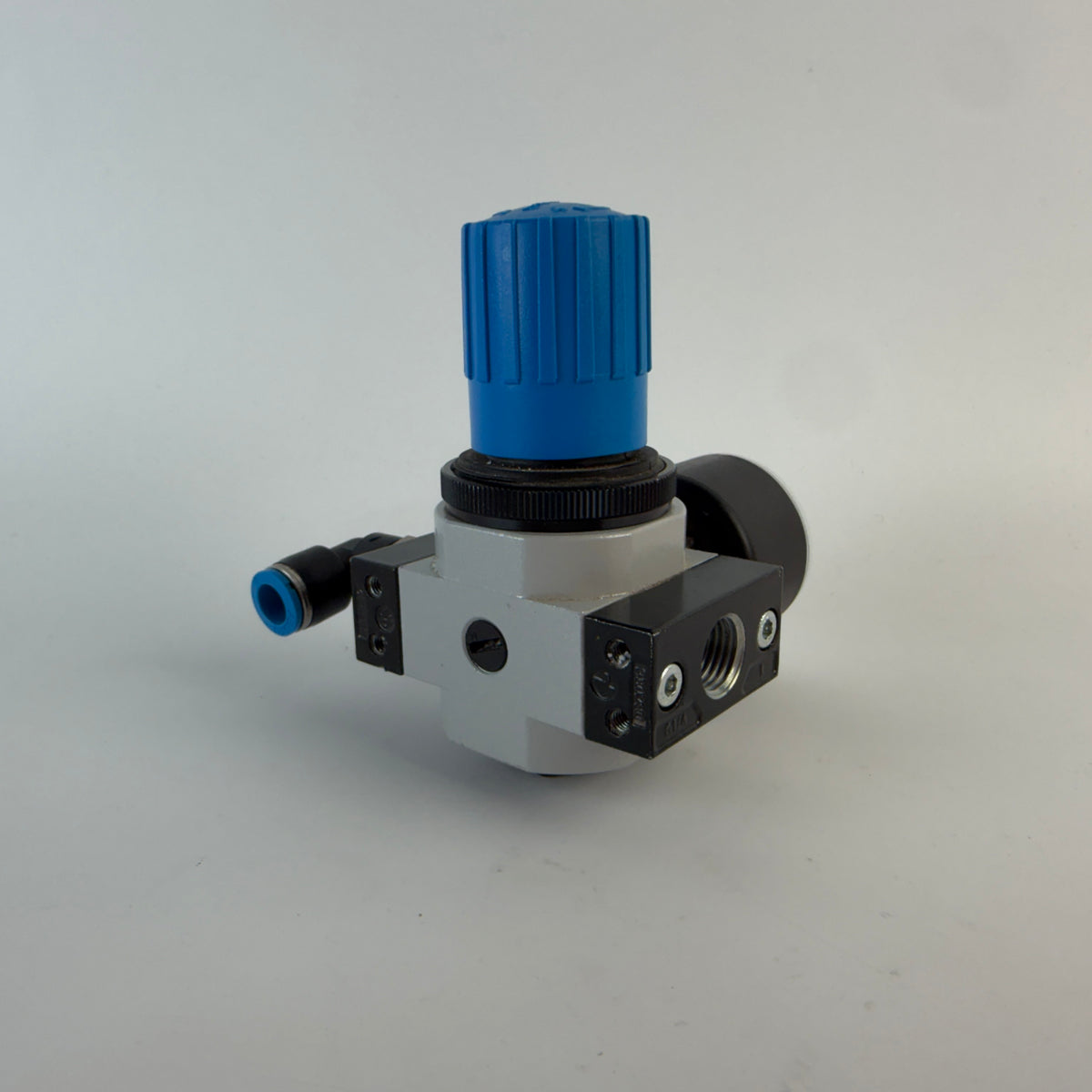

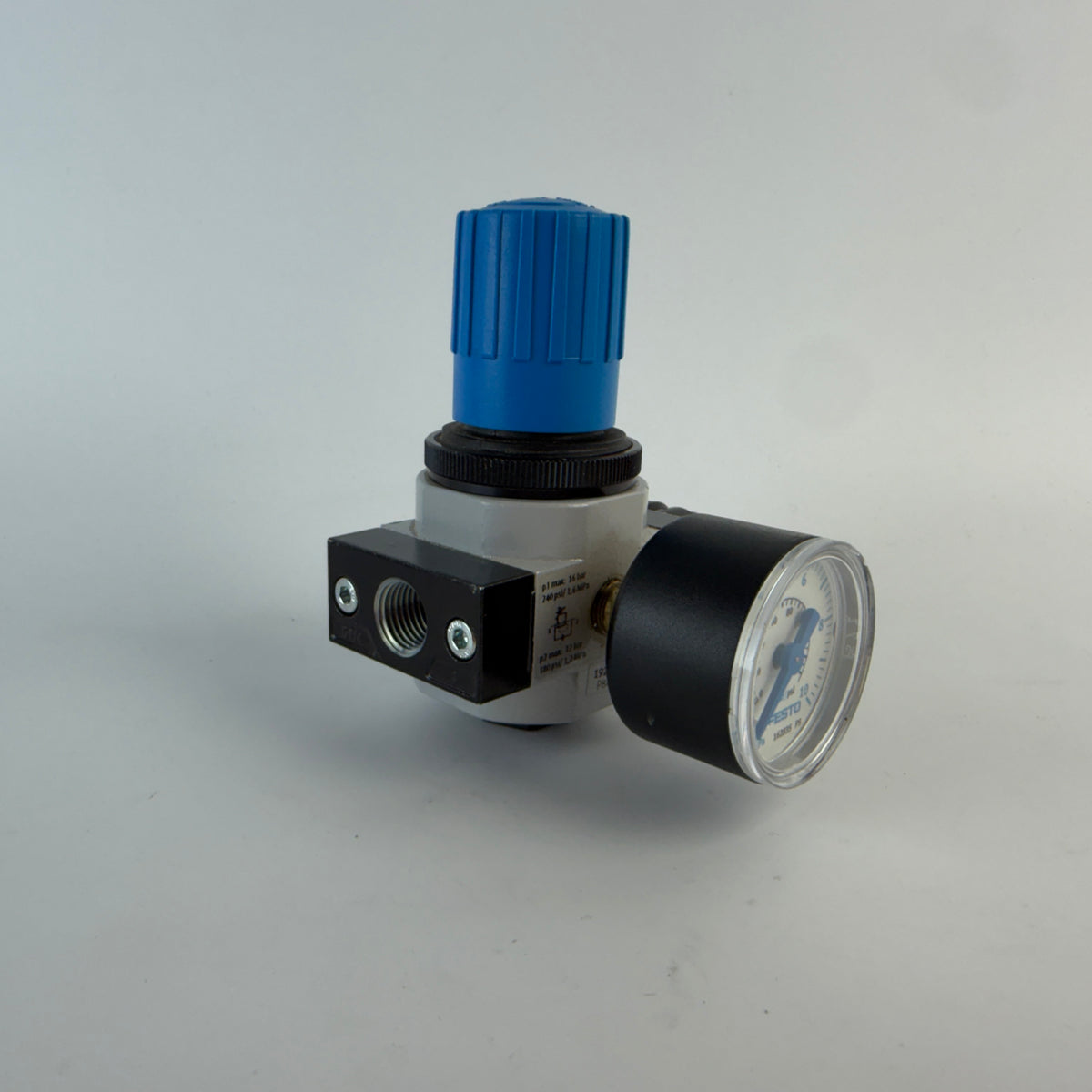

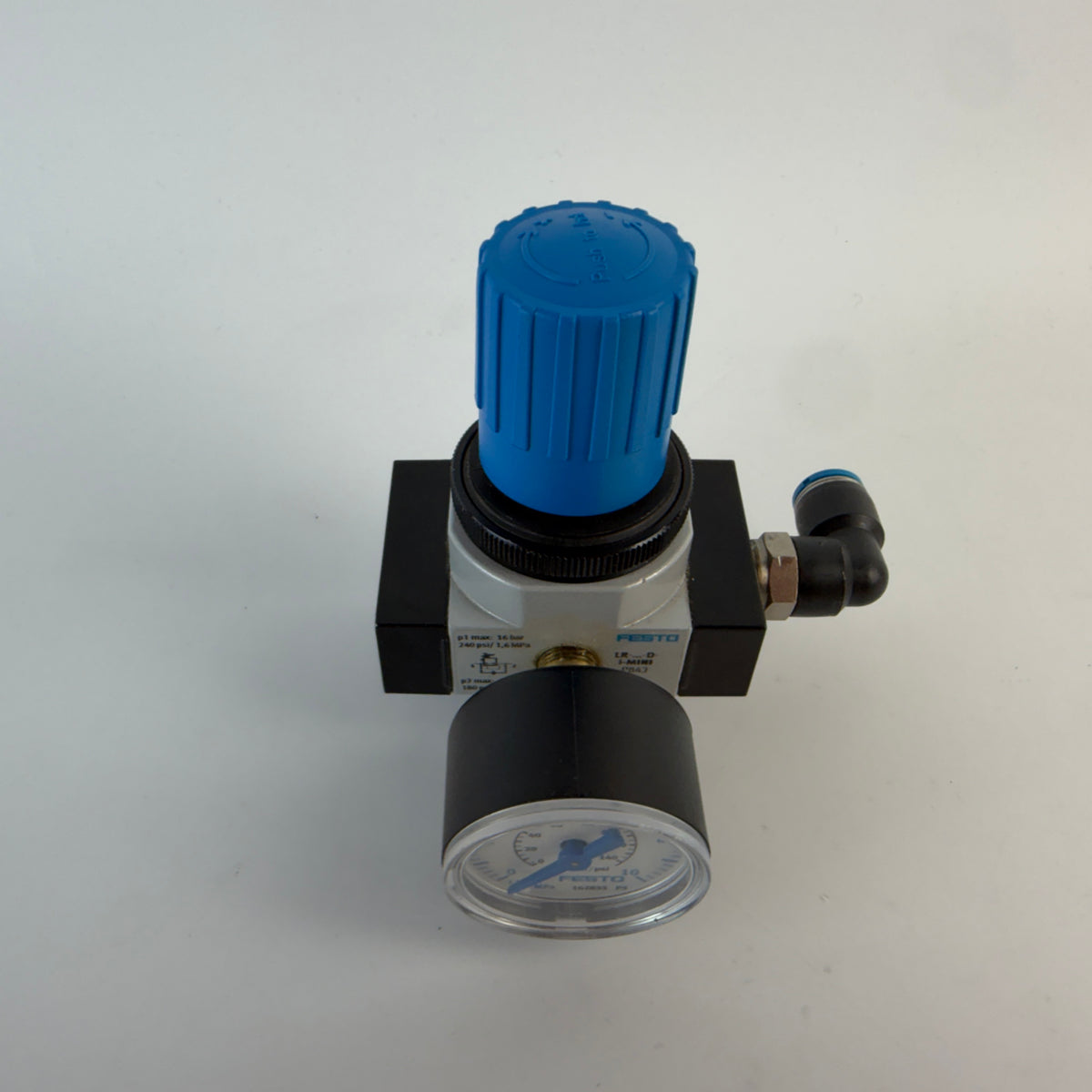

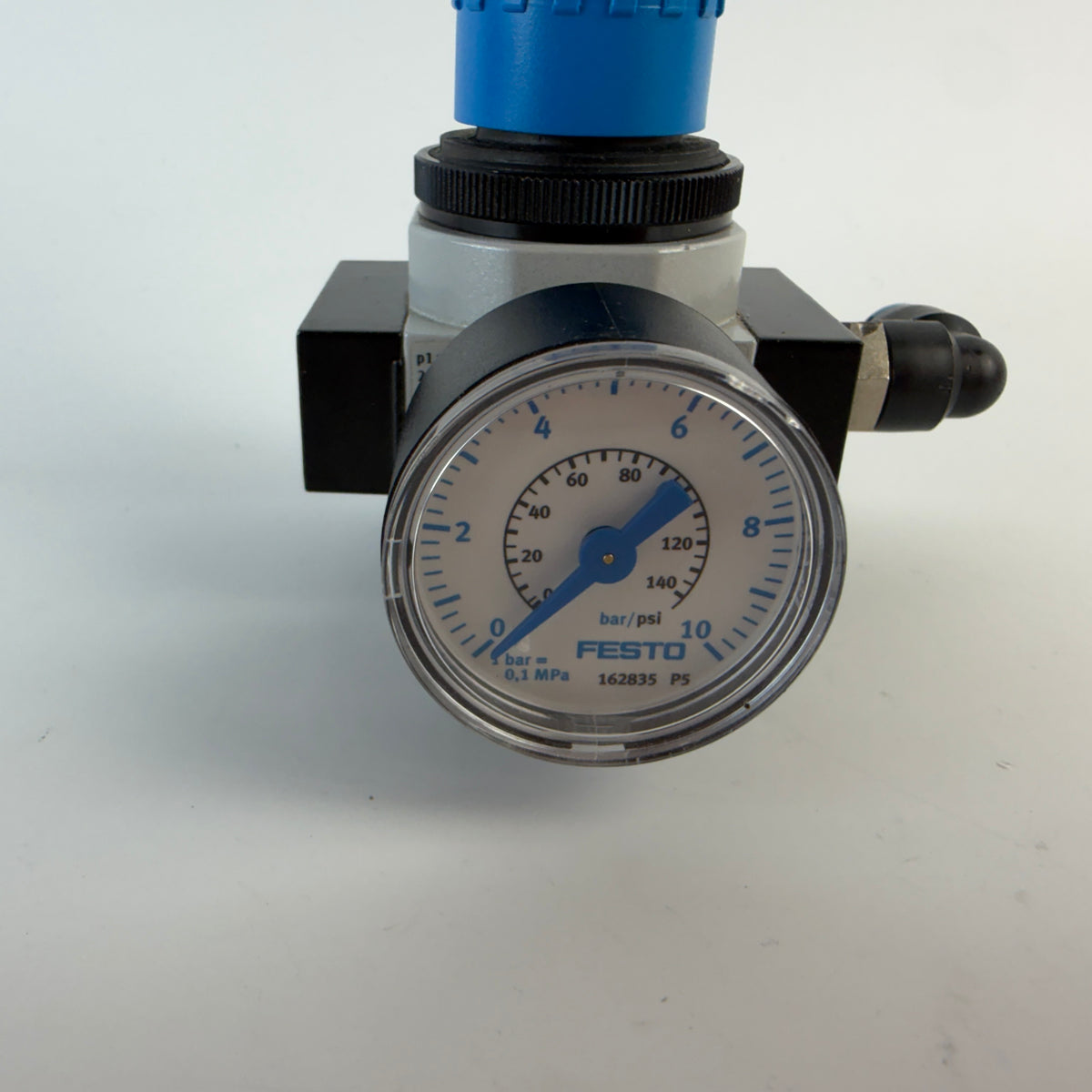

This unit is supplied with the pictured Festo pressure gauge, connection blocks and installed elbow push-in pneumatic fitting.

Technical details:

• Manufacturer: Festo
• Part Number: 192306
• Model: LR-1/4-D-O-I-MINI
• Series: D Series
• Size: MINI
• Type: Pneumatic pressure regulator
• Main connection: G1/4
• Pressure regulation range: 0.5–12 bar
• Maximum inlet pressure P1: 16 bar / 240 psi / 1.6 MPa
• Maximum outlet pressure P2: 12 bar / 180 psi / 1.2 MPa
• Medium: Compressed air
• Integrated return-flow function

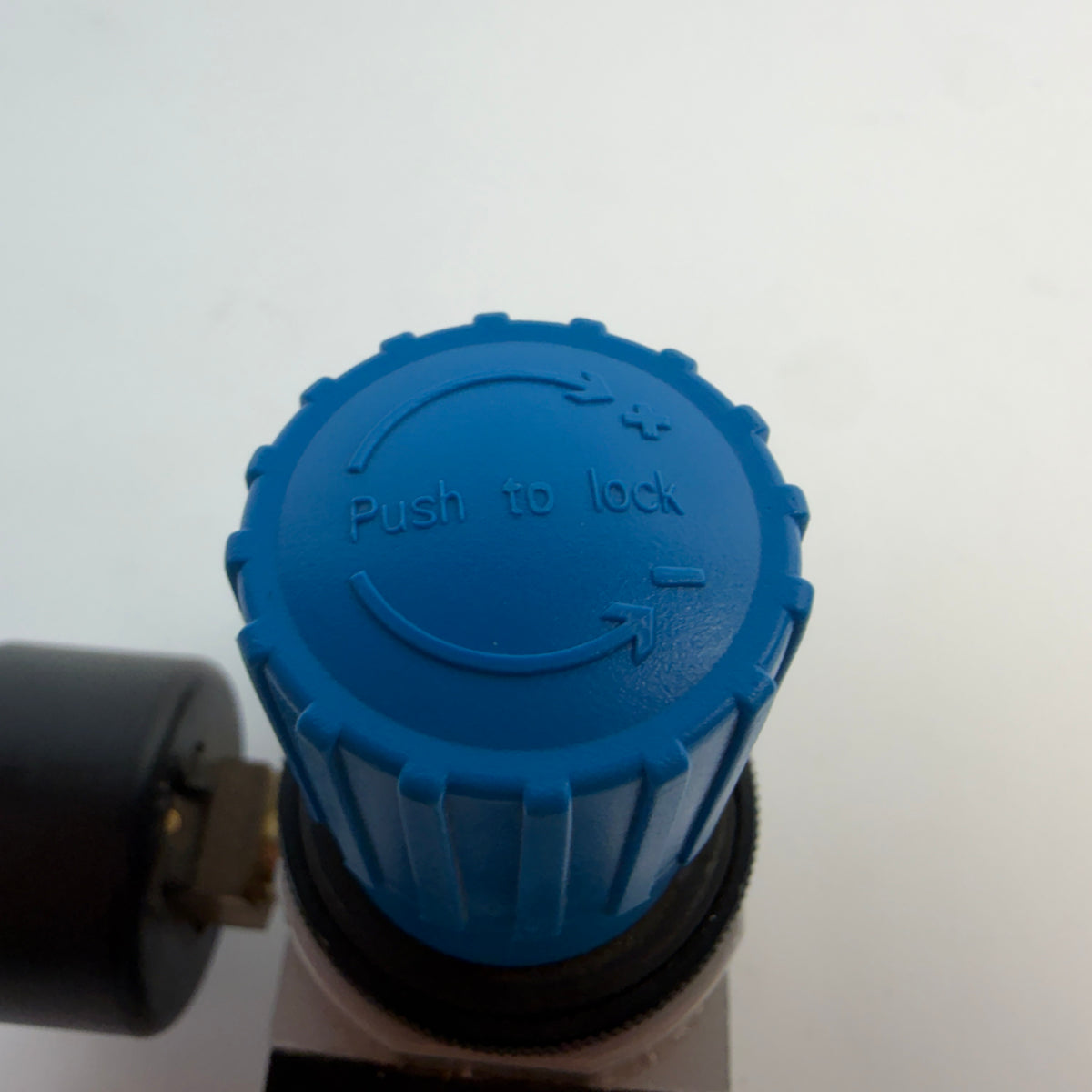

• Adjustment: Rotary knob
• Pressure gauge: Festo 162835
• Gauge scale: 0–10 bar / 0–140 psi
• Connection blocks included
• Elbow push-in pneumatic fitting included

The original 192306 configuration is catalogued as a version without a pressure gauge; the gauge and connection components on this unit are installed accessories and are included as pictured.

Suitable for industrial pneumatic machinery, automation systems and compressed-air preparation applications.

Used, fully functional.
