Festo 574336 SMT-8M-A-PS-24V-E-5,0-OE magneto-resistive proximity sensor for position detection on compatible pneumatic cylinders and drives with T-slot mounting.
The sensor features a PNP normally-open (NO) switching output, 24 V DC rated operating voltage and a 5–30 V DC operating voltage range.
Important: Part number 574336 was originally manufactured with a 5 m cable. The cable on this specific used unit has been shortened and is approximately 35 cm long, with an open end. Please review the actual product photos before purchase.
Suitable for industrial automation and pneumatic cylinder position sensing.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Festo |
| Part Number / MPN | 574336 |
| Model | SMT-8M-A-PS-24V-E-5,0-OE |
| Series | SMT-8M-A |
| Product Type | Proximity / position sensor |
| Design | T-slot |
| Measuring Principle | Magneto-resistive |
| Measured Variable | Position |
| Switching Output | PNP |
| Switching Function | Normally Open (NO) |
| Rated Operating Voltage | 24 V DC |
| Operating Voltage Range | 5–30 V DC |
| Maximum Output Current | 100 mA |
| Maximum Switching Frequency | 130 Hz |
| Repeatability | 0.2 mm |
| Switch-On Time | 1.3 ms |
| Switch-Off Time | 7.3 ms |
| Voltage Drop | 1.5 V |
| Electrical Connection | 3-wire cable, open end |
| Actual Cable Length | Approx. 35 cm – shortened |
| Factory Cable Length for 574336 | 5 m |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Ambient Temperature | -40°C to +85°C |
| Special Feature | Oil-resistant |
| Standard | EN 60947-5-2 |
| Certification | c UL us Listed |
Package Contents

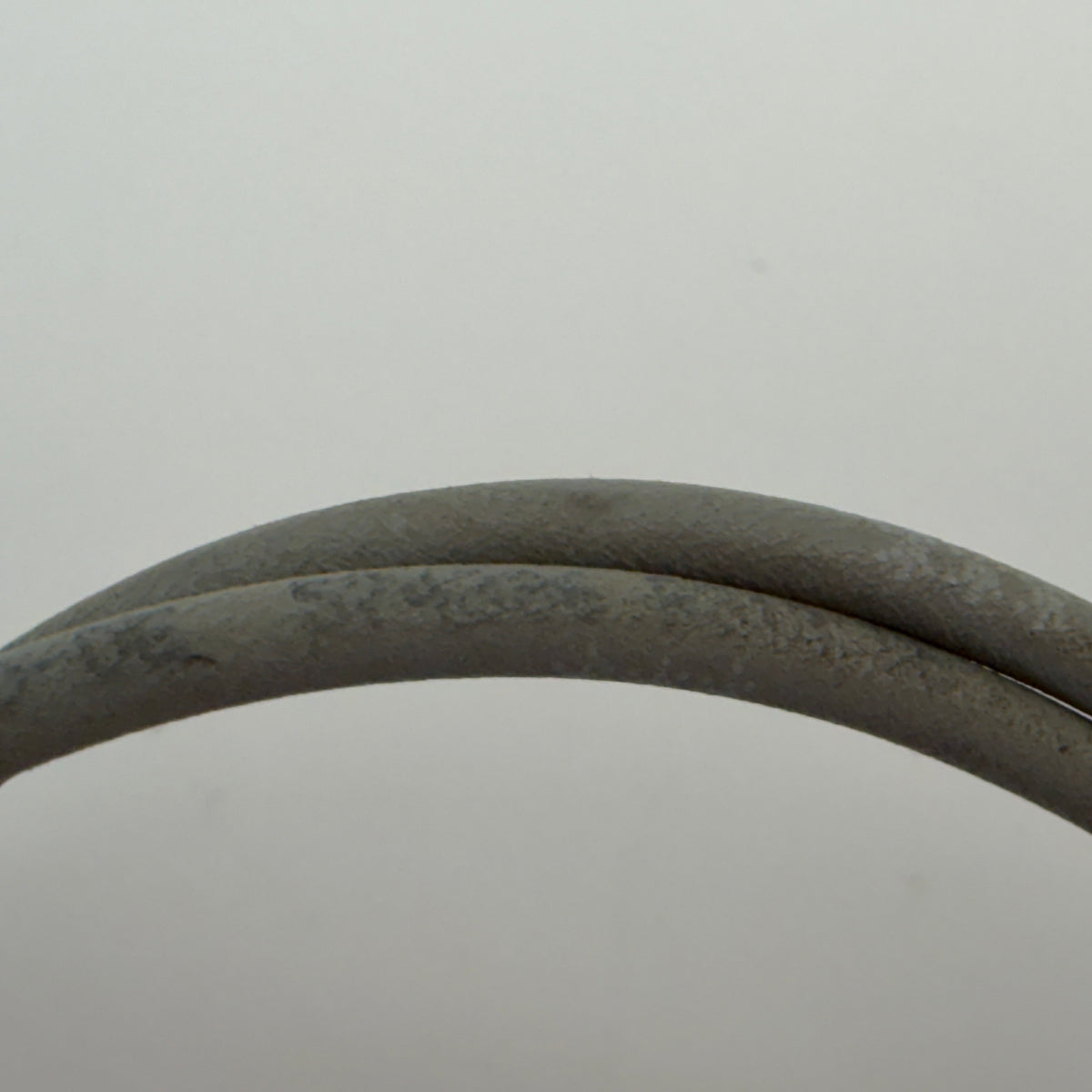

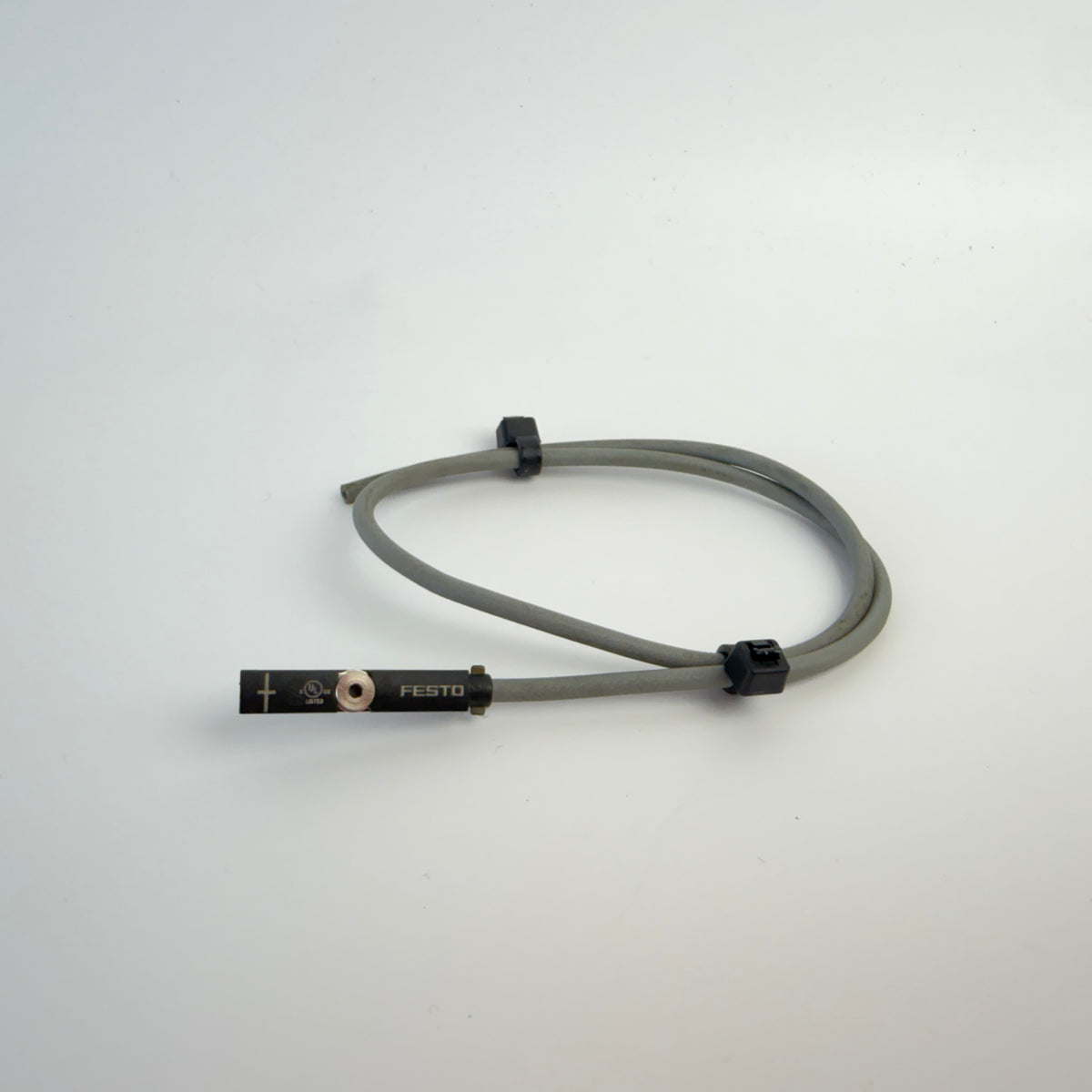

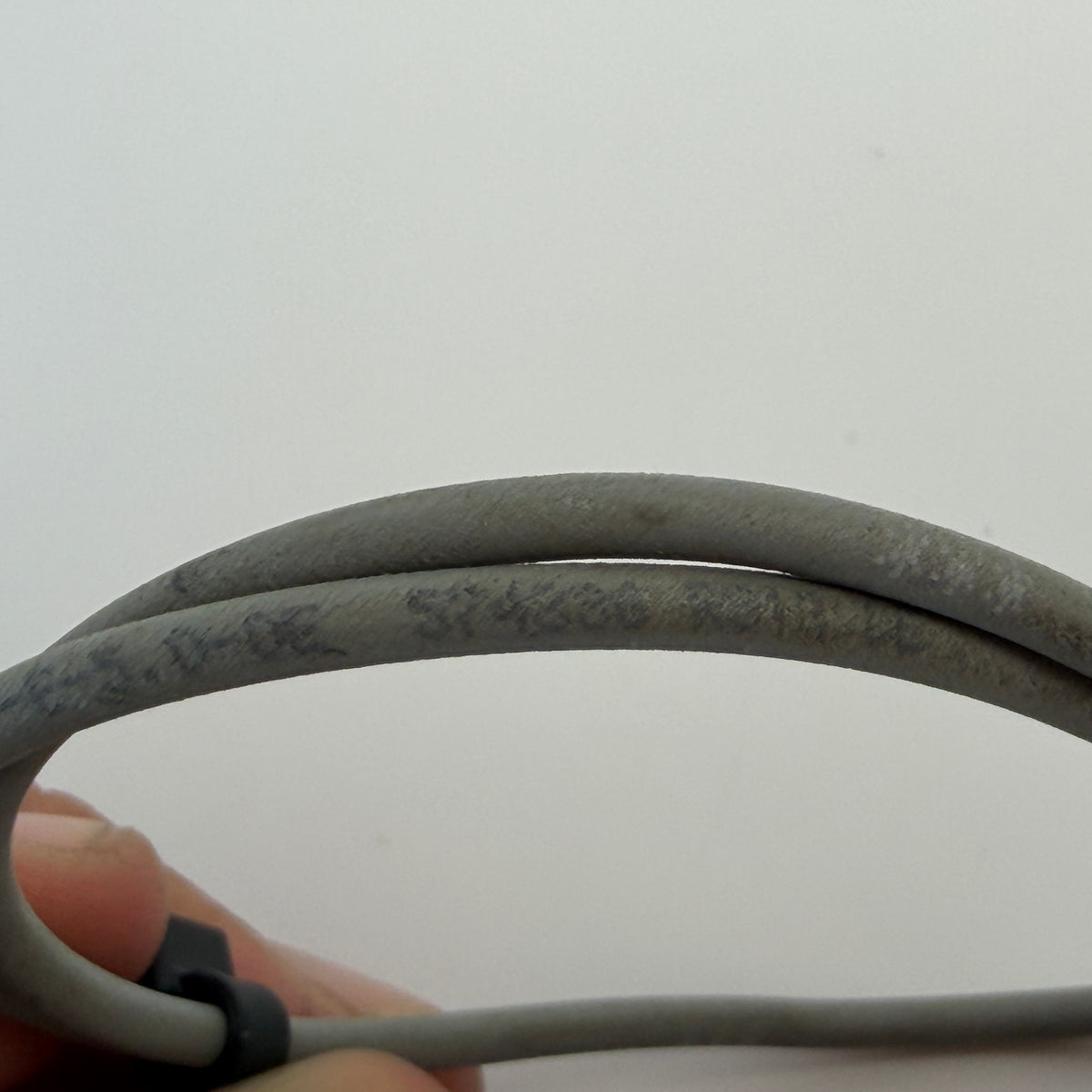

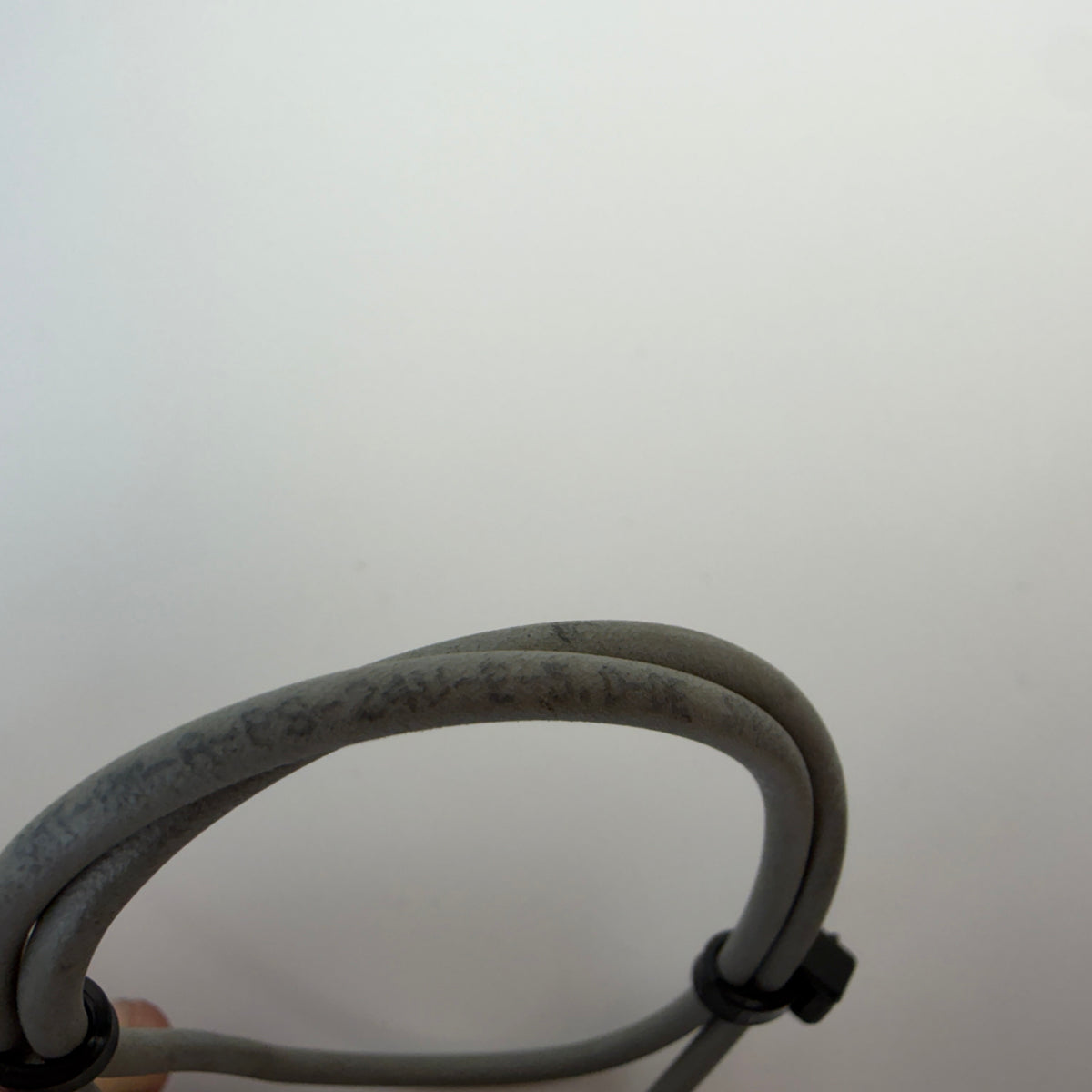

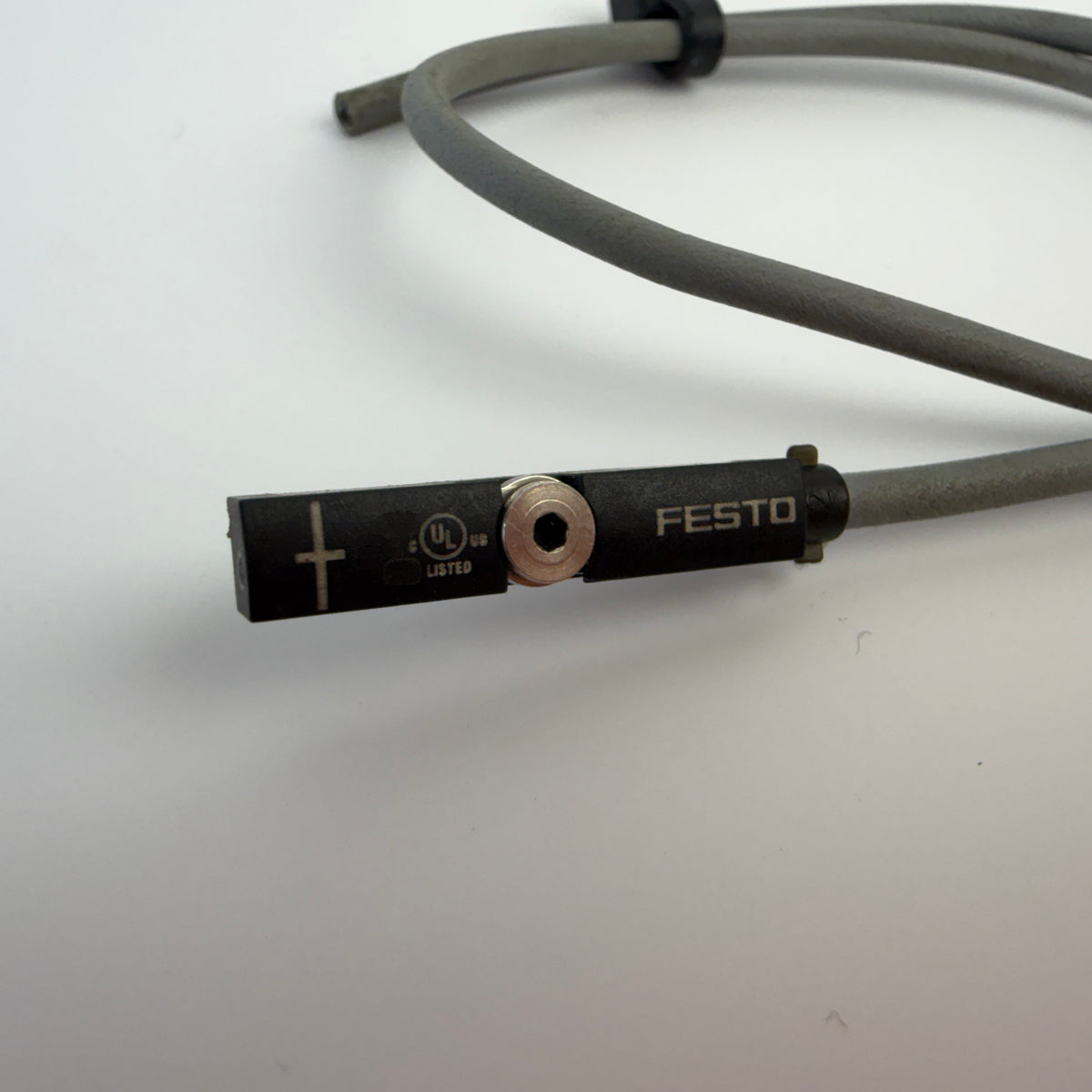

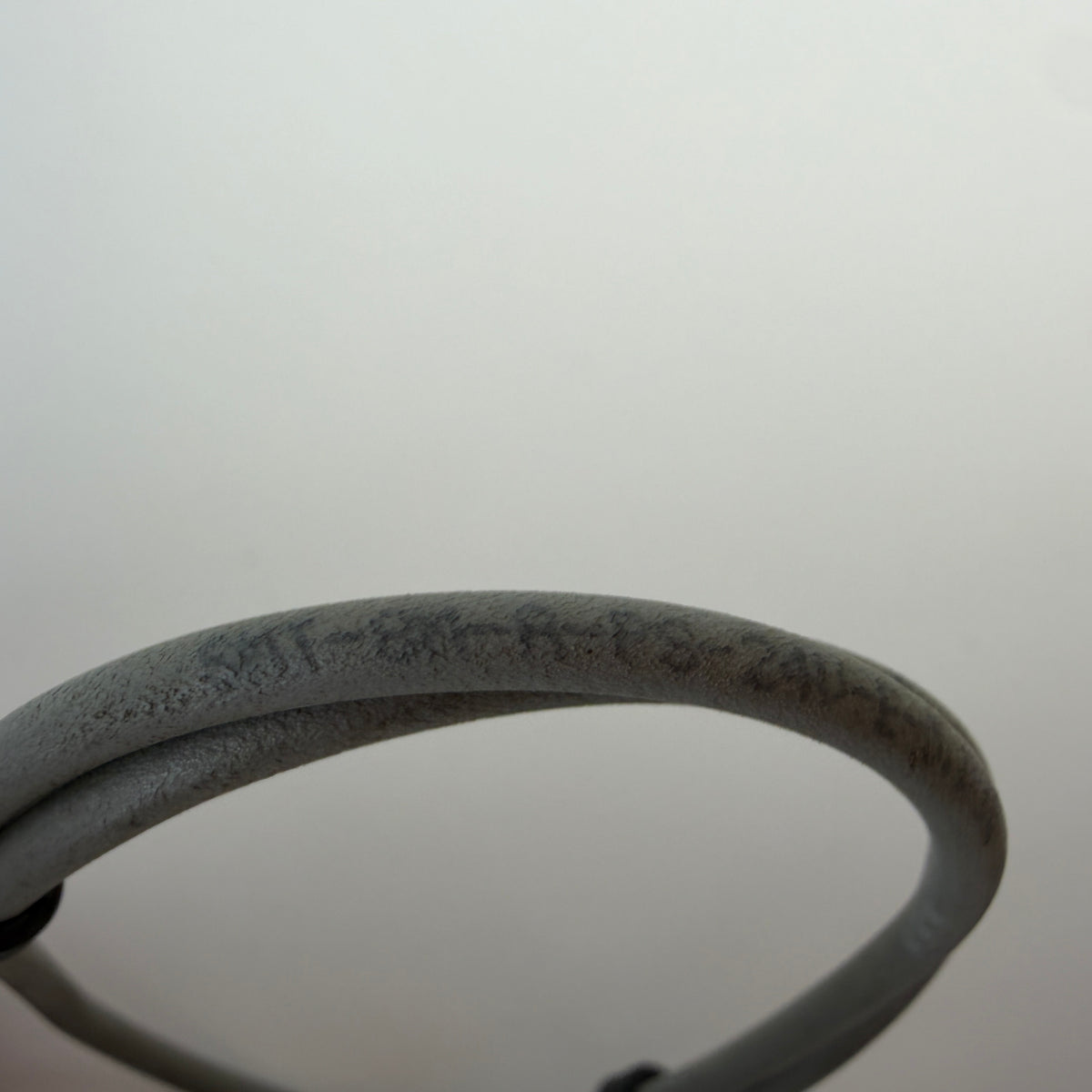

1 × Festo 574336 proximity sensor with approx. 35 cm cable, exactly as pictured.
