Festo VUVG-B14-P53C-ZT-F-1T1L Pneumatic Solenoid Valve – Part No. 573485

Original Festo VUVG series electrically actuated pneumatic directional control valve for industrial automation and compressed-air control systems.

This model is a 5/3-way valve with two solenoid coils and a closed center position. It is designed for sub-base/manifold mounting and is suitable for controlling double-acting pneumatic actuators and other industrial pneumatic equipment.

Technical Specifications:

• Manufacturer: Festo
• Model: VUVG-B14-P53C-ZT-F-1T1L
• Manufacturer Part Number: 573485
• Series: VUVG
• Product Type: Pneumatic solenoid valve
• Valve Function: 5/3-way
• Center Position: Closed
• Actuation: Electrical
• Reset Method: Mechanical spring
• Design: Piston spool valve
• Nominal Size: 5.6 mm
• Standard Nominal Flow Rate: 700 l/min
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Operating Medium: Compressed air
• Mounting: Sub-base / manifold mounting
• Manual Override: Yes
• Country of Origin: China

Condition: New, unused.

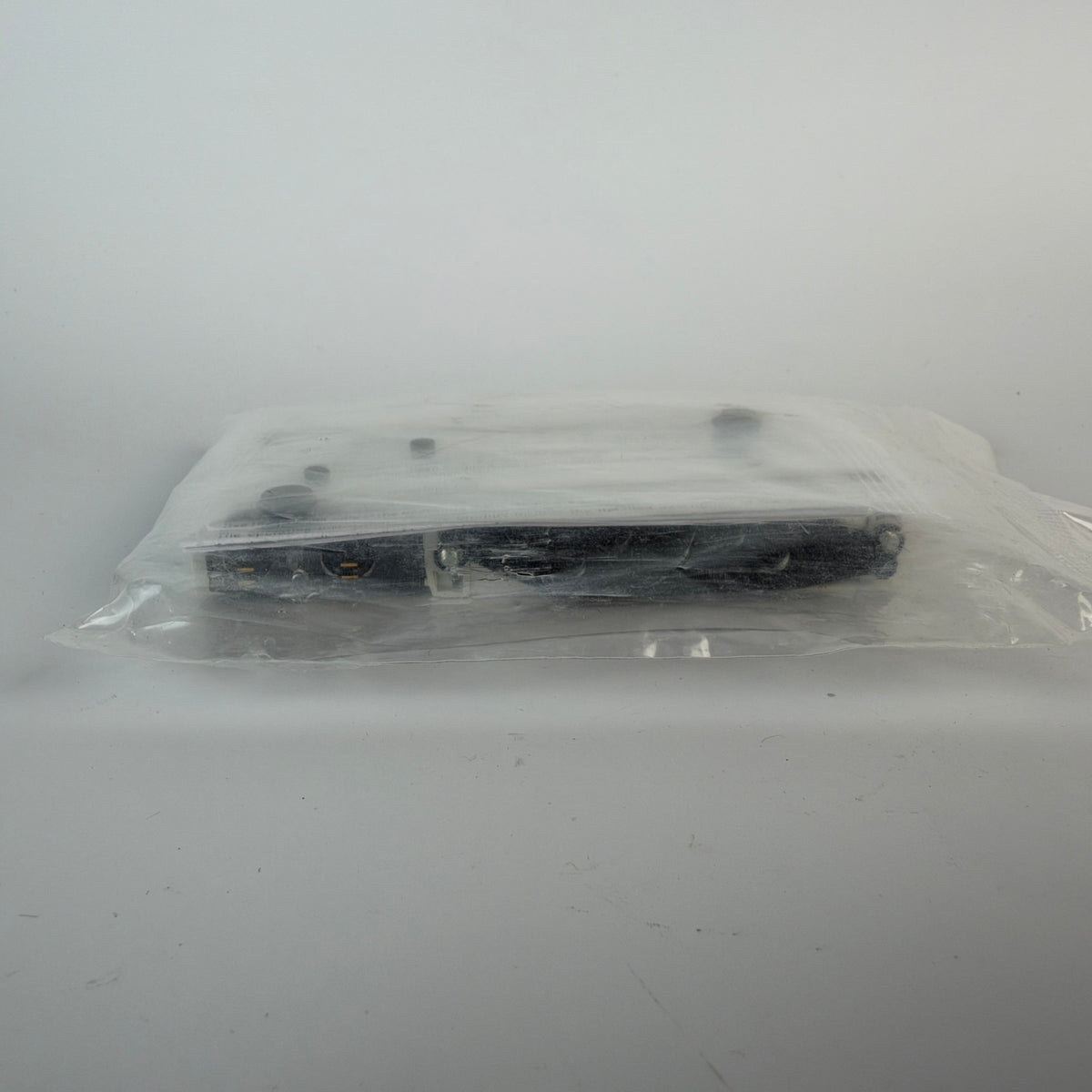

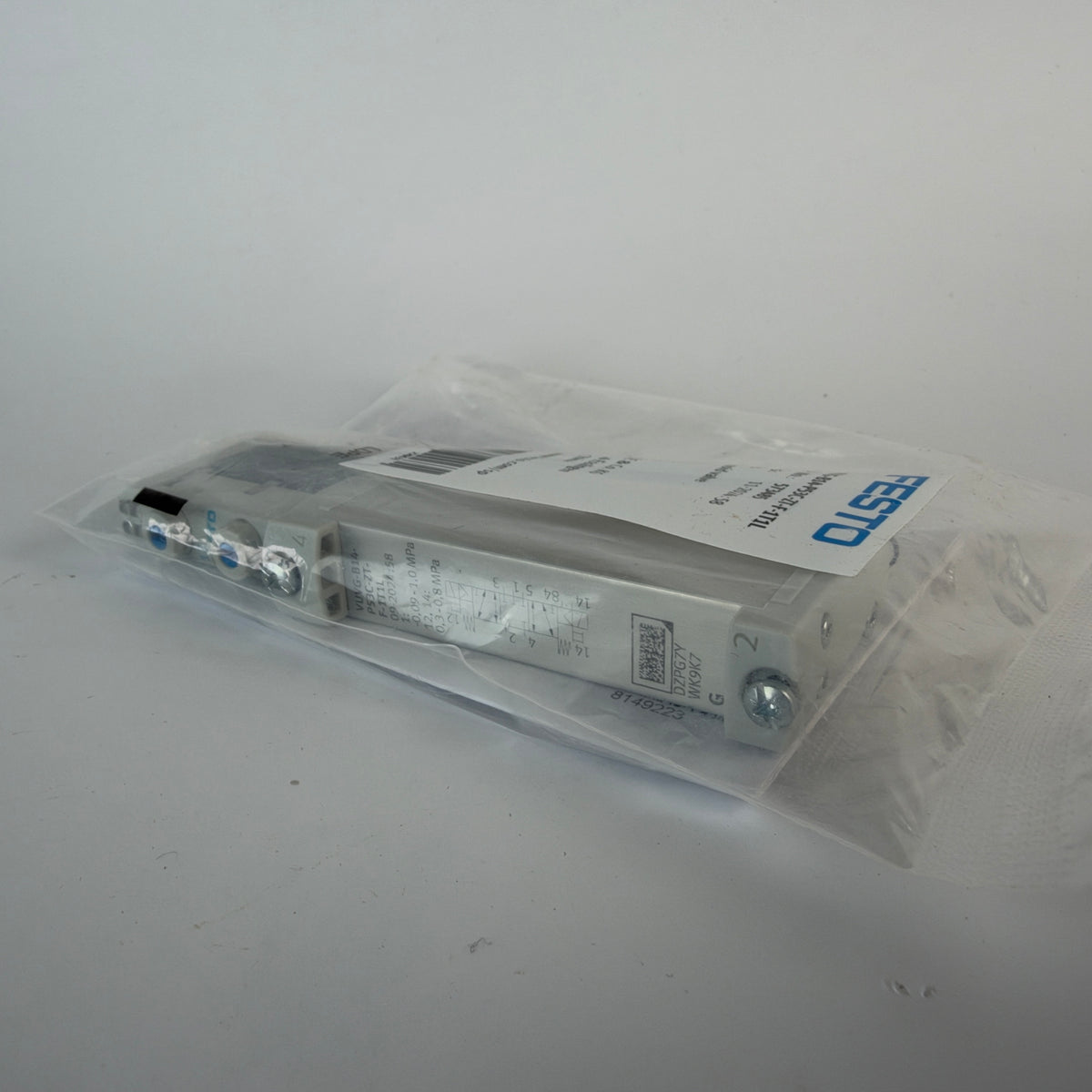

Supplied as one original Festo valve in its manufacturer-labeled packaging.

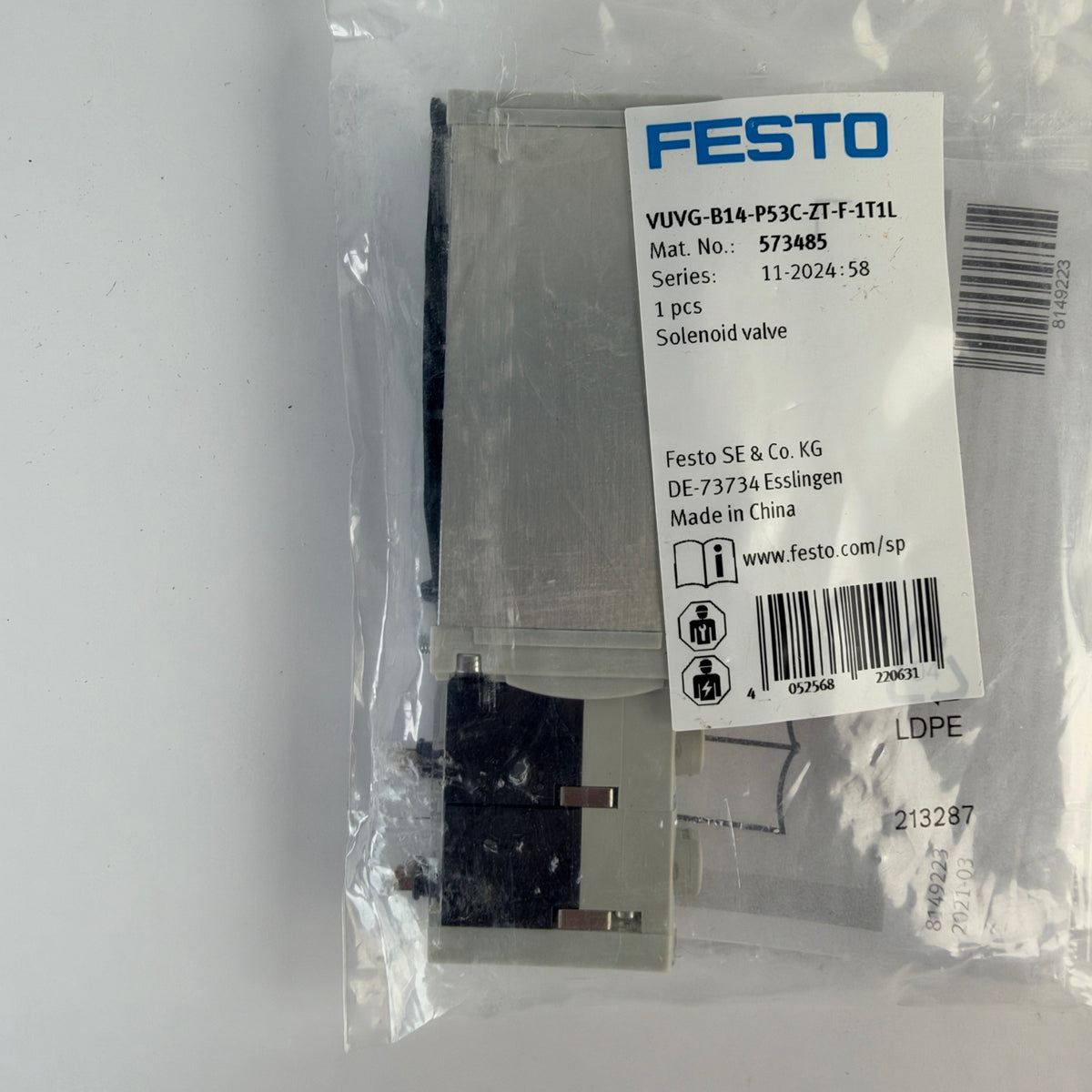

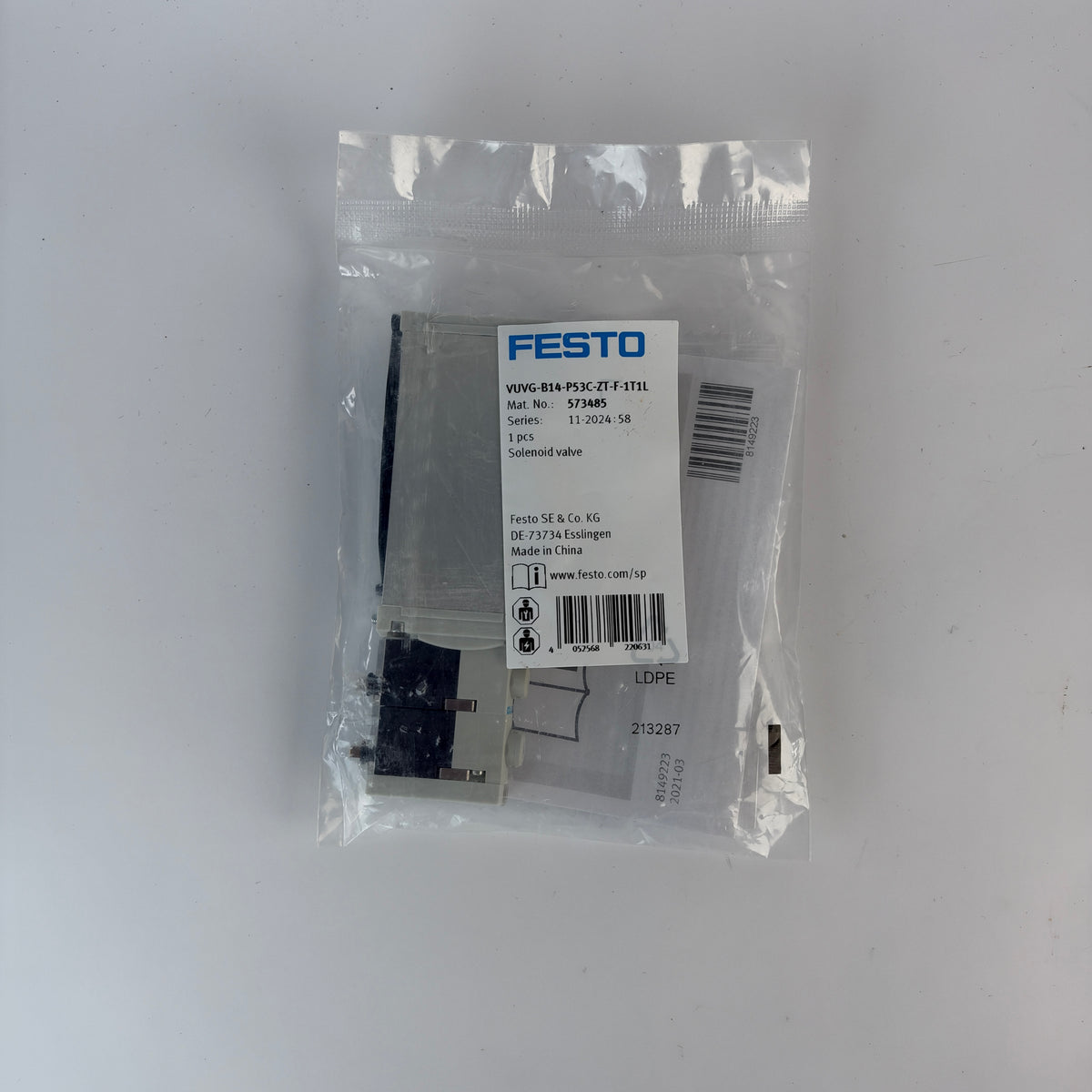

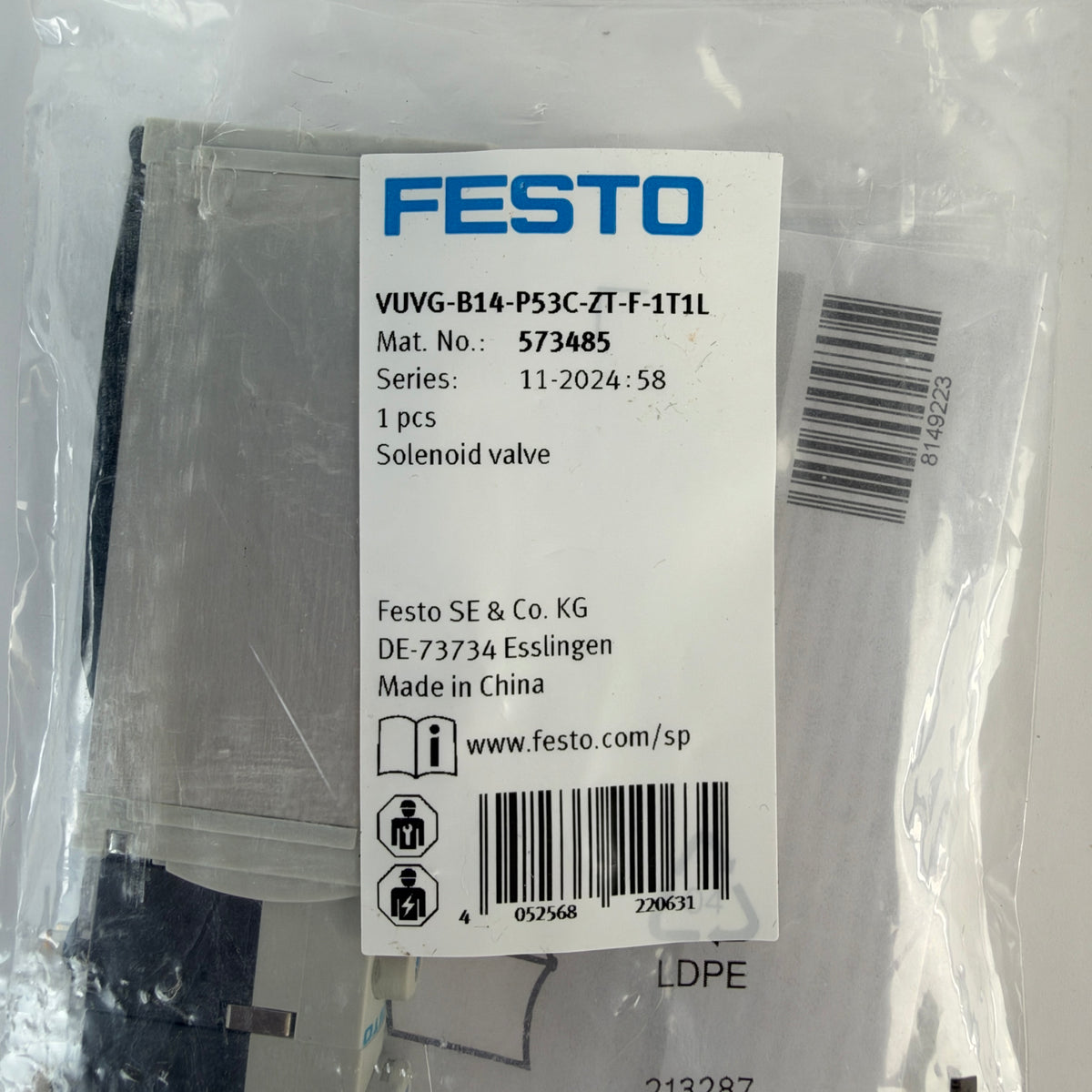

The package label identifies the unit as model VUVG-B14-P53C-ZT-F-1T1L, material number 573485, and confirms manufacture in China.
