Festo DSBC-50-50-PPVA-N3 standard pneumatic cylinder, part number 1366950, designed for linear motion applications in industrial automation and machinery.
This ISO 15552 cylinder features double-acting operation, a 50 mm piston diameter, 50 mm stroke and adjustable pneumatic cushioning at both ends. The cylinder is also designed for position detection using proximity sensors.
Technical specifications:
- Manufacturer: Festo
- Series: DSBC
- Model: DSBC-50-50-PPVA-N3
- Part Number: 1366950
- Type: Standard pneumatic piston rod cylinder
- Operating principle: Double-acting
- Piston diameter / bore: 50 mm
- Stroke: 50 mm
- Piston rod: Single-ended
- Piston rod thread: M16 x 1.5
- Pneumatic connection: G1/4
- Operating pressure: 0.4–12 bar
- Cushioning: Adjustable pneumatic cushioning at both ends
- Cushioning length: 22 mm
- Position sensing: Suitable for proximity sensors
- Mounting position: Any
- Standard: ISO 15552
- Operating medium: Compressed air
- Ambient temperature: -20°C to +80°C
- Theoretical force at 6 bar, advancing: 1178 N
- Theoretical force at 6 bar, retracting: 990 N
- Product weight: Approx. 1.47 kg

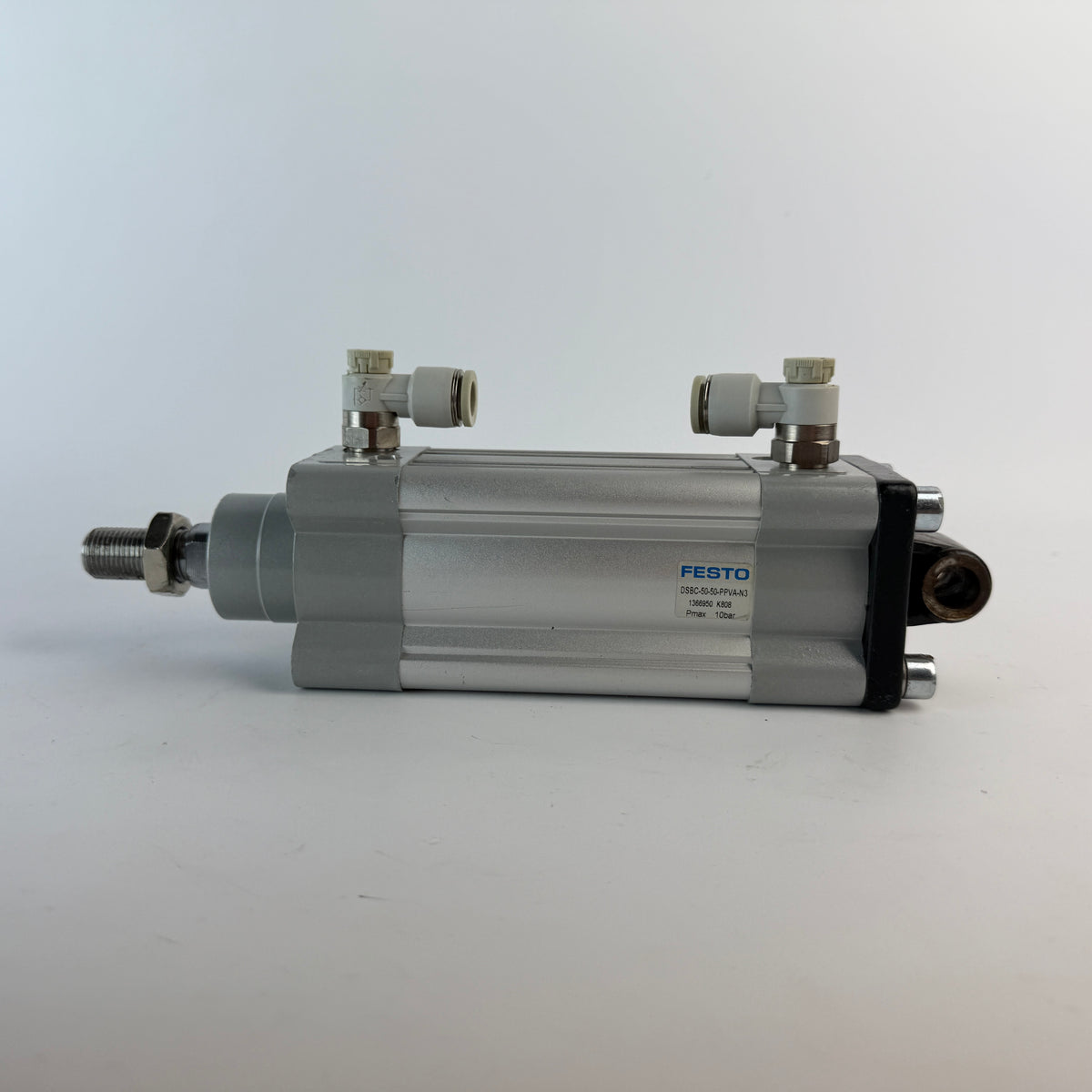

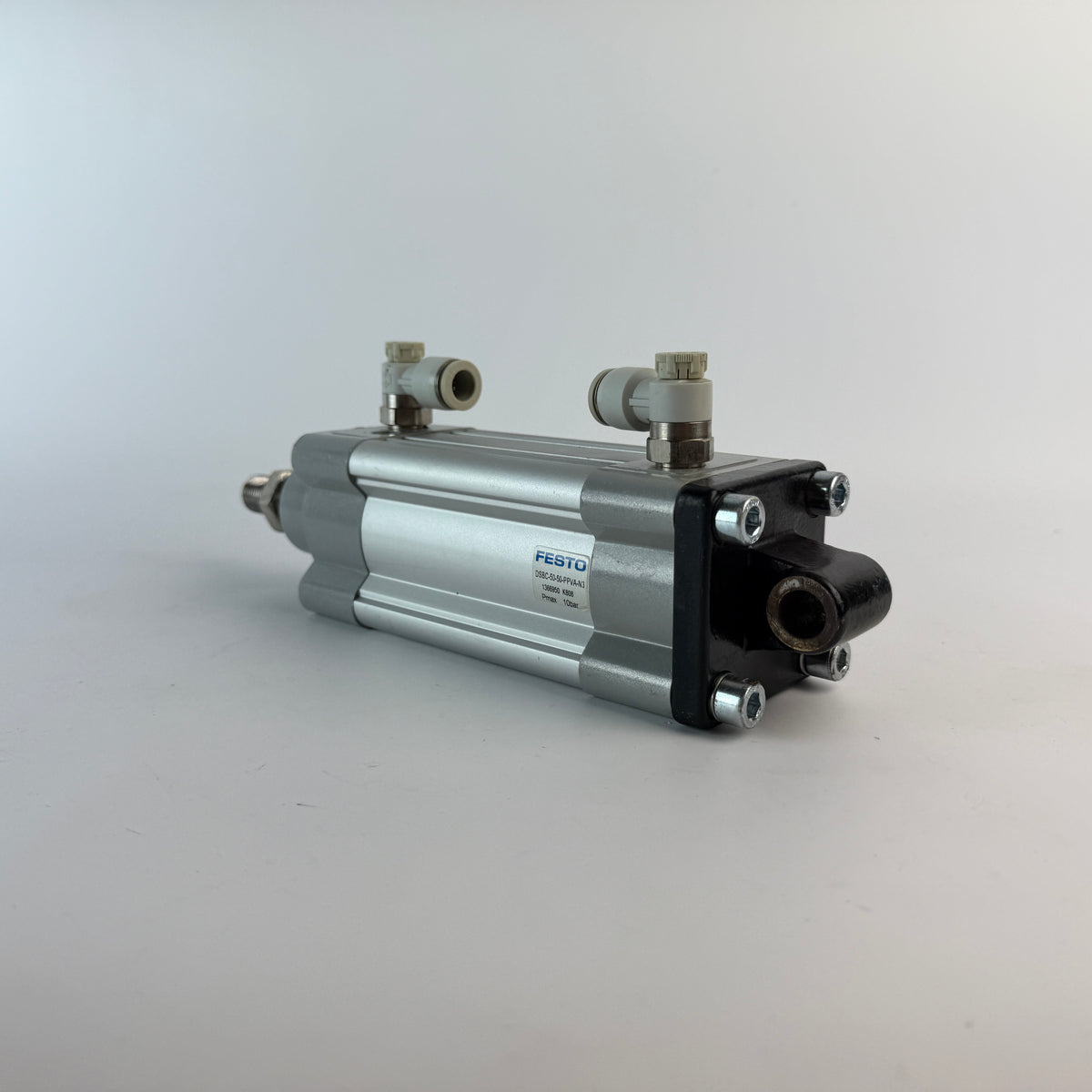

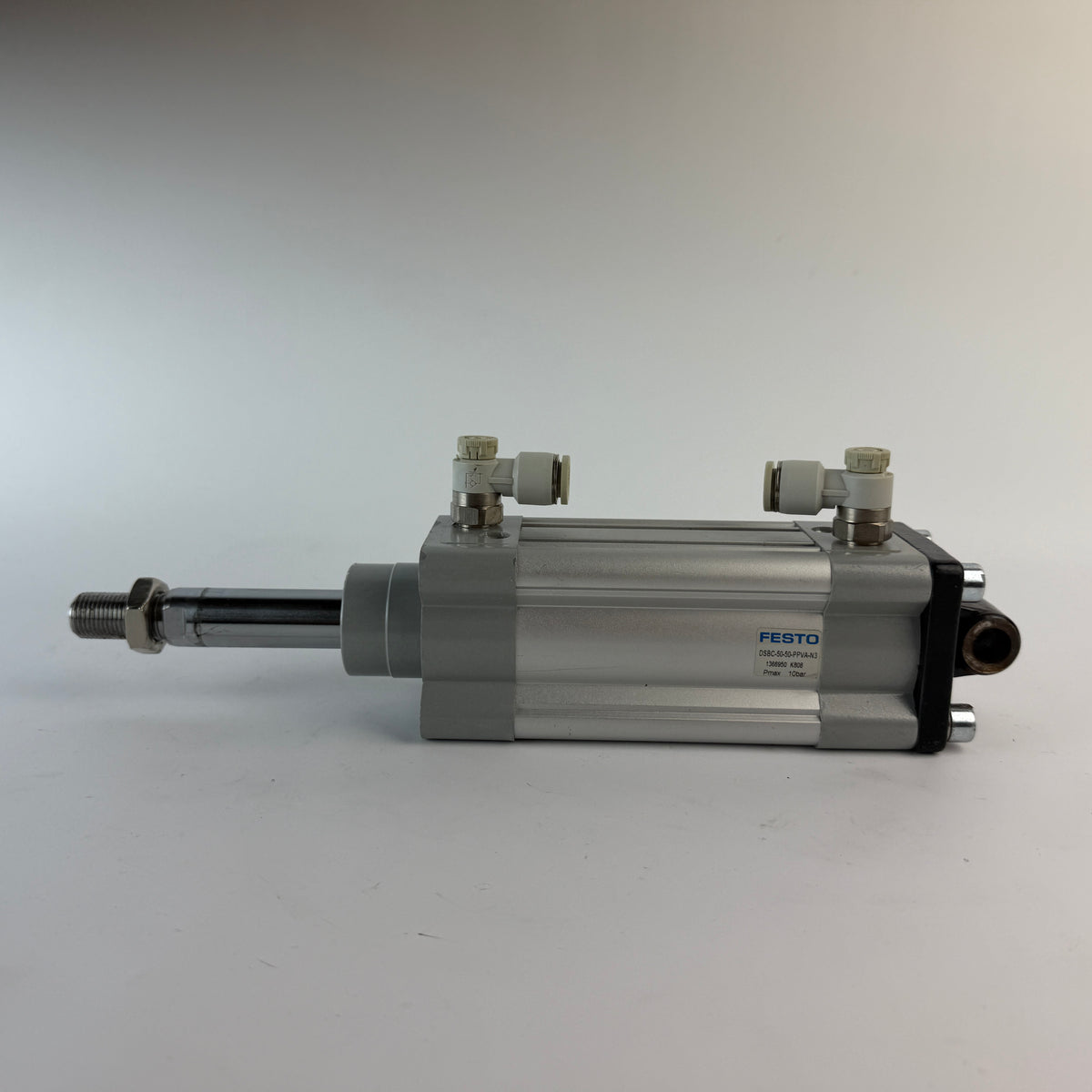

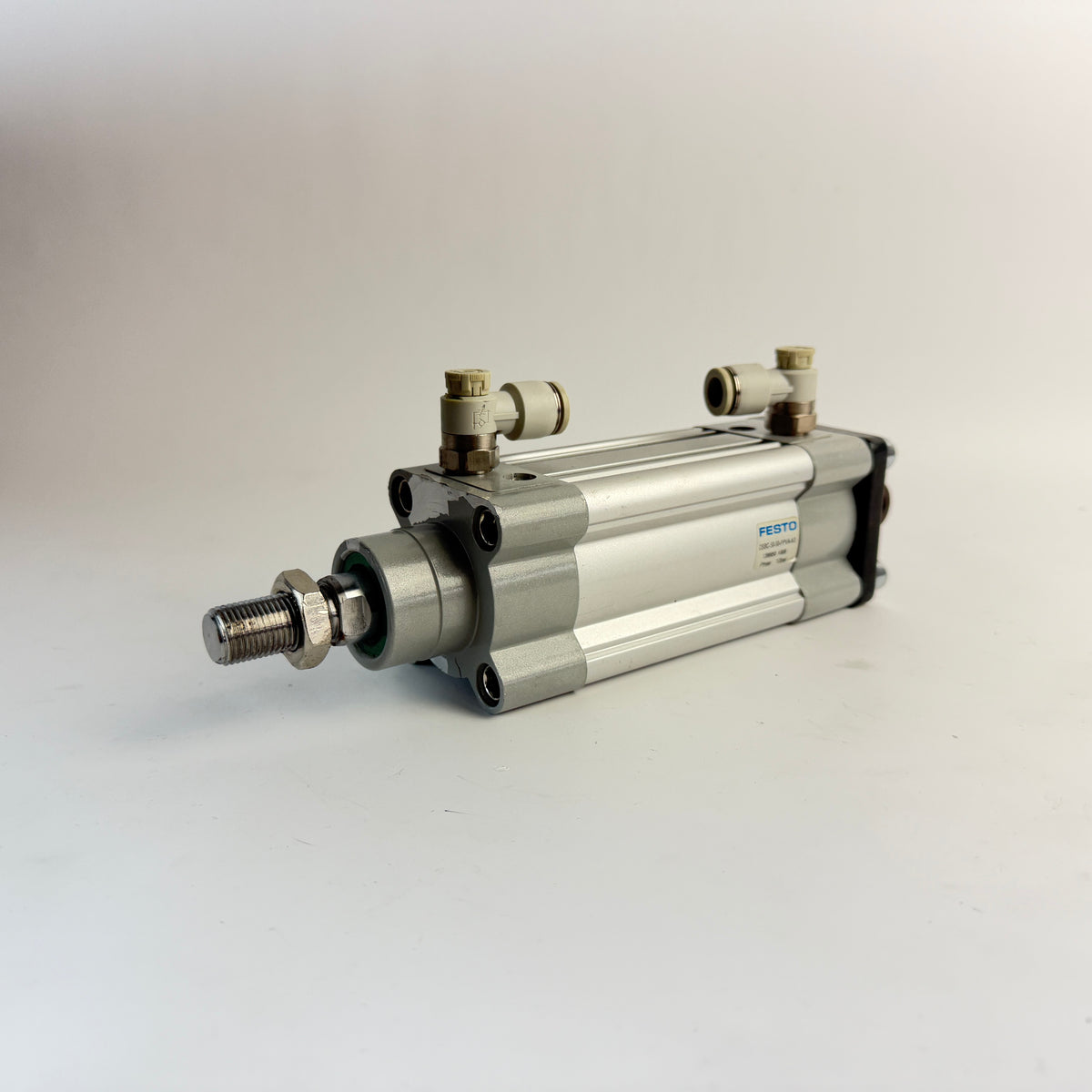

The pictured unit also includes pneumatic push-in flow-control fittings installed in both cylinder ports.
Used, fully functional.
