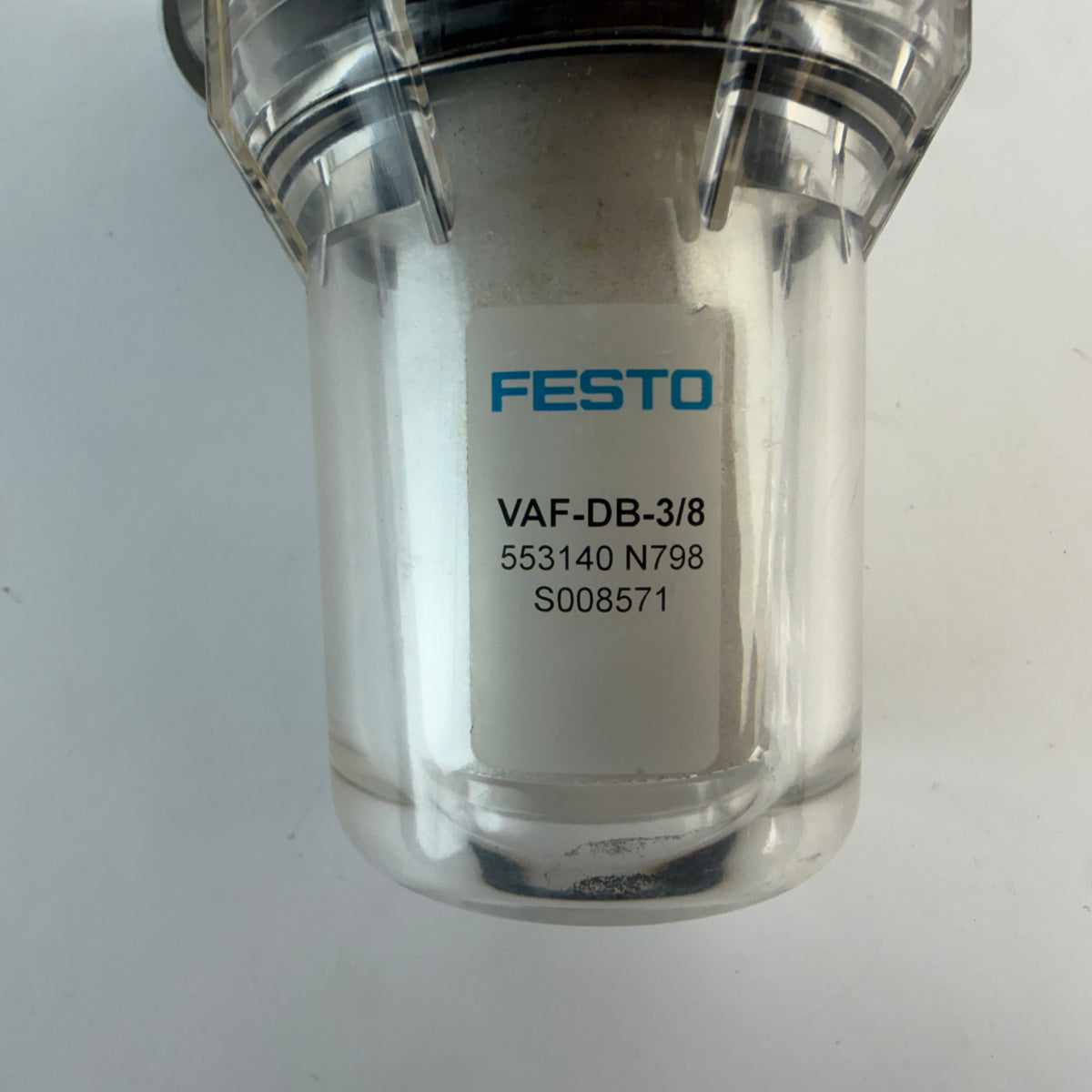

Festo VAF-DB-3/8 vacuum filter, part number 553140, designed for filtering contamination and particles in industrial vacuum systems.

The VAF-DB series is intended for installation in open vacuum systems. This model provides an 80 µm filtration grade and features G3/8 pneumatic and vacuum connections. The transparent bowl allows visual inspection of the filter element.

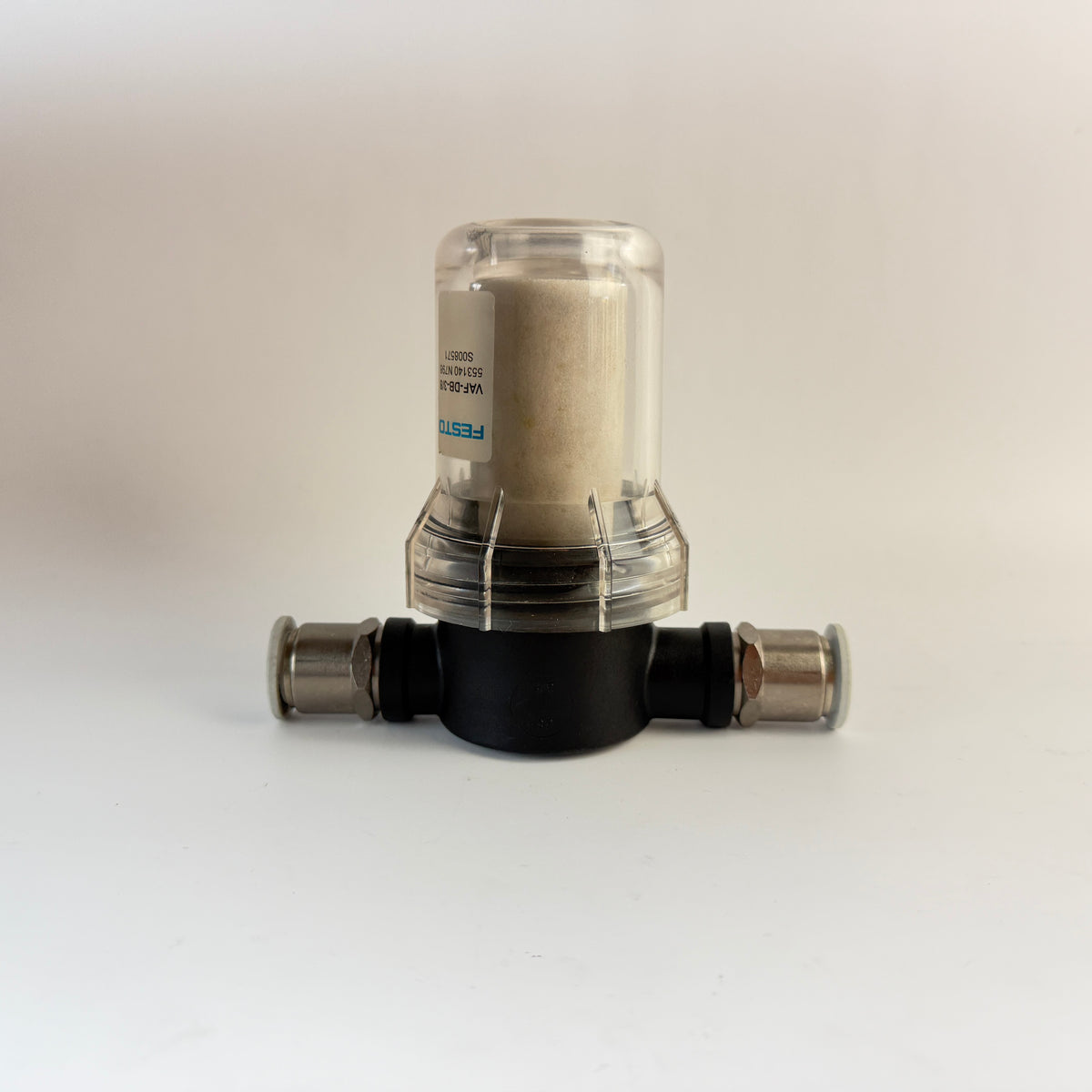

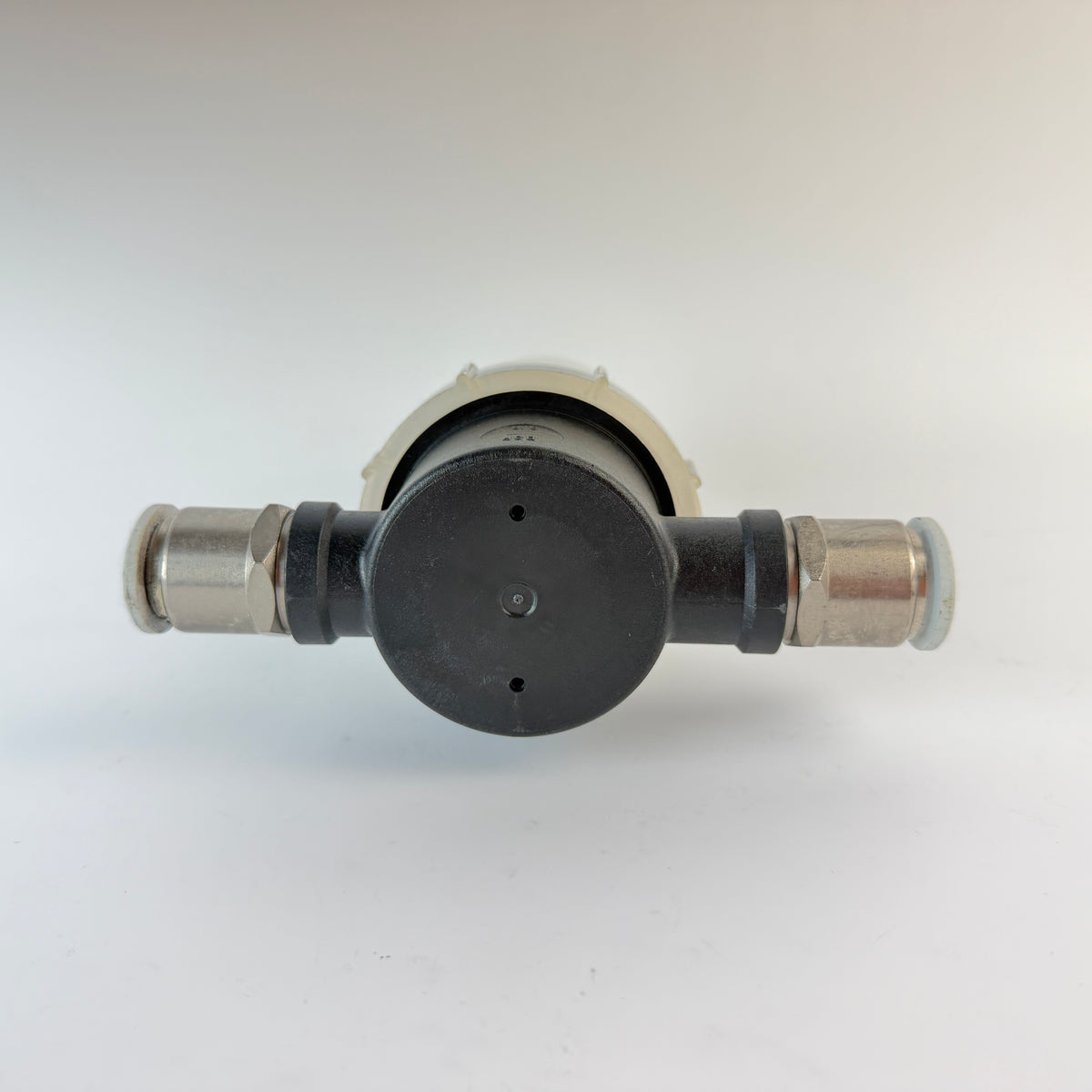

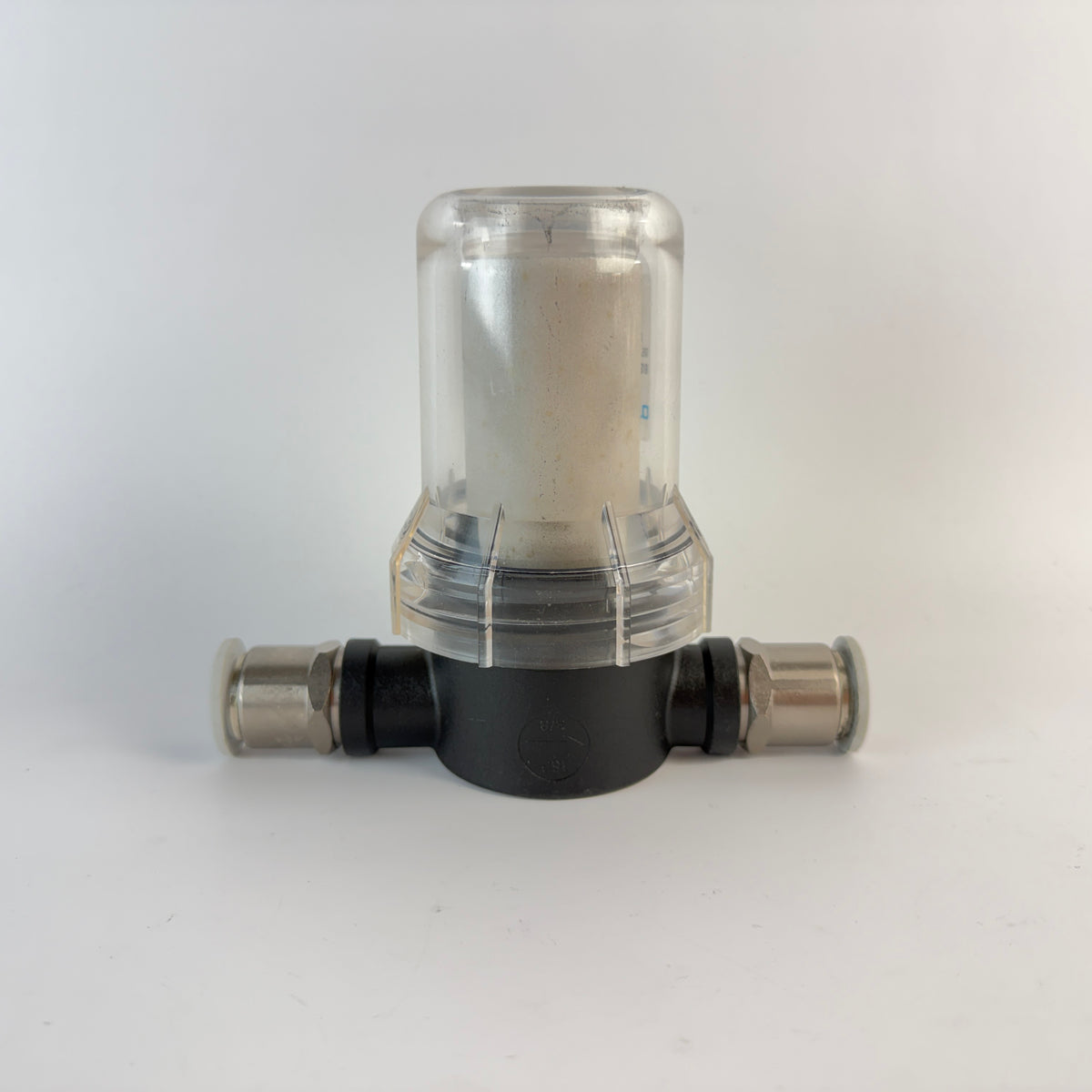

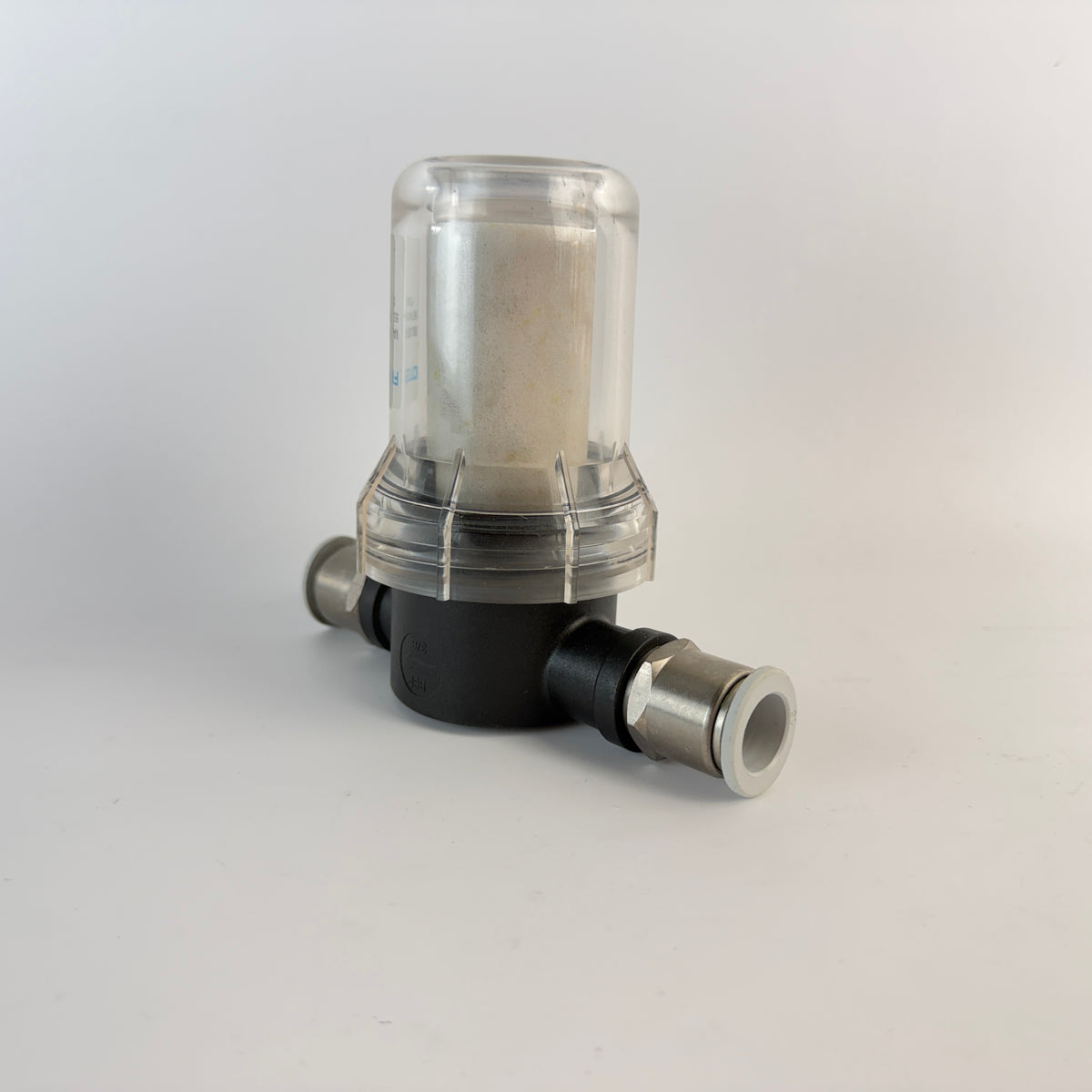

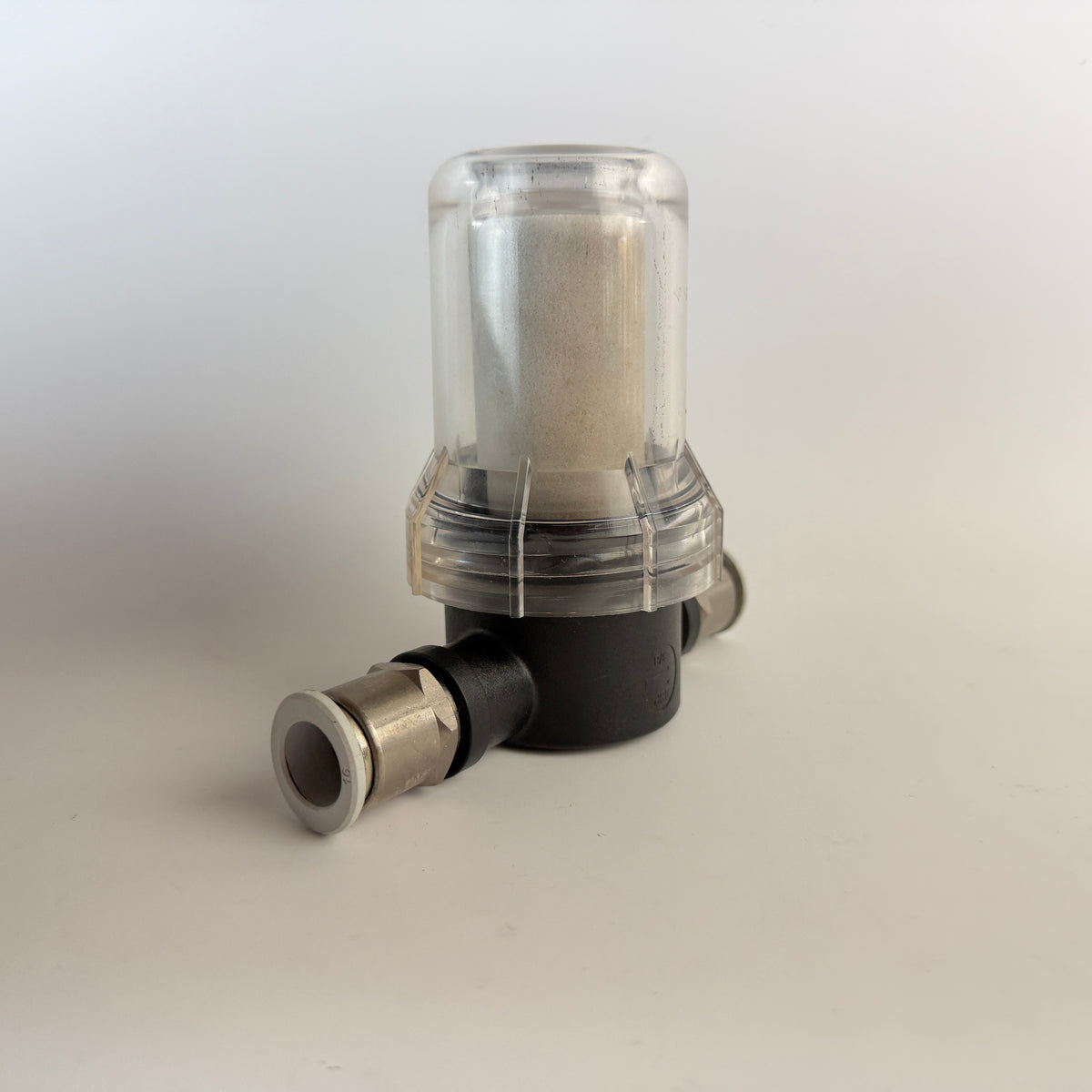

This unit is supplied with the two metal push-in pneumatic fittings installed as shown in the photos. Exact manufacturer and part numbers of the fittings are not confirmed.

Technical specifications:

• Manufacturer: Festo
• Model: VAF-DB-3/8
• Part Number: 553140
• Series: VAF-DB
• Type: Vacuum Filter
• Filtration Grade: 80 µm
• Operating Pressure: -0.95 to 0 bar
• Application: Open vacuum systems
• Operating Medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
• Pneumatic Connection: G3/8
• Vacuum Connection: G3/8
• Mounting Position: Vertical
• Mounting: In-line installation or wall/surface bracket
• Ambient Temperature: -5°C to +50°C
• Maximum Tightening Torque: 15.3 Nm
• Suitable for Ejector Pulse: Up to 7 bar
• Filter Material: PE
• Seal Material: NBR
• Housing Material: Reinforced PP
• Bowl Material: PA
• Product Weight: 156 g
• RoHS Compliant: Yes

Used, fully functional.

Includes the Festo VAF-DB-3/8 vacuum filter and the two installed push-in fittings shown in the photos.
