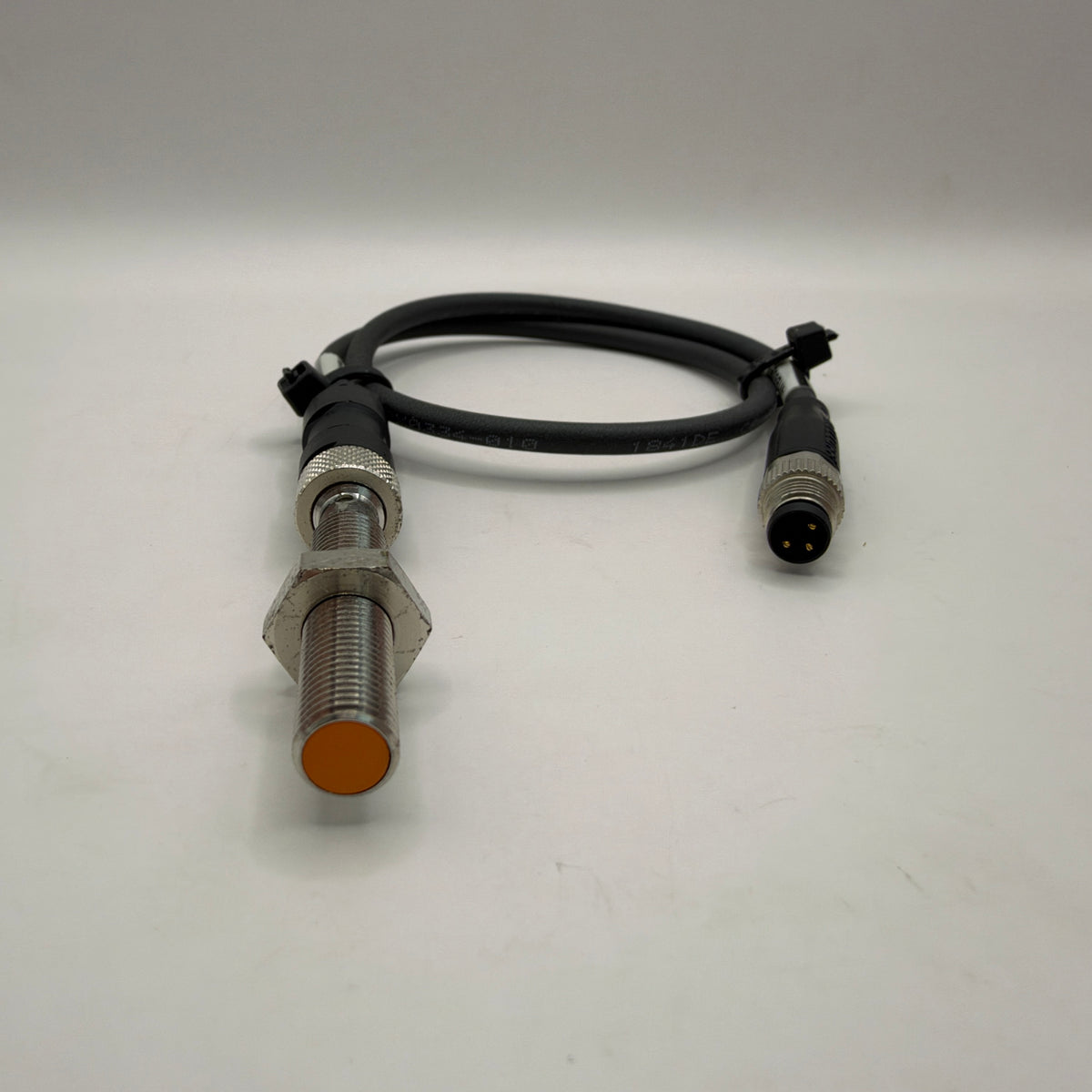

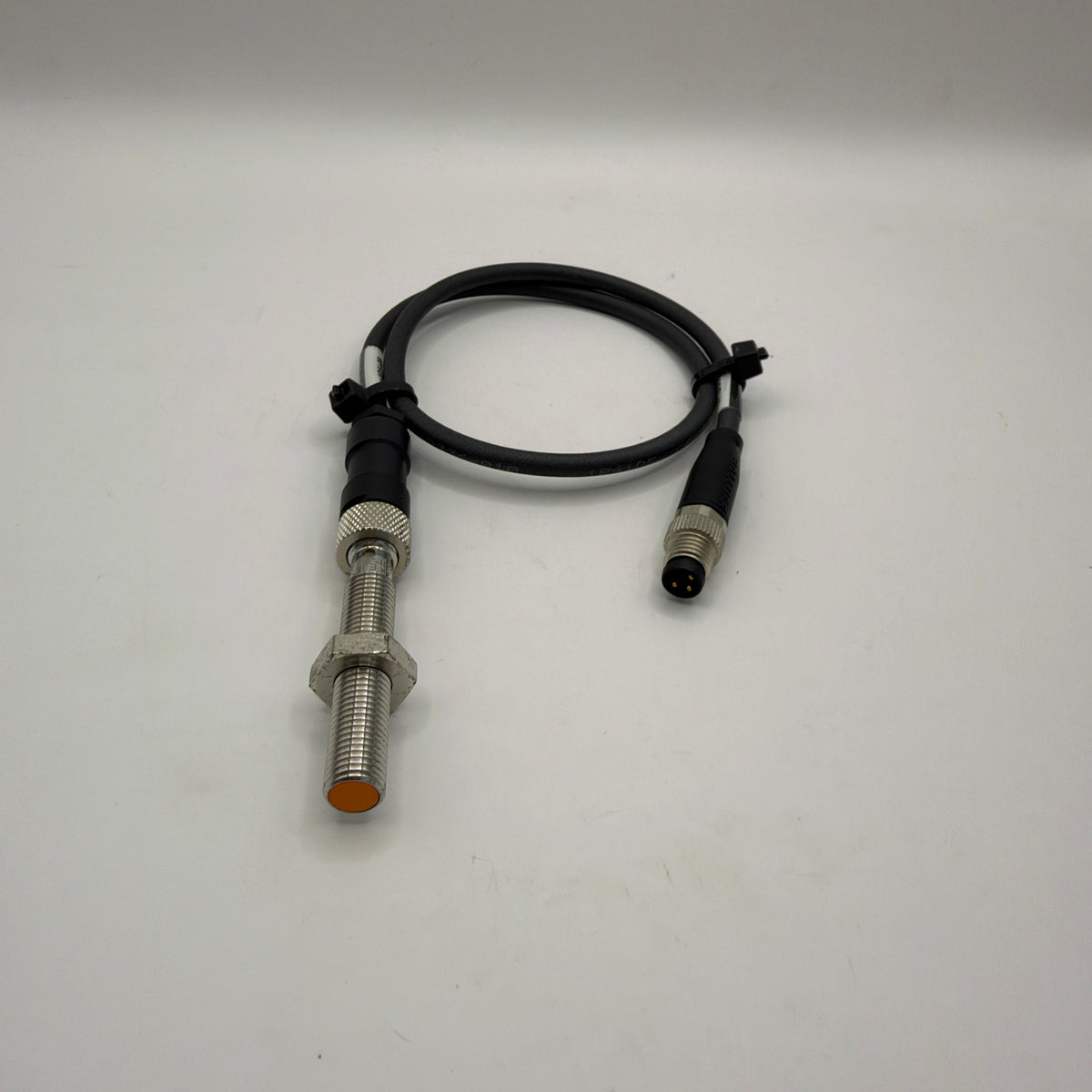

ifm IE5287 (IEB3002BBPKG/AS) inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and factory machinery.
The sensor features a compact M8 x 1 threaded metal housing, increased 2 mm sensing range, PNP normally-open switching output and an M8 3-pin electrical connector. Its flush-mountable construction is particularly suitable for installations where space is limited.
Technical specifications:
- Manufacturer: ifm electronic
- Model / MPN: IE5287
- Type designation: IEB3002BBPKG/AS
- Sensor type: Inductive proximity sensor
- Electrical design: PNP
- Output function: Normally Open (NO)
- Sensing range: 2 mm
- Real sensing range: 2 mm ±10%
- Operating distance: 0–1.6 mm
- Operating voltage: 10–30 V DC
- Current consumption: <10 mA
- Maximum output current: 100 mA
- Maximum output voltage drop: 2.5 V
- Switching frequency: 1300 Hz
- Housing: M8 x 1 threaded cylindrical
- Housing length: 50 mm
- Mounting: Flush mountable
- Connection: M8 A-coded, 3-pin
- Switching indication: 4 yellow LEDs
- Housing material: White-bronze-coated brass
- Sensing face: Orange LCP
- Protection rating: IP65 / IP67 with correctly fitted connector
- Ambient temperature: -25 to +70 °C
- Short-circuit protection: Yes
- Overload protection: Yes
- Reverse polarity protection: Yes
- Condition: Used, fully functional.
Packed and dispatched within 1 working day of cleared payment. Worldwide delivery via DHL Express, typically 2–7 working days.
Import duties, taxes and customs fees are the buyer's responsibility. Tracking is provided on dispatch.
