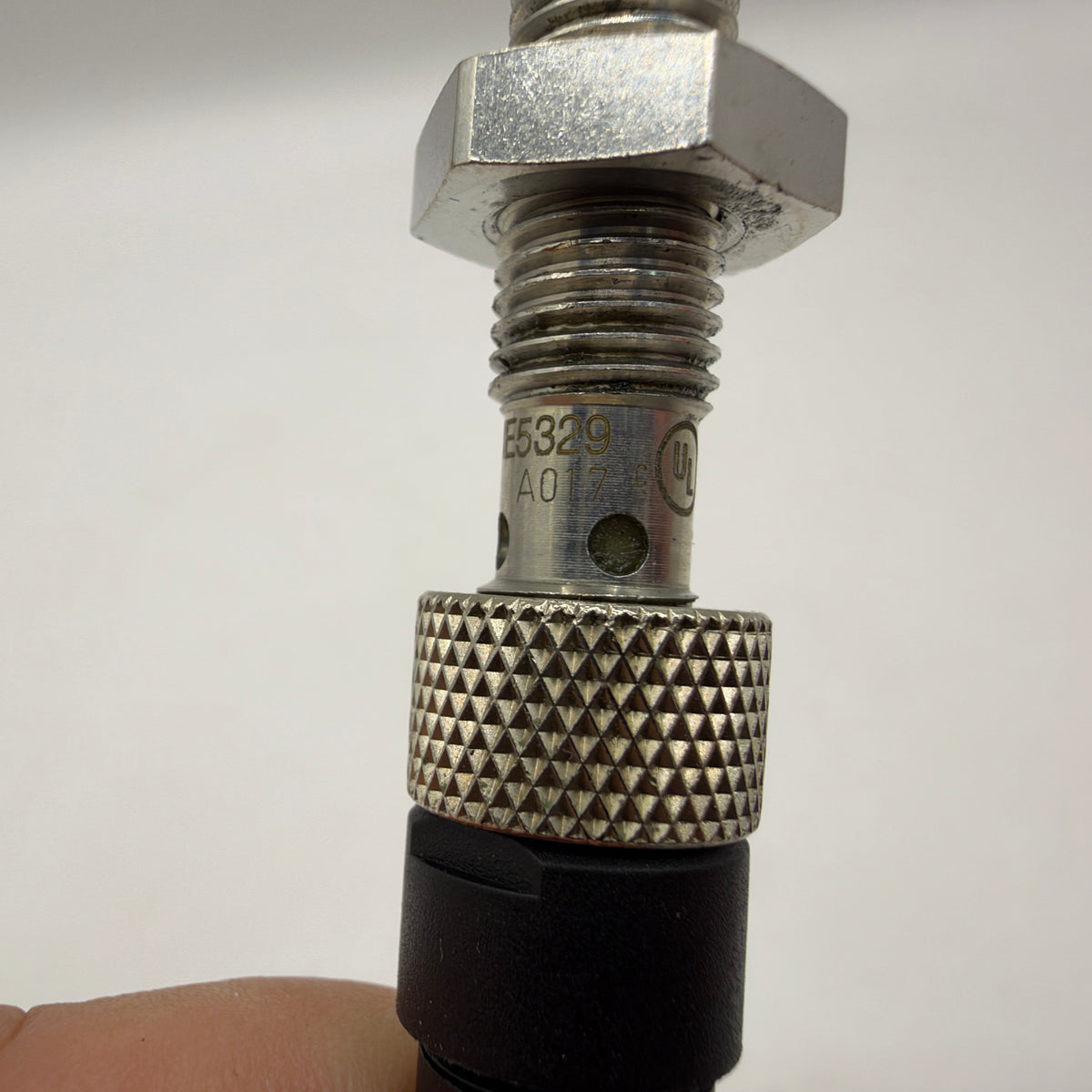

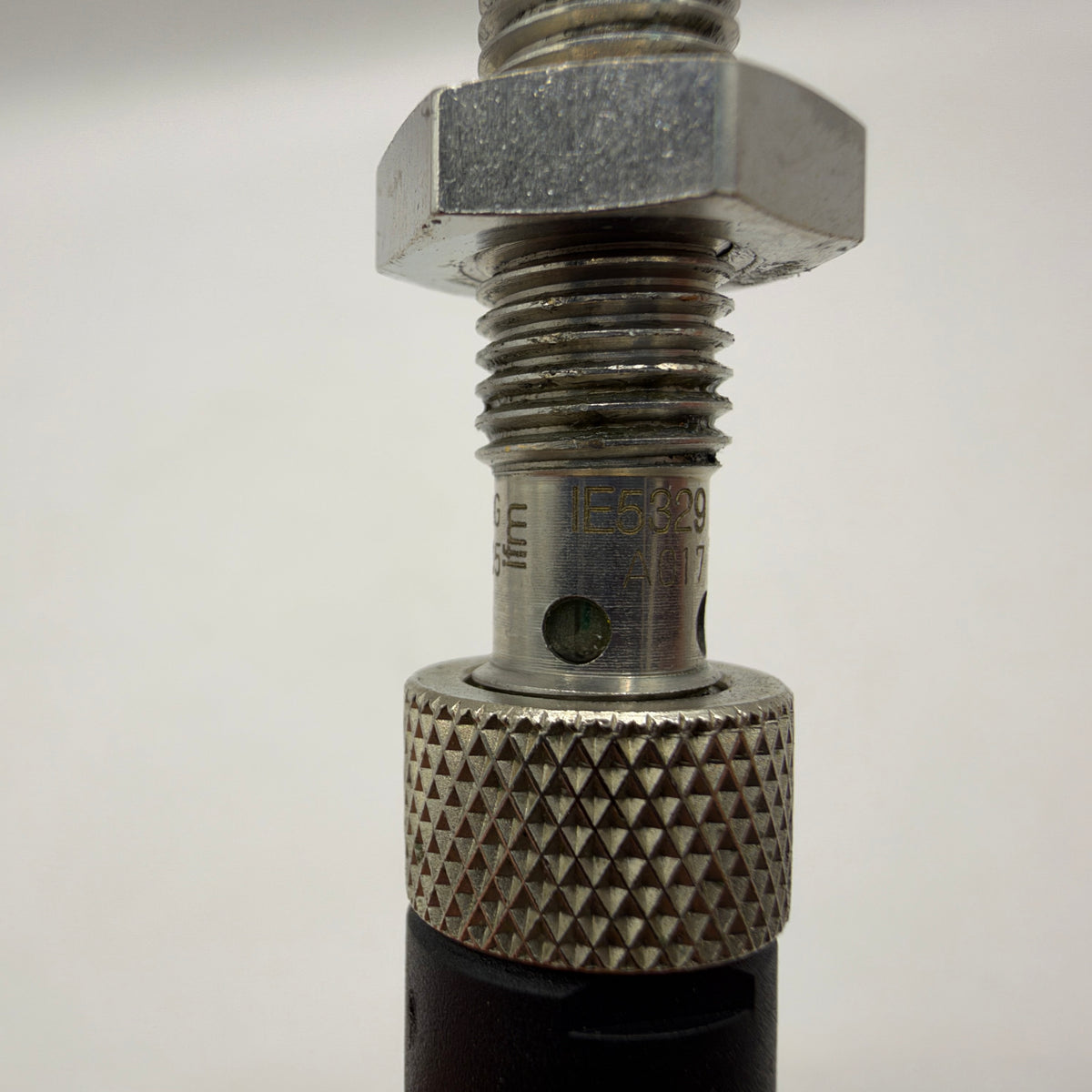

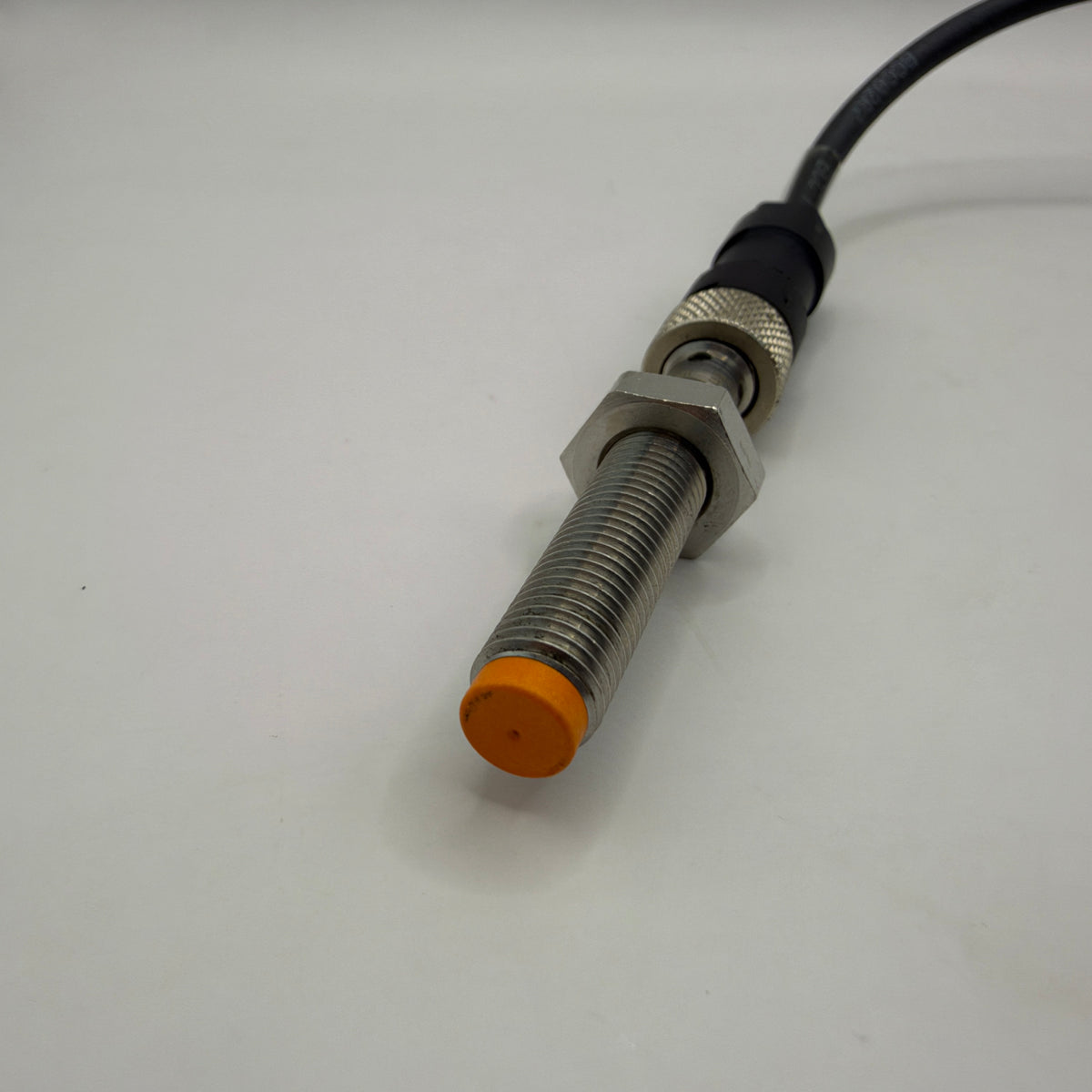

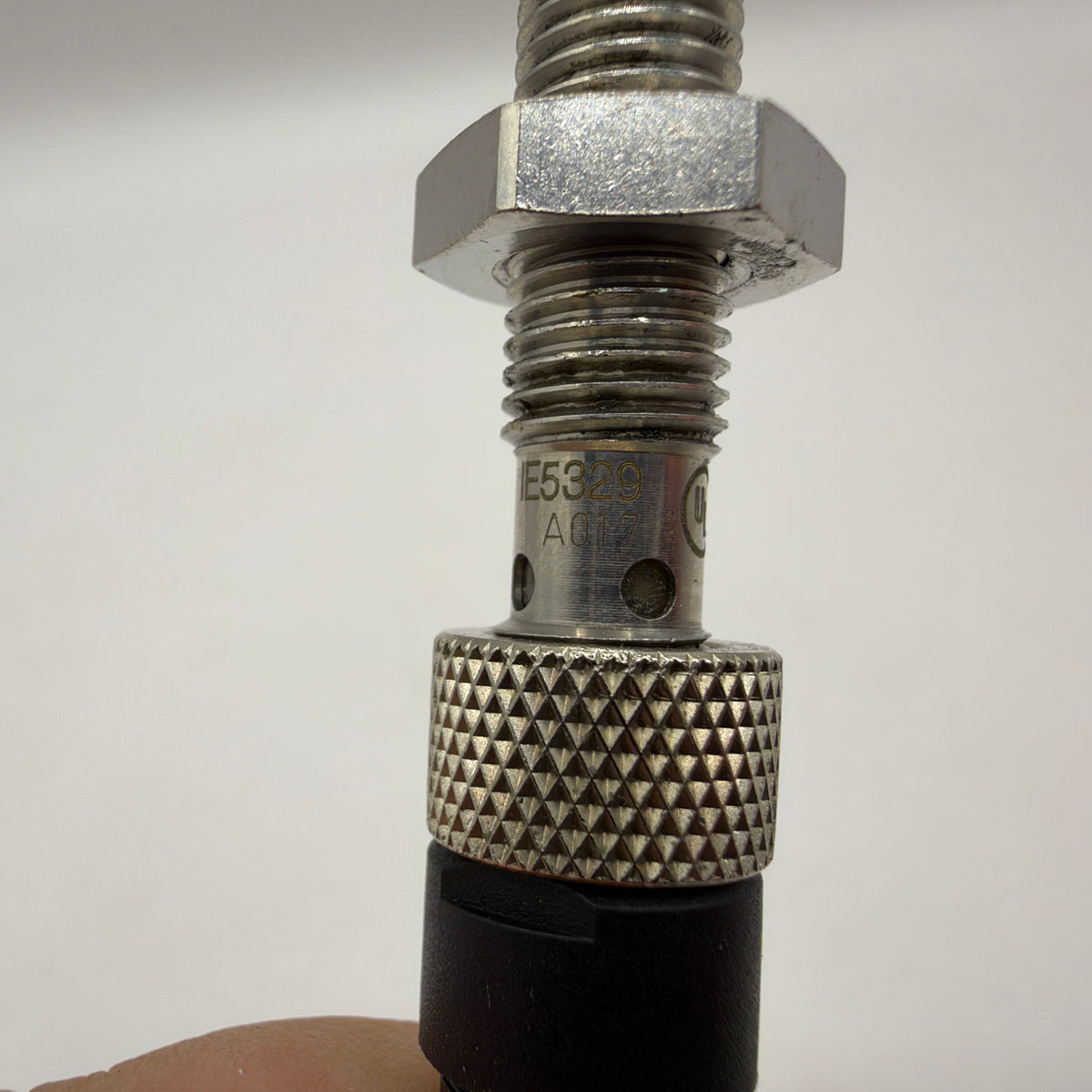

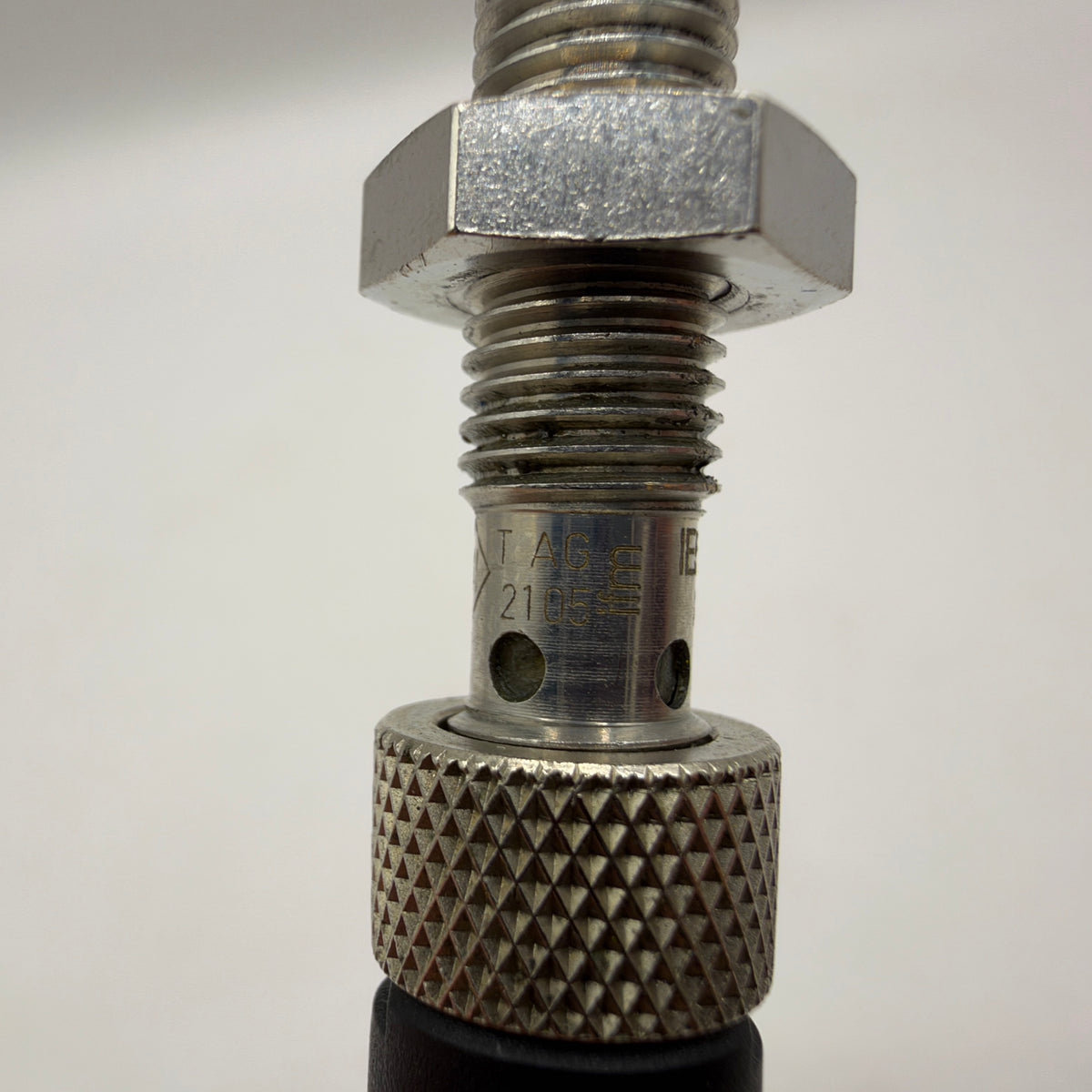

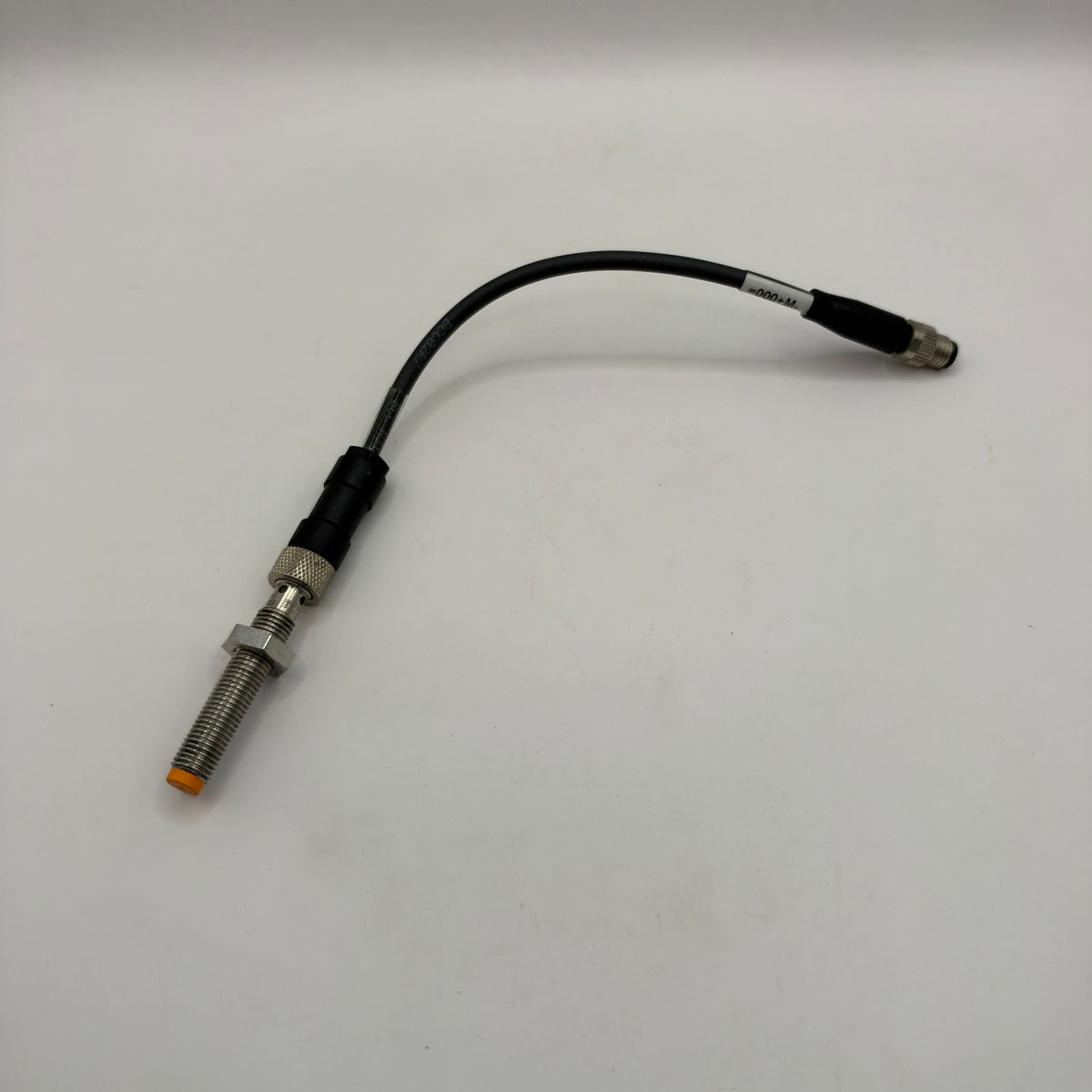

ifm IE5329 (IEB3004-BPKG/AS) industrial inductive proximity sensor designed for reliable non-contact detection of metallic objects in automation equipment, machinery and production systems.

The sensor features a compact M8 x 1 threaded cylindrical housing with an increased 4 mm sensing range. It uses a PNP normally-open switching output and is designed for non-flush mounting.

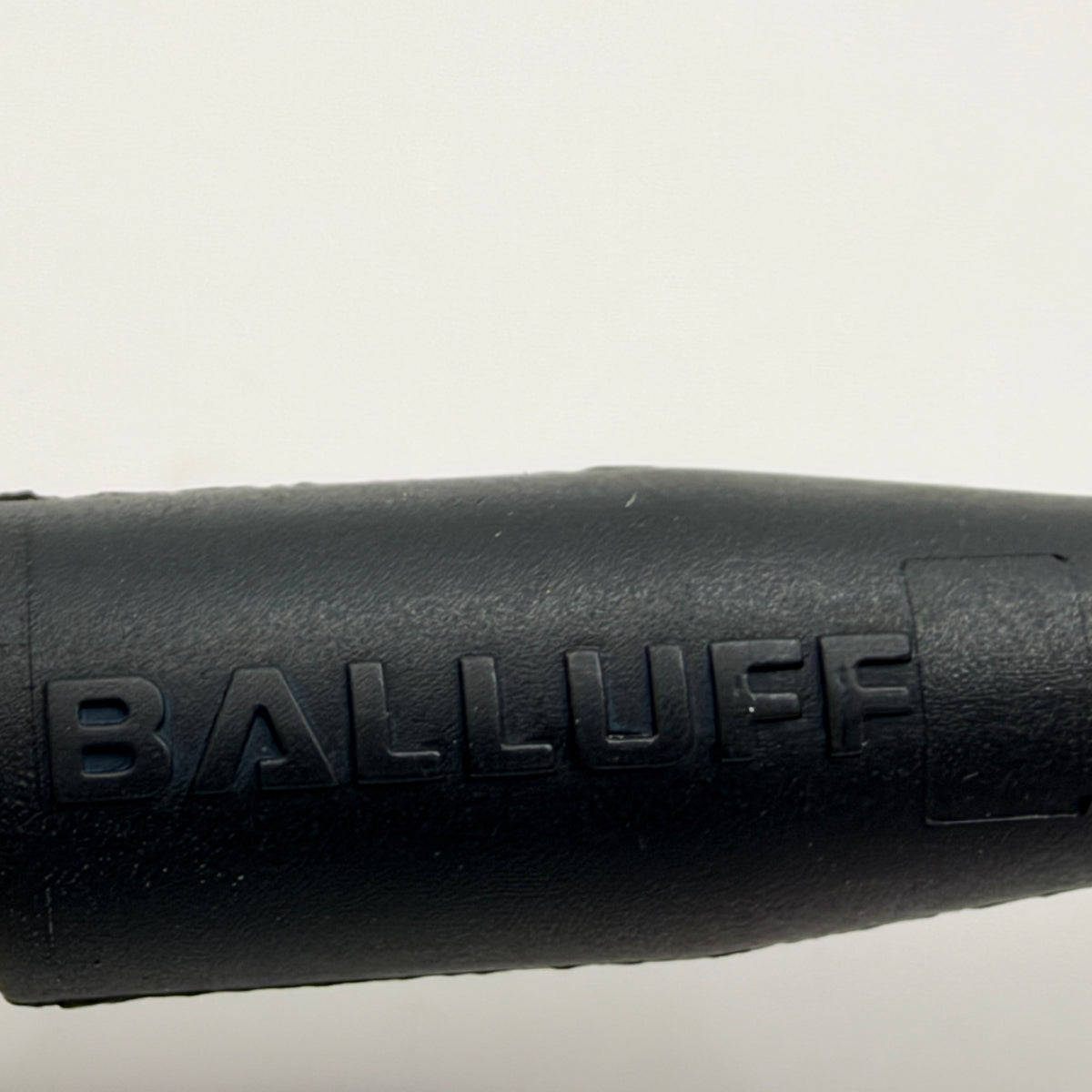

A BALLUFF connection/extension cable is included. The exact BALLUFF cable part number and length are not confirmed.

Technical specifications:

• Manufacturer: ifm electronic
• Model / MPN: IE5329
• Type designation: IEB3004-BPKG/AS
• Sensor type: Inductive proximity sensor
• Housing: Threaded cylindrical
• Thread size: M8 x 1
• Length: 50 mm
• Mounting: Non-flush
• Rated sensing range: 4 mm
• Real sensing range: 4 mm ±10%
• Operating distance: 0–3.25 mm
• Output type: PNP
• Output function: Normally Open (NO)
• Operating voltage: 10–30 V DC
• Output current: 100 mA
• Switching frequency: 800 Hz
• Voltage drop: Max. 2.5 V
• Connection: M8 connector
• Switching status indication: Yellow LED
• Protection rating: IP65 / IP67 with properly installed connector
• Ambient temperature: -25 to +70 °C
• Housing material: Special-coated brass
• Sensing face: LCP
• Reverse polarity protection: Yes
• Short-circuit protection: Yes
• Overload protection: Yes
• Included accessory: BALLUFF connection/extension cable
• Exact cable MPN and length: Not confirmed
• Condition: Used, fully functional.
