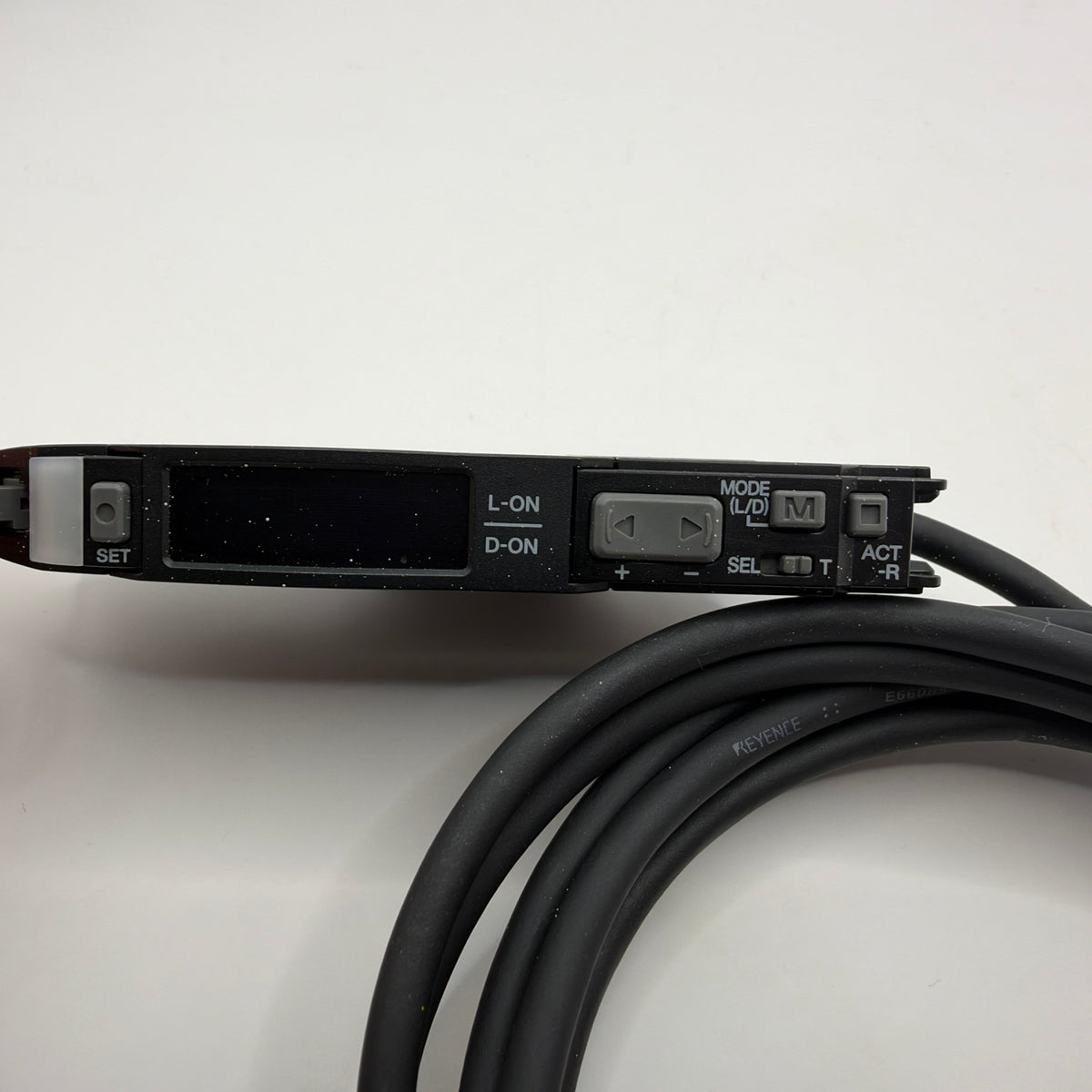

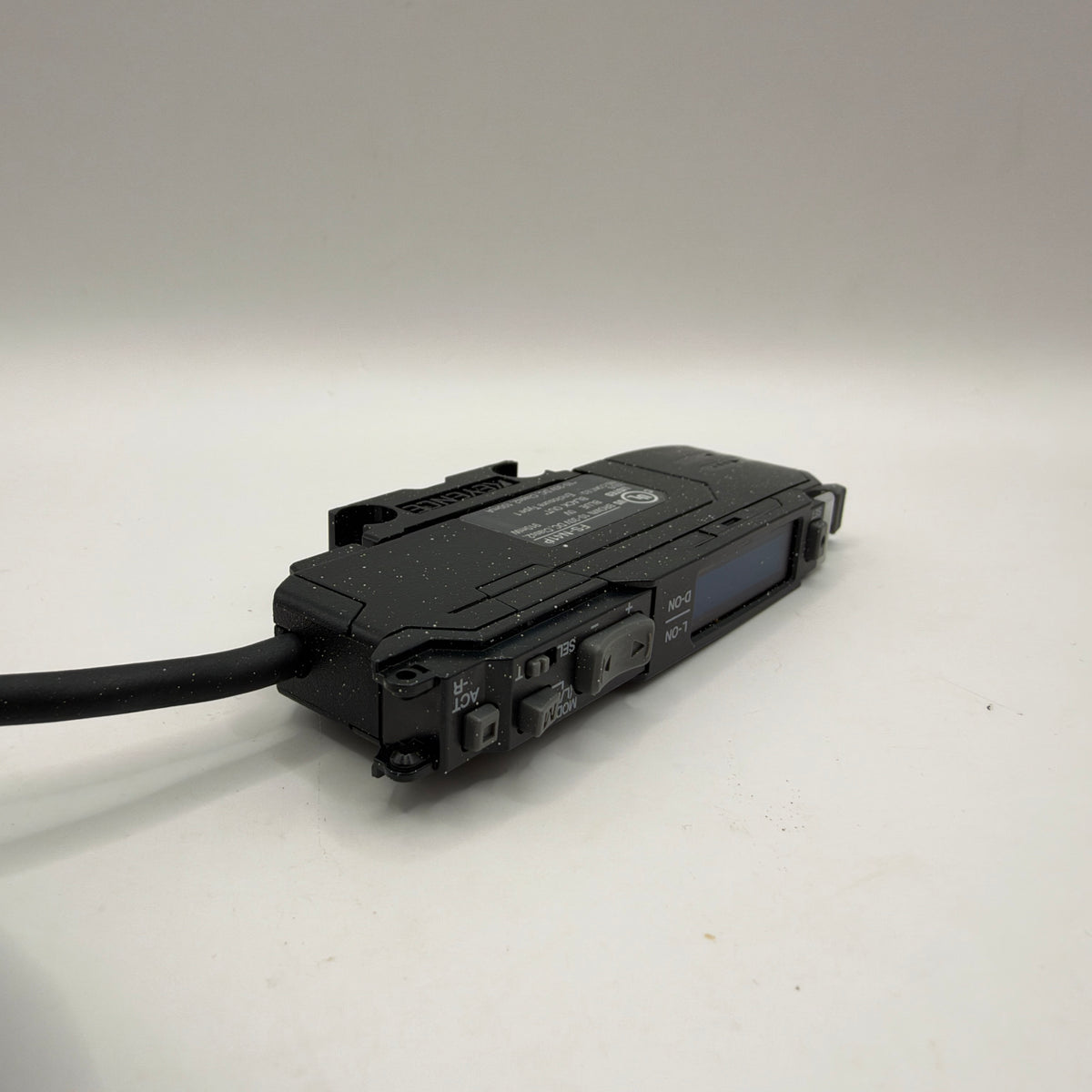

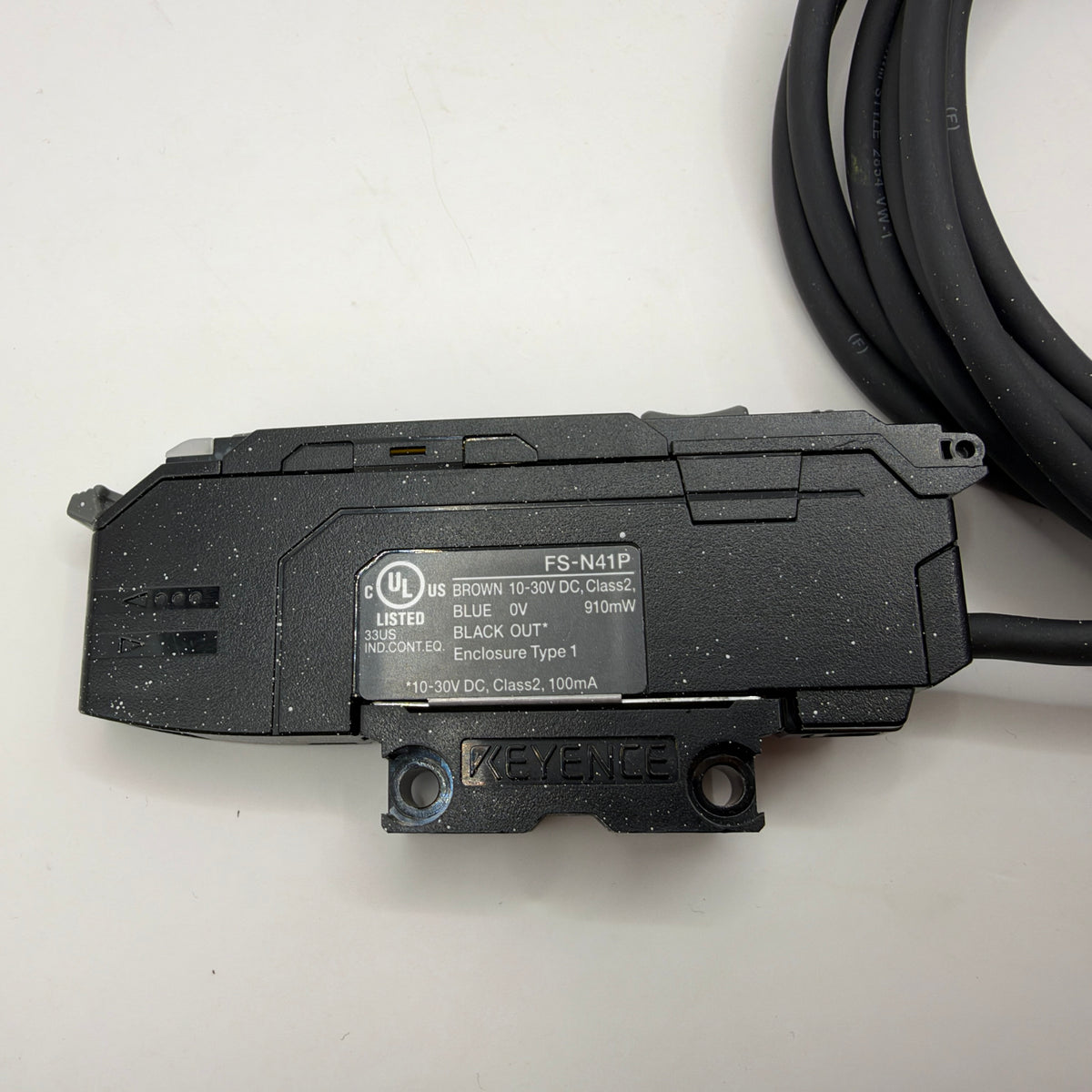

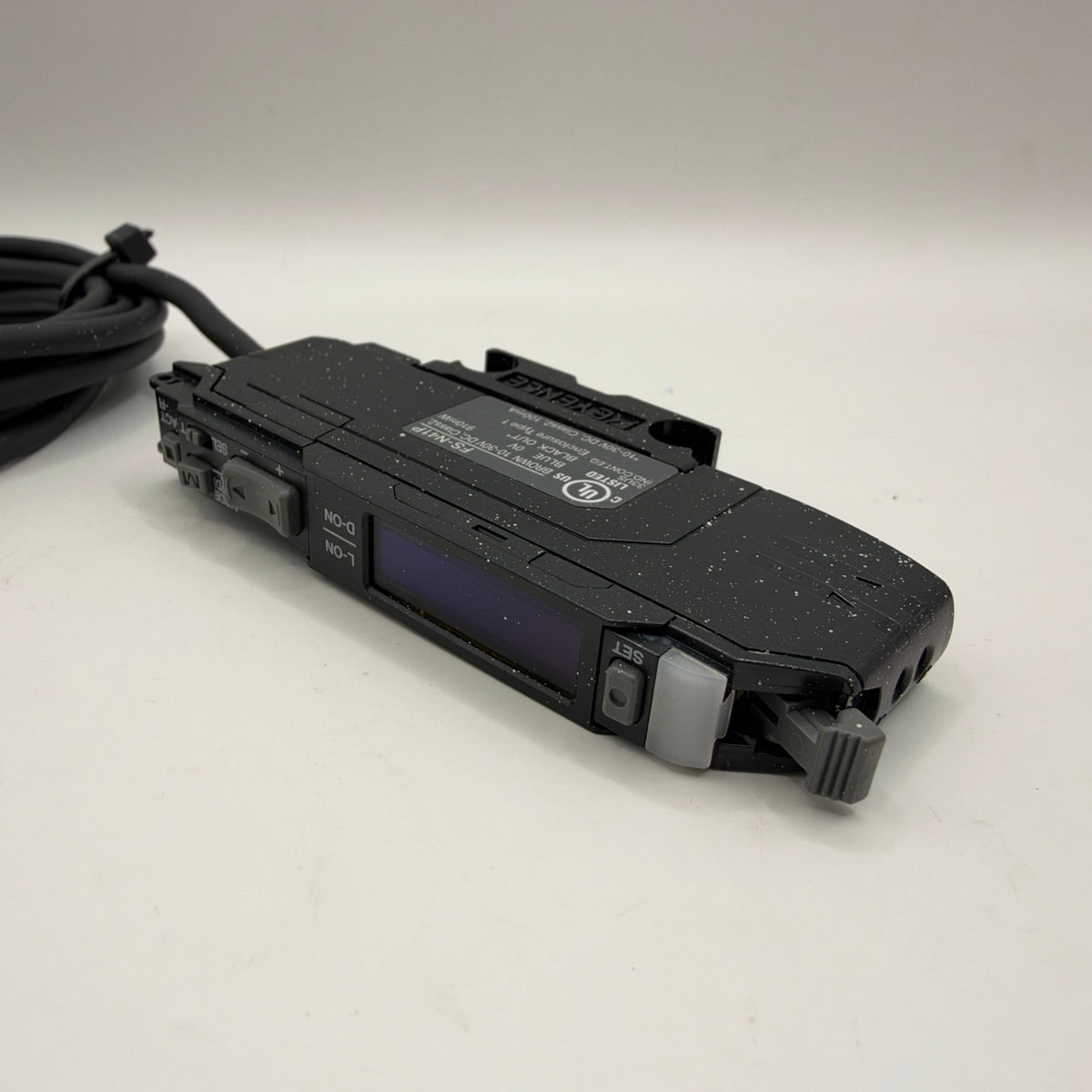

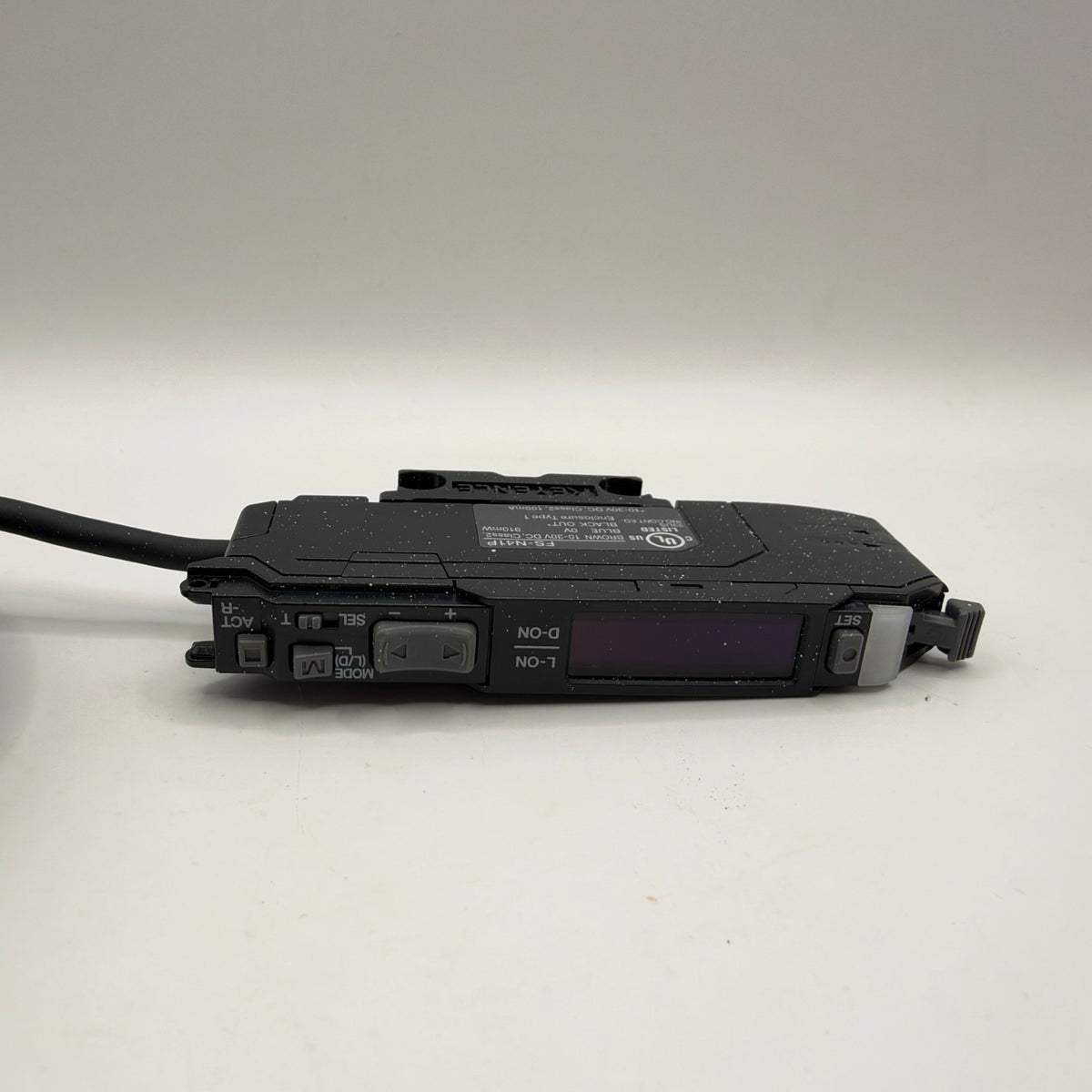

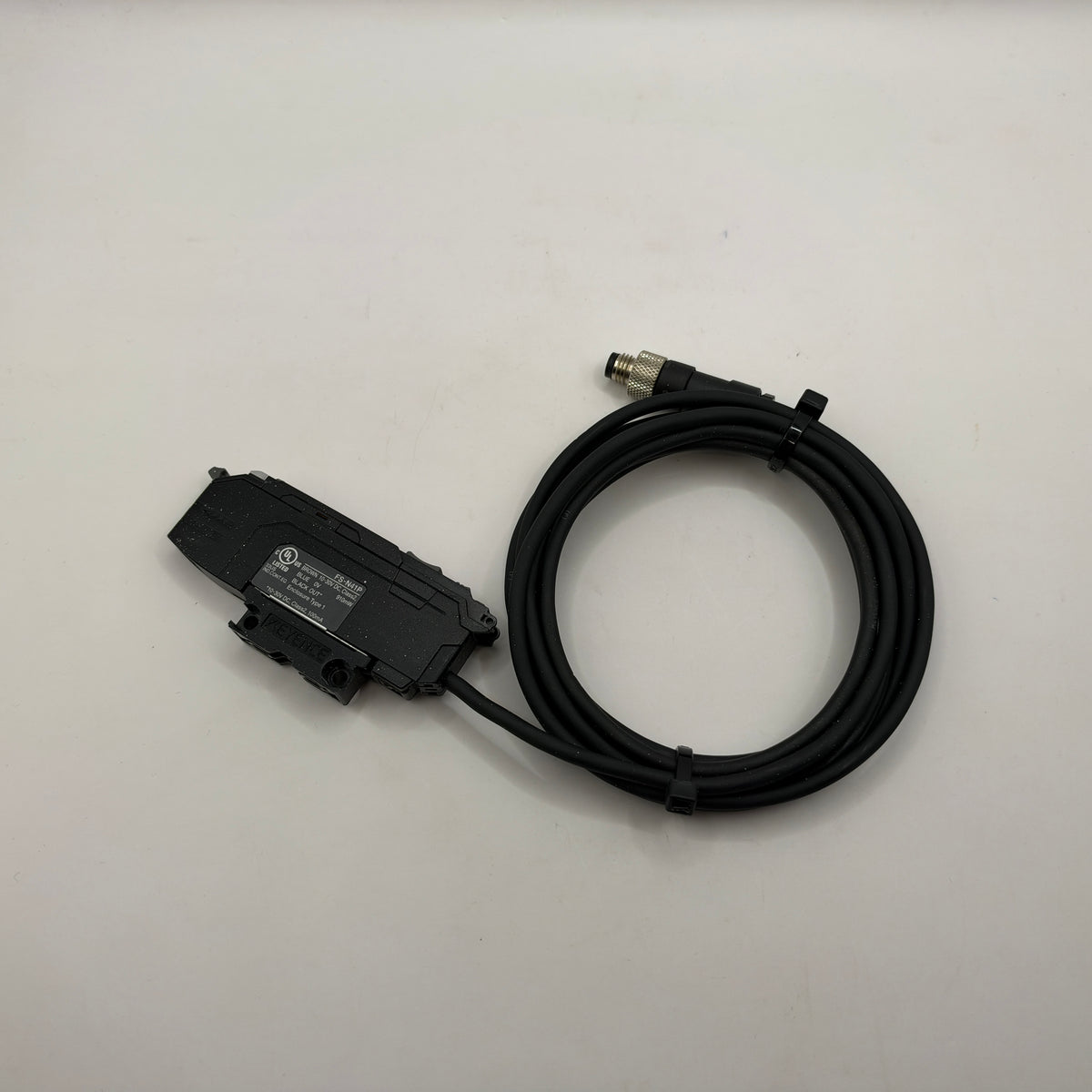

KEYENCE FS-N41P digital fiber optic sensor amplifier from the FS-N40 series. This is a cable-type PNP main amplifier unit designed for use with compatible KEYENCE fiber optic sensor heads in industrial detection and automation applications.

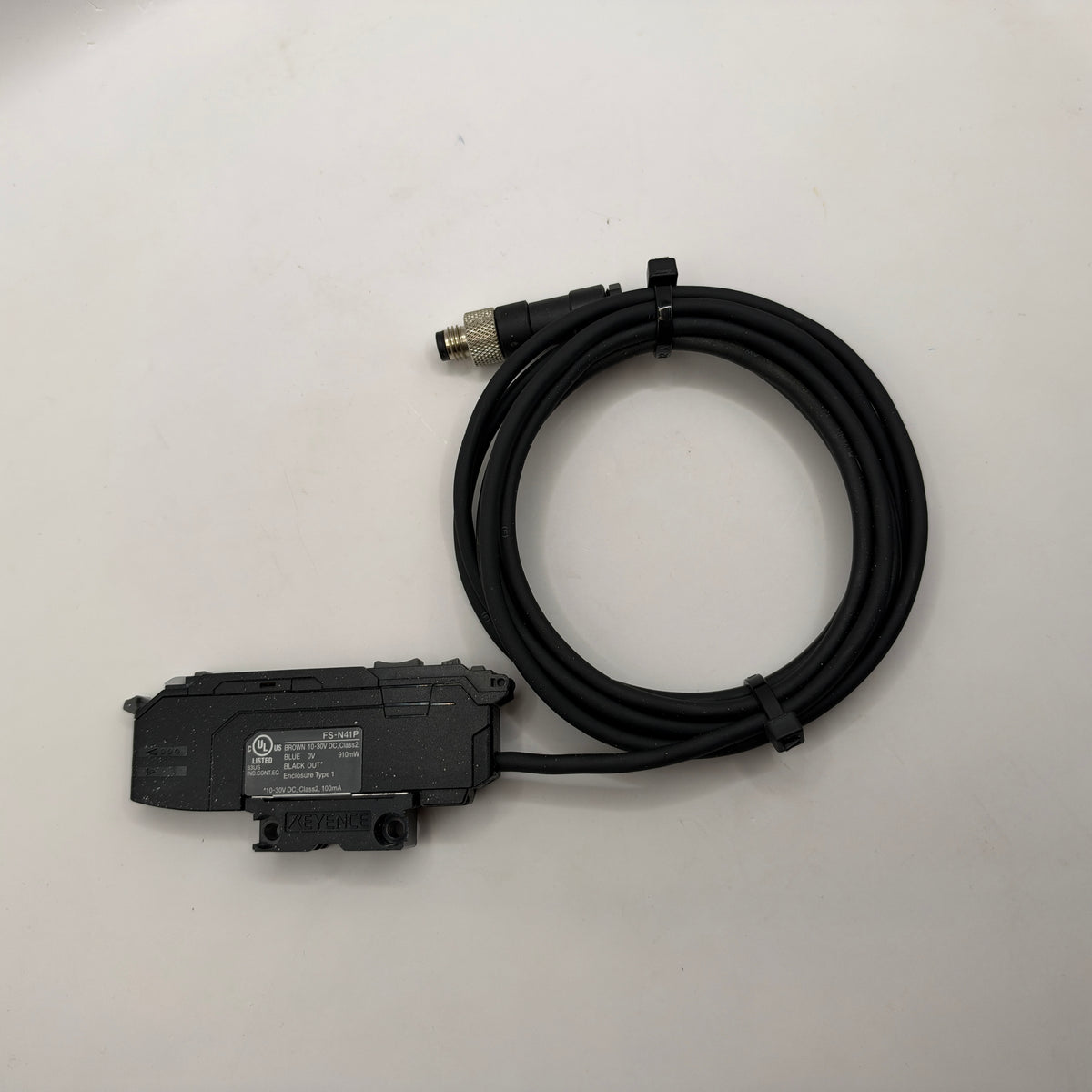

The amplifier provides digital indication and adjustable detection settings, with selectable Light-ON / Dark-ON operation and multiple response-speed modes. This unit has an integral approximately 200 cm cable terminating in the pictured 3-pin circular male connector.
Technical specifications:
- Manufacturer: KEYENCE
- Model / MPN: FS-N41P
- Series: FS-N40
- Type: Digital fiber optic sensor amplifier
- Unit type: Main unit
- Connection type: Cable
- Output: PNP open collector
- Number of control outputs: 1
- Control output rating: 30 VDC max., 100 mA max.
- Operating modes: Light-ON / Dark-ON selectable
- Light source: Red 4-element LED, 660 nm
- Response time settings: 23 µs / 50 µs / 250 µs / 500 µs / 1 ms / 4 ms / 16 ms / 64 ms
- Supply voltage: 10–30 VDC, Class 2 or LPS
- Ambient operating temperature: -20 to +55°C, subject to installation/expansion conditions
- Housing material: Polycarbonate
- Cable length: Approximately 200 cm

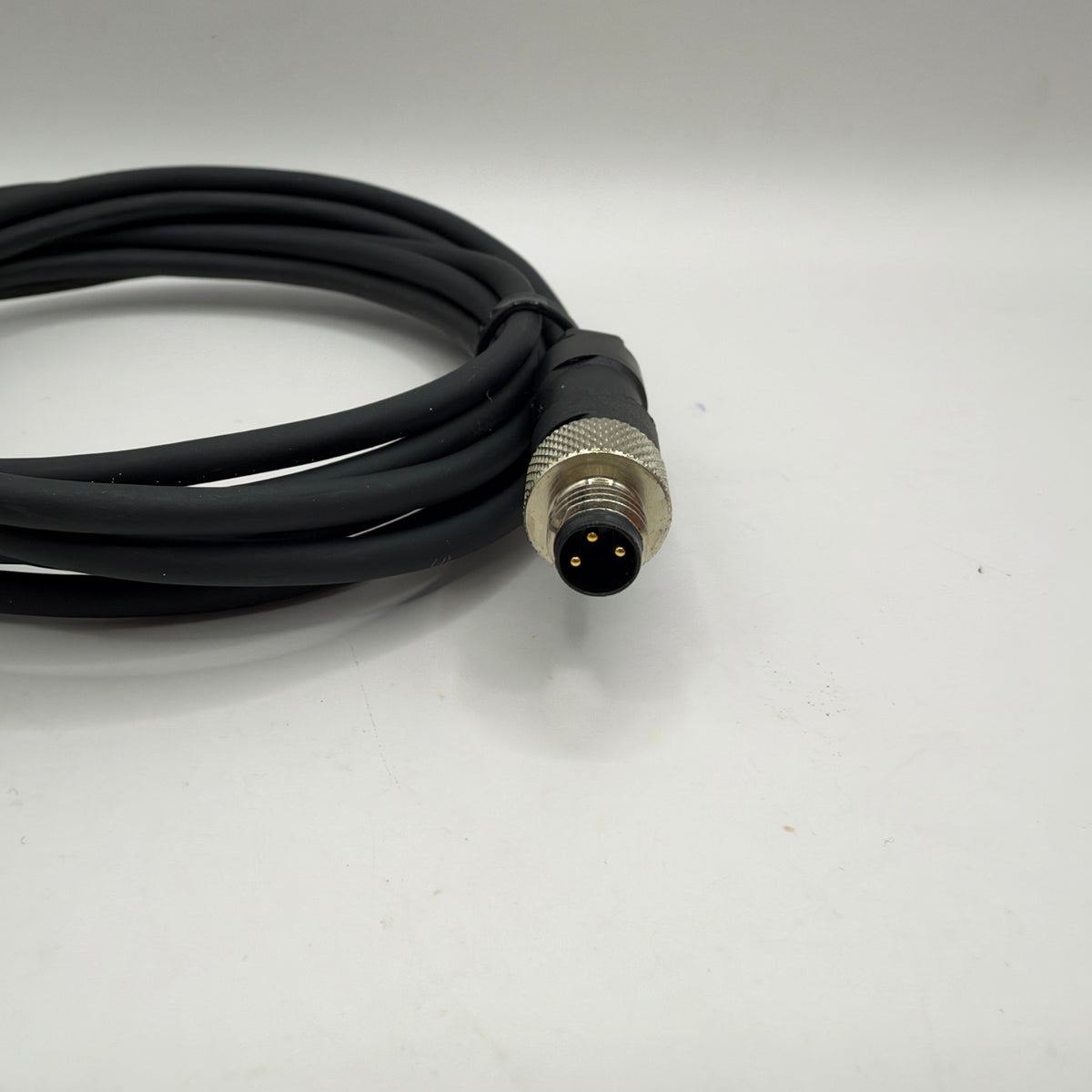

- Cable termination: 3-pin circular male connector

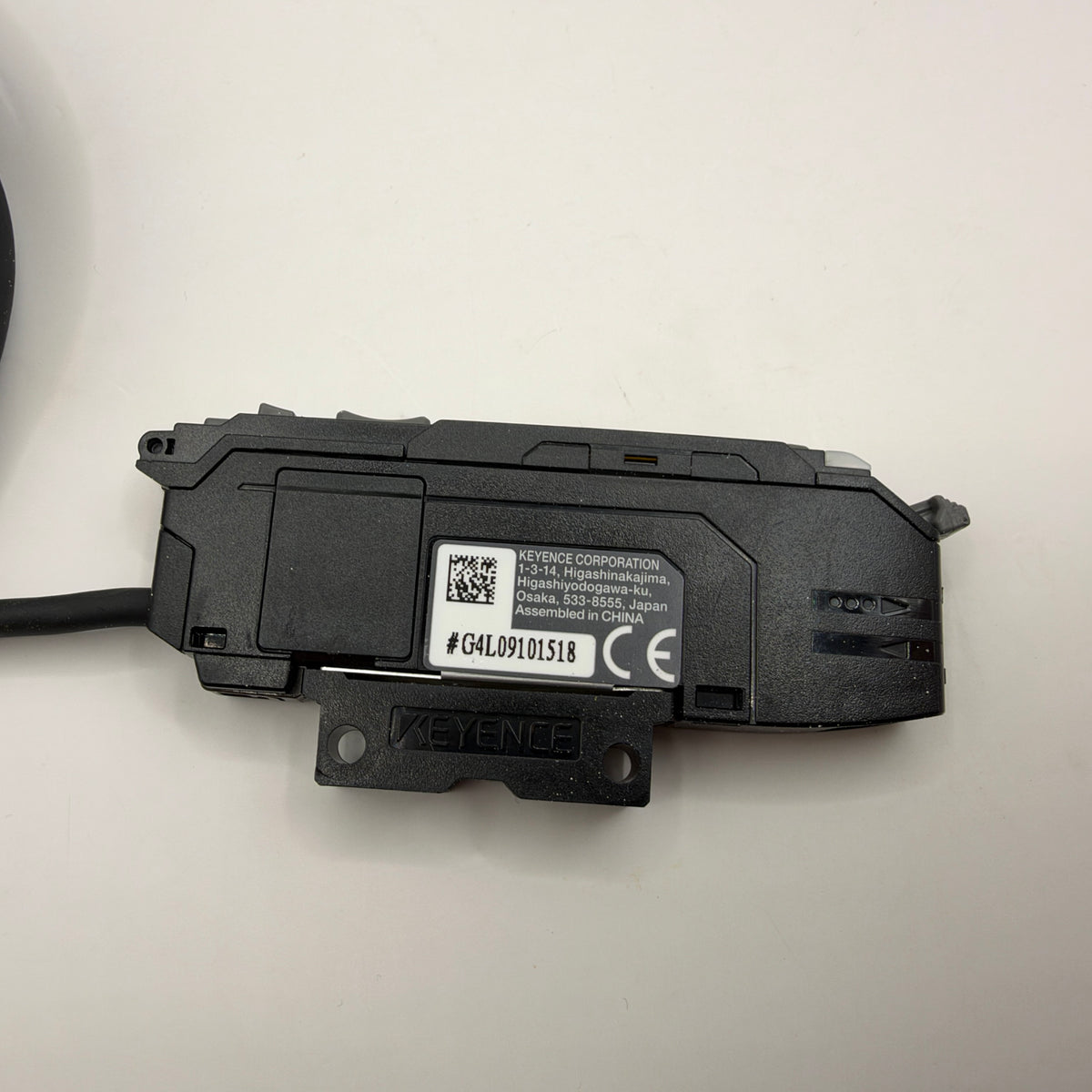

- Assembly marking on unit: Assembled in China
Fiber optic sensing head is not included.
Used, fully functional.
