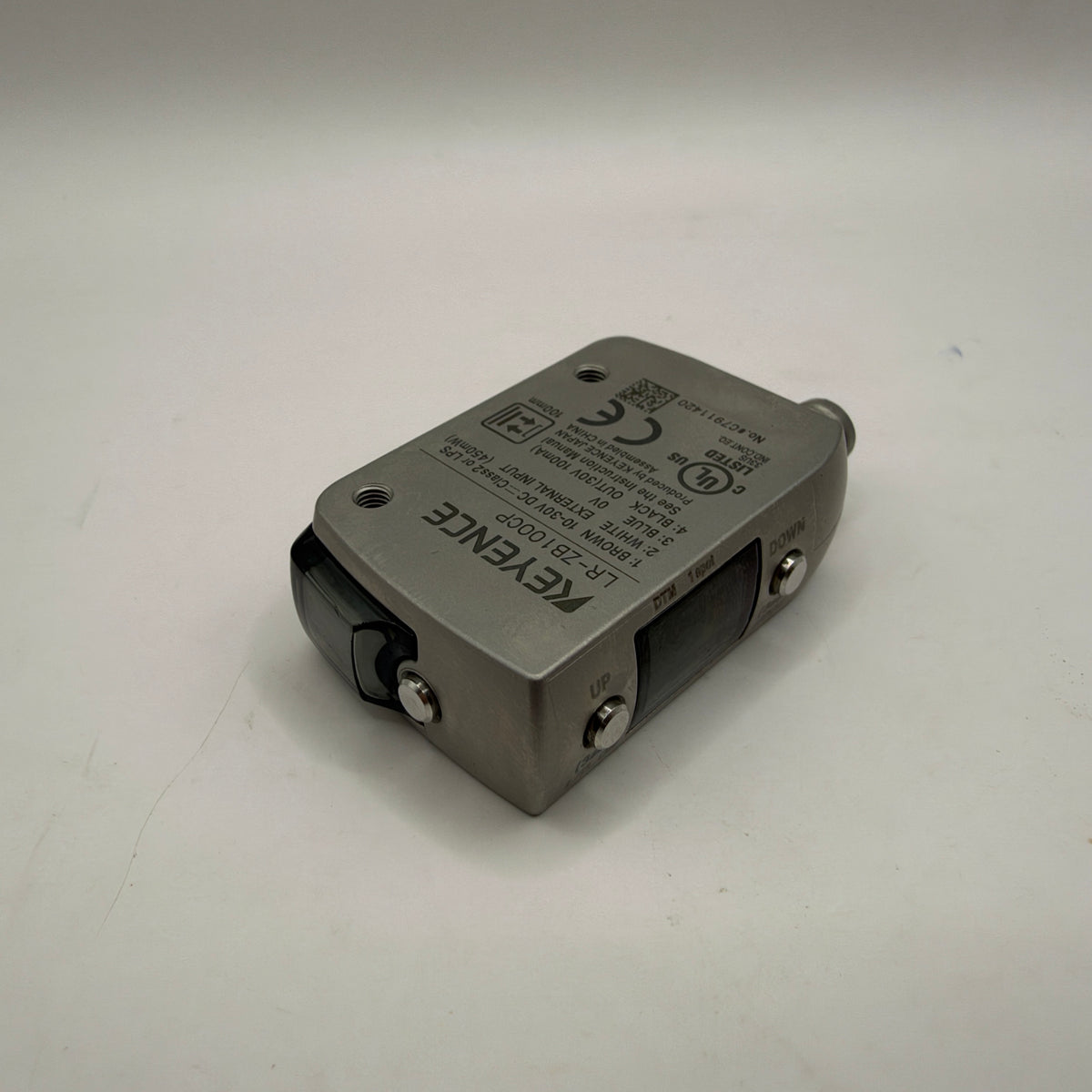

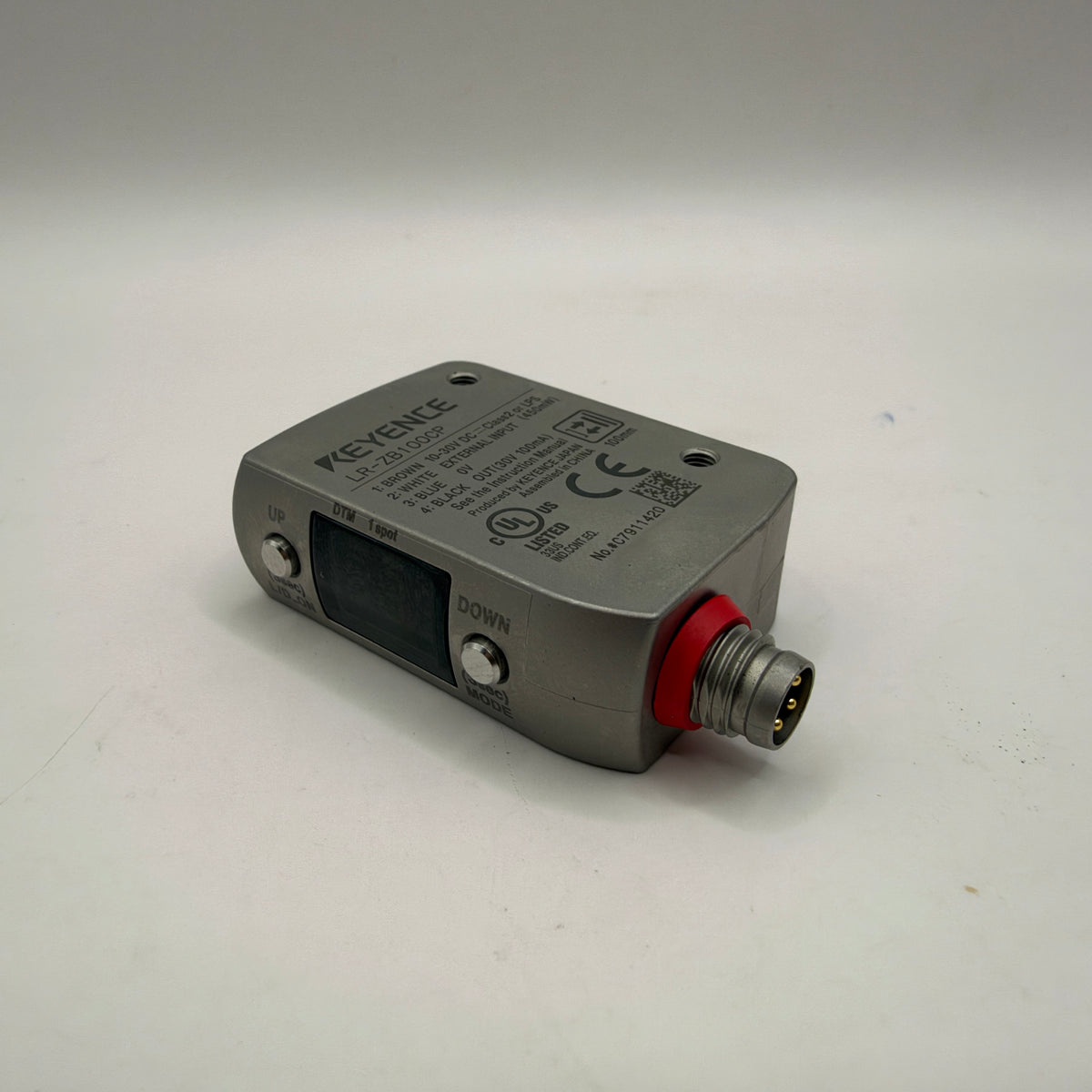

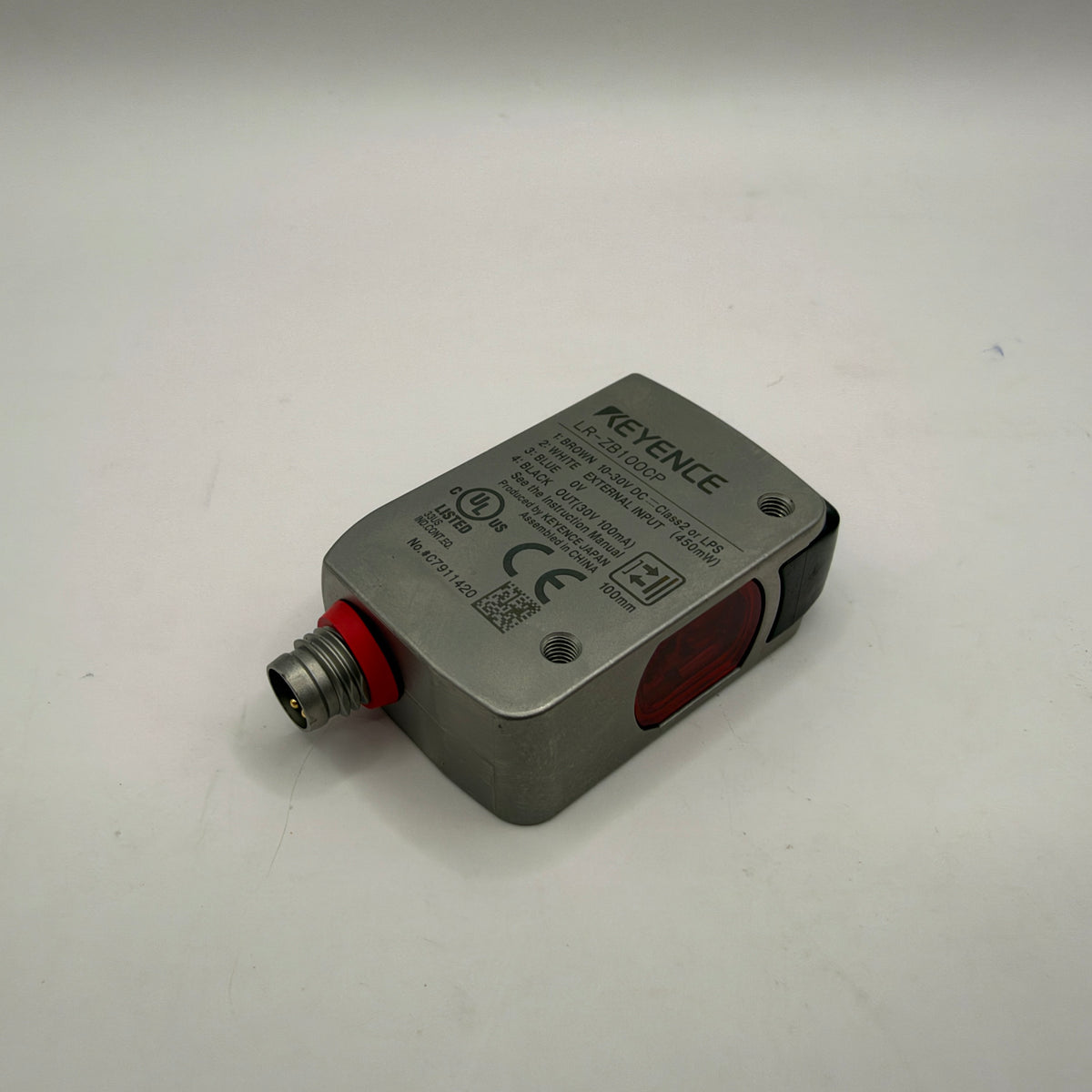

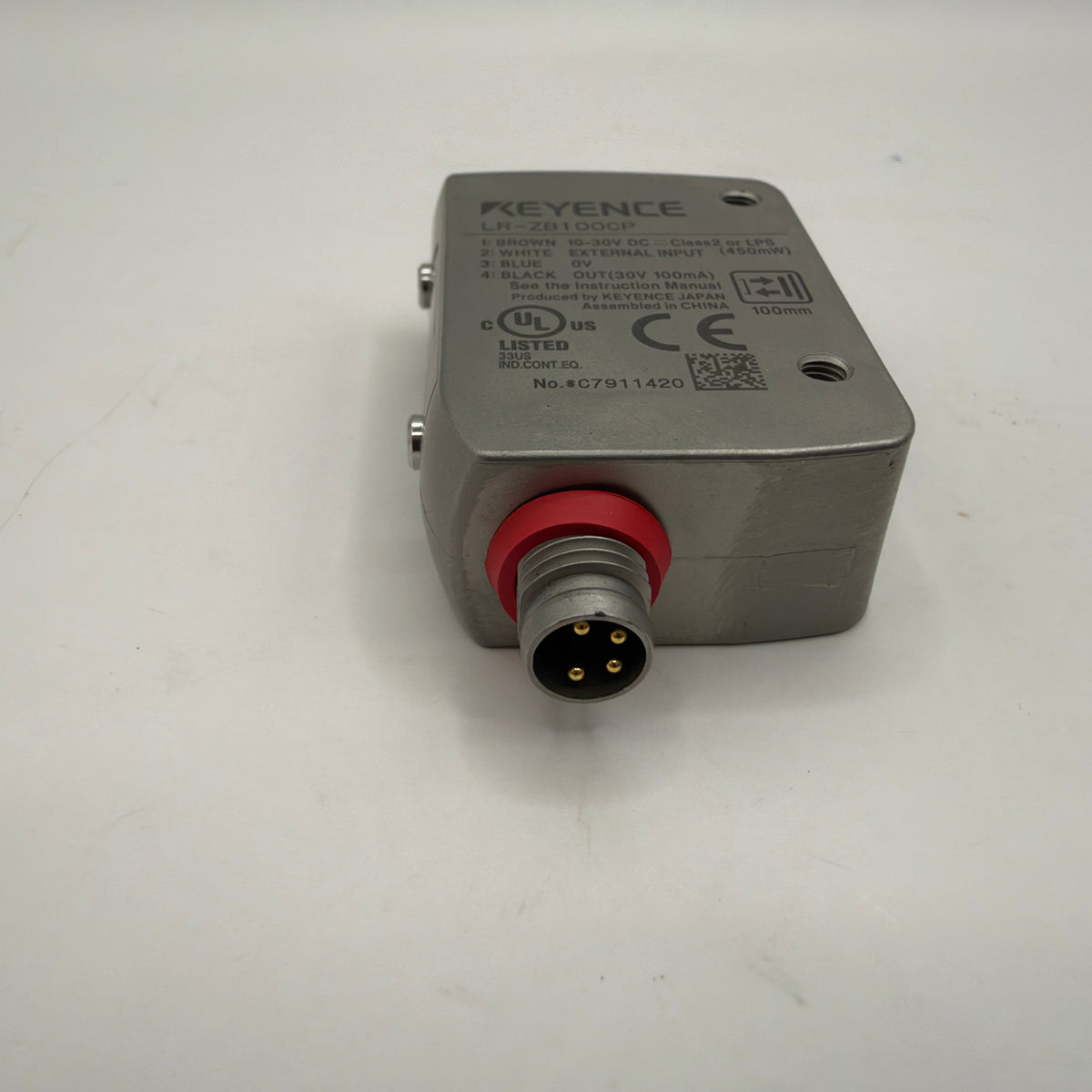

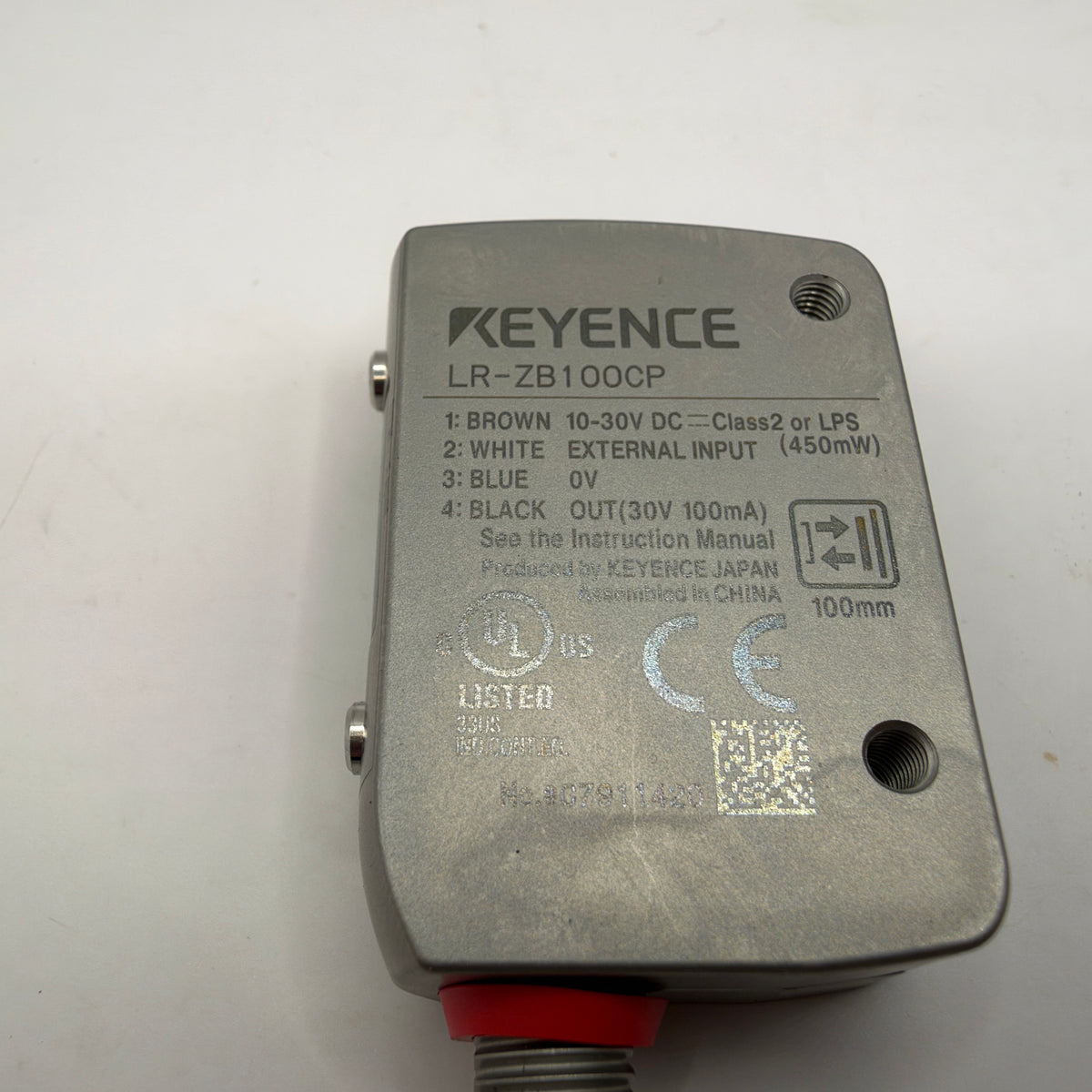

KEYENCE LR-ZB100CP self-contained CMOS laser distance sensor from the LR-Z Series, designed for reliable object detection in industrial automation applications.

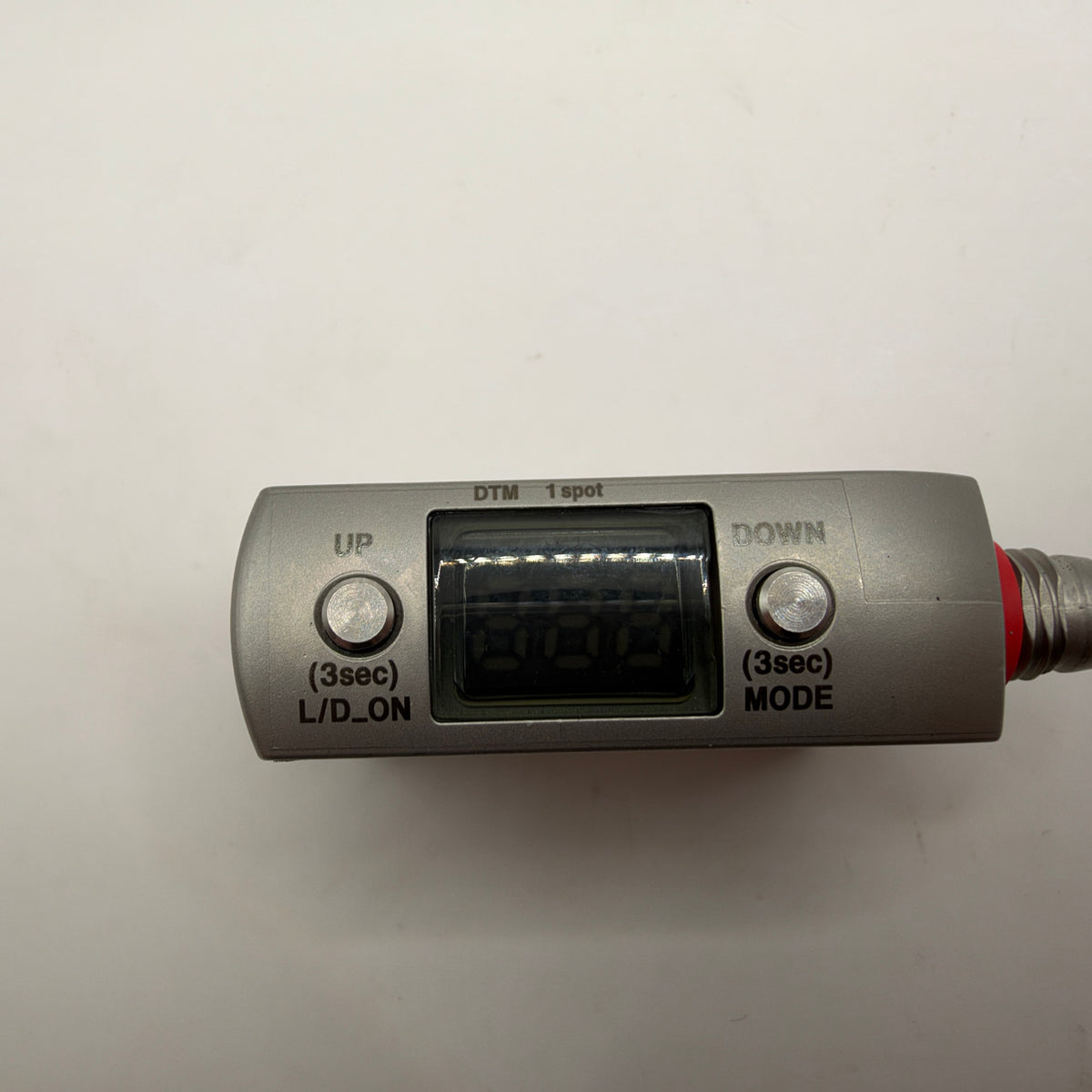

The sensor uses distance-based detection with a Class 1 red laser and features a rugged SUS316L stainless-steel housing, integrated digital display, and M8 4-pin connection.
Technical specifications:
- Manufacturer: KEYENCE
- Model / MPN: LR-ZB100CP
- Series: LR-Z
- Type: Distance-based CMOS laser sensor
- Output: PNP open collector
- Detectable distance: 35–100 mm
- Display resolution: 0.2 mm
- Light source: Red laser, 660 nm
- Laser class: Class 1
- Spot size: Approx. 2 × 1 mm at 100 mm
- Response time: 1.5 ms / 10 ms / 50 ms selectable
- Supply voltage: 10–30 VDC
- Power consumption: 450 mW or less
- Control output: 30 VDC max., 100 mA max.
- Output operation: Light-ON / Dark-ON selectable

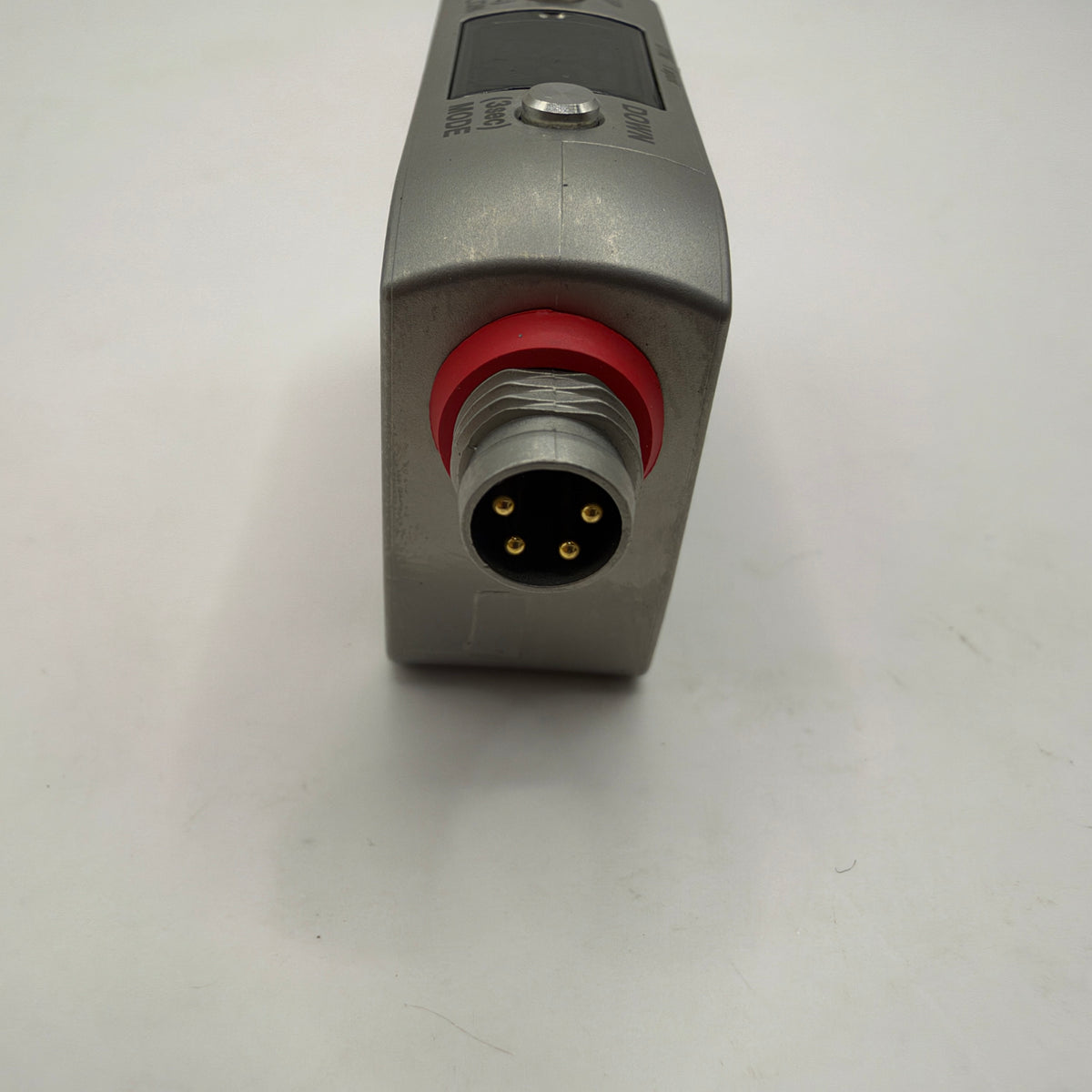

- Connection: M8, 4-pin
- Enclosure rating: IP68 / IP69K
- Housing: SUS316L stainless steel
- Operating temperature: -10 to +50°C
- Country of manufacture: China
Used, fully functional.
Packed and dispatched within 1 working day of cleared payment. Worldwide delivery via DHL Express, typically 2–7 working days.
Import duties, taxes and customs fees are the buyer's responsibility. Tracking is provided on dispatch.
