SICK GTB10-P7211, Part No. 1068091, photoelectric proximity sensor from the G10 series.
The GTB10-P7211 uses background suppression for reliable object detection and features a maximum sensing range of 20–950 mm. A visible red PinPoint LED provides a precise light spot, while the sensing distance can be adjusted using a 5-turn potentiometer.
The sensor operates from 10–30 V DC and provides a PNP switching output with selectable light/dark switching. Maximum output current is 100 mA, with a response time of up to 500 µs and switching frequency of 1,000 Hz.

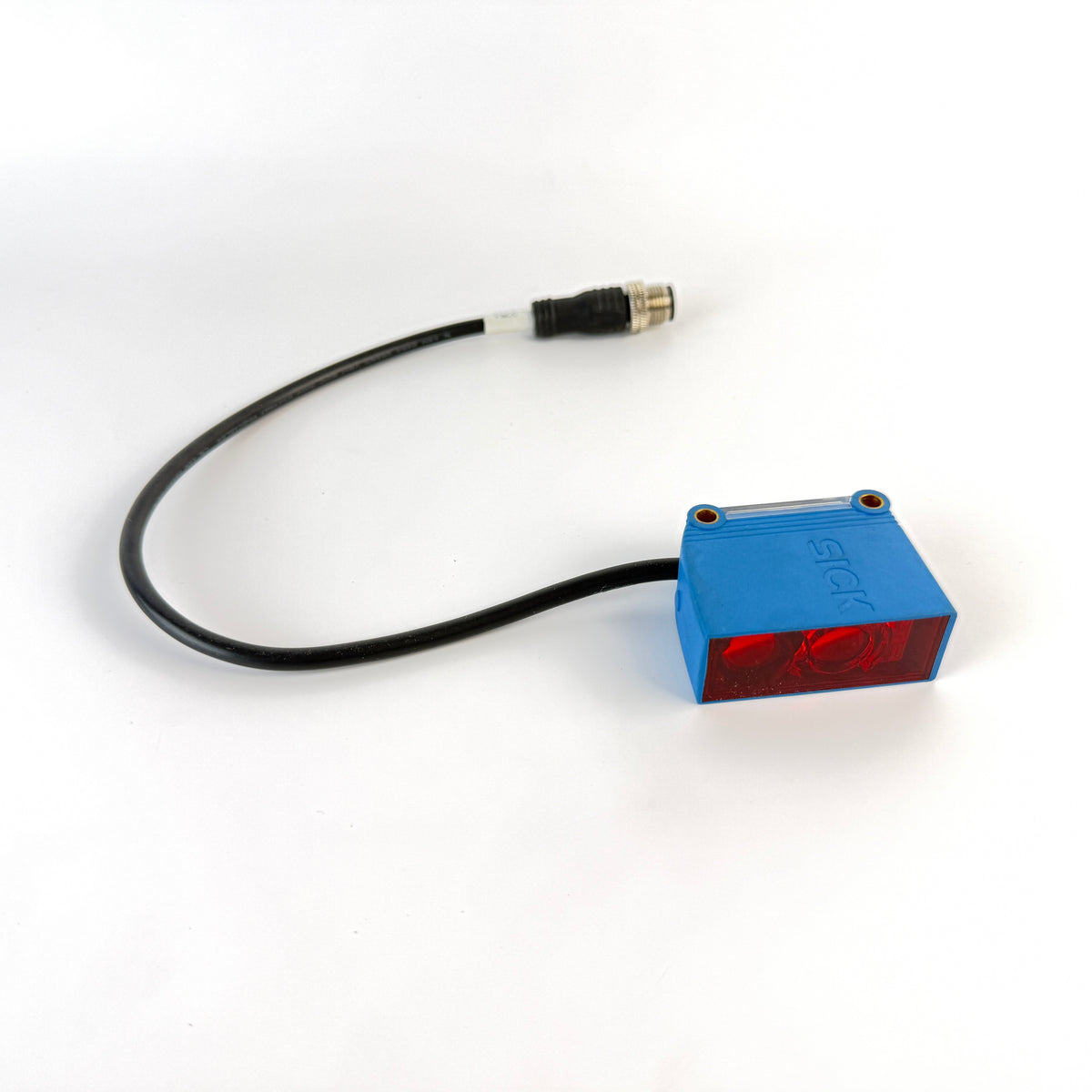

Electrical connection is via a 300 mm cable with 4-pin M12 male connector. The compact rectangular ABS/PMMA housing is rated IP67.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | SICK |
| Part Number | 1068091 |
| Model | GTB10-P7211 |
| Series | G10 |
| Sensor Type | Photoelectric proximity sensor |
| Detection Principle | Background suppression |
| Sensing Range Max. | 20–950 mm |
| Light Source | PinPoint LED |
| Light Type | Visible red |
| Wavelength | 625 nm |
| Light Spot | Ø 8 mm at 700 mm |
| Adjustment | 5-turn potentiometer |
| Output | PNP |
| Switching Mode | Light / dark selectable |
| Supply Voltage | 10–30 V DC |
| Current Consumption | 20 mA |
| Max. Output Current | ≤100 mA |
| Response Time | ≤500 µs |
| Switching Frequency | 1,000 Hz |
| Connection | 300 mm cable + M12 male, 4-pin |
| Protection Rating | IP67 |
| Protection Class | III |
| Housing Material | ABS / PMMA |
| Dimensions | 20 × 50 × 39 mm |
| Weight | 70 g |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -40°C to +70°C |
Package Contents

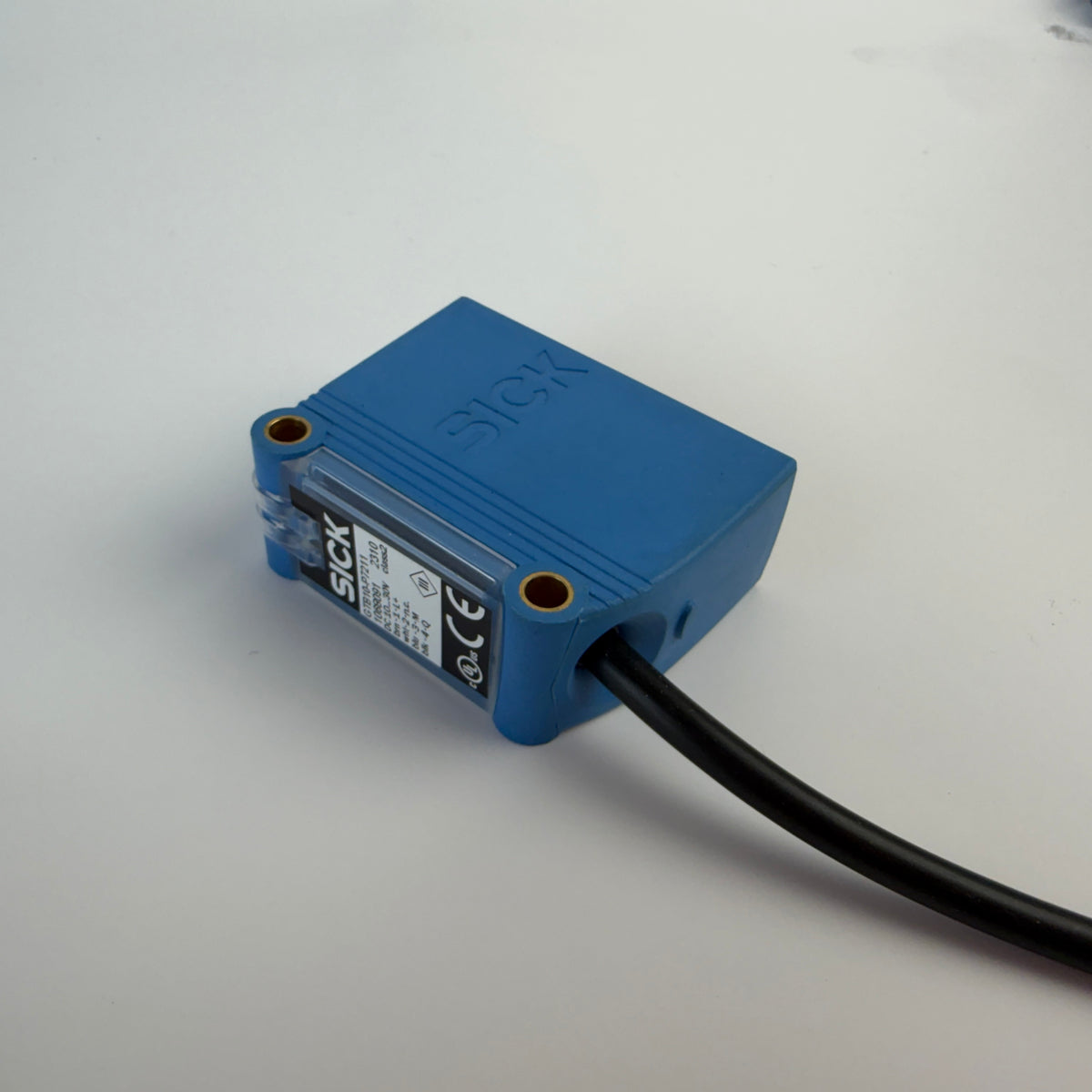

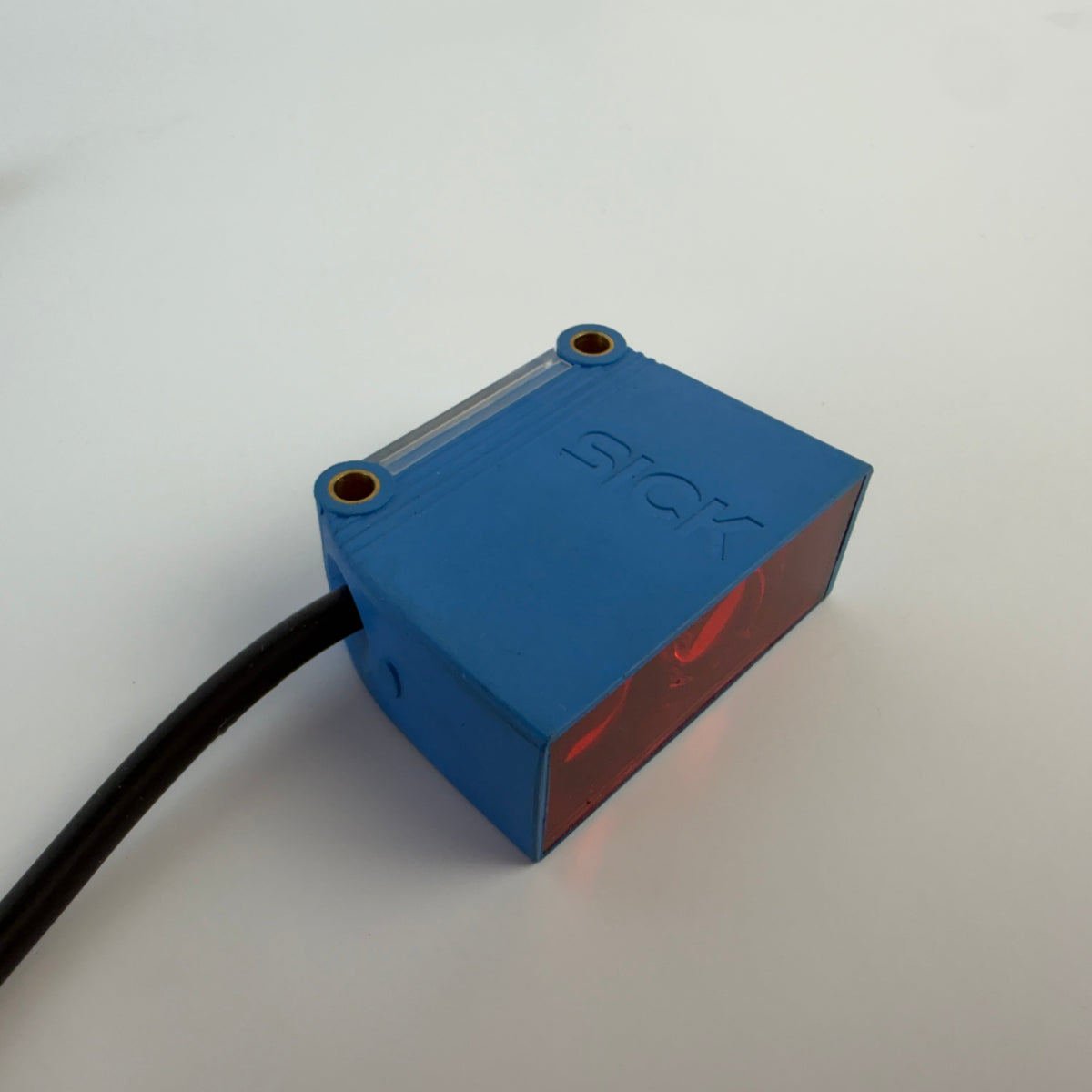

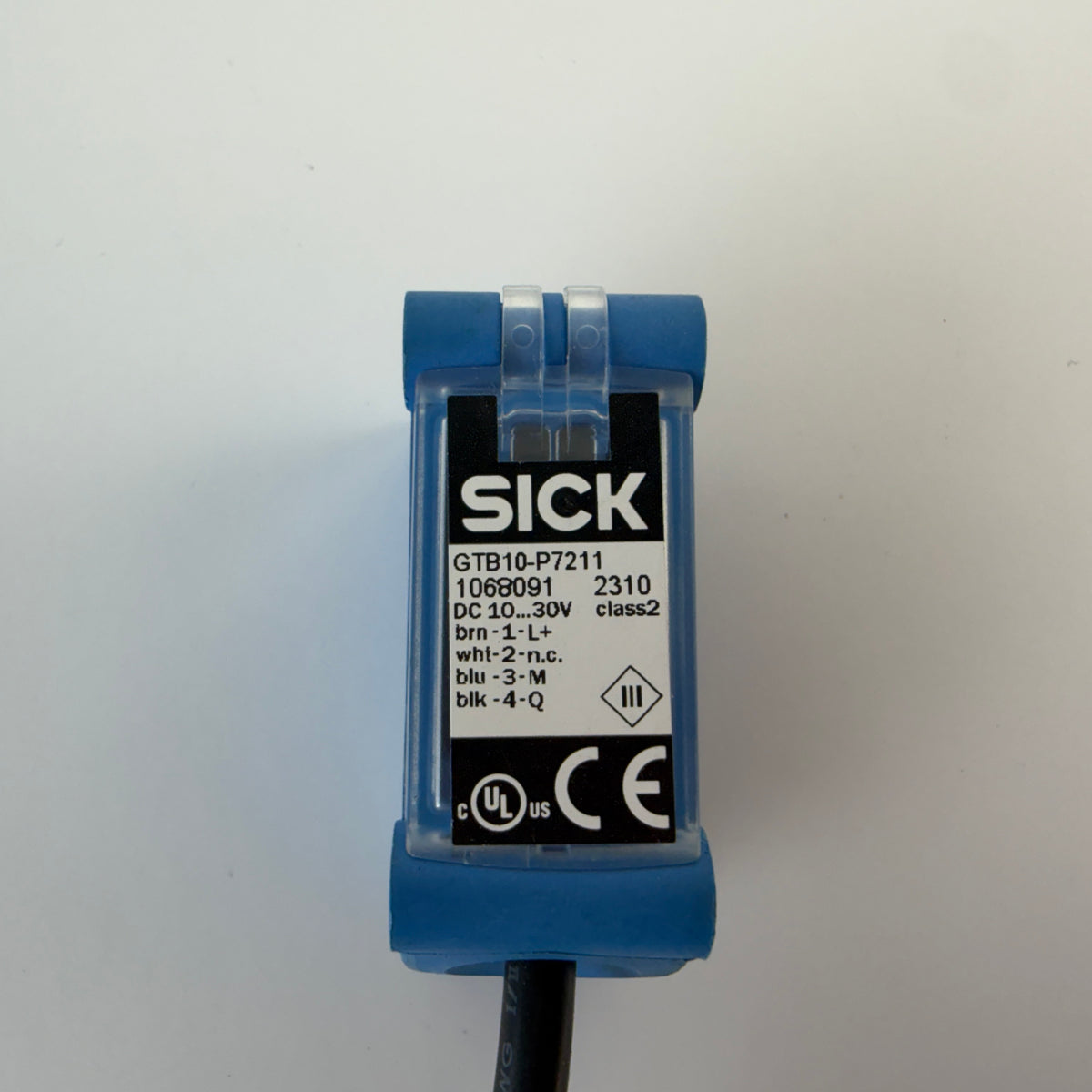

1× SICK GTB10-P7211 sensor, as shown in the photos.
